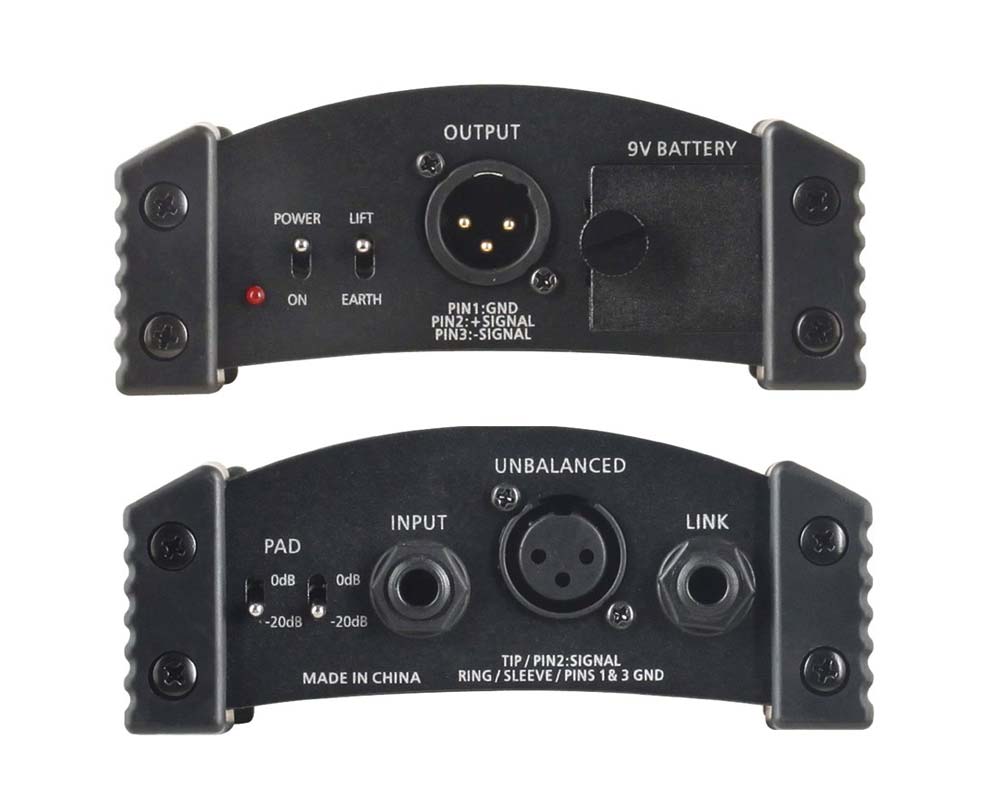

TDI-A2

Active Direct Box

1/4″ TRS or XLR

Power source: 9V Battery or 48V Phantom Power

    Consultar precios

    ⓘ PRECIOS SIN IVA

    Descripción

    Especificaciones

    Model TDI-A2 ACTIVE DI BOX
    Inputs 1/4″ mono jack connector (Top hot, sleeve ground) or 3-pin XLR connector (pin 2 hot, pins 1-3 ground, unbalanced parallel link output 1/4″ jack connector for feeding to other equipment or via buffer amplifier
    Attenuator At 0dB / At 20dB
    Impedance 1M Ohm / 47K Ohm
    Max. Input Level +13dB / +33dB
    Outputs 3-pin connector, transformer balanced output, will drive lines from 600ohm upwards. Maximum output level clip greater than +6dBu with battery or Phantom supply.
    Frequency Response 10Hz to 30KHz, ±1dB
    Noise -108dBu “unweighted”
    THD Less than 0.02% a 1KHz, 0dBu Output
    “Phantom Power” power requeriments +20V DC to +48V DC
    Current Drain “Phantom power” less than 8mA, Battery less than 2mA
    Dimensions 130 x 127 x 45mm
    Weight 0.6Kg
