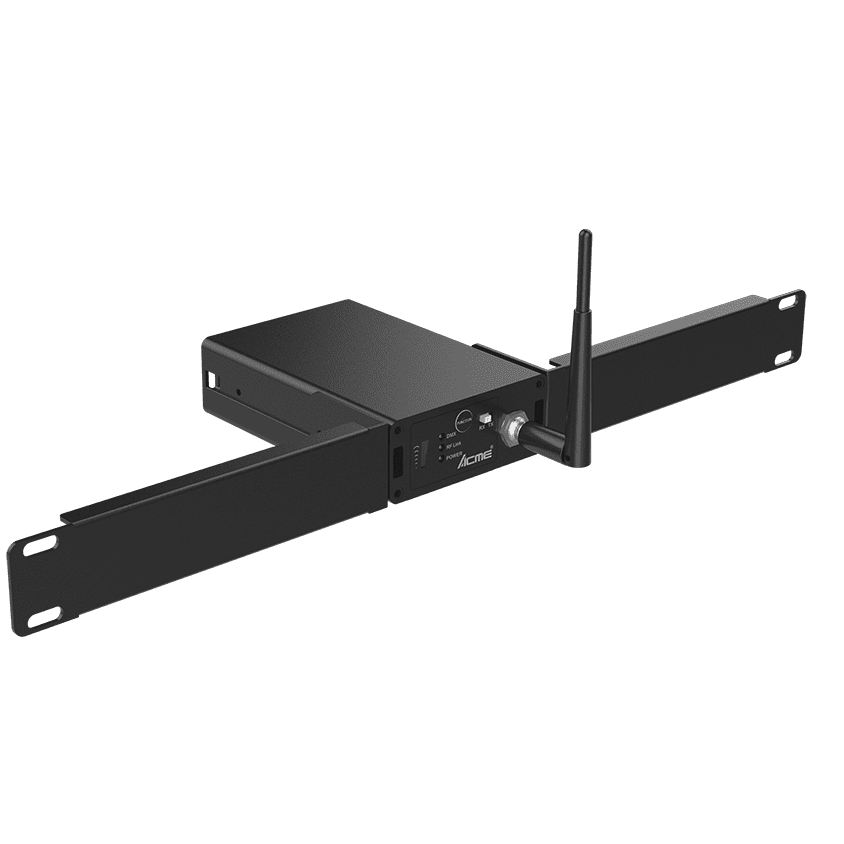

WIRELESS DMX TRANSCEIVER LR512

ACME
SKU: XP-LR512 RT-new

WIRELESS DMX TRANSCEIVER LR512 is a flexible product, it can be switched either as a emitter or a receiver. It supports one DMX universe of up to 512 channels with maximum refresh rate.

The WIRELESS DMX TRANSCEIVER LR512 brings you all the advanced wireless features such as Automated Cognitive Coexistence, DMX fidelity, lowest latency in the industry at 5ms, 128 bit encryption and so on, which provides much flexibility for both wireless and wired DMX. Multiple WIRELESS DMX TRANSCEIVER LR512 units in transmitter mode can be combined to transmit several DMX universes, allowing for easy system expansion. The WIRELESS DMX TRANSCEIVER LR512 is compatible with all other ACME wireless product.

WIRELESS DMX TRANSCEIVER LR512 utilizes the international license free ISM band on 2.4GHz.

    Consultar precios

    Descripción



    Model

    • Model Name: WIRELESS DMX TRANSCEIVER LR512
    • Model Code: XP-LR512 RT

    Other Effects

    • Operational frequency range: 2402~2480 Mhz
    • Output power levels: 300mW (25dBm) (only allowed in North America), 100mW (20dBm), 50mW (17dBm), 10mW(10dBm)
    • Tested link range: up to 1,000 meters line-of-sight

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 5W
    • Data In/Out: 3-pin or 5-pin XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 145 mm (5.7″)
      • Depth: 100 mm (3.9″)
      • Height: 42 mm (1.7″)
      • Weight: 0.5 kg (1.1 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 315 mm (12.4″)
      • Depth : 310 mm (12.2″)
      • Height : 435 mm (17.1″)
      • Weight :
        G.W.: 7.7 kg (17.0 lbs) (Eight-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Included Items

    • Digital user manual
    • Power cable

    Optional Accessories (With Order Code)

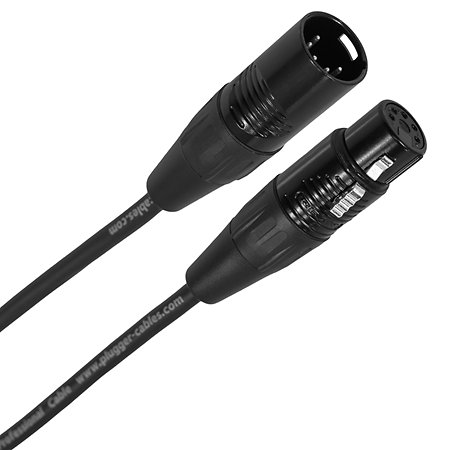

    • Signal Cable: 3-pin or 5-pin signal cable















    Descargas


    WIRELESS DMX TRANSCEIVER LR512 Descargas Enlace
