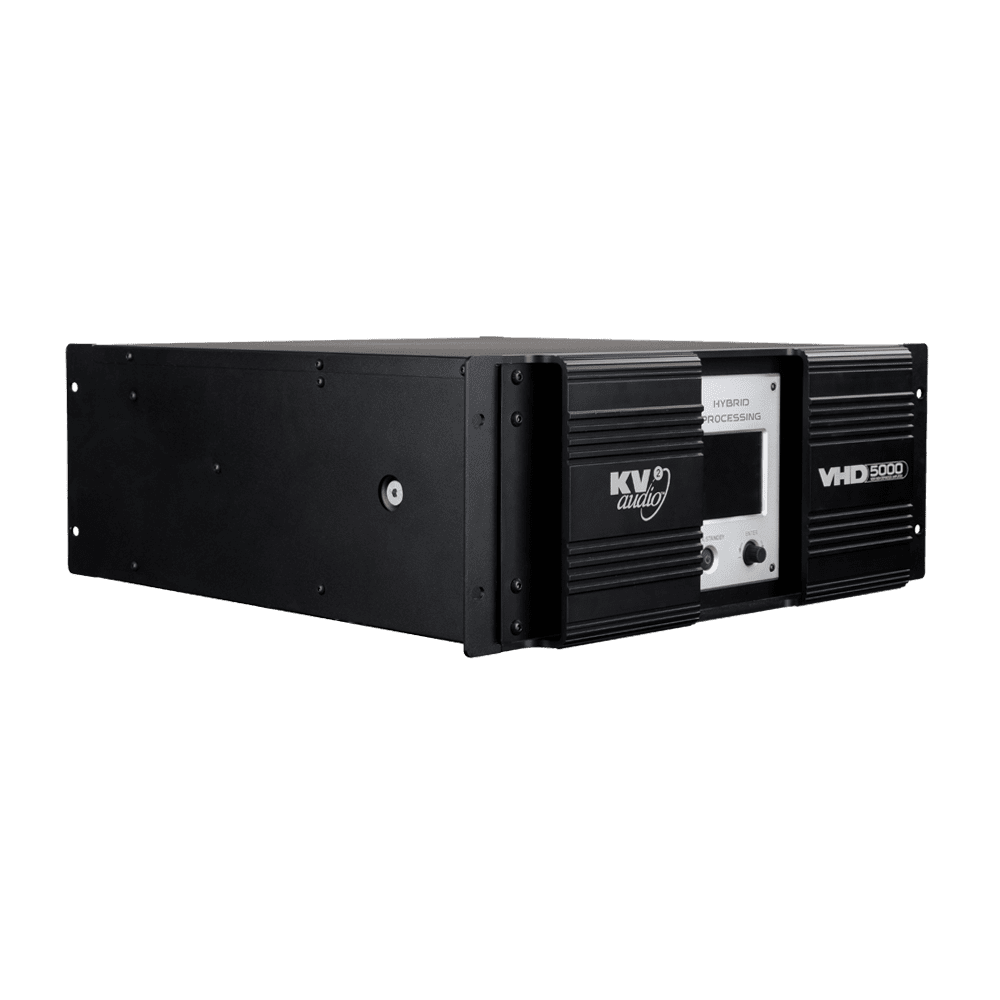

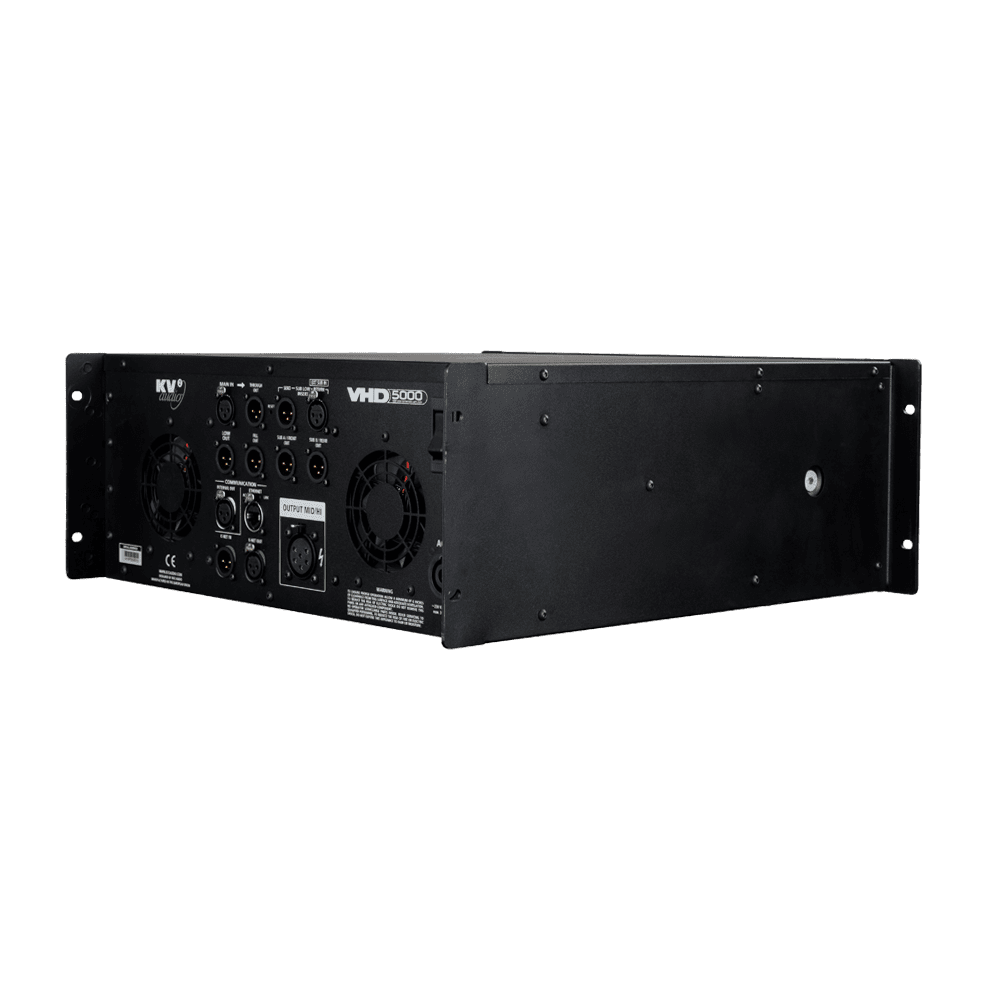

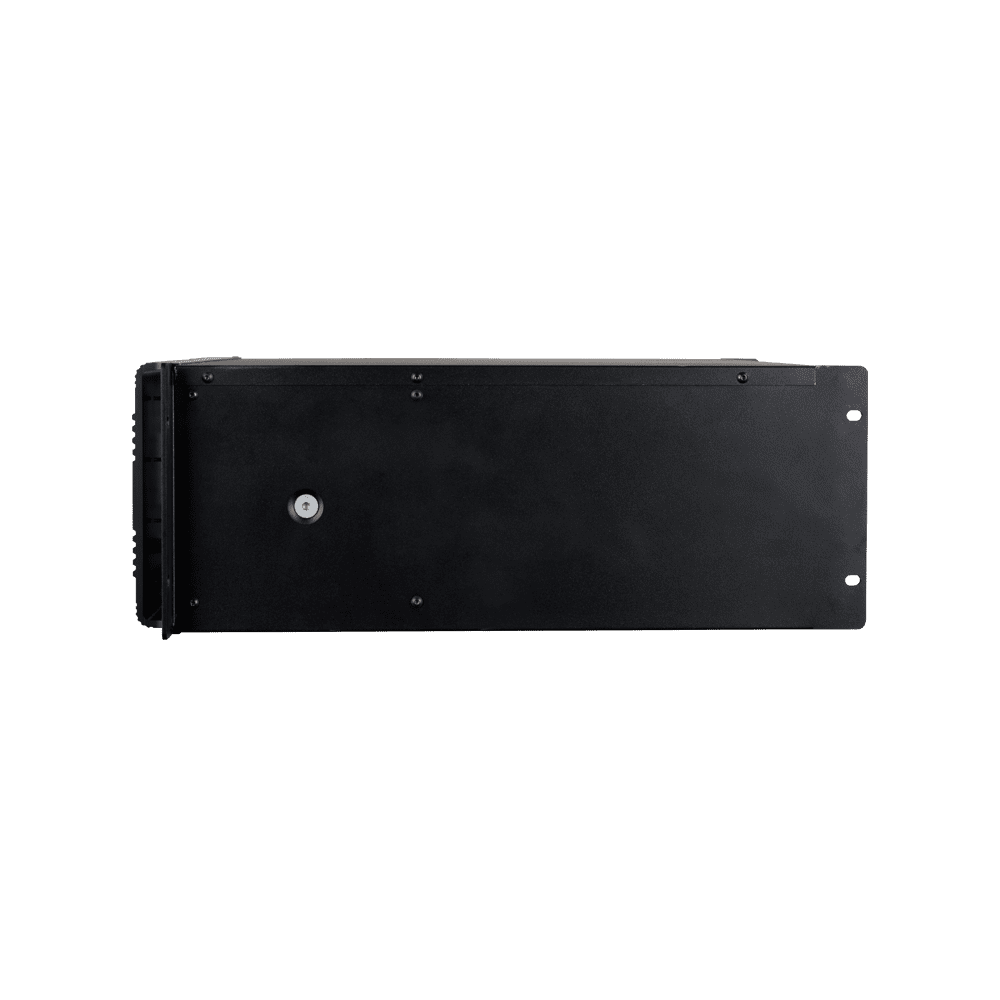

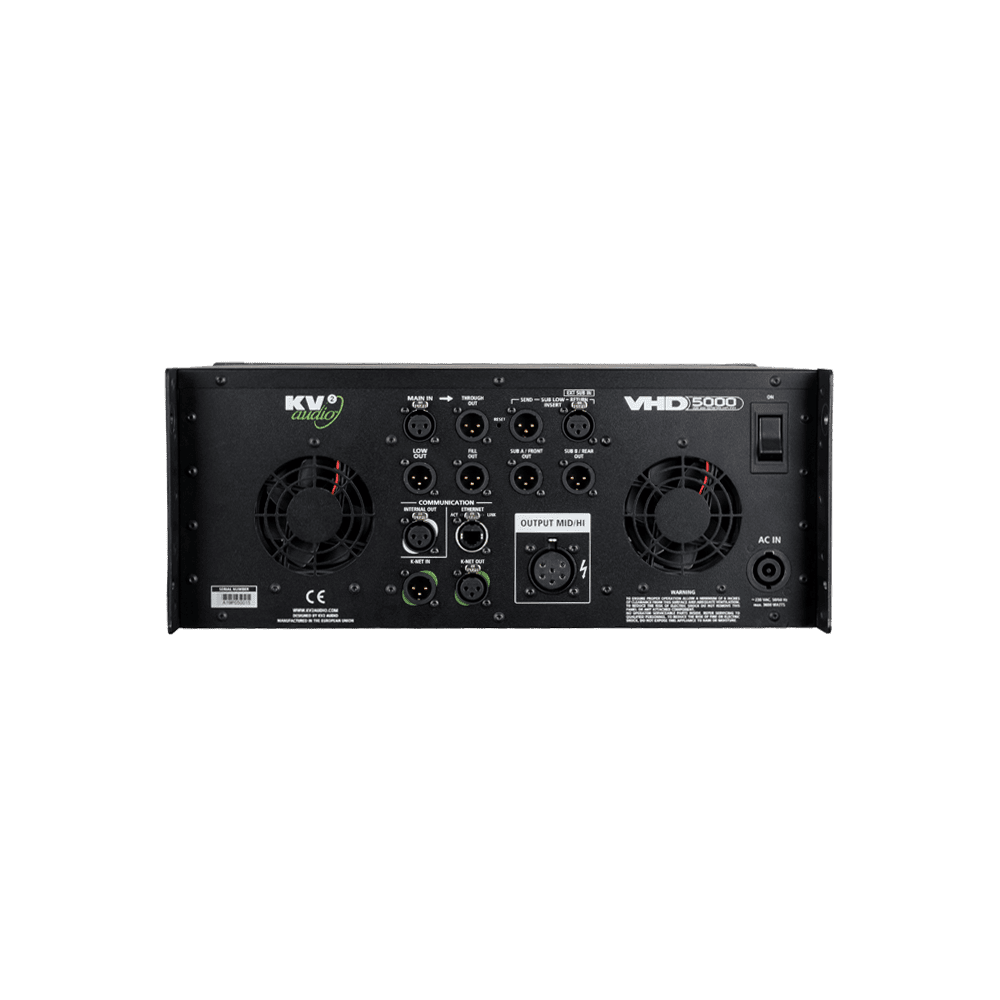

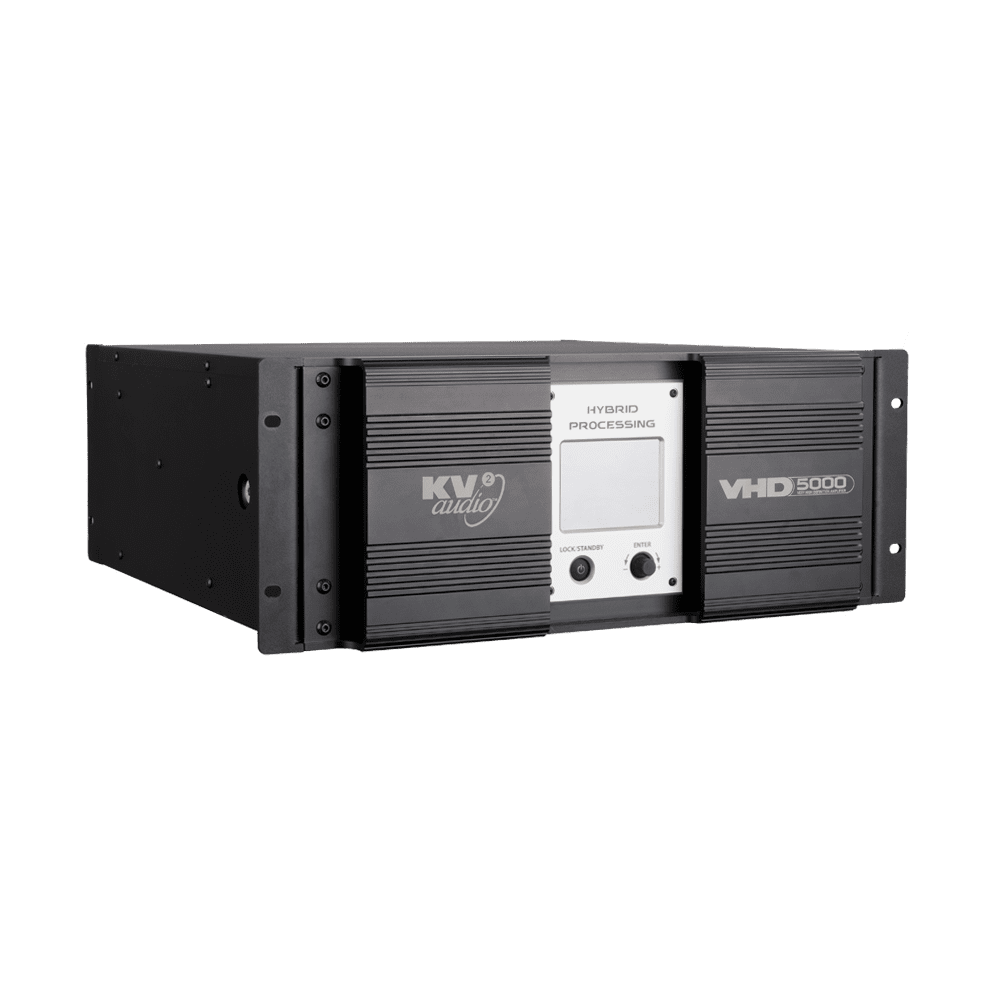

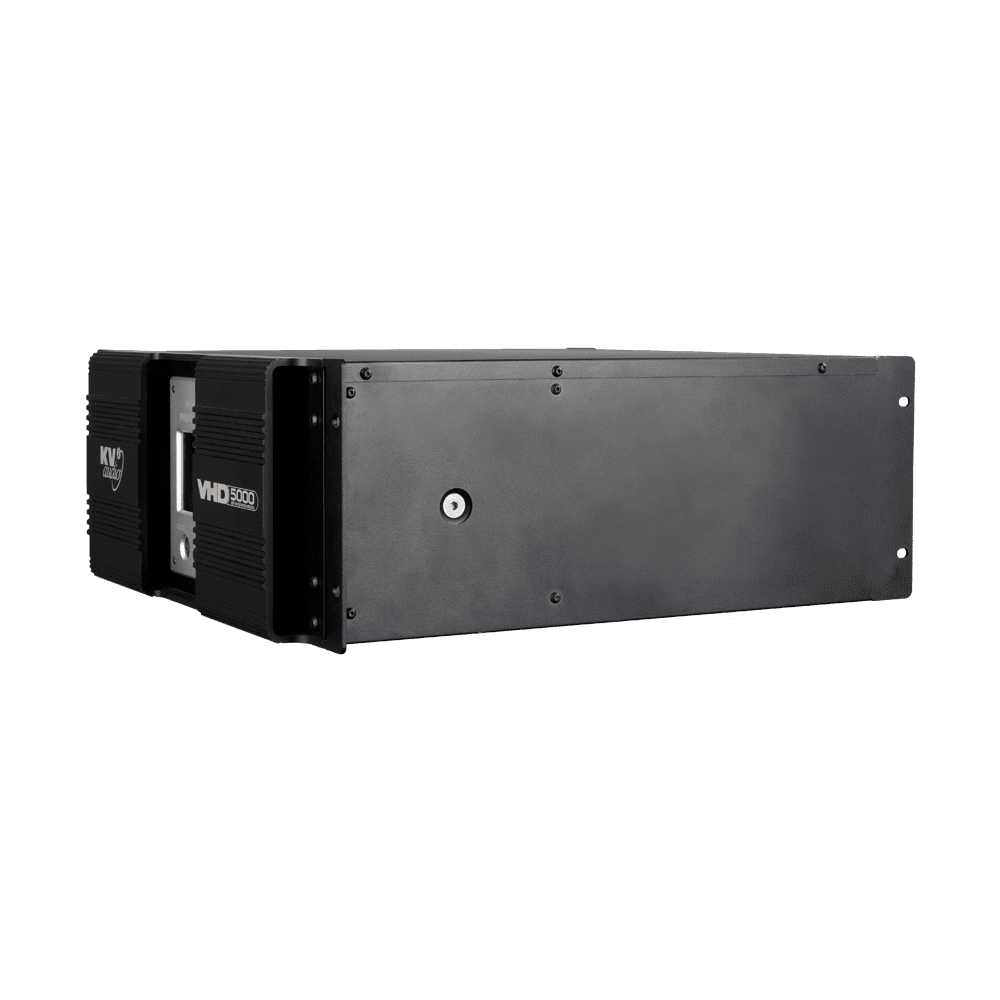

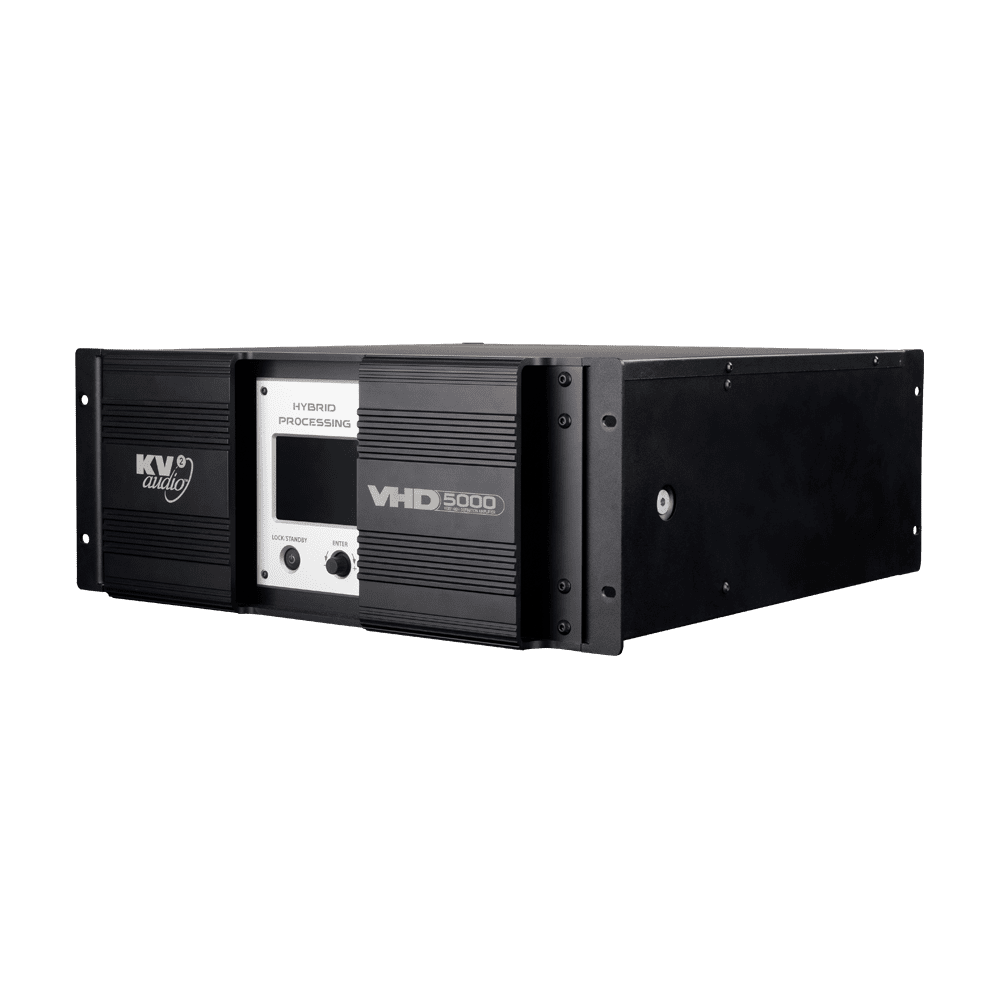

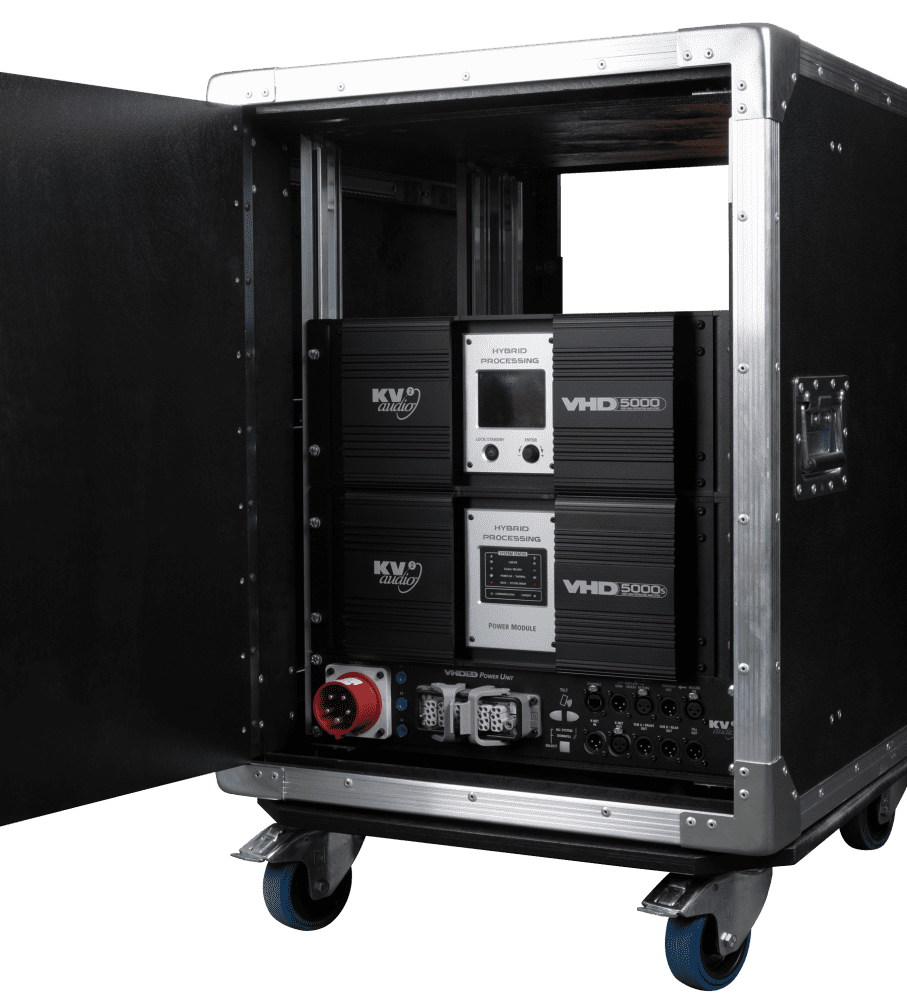

VHD5000

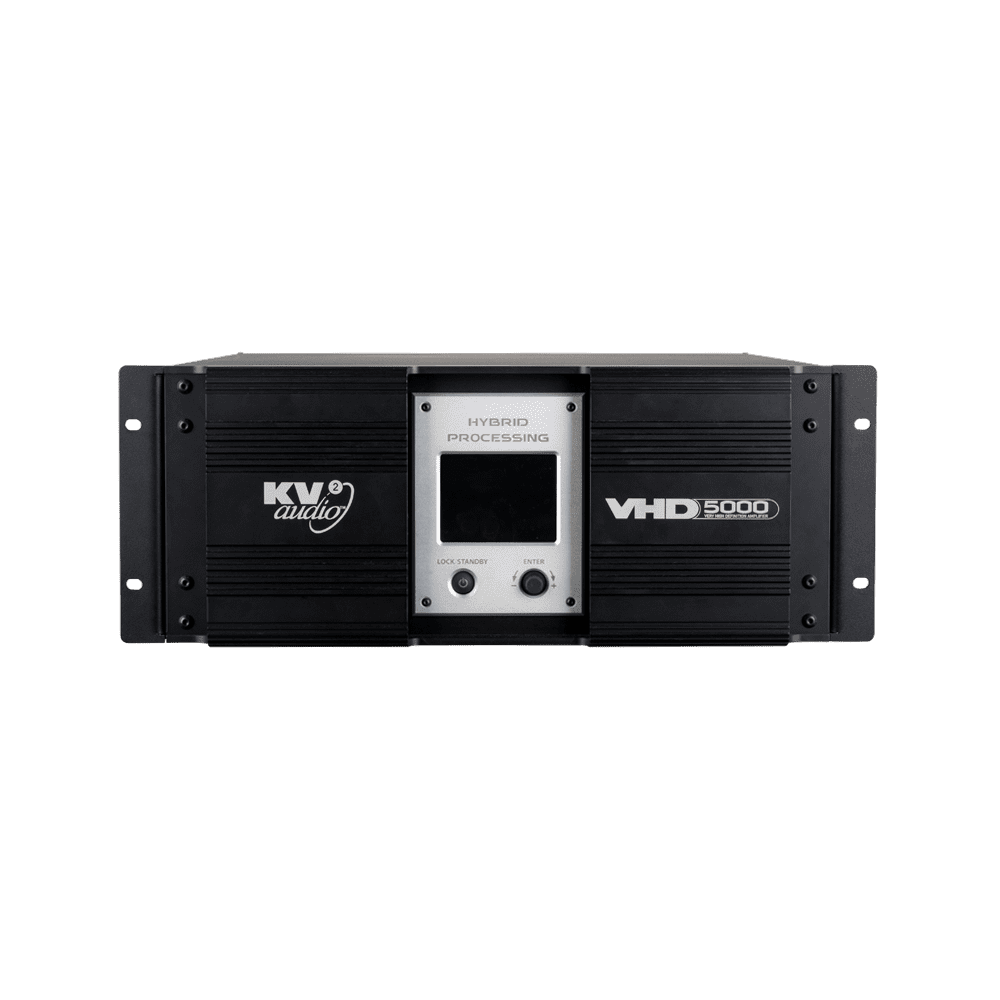

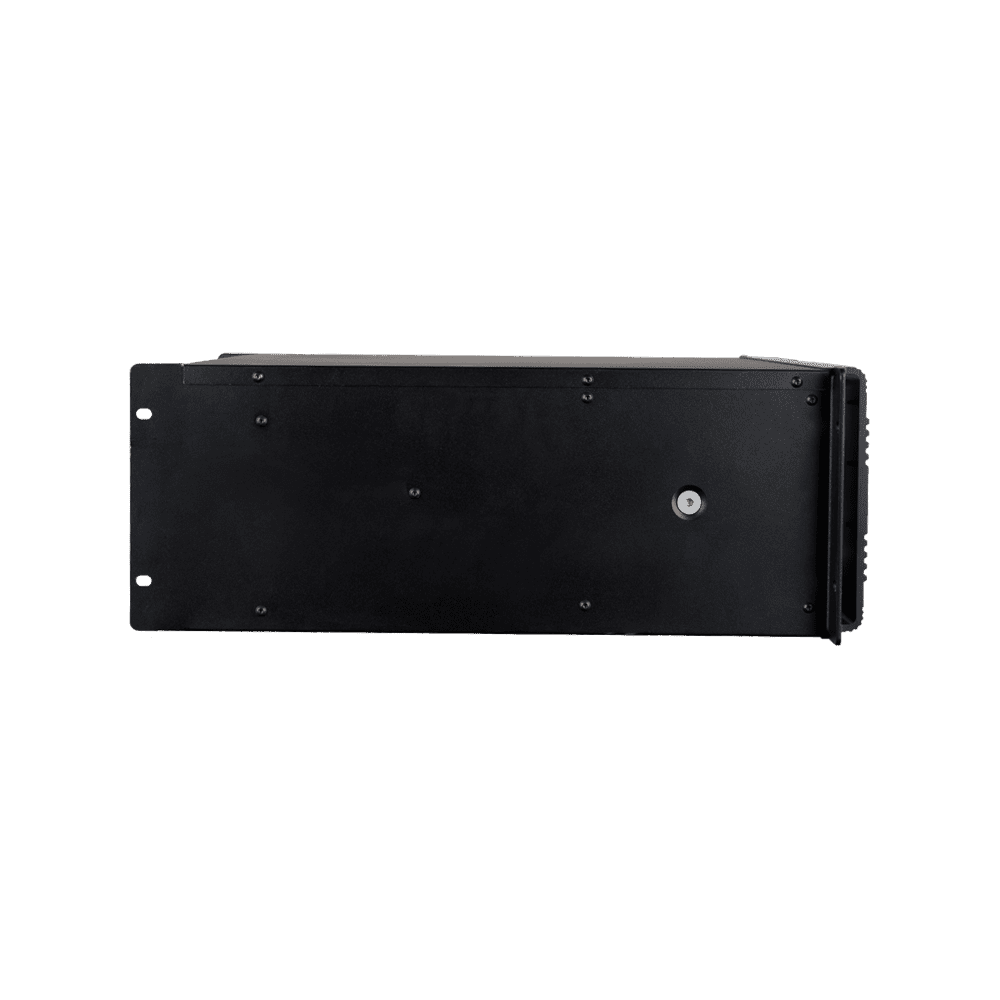

Active control and amplification unit specifically designed in conjunction with VHD5000S for powering the VHD5 loudspeaker system. The VHD5000 is equipped with many features for easy large scale speaker system use. It features all signal processing, crossover and speaker system protection. All signal processing is executed with KV2 Audio Super Audio Analog circuitry and utilize KV2’s industry leading 20MHz sampling for on board time alignment and phase correction for maximum audio quality. The VHD5000 is equipped with multiple delay lines, wideband delay line for VHD5 system delay, ll output delay and two low frequency delay lines for subwoofers.
Applications
Specifically designed as the amplification and control for the 1xMid/Hi VHD5.0 part loudspeaker systems with adjacent VHD5000S in a rack mount modules
- Large scale Portable PA
- Fixed installations
- Large clubs
Product code
KVV 987 334
Descripción
Active control and amplification unit specifically designed in conjunction with VHD5000S for powering the VHD5 loudspeaker system. The VHD5000 is equipped with many features for easy large scale speaker system use. It features all signal processing, crossover and speaker system protection. All signal processing is executed with KV2 Audio Super Audio Analog circuitry and utilize KV2’s industry leading 20MHz sampling for on board time alignment and phase correction for maximum audio quality. The VHD5000 is equipped with multiple delay lines, wideband delay line for VHD5 system delay, ll output delay and two low frequency delay lines for subwoofers.
Features
The Main input, fill output and subwoofer outputs are equipped with phase reverse and set level features. The VHD5000 input is “Line Driver Ready”, it has an input signal impedance selector switch, (10kOhm and 120Ohm) to match up low impedance signal source when driving long signal cables. In most cases it would be advisable to use a VHD LD4 Line Driver in addition at the mixer outputs, to ensure that the line to the amplifier is driven correctly and the signal integrity maintained.
The VHD5000 also features long distance eq, high frequency recovery and a signal generator. The amplifier is equipped with multiple network possibilities for easy remote control operation from networked amplifiers or website applications.
Applications
Specifically designed as the amplification and control for the 1xMid/Hi VHD5.0 part loudspeaker systems with adjacent VHD5000S in a rack mount modules
- Large scale Portable PA
- Fixed installations
- Large clubs
Product code
KVV 987 334
Configurations
VHD5 – A
VHD5 – B
VHD5 – CVHD5 – A
Description
The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.
One side of the full system with three VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill. Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
Products
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 3 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5.1 Downfill | MID-HI |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
| 1 | VHD5 Downfill bracket | VHD5 Downfill bracket |
Images
VHD5 – B
Description
The VHD5 is a Constant Power Point Source System designed for large audiences, extremely long throw and intended to be flown at a minimum height of 10 metres.
One side of the full system with two VHD8.10 Low Mid modules and one VHD5.0 Mid Hi. Amplification provided by two rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid.
Everything is distributed by a single multicable through the Power Unit. With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
Products
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 3 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
Images
VHD5 – C
Description
The VHD5 is a Constant Power Point Source System designed for large audiences, long throw and intended to be flown at a minimum height of 10 metres.One side of the full system with two VHD8.10 Low Mid modules, one VHD5.0 Mid Hi and a VHD5.1 downfill.
Amplification provided by three rack amplifiers: VHD5000 for Mid-Hi, VHD5000S for Low Mid, and VHD5100 for downfill. Everything is distributed by a single multicable through the Power Unit.
With KV2’s flying systems, all of the internal flyware is pre-configured for each box and does not require any adjustments or changes of angles in the field. In addition there is an innovative remote controlled motorised Flybar that allows the whole system, once hung, to be rotated / panned or tilted at the simple push of a button.
Products
| Count | Product | Type |
|---|---|---|
| 1 | VHD5.0 Mid Hi | MID-HI |
| 2 | VHD8.10 Low Mid | Low Mid |
| 1 | VHD5.1 Downfill | MID-HI |
| 1 | VHD5000 | Amplifier |
| 1 | VHD5000S | Amplifier |
| 1 | VHD5100 | Amplifier |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | VHD5 Power unit | VHD5 Power unit |
| 1 | VHD5 Tilt flybar | VHD5 Tilt flybar |
| 1 | VHD5 Pan flybar | VHD5 Pan flybar |
| 1 | VHD5 Multicable | VHD5 Multicable |
| 1 | VHD5 Extension cable | VHD5 Extension cable |
| 1 | VHD5 Downfill bracket | VHD5 Downfill bracket |
Images
Accesories
VHD5 Power unitVHD5 Power unit
Gallery
Product code
KVV 987 363
Description
VHD5.0 dedicated Power Unit
Downloads
VHD5 Power unit 3D DWG
VHD5 Power unit 3D DWG
VHD5 Power unit SKP
VHD5 Power unit SketchUp
Output Channels
| Number of Channels | 1x VHD5.0 |
High Frequency Amplifier Specification
| Type | Class AB Push-Pull low IM Mosfet design, transformer balanced output |
| Rated Continuous Power | 300W |
| Distortion | < 0.02% |
| Operating Bandwidth | 2kHz to 30kHz |
High Frequency Amplifier 2 Specification
| Type | High Efficiency, High Power Bandwidth |
| Rated Continuous Power | 600W |
| Distortion | < 0.05% |
| Operating Bandwidth | 2kHz to 30kHz |
Mid Frequency Amplifier Specification
| Type | High Efficiency, High Power Bandwidth |
| Rated Continuous Power | 1500W |
| Distortion | < 0.05% |
| Operating Bandwidth | 450Hz to 2kHz |
Signal Input
| Input Channels | XLR |
| Input Sensitivity | 1.55V RMS |
| Input Impedance | 10kΩ to 120Ω “Line driver ready” |
Signal Output
| Signal Output Channels | Through, Low, Sub A B, Fill, Insert |
Speaker Output
| Speaker Output | AP6 |
Features
| Input Level Control | -20 / +3dB |
| Hi Level Control | -6 / +4dB |
| Mid Level Control | fixed |
| Low Level Control | -6/ +6dB |
| Subwoofer Level Control | -20 / +10dB |
| Downfill Level Control | -54 / + 6dB |
| Indicators | 5.7″ sunlight readable color display |
| Remote control | Ethernet |
Power Requirements
| Power Connector | 1x Neutrik PowerCon® 32A |
| Operating Voltage | 230V |
| Operating Voltage Range | 195 to 260V AC |
| Recommended Amperage | 20A 205V | 16A 230V |
| Soft Start | Yes |
| Protection | Thermal breaker |
| Cooling | Front-to-back, active |
Physical Dimensions
| Height | 177.8 mm (7.0″), 4HE |
| Width | 481.4 mm (18.95″) |
| Depth | 495 mm (19.5″) |
| Weight | 36 kg (80lbs) |
Product code
KVV 987 334
