VHD4.18 – VHD Subwoofer Enclosure

KV2AUDIO
SKU: VHD4.18

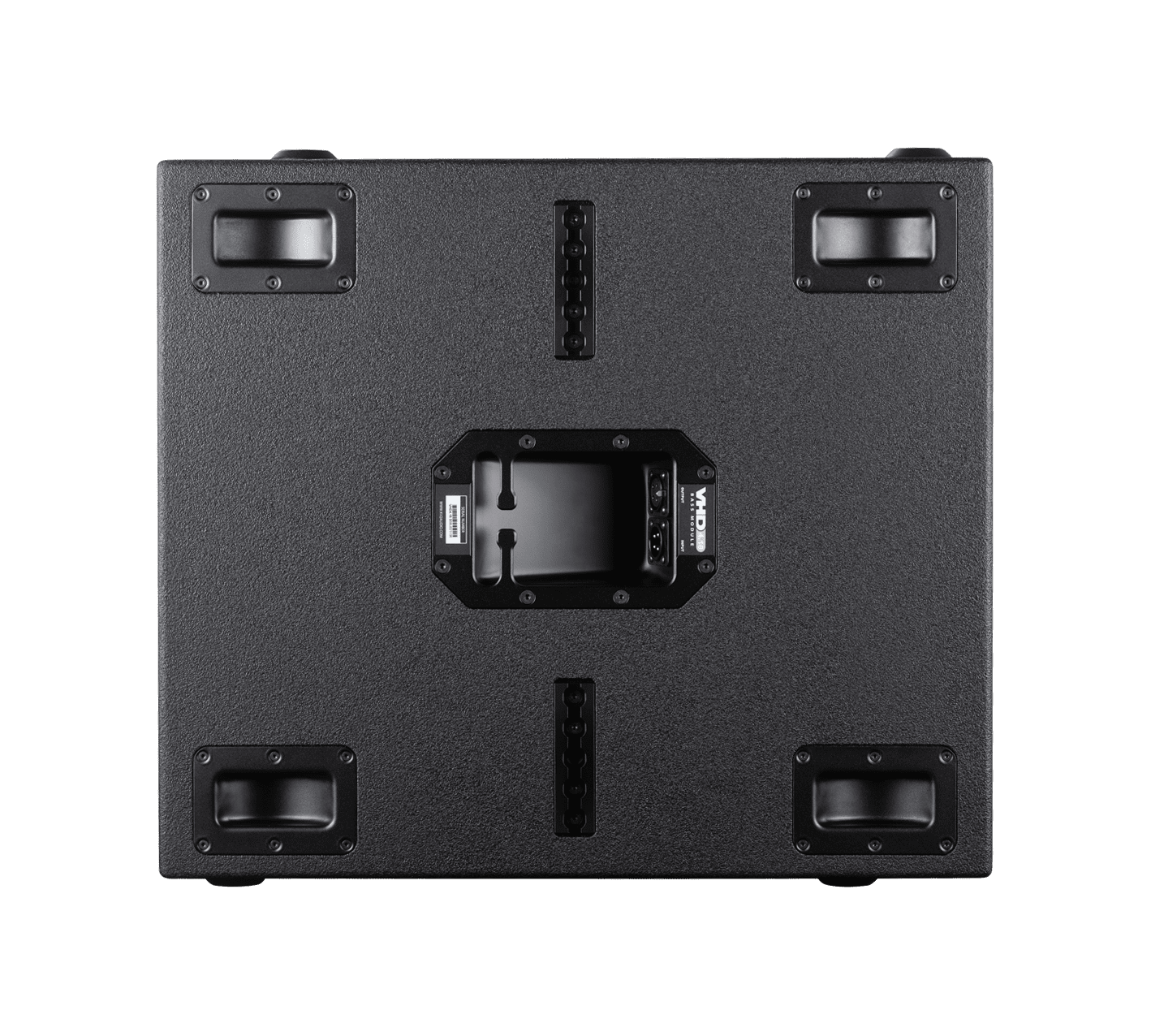

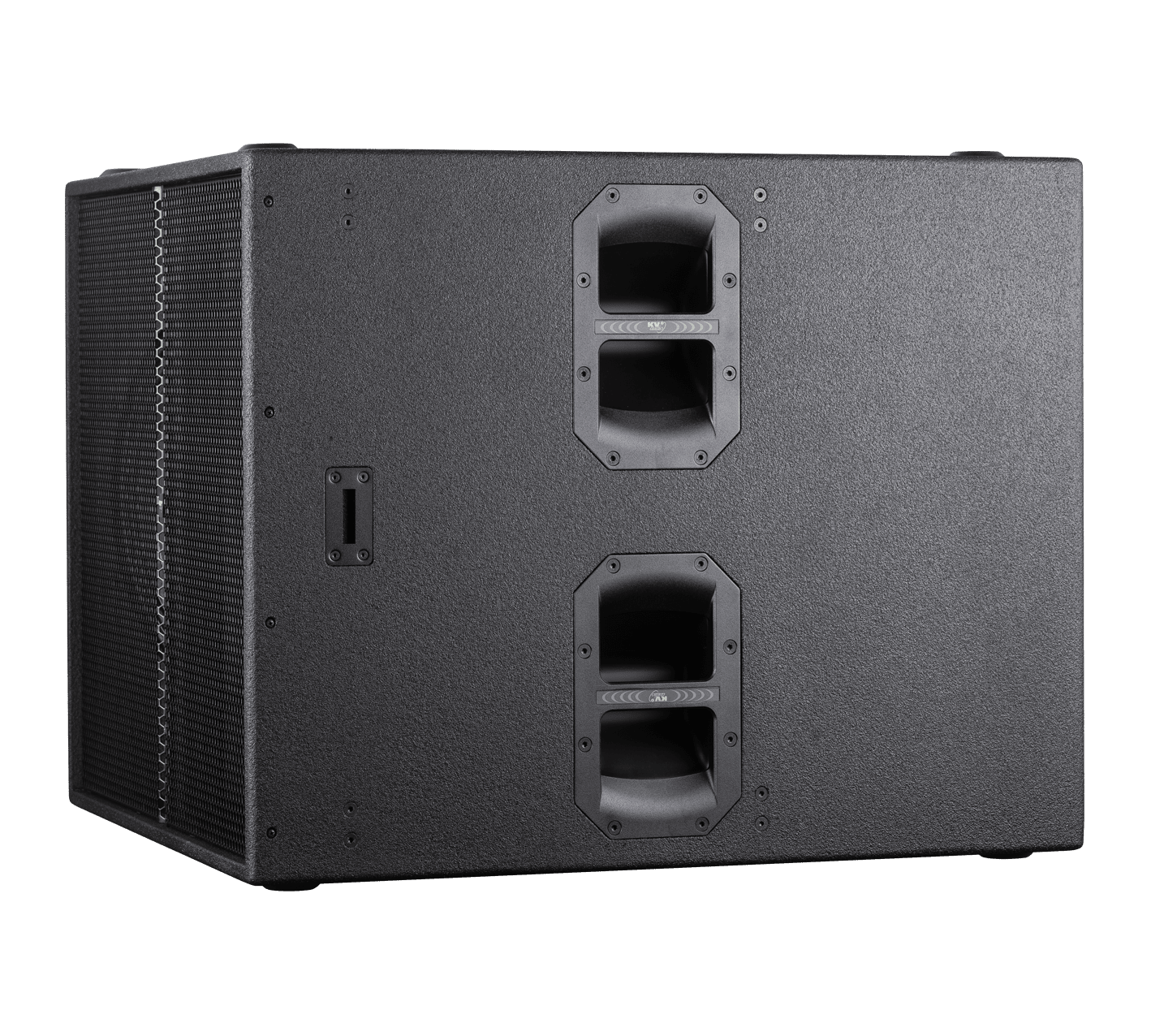

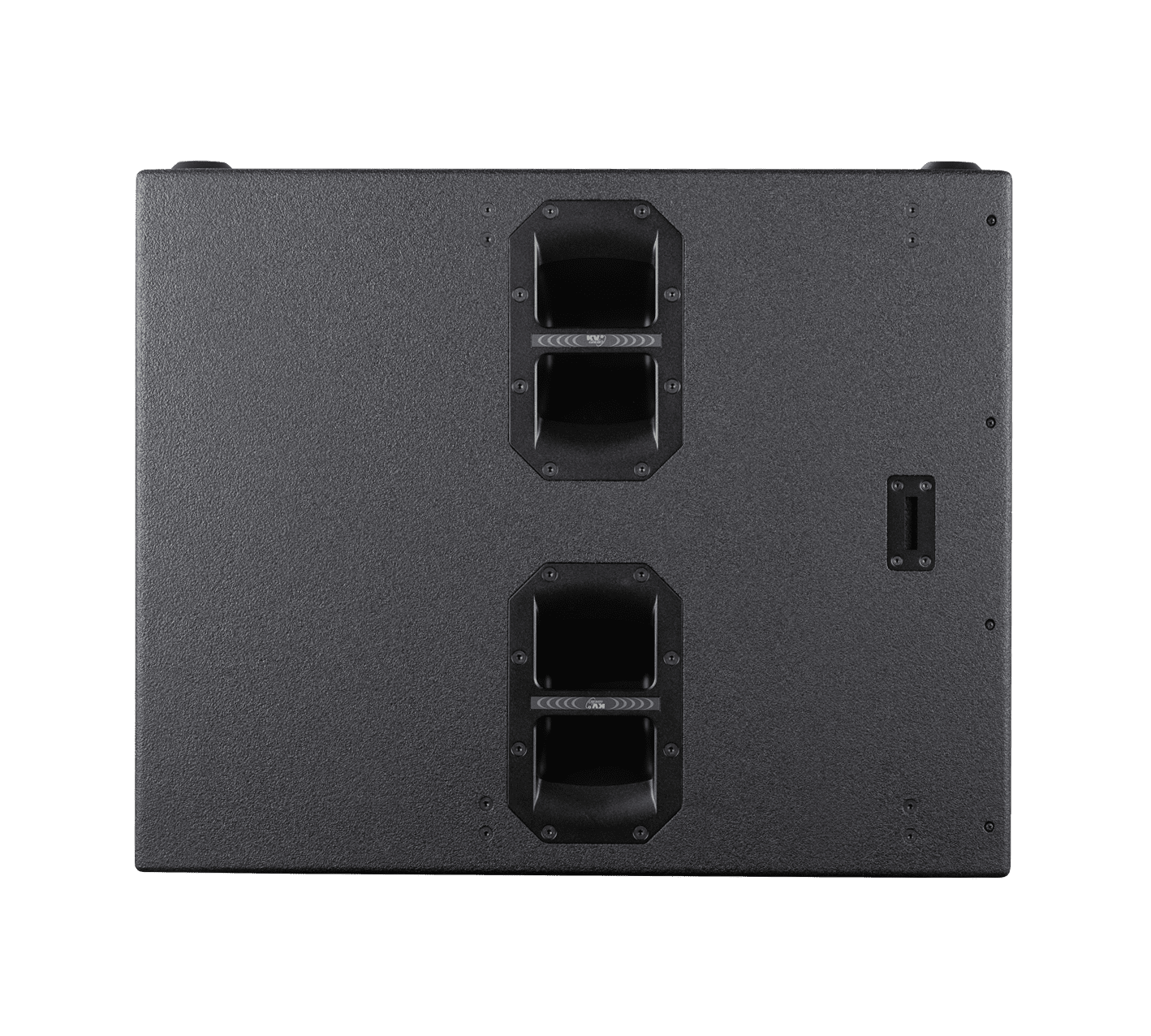

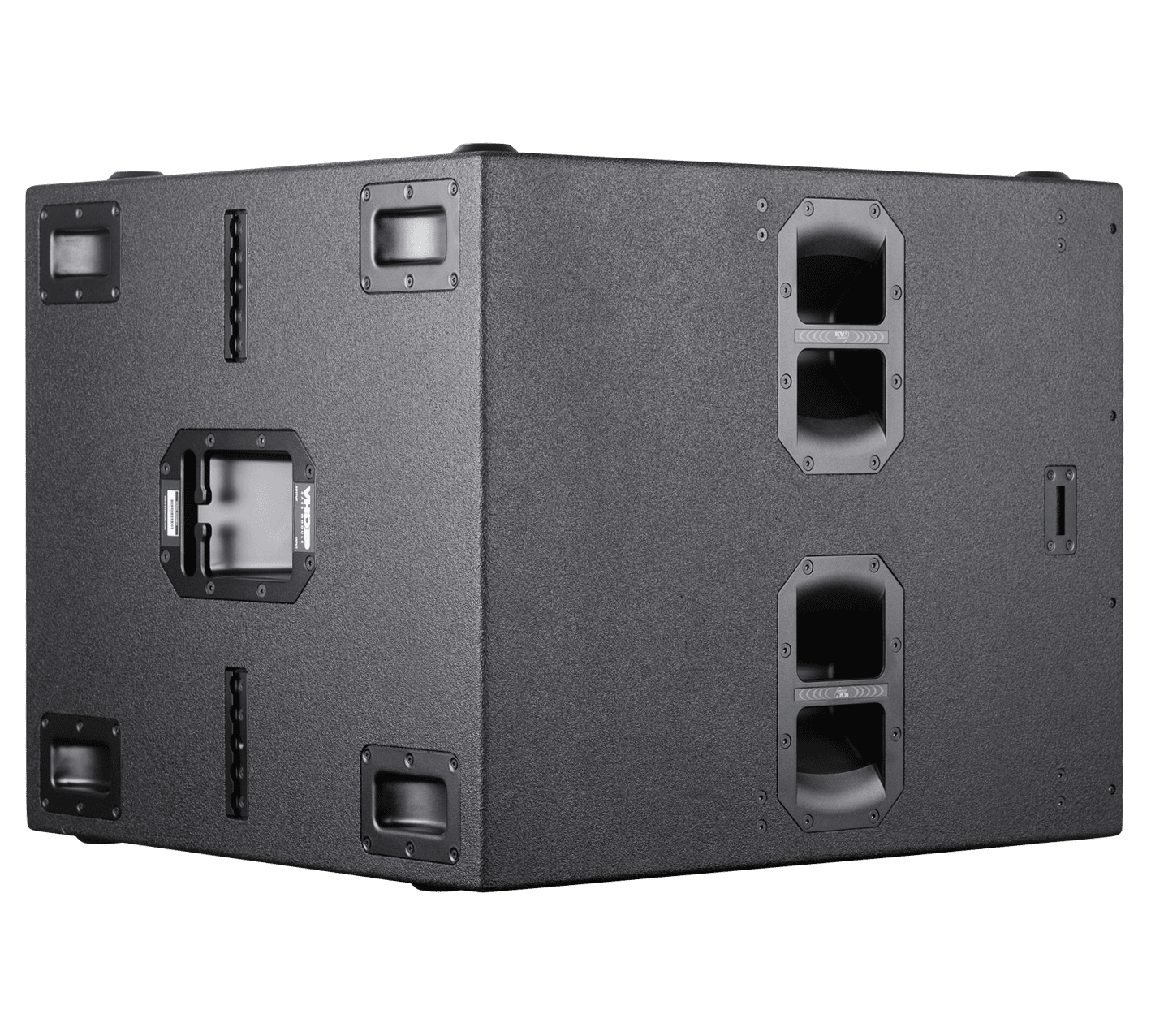

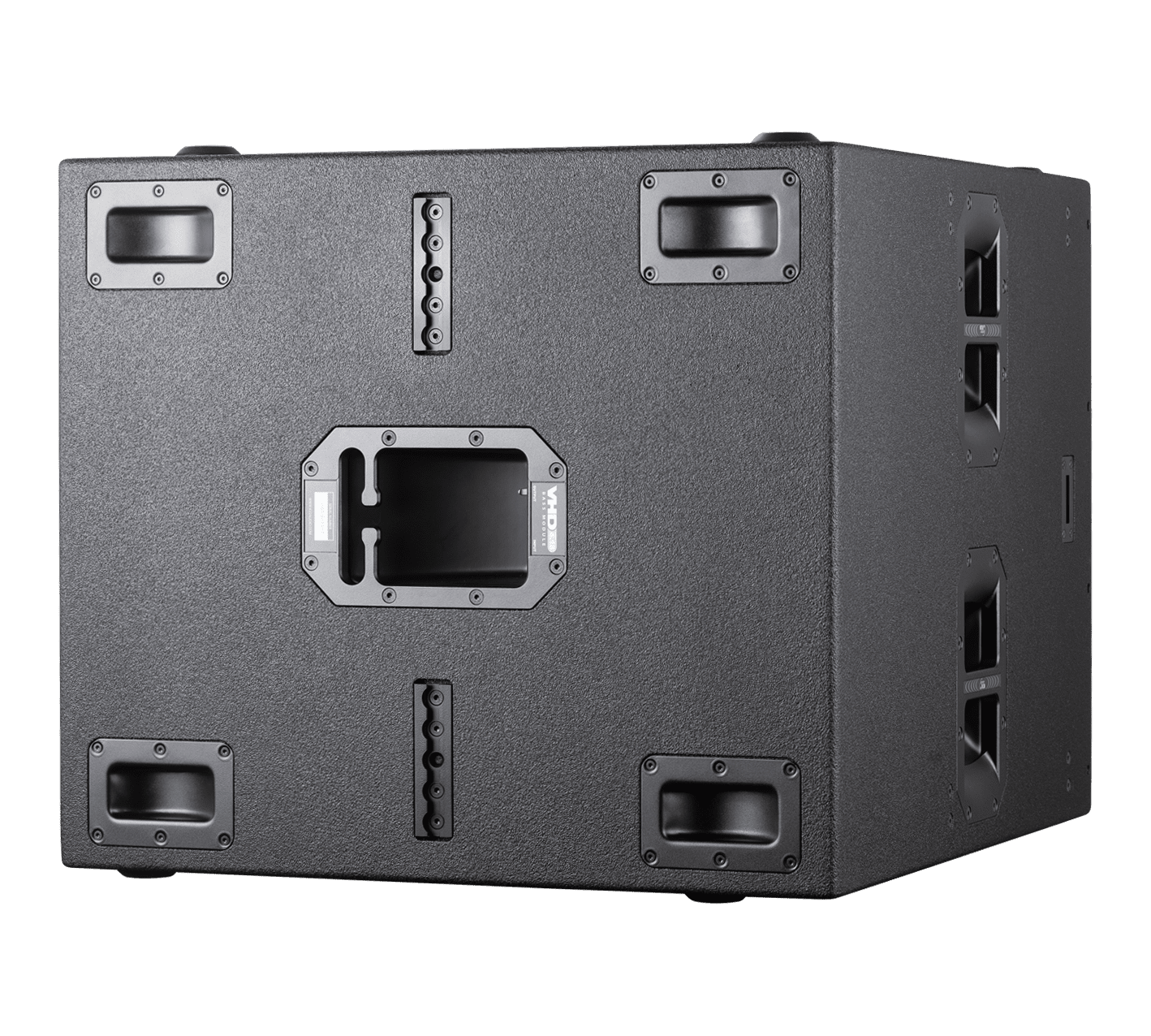

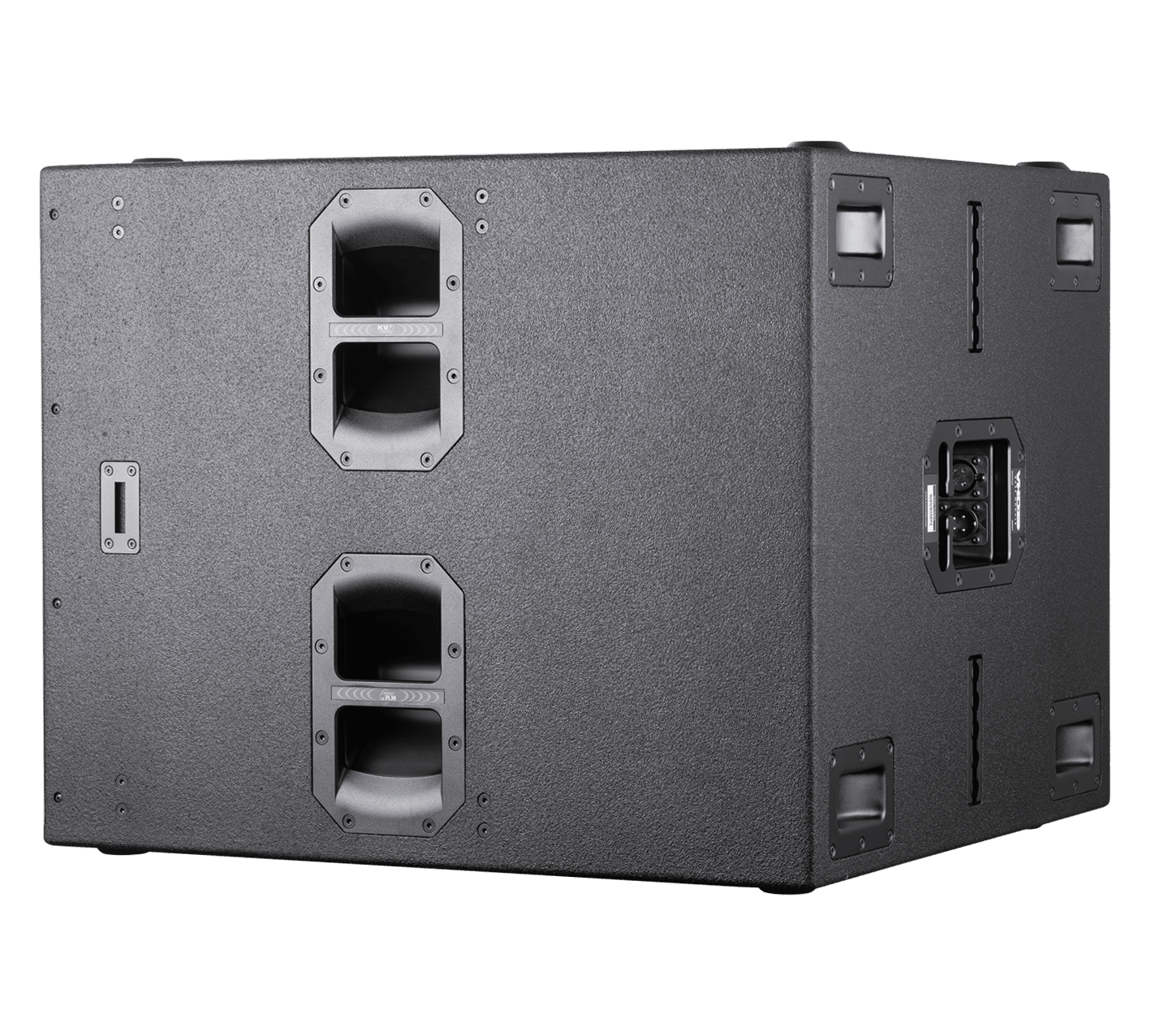

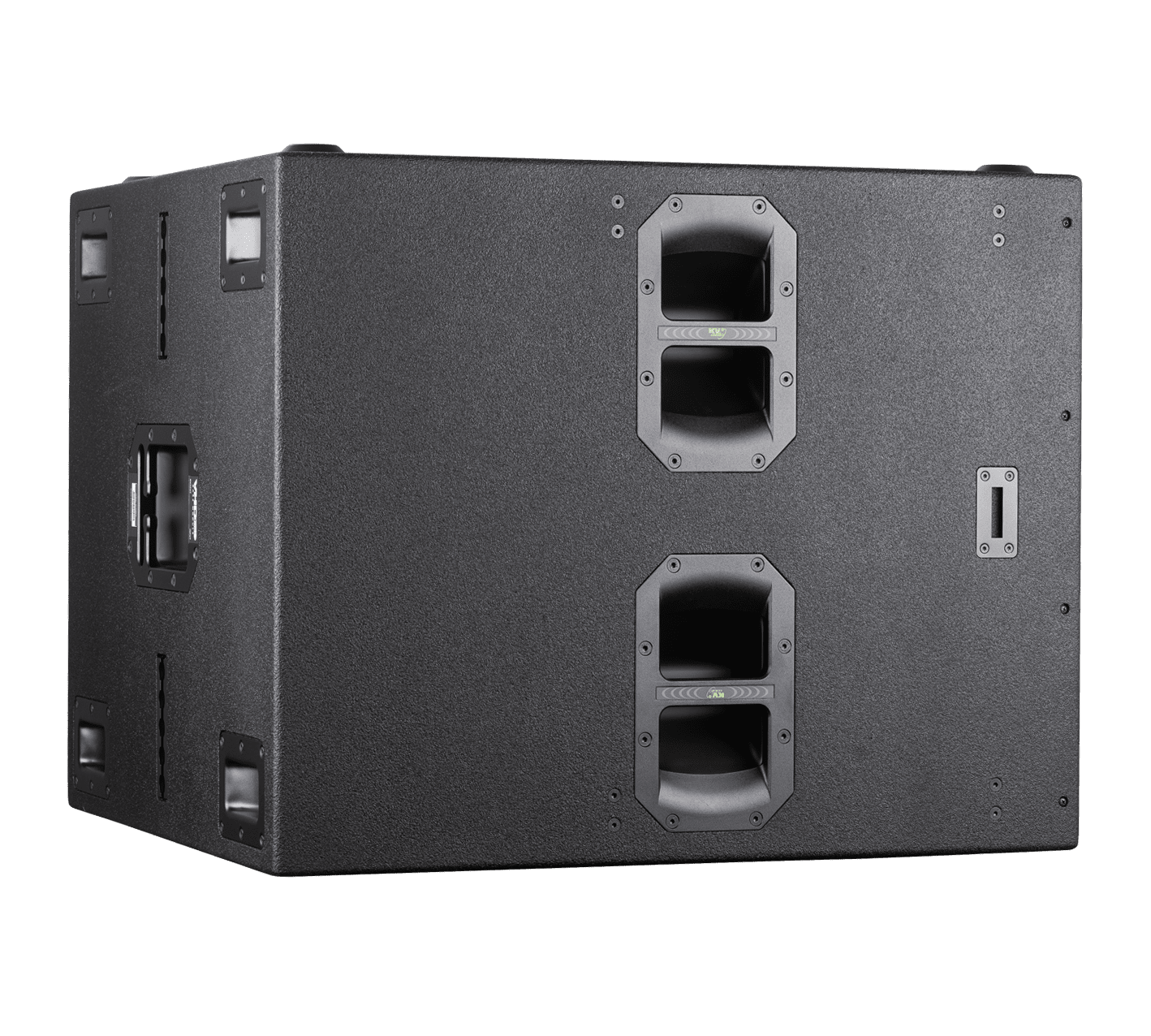

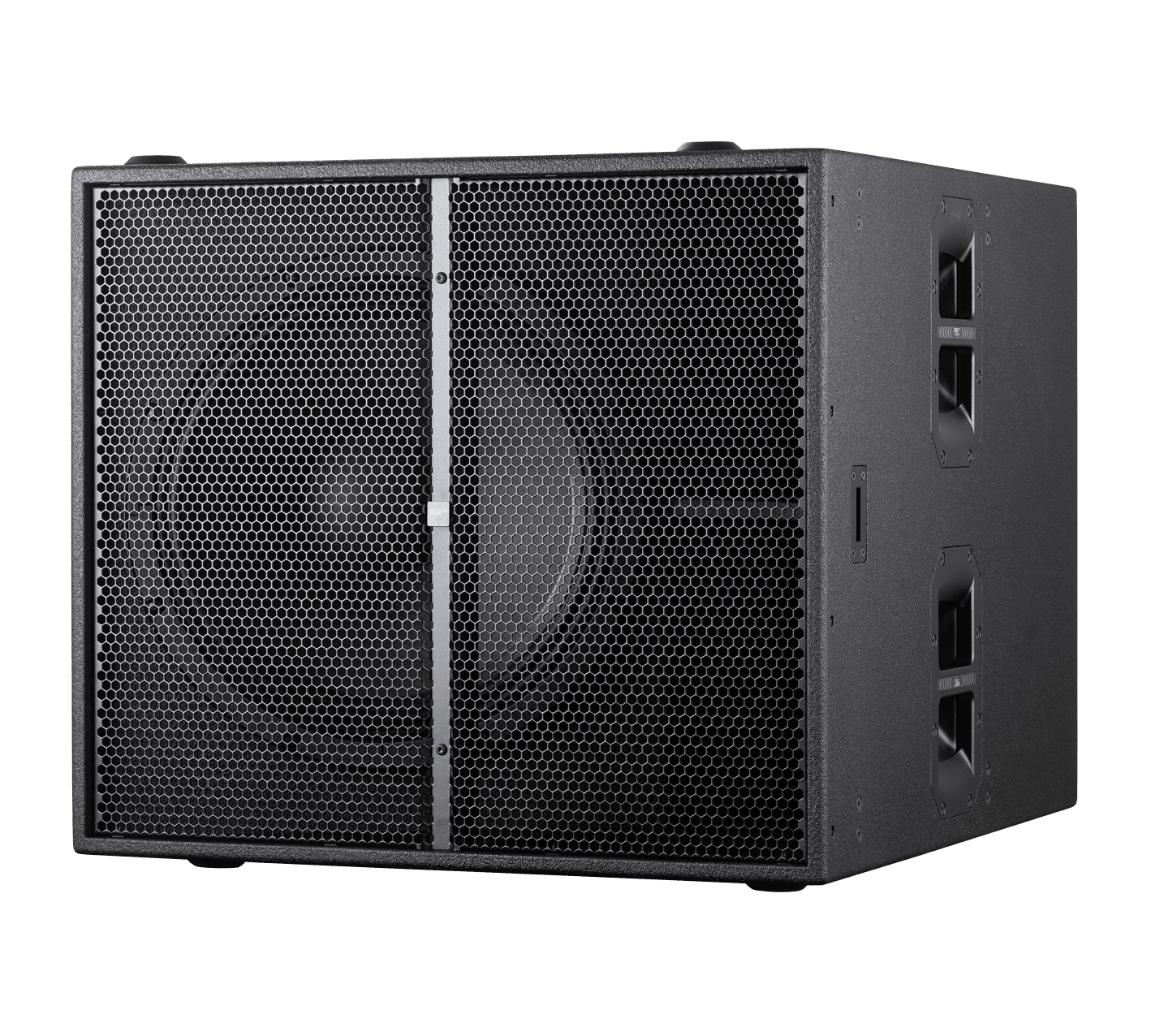

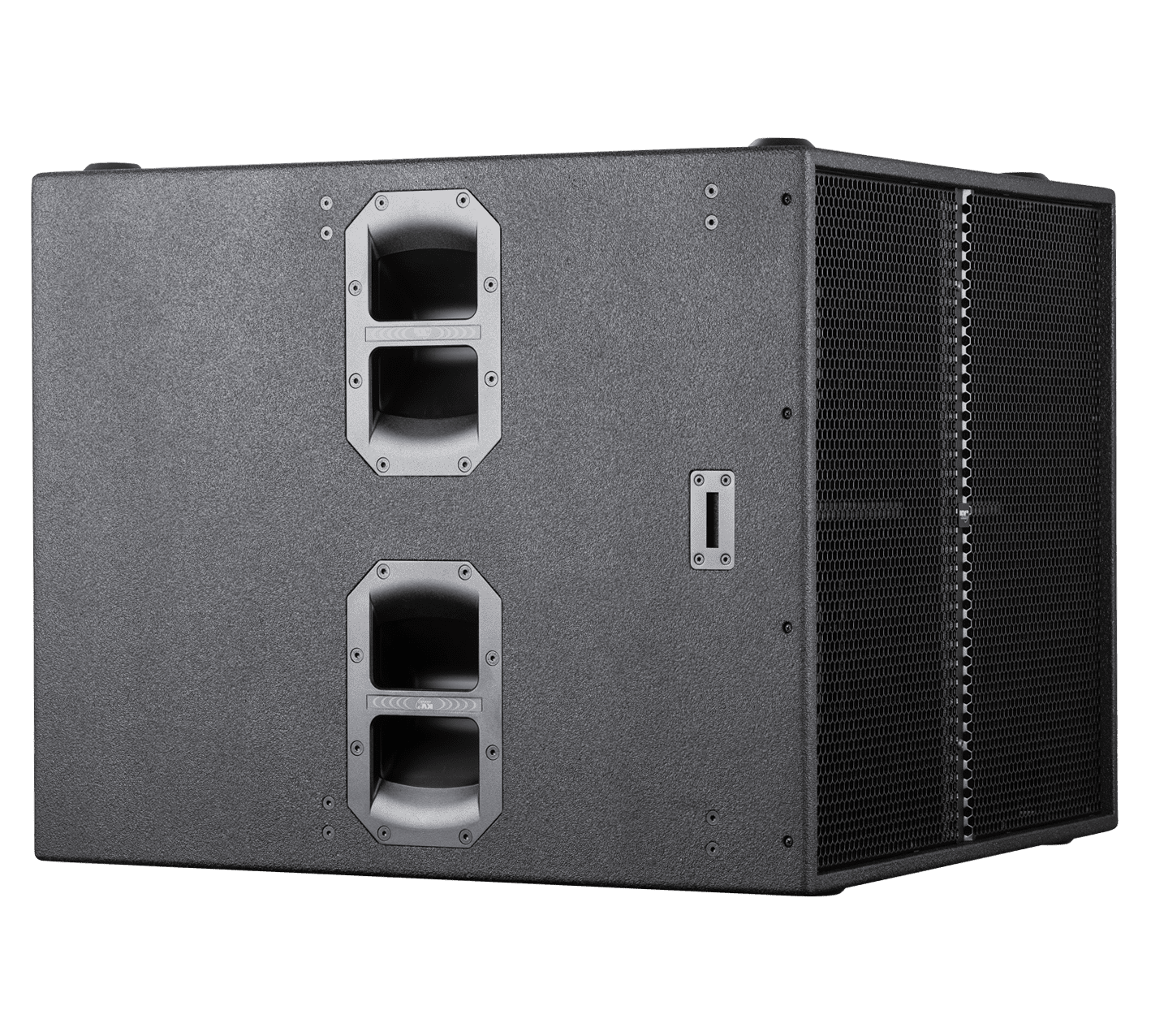

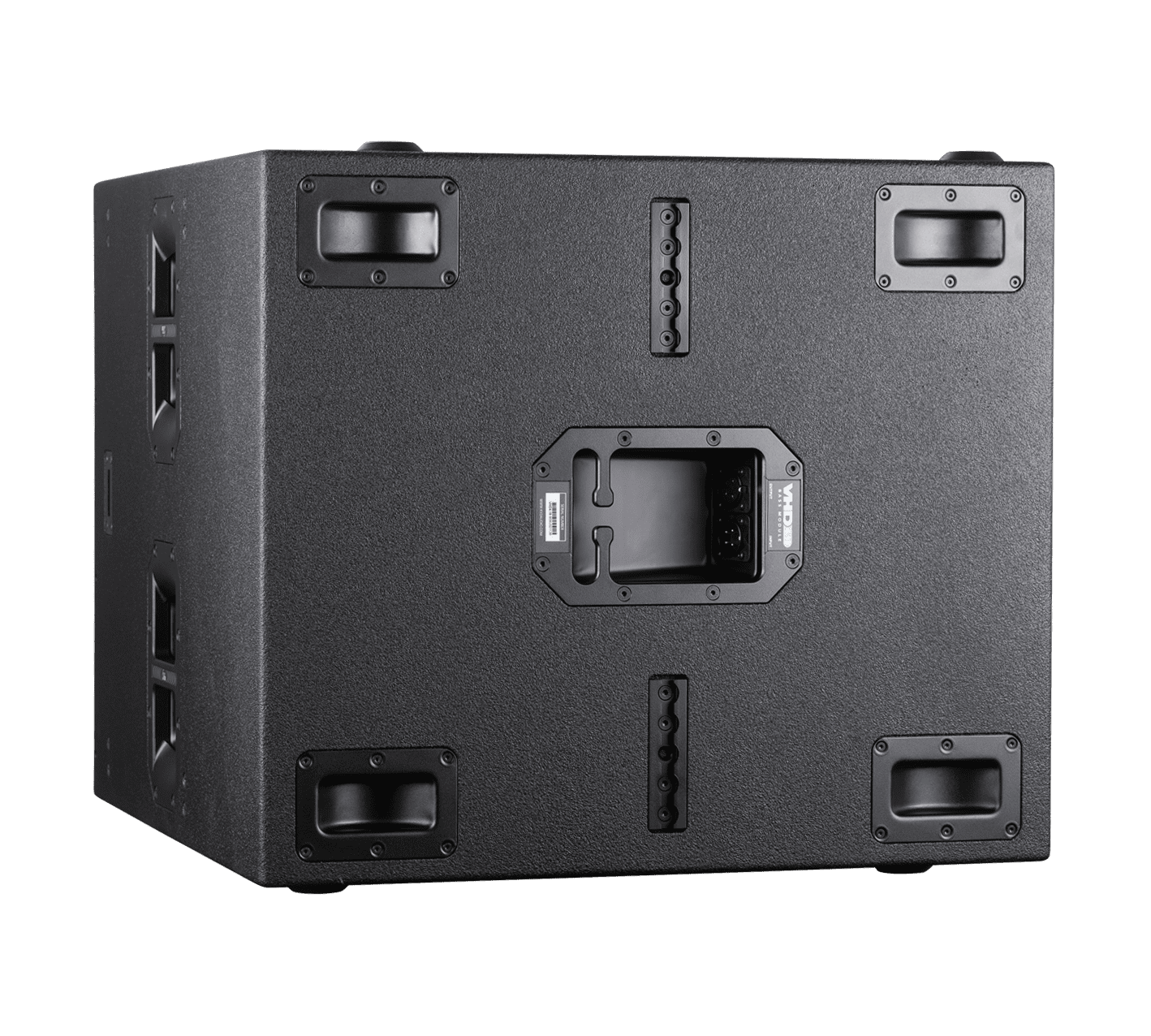

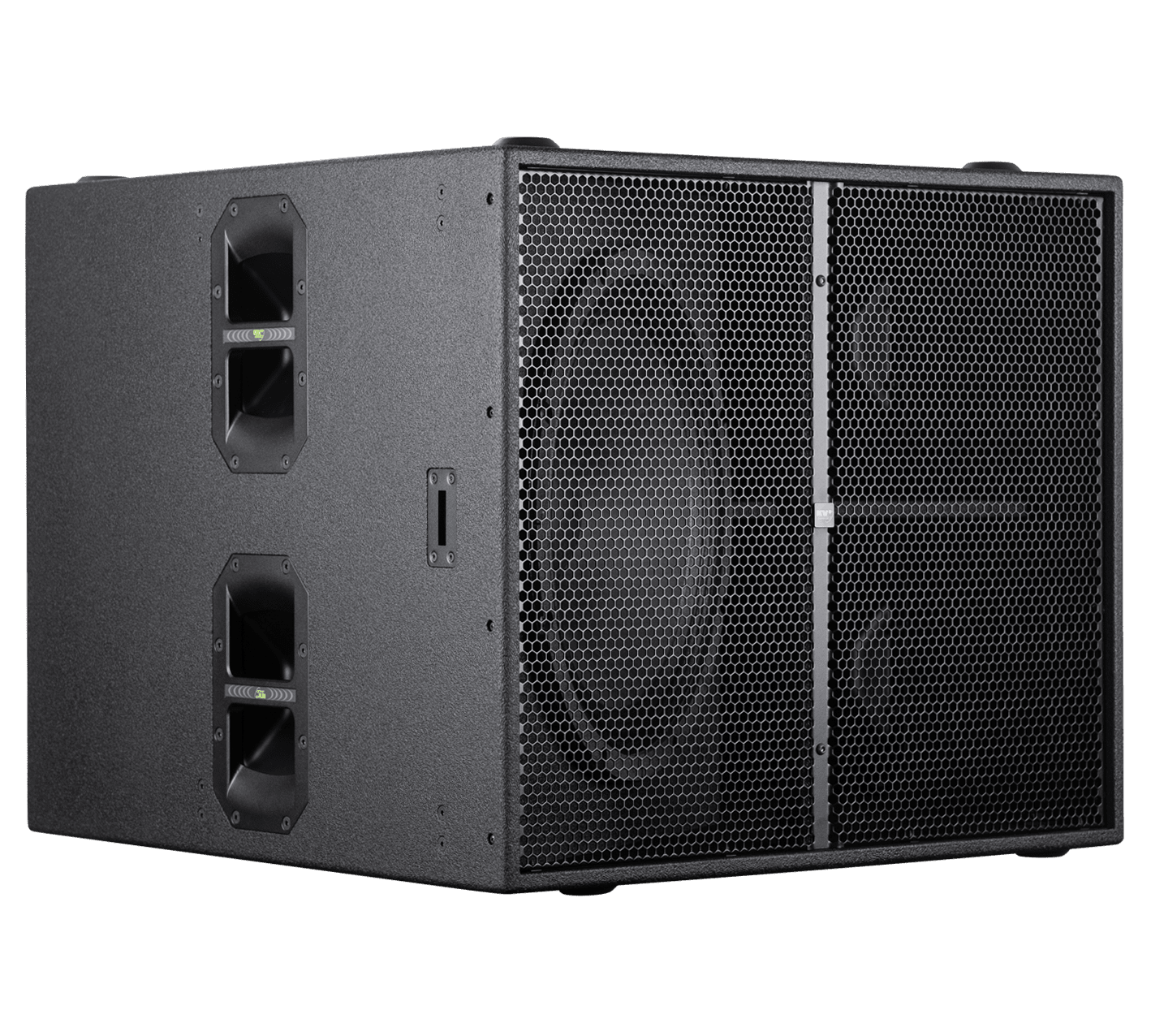

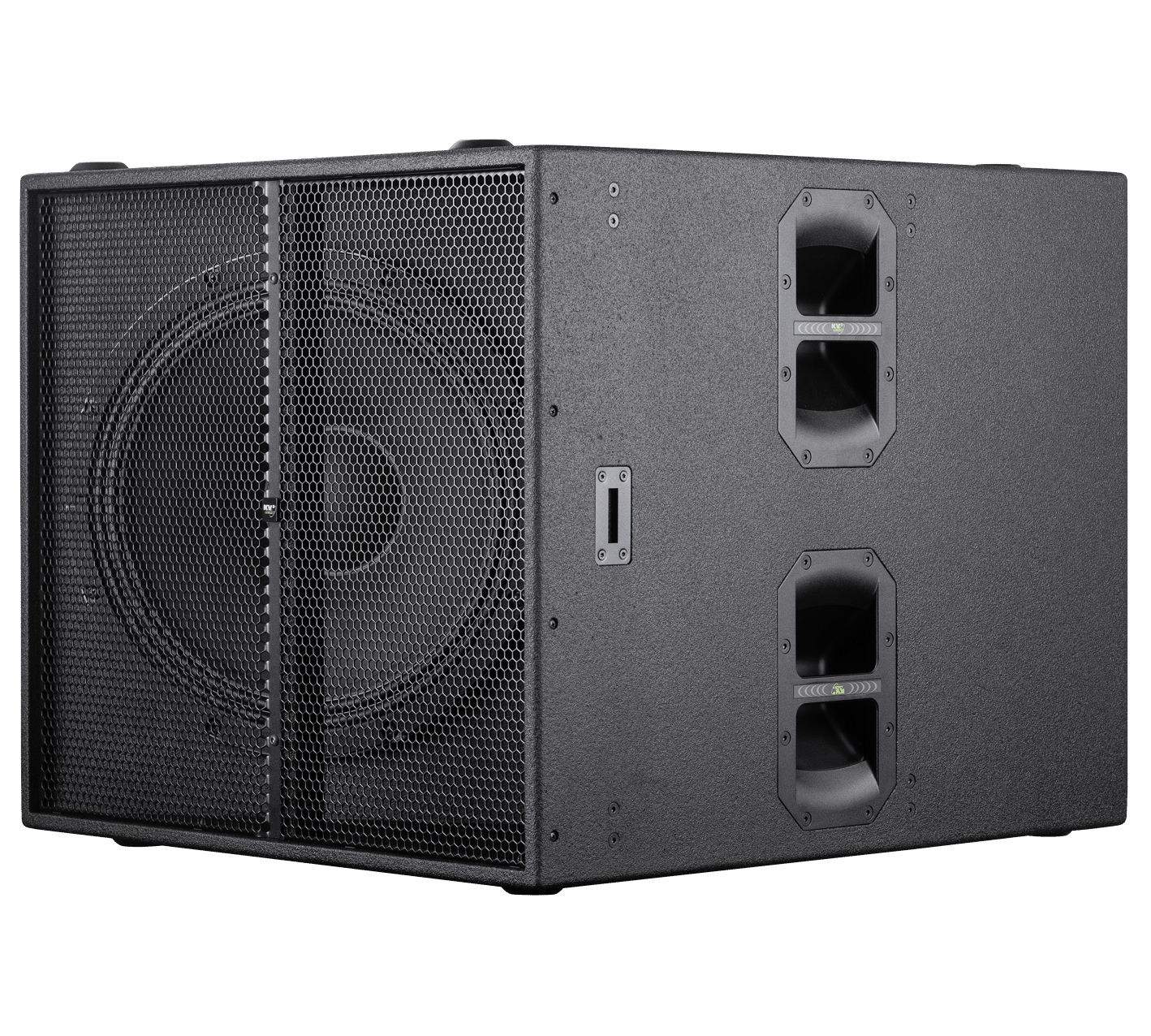

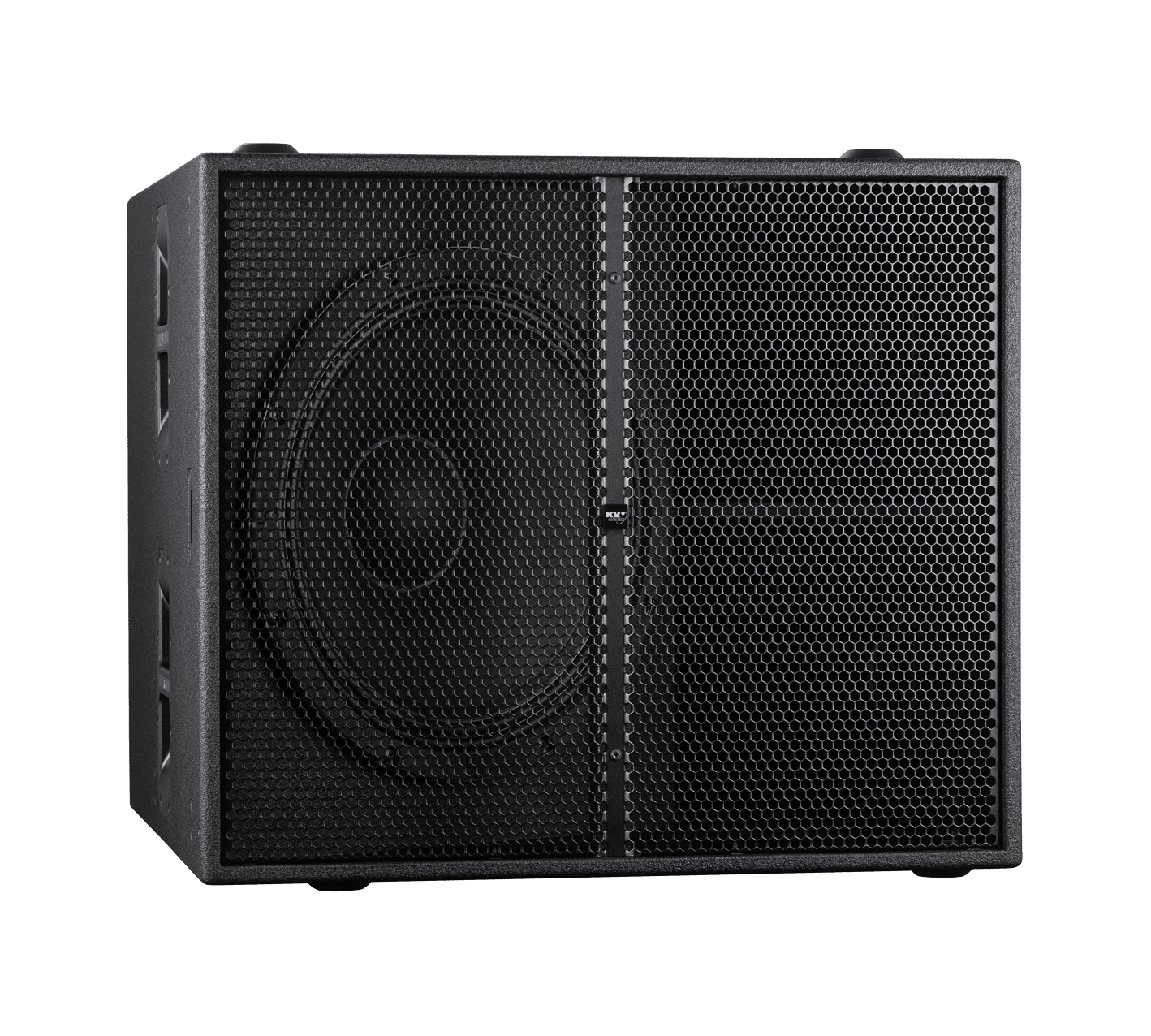

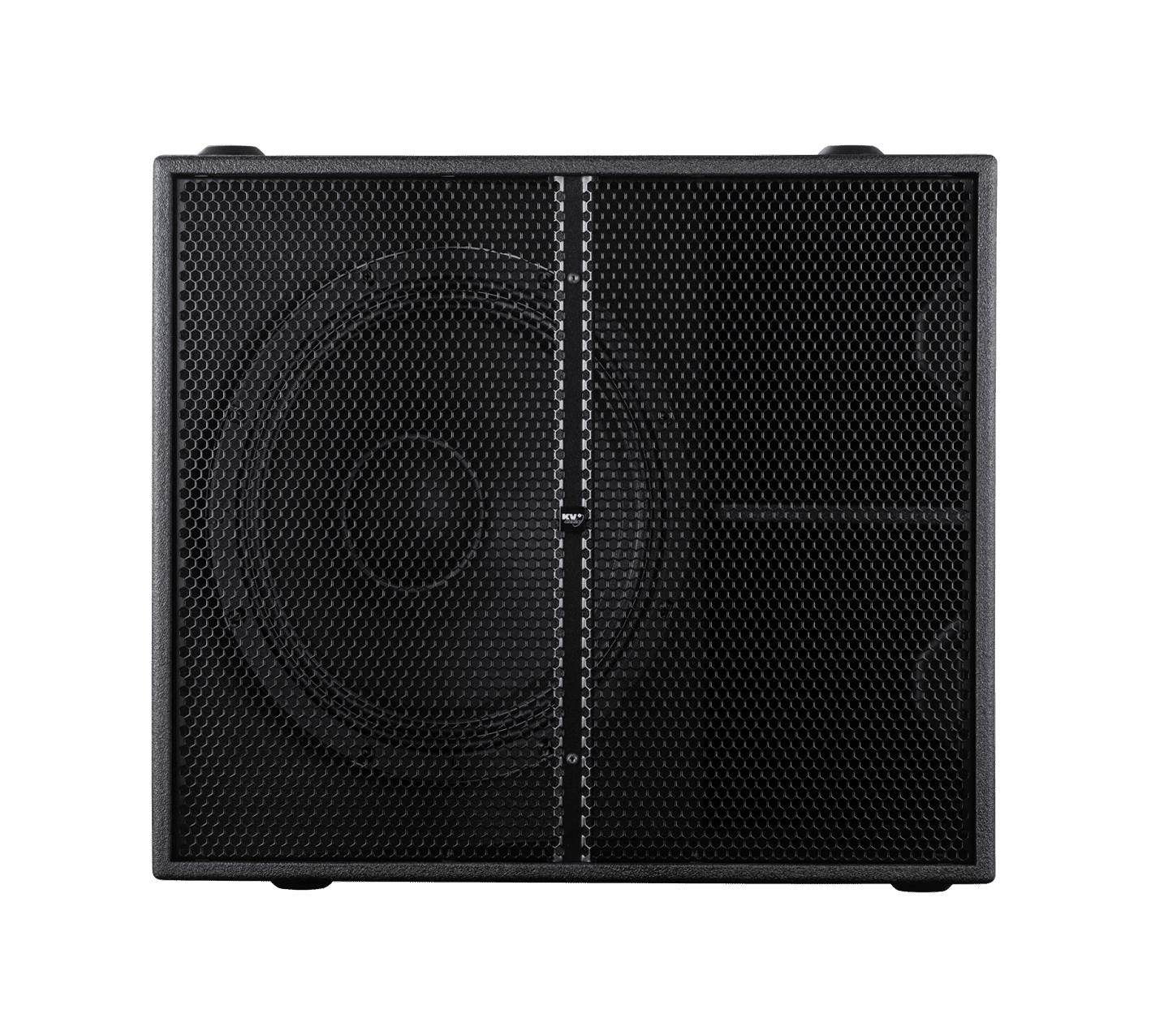

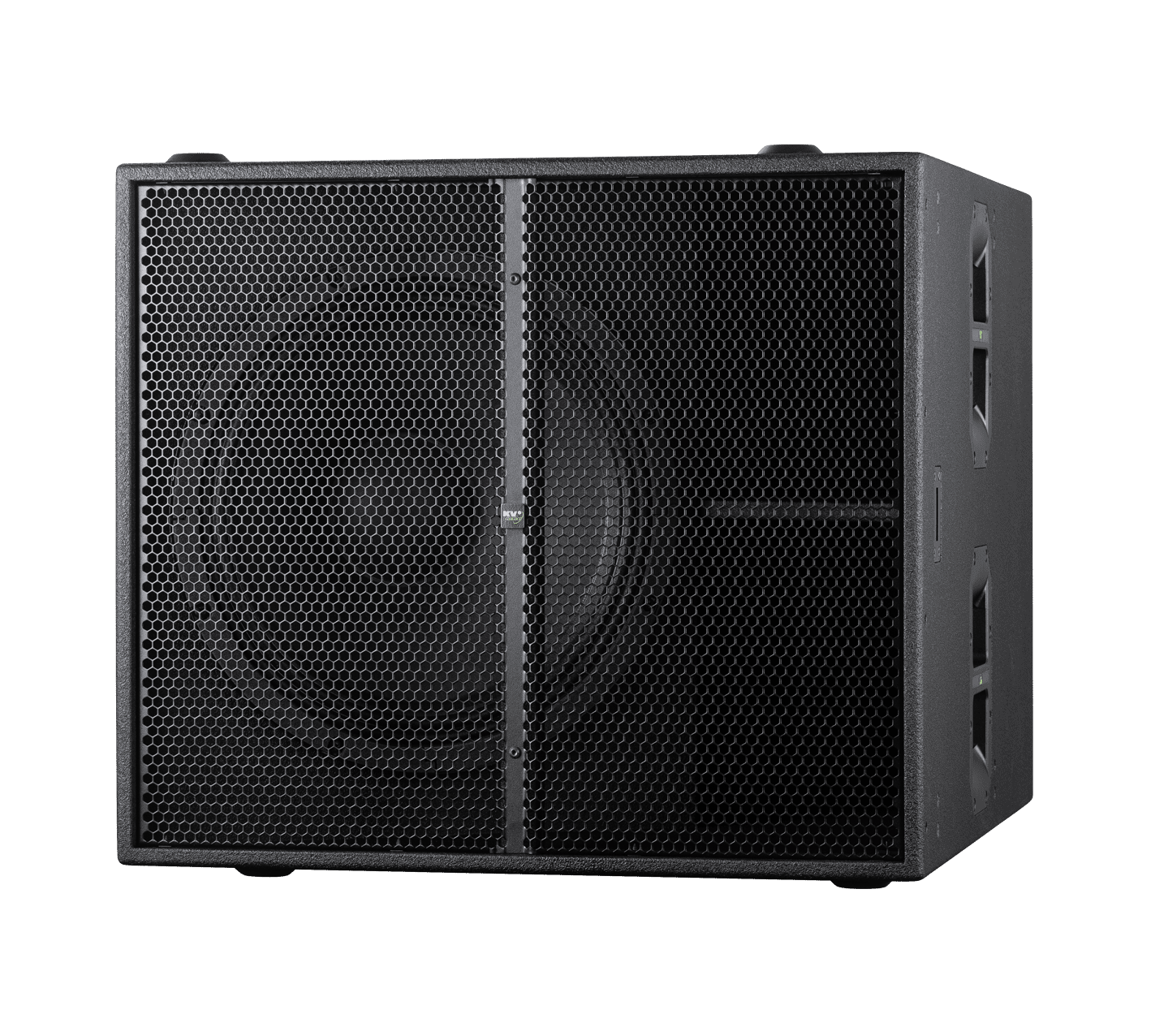

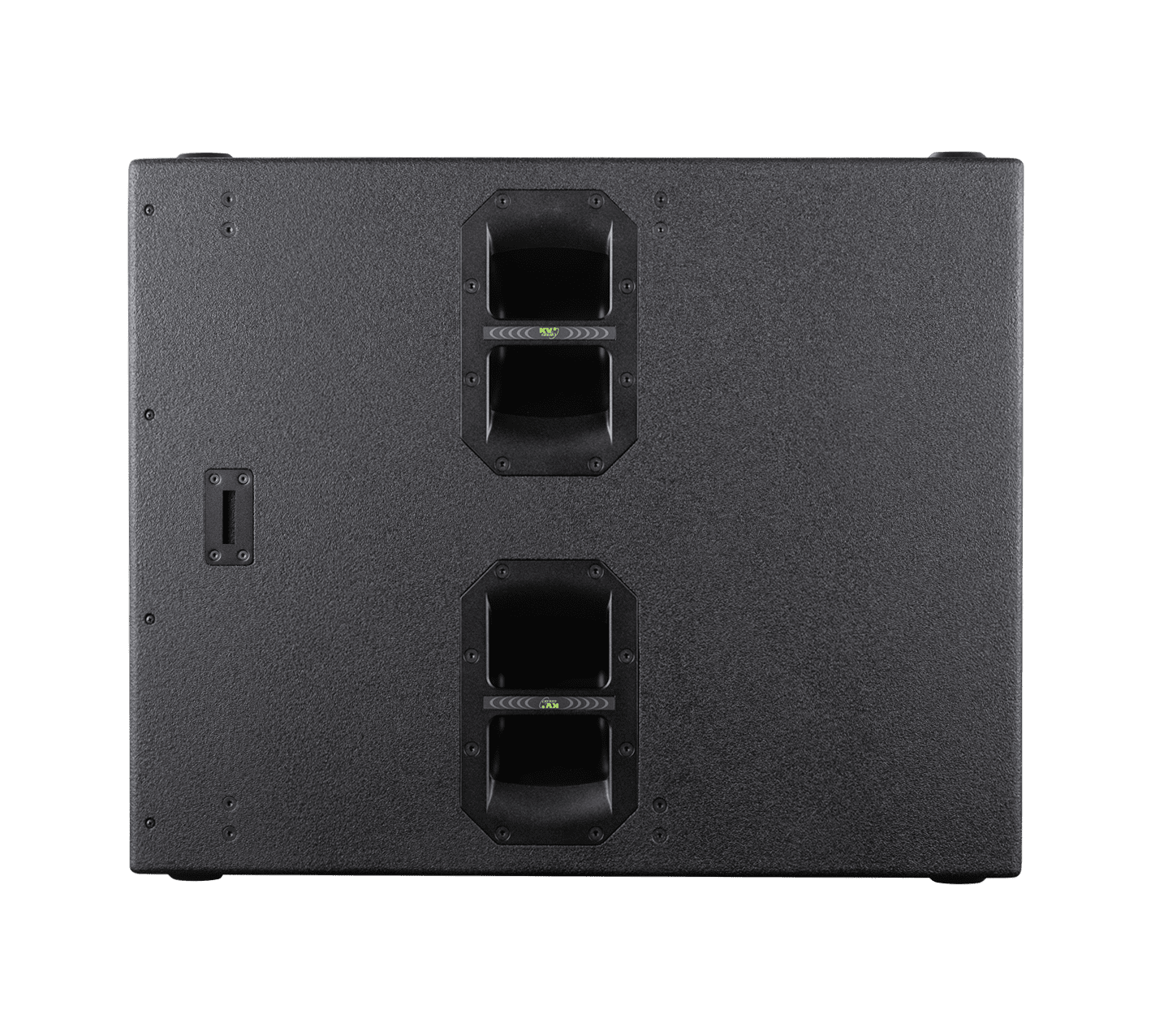

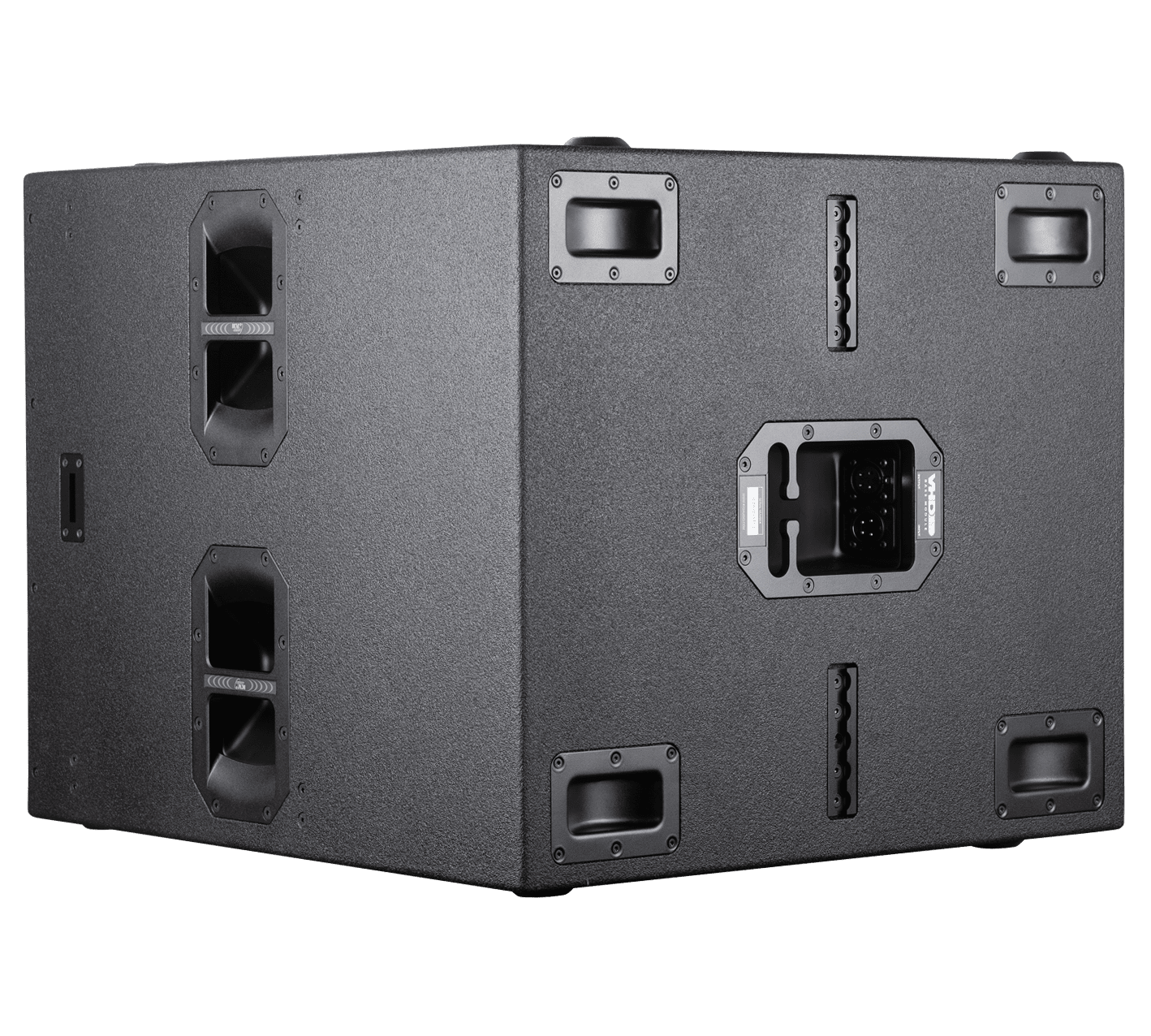

The VHD4.18 is a quad 18″ subwoofer system, comprising of four individual loudspeaker cabinets. The objective is to make the system easy to transport and setup. When assembled, the VHD4.18 system becomes a high efficiency neodymium subwoofer system with immense output. The system was designed with very high sensitivity in mind; it provides 110 dB at 1W/1m and a tremendous output of 149dB when running at full power Each cabinet incorporates a large port area that becomes an optimized horn aperture when all four cabinets are stacked together. The quad 18″ subwoofer system delivers extreme output and controlled low frequency resolution.

Applications

Specifically designed to accompany the VHD2.0 and VHD1.0 as a true full range high output system for live performance and music

  • Hire and Production
  • Concert venues
  • Large Theatres
  • Scalable into multiple large systems
  • Fixed installation

Product code

  • KVV 987 079 – VHD4.18


    Consultar precios

    Descripción

    The VHD4.18 is a quad 18″ subwoofer system, comprising of four individual loudspeaker cabinets. The objective is to make the system easy to transport and setup. When assembled, the VHD4.18 system becomes a high efficiency neodymium subwoofer system with immense output. The system was designed with very high sensitivity in mind; it provides 110 dB at 1W/1m and a tremendous output of 149dB when running at full power Each cabinet incorporates a large port area that becomes an optimized horn aperture when all four cabinets are stacked together. The quad 18″ subwoofer system delivers extreme output and controlled low frequency resolution.

    Features

    • Professional, Baltic birch construction with highly resistant polymer coating
    • Very High Definition low frequency reproduction
    • 146dB sustained output / 149dB peak (using 4 units of VHD4.18)
    • Large chamber horn reflex acoustic design
    • Single 18″ low frequency driver with 4″ (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly and neodymium magnetic structure
    • Proprietary side handles (6) for simplified handling and carrying
    • High impact low friction feet, allowing lock-in to other VHD cabinets and easy cabinet movement
    • Front locking aluminium VHD wheel boards with wraparound hardwood bumpers
    • Weather proofing option and special paint finishes available on request


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed to accompany the VHD2.0 and VHD1.0 as a true full range high output system for live performance and music

    • Hire and Production
    • Concert venues
    • Large Theatres
    • Scalable into multiple large systems
    • Fixed installation

    Product code

    • KVV 987 079 – VHD4.18


    Configurations


    SL – C



    Description

    • Up to 2000 people • Number of bass cabinets and SUB LEVEL setup – depends on the style of music



    Products

    Count Product Type
    2 SL412 MID-HI
    8 VHD4.18 SUB
    1 SL3000 MID-HI AMP
    2 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    2 Cable MH120 Cable MH120
    4 Cable LF15 Cable LF15
    4 Cable LF40 Cable LF40


    Images

    VHD-Double B



    Description

    Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system



    Products

    Count Product Type
    2 VHD2.0 MID-HI
    4 VHD4.18 SUB
    2 VHD2000 MID-HI AMP
    2 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    2 Cable MH120 Cable MH120
    4 Cable LF15 Cable LF15
    4 Cable LF40 Cable LF40
    1 VHD2.0 Top arm (pair) VHD2.0 Top arm (pair)
    1 VHD2.0 Top extension arm (pair) VHD2.0 Top extension arm (pair)
    1 VHD Systems fly bar VHD Systems fly bar


    Images

    VHD-Double D



    Description

    Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system



    Products

    Count Product Type
    2 VHD2.0 MID-HI
    4 VHD2.16 SUB
    4 VHD4.18 SUB
    2 VHD2000 MID-HI AMP
    2 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    2 Cable MH120 Cable MH120
    4 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40
    2 Cable LF100 Cable LF100 for bass speaker


    Images

    VHD-Single B



    Description

    Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system



    Products

    Count Product Type
    4 VHD4.18 SUB
    1 VHD2.0 MID-HI
    1 VHD2000 MID-HI AMP
    1 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    2 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40


    Images

    VHD-Single D



    Description

    Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system



    Products

    Count Product Type
    1 VHD2.0 MID-HI
    2 VHD2.16 SUB
    2 VHD4.18 SUB
    1 VHD2000 MID-HI AMP
    1 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    2 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40


    Images

    VHD-Single E



    Description

    Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system



    Products

    Count Product Type
    1 VHD2.0 MID-HI
    4 VHD2.16 SUB
    4 VHD4.18 SUB
    1 VHD2000 MID-HI AMP
    2 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    4 Cable LF15 Cable LF15
    4 Cable LF40 Cable LF40


    Images

    VHD1.0



    Description

    Up to 2000 people Number of bass boxes – depend on music style Right side of stereo single system For live system 4x 2.16 Subs recommended



    Products

    Count Product Type
    1 VHD1.0 MID-HI
    4 VHD4.18 SUB
    1 VHD2000 MID-HI AMP
    1 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    1 Cable MH120 Cable MH120
    2 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40


    Images



    Accesories


    EPAK2500, EPAK2500R, ES1.5, ES1.8, ES2.5, ES2.6, SL2.15 Amphenol AP4 connector

    Gallery

    Product code

    KVV 987 048



    Description

    – female – cable mount



    Cable LF100 for bass speaker

    Gallery

    Product code

    KVV 987 123



    Description

    – 4 wire speaker cable – AP4 connectors – 10m (33ft) – for ES Bass Module hook-up



    Cable LF15

    Gallery

    Product code

    KVV 987 121



    Description

    – 4 wire speaker cable – AP4 connectors – 1,5m (5ft) – for ES Bass Module daisy-chaining



    Cable LF200 for bass speaker

    Gallery

    Product code

    KVV 987 124



    Description

    – 4 wire speaker cable – AP4 connectors – 20m (66ft) – for ES Bass Module hook-up



    Cable LF40

    Gallery

    Product code

    KVV 987 122



    Description

    – 4 wire speaker cable – AP4 connectors – 4m (13ft) – for ES Bass Module hook-up



    VHD2.15, VHD2.16, VHD4.18 Cart

    Gallery

    Product code

    KVV 987 100



    Description

    – with hardwood bumpers



    Downloads

    DWG

    VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

    VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

    SKP

    VHD2.15, VHD2.16, VHD4.18 Cart SKP

    VHD2.15, VHD2.16, VHD4.18 Cart SketchUp

    VHD4.18 Cover

    Gallery

    Product code

    KVV 987 105



    Description

    – used with cart



    System Acoustic Performance

    Max SPL Long-term 146dB (4x VHD4.18)
    Max SPL Peak 152dB (4x VHD4.18)
    -3dB Response 36Hz to 100Hz
    -10dB Response 31Hz to 100Hz
    Impedance
    Crossover Point 70Hz to 130Hz

    Low Frequency Section

    Acoustic Design Horn reflex loaded
    Low Frequency Amplifier Requirement 800W /1x VHD4.18 (VHD3200 amp.)
    Woofer Size / Voice Coil Diameter 18″ / 4″ / Inside Outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Speaker Input

    Speaker Input AP4 male

    Speaker Output

    Speaker Output AP4 female

    Cabinet

    Cabinet Material Baltic birch
    Handles 6
    Color Black (wear resistant polymer coating)

    Physical Dimensions

    Height 600 mm (23.62″)
    Width 700 mm (27.55″)
    Depth 750 mm (29.52″)
    Weight 52 kg (114.4lbs)


    Product code

    • KVV 987 079 – VHD4.18

    PDF

    VHD Subwoofers User Guide

    VHD Series Subwoofers User Guide – VHD2.16, VHD2.18J, VHD4.18, VHD1.21, VHD2.21 / VHD2.21R, English



    PDF

    VHD4.18 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    VHD4.18 – 3D

    – 1:1 scale – clamping points – weight – dwg file



    SKP

    VHD4.18 SKP

    VHD4.18 SketchUp



    DWG

    VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

    VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG



    SKP

    VHD2.15, VHD2.16, VHD4.18 Cart SKP

    VHD2.15, VHD2.16, VHD4.18 Cart SketchUp



    DWG

    VHD4.18 2D DWG

    VHD4.18 2D DWG



    SKP

    VHD Series Sketchup

    VHD Series Sketchup – all boxes and accessories



    PDF

    VHD4.18 – 2D

    VHD4.18 2D Drawings



    DWG

    VHD4.18 3D DWG

    VHD4.18 3D DWG



    GLL

    VHD4.18 EASE Focus

    VHD4.18 EASE Focus ver 2
