VHD2.16 – VHD Subwoofer Enclosure

KV2AUDIO
SKU: VHD2.16

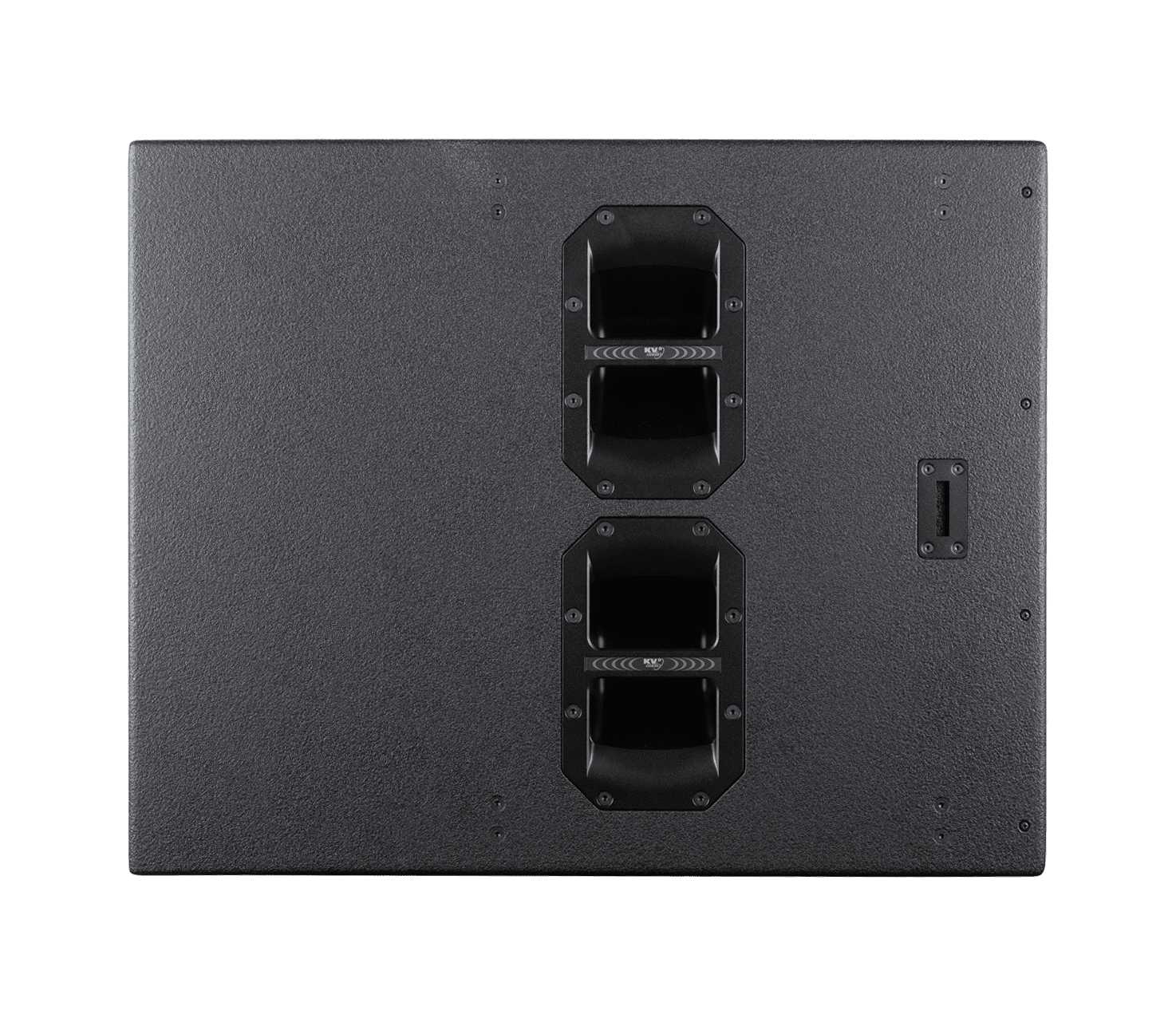

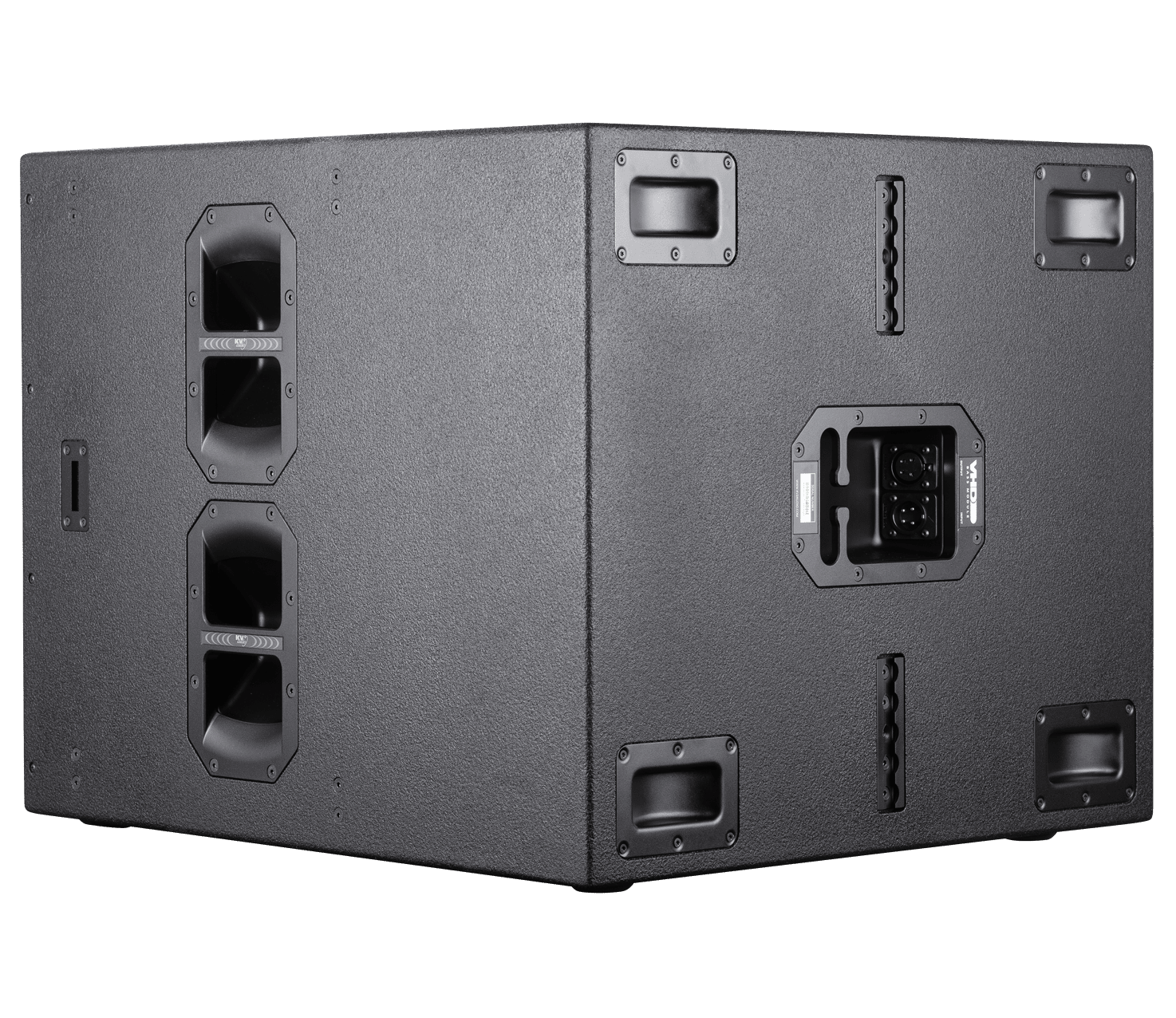

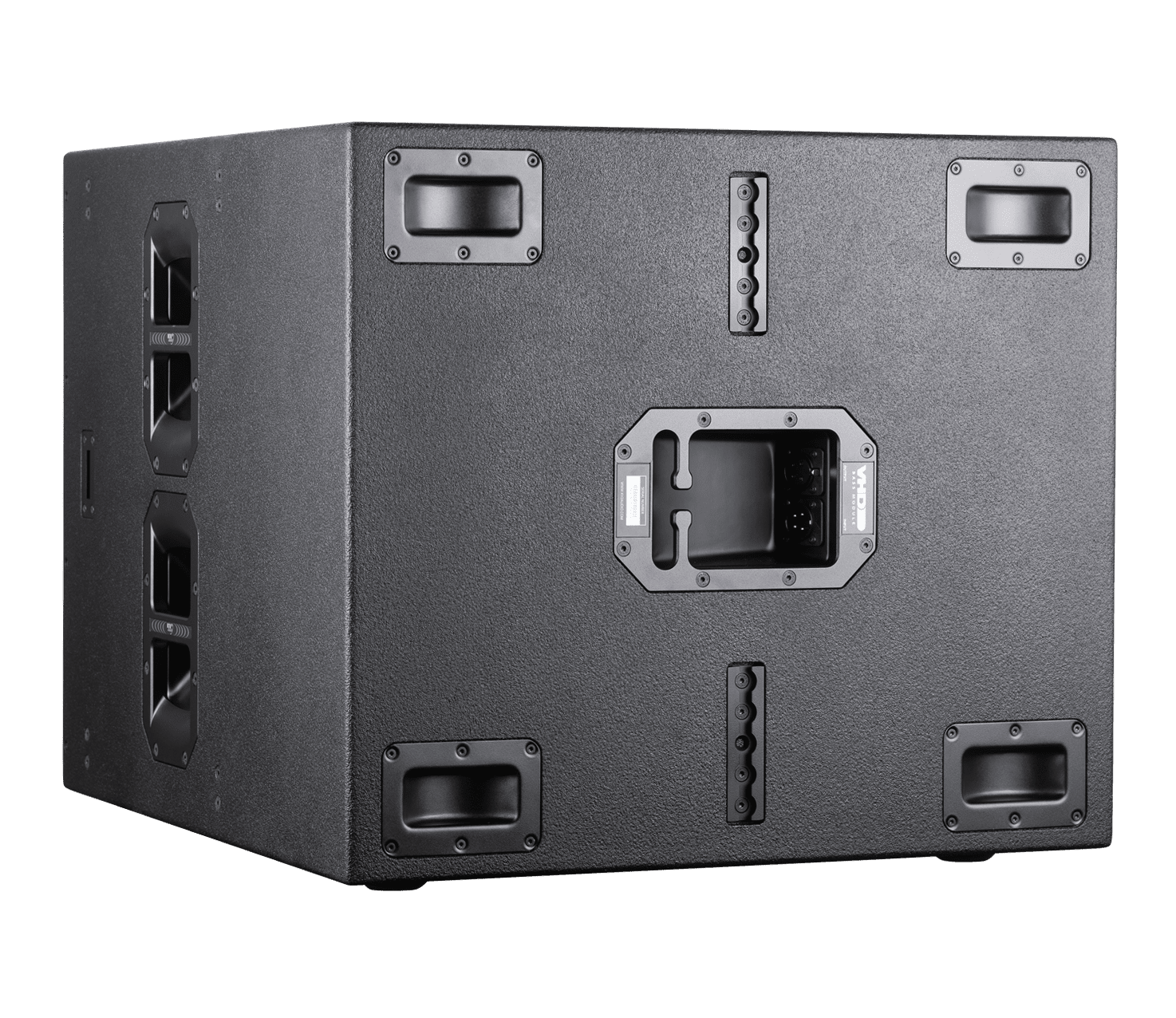

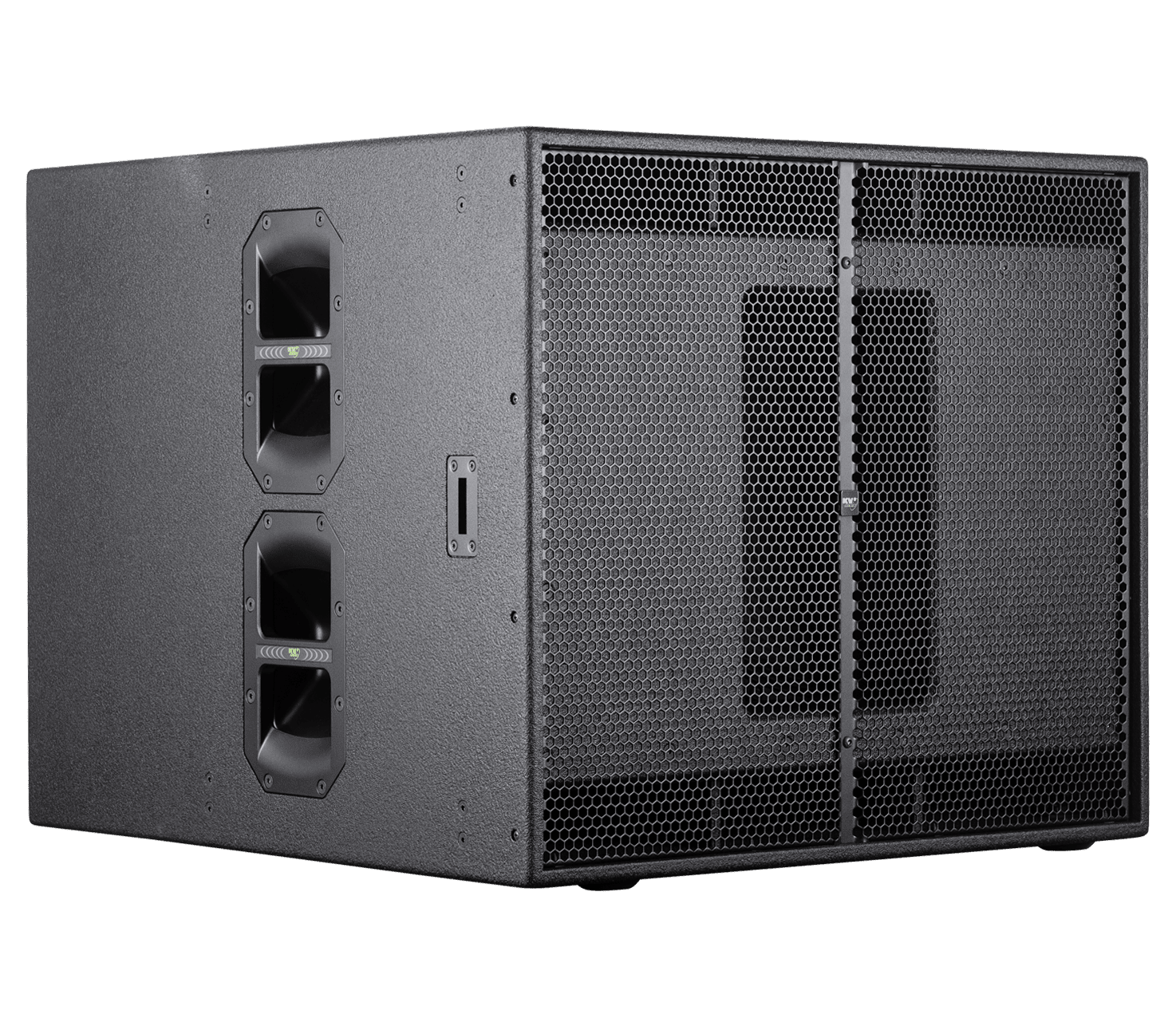

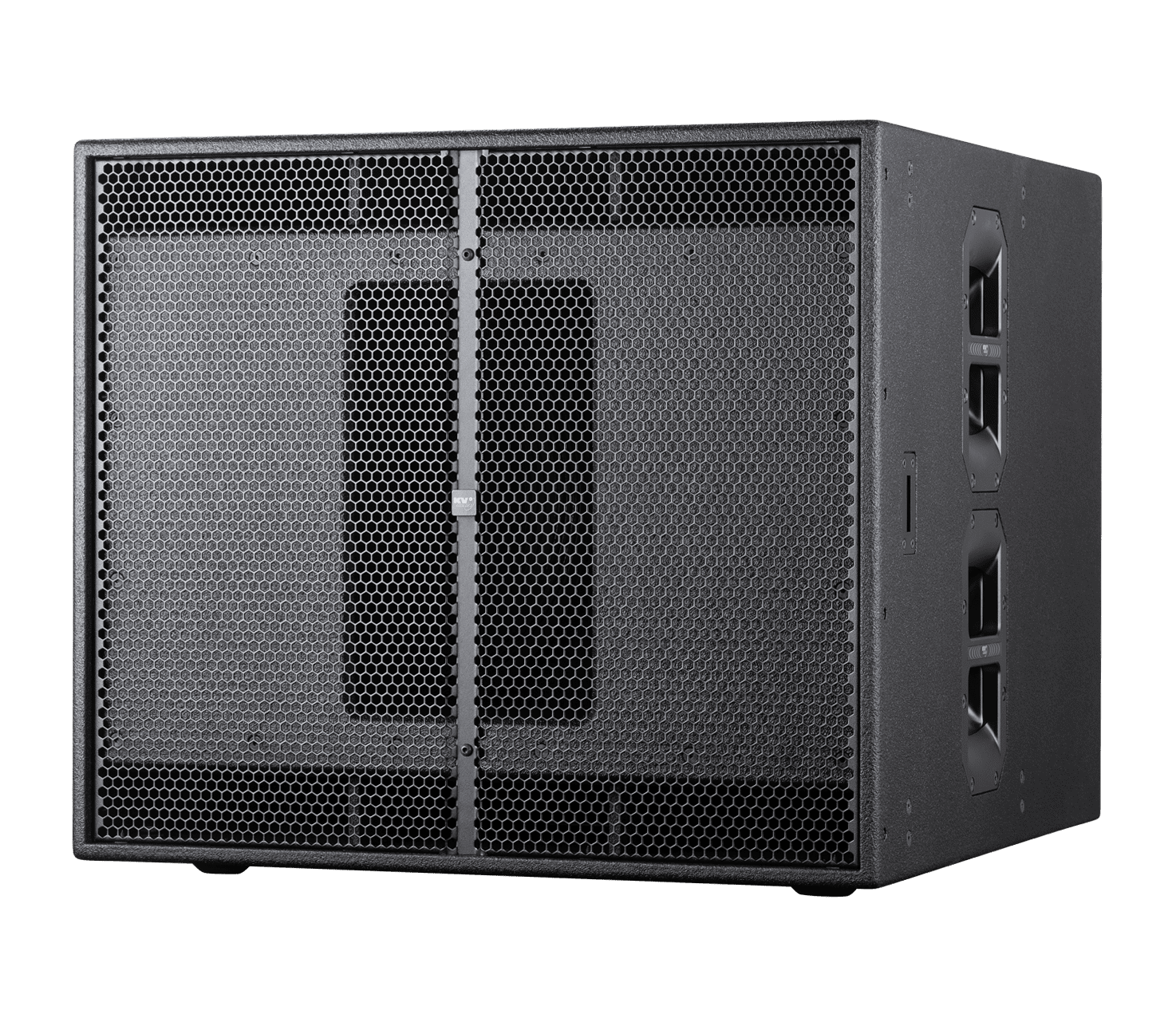

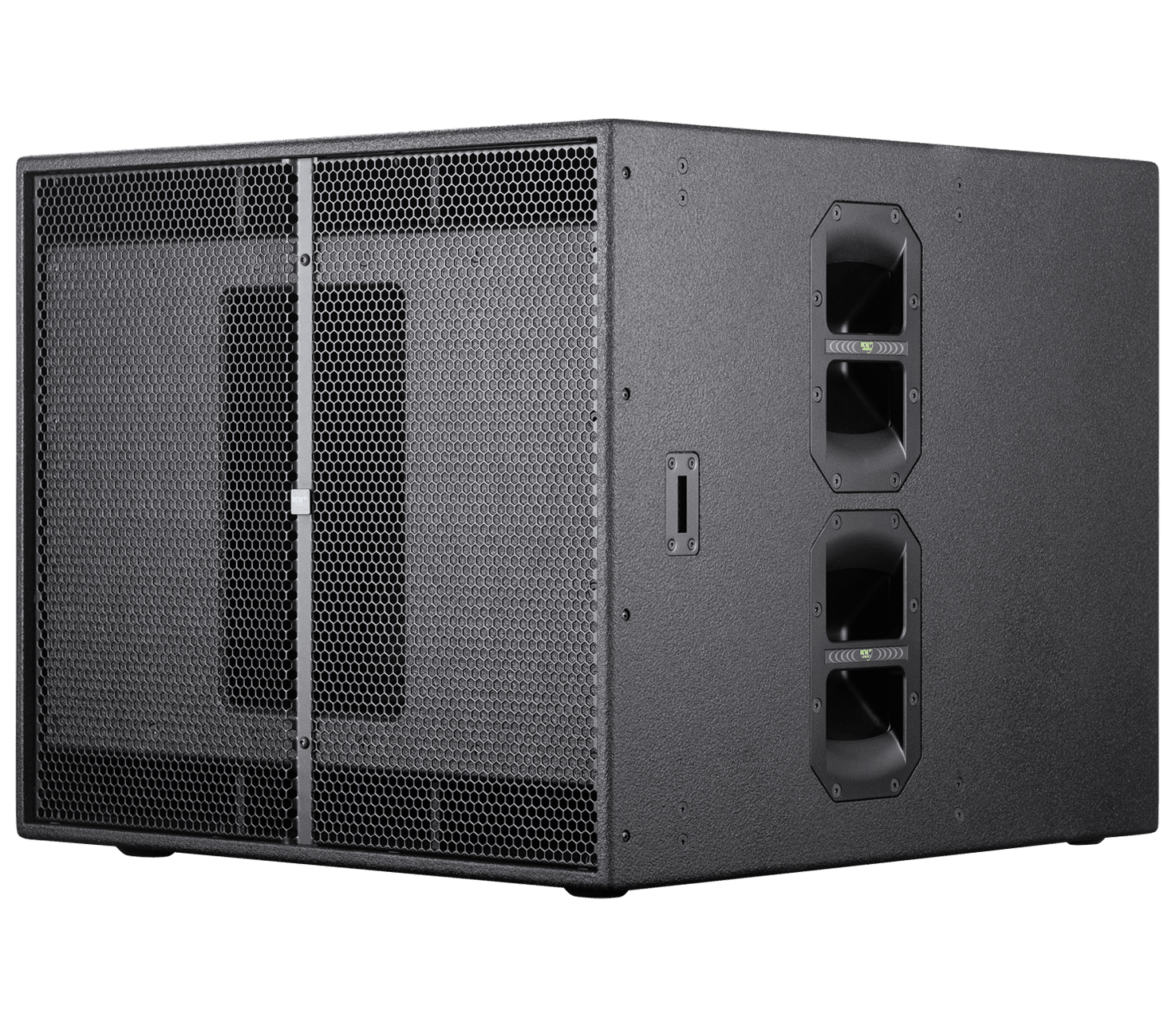

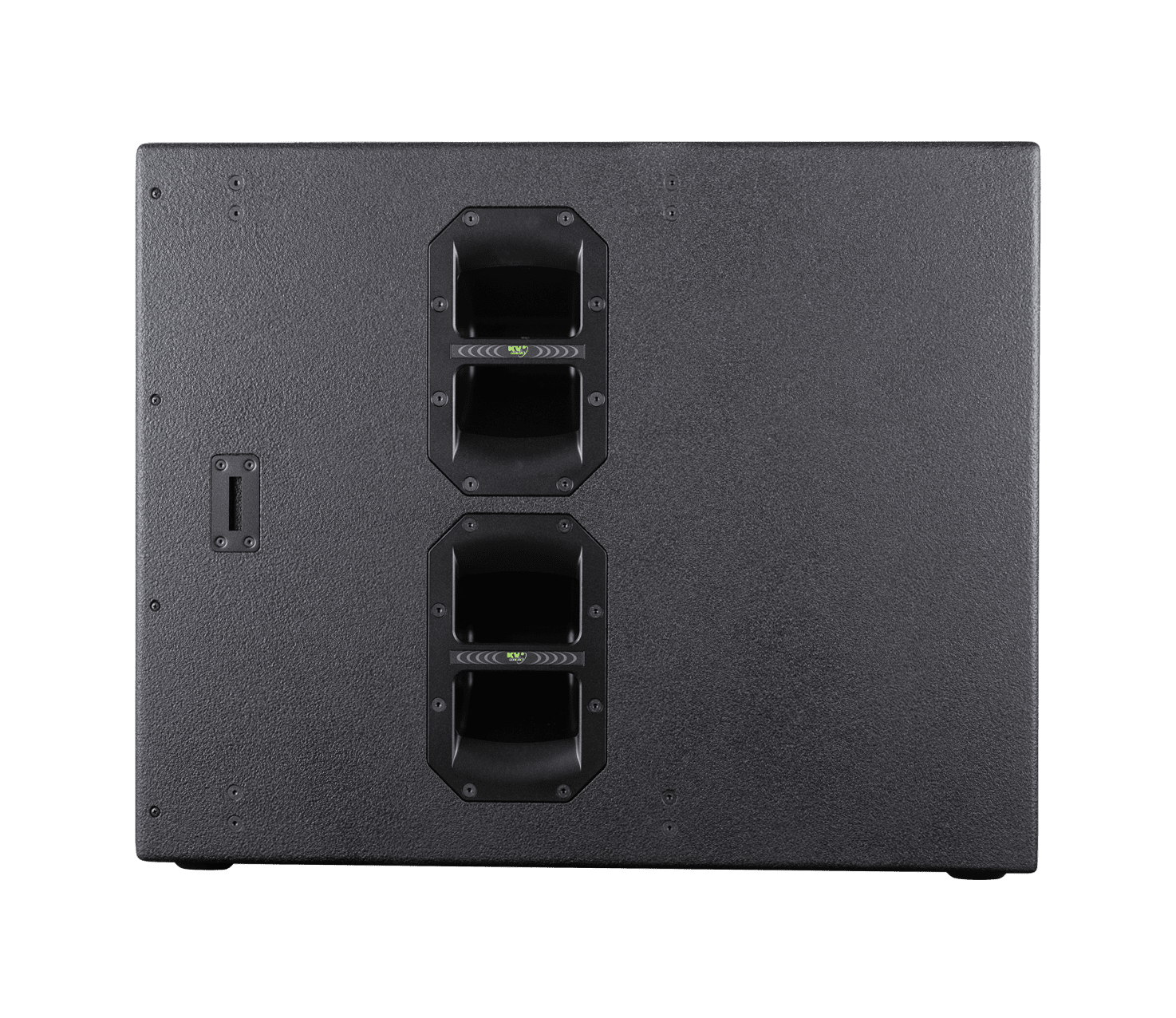

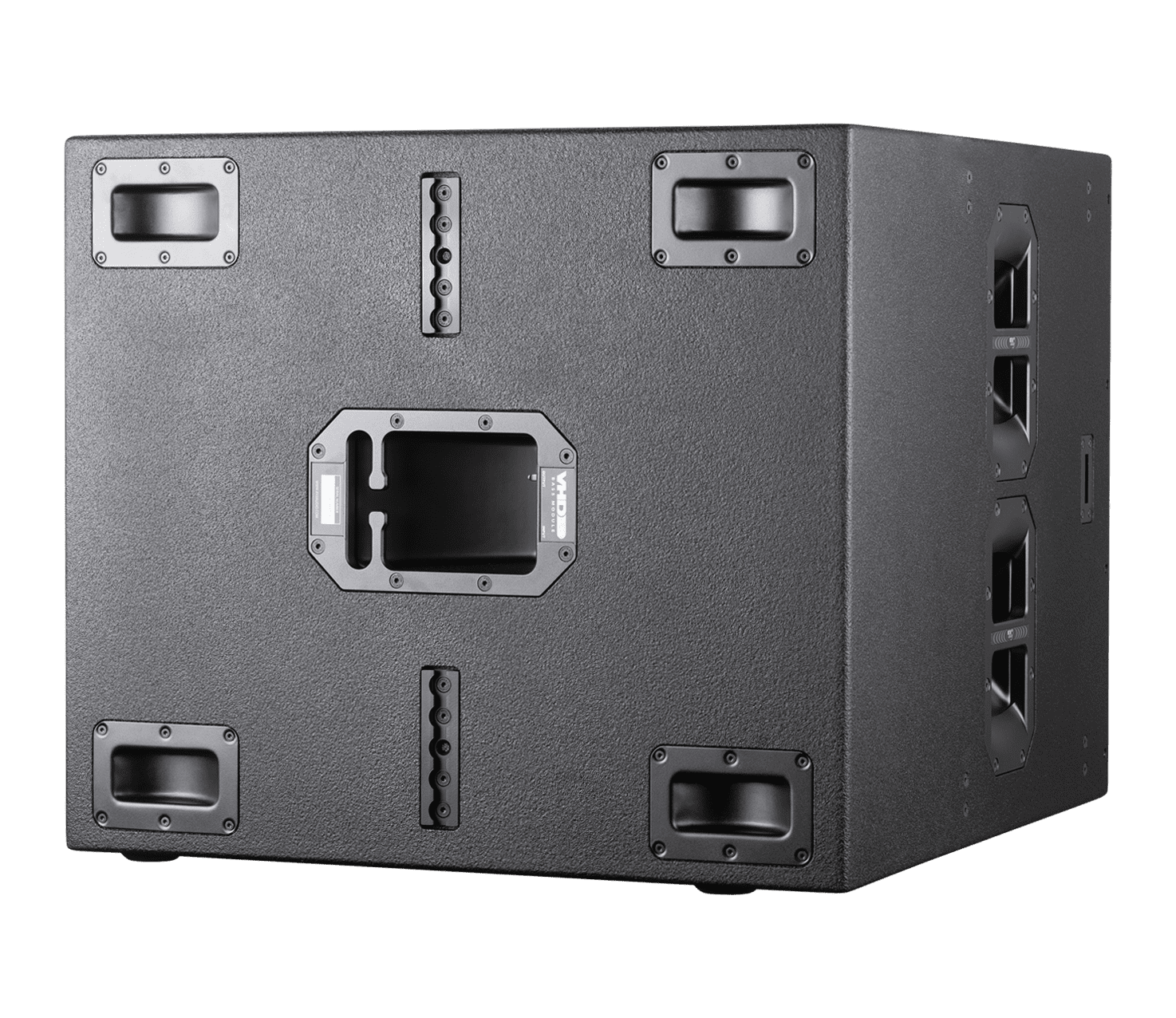

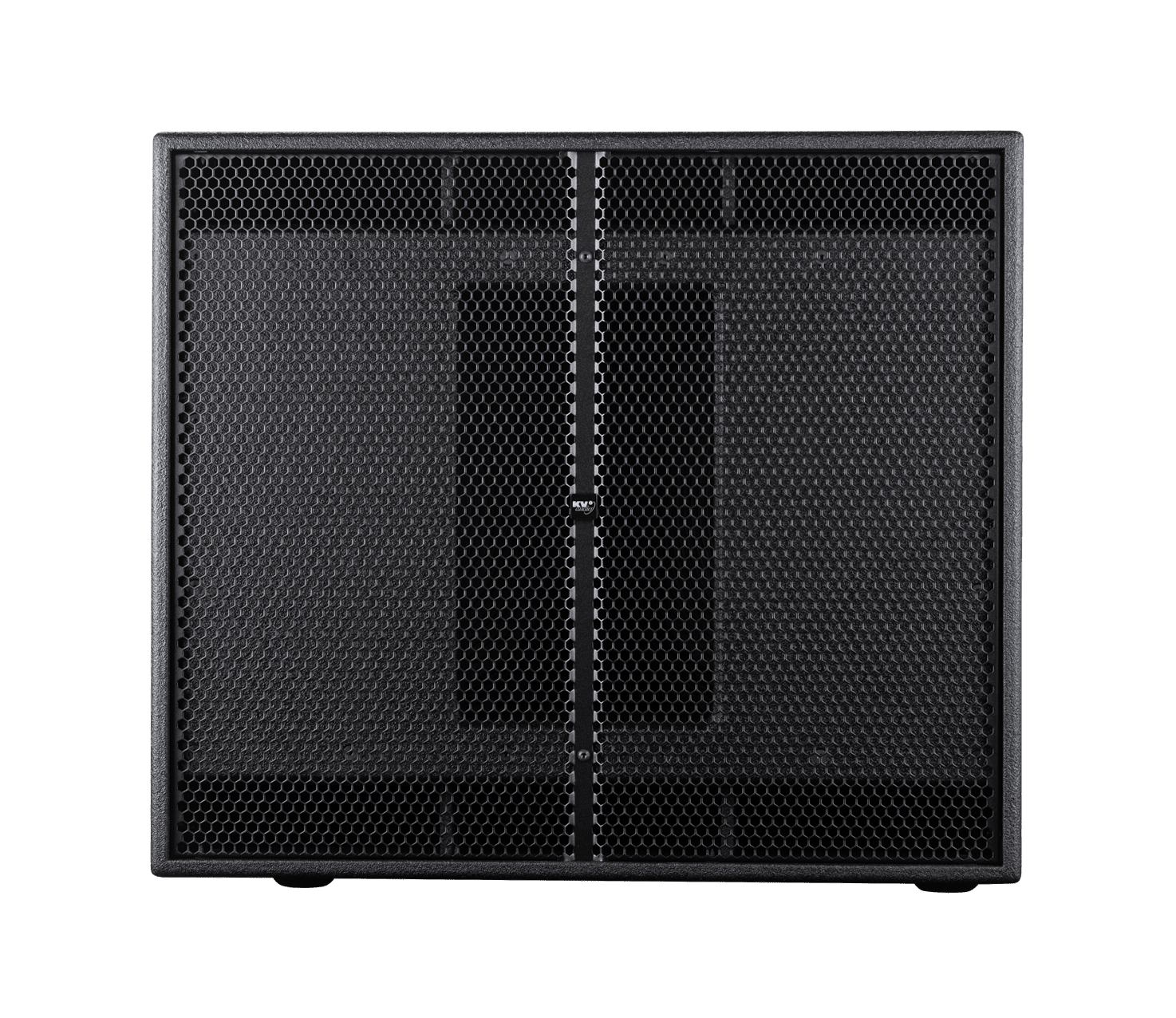

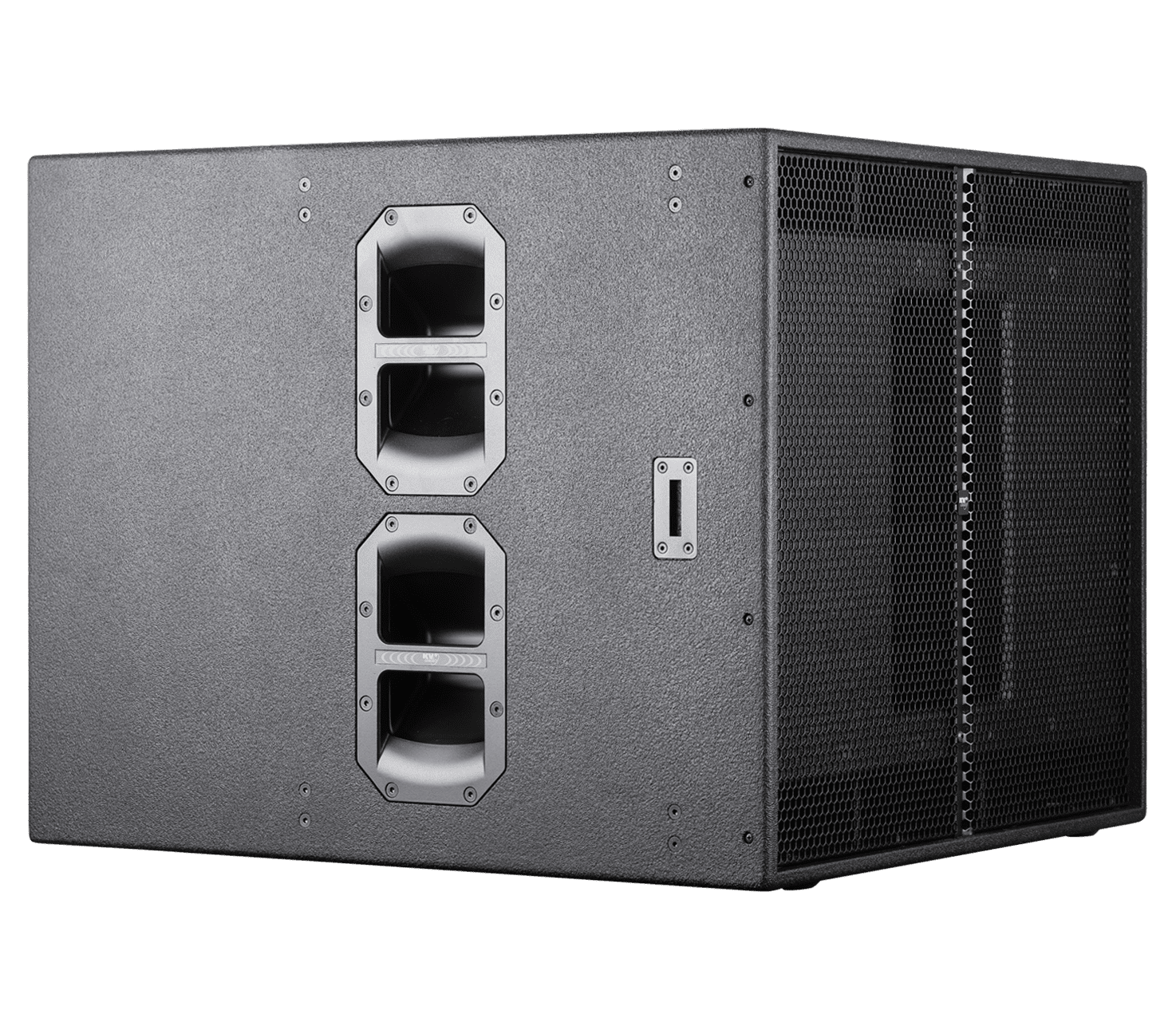

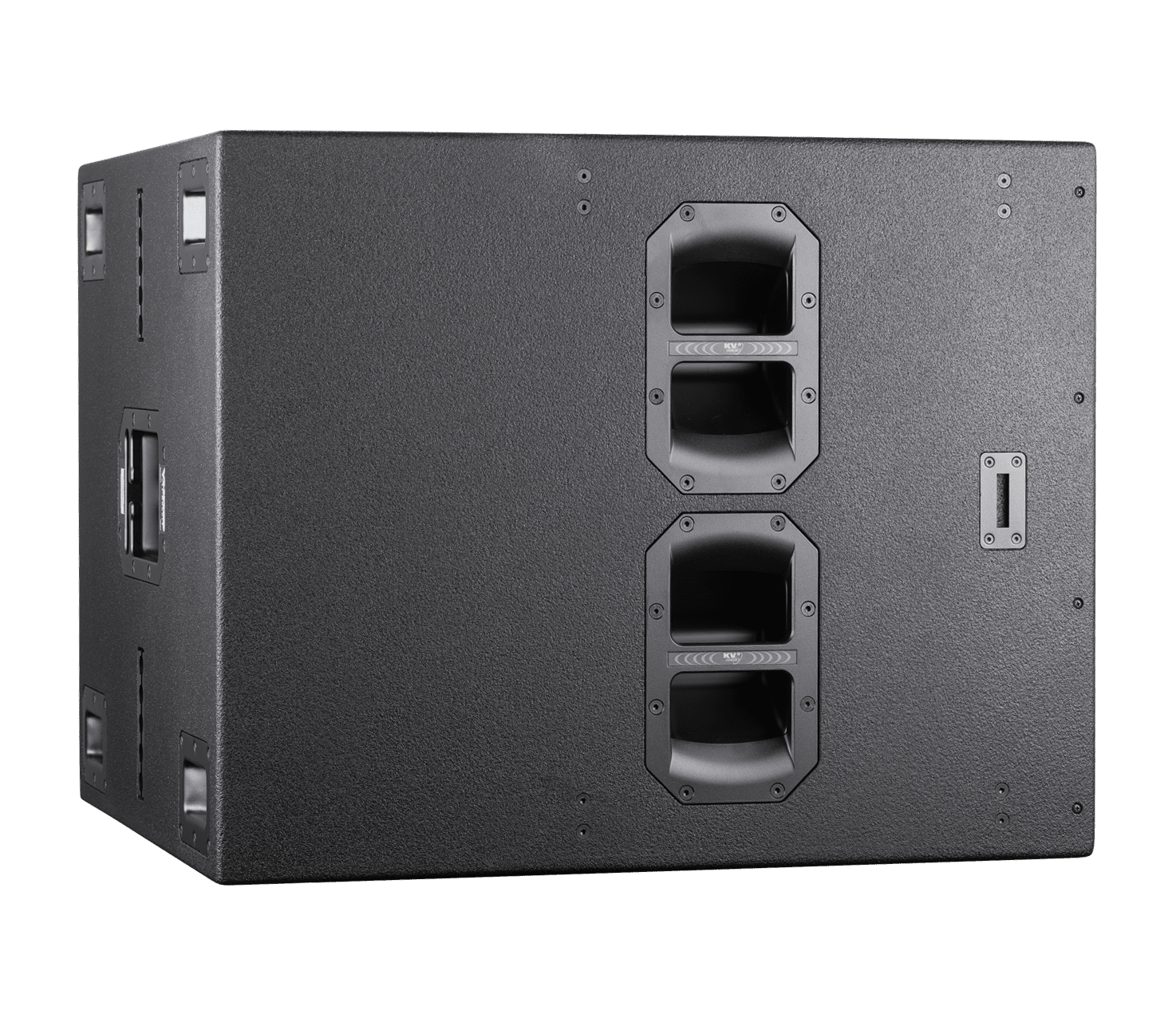

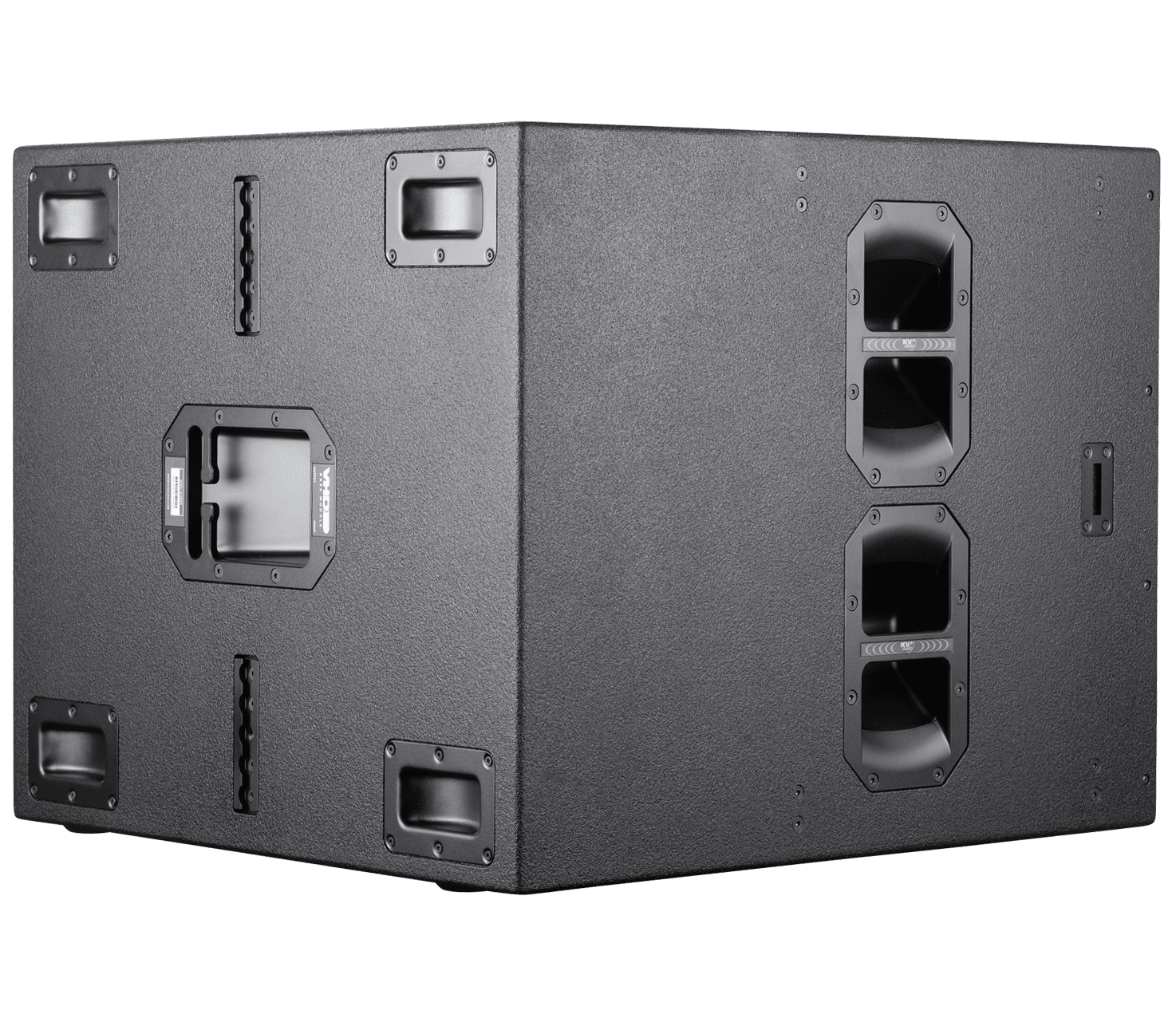

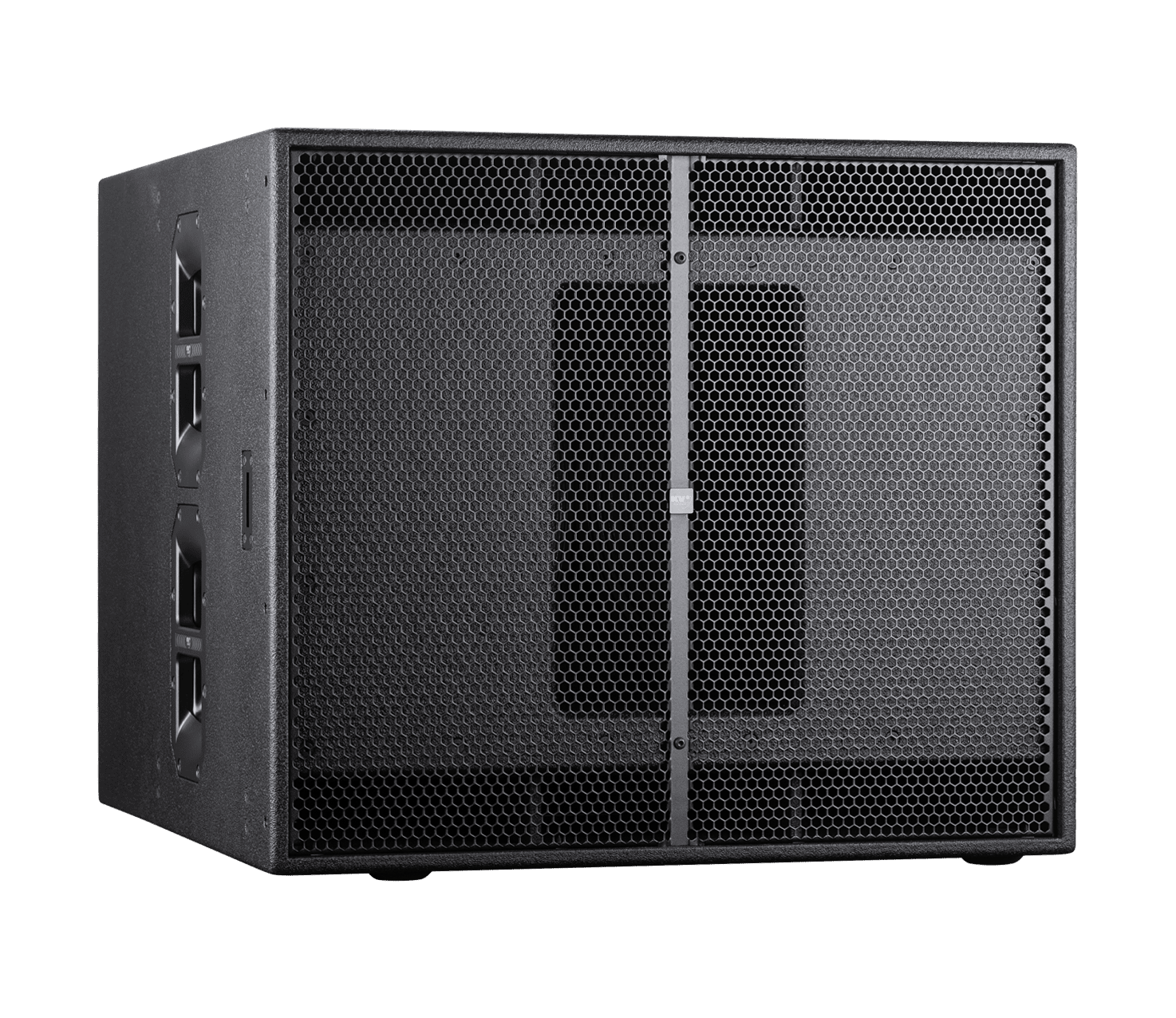

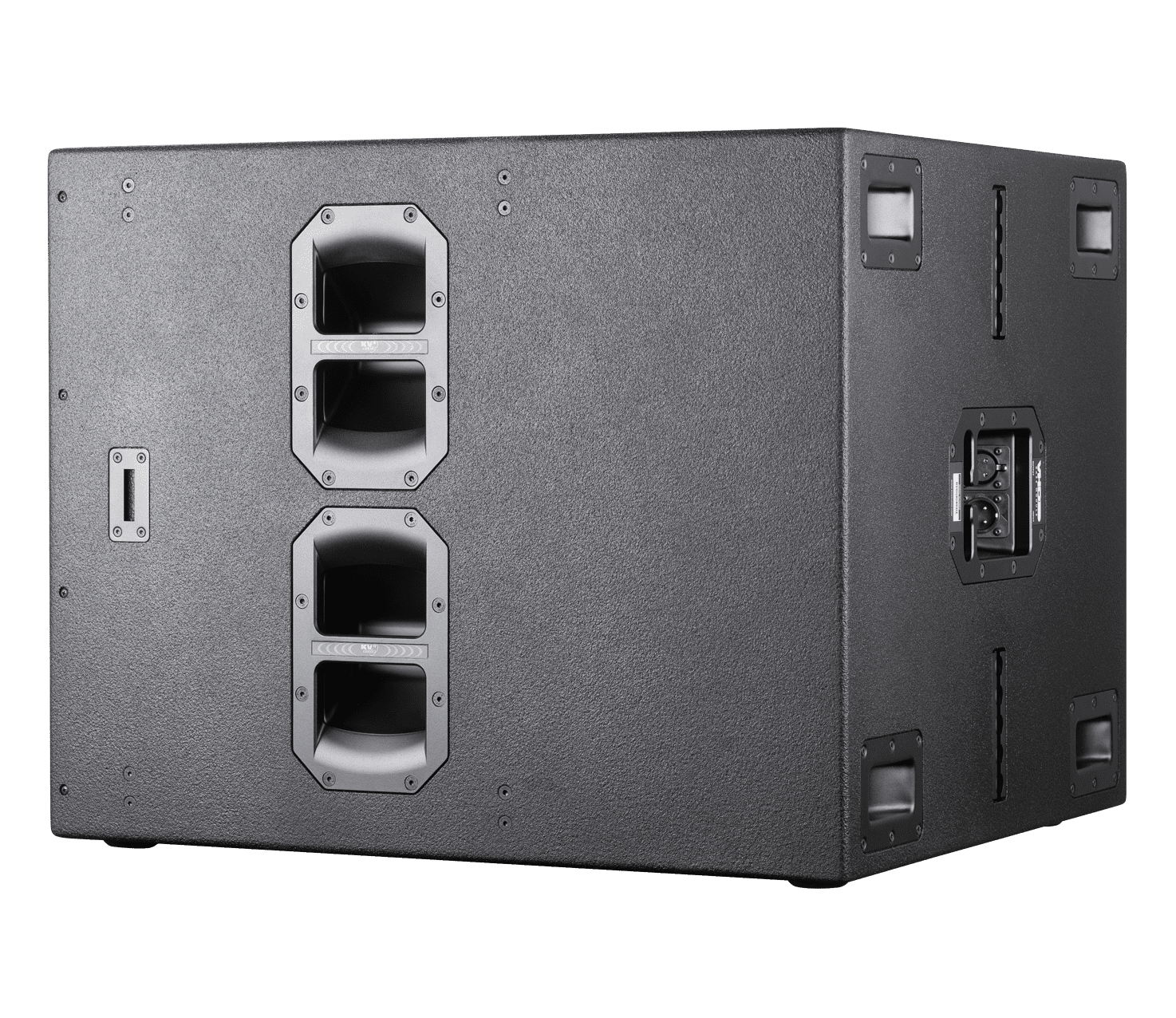

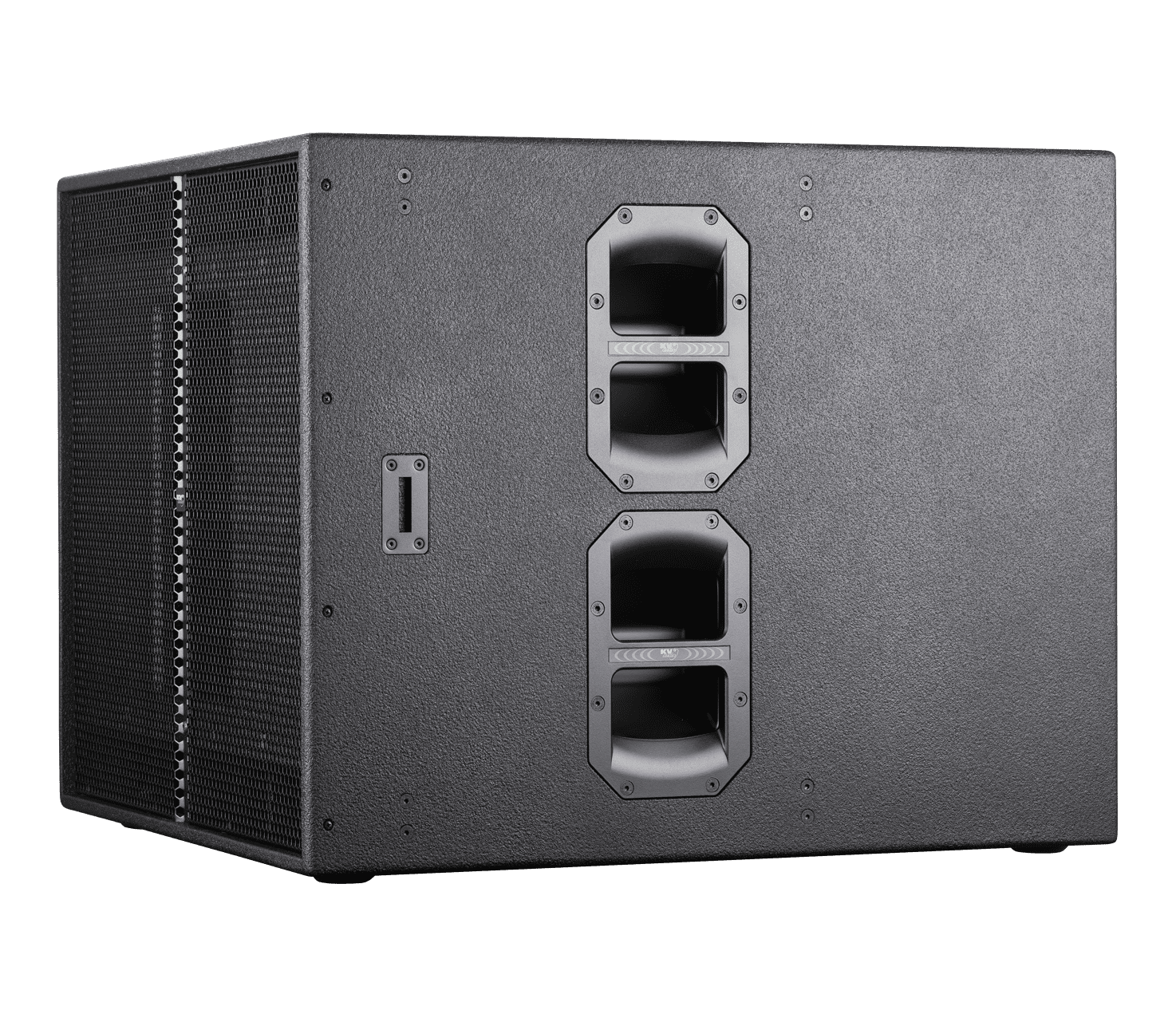

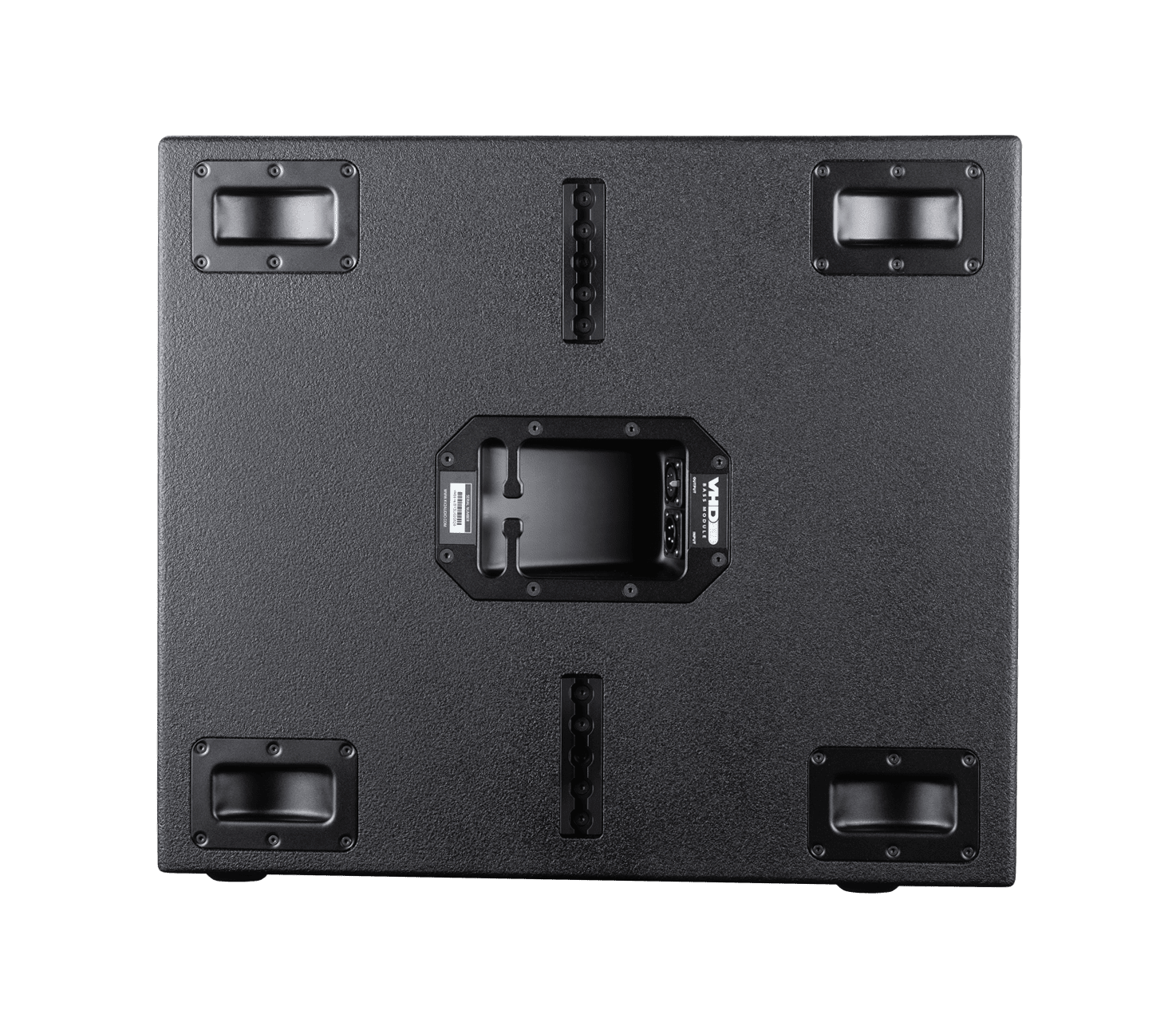

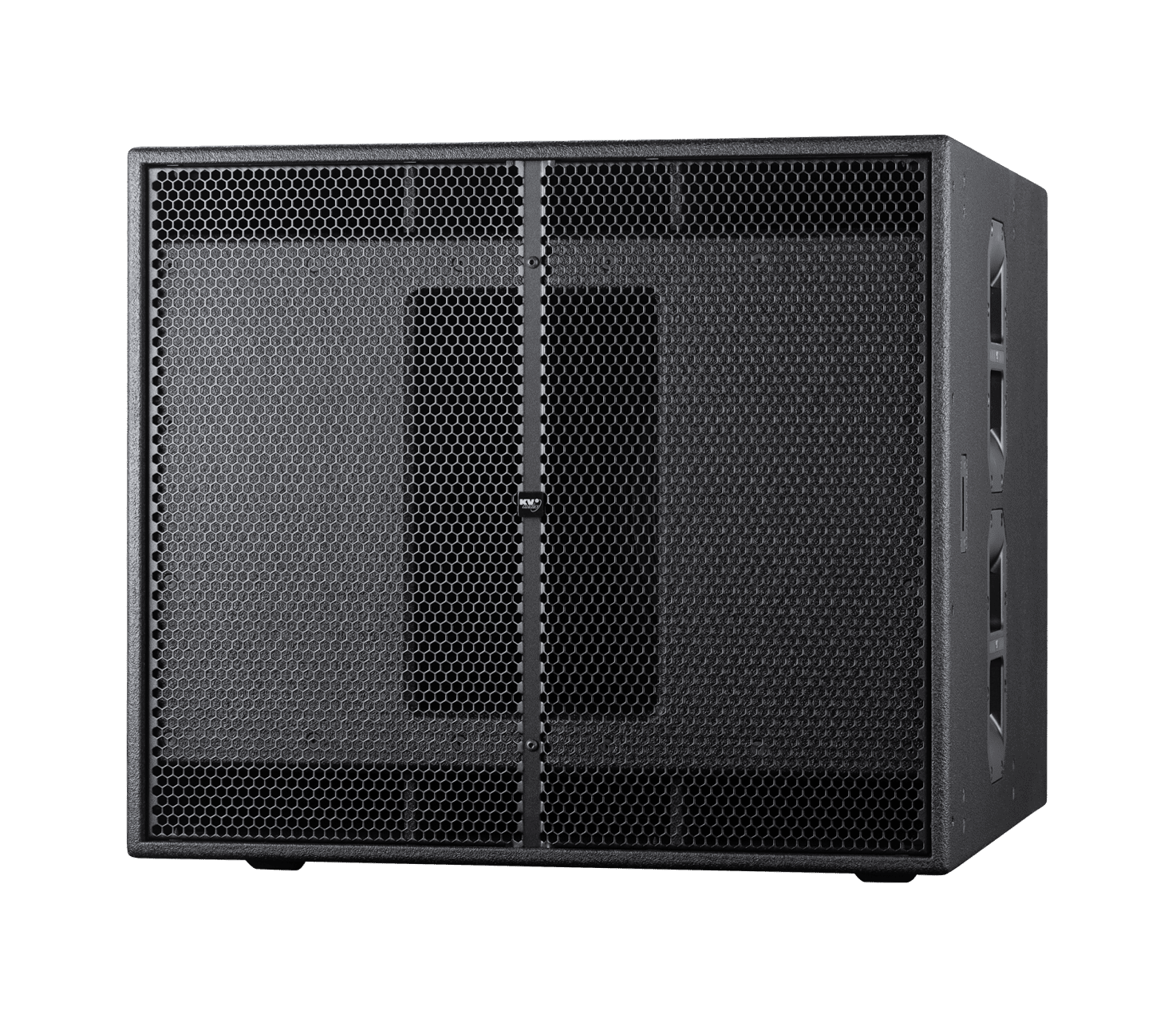

The VHD2.16 double 15″ subwoofer is a development of KV2 Audio’s ES 2.5 design that has become a standard for compact, high output subwoofer devices. Acoustical design is based on extreme loading of asymmetrical chambers delivering exceptional output and control. The cabinet is built to the same robust standards as the VHD4.18 and delivers output in excess of 140dB when configured in a pair. It also functions as a very effective upper bass cabinet when used alongside the ultra low frequency VHD1.21 or 2.21 subwoofers as part of a five way active system.

Applications

Specifically designed to accompany the VHD2.0 and VHD1.0 as a true full range high output system for live performance and music

  • Hire and Production
  • Concert venues
  • Large Theatres
  • Scalable into multiple large systems
  • Fixed installation

Product code

  • KVV 987 142 – VHD2.16


    Consultar precios

    Descripción

    The VHD2.16 double 15″ subwoofer is a development of KV2 Audio’s ES 2.5 design that has become a standard for compact, high output subwoofer devices. Acoustical design is based on extreme loading of asymmetrical chambers delivering exceptional output and control. The cabinet is built to the same robust standards as the VHD4.18 and delivers output in excess of 140dB when configured in a pair. It also functions as a very effective upper bass cabinet when used alongside the ultra low frequency VHD1.21 or 2.21 subwoofers as part of a five way active system.

    Features

    • Professional, Baltic birch construction with highly resistant polymer coating
    • Four full length pieces of fly-track (two per side) and one five point pull back piece on the rear of the cabinet
    • Very High Definition low frequency reproduction
    • 143dB sustained output / 146dB peak (using 4 units of VHD 2.16)
    • High acoustic loading via twin asymmetrical chambers
    • Two 15″ low frequency drivers with 4″ (100 mm) inside/outside, epoxy baked, high temperature voice coil assembly and neodymium magnetic structures
    • Proprietary side handles (6) for simplified handling and carrying
    • High impact low friction feet, allowing lock- in to other VHD cabinets and easy cabinet movement
    • Front locking aluminium VHD wheel boards with wraparound hardwood bumpers
    • Weather proofing option and special paint finishes available on request


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed to accompany the VHD2.0 and VHD1.0 as a true full range high output system for live performance and music

    • Hire and Production
    • Concert venues
    • Large Theatres
    • Scalable into multiple large systems
    • Fixed installation

    Product code

    • KVV 987 142 – VHD2.16


    Configurations


    VHD-Double A



    Description

    Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system



    Products

    Count Product Type
    2 VHD2.0 MID-HI
    8 VHD2.16 SUB
    2 VHD2000 MID-HI AMP
    2 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    2 Cable MH120 Cable MH120
    4 Cable LF15 Cable LF15
    4 Cable LF40 Cable LF40
    1 VHD2.0 Top arm (pair) VHD2.0 Top arm (pair)
    1 VHD2.0 Top extension arm (pair) VHD2.0 Top extension arm (pair)
    1 VHD Systems fly bar VHD Systems fly bar


    Images

    VHD-Double C



    Description

    Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system



    Products

    Count Product Type
    2 VHD2.0 MID-HI
    4 VHD2.16 SUB
    4 VHD1.21 SUB
    2 VHD2000 MID-HI AMP
    2 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    2 Cable MH120 Cable MH120
    4 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40
    2 Cable LF100 Cable LF100 for bass speaker
    1 VHD2.0 Top arm (pair) VHD2.0 Top arm (pair)
    1 VHD2.0 Top extension arm (pair) VHD2.0 Top extension arm (pair)
    1 VHD Bass arm (pair) VHD Bass arm (pair)
    1 VHD Bass extension arm (pair) VHD Bass extension arm (pair)
    1 VHD Systems fly bar VHD Systems fly bar


    Images

    VHD-Double D



    Description

    Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system



    Products

    Count Product Type
    2 VHD2.0 MID-HI
    4 VHD2.16 SUB
    4 VHD4.18 SUB
    2 VHD2000 MID-HI AMP
    2 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    2 Cable MH120 Cable MH120
    4 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40
    2 Cable LF100 Cable LF100 for bass speaker


    Images

    VHD-Double G



    Description

    Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system



    Products

    Count Product Type
    2 VHD2.0 MID-HI
    4 VHD2.16 SUB
    2 VHD2.21 ULTRA SUB
    2 VHD2000 MID-HI AMP
    3 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    2 Cable MH120 Cable MH120
    2 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40
    2 Cable LF100 Cable LF100 for bass speaker


    Images

    VHD-Single A



    Description

    Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system



    Products

    Count Product Type
    1 VHD2.0 MID-HI
    4 VHD2.16 SUB
    1 VHD2000 MID-HI AMP
    1 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    2 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40
    1 Cable MH60 Mid/Hi speaker cable MH60


    Images

    VHD-Single C



    Description

    Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system



    Products

    Count Product Type
    1 VHD2.0 MID-HI
    2 VHD2.16 SUB
    2 VHD1.21 SUB
    1 VHD2000 MID-HI AMP
    1 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    2 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40


    Images

    VHD-Single D



    Description

    Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system



    Products

    Count Product Type
    1 VHD2.0 MID-HI
    2 VHD2.16 SUB
    2 VHD4.18 SUB
    1 VHD2000 MID-HI AMP
    1 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    2 Cable LF15 Cable LF15
    2 Cable LF40 Cable LF40


    Images

    VHD-Single E



    Description

    Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system



    Products

    Count Product Type
    1 VHD2.0 MID-HI
    4 VHD2.16 SUB
    4 VHD4.18 SUB
    1 VHD2000 MID-HI AMP
    2 VHD3200 SUB AMP


    Accessories

    Count Accessory Title
    1 Cable MH60 Mid/Hi speaker cable MH60
    4 Cable LF15 Cable LF15
    4 Cable LF40 Cable LF40


    Images

    VHD-Single F



    Description

    Up to 5000 people, double bass system Number of bass boxes – depend on music style Right side of stereo single system



    Products

    Count Product Type
    1 VHD2.0 MID-HI
    4 VHD2.16 SUB
    4 VHD1.21 SUB
    1 VHD2000

    Accesories


    Cable LF100 for bass speaker

    Gallery

    Product code

    KVV 987 123



    Description

    – 4 wire speaker cable – AP4 connectors – 10m (33ft) – for ES Bass Module hook-up



    Cable LF15

    Gallery

    Product code

    KVV 987 121



    Description

    – 4 wire speaker cable – AP4 connectors – 1,5m (5ft) – for ES Bass Module daisy-chaining



    Cable LF200 for bass speaker

    Gallery

    Product code

    KVV 987 124



    Description

    – 4 wire speaker cable – AP4 connectors – 20m (66ft) – for ES Bass Module hook-up



    Cable LF40

    Gallery

    Product code

    KVV 987 122



    Description

    – 4 wire speaker cable – AP4 connectors – 4m (13ft) – for ES Bass Module hook-up



    VHD Bass arm (pair)

    Gallery

    Product code

    KVV 987 307



    Description

    The VHD BASS ARM is a flat steel bar with straight ends, a double groove joint at the lower end and prefixed apertures to accept both D6& D12.6 QUICK RELEASE PINS. This bar is used exclusively to suspend a compliment of two VHD Subwoofers and a single bar is used on each side of the two enclosures. The bar employs a total of four angular wedges that are used to ‘lock into’ the handles on each side of the VHD Subwoofer enclosure and are secured by the insertion of a single D6 QUICK RELEASE PIN, (Which are attached to the bar via small shrouded steel ties) into each handle.



    Downloads

    DWG

    VHD Bass arm (pair) 3D DWG

    VHD Bass arm (pair) 3D DWG

    SKP

    VHD Bass arm (pair) SKP

    VHD Bass arm (pair) SketchUp

    VHD Bass extension arm (pair)

    Gallery

    Product code

    KVV 987 308



    Description

    The VHD BASS EXTENSION ARM is of the same design and presentation as the VHD SUBWOOFER ARM, except it is differentiated by being physically longer and employs a total of four angular wedges to allow locking into an attached- secondary double hang of VHD Subwoofers and its enclosure handles. The same method of inserting a single D6 QUICK RELEASE PIN into each handle is employed.

    The arm has a poly-hex shape head at the top of the bar, with pre-fixed apertures for the insertion of the D12.6 QUICK RELEASE PINS, and is attached to the lower end of the VHD SUBWOOFER ARM by sliding into the groove and then being secured by the insertion of a single D12.6 QUICK RELEASE PIN. To add extra enclosures to the hang, this method of attachment is repeated.



    Downloads

    DWG

    VHD Bass extension arm (pair) 3D DWG

    VHD Bass extension arm (pair) 3D DWG

    SKP

    VHD Bass extension arm (pair) SKP

    VHD Bass extension arm (pair) SketchUp

    VHD Systems fly bar

    Gallery

    Product code

    KVV 987 252



    Description

    Must be used with VHD ARM attachments see other Accessories. The CROSSMEMBER hanging bracket is a flat and folded steel bar with returned 90 degree ends. This bracket attaches to the PICKPOINT ARM by simply sliding into two preset grooves, from left to right and secures smoothly and tightly, thus creating a T-Bar effect. Once both bars are attached and joined, it is a simple case of locking and securing the correct position and location, according to which configuration of VHD enclosures are being suspended, either in a Left/Right unit, by inserting a single D6 QUICK RELEASE PIN, which is attached via a small shrouded steel tie at the return edge of the PICKPOINT ARM.



    Downloads

    DWG

    VHD Systems fly bar 3D DWG

    VHD Systems fly bar 3D DWG

    SKP

    VHD Systems fly bar SKP

    VHD Systems fly bar SketchUp

    DXF

    VHD Systems fly bar 2D DXF

    VHD Systems fly bar 2D DXF

    VHD2.15, VHD2.16, VHD4.18 Cart

    Gallery

    Product code

    KVV 987 100



    Description

    – with hardwood bumpers



    Downloads

    DWG

    VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

    VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

    SKP

    VHD2.15, VHD2.16, VHD4.18 Cart SKP

    VHD2.15, VHD2.16, VHD4.18 Cart SketchUp

    VHD2.16 Cover

    Gallery

    Product code

    KVV 987 155



    Description

    – used with cart



    System Acoustic Performance

    Max SPL Long-term 143dB (4x VHD2.16)
    Max SPL Peak 149dB (4x VHD2.16)
    -3dB Response 37Hz to 130Hz
    -10dB Response 32Hz to 130Hz
    Impedance
    Crossover Point 70Hz to 130Hz

    Low Frequency Section

    Acoustic Design Twin Asymmetrical loading
    Low Frequency Amplifier Requirement 1600W /2x VDH2.16 (VHD3200 amp.)
    Woofer Size / Voice Coil Diameter 2x 15″ / 4″ / Inside Outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Advanced ventilated neodymium

    Speaker Input

    Speaker Input AP4 male

    Speaker Output

    Speaker Output AP4 female

    Cabinet

    Cabinet Material Baltic birch
    Handles 6
    Color Black (wear resistant polymer coating)

    Physical Dimensions

    Height 600 mm (23.62″)
    Width 700 mm (27.55″)
    Depth 750 mm (29.52″)
    Weight 65 kg (143lbs)


    Product code

    • KVV 987 142 – VHD2.16

    PDF

    VHD Subwoofers User Guide

    VHD Series Subwoofers User Guide – VHD2.16, VHD2.18J, VHD4.18, VHD1.21, VHD2.21 / VHD2.21R, English



    PDF

    VHD2.16 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    VHD2.16 – 3D

    – 1:1 scale – clamping points – weight – dwg file



    SKP

    VHD2.15, VHD2.16, VHD4.18 Cart SKP

    VHD2.15, VHD2.16, VHD4.18 Cart SketchUp



    DWG

    VHD2.16 3D DWG

    VHD2.16 3D DWG



    SKP

    VHD2.16 SKP

    VHD2.16 SketchUp



    DWG

    VHD Bass arm (pair) 3D DWG

    VHD Bass arm (pair) 3D DWG



    SKP

    VHD Bass arm (pair) SKP

    VHD Bass arm (pair) SketchUp



    DWG

    VHD Bass extension arm (pair) 3D DWG

    VHD Bass extension arm (pair) 3D DWG



    SKP

    VHD Bass extension arm (pair) SKP

    VHD Bass extension arm (pair) SketchUp



    DWG

    VHD2.16 2D DWG

    VHD2.16 2D DWG



    SKP

    VHD Series Sketchup

    VHD Series Sketchup – all boxes and accessories



    PDF

    VHD2.16 – 2D

    VHD2.16 2D Drawings



    DWG

    VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG

    VHD2.15, VHD2.16, VHD4.18 Cart 3D DWG



    GLL

    VHD2.16 EASE Focus

    VHD2.16 EASE Focus ver 2
