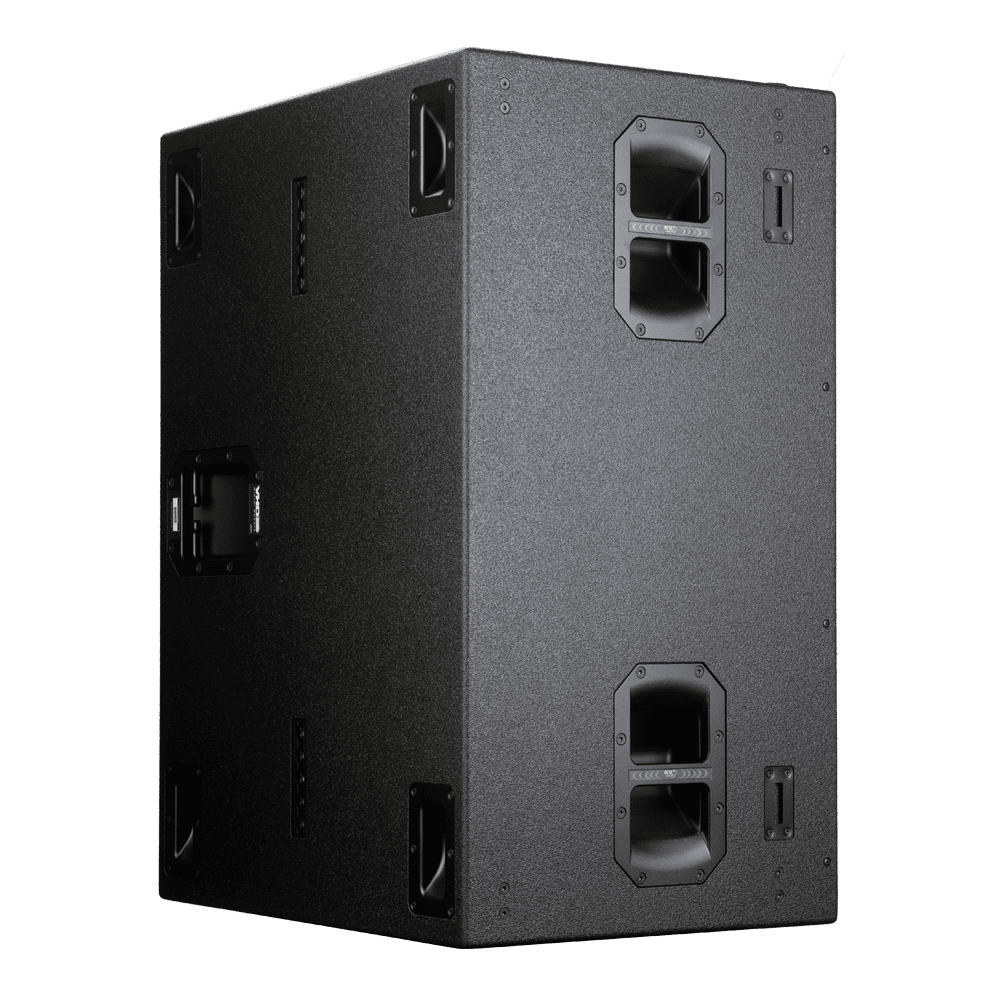

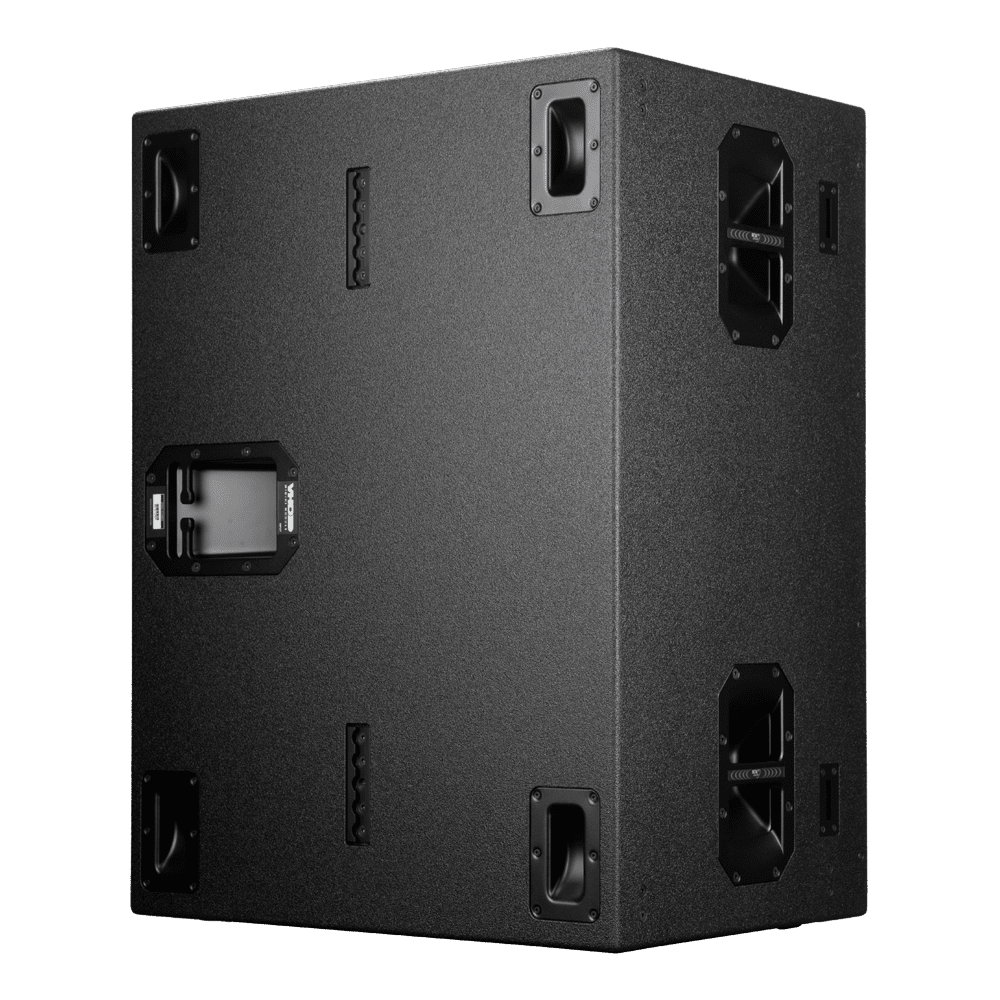

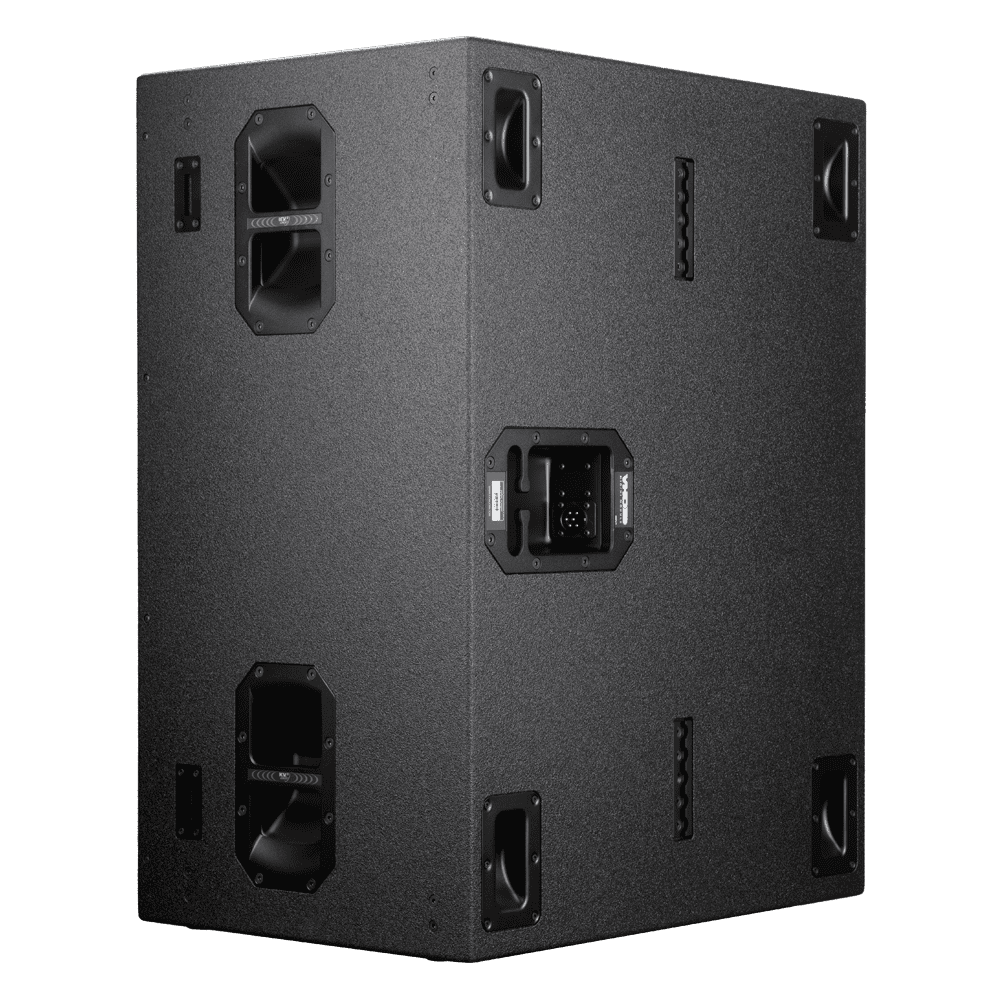

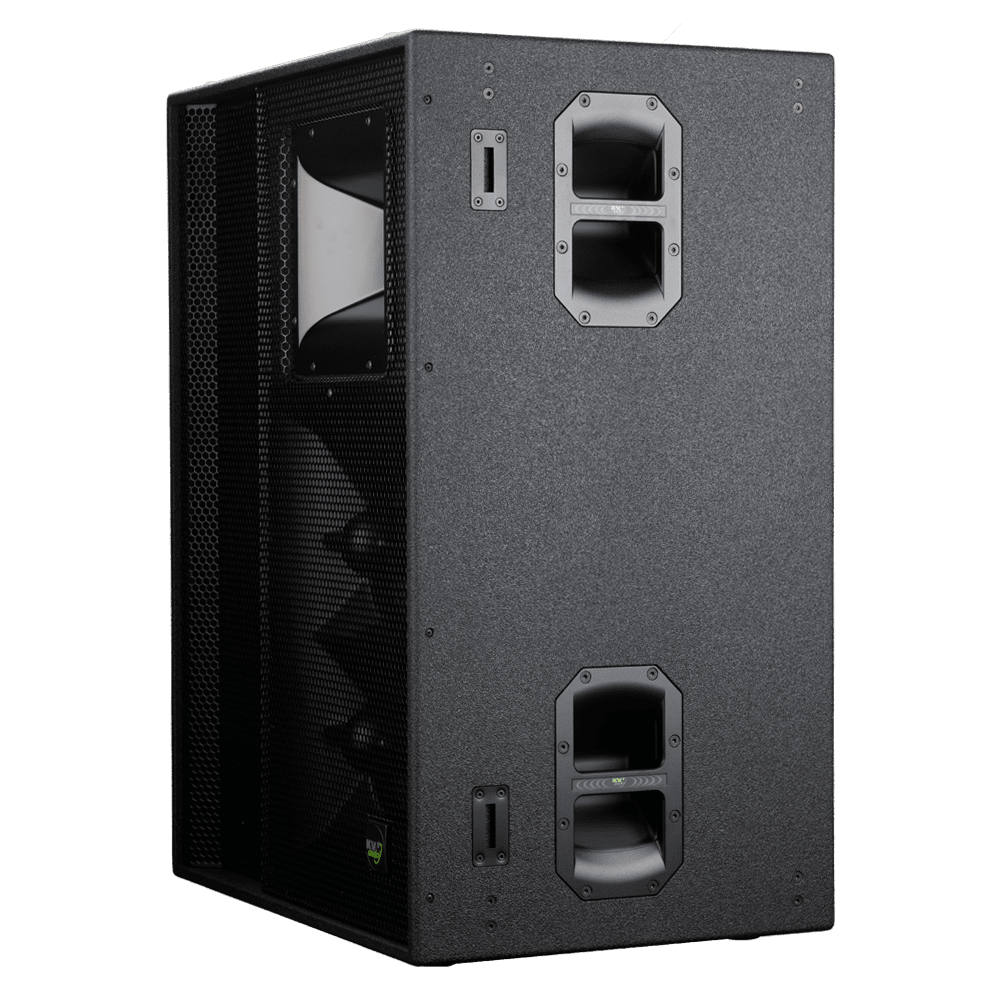

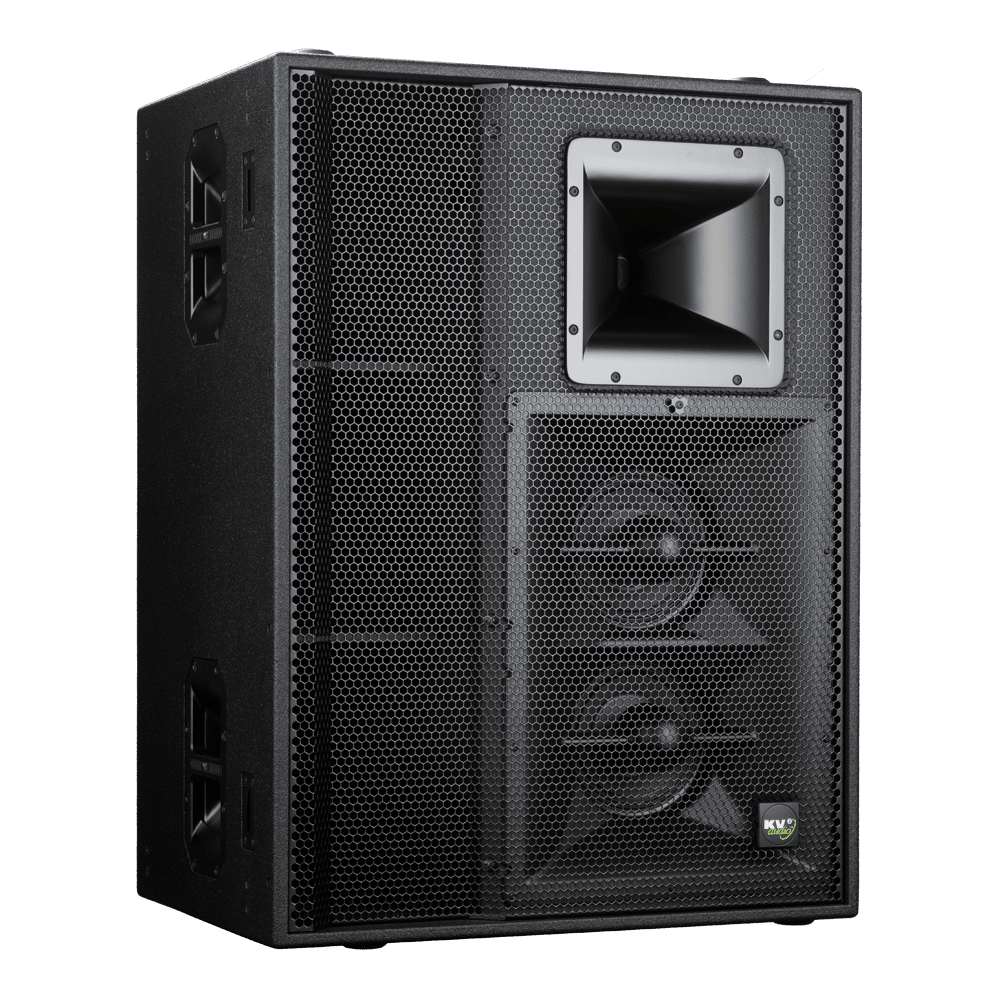

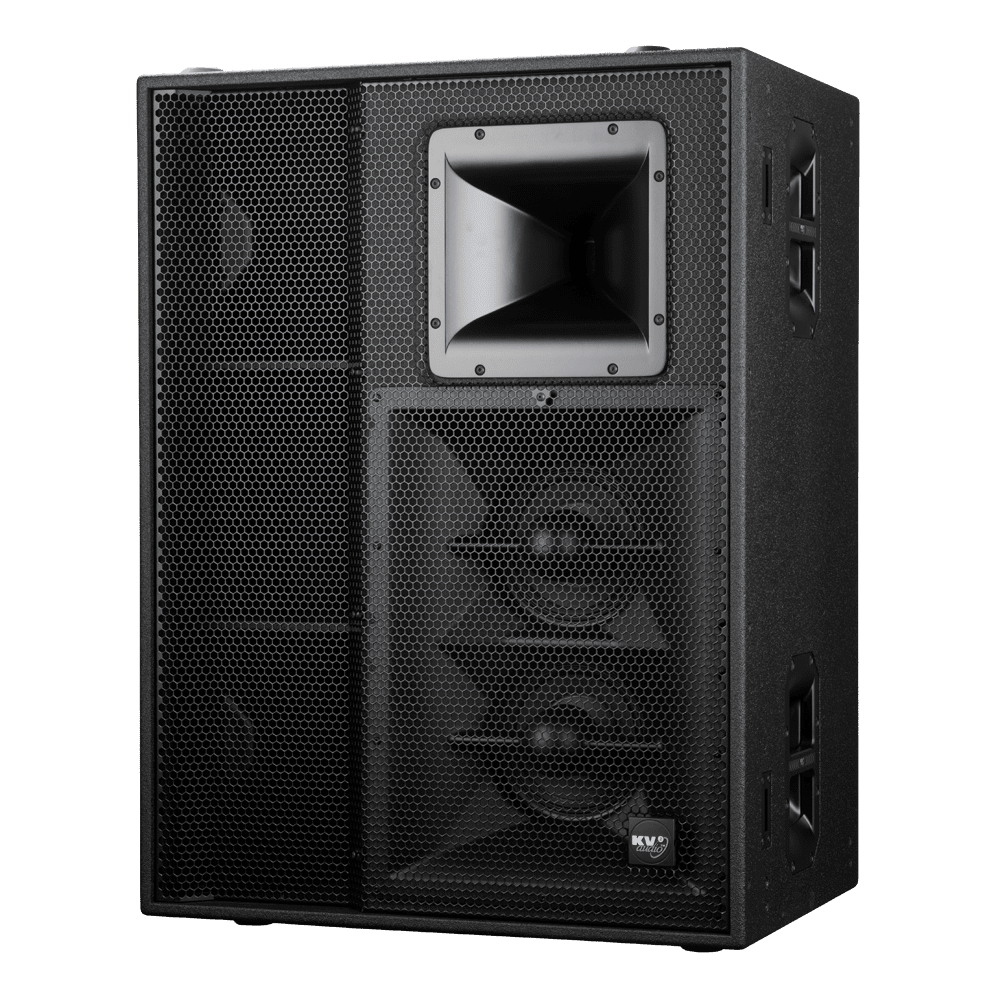

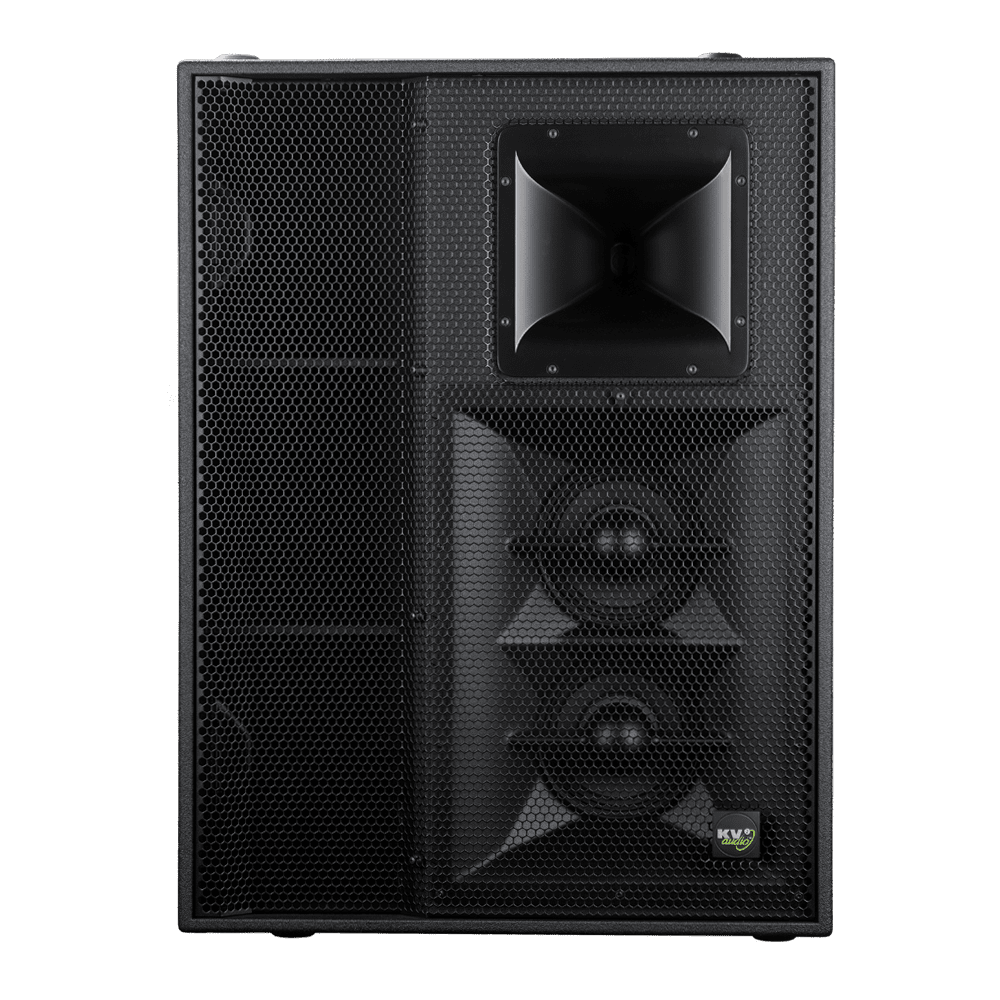

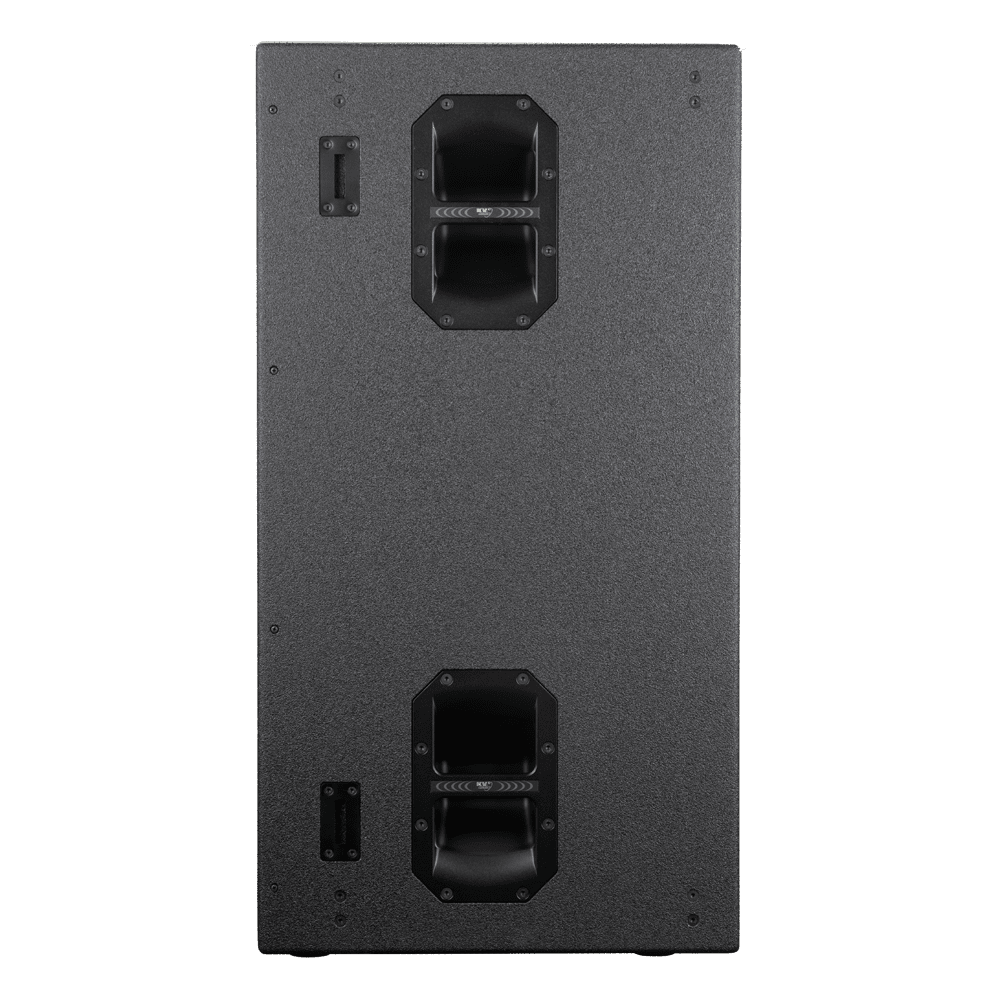

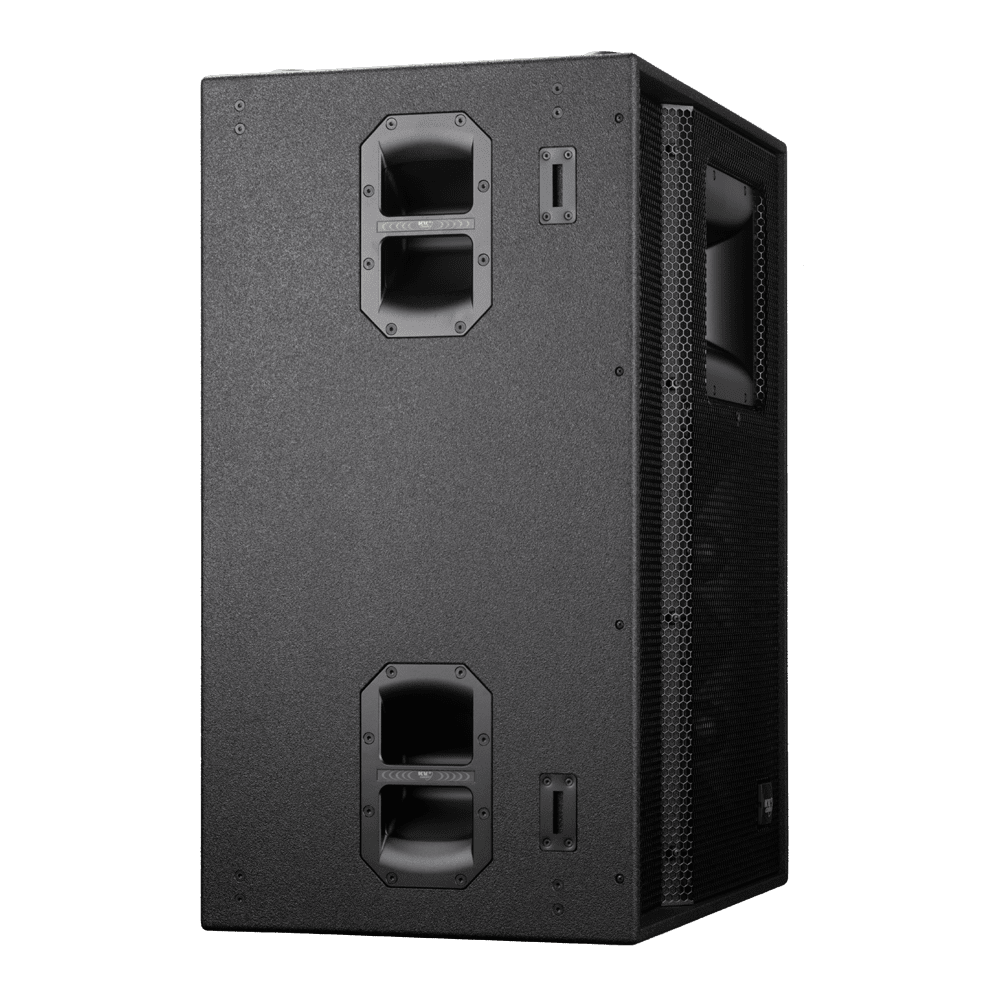

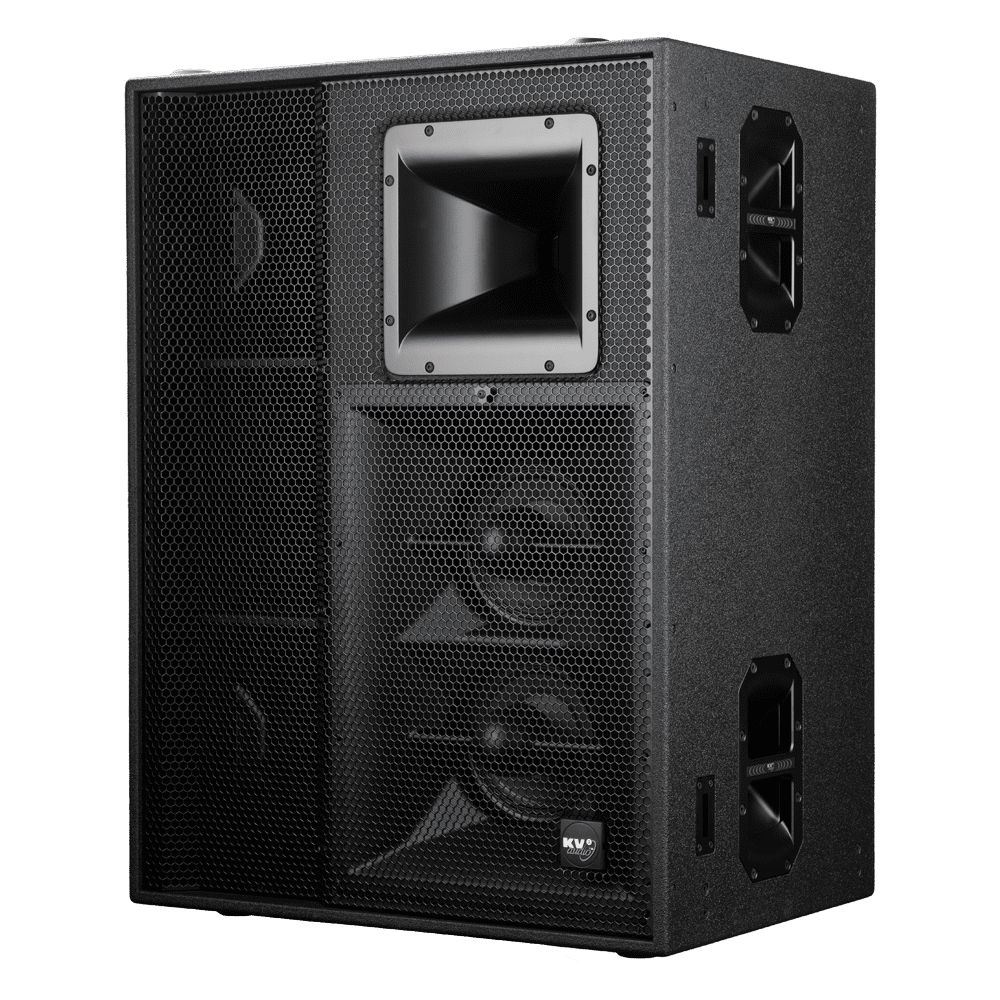

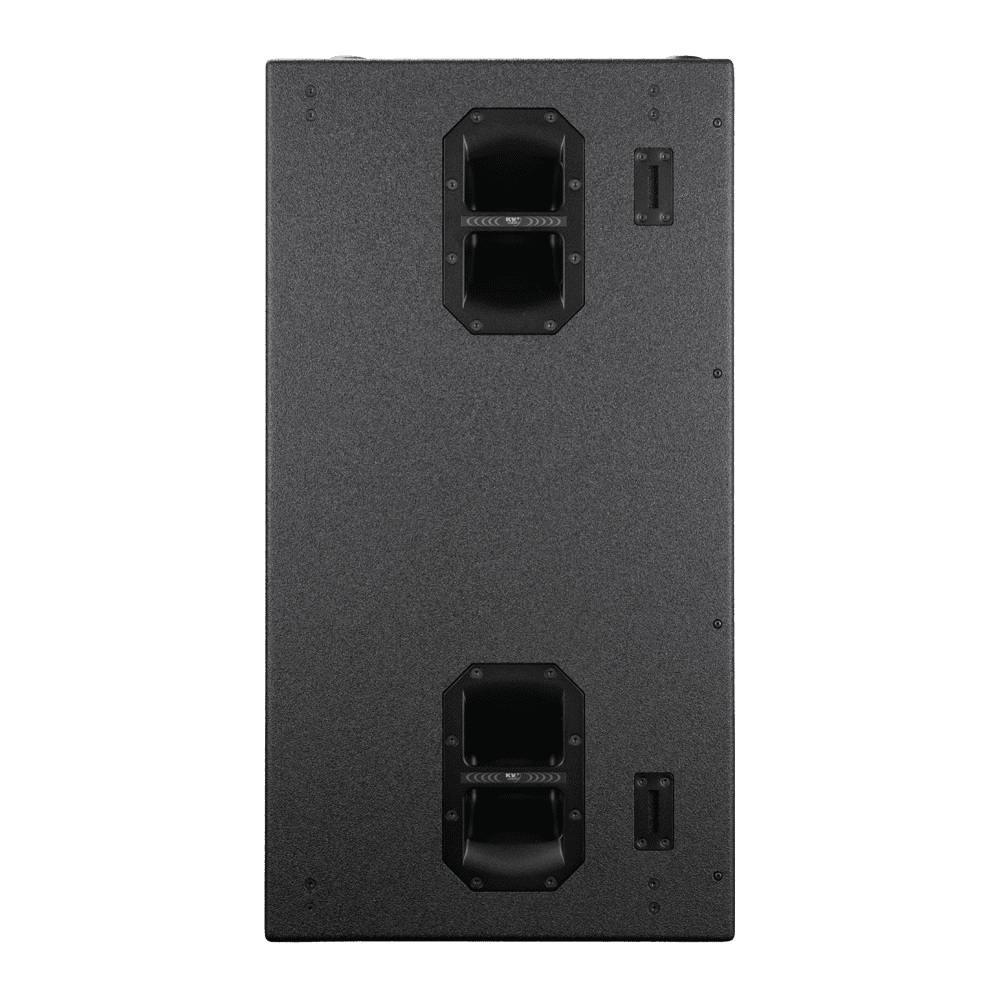

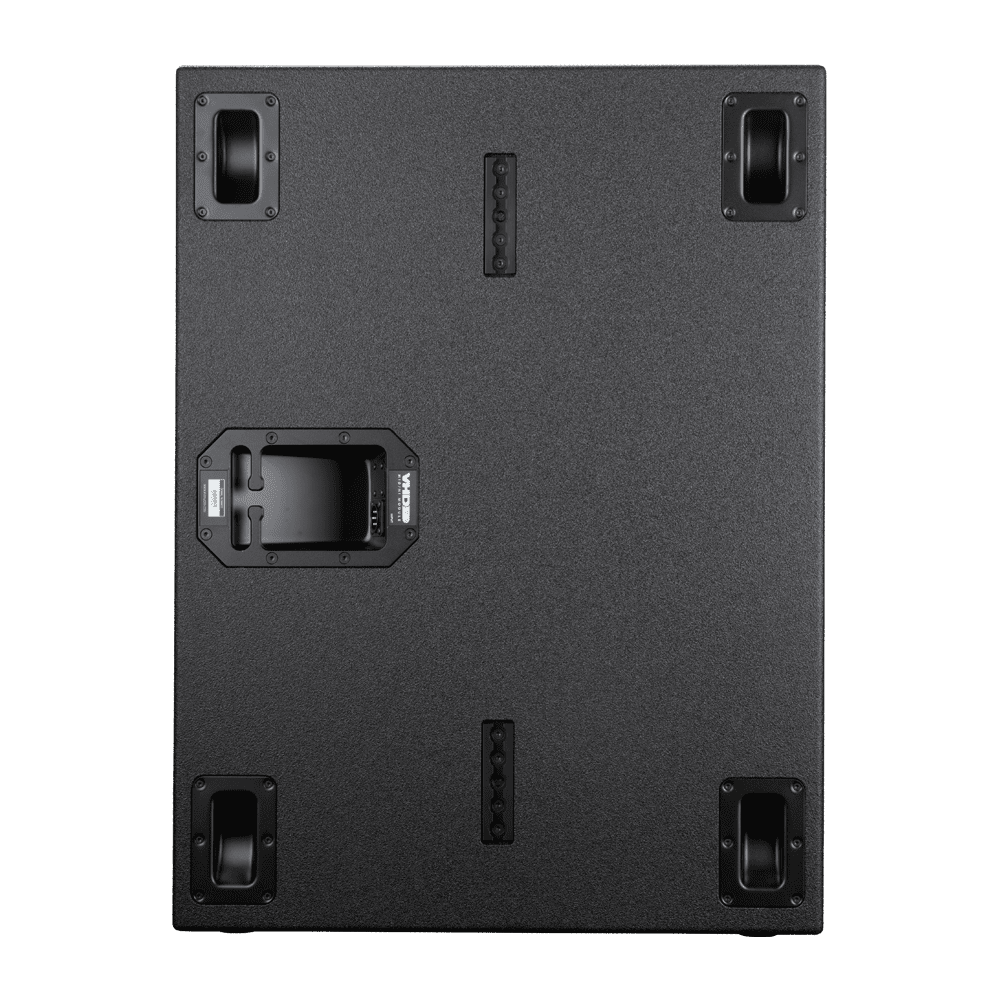

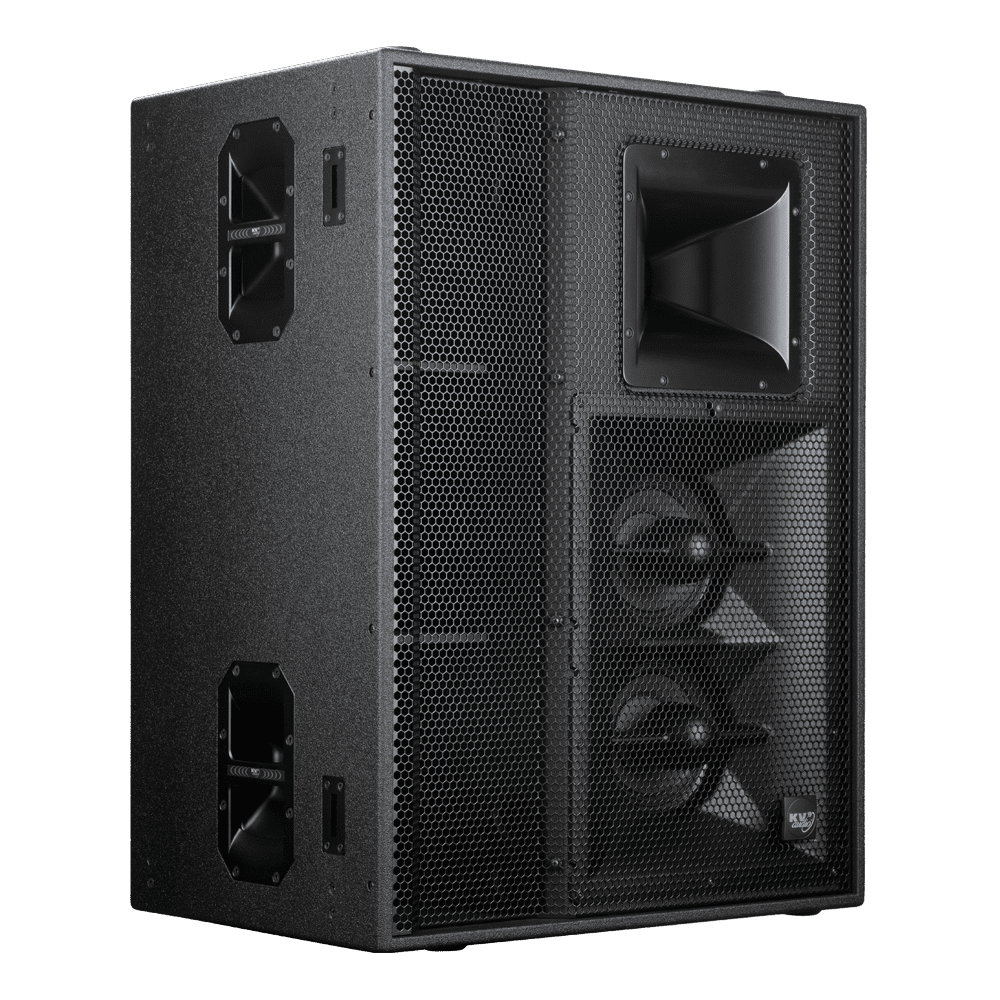

VHD2.0 – Mid High Enclosure
Un potente sistema de largo alcance para audiencias de hasta 20.000 personas sin necesidad de sistemas de retardo adicionales. Un diseño de tres vías que presenta un controlador de compresión de 3″ con conjunto de cúpula tratada con NVPD, dos parlantes de 8″ cargados con tecnología AIC y dos parlantes de medios graves de 12″ cargados con bocina. Todos los parlantes emplean imanes de neodimio para aumentar la fuerza, mejorar el control y reducir el peso. El VHD2.0 tiene una dispersión horizontal de 80° y vertical de 40° y se ofrecen versiones izquierda y derecha del altavoz para crear un formato más grande. matrices verticales del sistema medio alto.
Aplicaciones
Diseñada como una unidad mid-hi de alto rendimiento y rendimiento extremadamente alto como parte de los sistemas VHD de muy alta definición para presentaciones en vivo
- Salas de conciertos de tamaño mediano a grande
- Escalable desde sistemas pequeños a grandes
- Uso independiente de rango completo en áreas públicas
- Alquiler y producción
- Grandes teatros
Código de producto
- KVV 987 077 – VHD2.0 R (derecha)
- KVV 987 078 –VHD2.0 L (izquierda)
Descripción
Un potente sistema de largo alcance para audiencias de hasta 20.000 personas sin necesidad de sistemas de retardo adicionales. Un diseño de tres vías que presenta un controlador de compresión de 3″ con conjunto de cúpula tratada con NVPD, dos parlantes de 8″ cargados con tecnología AIC y dos parlantes de medios graves de 12″ cargados con bocina. Todos los parlantes emplean imanes de neodimio para aumentar la fuerza, mejorar el control y reducir el peso. El VHD2.0 tiene una dispersión horizontal de 80° y vertical de 40° y se ofrecen versiones izquierda y derecha del altavoz para crear un formato más grande. matrices verticales del sistema medio alto.
Características
- Construcción profesional de abedul báltico con revestimiento de polímero resistente al desgaste
- Cuatro piezas de longitud completa de riel (dos por lado) y dos piezas de cinco puntos, extraíbles en la parte posterior del gabinete
- Reproducción de audio de muy alta definición
- Salida sostenida de 139 dB, pico de 142 dB
- Dispersión amplia controlada 80° x 40° Bocina media/alta
- Nuevo controlador de compresión con diafragma de nitruro de titanio de 3″ (76 mm) de última generación con conector de fase de geometría compleja y estructura magnética de neodimio para mayor salida, distorsión excepcionalmente baja y respuesta de frecuencia extendida
- Dos parlantes de rango medio Trans-Coil de 8″, con una bobina móvil de 3″ (76 mm) e imán de neodimio para mayor control y salida con distorsión y peso reducidos
- Dos controladores de medios graves de 12″ cargados con bocina con conjuntos de bobina móvil de alta temperatura de 3″ (76 mm) interior/exterior, horneados con epoxi y estructuras magnéticas de neodimio
- Requisito activo de tres vías: 2000 W del VHD 2000, lo que proporciona 1200 W para los medios bajos de 12″, 600 W para los medios de 8″ y 200 W para las frecuencias altas
- Diseño patentado de asas laterales y superiores (6) para un manejo y transporte simplificados
- Patas de alto impacto y baja fricción, que permiten el bloqueo de los subwoofers VHD y un fácil movimiento del gabinete
- Tablas de ruedas VHD de aluminio con bloqueo frontal y parachoques envolventes de madera dura
- Opción de impermeabilización y acabados de pintura especiales disponibles bajo petición
Aplicaciones
Diseñada como una unidad mid-hi de alto rendimiento y rendimiento extremadamente alto como parte de los sistemas VHD de muy alta definición para presentaciones en vivo
- Salas de conciertos de tamaño mediano a grande
- Escalable desde sistemas pequeños a grandes
- Uso independiente de rango completo en áreas públicas
- Alquiler y producción
- Grandes teatros
Código de producto
- KVV 987 077 – VHD2.0 R (derecha)
- KVV 987 078 –VHD2.0 L (izquierda)
Configurations
VHD Basics
VHD-Double A
VHD-Double B
VHD-Double C
VHD-Double D
VHD-Double G
VHD-Single A
VHD-Single B
VHD-Single C
VHD-Single D
VHD-Single E
VHD-Single F
VHD-Single G
VHD-Single H
VHD-VocalVHD Basics
Description
Basic usage of speakers, left and right side of the system. VHD 1.0 can be used as downfill with single VHD 2.0 configurations or other applications as recommended by KV2 Audio Tech support.
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | Cable MH15 | Cable MH15 |
| 1 | Cable MH120 | Cable MH120 |
Images
Front view
WiringVHD-Double A
Description
Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 2 | Cable MH120 | Cable MH120 |
| 4 | Cable LF15 | Cable LF15 |
| 4 | Cable LF40 | Cable LF40 |
| 1 | VHD2.0 Top arm (pair) | VHD2.0 Top arm (pair) |
| 1 | VHD2.0 Top extension arm (pair) | VHD2.0 Top extension arm (pair) |
| 1 | VHD Systems fly bar | VHD Systems fly bar |
Images
Front view
WiringVHD-Double B
Description
Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 2 | Cable MH120 | Cable MH120 |
| 4 | Cable LF15 | Cable LF15 |
| 4 | Cable LF40 | Cable LF40 |
| 1 | VHD2.0 Top arm (pair) | VHD2.0 Top arm (pair) |
| 1 | VHD2.0 Top extension arm (pair) | VHD2.0 Top extension arm (pair) |
| 1 | VHD Systems fly bar | VHD Systems fly bar |
Images
Front view
WiringVHD-Double C
Description
Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system
Products
| Count | Product | Type |
|---|---|---|
| 2 | VHD2.0 | MID-HI |
| 4 | VHD2.16 | SUB |
| 4 | VHD1.21 | SUB |
| 2 | VHD2000 | MID-HI AMP |
| 2 | VHD3200 | SUB AMP |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 2 | Cable MH120 | Cable MH120 |
| 4 | Cable LF15 | Cable LF15 |
| 2 | Cable LF40 | Cable LF40 |
| 2 | Cable LF100 | Cable LF100 for bass speaker |
| 1 | VHD2.0 Top arm (pair) | VHD2.0 Top arm (pair) |
| 1 | VHD2.0 Top extension arm (pair) | VHD2.0 Top extension arm (pair) |
| 1 | VHD Bass arm (pair) | VHD Bass arm (pair) |
| 1 | VHD Bass extension arm (pair) | VHD Bass extension arm (pair) |
| 1 | VHD Systems fly bar | VHD Systems fly bar |
Images
Front view
WiringVHD-Double D
Description
Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system
Products
| Count | Product | Type |
|---|---|---|
| 2 | VHD2.0 | MID-HI |
| 4 | VHD2.16 | SUB |
| 4 | VHD4.18 | SUB |
| 2 | VHD2000 | MID-HI AMP |
| 2 | VHD3200 | SUB AMP |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 2 | Cable MH120 | Cable MH120 |
| 4 | Cable LF15 | Cable LF15 |
| 2 | Cable LF40 | Cable LF40 |
| 2 | Cable LF100 | Cable LF100 for bass speaker |
Images
Front view
WiringVHD-Double G
Description
Up to 10000 people Number of bass boxes – depend on music style Right side of stereo double system
Products
| Count | Product | Type |
|---|---|---|
| 2 | VHD2.0 | MID-HI |
| 4 | VHD2.16 | SUB |
| 2 | VHD2.21 | ULTRA SUB |
| 2 | VHD2000 | MID-HI AMP |
| 3 | VHD3200 | SUB AMP |
Accessories
| Count | Accessory | Title |
|---|---|---|
| 2 | Cable MH120 | Cable MH120 |
| 2 | Cable LF15 | Cable LF15 |
| 2 | Cable LF40 | Cable LF40 |
| 2 | Cable LF100 | Cable LF100 for bass speaker |
Images
Front view
WiringVHD-Single A
Description
Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 2 | Cable LF15 | Cable LF15 |
| 2 | Cable LF40 | Cable LF40 |
| 1 | Cable MH60 | Mid/Hi speaker cable MH60 |
Images
Front view
WiringVHD-Single B
Description
Up to 5000 people Number of bass boxes – depend on music style Right side of stereo single system
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | Cable MH60 | Mid/Hi speaker cable MH60 |
| 2 | Cable LF15 | Cable LF15 |
| 2 | Cable LF40 | Cable LF40 |
Images
Front view
Alternative
Wiring
Cable MH120
Cable MH180
Cable MH60
VHD Systems fly bar
VHD2.0 Cart
VHD2.0 Cover
VHD2.0 Top arm (pair)
VHD2.0 Top extension arm (pair)Cable MH120
Gallery
Product code
KVV 987 126
Description
– 6 wire speaker cable – AP6 connectors – 12m (40ft) length – for Mid/Hi Module hook-up
Cable MH180
Gallery
Product code
KVV 987 127
Description
– 6 wire speaker cable – AP6 connectors – 18m (60ft) length – for Mid/Hi Module hook-up
Mid/Hi speaker cable MH60
Gallery
Product code
KVV 987 125
Description
– 6 wire speaker cable – AP6 connectors – 6m (20ft) – for Mid/Hi Module hook-up
VHD Systems fly bar
Gallery
Product code
KVV 987 252
Description
Must be used with VHD ARM attachments see other Accessories. The CROSSMEMBER hanging bracket is a flat and folded steel bar with returned 90 degree ends. This bracket attaches to the PICKPOINT ARM by simply sliding into two preset grooves, from left to right and secures smoothly and tightly, thus creating a T-Bar effect. Once both bars are attached and joined, it is a simple case of locking and securing the correct position and location, according to which configuration of VHD enclosures are being suspended, either in a Left/Right unit, by inserting a single D6 QUICK RELEASE PIN, which is attached via a small shrouded steel tie at the return edge of the PICKPOINT ARM.
Downloads
VHD Systems fly bar 3D DWG
VHD Systems fly bar 3D DWG
VHD Systems fly bar SKP
VHD Systems fly bar SketchUp
VHD Systems fly bar 2D DXF
VHD2.0 Cart
Gallery
Product code
KVV 987 099
Description
– Front mount aluminium VHD2.0 cart – with hardwood bumpers
– Wheels are included
Downloads
VHD2.0 Cart 3D DWG
VHD2.0 Cart 3D DWG
VHD2.0 Cart SKP
VHD2.0 Cart SketchUp
VHD2.0 Touring cover
Gallery
Product code
KVV 987 104
Description
– used with cart
VHD2.0 Top arm (pair)
Gallery
Product code
KVV 987 309
Description
The VHD2.0 TOP ARM is a flat steel bar with straight ends, a double groove joint at the lower end and prefixed apertures to accept both D6and D12.6 QUICK RELEASE PINS. A single bar is used on each side of an enclosure. The bar employs a total of two angular wedges that are used to ‘lock into’ the handles on each side of the VHD2.0 enclosure and are then secured by the insertion of a single D6 QUICK RELEASE PIN, (Which are attached to the bars via small shrouded steel ties)into each handle. Once the VHD2.0 TOP ARMS are attached to the VHD2.0, they are then simply attached to the CROSS MEMBER hanging bracket by inserting a single D12.6 QUICK RELEASE PIN through the top aperture of both of the VHD2.0 TOP ARMS and CROSSMEMBER hanging bracket.
Downloads
VHD2.0 Top arm (pair) 3D DWG
VHD2.0 Top arm (pair) 3D DWG
VHD2.0 Top arm (pair) SKP
VHD2.0 Top arm (pair) SketchUp
VHD2.0 Top extension arm (pair)
Gallery
Product code
KVV 987 306
Description
The VHD2.0 TOP EXTENSION ARM is of the same design and presentation as the VHD2.0 TOP ARM. It is intended for use where either a single VHD2.0 is required to be suspended below a combination of VHD Subwoofers or as an extension to an existing suspended VHD2.0. It is differentiated by being physically longer and employs a total of two angular wedges to allow locking into an attached secondary VHD2.0 and its enclosure handles. The same method of inserting a single D6 QUICK RELEASE PIN into each handle is employed. The arm has a poly-hex head at the top end of the bar, with prefixed apertures for the insertion of the D12.6 QUICK RELEASE PINS, to allow desired splay angles of the secondary VHD2.0 and is attached by the insertion of a single D12.6 QUICK RELEASE PIN.
Downloads
VHD2.0 Top extension arm (pair) 3D DWG
VHD2.0 Top extension arm (pair) 3D DWG
VHD2.0 Top extension arm (pair) SKP
VHD2.0 Top extension arm (pair) SketchUp
System Acoustic Performance
| Max SPL Long-term | 139dB (144dB two VHD 2.0’s) |
| Max SPL Peak | 145dB (147dB two VHD 2.0’s) |
| -3dB Response | 100Hz to 22kHz |
| -10dB Response | 85Hz to 30kHz |
| Full Range mode -3dB Response | 60Hz to 22kHz |
| Crossover Point | 100Hz, 450Hz, 2.2kHz |
High Frequency Section
| Acoustic Design | Horn Loaded |
| Horn Coverage Horizontal / Vertical | 80° x 40° / 80° x 10° (2x VHD 2.0’s) |
| High Frequency Amplifier Requirement | 200W (VHD2000 amp.) |
| Throat Exit Diameter / Diaphragm Size | 1.4” / 3.0” |
| Diaphragm Material | Nitride Titanium |
| Magnet Type | Neodymium |
Mid Range Section
| Acoustic Design | Horn Loaded |
| Horn Coverage Horizontal / Vertical | 80° x 40° / 80° x 10° (2x VHD 2.0’s) |
| Midrange Amplifier Requirement | 600W (VHD2000 amp.) |
| Woofer Size / Voice Coil Diameter | 2x 8″ / 3.0″ / Trans Coil |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium |
Mid Bass Section
| Acoustic Design | Horn Loaded |
| Mid-bass Amplifier Requirement | 1200W (VHD2000 amp.) |
| Woofer Size / Voice Coil Diameter | 2x 12″ / 3″ / Inside Outside |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium |
Speaker Input
| Speaker Input | AP6 male |
Cabinet
| Cabinet Material | Baltic birch |
| Handles | 6 |
| Color | Black (wear resistant polymer coating) |
Physical Dimensions
| Height | 933 mm (36.72″) |
| Width | 700 mm (27.55″) |
| Depth | 495 mm (19.48″) |
| Weight | 70 kg (154.0lbs) |
Product code
- KVV 987 077 – VHD2.0 R (right)
- KVV 987 078 – VHD2.0 L (left)
Disarray – The correct theory of arraying KV2 boxes
Disarray – The correct theory of arraying KV2 boxes
VHD2.0 EASE data package
VHD2.0 EASE data package includes VHD2.0, Double VHD2.0, VHD1.0 standalone, VHD1.0 downfill
