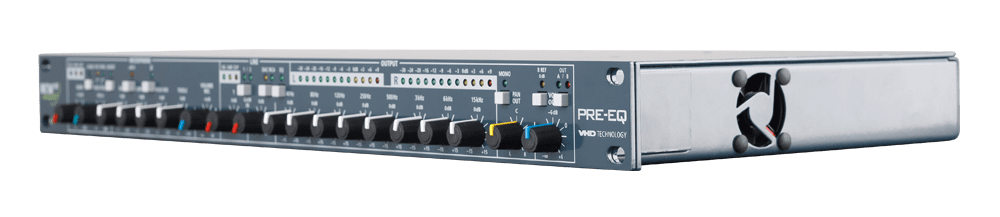

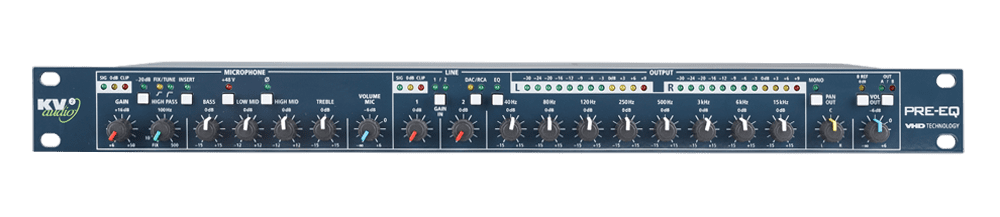

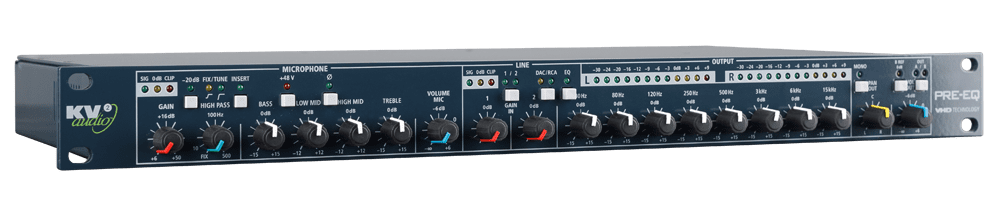

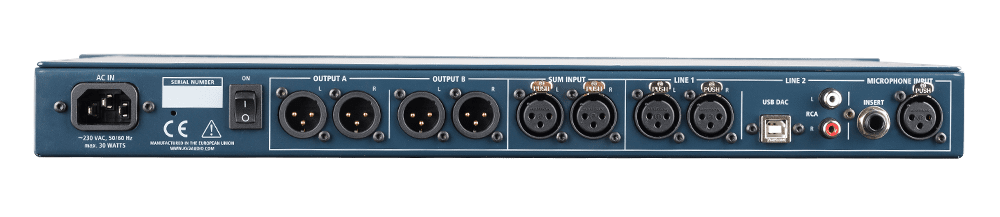

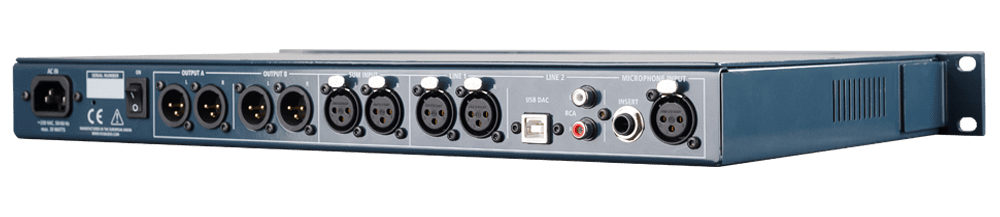

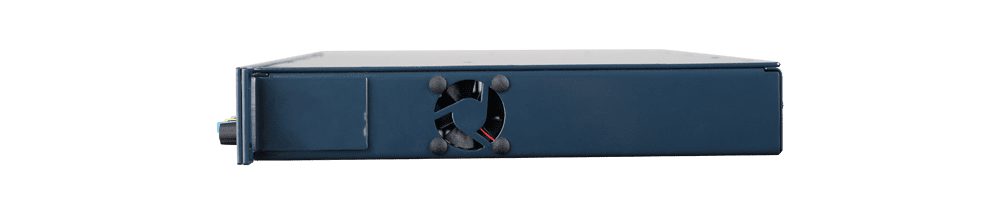

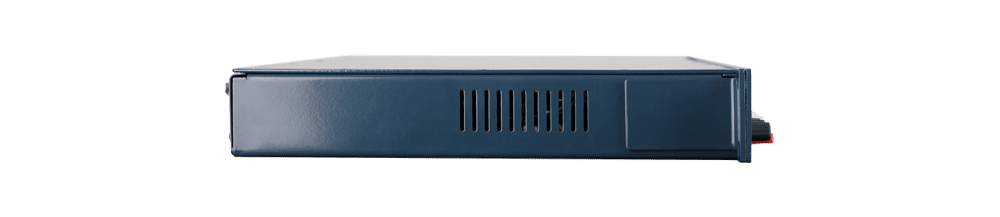

VHD PRE-EQ

KV2AUDIO
SKU: VHD

The design of the new VHD PRE-EQ is based on years of experience in presenting KV2 Audio systems using our associated Electronics. The VHD PRE-EQ includes a single microphone input, two stereo line inputs (balanced XLR, RCA / internal DAC) and A/B switchable master outputs. The preamp includes direct summing inputs for combining multiple preamps in mixing applications. The microphone input is equipped with a tuneable or preset HPF, insert, and 4-band EQ. The stereo line inputs are configured with Line input 1 – XLR, Line input 2 – RCA / internal DAC and share a brand new revolutionary George Krampera 8- band EQ. The A/B outputs are equipped with left/right pan, mono summing and master volume. The VHD PRE-EQ is equipped with signal level presence on inputs and meters on outputs. A high quality, high definition USB DAC up to 384KHz/24bit sample rate is included. Great emphasis was placed on maintaining the highest possible sound quality.

Product code

KVV 987 419 (230V)
KVV 987 453 (115V)



    Consultar precios

    Descripción

    The design of the new VHD PRE-EQ is based on years of experience in presenting KV2 Audio systems using our associated Electronics. The VHD PRE-EQ includes a single microphone input, two stereo line inputs (balanced XLR, RCA / internal DAC) and A/B switchable master outputs. The preamp includes direct summing inputs for combining multiple preamps in mixing applications. The microphone input is equipped with a tuneable or preset HPF, insert, and 4-band EQ. The stereo line inputs are configured with Line input 1 – XLR, Line input 2 – RCA / internal DAC and share a brand new revolutionary George Krampera 8- band EQ. The A/B outputs are equipped with left/right pan, mono summing and master volume. The VHD PRE-EQ is equipped with signal level presence on inputs and meters on outputs. A high quality, high definition USB DAC up to 384KHz/24bit sample rate is included. Great emphasis was placed on maintaining the highest possible sound quality.

    Features

    • single microphone input, two stereo line inputs (balanced XLR, RCA / internal DAC)
    • A/B switchable master outputs
    • direct summing inputs for combining multiple preamps in mixing applications
    • the microphone input is equipped with a tuneable or preset HPF, insert, and 4-band EQ
    • the stereo line inputs are configured with Line input 1 – XLR, Line input 2 – RCA / internal DAC and share a brand new revolutionary George Krampera 8- band EQ.
    • the A/B outputs are equipped with left/right pan, mono summing and master volume with signal level presence on inputs and meters on outputs
    • USB DAC up to 384KHz/24bit sample rate


    Product code

    KVV 987 419 (230V)
    KVV 987 453 (115V)



    System Acoustic Performance

    -3dB Response 10Hz to 120kHz
    Total Harmonic Distortion <0.0005%

    Output Channels

    Number of Channels 2x A/B – XLR
    Max. Output Voltage 18dBu / 12dBu (50Ω) RMS
    Max. Output Current 450mA

    Signal Input

    Input Channels 9
    Input Impedance 2kΩ Mic / 20kΩ Balanced IN / 10kΩ RCA IN
    Max. Input voltage +26dBu
    Mic input Phantom power, -20dB, Input level, Phase, 4-band EQ
    Line input Balanced, DAC/RCA, ±20dB
    DAC input USB2.0, 384kHz/24bit DAC

    Signal Output

    Signal Output Channels stereo A / stereo B
    Output Impedance 50Ω

    Features

    Input Level Control -∞ to +6dB
    High Pass Filter Vocal preset / 10Hz to 500Hz
    Equalization 8-band EQ on Line, 4-band on Mic
    Indicators LED, VU meters

    Power Requirements

    Power Connector IEC 320
    Operating Voltage Range 90 to130V@60Hz | 180 to 260V@50Hz

    Physical Dimensions

    Height 43.8 mm (1.72″)
    Width 482,6 mm (19.0″)
    Depth 248 mm (9.76″)
    Weight 4.5 kg (10lbs)


    Product code

    KVV 987 419 (230V)
    KVV 987 453 (115V)
