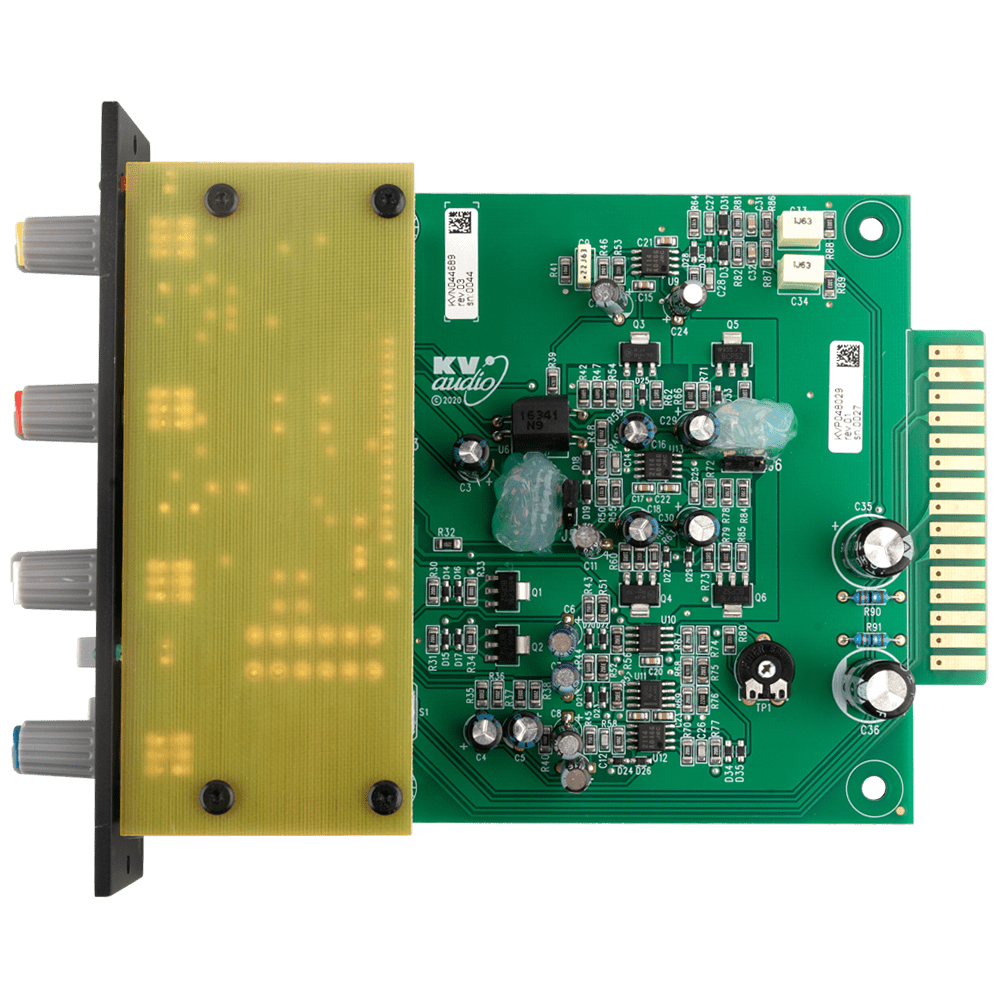

TCL – Superior RMS – Audio Thermo-Compressor

KV2AUDIO
SKU: TCL

The TCL is a unique analog thermo audio compressor featuring a superior natural RMS detector and dynamic voice bass enhancement control. In another KV2 first its patented design offers an exceptionally musical and natural compression that is a component part of its real-time input, rather than a typical side fed gain reduction circuit attempting to either follow or anticipate compression demands. Its additional Bass balance control circuit allows the user to smooth out and minimise any proximity effects from a changing microphone position, giving the perfect voice color to every performance, from beginning to end. Featuring source intelligent attack and release times, whatever the dynamic content, with just a few simple steps the results from the 500 Series TCL are truly exceptional.

Applications

  • Designed as ultimate compression tool for various studio and live applications with instruments and voice.
  • Perfectly suits Musical theatre – giving consistency, richness and depth to head worn microphones.
  • Ideal for corporate presentations – giving a full, warm, full voice timbre and allowing tone matching for lecturn and lavalier microphones.
  • It can be used live on many musical instruments, both classical and contemporary.

Product code

KVV 987 478



    Consultar precios

    Descripción

    The TCL is a unique analog thermo audio compressor featuring a superior natural RMS detector and dynamic voice bass enhancement control. In another KV2 first its patented design offers an exceptionally musical and natural compression that is a component part of its real-time input, rather than a typical side fed gain reduction circuit attempting to either follow or anticipate compression demands. Its additional Bass balance control circuit allows the user to smooth out and minimise any proximity effects from a changing microphone position, giving the perfect voice color to every performance, from beginning to end. Featuring source intelligent attack and release times, whatever the dynamic content, with just a few simple steps the results from the 500 Series TCL are truly exceptional.



    YouTube thumbnailYouTube icon

    Applications

    • Designed as ultimate compression tool for various studio and live applications with instruments and voice.
    • Perfectly suits Musical theatre – giving consistency, richness and depth to head worn microphones.
    • Ideal for corporate presentations – giving a full, warm, full voice timbre and allowing tone matching for lecturn and lavalier microphones.
    • It can be used live on many musical instruments, both classical and contemporary.

    Product code

    KVV 987 478



    System Acoustic Performance

    -3dB Response 15Hz to 100kHz
    Total Harmonic Distortion <0.002%

    Signal Input

    Input Channels 1
    Input Impedance 20kΩ
    Max. Input voltage +26dBu
    Features Limiter, Compressor, Bass enhancer

    Signal Output

    Signal Output Channels 1
    Output Impedance 600Ω
    Maximal Output Voltage 18dBu (600Ω) RMS

    Features

    Indicators 12 segment VU meter, 8 segment gain reduction
    Peak Limiter Adjustable
    Drive Adjustable
    Low-Mid Selects the bass enhancement LPF frequency
    Output Adjustable
    Bypass Yes
    Bass enhancement Adjustable

    Power Requirements

    Operating Voltage ±16V
    Power Consumption 120mA

    Physical Dimensions

    API Series 500 format One slot


    Product code

    KVV 987 478
