SDD3 – Super Digital Delay Line

KV2AUDIO
SKU: SDD3

The SDD3 is a true technology statement by KV2 Audio. It utilises our ground breaking 20MHz PDM digital conversion process developed for time alignment applications in our speaker range. The SDD3 incorporates high quality line driver outputs to allow users to deliver pristine audio signal to delay speakers or under balcony fills over 100m from the source. The ultimate choice for the distribution of time corrected audio signal, the SDD3 has two super digital channels that will deliver up to 400 milliseconds of delay. Each of these channels has an adjustable HPF and is easily programmed through the front panel menu where all settings can be stored and recalled for varying situations. It also has a third channel with up to 10 milliseconds of delay for configuring cardoid subwoofer setups. Ideal for large stadiums, theatres, concert halls or any application where time correction is required to achieve optimum audio quality.

Applications

Especially designed as a super high quality audio delay line

  • Fixed installations
  • Live music and performance
  • Can be used to enhance the performance of third party systems

Product code

  • KVV 987 302 – SDD3 – 230V
  • KVV 987 303 – SDD3 – 115V


    Consultar precios

    Descripción

    The SDD3 is a true technology statement by KV2 Audio. It utilises our ground breaking 20MHz PDM digital conversion process developed for time alignment applications in our speaker range. The SDD3 incorporates high quality line driver outputs to allow users to deliver pristine audio signal to delay speakers or under balcony fills over 100m from the source. The ultimate choice for the distribution of time corrected audio signal, the SDD3 has two super digital channels that will deliver up to 400 milliseconds of delay. Each of these channels has an adjustable HPF and is easily programmed through the front panel menu where all settings can be stored and recalled for varying situations. It also has a third channel with up to 10 milliseconds of delay for configuring cardoid subwoofer setups. Ideal for large stadiums, theatres, concert halls or any application where time correction is required to achieve optimum audio quality.

    Features

    • Two very high definition, full range channels with delay up to 400ms
    • One subwoofer channel with two independend outputs with delay up to 10ms
    • Tunable High pass filters for easy use with side fill applications
    • High contrast OLED display
    • ADC sensitivity and LEVEL pots for easy and optimal system level setup
    • Phase reverse switch on each output
    • Line driver on each output for highest possible signal integrity over long cables
    • Level meter on each input
    • Delay setup (time, distance – metric or imperial)
    • Cardioid mode for easy cardioid setup
    • Up to 30 user memory, power-off autosave
    • Lock feature – digital part only
    • Temperature auto-recalculation


    YouTube thumbnailYouTube icon

    Applications

    Especially designed as a super high quality audio delay line

    • Fixed installations
    • Live music and performance
    • Can be used to enhance the performance of third party systems

    Product code

    • KVV 987 302 – SDD3 – 230V
    • KVV 987 303 – SDD3 – 115V


    System Acoustic Performance

    -1dB Response 2Hz to 40kHz
    -10dB Response 2Hz to 100kHz
    Sampling Frequency 20MHz, PDM
    Dynamic Range >105dB
    Channel Crosstalk 90dB
    Signal to Noise Ratio 105dB
    Total Harmonic Distortion 0.005%

    Signal Input

    Input Channels 2 Full range + 1 Subwoofer
    Input Impedance 20kΩ (balanced)
    Max. Input voltage +14dBu
    Line input XLR

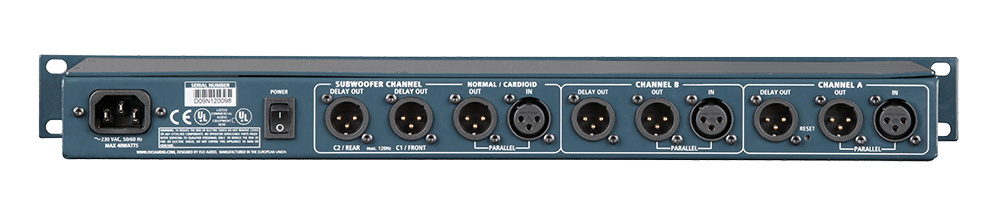

    Signal Output

    Signal Output Channels 2 Full range + 2 Subwoofer
    Output Impedance 50Ω
    Delay Signal Output XLR
    Through Signal Output XLR

    Features

    Input Level Control -10 / +10dB
    Subwoofer Level Control -10 / +10dB
    System setup Normal / Cardioid mode
    Delay Range 0.012ms ÷ 393.216ms, step 0.003ms
    Full Range Mode 2 channels
    Phase 0° / 180°
    High Pass Filter OFF to 260Hz
    Indicators OLED Display
    Memory 30

    Power Requirements

    Power Connector IEC 320
    Operating Voltage 115V / 230V
    Operating Voltage Range 90 to130V@60Hz | 180 to 260V@50Hz

    Physical Dimensions

    Height 44 mm (1.75″)
    Width 482.6 mm (19.0″)
    Depth 203 mm (7.9″)
    Weight 3.6 kg (7.94lbs)


    Product code

    • KVV 987 302 – SDD3 – 230V
    • KVV 987 303 – SDD3 – 115V

    PDF

    SDD3 User Guide

    – User Guide for SDD3 – English



    PDF

    SDD3 Technical Data Sheet

    Download Product’s Data Sheet


    PDF

    SDD3 – 2D

    SDD3 2D Drawings



    DWG

    SDD3 – 3D

    1:1 scale – clamping points – weight – dwg file
