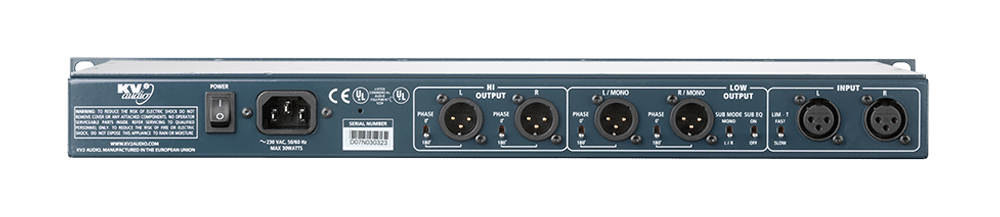

SAC2 – Super Analog Controller – 2 channel

KV2AUDIO
SKU: SAC2

The ultimate advantage of using the SAC2 anywhere within the signal chain is the immediate improvement in definition, resolution and dynamic range. A musical four-band equaliser, allows for quickly shaping the sound, exactly as required without affecting the overall linear response. The two notch filters per output offer immediate control of dominant room resonances. The fixed crossover filter points of either 70Hz or 120Hz can be independently switched for Hi and Low outputs allowing either a standard 2 X 2 way configuration or an overlap to be created. Alternatively the crossovers can be bypassed allowing simple 2 in 4 out program control. The transparent limiter feature can be used to maintain level without affecting the quality or dynamic performance of the system. A security cover is also available for fixed installations.

Applications

Designed as an active crossover – equalizer – limiter and controller for the ESD range with superior sound quality

  • Fixed Installations
  • Portable PA
  • Speaker protection and level control
  • Use with any KV2 Audio system as a FOH EQ or with any alternative systems

Product code

  • KVV 987 228 – SAC2 230V
  • KVV 987 229 – SAC2 115V


    Consultar precios

    Descripción

    The ultimate advantage of using the SAC2 anywhere within the signal chain is the immediate improvement in definition, resolution and dynamic range. A musical four-band equaliser, allows for quickly shaping the sound, exactly as required without affecting the overall linear response. The two notch filters per output offer immediate control of dominant room resonances. The fixed crossover filter points of either 70Hz or 120Hz can be independently switched for Hi and Low outputs allowing either a standard 2 X 2 way configuration or an overlap to be created. Alternatively the crossovers can be bypassed allowing simple 2 in 4 out program control. The transparent limiter feature can be used to maintain level without affecting the quality or dynamic performance of the system. A security cover is also available for fixed installations.

    Features

    • 2 input X 4 ouput Super Analog audio controller
    • Designed for optimised performance with KV2 Audio‘s ESD loudspeakers, as well as other manufacturers passive or active loudspeakers
    • Each channel features a switchable crossover with adjustable HPF / LPF and two independent notch filters, for left and right channels, to quickly and effectively reduce room resonances and feedback issues


    YouTube thumbnailYouTube icon

    Applications

    Designed as an active crossover – equalizer – limiter and controller for the ESD range with superior sound quality

    • Fixed Installations
    • Portable PA
    • Speaker protection and level control
    • Use with any KV2 Audio system as a FOH EQ or with any alternative systems

    Product code

    • KVV 987 228 – SAC2 230V
    • KVV 987 229 – SAC2 115V


    System Acoustic Performance

    -1dB Response 20Hz to 40kHz
    Dynamic Range >115dB
    Channel Crosstalk >60dB
    Total Harmonic Distortion <0.005%

    Output Channels

    Max. Output Voltage 14V / 7V (50Ω) RMS
    Max. Output Current 450mA

    Signal Input

    Input Channels 2
    Input Impedance 20kΩ (balanced)
    Line input XLR

    Signal Output

    Signal Output Channels 4
    Output Impedance 50Ω

    Features

    Input Level Control -15 / +10dB
    System setup Crossover / Bypass
    Gain -10 / +10dB
    Phase 0° / 180°
    Crossover 70 / 120Hz, Butterworth 12dB/octave
    High Pass Filter 20 / 40Hz
    Equalization 4-band equalizer
    Notch Filter 2 per channel
    Loudness bass enhancement +6dB @ 60Hz
    Volume Limiter Fast/Slow / -15 + 10dB
    Indicators 4x LED bar graphs

    Power Requirements

    Power Connector IEC 320
    Operating Voltage 115V / 230V
    Operating Voltage Range 90 to 130V@60Hz | 180 to 260V@50Hz

    Physical Dimensions

    Height 44.5 mm (1.75″)
    Width 483 mm (19.0″)
    Depth 201 mm (7.9″)
    Weight 3.2 kg (7.05lbs)


    Product code

    • KVV 987 228 – SAC2 230V
    • KVV 987 229 – SAC2 115V

    PDF

    SAC2 – User guide – EN

    – SAC2 User Guide – English



    PDF

    SAC2 Technical Data Sheet

    Download Product’s Data Sheet


    PDF

    SAC2 – 2D

    SAC2 2D Drawings



    DWG

    SAC2 – 3D

    1:1 scale – clamping points – weight – dwg file
