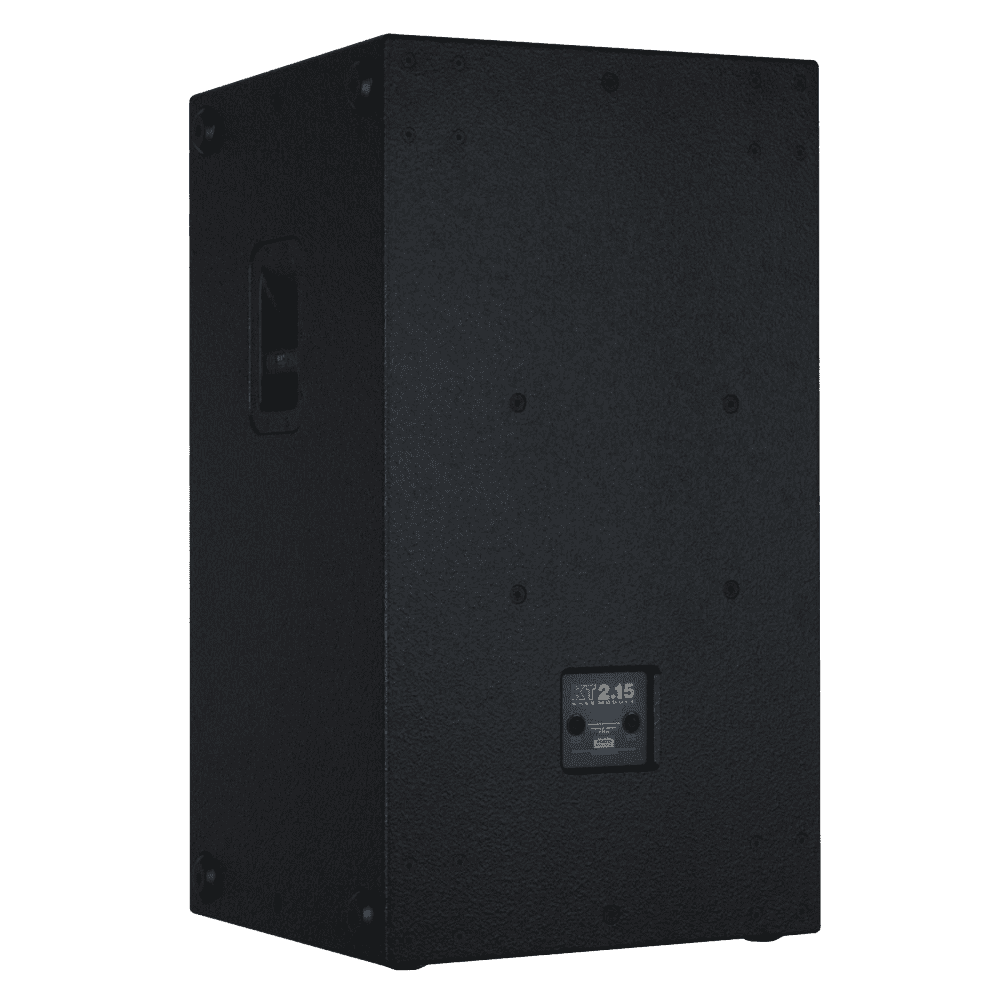

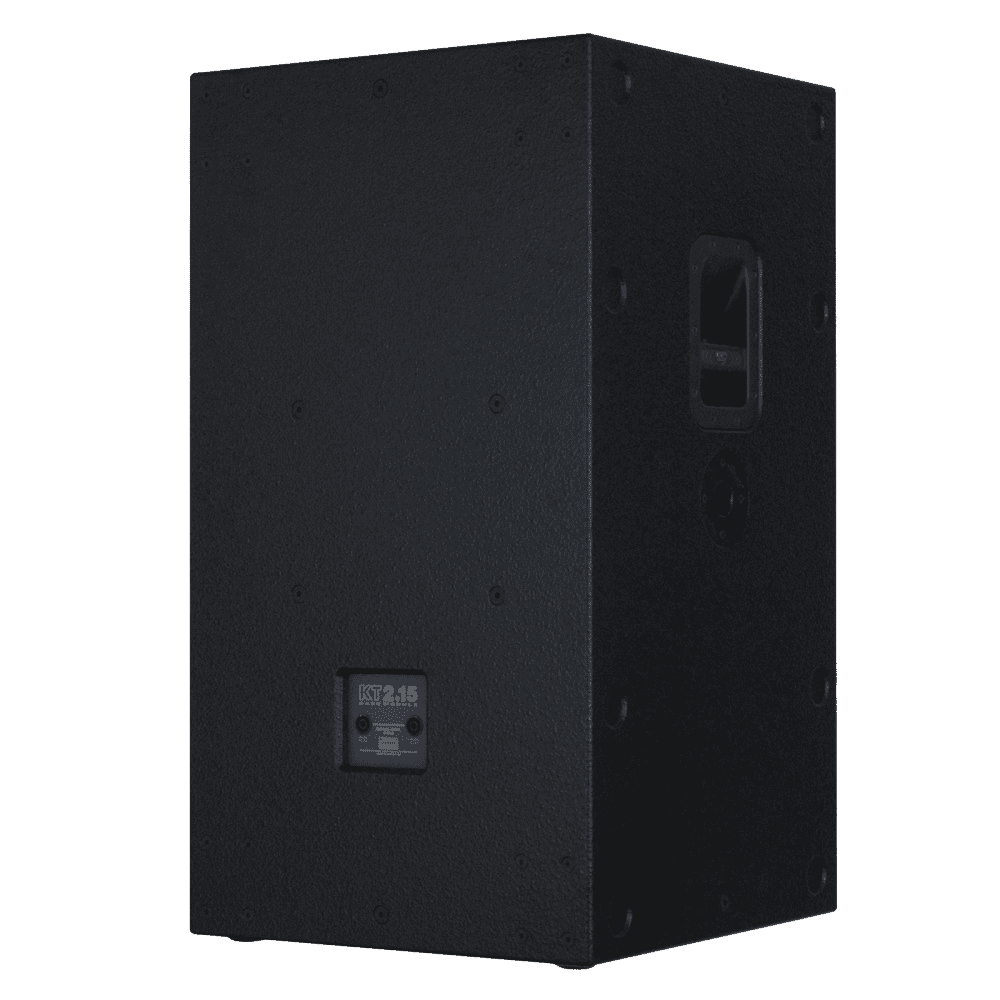

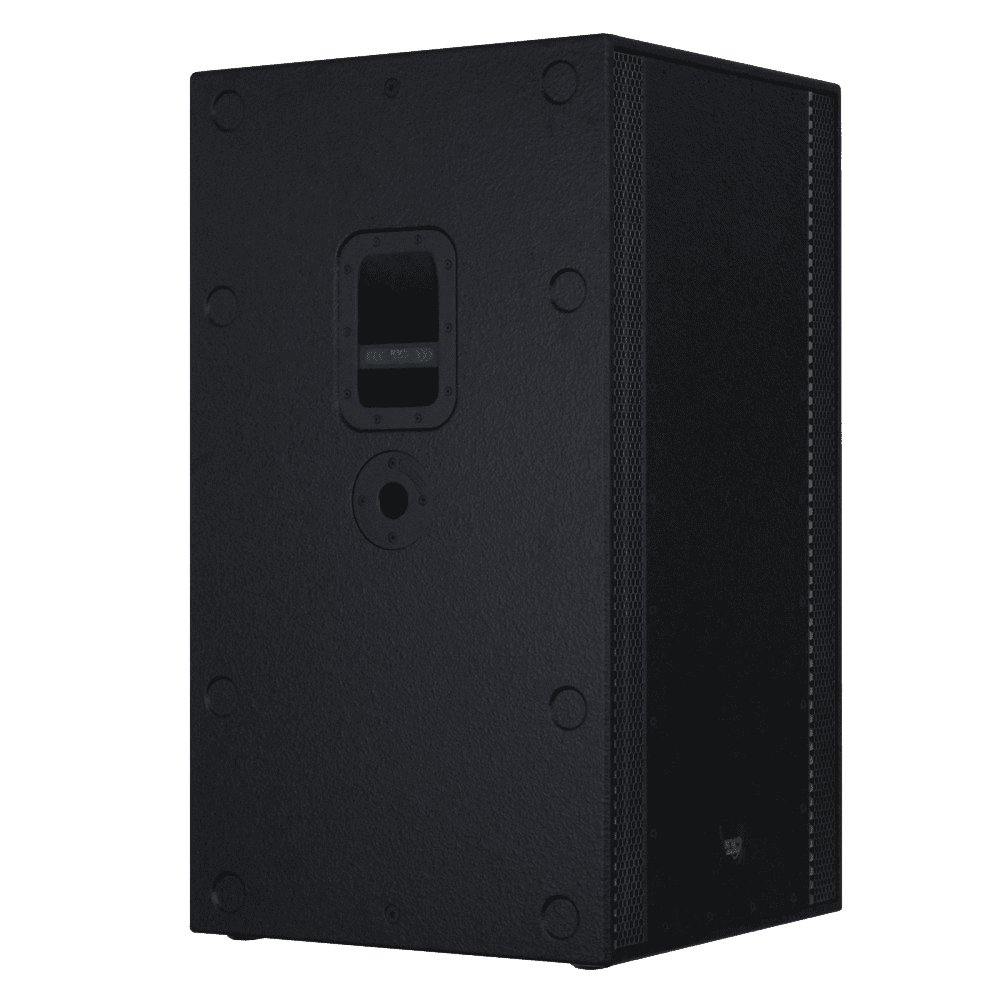

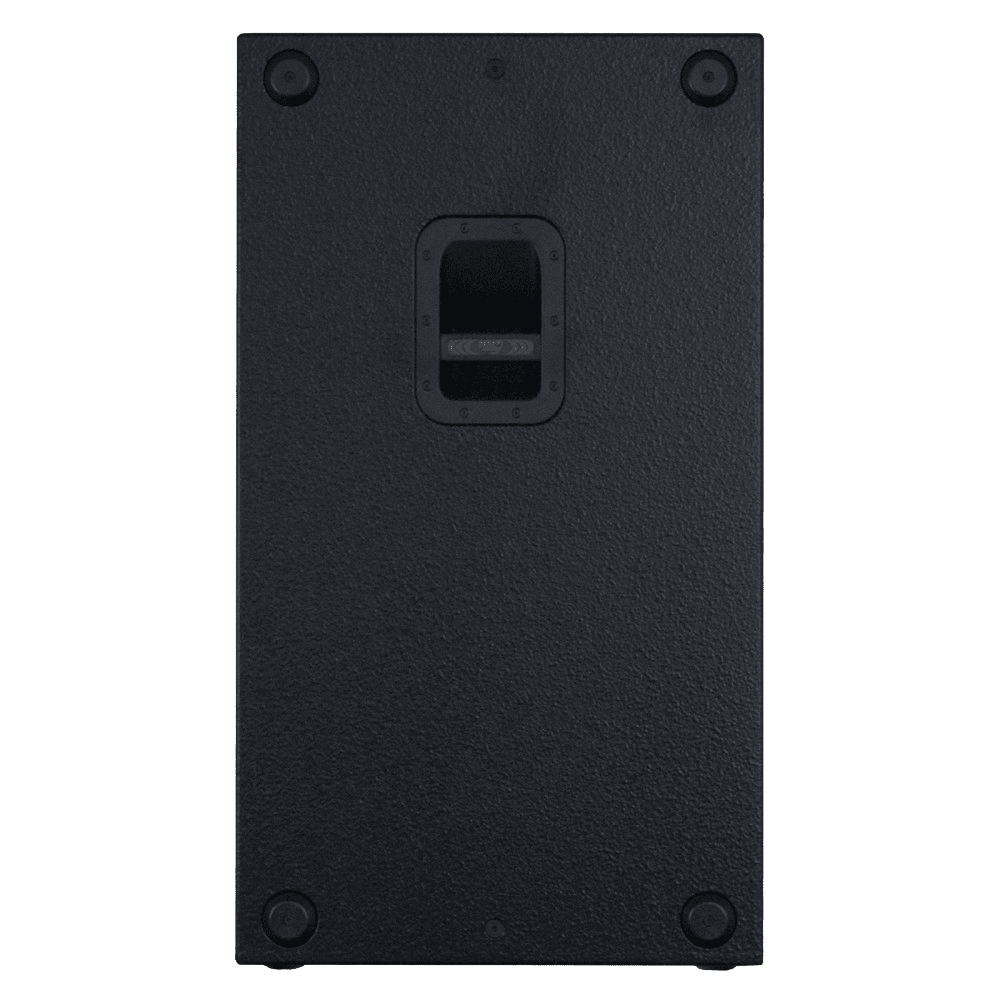

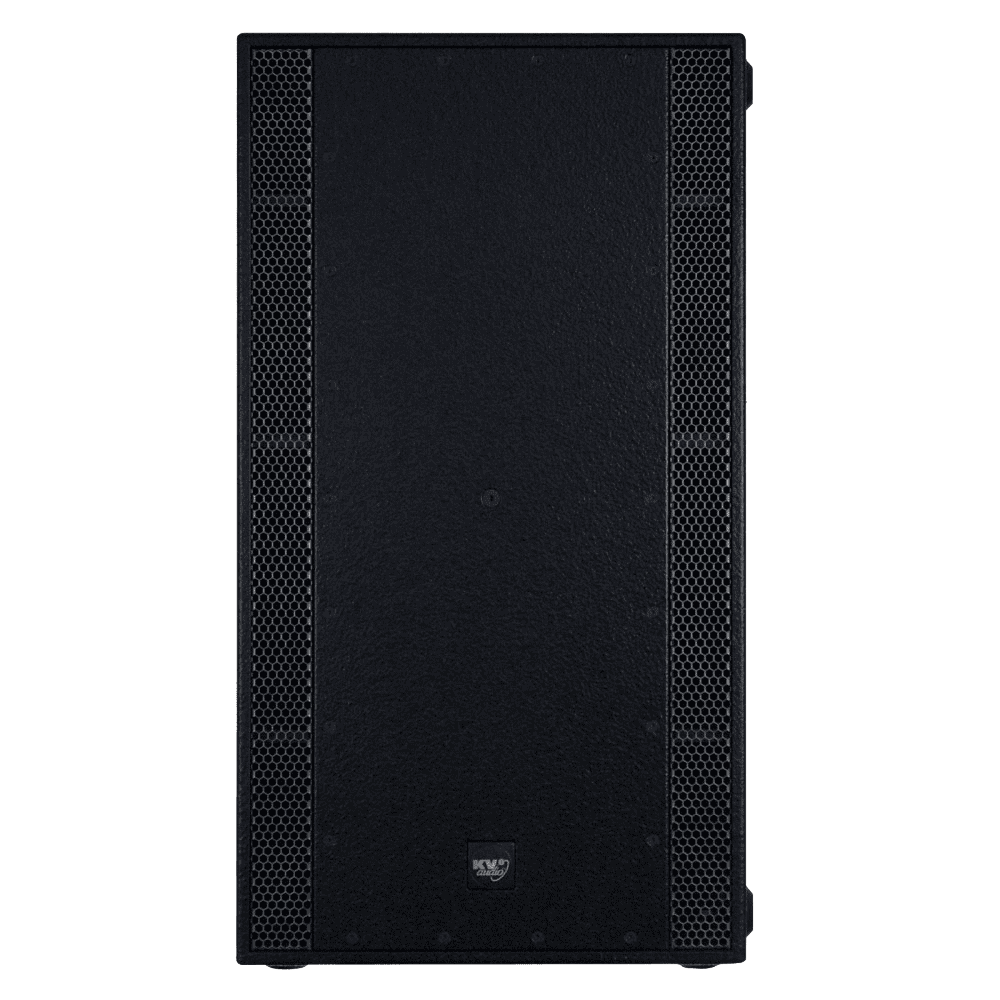

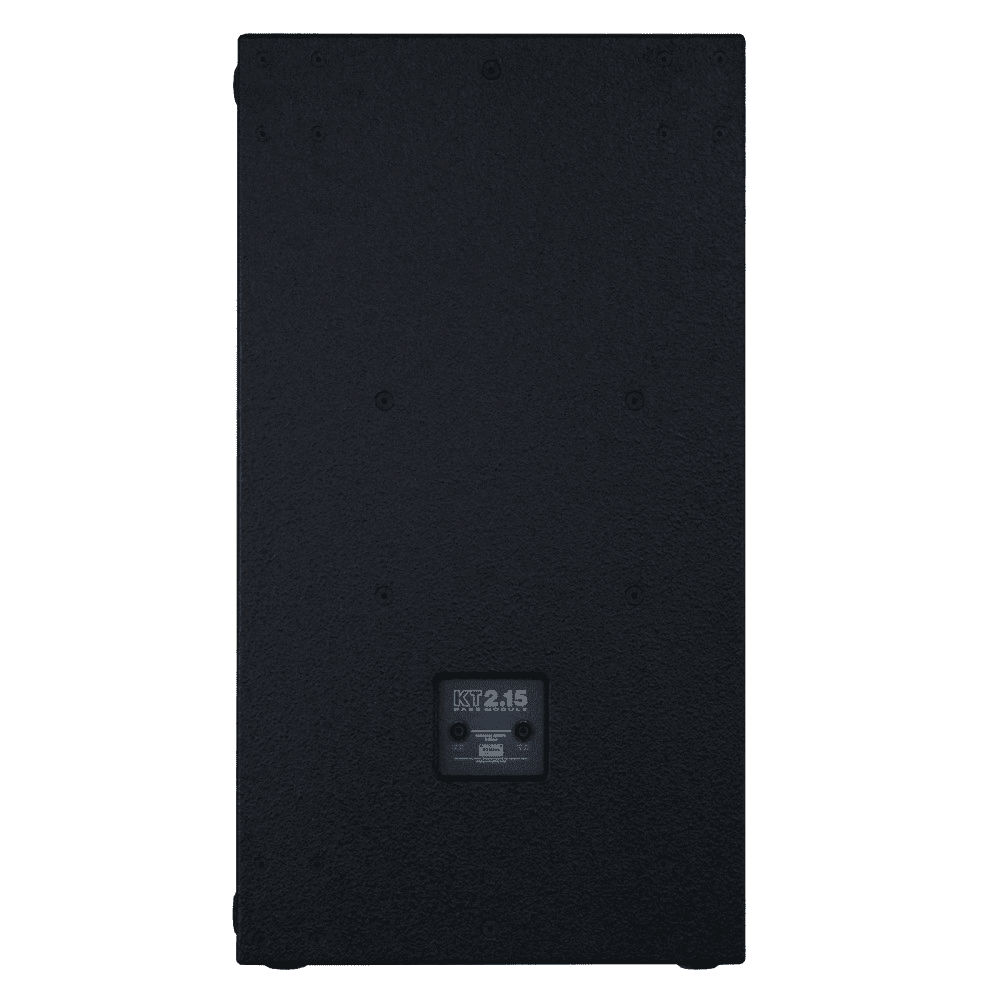

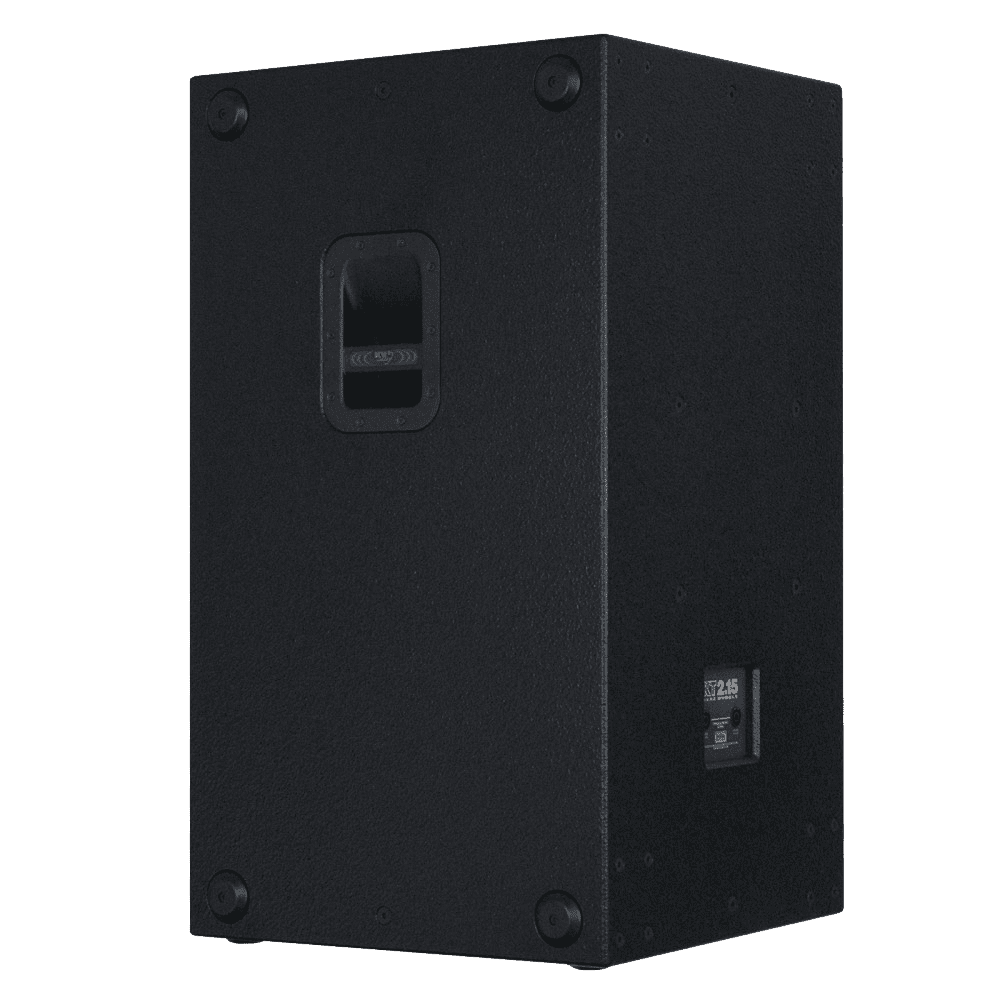

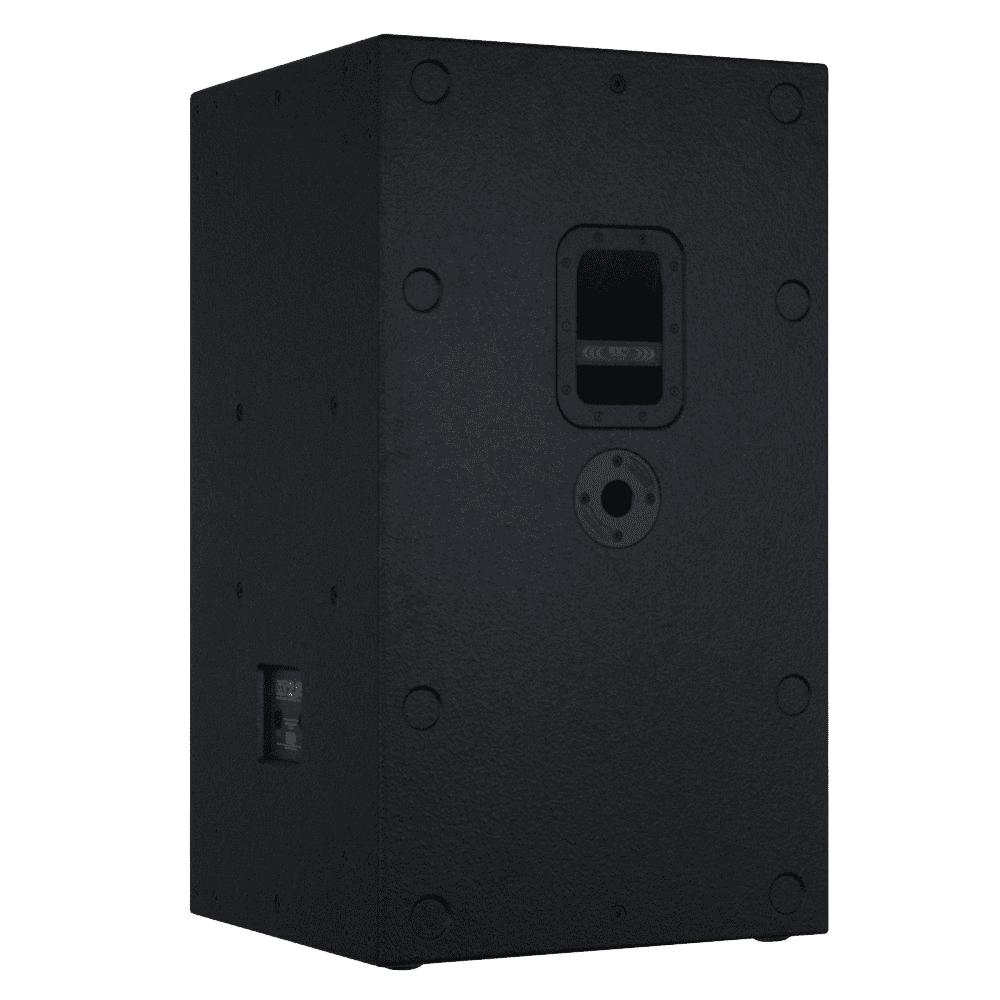

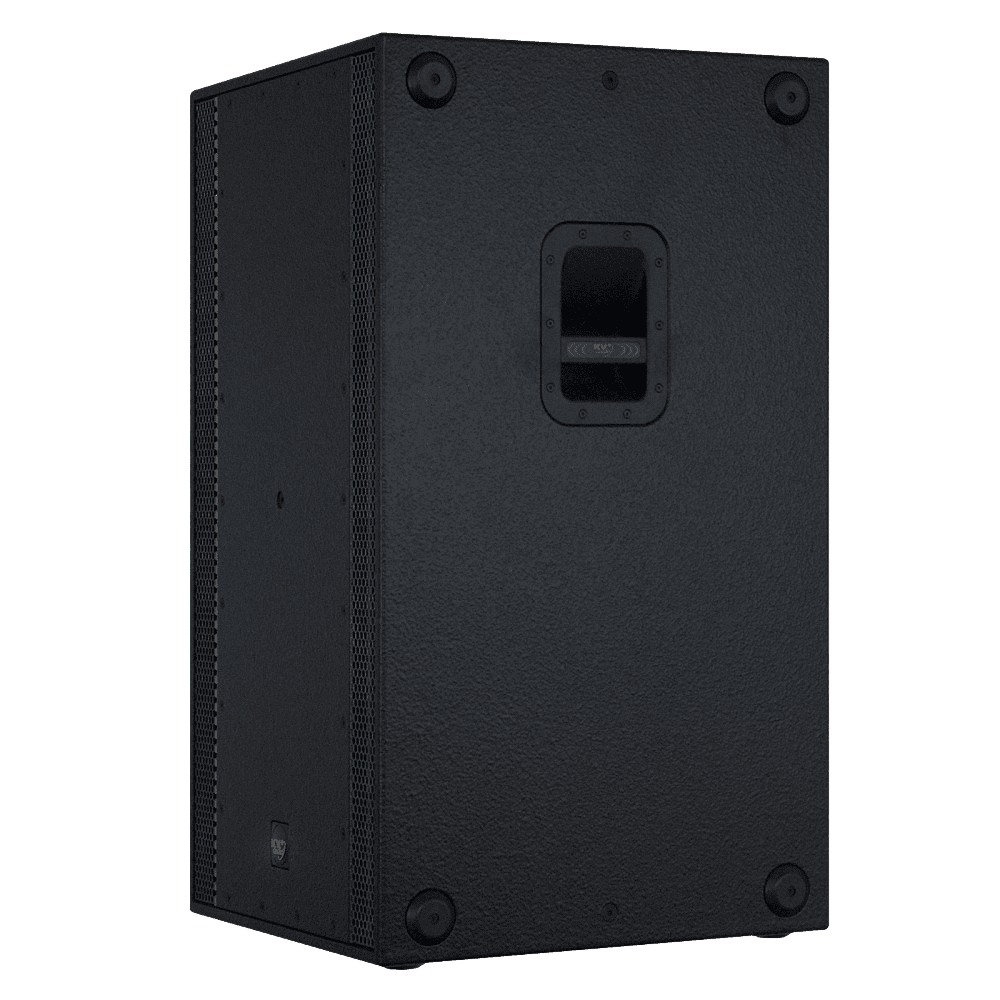

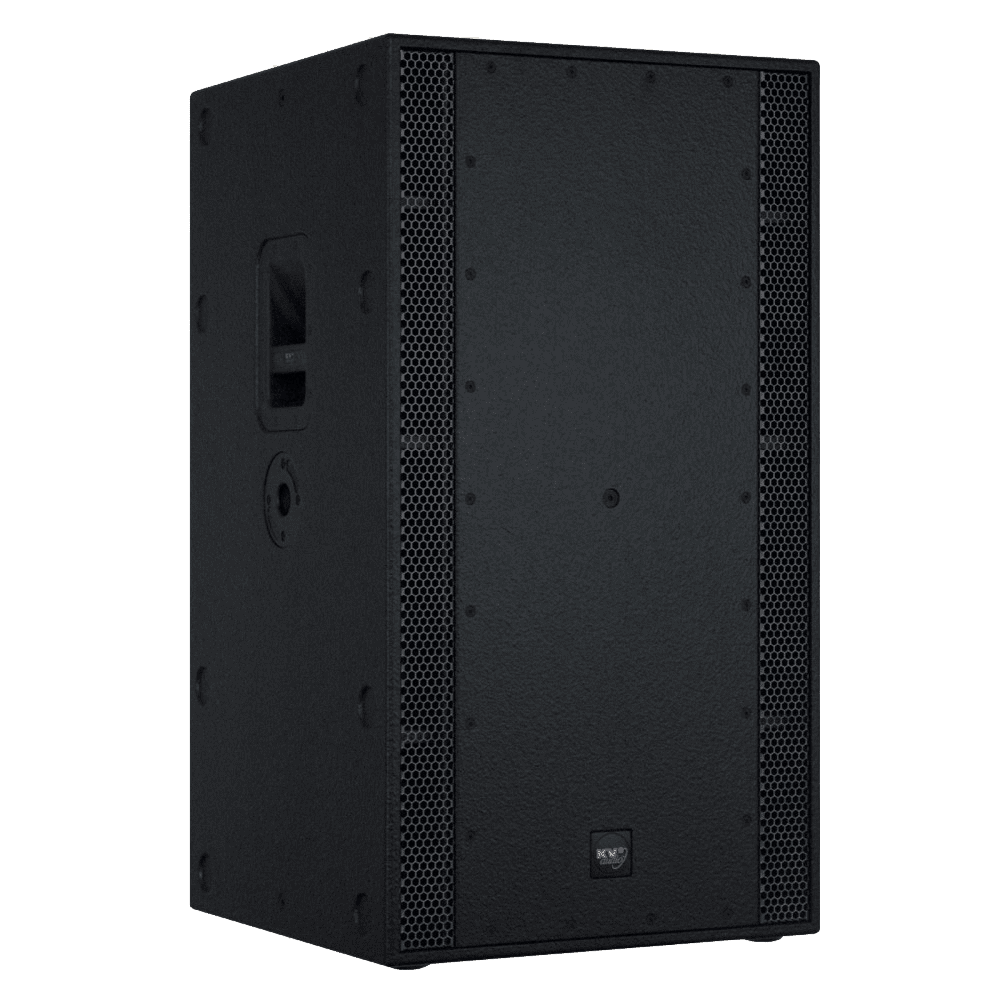

KT2.15 – K-RIG Active-Driven Bass module

KV2AUDIO
SKU: KT2.15

The KT2.15 is a subwoofer designed as a part of K-RIG loudspeaker system. Incorporating quality components specially matched with electronics, the unit is designed for varied applications, with extreme output and quality performance when accompanied by the KT2.0 Mid/Hi module as a system.

Applications

Specifically designed as a subwoofer of K-RIG loudspeaker systems

  • Portable PA
  • Dance clubs
  • Reproduced music

Product code

  • KVV 987 315 – KT2.15


    Consultar precios

    Descripción

    The KT2.15 is a subwoofer designed as a part of K-RIG loudspeaker system. Incorporating quality components specially matched with electronics, the unit is designed for varied applications, with extreme output and quality performance when accompanied by the KT2.0 Mid/Hi module as a system.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 130dB sustained output, 133dB peak
    • Excellent reproduction of bass frequencies with high transient content at high output levels
    • 2 x 15″ high output, low frequency driver with 3″ (75 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and ferrite magnetic structures
    • Two recessed side handles for simplified handling and carrying


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as a subwoofer of K-RIG loudspeaker systems

    • Portable PA
    • Dance clubs
    • Reproduced music

    Product code

    • KVV 987 315 – KT2.15


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15

    Gallery

    Product code

    KVV 987 128



    Description

    – with bolts nut kit – 4 pcs in pack, rotating, blue
    – 16x M8x 35mm Screw Countersunk Hexagon Socket Head
    – 16x Nut Hexagon with blue plastic insert M8



    Downloads

    DWG

    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 3D DWG

    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 3D DWG

    SKP

    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 SKP

    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 SketchUp

    K-RIG Short joining bracket

    Gallery

    Product code

    KVV 987 318



    Description

    – 2 pcs in pack – 4 pcs Quick-lock-pins 6mm included – 4 pcs M10 hex screws with a hole included



    Downloads

    DWG

    K-RIG Short joining bracket 3D DWG

    K-RIG Short joining bracket 3D DWG

    SKP

    K-RIG Short joining bracket SKP

    K-RIG Short joining bracket SketchUp

    K-RIG Security pole

    Gallery

    Product code

    KVV 987 325



    Description

    – used to fix KRIG speakers among themselves – 4 pcs in pack



    Downloads

    DWG

    K-RIG Security pole 3D DWG

    K-RIG Security pole 3D DWG

    SKP

    K-RIG Security pole SKP

    K-RIG Security pole SketchUp

    KT2.15 Wheel kit (100mm)

    Gallery

    Product code

    KVV 987 355



    Description

    Package includes:

    4x Wheel (2x with brake)
    16x M8x16mm Screw Hexagon Head
    16x M8 Washer Serrated



    Downloads

    DWG

    KT2.15 Wheel kit (125mm) 3D DWG

    KT2.15 Wheel kit (125mm) 3D DWG

    SKP

    KT2.15 Wheel kit (125mm) SKP

    KT2.15 Wheel kit (125mm) SketchUp

    System Acoustic Performance

    Max SPL Long-term 130dB (133dB 2 Units)
    Max SPL Peak 136dB (139dB 2 Units)
    -3dB Response 42Hz to 180Hz
    Impedance

    Low Frequency Section

    Acoustic Design Twin Asymmetrical loading
    Woofer Size / Voice Coil Diameter 15″ / 3″ / Inside outside

    Speaker Input

    Speaker Input 2x Neutrik Speakon® – NL4

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Pole Mount 1
    Color “Orange peeled” Matt Black

    Physical Dimensions

    Height 1000 mm (39.37″)
    Width 550 mm (21.65″)
    Depth 570 mm (22.44″)
    Weight 61 kg (134.5lbs)


    Product code

    • KVV 987 315 – KT2.15

    PDF

    K-RIG User Guide

    KT2.0, KT2.15, K-PAK – English rev9



    PDF

    KT2.15 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 3D DWG

    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 3D DWG



    SKP

    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 SKP

    Cart wheels for ES1.8, ES2.5, ES2.6, EX2.5 MkII, KT2.15 SketchUp



    DWG

    KT2.15 3D DWG

    KT2.15 3D DWG



    SKP

    KT2.15 SKP

    KT2.15 SketchUp



    DWG

    KT2.15 Wheel kit (125mm) 3D DWG

    KT2.15 Wheel kit (125mm) 3D DWG



    SKP

    KT2.15 Wheel kit (125mm) SKP

    KT2.15 Wheel kit (125mm) SketchUp



    SKP

    K-Rig Series SketchUp

    K-Rig Series SketchUp



    DWG

    KT2.15 2D DWG

    KT2.15 2D DWG



    PDF

    KT2.15 – 2D

    KT2.15 2D Drawing



    SKP

    Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII SKP

    Front mount magnetic cart for ES1.8, ES2.5, ES2.6, EX2.5MkII SketchUp



    GLL

    K-RIG – EASE data

    EASE data – .GLL – description
