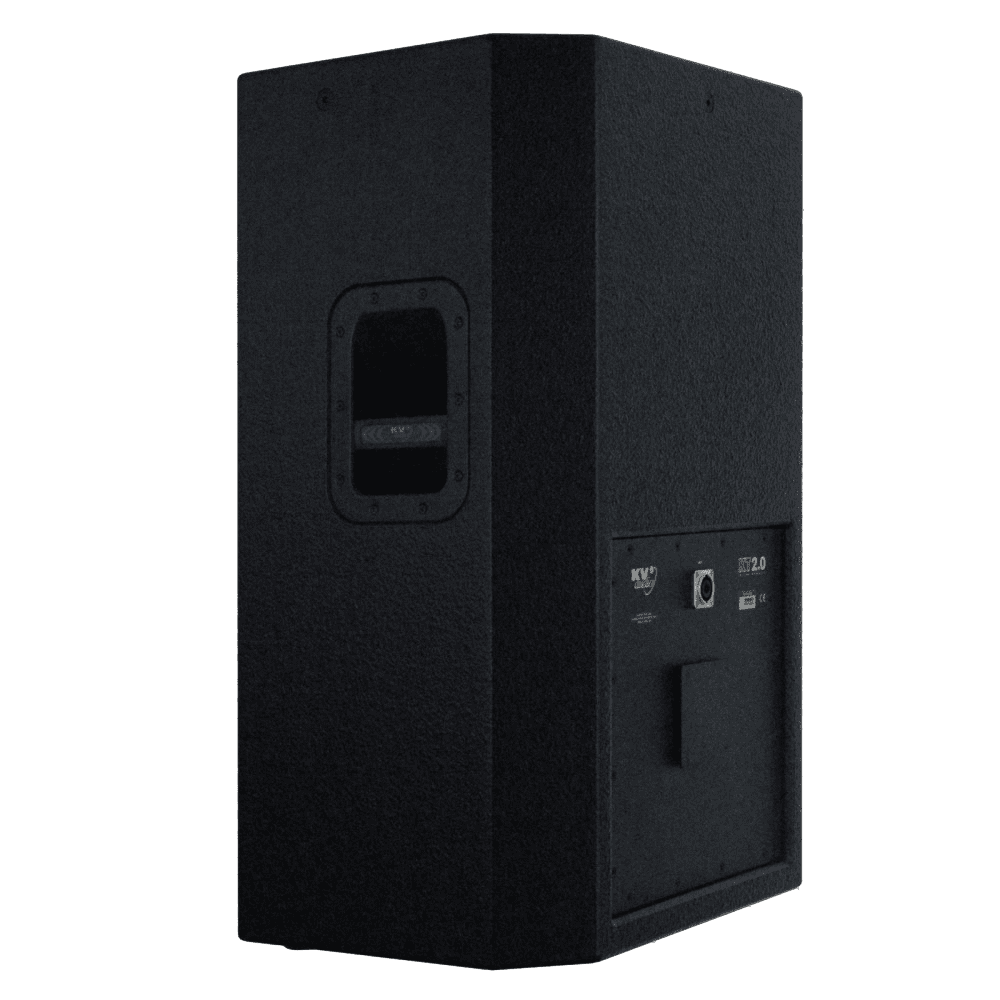

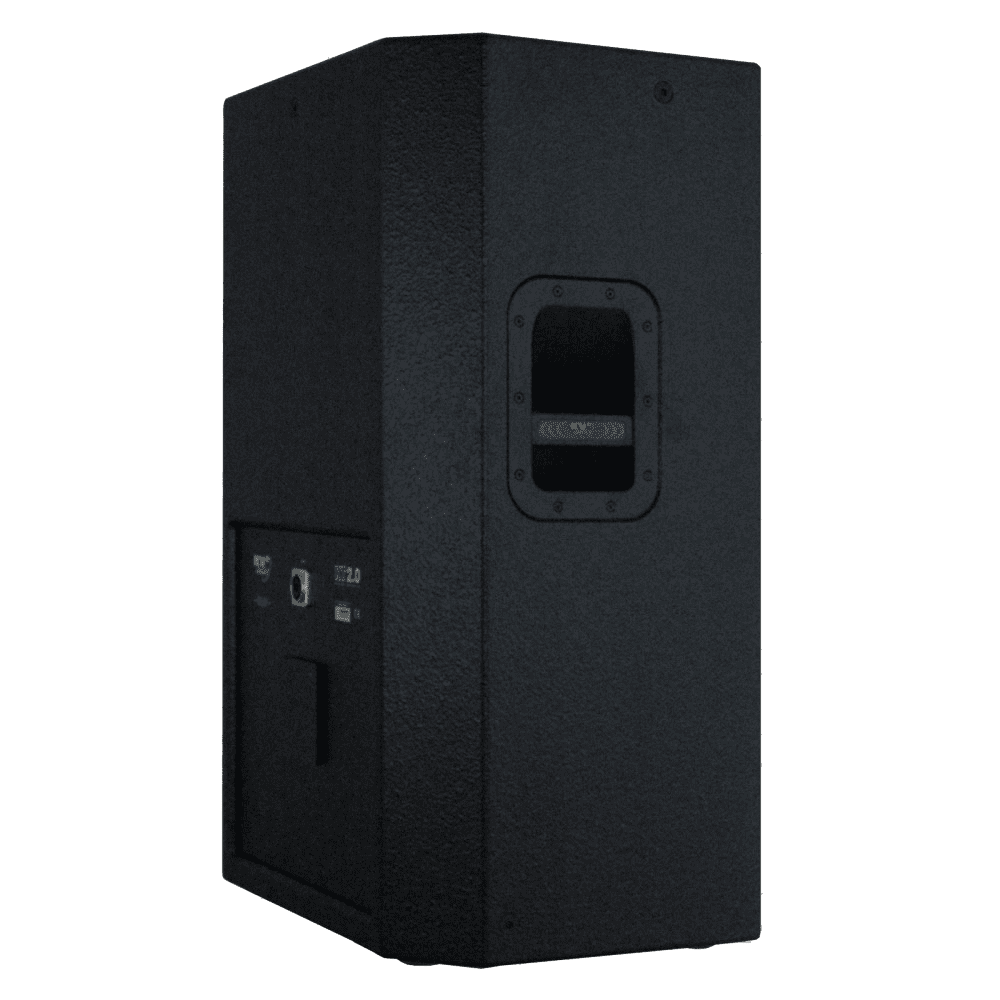

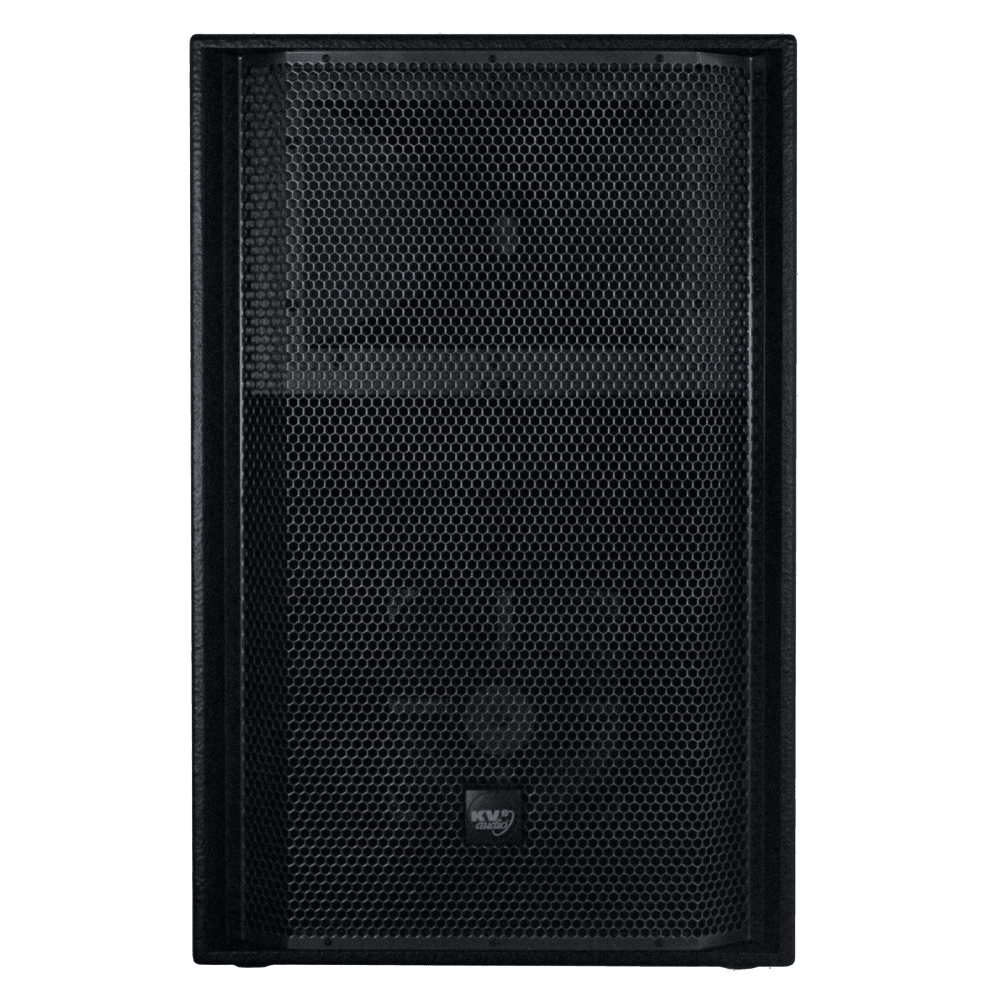

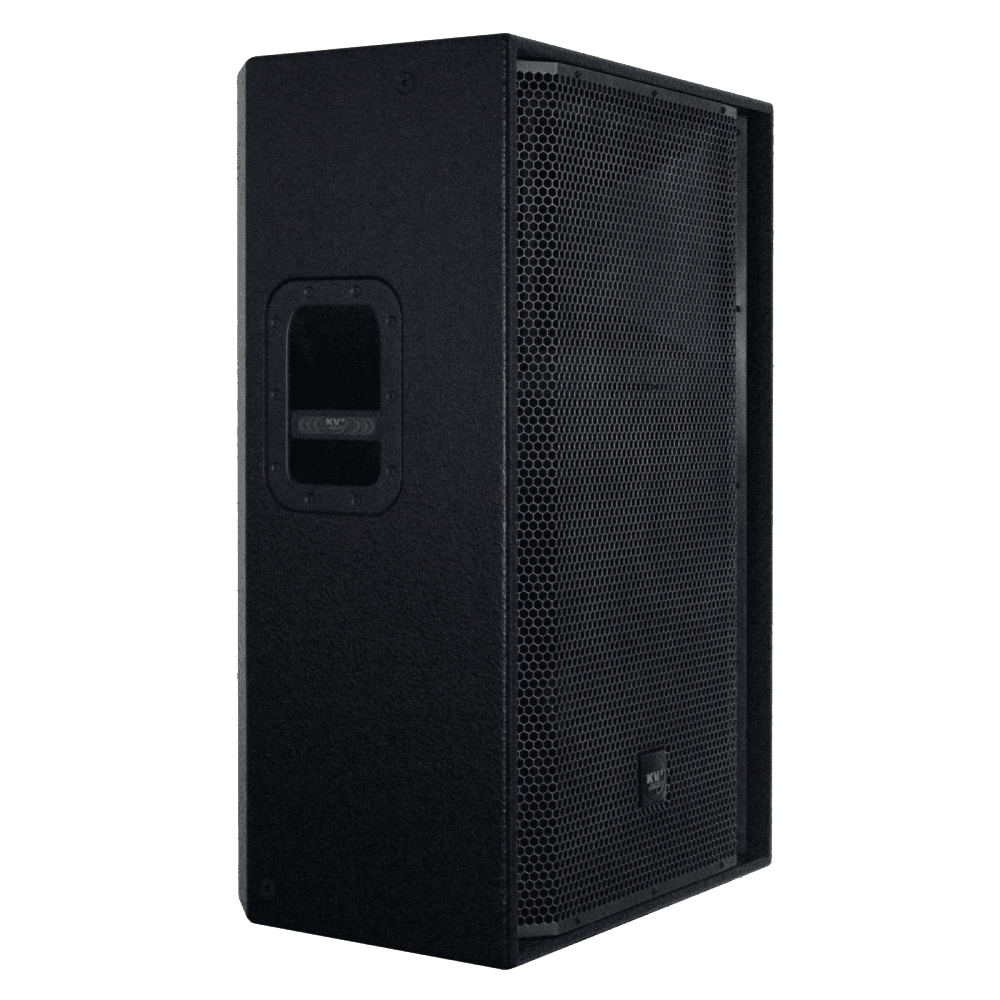

KT2.0 – K-RIG Active-Driven Mid-Hi module

KV2AUDIO
SKU: KT2.0

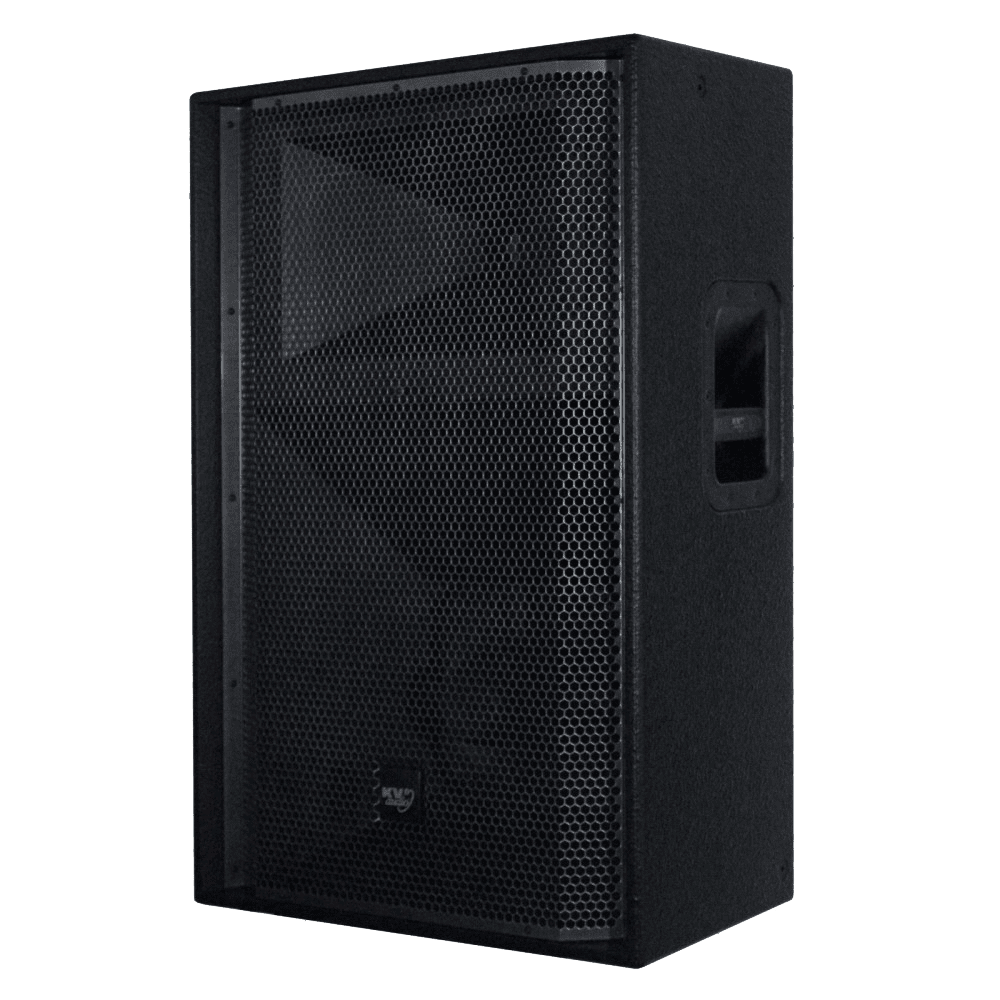

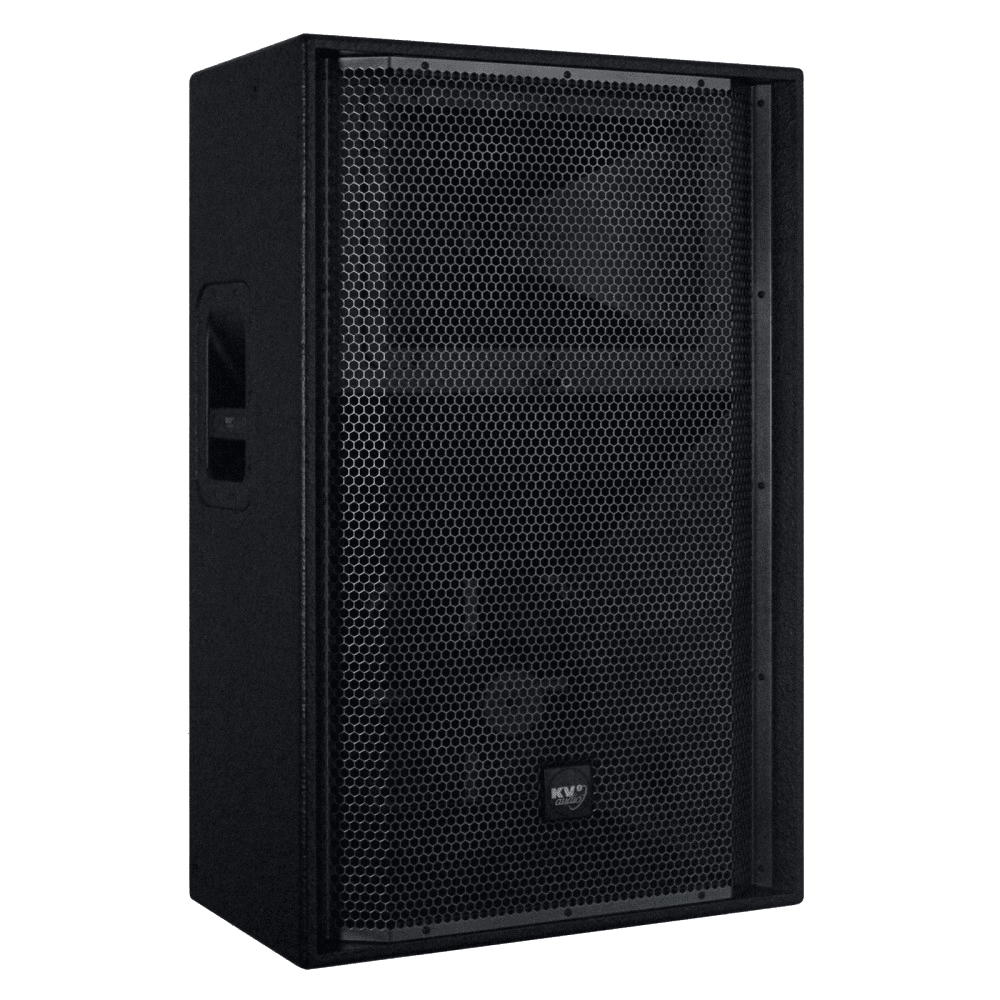

The KT2.0 is the Mid High Module for K-RIG. Its two-way horn loaded design provides optimal output and coverage that far exceeds that of a normal frontloaded 12 and horn box or a number of small line array elements. It consists of a horn loaded high power 12″ mid bass speaker with integral phase plug and a 2.5″ titanium diaphragm compression driver on an 80° H x 40° V constant directivity, wide dispersion horn. The KT2.0 is driven and controlled by two channels of the K-PAK controller amplification system and must be used with two KT2.15 bass speakers. It is constructed of poplar to reduce weight for ease of stacking and coated in a heavy-duty, wear resistant polymer coating.

Applications

Specifically designed as a Mid/Hi speaker for the K-RIG loudspeaker systems

  • Portable PA
  • Dance clubs
  • Reproduced music

Product code

  • KVV 987 314 – KT2.0


    Consultar precios

    Descripción

    The KT2.0 is the Mid High Module for K-RIG. Its two-way horn loaded design provides optimal output and coverage that far exceeds that of a normal frontloaded 12 and horn box or a number of small line array elements. It consists of a horn loaded high power 12″ mid bass speaker with integral phase plug and a 2.5″ titanium diaphragm compression driver on an 80° H x 40° V constant directivity, wide dispersion horn. The KT2.0 is driven and controlled by two channels of the K-PAK controller amplification system and must be used with two KT2.15 bass speakers. It is constructed of poplar to reduce weight for ease of stacking and coated in a heavy-duty, wear resistant polymer coating.

    Features

    • Professional Baltic birch construction with wear resistant polymer coating
    • 132dB sustained output, 135dB peak
    • Controlled wide dispersion 80° x 40°
    • 2.5″ (64 mm) Titanium diaphragm compression driver with complex geometry phase plug and ferrite magnetic structure
    • Horn loaded, 12″ mid-bass driver, with a 2.5″ (64 mm) voice coil and ferrite magnetic structure
    • Two way active requirement – 700W from the KPAK Amplifier providing 500W for the 12″ low mid and 200W for the high frequency driver

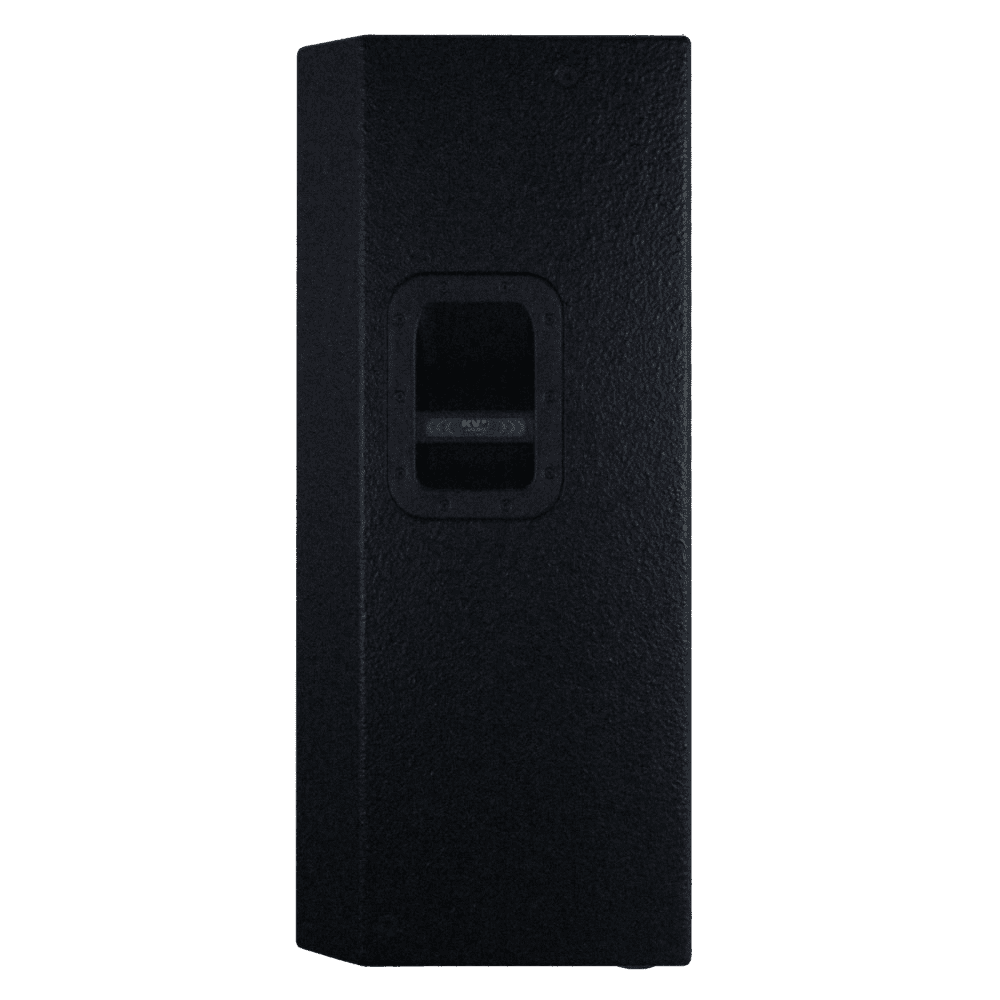

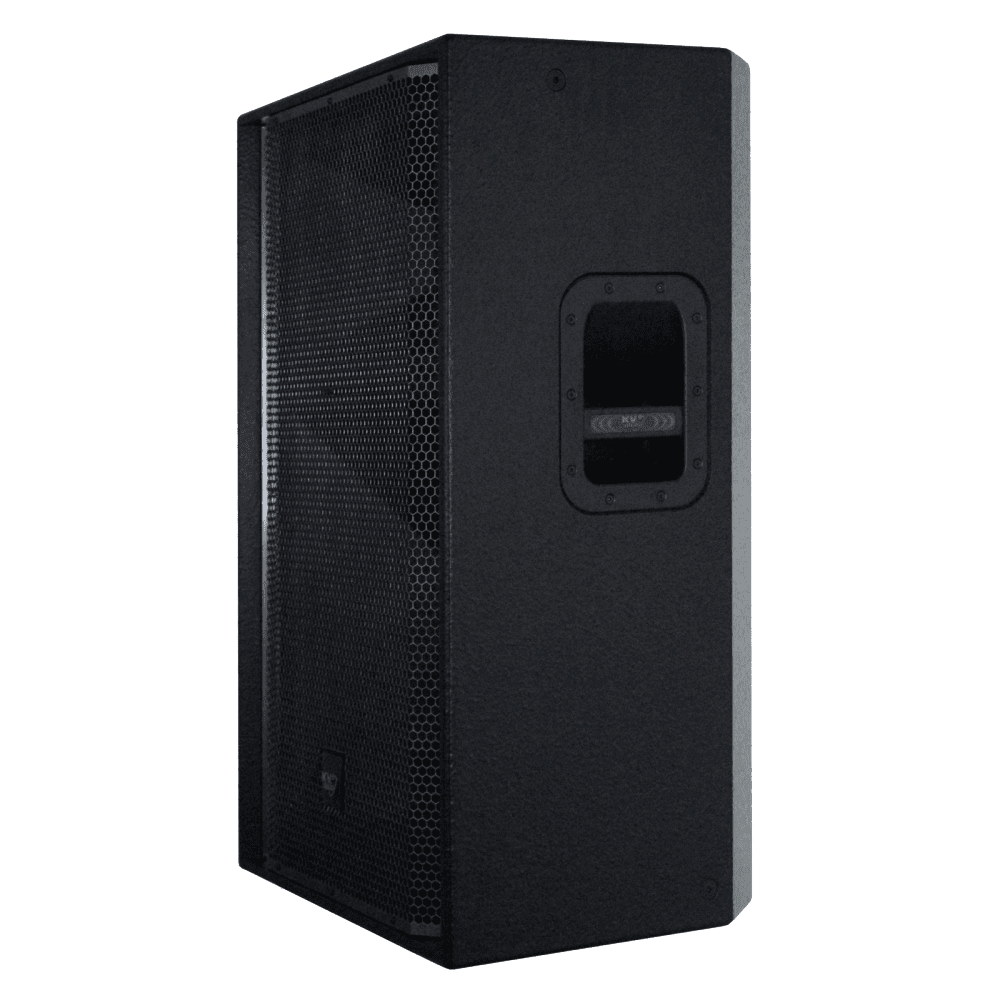

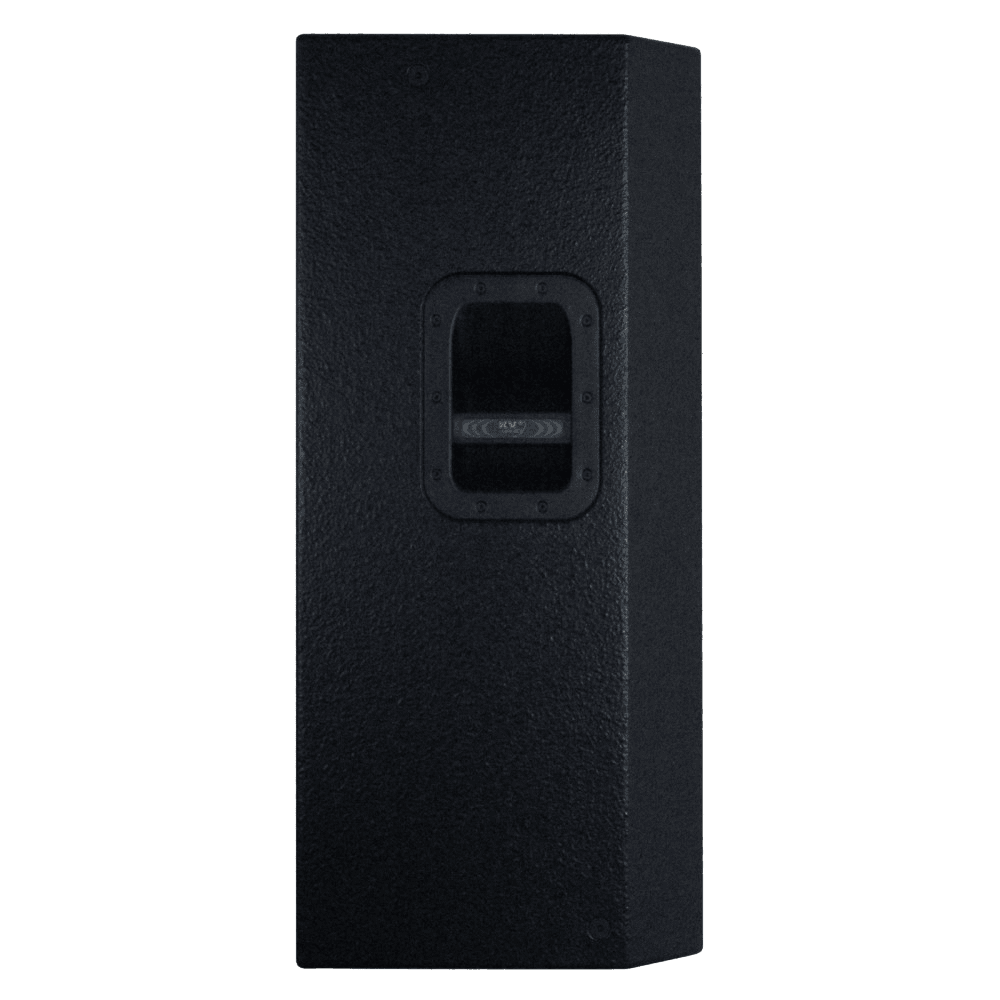

    • Proprietary side handle design for simplified handling and carrying
    • High impact low friction feet, for lock-in and easy cabinet movement


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as a Mid/Hi speaker for the K-RIG loudspeaker systems

    • Portable PA
    • Dance clubs
    • Reproduced music

    Product code

    • KVV 987 314 – KT2.0


    Accesories


    Speakon speaker cable 8.60

    Gallery

    Product code

    KVV 987 328



    Description

    – 6 wire speaker cable – Speakon NL8 connectors – 6m (20ft) – for K-RIG Mid/Hi Module hook-up



    K-RIG Short joining bracket

    Gallery

    Product code

    KVV 987 318



    Description

    – 2 pcs in pack – 4 pcs Quick-lock-pins 6mm included – 4 pcs M10 hex screws with a hole included



    Downloads

    DWG

    K-RIG Short joining bracket 3D DWG

    K-RIG Short joining bracket 3D DWG

    SKP

    K-RIG Short joining bracket SKP

    K-RIG Short joining bracket SketchUp

    K-RIG Security pole

    Gallery

    Product code

    KVV 987 325



    Description

    – used to fix KRIG speakers among themselves – 4 pcs in pack



    Downloads

    DWG

    K-RIG Security pole 3D DWG

    K-RIG Security pole 3D DWG

    SKP

    K-RIG Security pole SKP

    K-RIG Security pole SketchUp

    System Acoustic Performance

    Max SPL Long-term 132dB
    Max SPL Peak 138dB
    -3dB Response (+ 2x KT2.15: 42Hz) 180Hz ÷ 18kHz
    Crossover Point 180Hz / 1.4kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 80° x 40°
    Throat Exit Diameter / Diaphragm Size 1.4” / 2.5”
    Diaphragm Material Titanium
    Magnet Type Ferrite

    Mid Bass Section

    Woofer Size / Voice Coil Diameter 12″ / 2.5″ / Inside Outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Ferrite

    Speaker Input

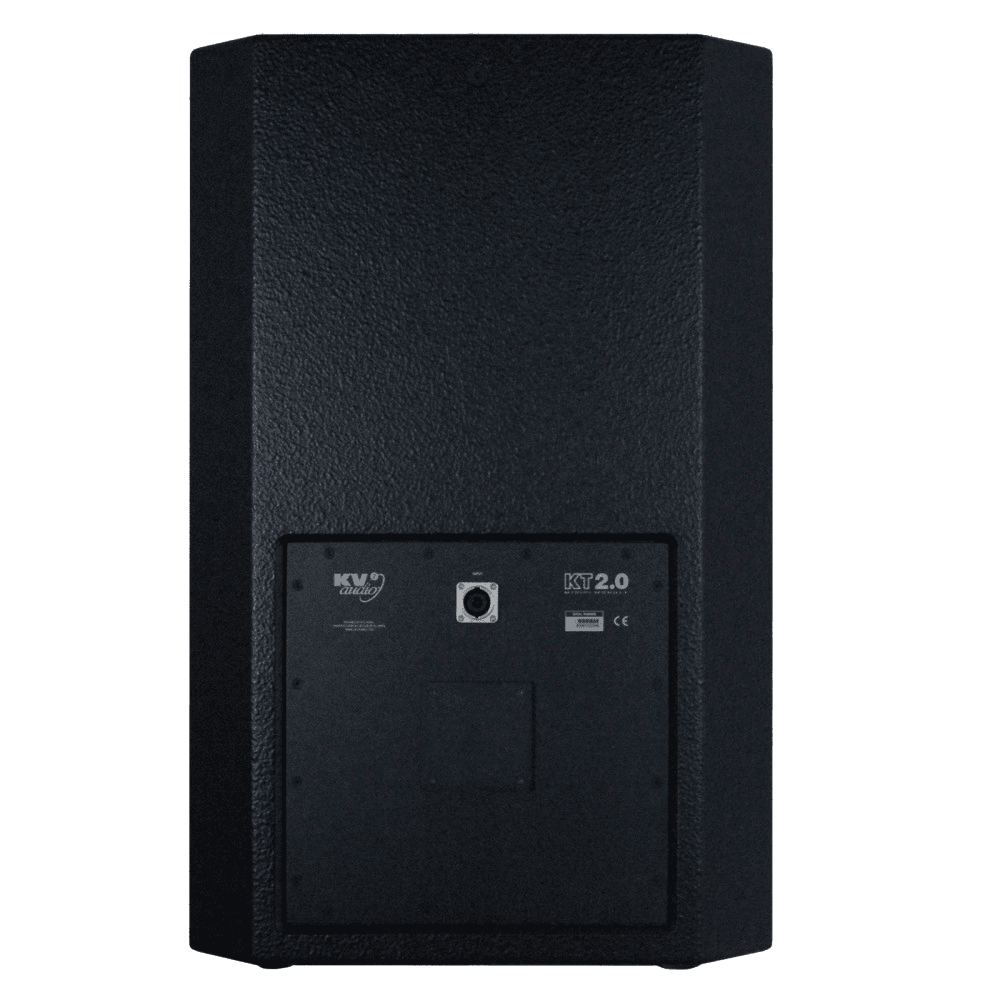

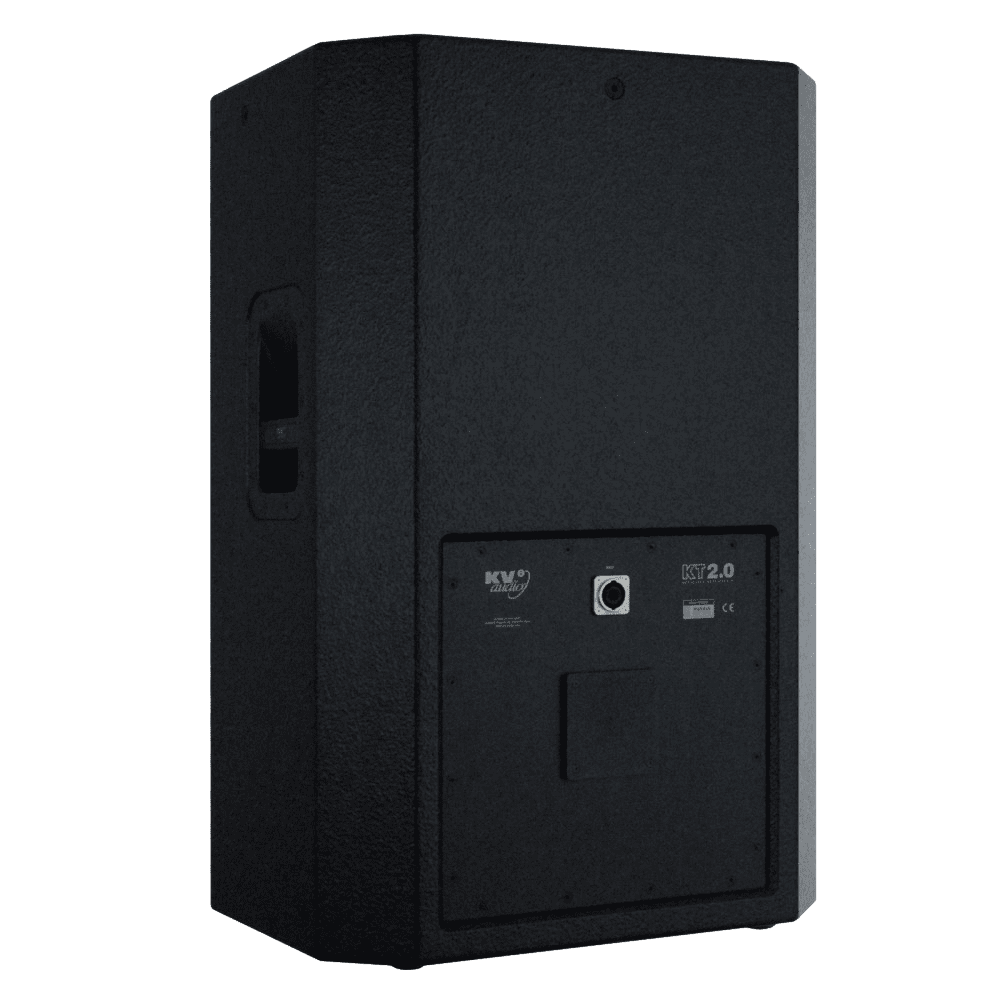

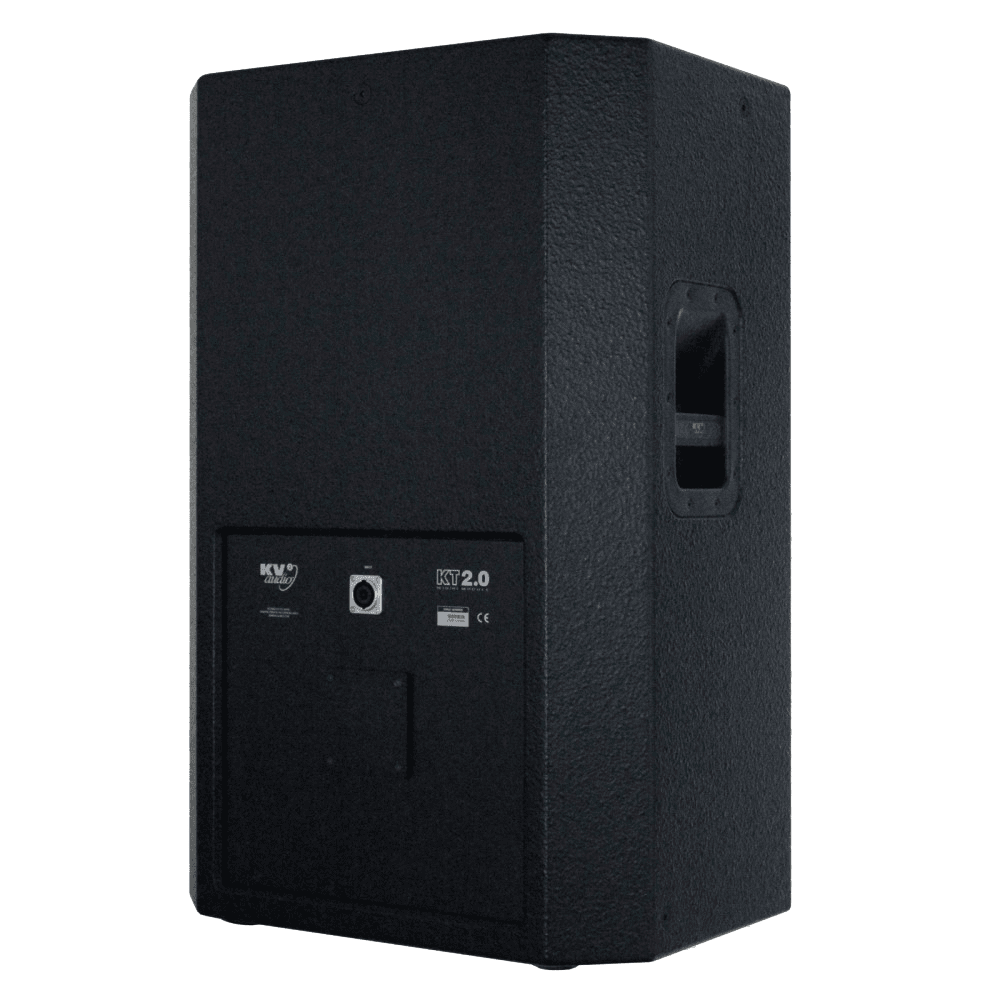

    Speaker Input 2x Neutrik Speakon® – NL8

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Pole Mount 1
    Color “Orange peeled” Matt Black

    Physical Dimensions

    Height 852 mm (33,54″)
    Width 550 mm (21.66″)
    Depth 375 mm (14.76″)
    Weight 40 kg (88.2lbs)


    Product code

    • KVV 987 314 – KT2.0

    PDF

    K-RIG User Guide

    KT2.0, KT2.15, K-PAK – English rev9



    PDF

    KT2.0 Technical Data Sheet

    Download Product’s Data Sheet


    SKP

    KT2.0 SKP

    KT2.0 SketchUp



    DWG

    K-RIG Short joining bracket 3D DWG

    K-RIG Short joining bracket 3D DWG



    SKP

    K-RIG Short joining bracket SKP

    K-RIG Short joining bracket SketchUp



    DWG

    K-RIG Security pole 3D DWG

    K-RIG Security pole 3D DWG



    SKP

    K-RIG Security pole SKP

    K-RIG Security pole SketchUp



    SKP

    K-Rig Series SketchUp

    K-Rig Series SketchUp



    PDF

    KT2.0 – 2D

    KT2.0 2D Drawing



    DWG

    KT2.0 3D DWG

    KT2.0 3D DWG



    GLL

    K-RIG – EASE data

    EASE data – .GLL – description
