KPAK2600 – K-RIG System Amplifier

KV2AUDIO
SKU: KPAK2600

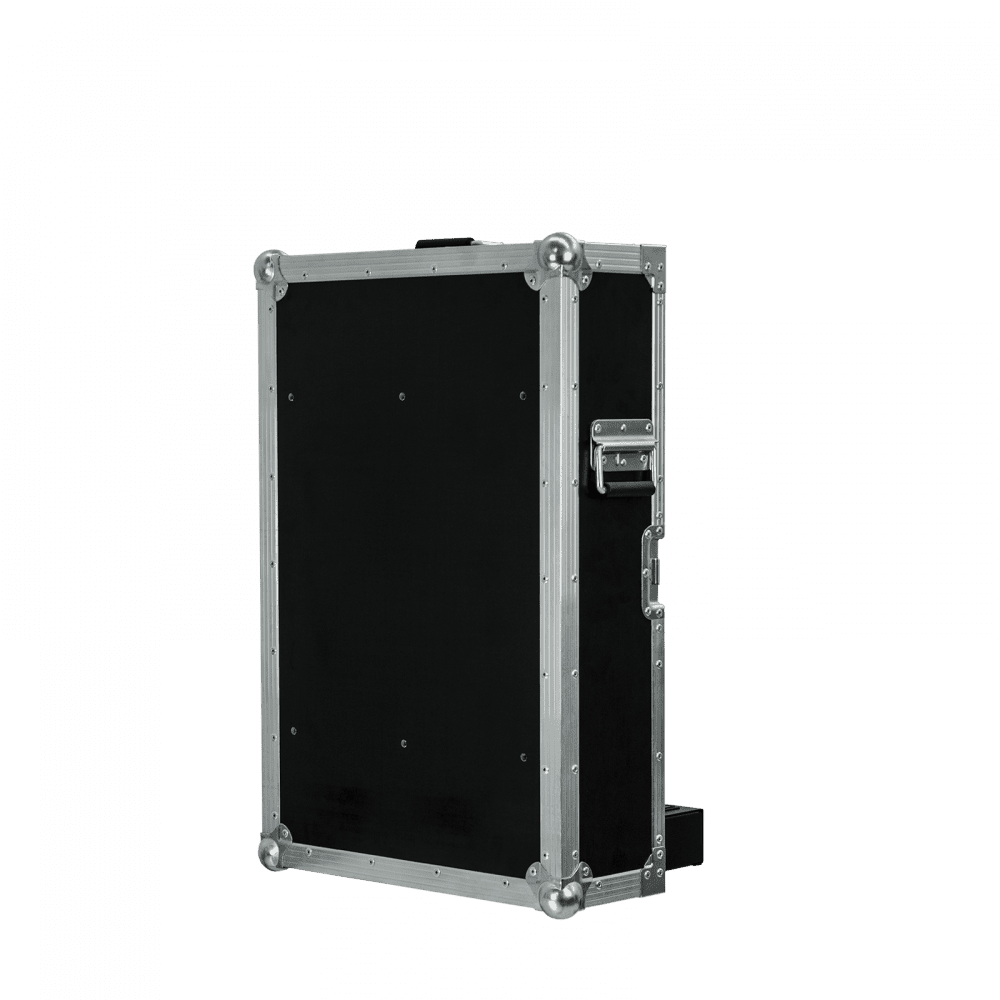

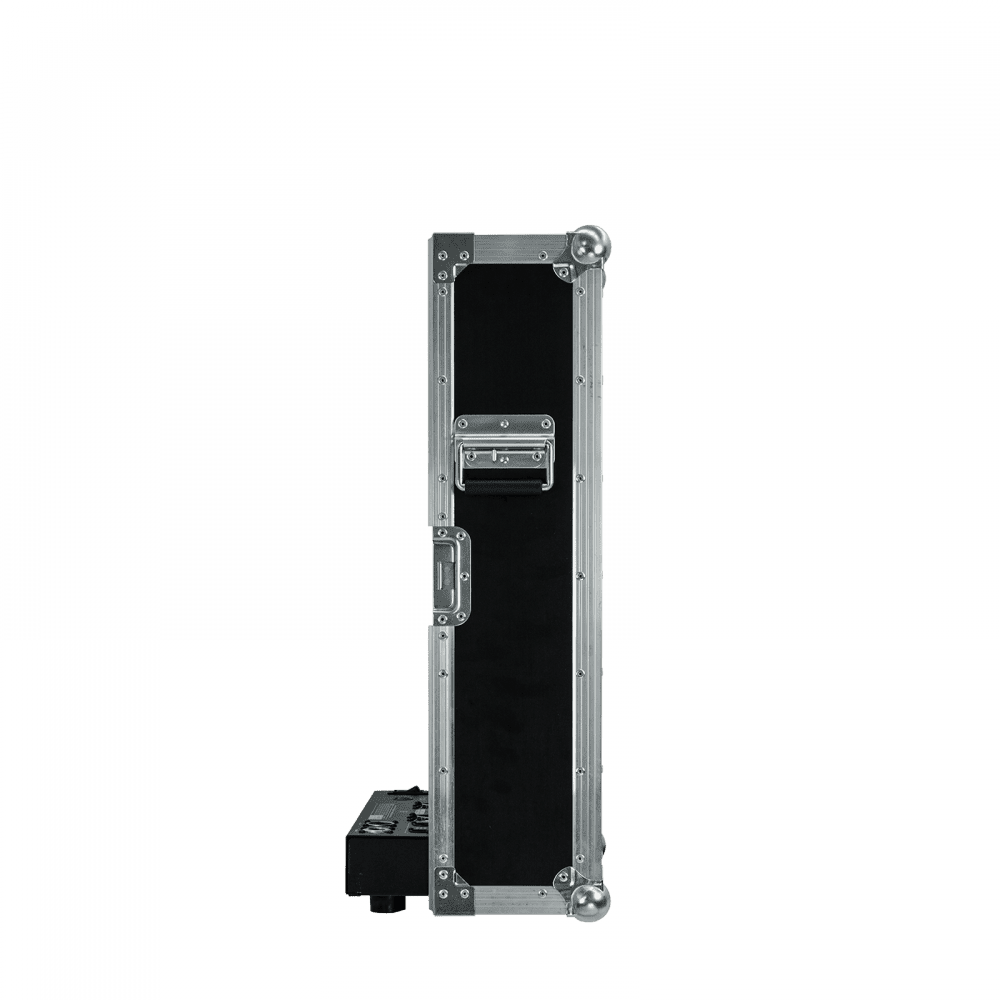

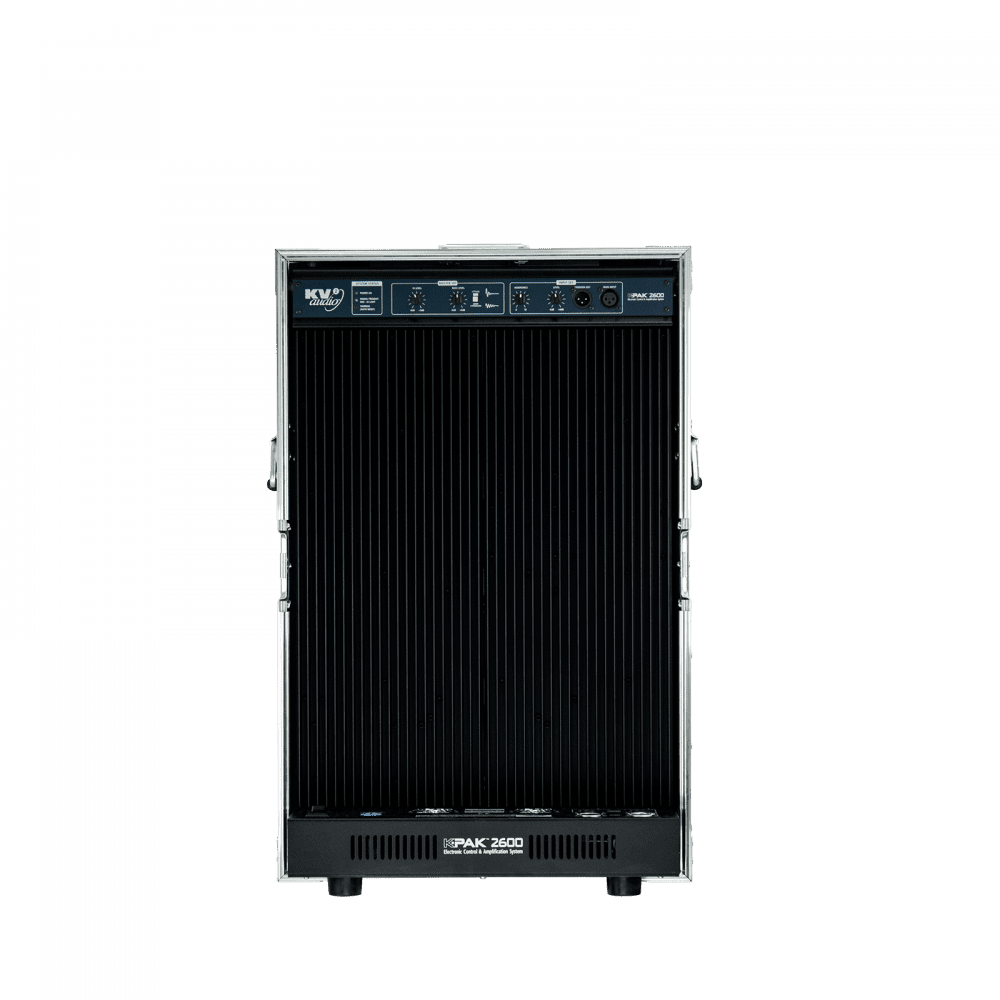

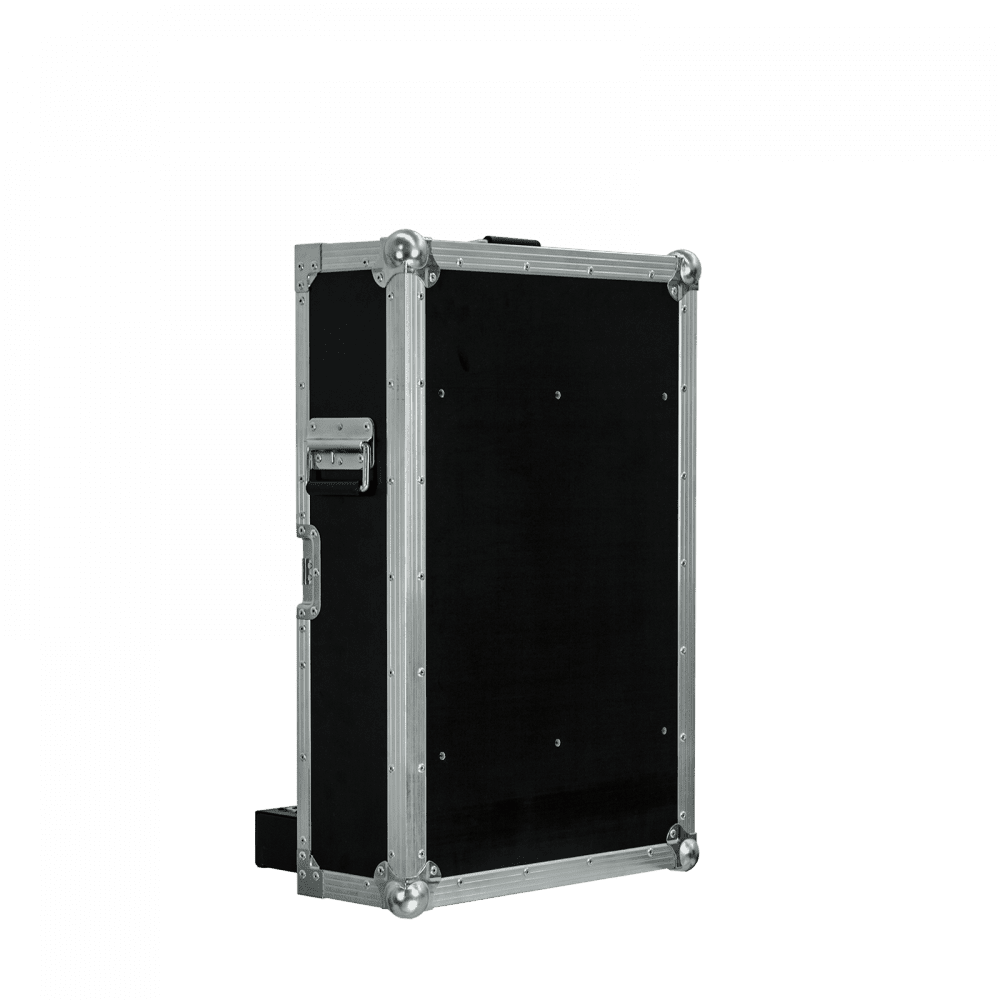

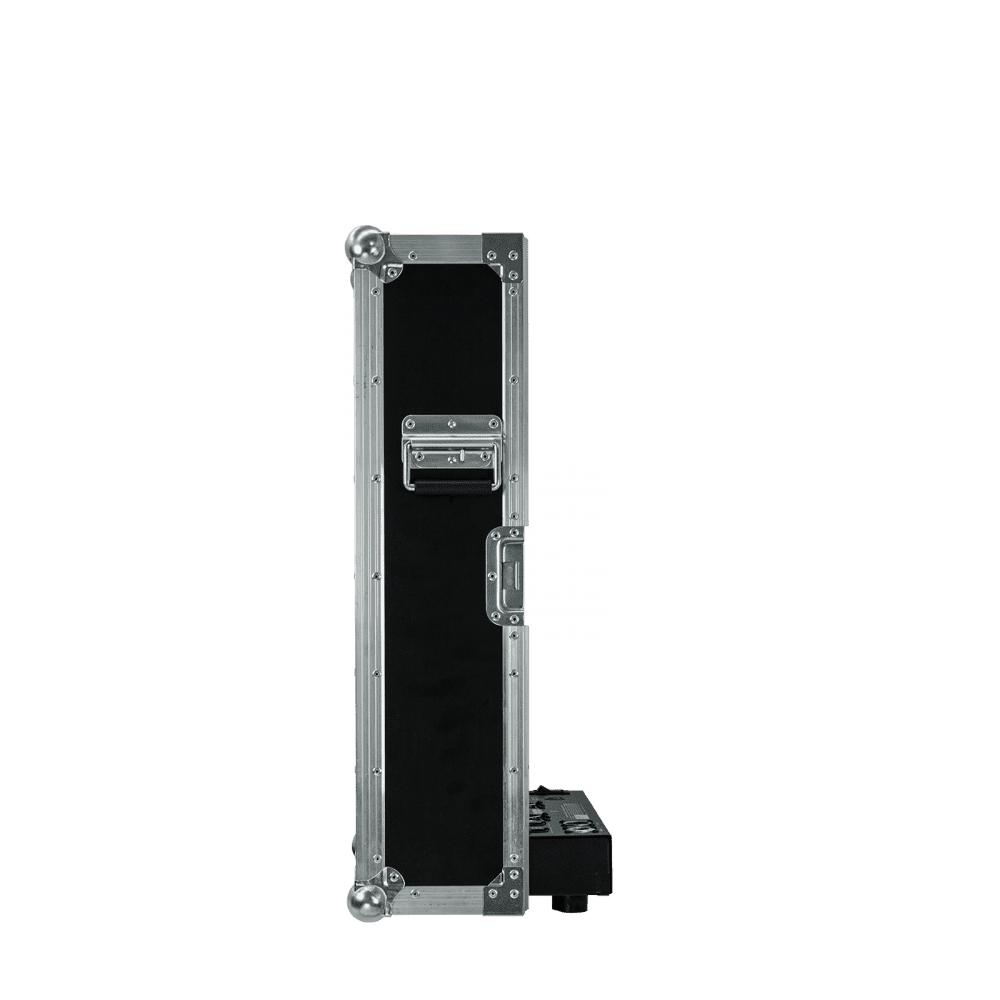

K-PAK2600 is a three-way, active control and amplification unit specifically designed for the K-RIG Groundstack loudspeaker system. It houses all signal processing and three individual amplifiers in a road-rugged enclosure with built in cable storage compartment with suspension system and passive heat sink along with two demand-sensitive fans for added reliability.

Applications

Specifically designed as the amplification and control elements for the K-RIG loudspeaker systems

  • Portable PA
  • Dance clubs
  • Reproduced music

Product code

  • KVV 987 323 – KPAK 115V
  • KVV 987 317 – KPAK 230V
  • KVV 987 324 – KPAK 250V


    Consultar precios

    Descripción

    K-PAK2600 is a three-way, active control and amplification unit specifically designed for the K-RIG Groundstack loudspeaker system. It houses all signal processing and three individual amplifiers in a road-rugged enclosure with built in cable storage compartment with suspension system and passive heat sink along with two demand-sensitive fans for added reliability.

    Features

    • 3-way, 2300W Control and Amplification system for use specifically with KT2.0 and KT2.15 speaker cabinets
    • High Frequency, 200W, Class AB, push-pull, low intermodulation amplifier with transformer balanced outputs
    • Mid frequency, 500W, Class AB, high efficiency, switch mode, low intermodulation design amplifier
    • Subwoofer, 1600W, high efficiency, current enhancing, switching amplifier
    • Complete, on board speaker management system including equalization, time alignment, crossover filters, amplifier overdrive protection, harmonics and output level controls
    • AC soft start circuitry with ON/OFF AC breaker switch provides thorough power protection
    • Passive heat dissipation design with demand-sensitive forced cooling back-up system

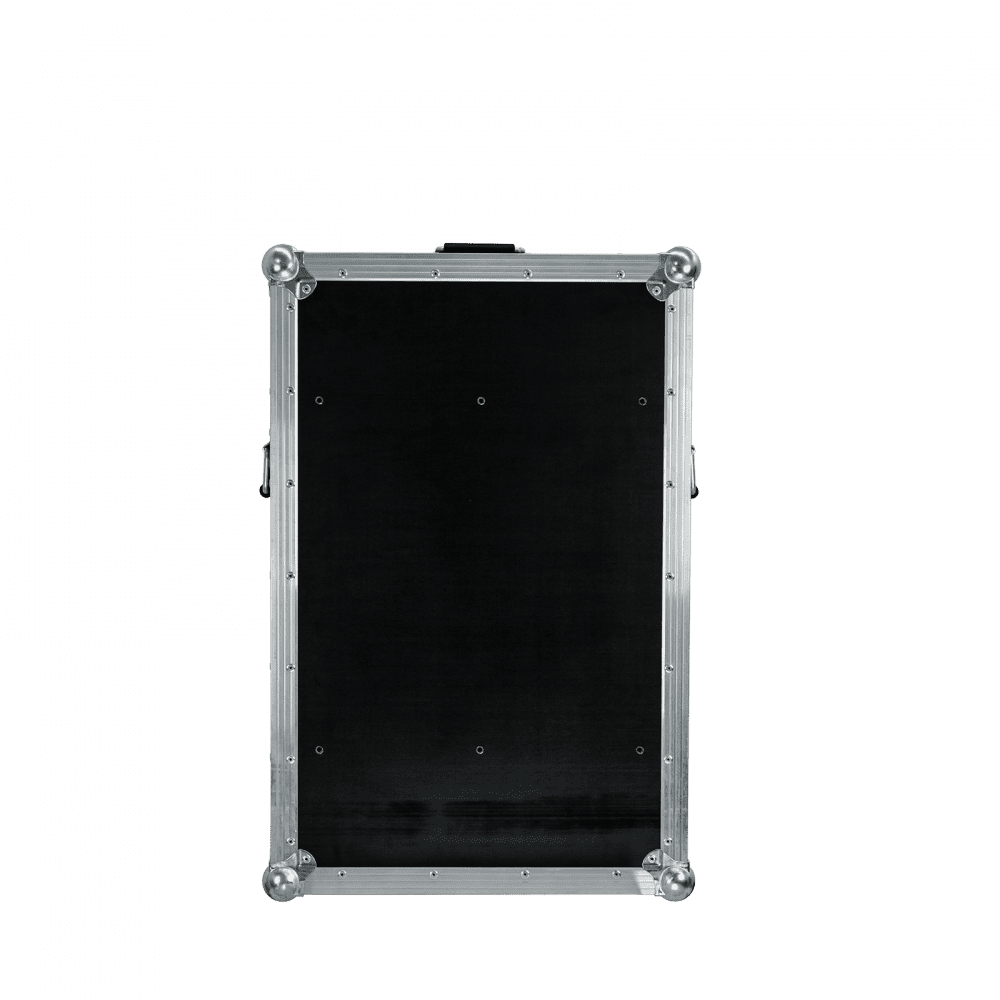

    • Removable front cover provides storage of all AC and speaker cables
    • Bass Character- Attack or extension switch alters the low frequency character
    • Includes all speaker cables for a single stack K-RIG system


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as the amplification and control elements for the K-RIG loudspeaker systems

    • Portable PA
    • Dance clubs
    • Reproduced music

    Product code

    • KVV 987 323 – KPAK 115V
    • KVV 987 317 – KPAK 230V
    • KVV 987 324 – KPAK 250V


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 8.60

    Gallery

    Product code

    KVV 987 328



    Description

    – 6 wire speaker cable – Speakon NL8 connectors – 6m (20ft) – for K-RIG Mid/Hi Module hook-up



    EPAK2500 Wallmount bracket

    Gallery

    Product code

    KVV 987 332



    Description

    – wall mounting kit for installing an EPAK2500 or KPAK2500 – for 1pc EPAK2500 or KPAK2500



    Downloads

    DWG

    EPAK2500 Wallmount Bracket 3D DWG

    EPAK2500 Wallmount Bracket 3D DWG

    SKP

    EPAK2500 Wallmount Bracket SKP

    EPAK2500 Wallmount Bracket SketchUp

    High Frequency Amplifier Specification

    Type Class AB, Push Pull, Low IM Design, Transformer Balanced Output
    Rated Continuous Power 200W
    Distortion <0.05%
    Operating Bandwidth 1.4kHz to 20kHz

    Mid Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 500W
    Distortion <0.05%
    Operating Bandwidth 180Hz to 1.4kHz

    Low Frequency Amplifier Specification

    Type High efficiency, Low Frequency, Current-enhancing Switch Mode
    Rated Continuous Power 1800W
    Distortion <0.05%
    Operating Bandwidth 20Hz to 200Hz

    Signal Input

    Input Sensitivity 1V RMS
    Input Impedance 20kΩ (balanced)

    Speaker Output

    Speaker Output Speakon 8pin (Mid/Hi), 4pin (Sub)

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
    Recommended Amperage 20A 115V | 10A 230V | 10A 250V

    Physical Dimensions

    Height 719 mm (28.30″)
    Width 478 mm (18.81″)
    Depth 305 mm (12.00″)
    Weight 38 kg (83.78lbs)


    Product code

    • KVV 987 323 – KPAK 115V
    • KVV 987 317 – KPAK 230V
    • KVV 987 324 – KPAK 250V
