JKT – Tone generator – Phantom powered

KV2AUDIO
SKU: JKT

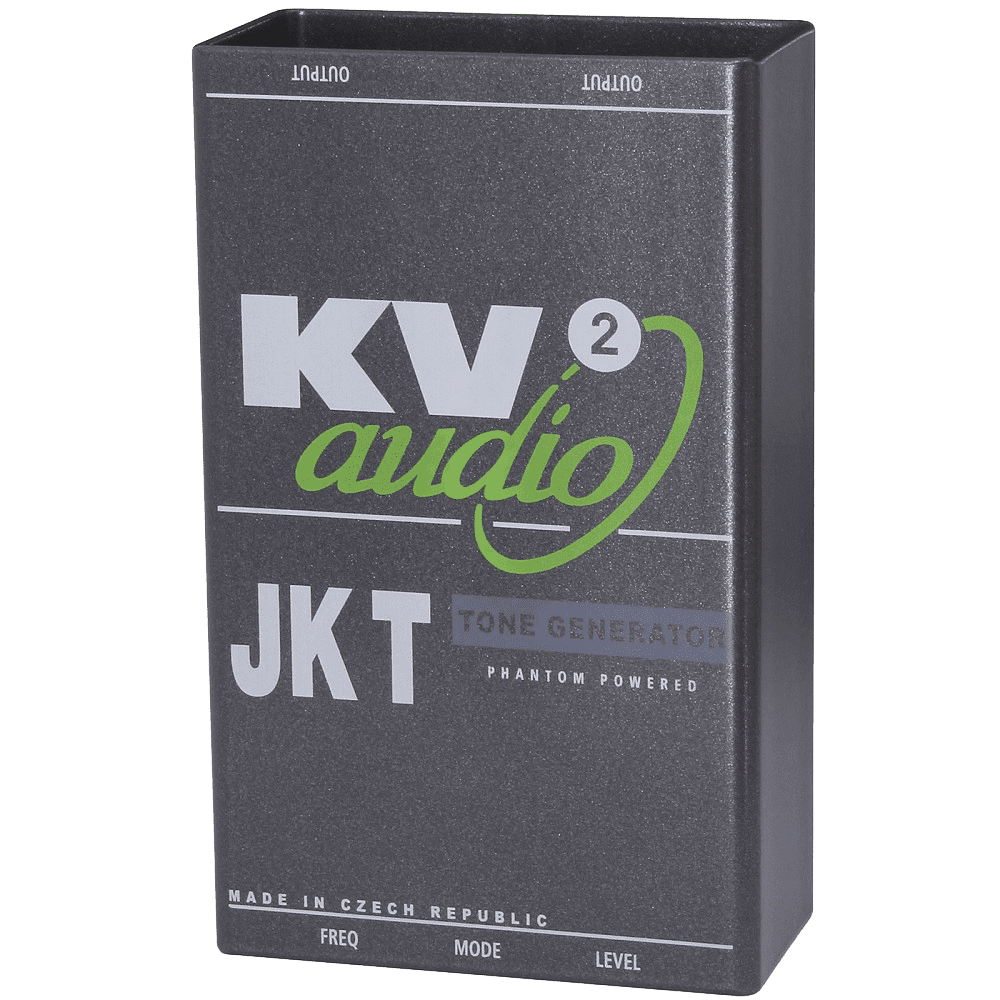

The JKT is the perfect tool for checking and tuning PA systems along with various pieces of equipment. Phantom powered, it has one combined input/output XLR and one combined XLR and 1/4″ jack output. The JKT delivers a full range of tones from 20Hz through to 30KHz, as well as both White and Pink Noise.

Applications

Specifically designed as an engineer’s Tone Generator solution tool for checking and tuning PA systems

  • Live performance
  • Fixed installations
  • Portable

Product code

  • KVV 987 272 – JKT


    Consultar precios

    Descripción

    The JKT is the perfect tool for checking and tuning PA systems along with various pieces of equipment. Phantom powered, it has one combined input/output XLR and one combined XLR and 1/4″ jack output. The JKT delivers a full range of tones from 20Hz through to 30KHz, as well as both White and Pink Noise.

    Features

    • Phantom power supply

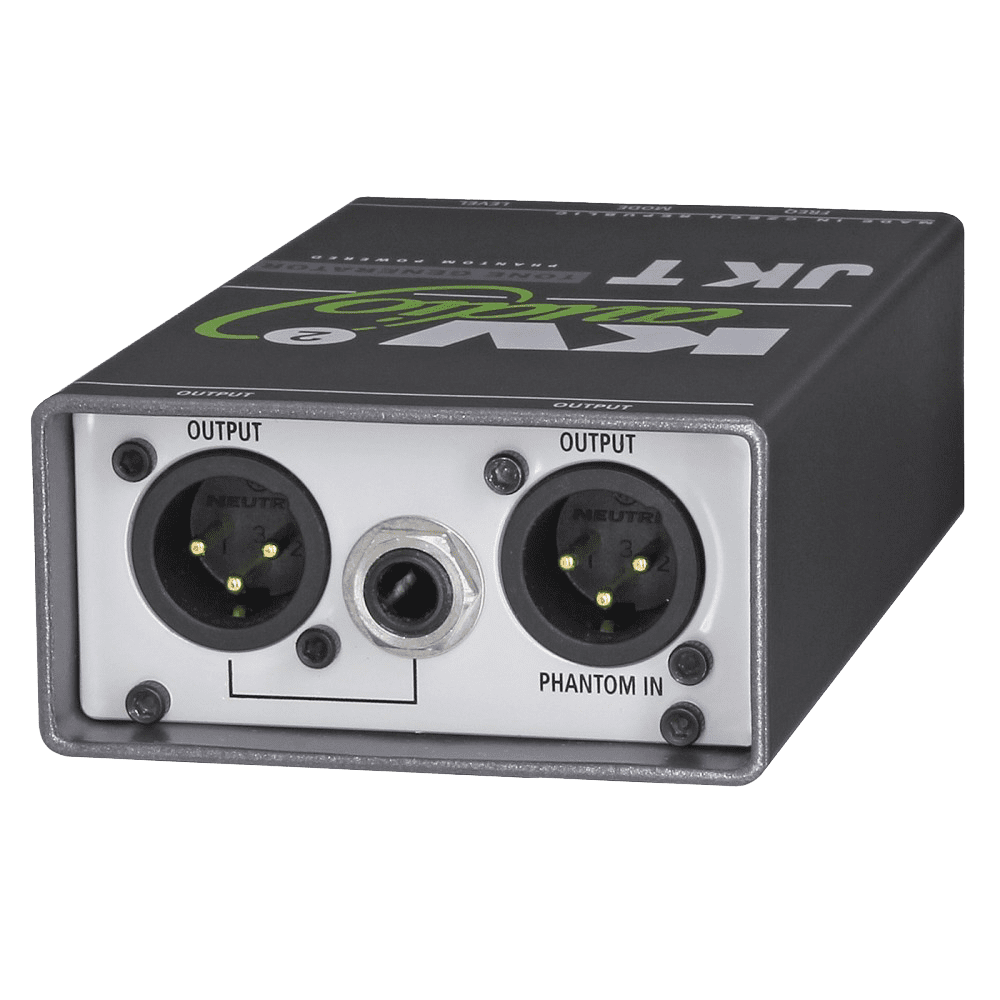

    • Multiple, low impedance outputs: XLR, XLR + Jack 1/4″
    • Sine wave generator 20Hz to 30kHz
    • Pink noise generator
    • White noise generator
    • Output level


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as an engineer’s Tone Generator solution tool for checking and tuning PA systems

    • Live performance
    • Fixed installations
    • Portable

    Product code

    • KVV 987 272 – JKT


    Signal Output

    Signal Output Channels Jack 1/4″, 2x XLR
    Output Impedance 50Ω line / 600Ω monitor

    Features

    Input Level Control -∞ to 0dB
    Indicators Power-ON LED
    Tone generator 20Hz to 30kHz
    White noise generator YES
    Pink noise generator YES

    Power Requirements

    Phantom Power 48 to 56V / 8mA

    Cabinet

    Cabinet Material Heavy duty metal

    Physical Dimensions

    Height 40 mm (1.57″)
    Width 80 mm (3.15″)
    Depth 131 mm (5.16″)
    Weight 630 g (1.39lbs)


    Product code

    • KVV 987 272 – JKT

    PDF

    JK DI-Boxes User guide

    – User Guide for JK series – JK1, JK2, JKA, JKP, JKT – English – rev 3



    PDF

    JKT Technical Data Sheet

    Download Product’s Data Sheet


    PDF

    JKT – 2D

    JKT 2D Drawing



    DWG

    JKT – 3D

    1:1 scale – clamping points – weight – dwg file
