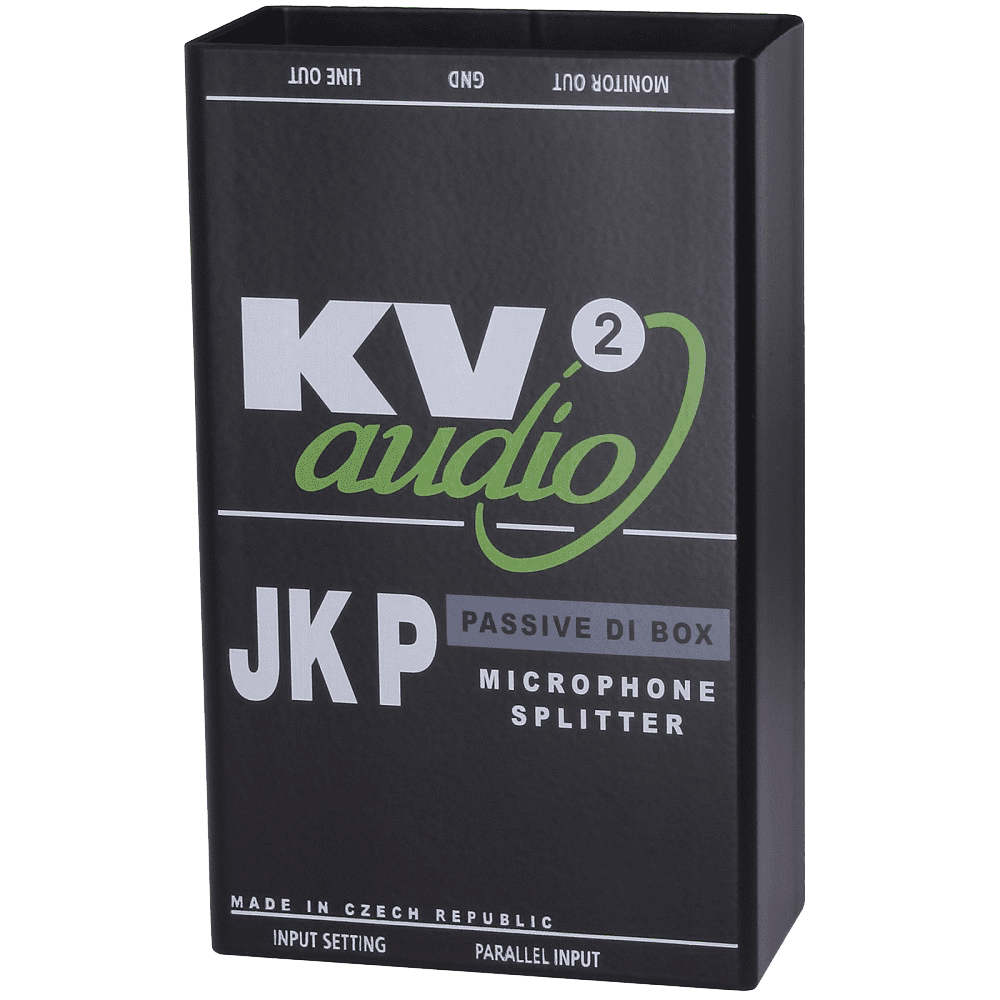

JKP – Passive DI BOX – Line Driver

KV2AUDIO
SKU: JKP

The JKP serves as a universal passive DI box with low output impedance. The JKP features one XLR input and two 1/4″ jack inputs in parallel. The JKP is designed for multiple instrument connection such as keyboards, guitars or instrument amplifiers direct output. The JKP also features phantom power supply pass-through for condenser microphone connection and output signal Line Driving.

Applications

Specifically designed as a single channel Passive stage Direct Injection (DI) box to maintain and preserve the signal integrity between input and the mixer

  • Live performance
  • Fixed installations
  • Portable

Product code

  • KVV 987 201 – JKP


    Consultar precios

    Descripción

    The JKP serves as a universal passive DI box with low output impedance. The JKP features one XLR input and two 1/4″ jack inputs in parallel. The JKP is designed for multiple instrument connection such as keyboards, guitars or instrument amplifiers direct output. The JKP also features phantom power supply pass-through for condenser microphone connection and output signal Line Driving.

    Features

    • Passive DI box
    • Phantom power supply Pass-through
    • Two intputs – symmetrical / asymmetrical jack + XLR symmetrical connectors
    • LINE OUT 1:2 / 1:4 ratio
    • Adjacent MONITOR OUT 1:1 / 1:2 ratio
    • 1:2 ratio – 4 times lower output impedance
    • 1:4 ratio – 16 times lower output impedance
    • Correct driving of difficult lines over long distance


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as a single channel Passive stage Direct Injection (DI) box to maintain and preserve the signal integrity between input and the mixer

    • Live performance
    • Fixed installations
    • Portable

    Product code

    • KVV 987 201 – JKP


    System Acoustic Performance

    -1dB Response 20Hz to 30kHz
    Total Harmonic Distortion <0.0005%

    Signal Input

    Input Channels 1/4″ Jack, XLR // 1/4″ Jack

    Signal Output

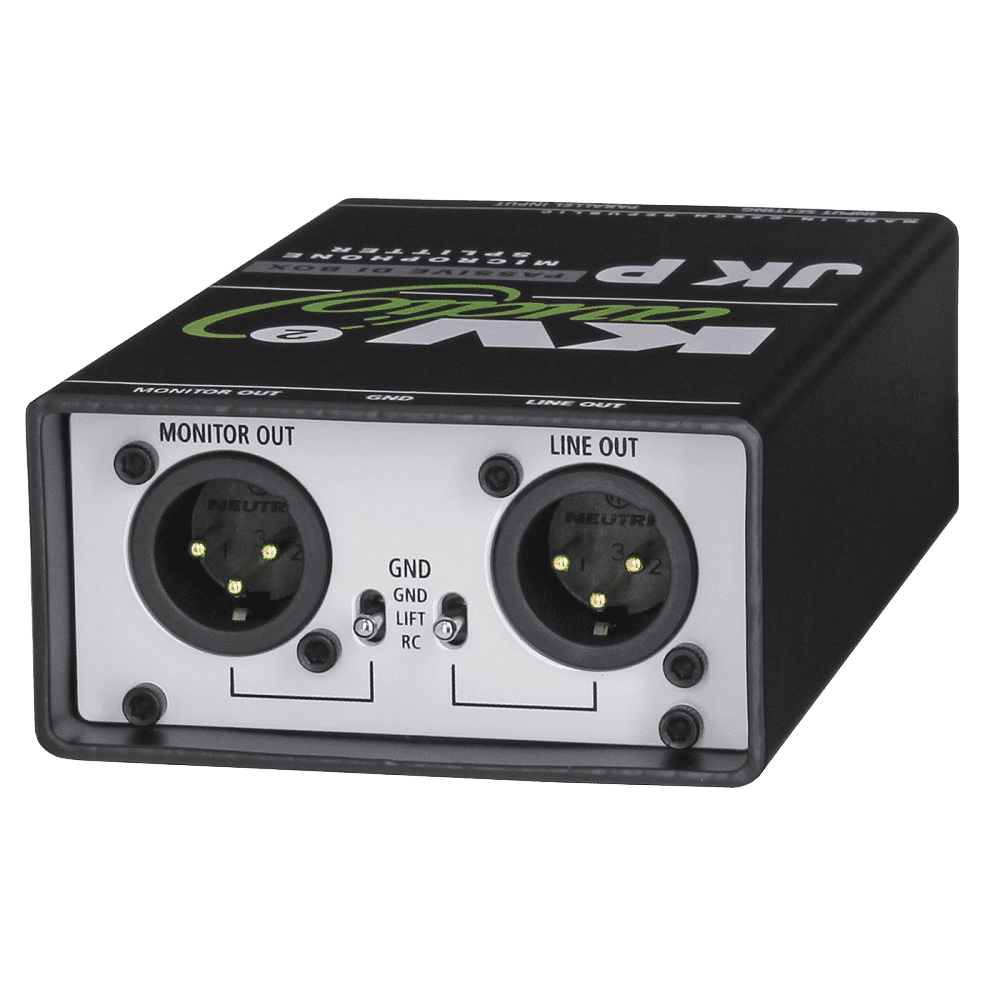

    Signal Output Channels XLR (line) + XLR (monitor)
    Output Impedance 100Ω line / 600Ω monitor

    Features

    Gain 1:2 / 1:4
    Ground Mode GND / Lift / RC

    Power Requirements

    Phantom Power Phantom through

    Cabinet

    Cabinet Material Heavy duty metal

    Physical Dimensions

    Height 40 mm (1.57″)
    Width 80 mm (3.15″)
    Depth 131 mm (5.16″)
    Weight 590 g (1.3lbs)


    Product code

    • KVV 987 201 – JKP

    PDF

    JK DI-Boxes User guide

    – User Guide for JK series – JK1, JK2, JKA, JKP, JKT – English – rev 3



    PDF

    JKP Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    JKP – 3D

    1:1 scale – clamping points – weight – dwg file
