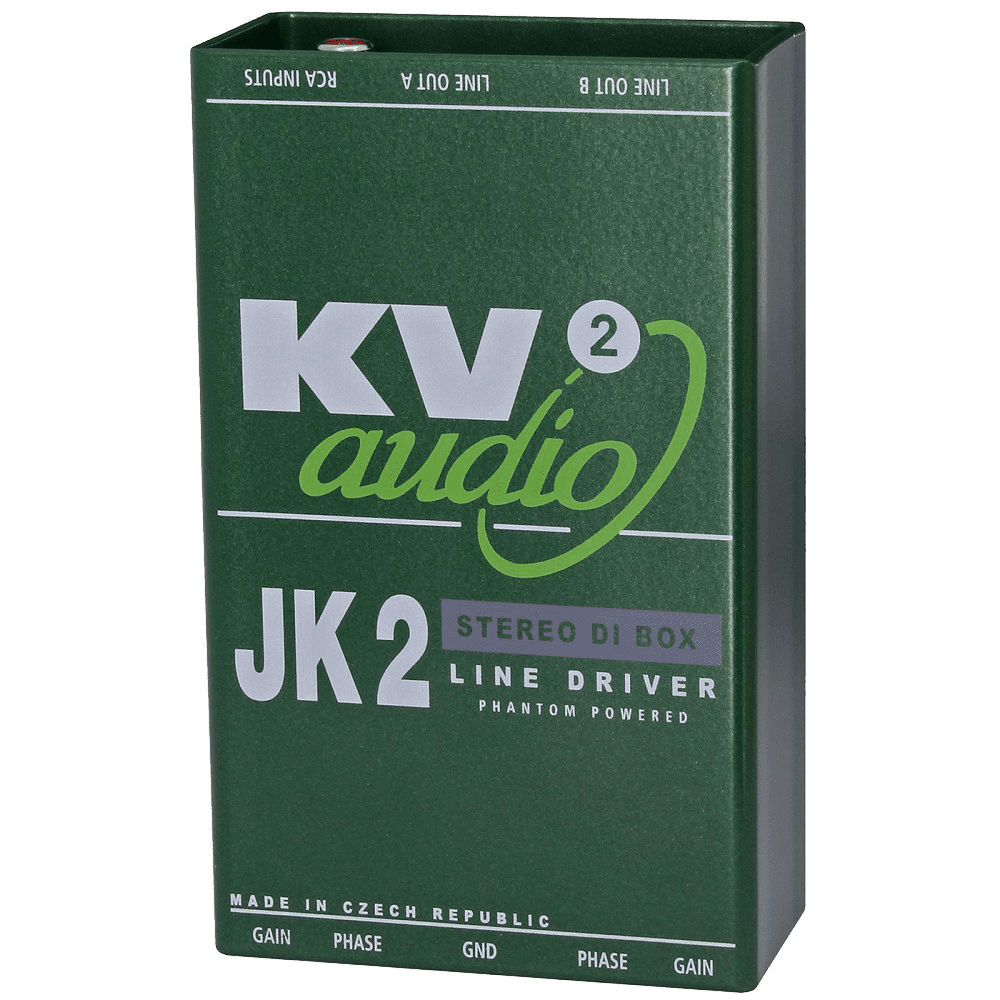

JK2 – Stereo DI BOX – Line Driver

KV2AUDIO
SKU: JK2

The JK2 features two 1/4″ jack inputs with parallel monitor outputs as well as RCA inputs. The JK2 has two completely separate channels and can be used with two different instruments, or stereo keyboards and other two channel sources such as laptops, computers and Ipad. The JK2 features a variable pad, Phase shift and Ground lift switch.

Applications

Specifically designed as a two channel (Stereo) Active stage Direct Injection (DI) box to maintain and preserve the signal integrity between input and the mixer

  • Live performance
  • Fixed installations
  • Portable

Product code

  • KVV 987 217 –  JK2


    Consultar precios

    Descripción

    The JK2 features two 1/4″ jack inputs with parallel monitor outputs as well as RCA inputs. The JK2 has two completely separate channels and can be used with two different instruments, or stereo keyboards and other two channel sources such as laptops, computers and Ipad. The JK2 features a variable pad, Phase shift and Ground lift switch.

    Features

    • Line Driver
    • Stereo DI
    • Phantom power supply
    • Multiple inputs: Jacks 1/4″, RCAs
    • Adjustable sensitivity: 0, -12dB, -24dB
    • Low impedance outputs
    • LINE OUT – phase switch selector
    • GND ground switch selector: Lift/RC/Gnd


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as a two channel (Stereo) Active stage Direct Injection (DI) box to maintain and preserve the signal integrity between input and the mixer

    • Live performance
    • Fixed installations
    • Portable

    Product code

    • KVV 987 217 –  JK2


    System Acoustic Performance

    -1dB Response 10Hz to 40kHz
    Dynamic Range >130dB
    Total Harmonic Distortion <0.005%

    Signal Input

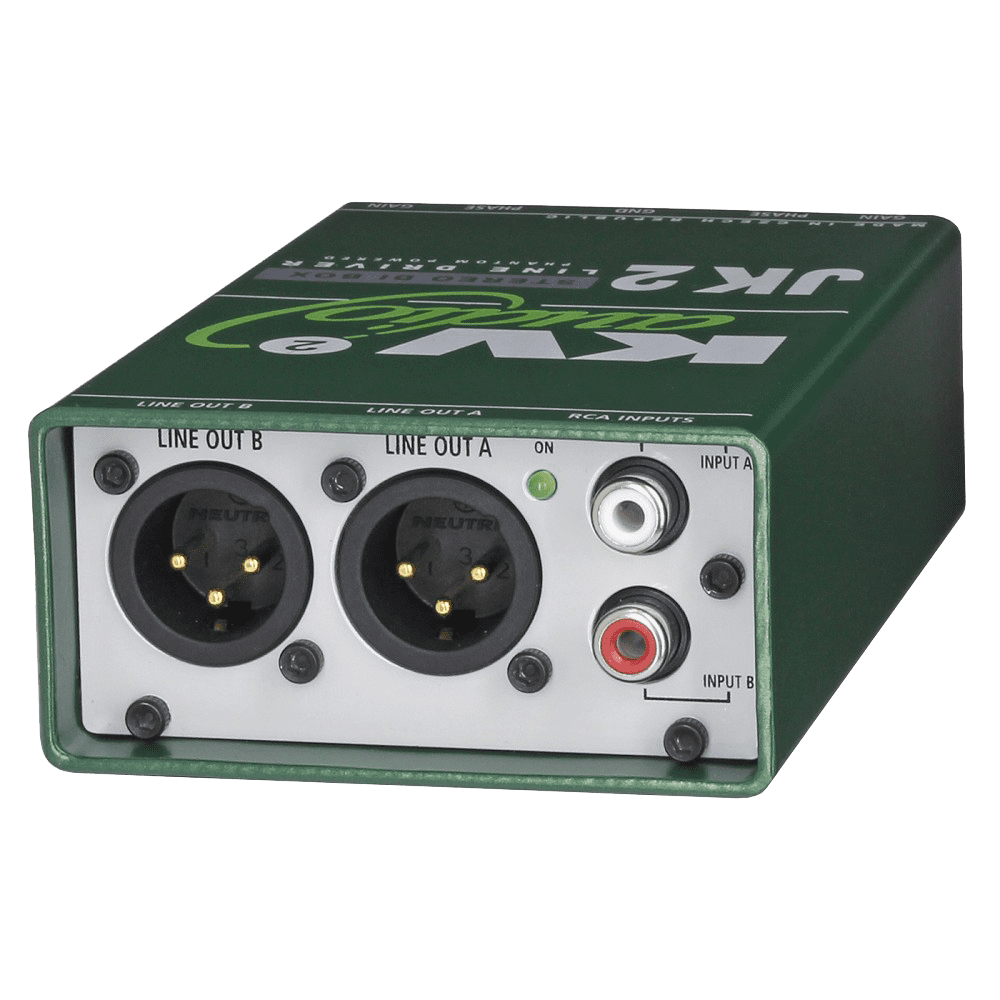

    Input Channels 2x 1/4″ Jack + 2x RCA
    Input Impedance 2x 1MΩ / 10KΩ
    Max. Input voltage 1V / 5V / 20V peak

    Signal Output

    Signal Output Channels 2x XLR, 2x 1/4″ Jack THRU
    Output Impedance 50Ω

    Features

    Gain 0 / -12 / -24dB
    Phase 0° / 180°
    Indicators Power-ON LED
    Ground Mode GND / Lift / RC

    Power Requirements

    Phantom Power 48 to 56V / 8mA

    Cabinet

    Cabinet Material Heavy duty metal

    Physical Dimensions

    Height 40 mm (1.57″)
    Width 80 mm (3.15″)
    Depth 131 mm (5.16″)
    Weight 630 g (1.39lbs)


    Product code

    • KVV 987 217 –  JK2

    PDF

    JK DI-Boxes User guide

    – User Guide for JK series – JK1, JK2, JKA, JKP, JKT – English – rev 3



    PDF

    JK2 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    JK2 – 3D

    1:1 scale – clamping points – weight – dwg file



    PDF

    JK2 -2D

    JK2 2D Drawing
