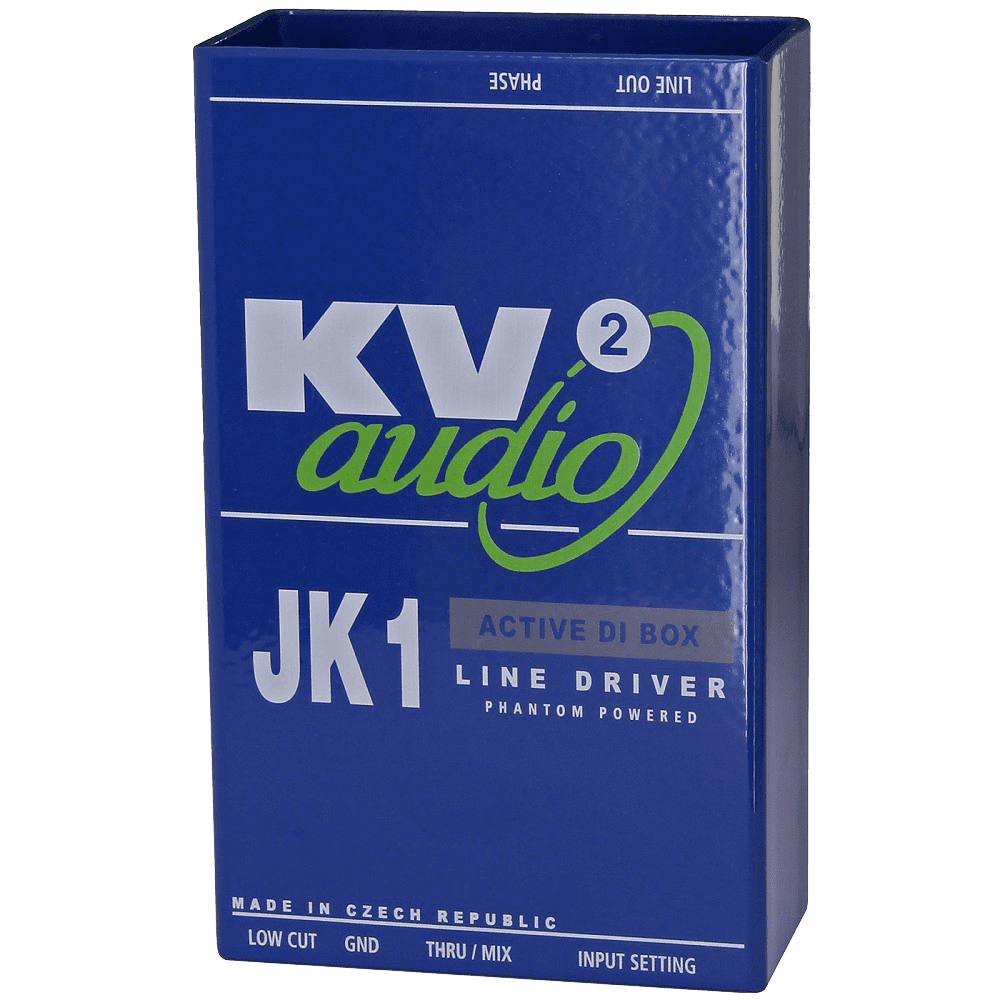

JK1 – Active DI BOX – Line Driver

KV2AUDIO
SKU: JK1

The JK1 features two 1/4″ jack inputs with mix or parallel function with a fixed low cut filter and 15dB pad. Phase Shift and Ground Lift switches are also available. The JK1 is ideal for connection of single keyboards, Guitars or instrument amplifier output conditioning or combining two inputs via the mix function.

Applications

Specifically designed as a single channel Active stage Direct Injection (DI) box to maintain and preserve the signal integrity between input and the mixer

  • Live performance
  • Fixed installations
  • Portable

Product code

  • KVV 987 205 – JK1


    Consultar precios

    Descripción

    The JK1 features two 1/4″ jack inputs with mix or parallel function with a fixed low cut filter and 15dB pad. Phase Shift and Ground Lift switches are also available. The JK1 is ideal for connection of single keyboards, Guitars or instrument amplifier output conditioning or combining two inputs via the mix function.

    Features

    • Line Driver
    • Phantom power supply
    • Two asymmetrical inputs: Jack 1/4″
    • Mix or parrallel input modes
    • Low cut switch
    • Low impedance output
    • LINE OUT – phase switch selector
    • GND ground switch selector: Lift/Gnd


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as a single channel Active stage Direct Injection (DI) box to maintain and preserve the signal integrity between input and the mixer

    • Live performance
    • Fixed installations
    • Portable

    Product code

    • KVV 987 205 – JK1


    System Acoustic Performance

    -1dB Response 20Hz to 100kHz
    Dynamic Range >130dB
    Total Harmonic Distortion <0.002%

    Signal Input

    Input Channels 2x 1/4″ Jack
    Input Impedance 1MΩ / 5kΩ
    Max. Input voltage 5V / 20V peak

    Signal Output

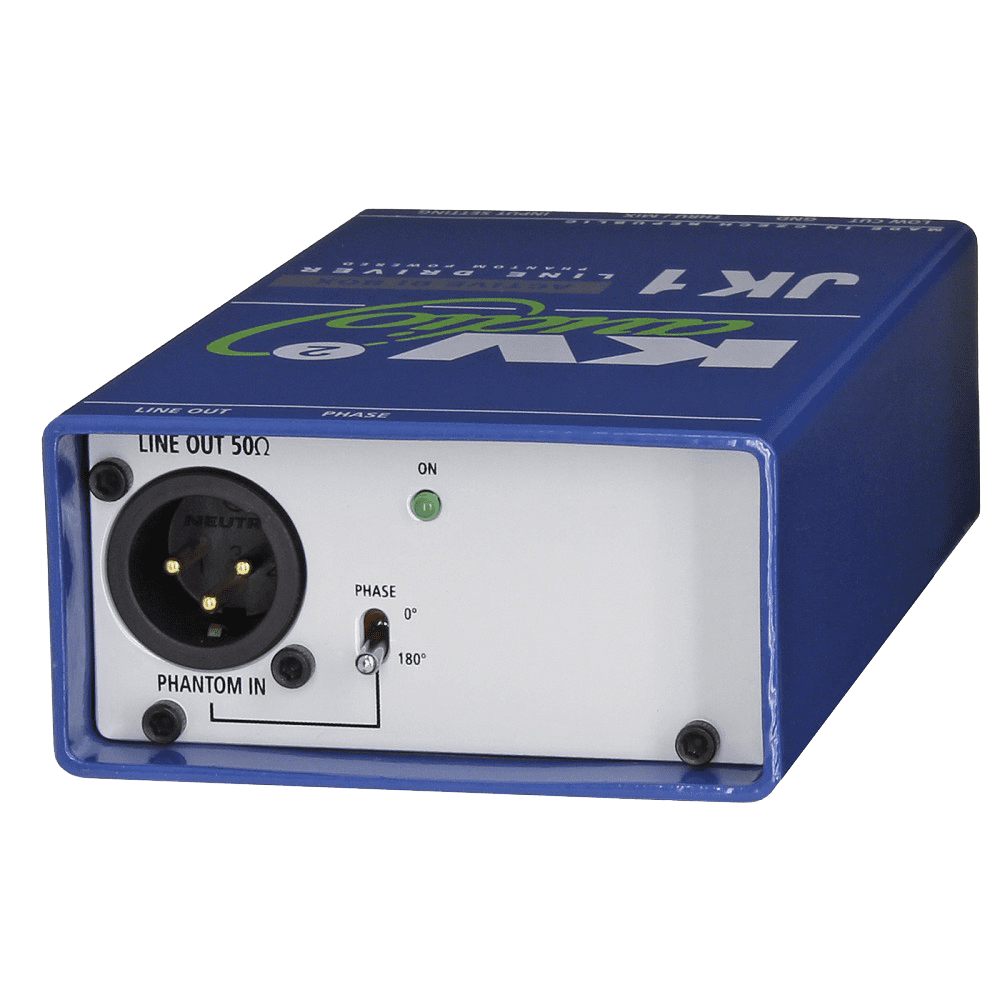

    Signal Output Channels XLR (line)
    Output Impedance 50Ω

    Features

    Gain 0 / -15dB
    Phase 0° / 180°
    High Pass Filter OFF, 80, 160Hz
    Indicators Power-ON LED
    Ground Mode GND / Lift

    Power Requirements

    Phantom Power 48 to 56V / 8mA

    Cabinet

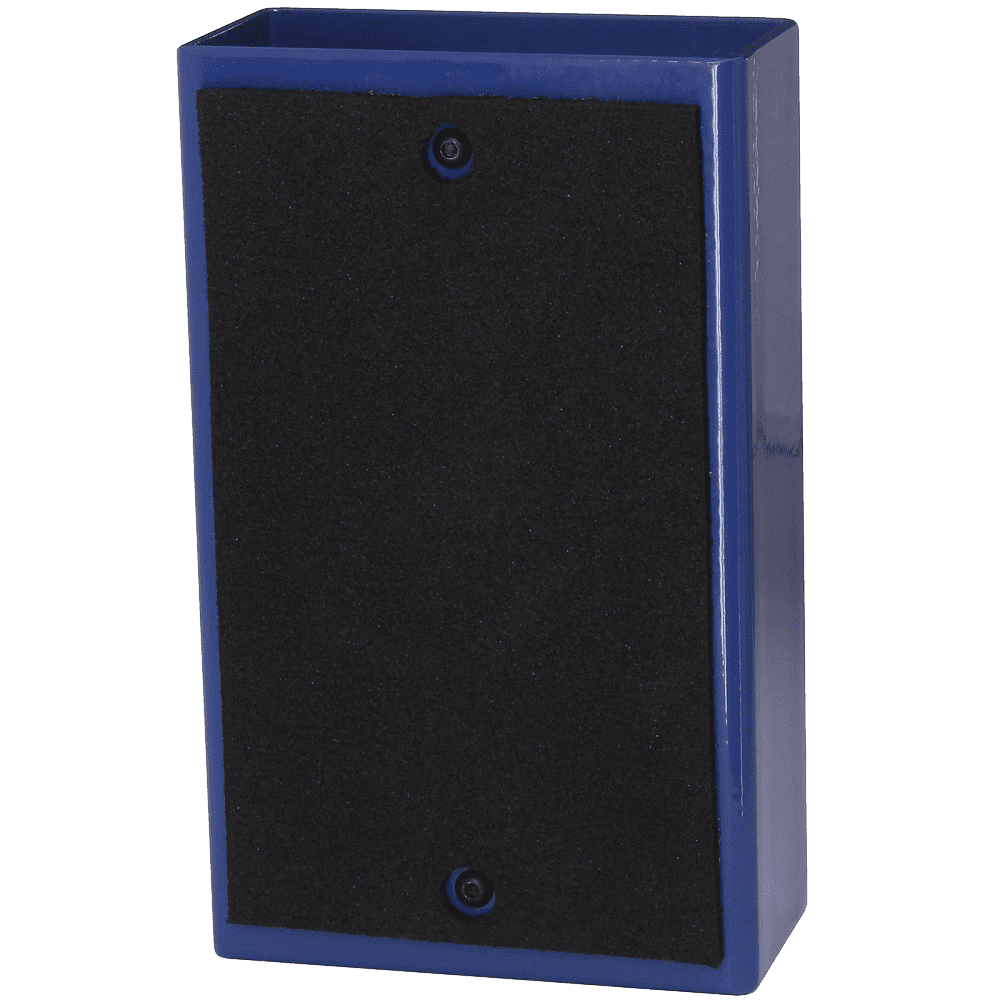

    Cabinet Material Heavy duty metal

    Physical Dimensions

    Height 40 mm (1.57″)
    Width 80 mm (3.15″)
    Depth 131 mm (5.16″)
    Weight 610 g (1.34lbs)


    Product code

    • KVV 987 205 – JK1

    PDF

    JK DI-Boxes User guide

    – User Guide for JK series – JK1, JK2, JKA, JKP, JKT – English – rev 3



    PDF

    JK1 Technical Data Sheet

    Download Product’s Data Sheet


    PDF

    JK1 – 2D

    JK1 2D Drawing



    DWG

    JK1 – 3D

    1:1 scale – clamping points – weight – dwg file
