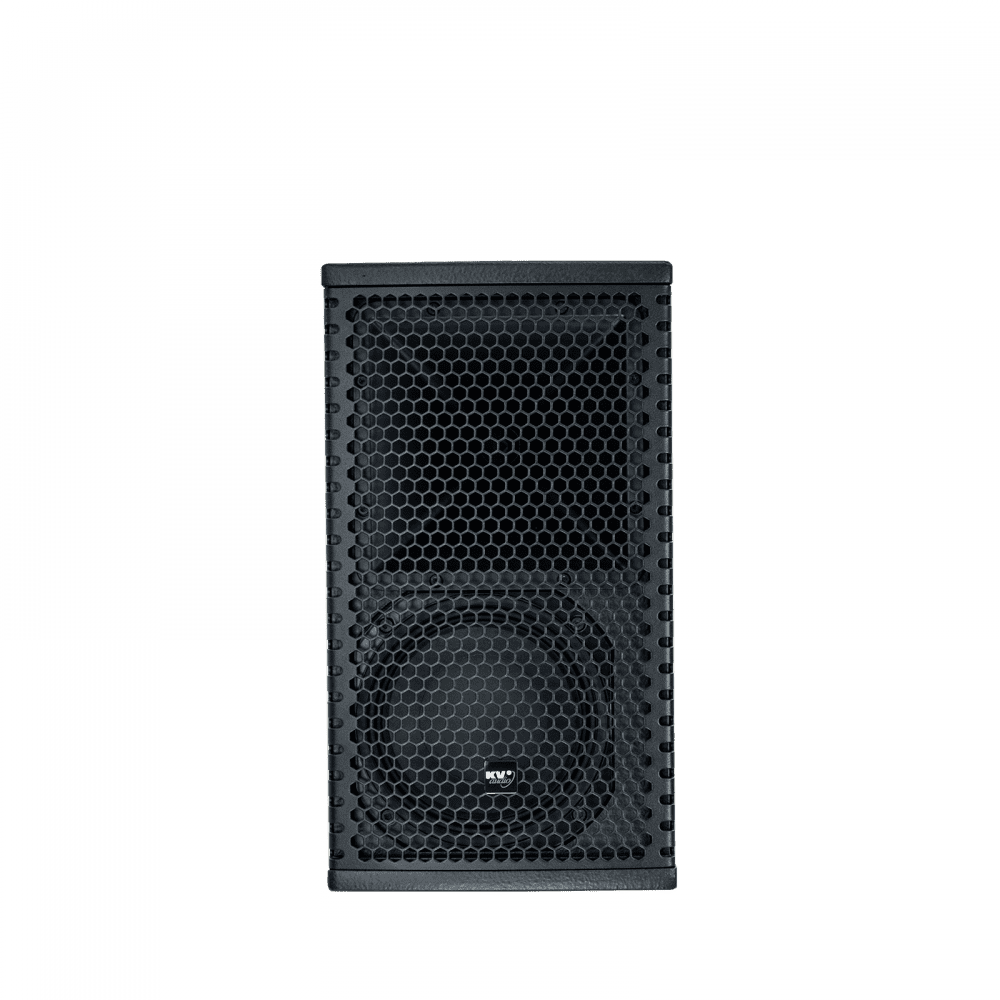

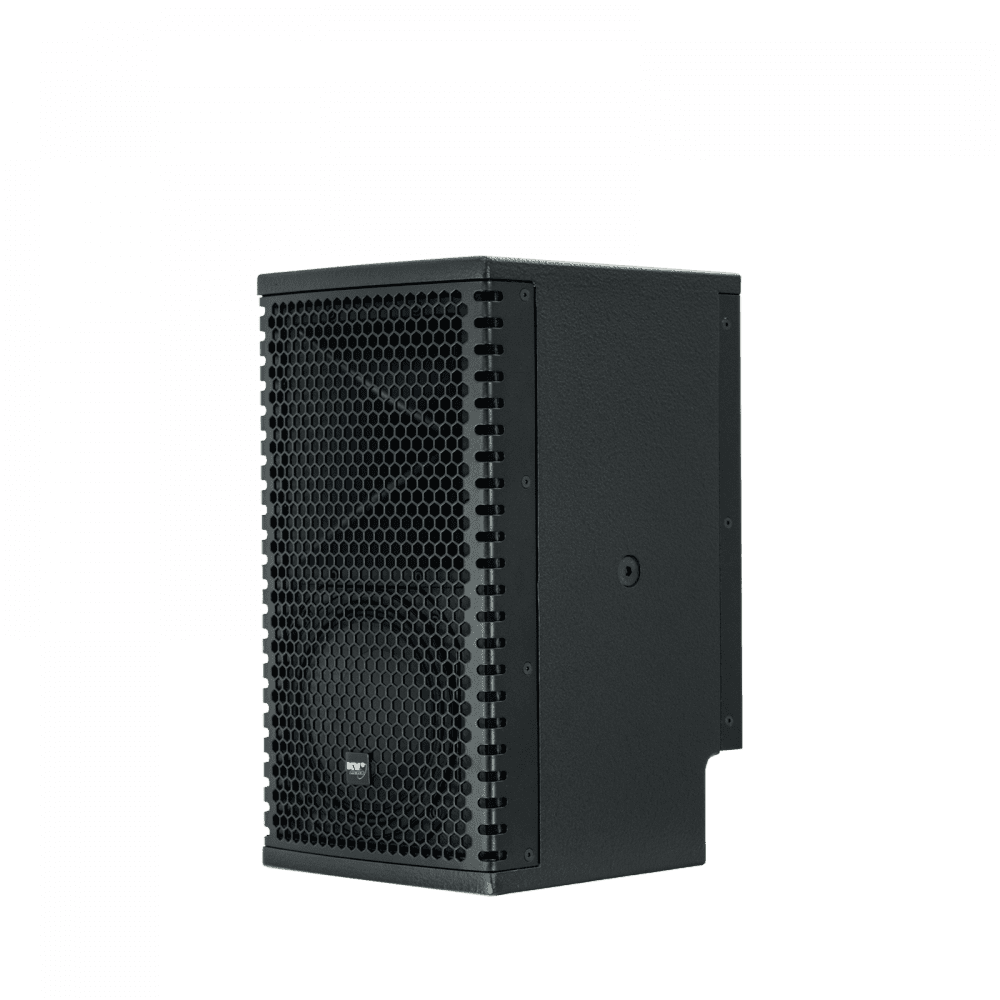

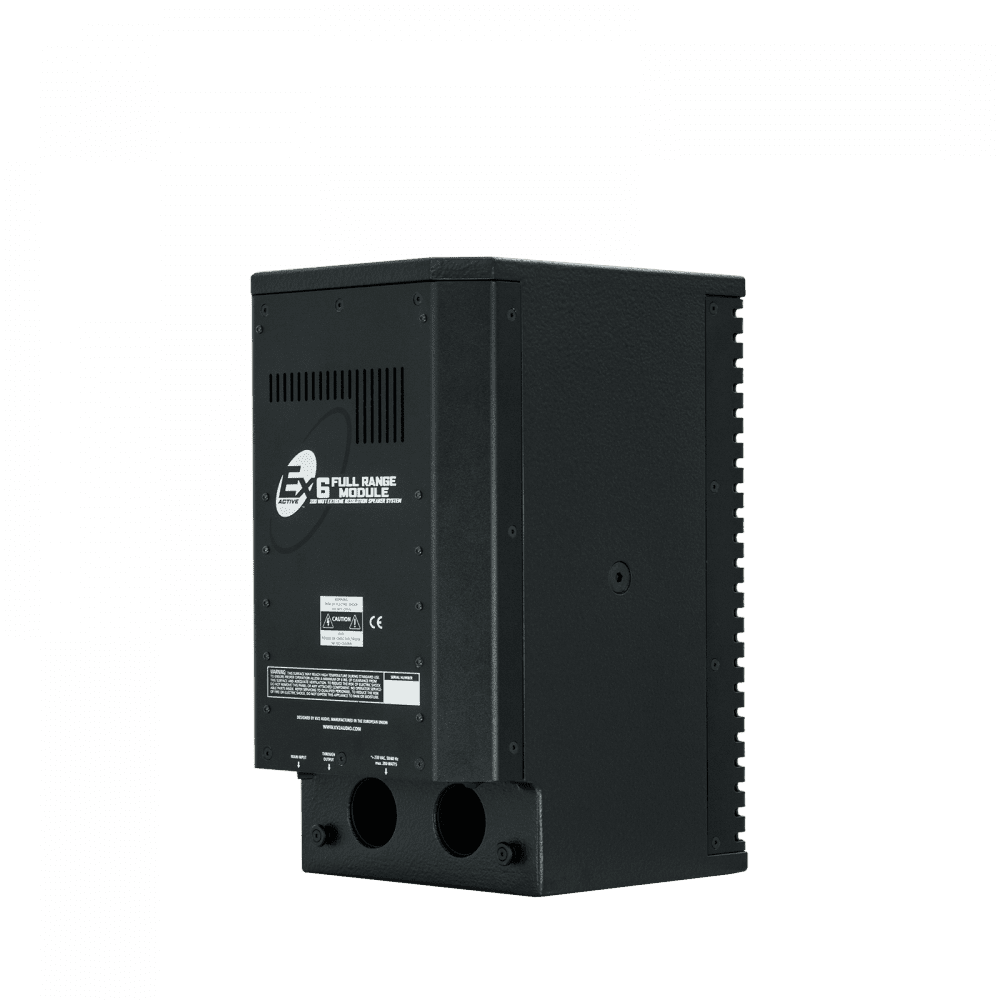

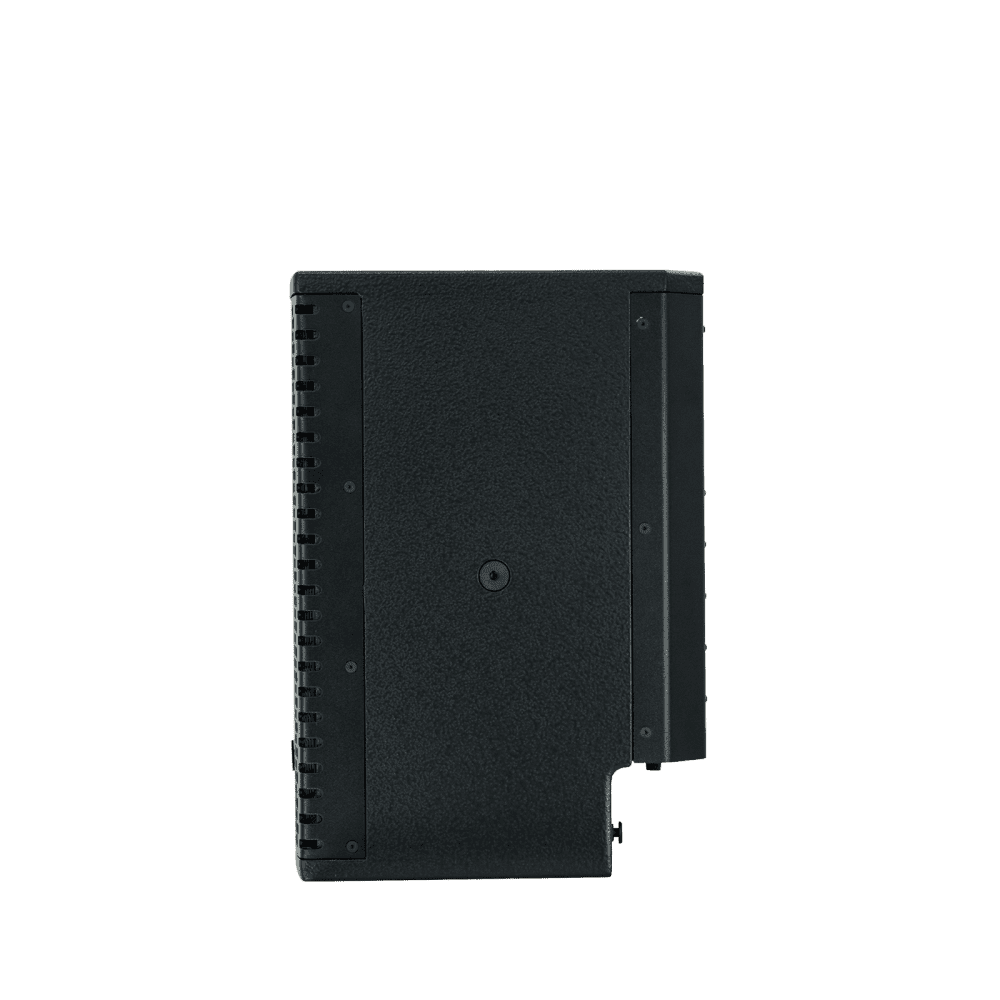

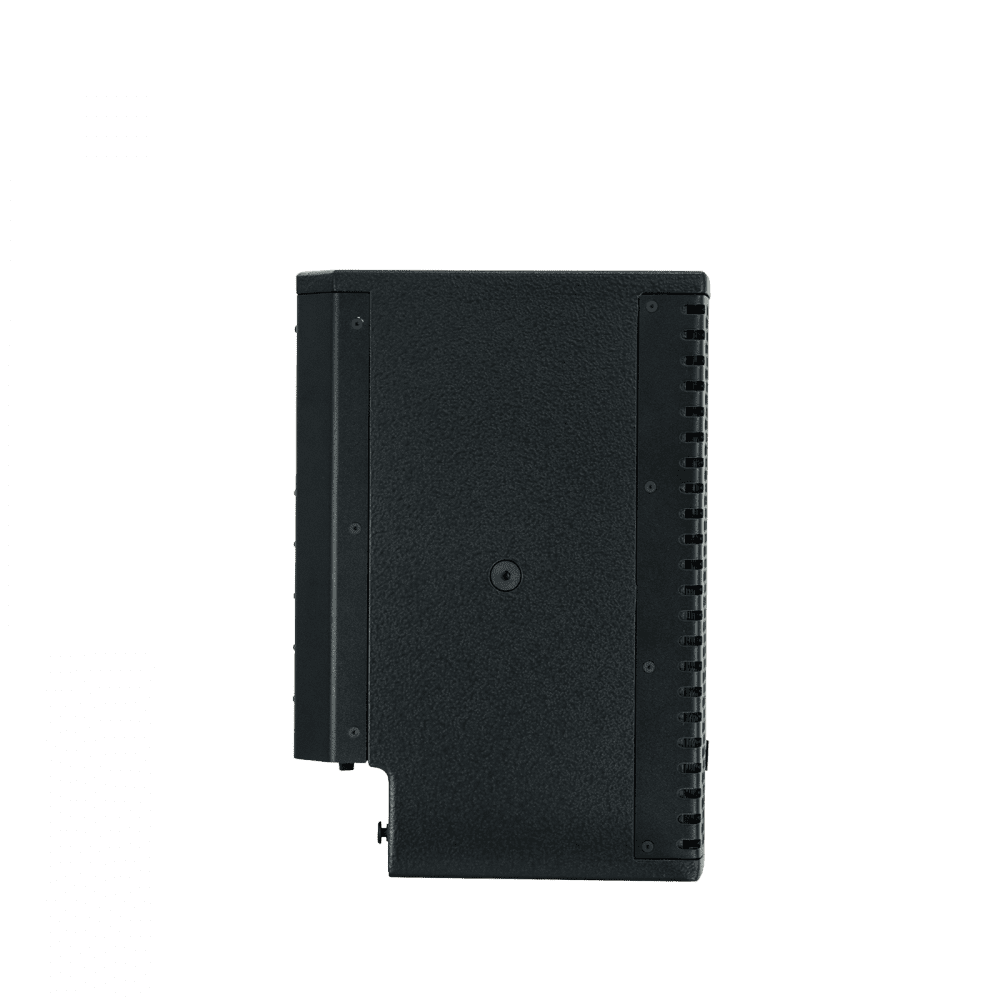

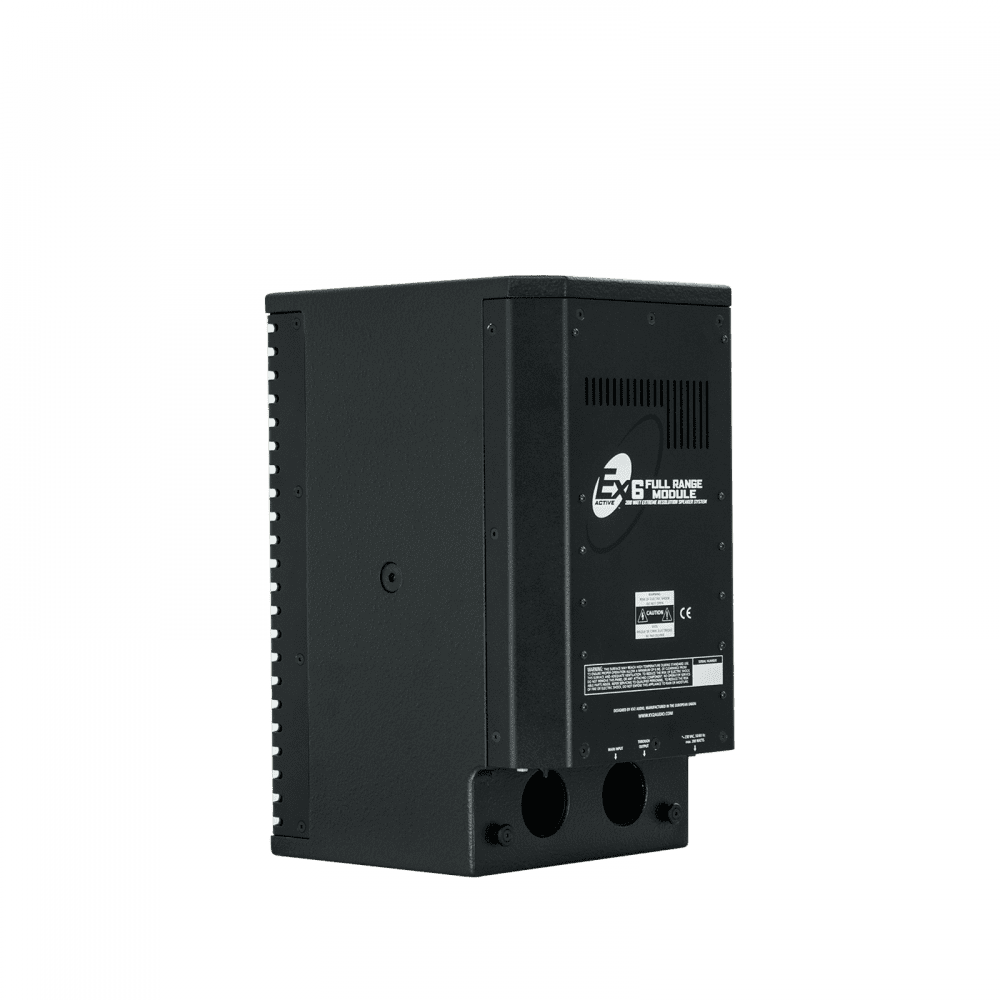

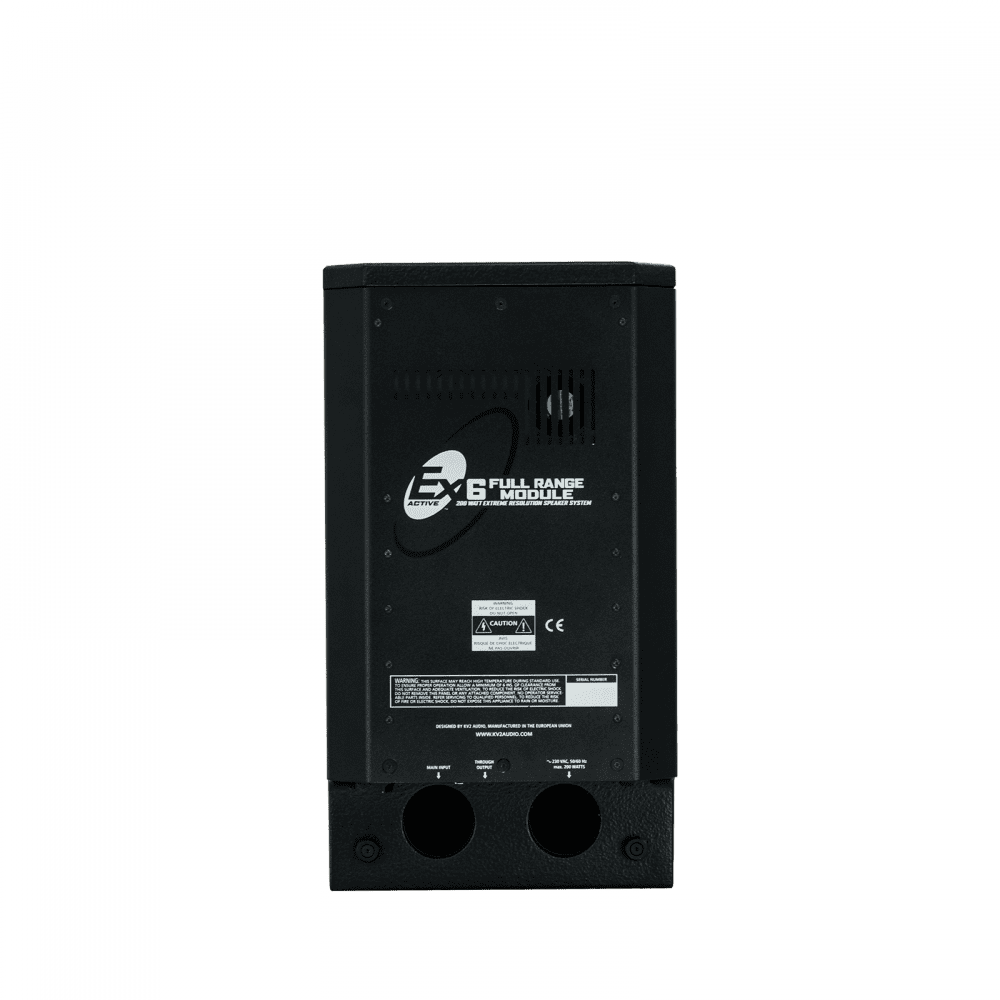

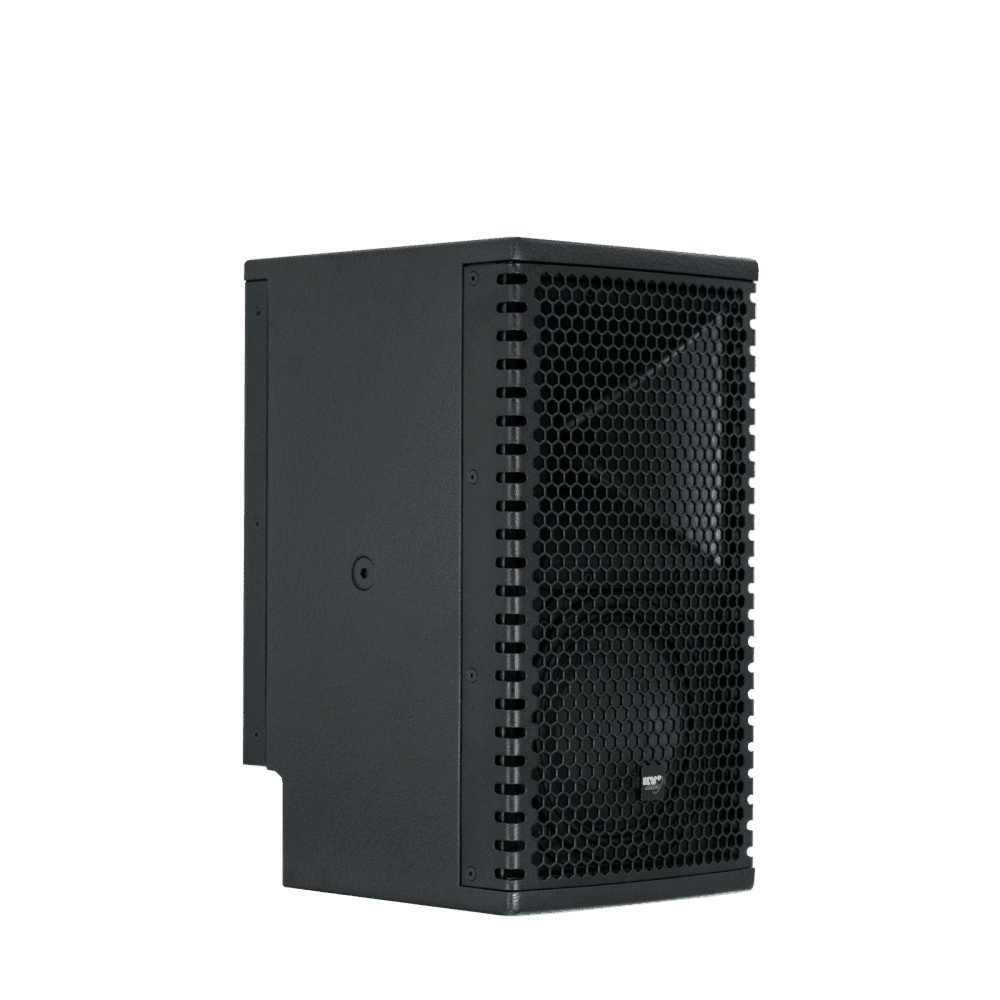

EX6 – 2-way Active speaker system

KV2AUDIO
SKU: EX6

The EX6 is a very high quality compact speaker system producing a 2-way full range solution, which defies its size. With amazing clarity for musical reproduction, the EX6 is perfect for discreet installations or audio visual presentations where sound quality is paramount but size also matters. The EX6 features state of the art components including NVPD compression driver, 6″ woofer and complete on-board control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX6’s amplifier module.

Applications

Specifically designed for reproduction of recorded music in near field applications

  • Suitable in Fixed installations as full range stand-alone or with subwoofers
  • Excellent peripheral re-enforcement for main KV2 systems
  • Portable PA for Multi-Media applications
  • Compact floor monitoring solutions
  • Domestic and Professional studio monitoring

Product code

  • KVV 987 139 – EX6 230V
  • KVV 987 138 – EX6 115V


    Consultar precios

    Descripción

    The EX6 is a very high quality compact speaker system producing a 2-way full range solution, which defies its size. With amazing clarity for musical reproduction, the EX6 is perfect for discreet installations or audio visual presentations where sound quality is paramount but size also matters. The EX6 features state of the art components including NVPD compression driver, 6″ woofer and complete on-board control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX6’s amplifier module.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 117dB sustained output, 120dB peak with very high dynamic range and low noise floor
    • 200W of total power with complete on-board speaker management system
    • 180W high efficiency, current enhancing, switching low frequency amplifier
    • Very high quality 20W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
    • Compact design allows use with high pass filter to adjust equalization and phase response
    • Wide dispersion 100° H x 100° V horn
    • New patent pending 1.75″ (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure
    • 6″ woofer with revolutionary Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
    • Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points
    • Additional side and bottom M10 points for flexible bracket, rigging, and installation options
    • Easy fix pole mounting accessory fastens into the back of the unit
    • LED indicators for signal present, limiter, thermal condition and power ON status


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed for reproduction of recorded music in near field applications

    • Suitable in Fixed installations as full range stand-alone or with subwoofers
    • Excellent peripheral re-enforcement for main KV2 systems
    • Portable PA for Multi-Media applications
    • Compact floor monitoring solutions
    • Domestic and Professional studio monitoring

    Product code

    • KVV 987 139 – EX6 230V
    • KVV 987 138 – EX6 115V


    Accesories


    EX6 Horizontal bracket

    Gallery

    Product code

    KVV 987 495



    Description

    Horizontal bracket for EX6
    – including two connection bolts and bracket – black



    Downloads

    DWG

    EX6 Horizontal Bracket 2D DWG

    EX6 Horizontal Bracket 2D DWG

    DWG

    EX6 Horizontal Bracket 3D DWG

    EX6 Horizontal Bracket 3D DWG

    SKP

    EX6 Horizontal Bracket 3D SKP

    EX6 Horizontal Bracket SketchUp

    ESD6 / EX6 Vertical bracket

    Gallery

    Product code

    KVV 987 484



    Description

    Vertical bracket for EX6 and ESD6
    – including two connection bolts – black



    Downloads

    DWG

    ESD6 / EX6 Vertical Bracket 2D DWG

    Vertical Bracket for ESD6 / EX6 2D DWG

    DWG

    ESD6 / EX6 Vertical Bracket 3D DWG

    Vertical Bracket for ESD6, EX6 3D DWG

    SKP

    ESD6 / EX6 Vertical Bracket 3D SKP

    Vertical Bracket for ESD / EX6 3D SKP

    EX6 Cover

    Gallery

    Product code

    KVV 987 159



    Description

    – heavy duty – padded



    EX6 Grill Fine

    Product code

    KVV 987 350



    Description

    Grill fine option for EX6



    Pole mount adaptor for EX6

    Gallery

    Product code

    KVV 987 151



    Description

    – for EX 6 – including locking bolt – black



    Downloads

    DWG

    Pole mount adaptor for EX6 3D DWG

    Pole mount adaptor for EX6 3D DWG

    SKP

    Pole mount adaptor for EX6 SKP

    Pole mount adaptor for EX6 SketchUp

    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    System Acoustic Performance

    Max SPL Long-term 117dB
    Max SPL Peak 123dB
    -3dB Response 68Hz to 20kHz
    -10dB Response 62Hz to 28kHz
    Crossover Point 2.0kHz

    High Frequency Section

    Horn Coverage Horizontal / Vertical 100° x 100°
    Throat Exit Diameter / Diaphragm Size 1″ / 1.75″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium

    High Frequency Amplifier Specification

    Type Class AB Push-Pull
    Rated Continuous Power 20W
    Distortion <0.05%
    Operating Bandwidth 2.0kHz to 28kHz

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Woofer Size / Voice Coil Diameter 6″ / 1.75″ / Trans Coil
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Low Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 180W
    Distortion <0.05%
    Operating Bandwidth 62Hz to 2.0kHz

    Signal Input

    Input Sensitivity 1V RMS
    Input Impedance 20 kΩ

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage Range 100 to 120V @ 60Hz | 230 to 250V @ 50Hz |
    Recommended Amperage 2.5A 115V | 1.25A 230V

    Cabinet

    Cabinet Material Baltic birch
    Handles 1
    Pole Mount Optional – Stand Adapter EX6
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 395 mm (15.55″)
    Width 220 mm (8.66″)
    Depth 274 mm (10.78″)
    Weight 12 kg (26.4lbs)


    Product code

    • KVV 987 139 – EX6 230V
    • KVV 987 138 – EX6 115V

    PDF

    EX6 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    EX6 – 3D

    1:1 scale – clamping points – weight – dwg file



    DWG

    Pole mount adaptor for EX6 3D DWG

    Pole mount adaptor for EX6 3D DWG



    SKP

    EX6 230V SKP

    EX6 230V SketchUp



    DWG

    EX6 230V 3D DWG

    EX6 230V 3D DWG



    SKP

    EX6 115V SKP

    EX6 115V SketchUp



    DWG

    EX6 115V 3D DWG

    EX6 115V 3D DWG



    SKP

    ESD6 / EX6 Vertical Bracket 3D SKP

    Vertical Bracket for ESD / EX6 3D SKP



    SKP

    Pole mount adaptor for EX6 SKP

    Pole mount adaptor for EX6 SketchUp



    SKP

    EX Series SketchUp

    EX Series SketchUp



    PDF

    EX6 – 230V – 2D

    EX6 – 230V 2D Drawing



    PDF

    EX6 – 115V – 2D

    EX6 – 115V 2D Drawing



    DWG

    EX6 Vertical Bracket 2D DWG

    EX6 Vertical Bracket 2D DWG



    DWG

    EX6 2D DWG

    EX6 2D DWG



    DWG

    ESD6 / EX6 Vertical Bracket 3D DWG

    Vertical Bracket for ESD6, EX6 3D DWG



    GLL

    EX6 – EASE data

    EASE data – .GLL – description





    GLL

    EX6 EASE Focus

    EX6 EASE Focus ver 2
