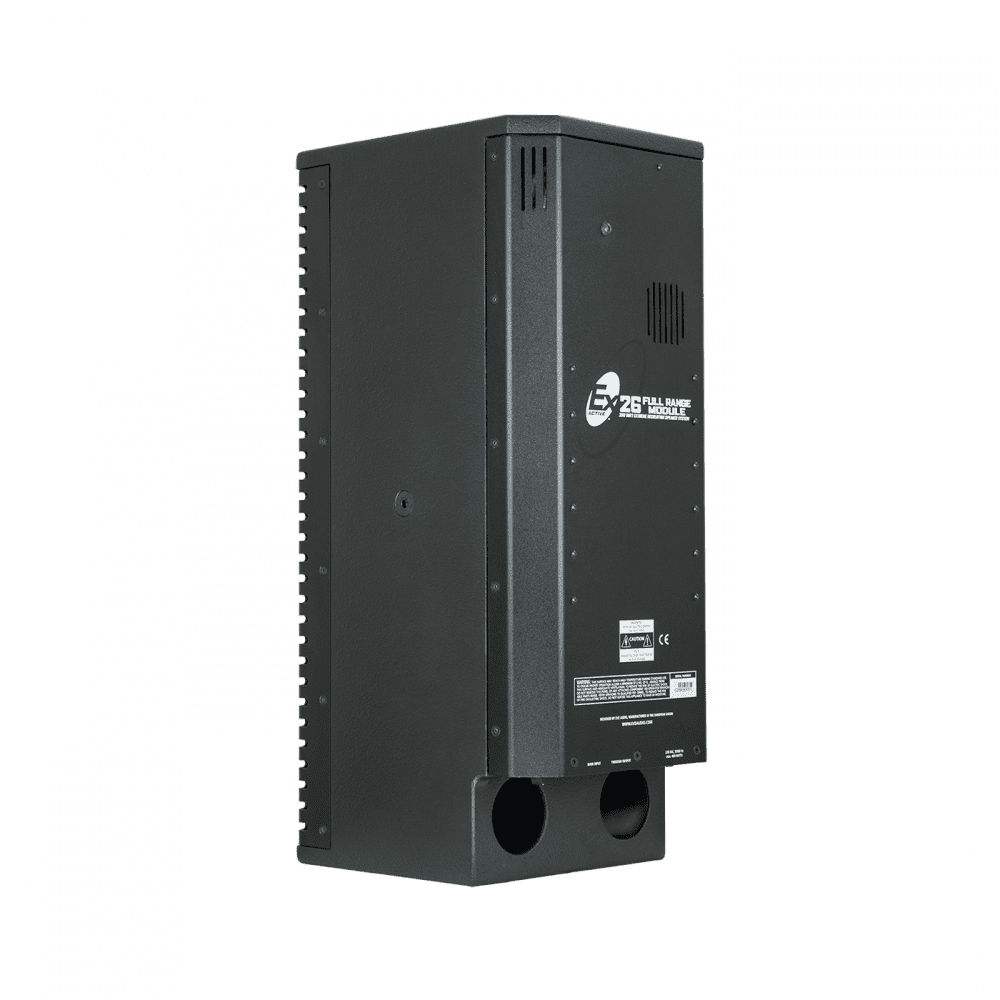

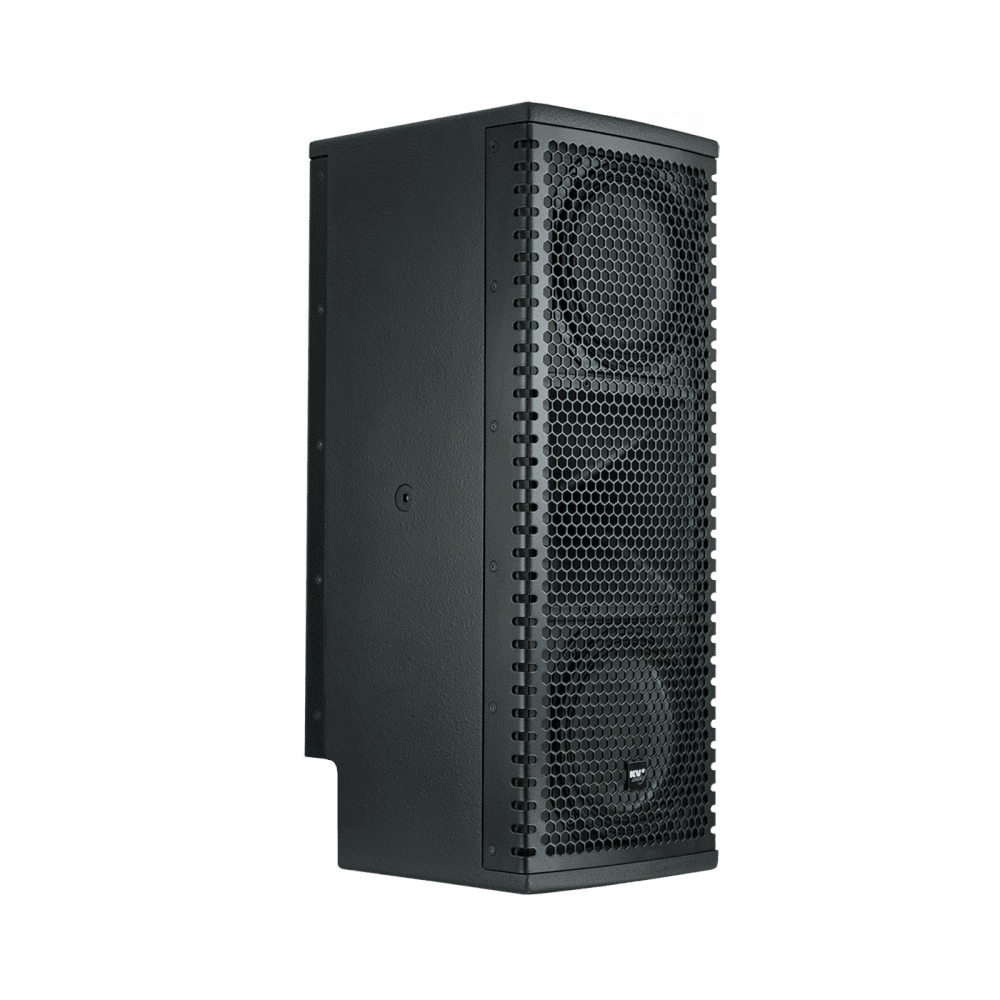

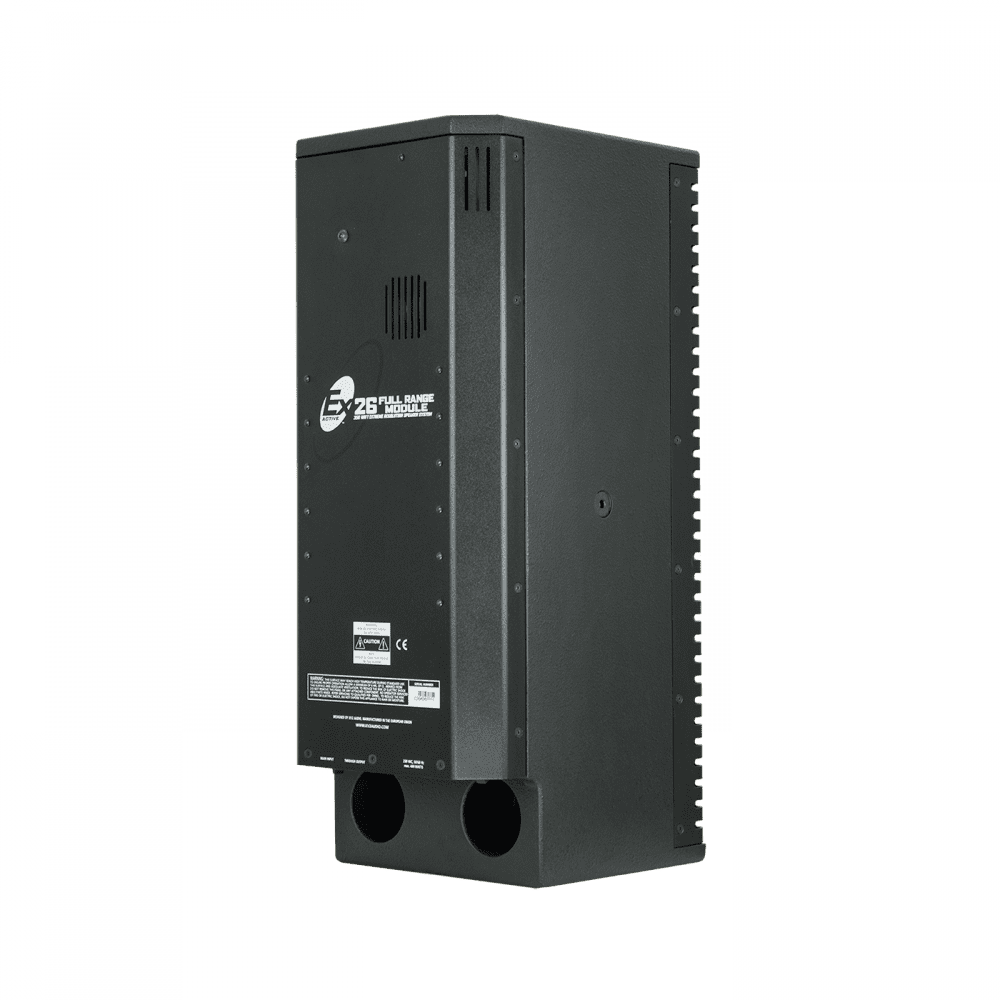

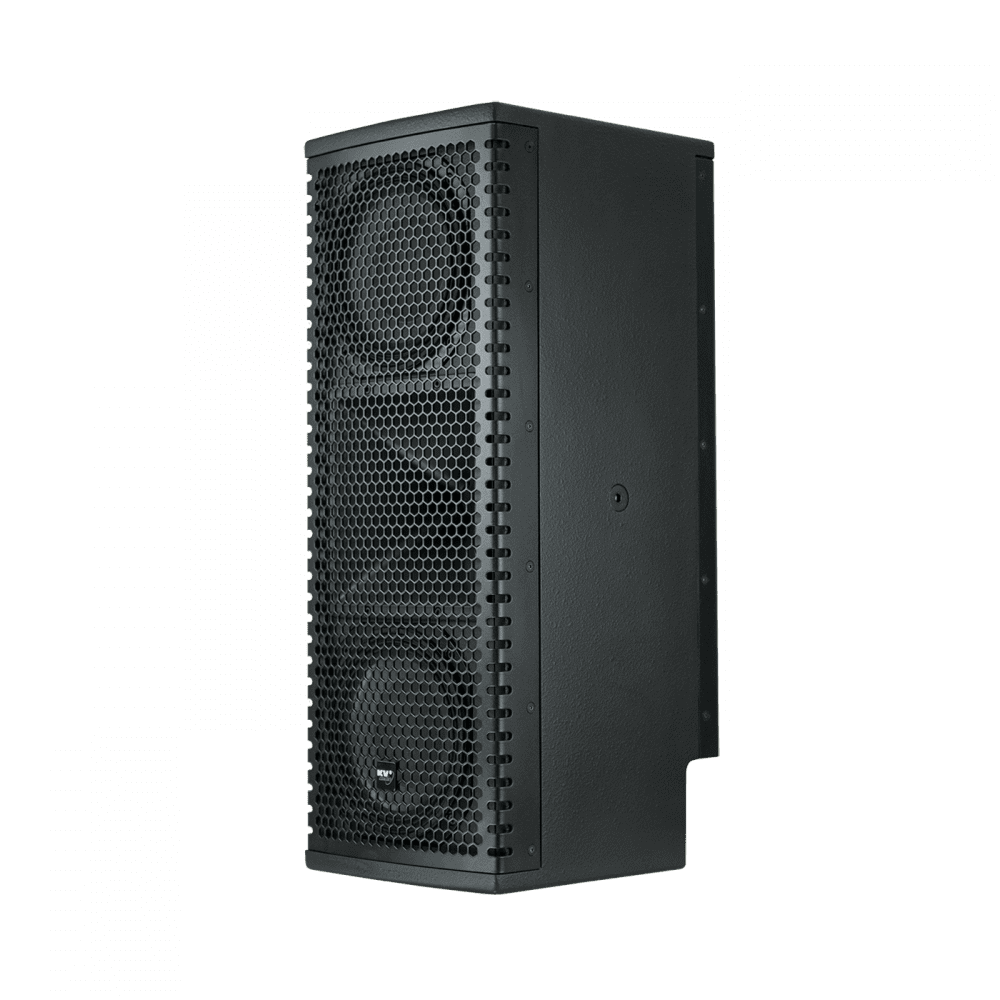

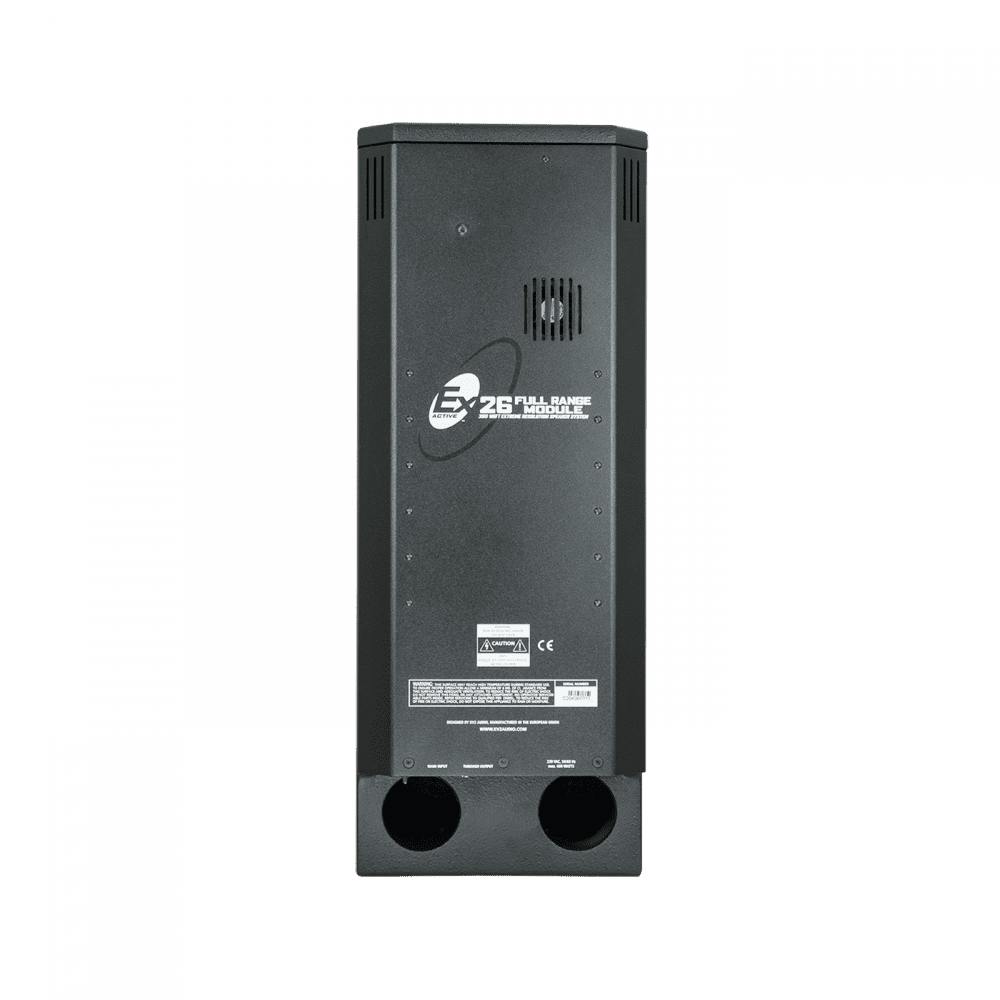

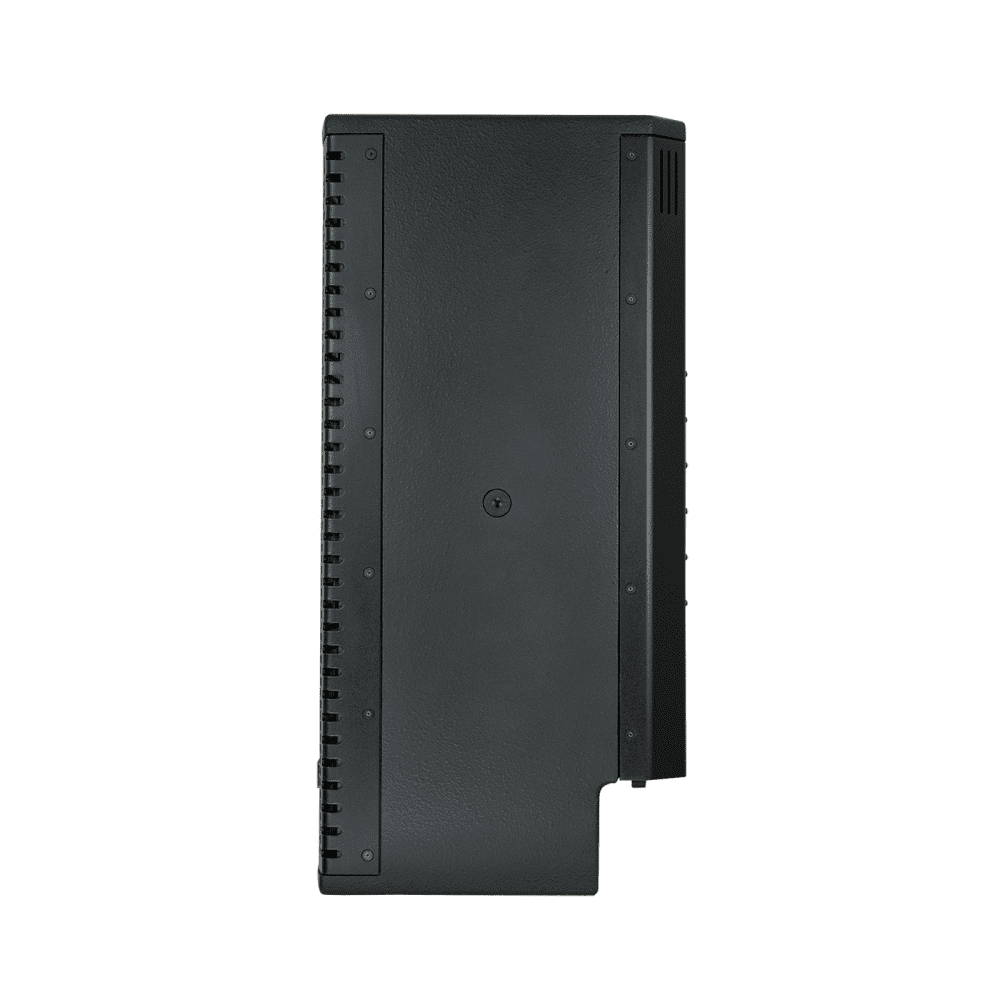

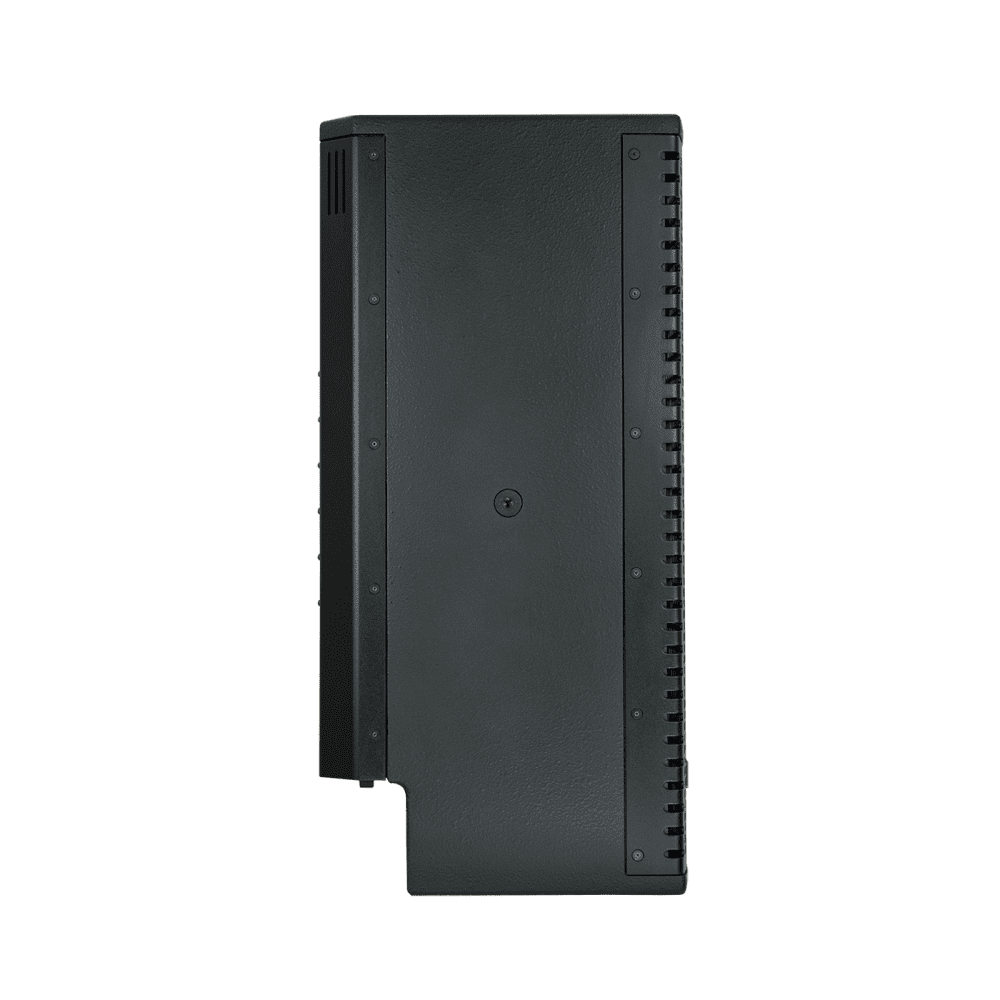

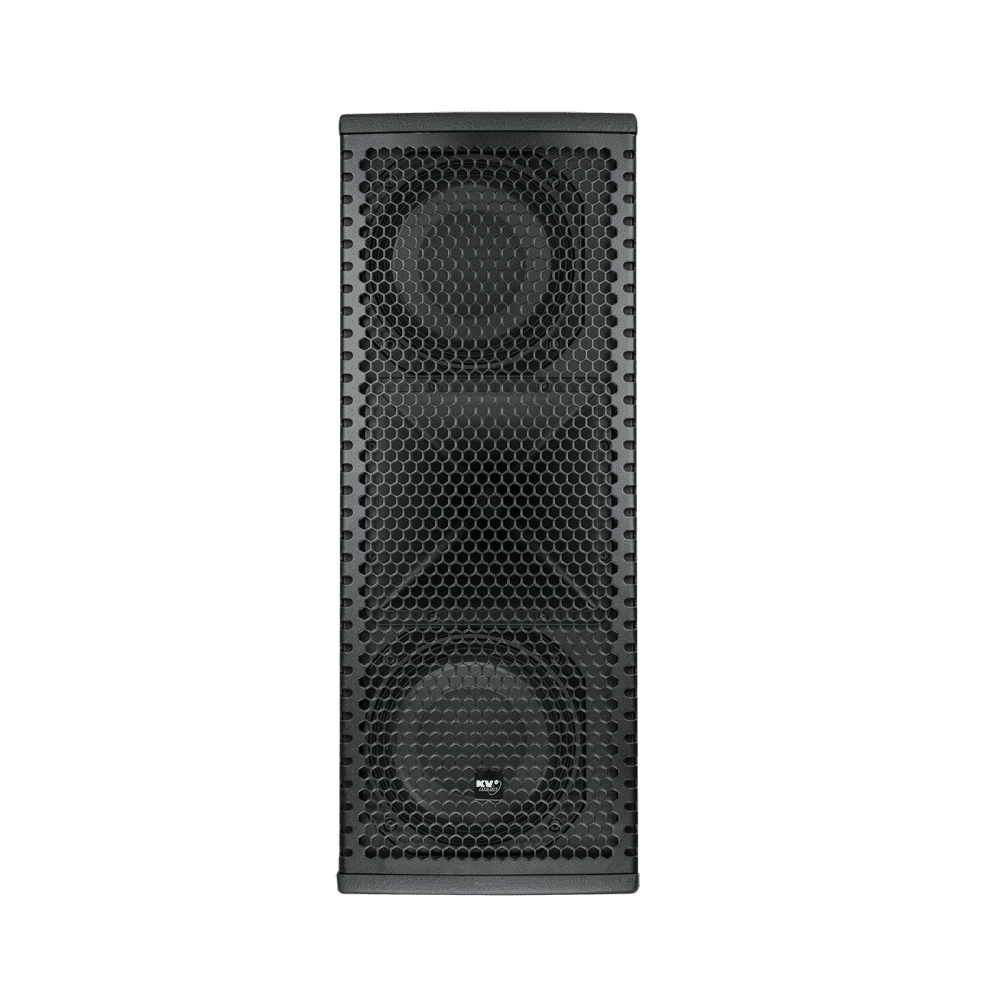

EX26 – 2-way Active speaker system

KV2AUDIO
SKU: EX26

The EX26 is a unique Loudspeaker unit that provides superb vocal intelligibility and high quality musical reproduction. Its 100 x 100 degree horn provides for wide, even coverage making it ideal for audio visual presentations, churches, meeting rooms and various other applications where high quality speech reproduction is required. The EX26 makes an ideal under balcony fill speaker when used in a horizontal orientation.

Applications

Purposely designed as a stand-alone unit for extremely high quality vocal reproduction and output

  • Church and houses of worship
  • Conference and presentations
  • Front of stage and balcony infill
  • Full range portable PA when used with subwoofers for larger Multi-Media applications and small live music applications

Product code

  • KVV 987 164 – EX26 230V
  • KVV 987 165 – EX26 115V


    Consultar precios

    Descripción

    The EX26 is a unique Loudspeaker unit that provides superb vocal intelligibility and high quality musical reproduction. Its 100 x 100 degree horn provides for wide, even coverage making it ideal for audio visual presentations, churches, meeting rooms and various other applications where high quality speech reproduction is required. The EX26 makes an ideal under balcony fill speaker when used in a horizontal orientation.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 124dB sustained output, 127dB peak with very high dynamic range and low noise floor
    • 370W of total power with complete on-board speaker management system
    • 350W high efficiency, current enhancing, switching low frequency amplifier
    • Very high quality 20W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
    • Compact low profile cabinet design allows for use as a front fill or in under balcony applications with high pass filter to adjust equalization and phase response
    • Wide dispersion 100° H x 100° V horn
    • New patent pending 1.75″ (44 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure
    • Two 6″ woofers feature neodymium magnetic motor structures that dramatically increase force, lower distortion and provide increased frequency response linearity
    • Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points
    • Additional side and bottom M10 points for flexible bracket, rigging and installation options
    • “Top-hat” pole mount fitted at the base of the cabinet
    • LED indicators for signal present and Power ON status


    YouTube thumbnailYouTube icon

    Applications

    Purposely designed as a stand-alone unit for extremely high quality vocal reproduction and output

    • Church and houses of worship
    • Conference and presentations
    • Front of stage and balcony infill
    • Full range portable PA when used with subwoofers for larger Multi-Media applications and small live music applications

    Product code

    • KVV 987 164 – EX26 230V
    • KVV 987 165 – EX26 115V


    Accesories


    EX26 Cover

    Gallery

    Product code

    KVV 987 209



    Description

    – heavy duty – padded



    EX26 Grill Fine

    Product code

    KVV 987 351



    Description

    Grill fine option for EX26



    EX26 Horizontal bracket

    Gallery

    Product code

    KVV 987 493



    Description

    – for EX26 – including two connection bolts and holder



    Downloads

    DWG

    EX26 Horizontal Bracket 3D DWG

    EX26 Horizontal Bracket 3D DWG

    SKP

    EX26 Horizontal Bracket SKP

    EX26 Horizontal Bracket SketchUp

    DWG

    EX26 Horizontal Bracket 2D DWG

    EX26 Horizontal Bracket 2D DWG

    EX26 Vertical bracket

    Gallery

    Product code

    KVV 987 492



    Description

    – for EX26 – including two connection bolts



    Downloads

    DWG

    EX26 Vertical Bracket 3D DWG

    EX26 Vertical Bracket 3D DWG

    SKP

    EX26 Vertical Bracket SKP

    EX26 Vertical Bracket SketchUp

    DWG

    EX26 Vertical Bracket 2D DWG

    EX26 Vertical Bracket 2D DWG

    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26

    Gallery

    Product code

    KVV 987 090



    Description

    – including bolts – black



    Downloads

    DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

    SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp

    System Acoustic Performance

    Max SPL Long-term 124dB
    Max SPL Peak 130dB
    -3dB Response 80Hz to 20kHz
    -10dB Response 65Hz to 28kHz
    Crossover Point 2.5kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 100° x 100°
    Throat Exit Diameter / Diaphragm Size 1″ / 1.75″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium

    High Frequency Amplifier Specification

    Type Class AB Push-Pull
    Rated Continuous Power 20W
    Distortion <0.05%
    Operating Bandwidth 2.5kHz to 28kHz

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Woofer Size / Voice Coil Diameter 6″ / 1.75″
    Magnet Type Neodymium
    Diaphragm Material Epoxy Reinforced Cellulose

    Low Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 350W
    Distortion <0.05%
    Operating Bandwidth 68Hz to 2.5kHz

    Signal Input

    Input Sensitivity 1V RMS
    Input Impedance 20 kΩ

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage Range 100 to 120V @ 60Hz | 230 to 250V @ 50Hz
    Recommended Amperage 3.15A 115V | 1.6A 230V

    Cabinet

    Cabinet Material Baltic birch
    Handles 1
    Pole Mount 35 mm
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 570 mm (22.44″)
    Width 220 mm (8.66″)
    Depth 274 mm (10.78″)
    Weight 16.5 kg (36.4lbs)


    Product code

    • KVV 987 164 – EX26 230V
    • KVV 987 165 – EX26 115V
