EX2.2 – Active subwoofer system

KV2AUDIO
SKU: EX2.2

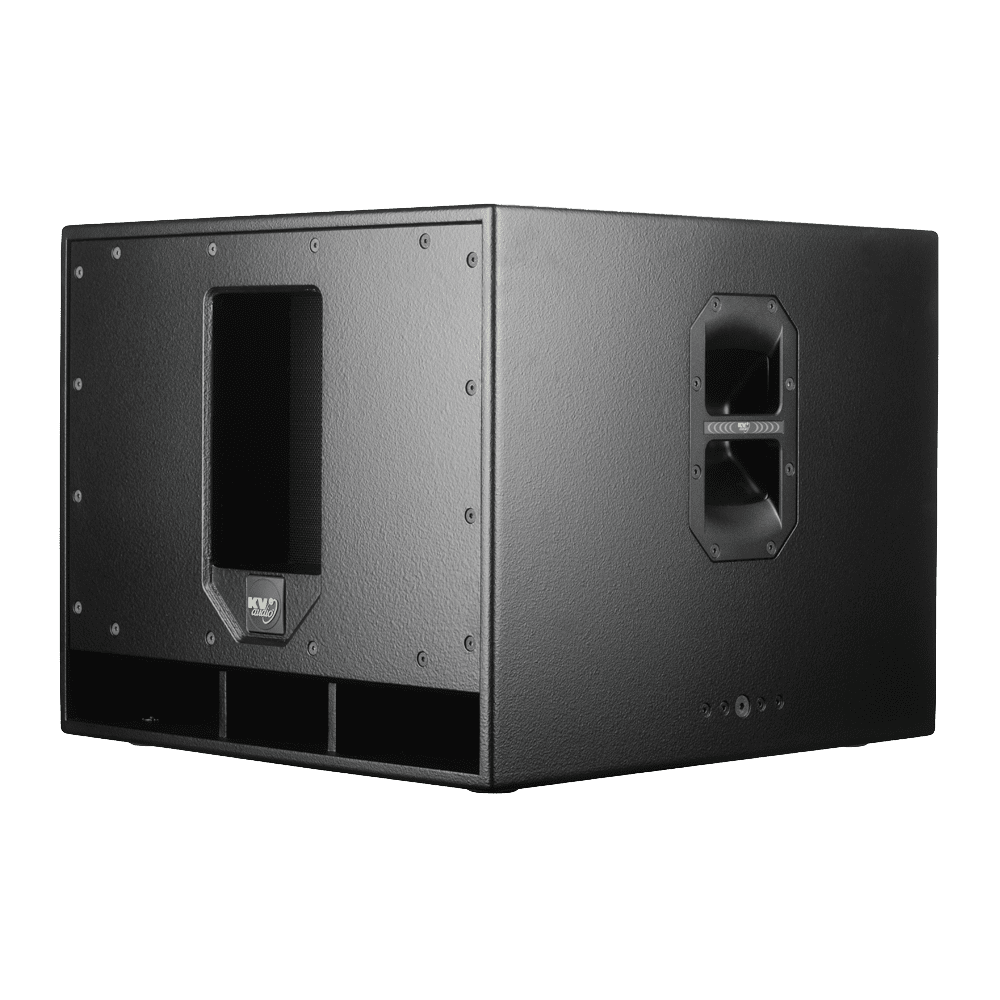

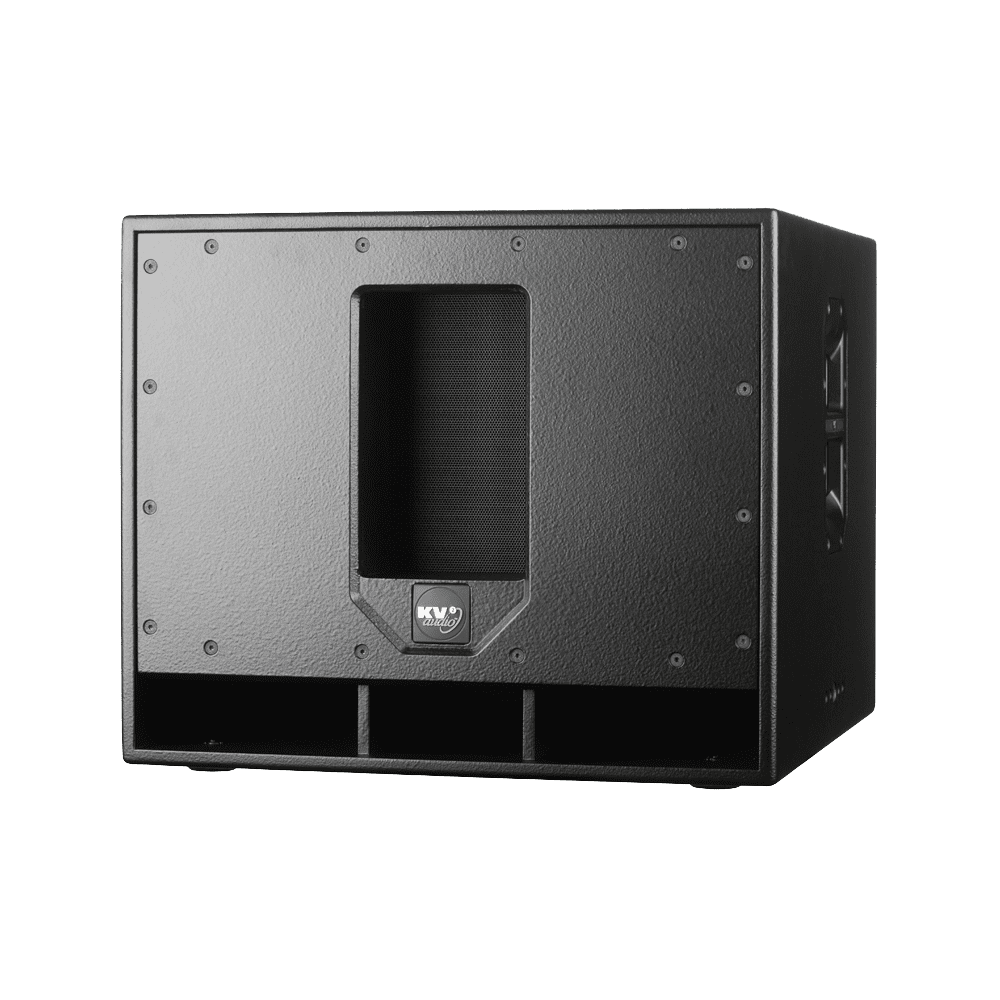

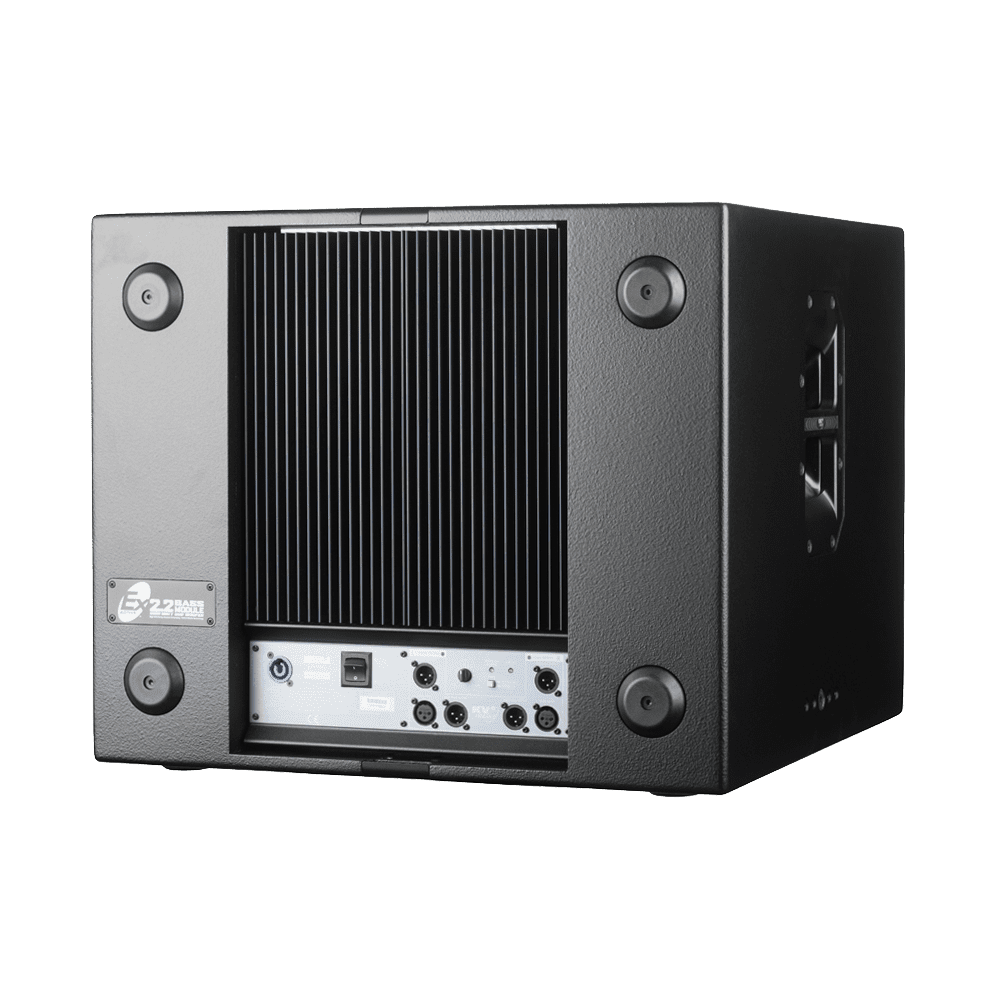

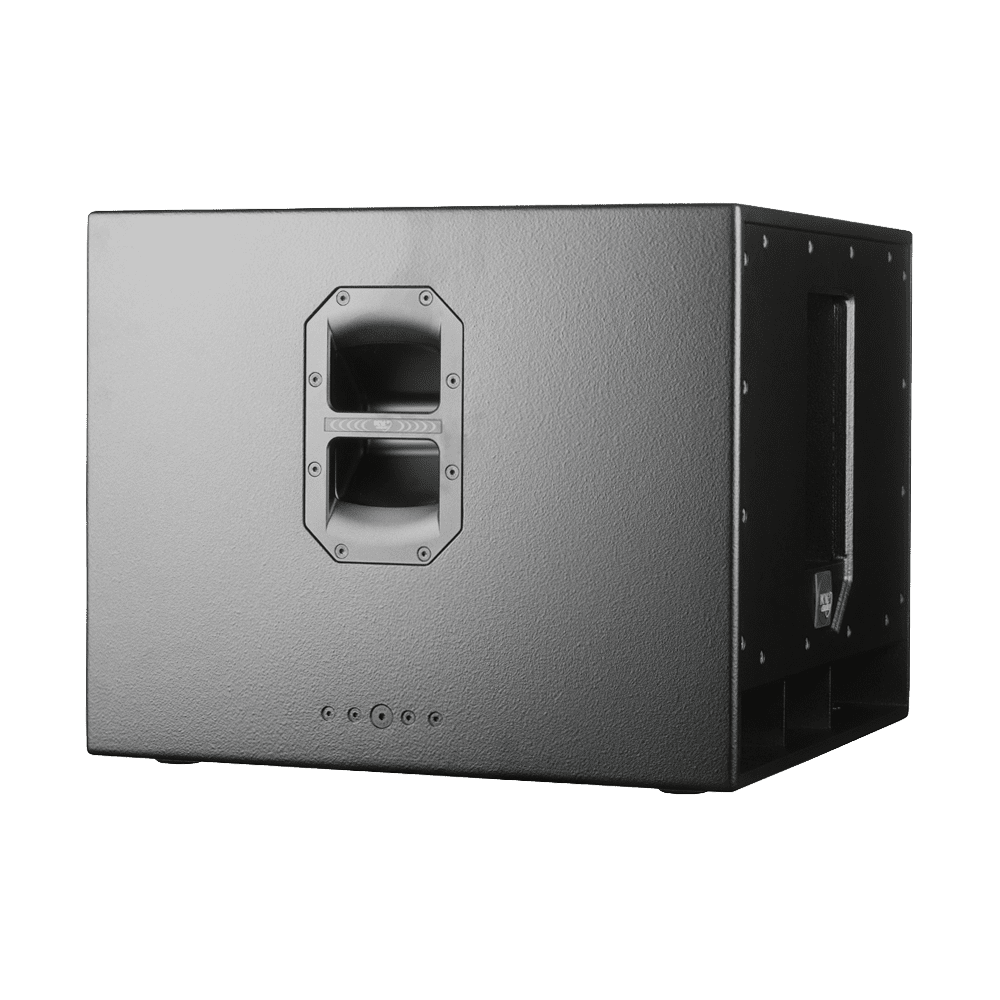

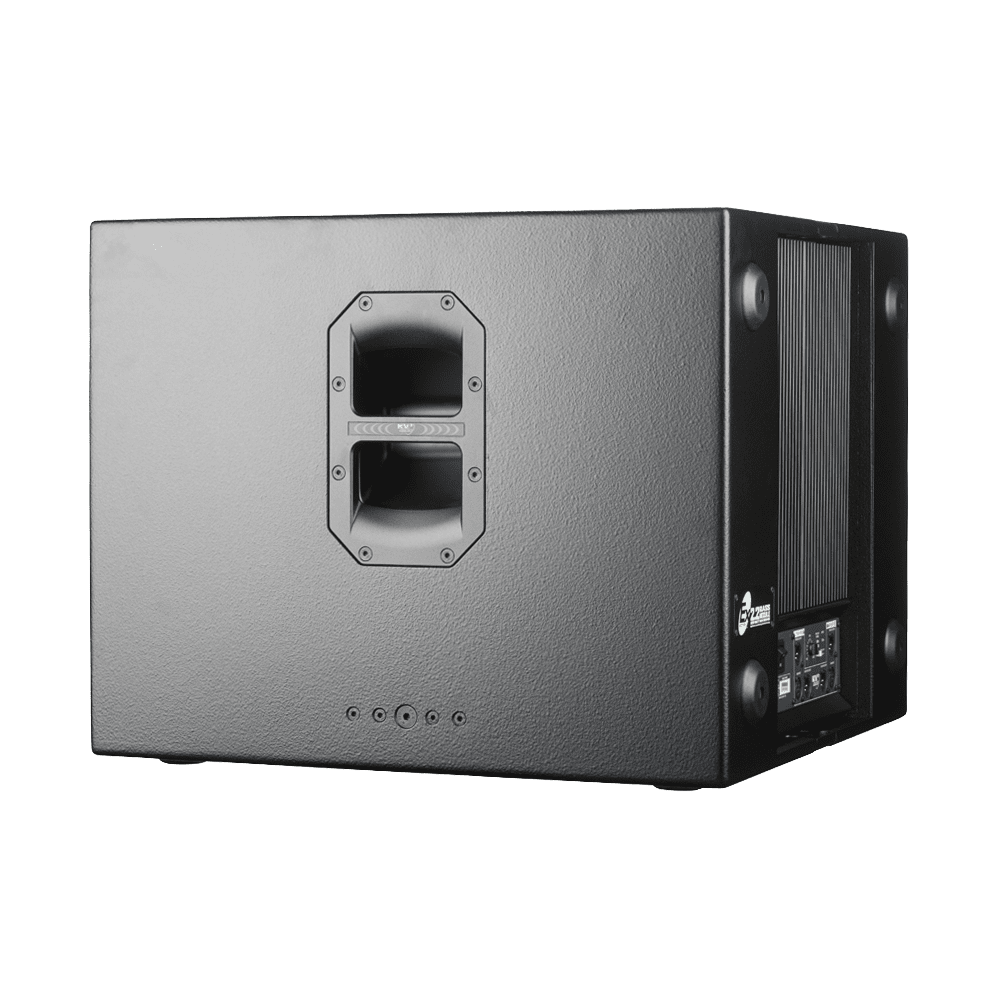

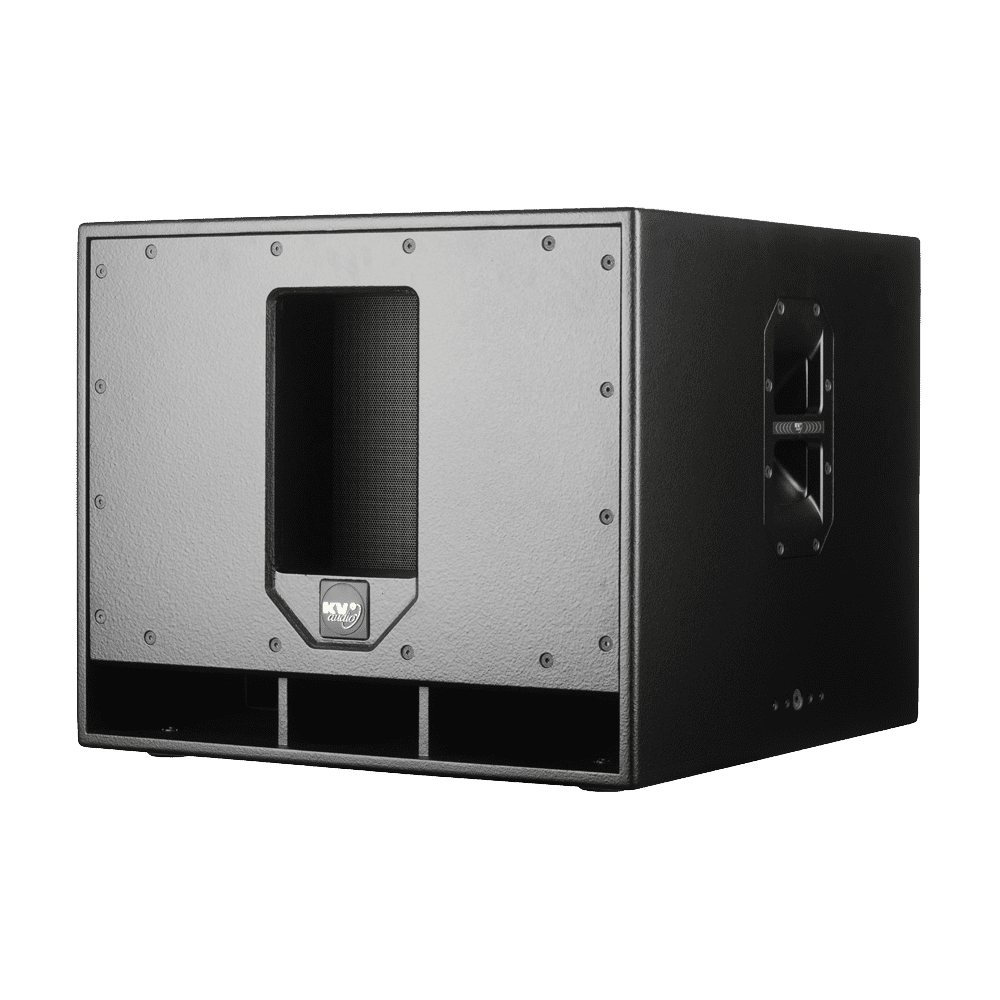

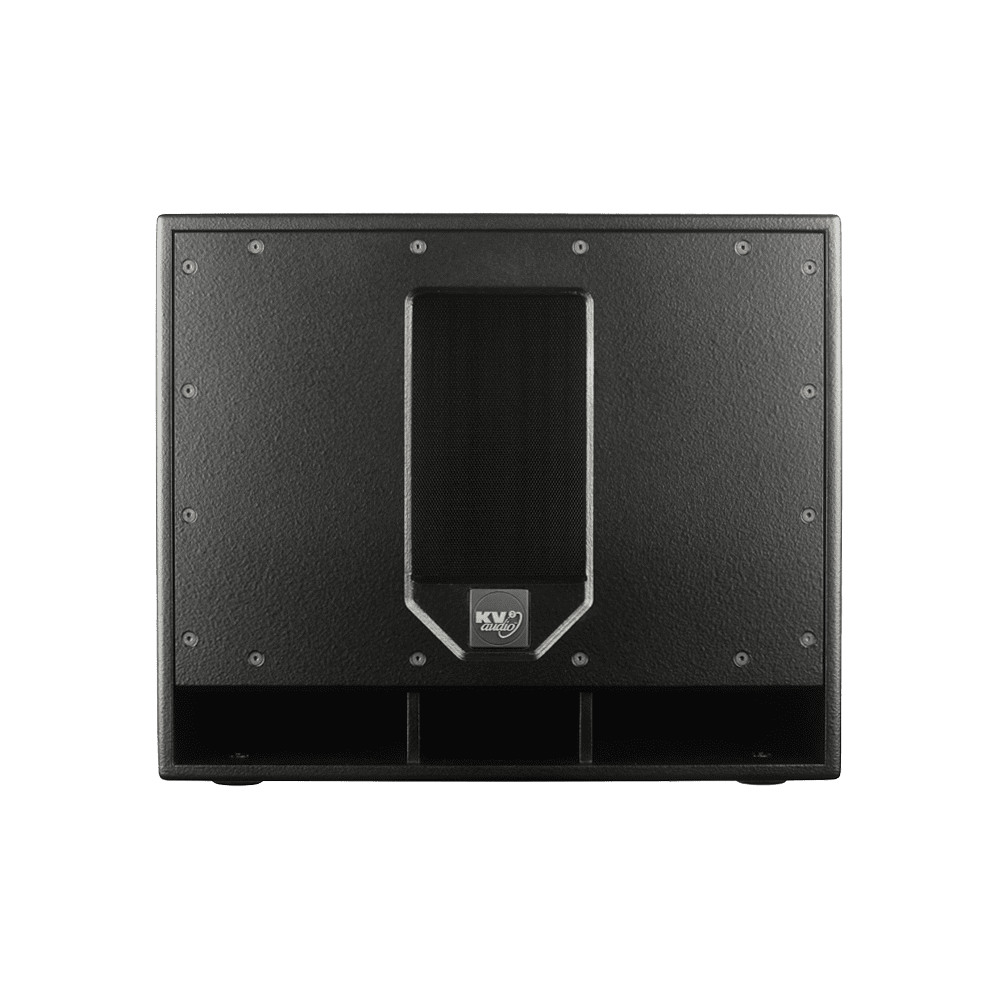

The EX2.2 is a double 12″, compact, active subwoofer system. On- board electronics include a stereo crossover with high pass outputs and full overdrive protection. Featuring KV2 Audio’s switching amplifier technology, precision manufactured woofer designs and a high efficiency, twin chamber acoustic design, the EX2.2 delivers tight, fast, controlled bass response at very high output levels from a small cabinet footprint.

Applications

Specifically designed to accompany and compliment the EX10 / EX26 as a true full range high output system

  • Portable PA applications
  • Fixed Installations
  • Scalable into multiple-larger systems
  • Easy to add to existing systems

Product code

  • KVV 987 135 – EX2.2 250V
  • KVV 987 013 – EX2.2 230V
  • KVV 987 014 – EX2.2 115V


    Consultar precios

    Descripción

    The EX2.2 is a double 12″, compact, active subwoofer system. On- board electronics include a stereo crossover with high pass outputs and full overdrive protection. Featuring KV2 Audio’s switching amplifier technology, precision manufactured woofer designs and a high efficiency, twin chamber acoustic design, the EX2.2 delivers tight, fast, controlled bass response at very high output levels from a small cabinet footprint.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 130dB sustained output, 133dB peak
    • 1000W high efficiency, current-enhancing, switching, low frequency amplifier
    • Complete on board subwoofer management including equalization, crossover filters, amplifier overdrive protection, output level and phase controls
    • Excellent reproduction of bass frequencies with high transient content at high output levels

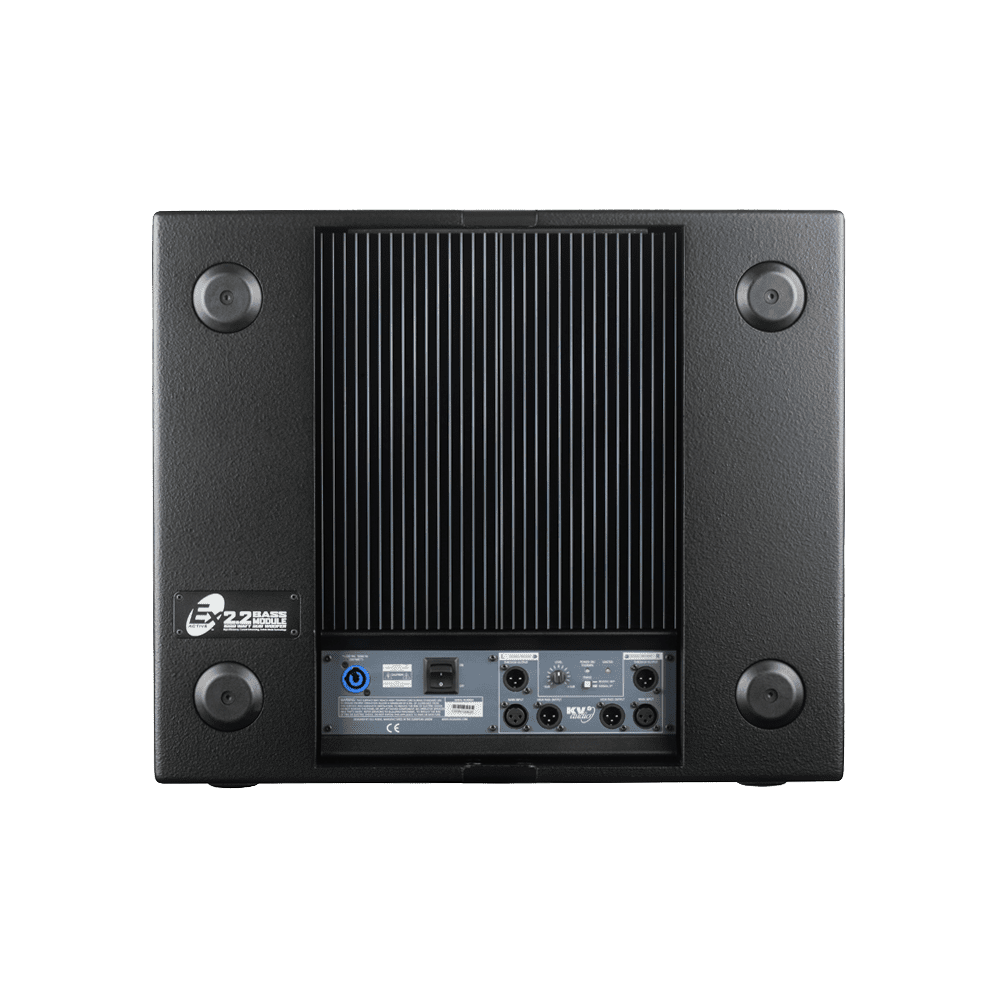

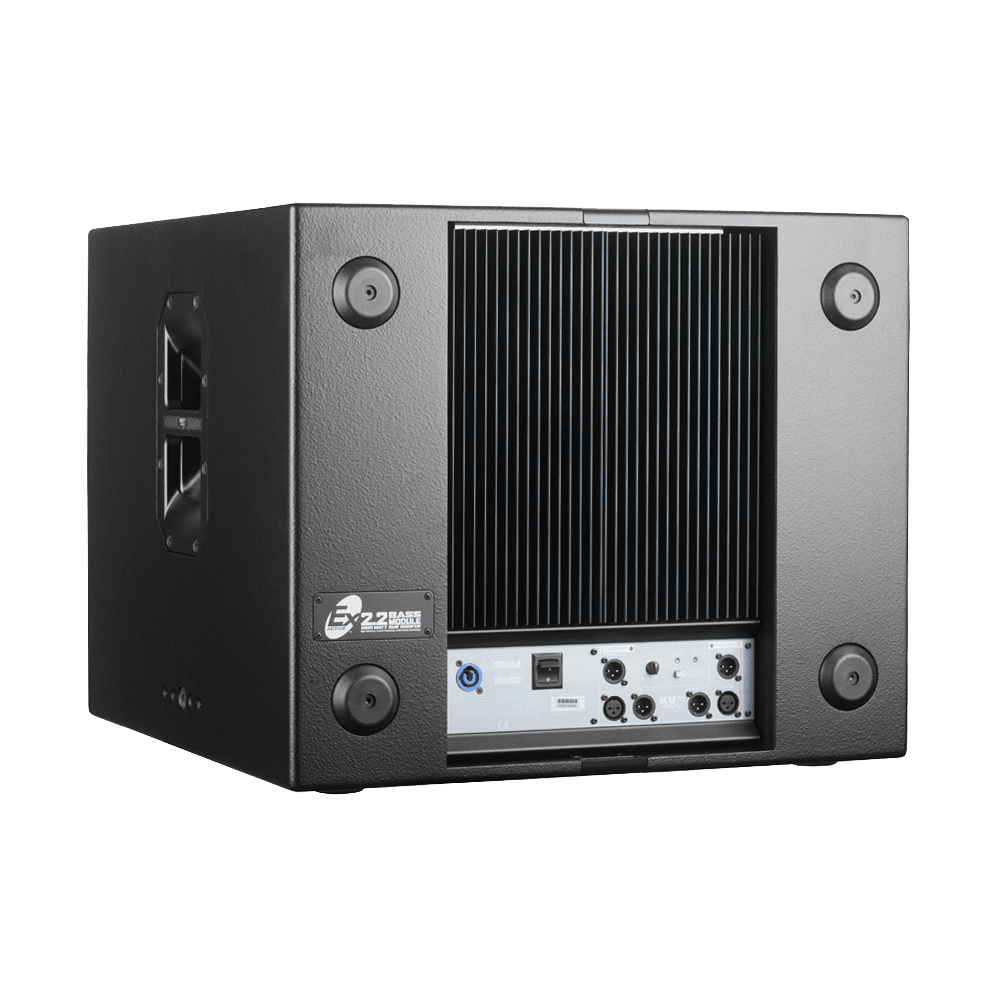

    • Stereo or Mono inputs with through signal outputs and 120Hz High Pass outputs
    • Two 12″ high output, low frequency drivers with 3″ (75 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structures

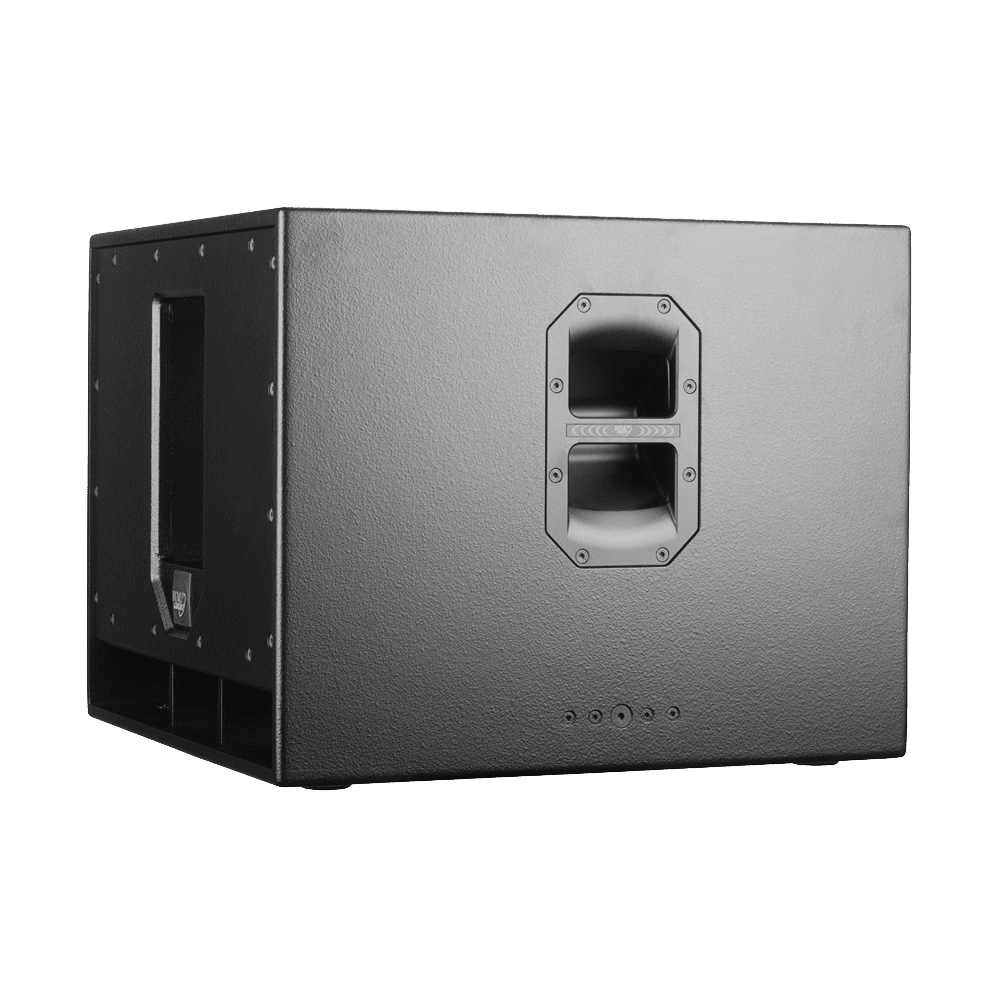

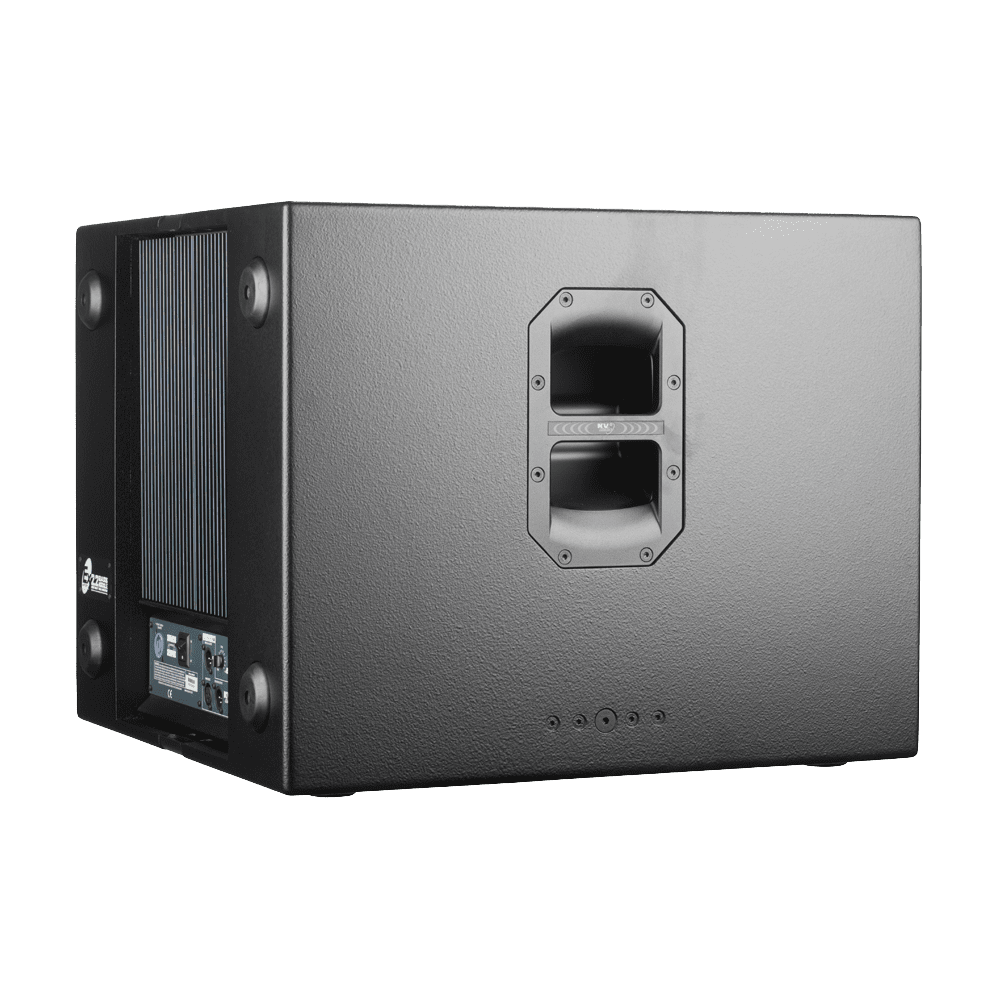

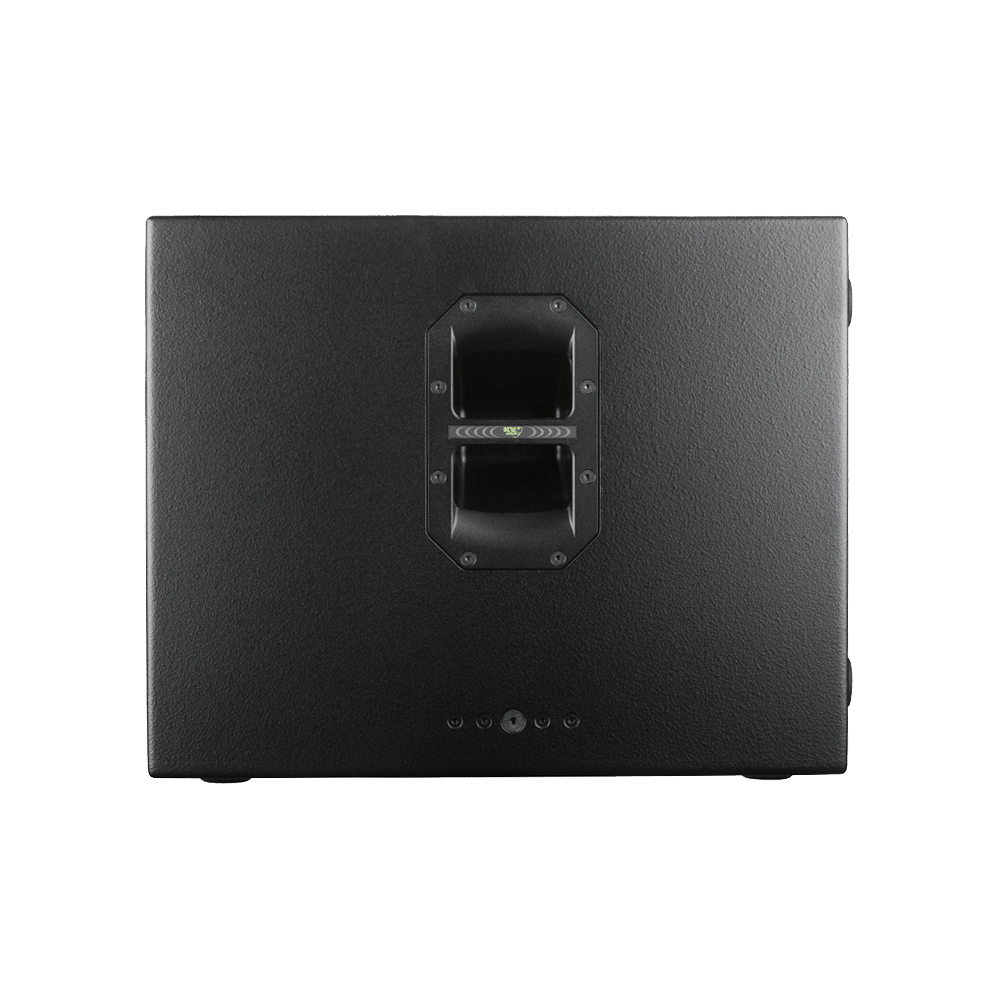

    • Two recessed side handles for simplified handling and carrying
    • Acetyl copolymer, high impact, low friction feet are located on two sides allowing lock-in and easy cabinet movement
    • Two internal corner braces with four M10 suspension points
    • M20 top hat for pole mounting applications
    • LED indicators for signal present, limiter, thermal condition and power ON status


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed to accompany and compliment the EX10 / EX26 as a true full range high output system

    • Portable PA applications
    • Fixed Installations
    • Scalable into multiple-larger systems
    • Easy to add to existing systems

    Product code

    • KVV 987 135 – EX2.2 250V
    • KVV 987 013 – EX2.2 230V
    • KVV 987 014 – EX2.2 115V


    Accesories


    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels

    Gallery

    Product code

    KVV 987 031



    Description

    – with bolts nuts kit – 4 pcs in pack, rotating, blue
    – 16x M8x 25mm Screw Countersunk Hexagon Socket Head
    – 16x Nut Hexagon with blue plastic insert M8



    Downloads

    DWG

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

    SKP

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp

    EX2.2 Cart

    Gallery

    Product code

    KVV 987 025



    Description

    – wheels not included



    Downloads

    DWG

    EX2.2 Cart 3D DWG

    EX2.2 Cart 3D DWG

    SKP

    EX2.2 Cart SKP

    EX2.2 Cart SketchUp

    EX2.2 Heavy duty cover

    Gallery

    Product code

    KVV 987 072



    Description

    – durable material



    EX2.2 Heavy duty cover with cart

    Gallery

    Product code

    KVV 987 133



    Description

    – durable material



    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    System Acoustic Performance

    Max SPL Long-term 130dB
    Max SPL Peak 136dB
    -3dB Response 45Hz to 125Hz
    -10dB Response 40Hz to 125Hz
    Crossover Point 125Hz

    Low Frequency Section

    Acoustic Design Twin Asymmetrical loading
    Number of Drivers 2
    Woofer Size / Voice Coil Diameter 12″ / 3″ / Inside outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Low Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 1000W
    Distortion <0.05%
    Operating Bandwidth 40Hz to 125Hz

    Signal Input

    Input Channels 2
    Input Sensitivity 1.0V RMS
    Input Impedance 20kΩ (balanced)

    Signal Output

    Signal Output Channels Mid/High, Through

    Features

    Input Level Control -6 – +6dB
    Phase 0° / 180°
    RMS Limiter YES

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage 115V / 230V / 250V
    Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
    Recommended Amperage 10A 115V | 5A 230V | 5A 250V
    Cooling Passive

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Pole Mount M20
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 491 mm (19.33″)
    Width 594 mm (23.38″)
    Depth 616 mm (24.25″)
    Weight 49 kg (107.8lbs)


    Product code

    • KVV 987 135 – EX2.2 250V
    • KVV 987 013 – EX2.2 230V
    • KVV 987 014 – EX2.2 115V
