EX15 – 3-way Active speaker system

KV2AUDIO
SKU: EX15

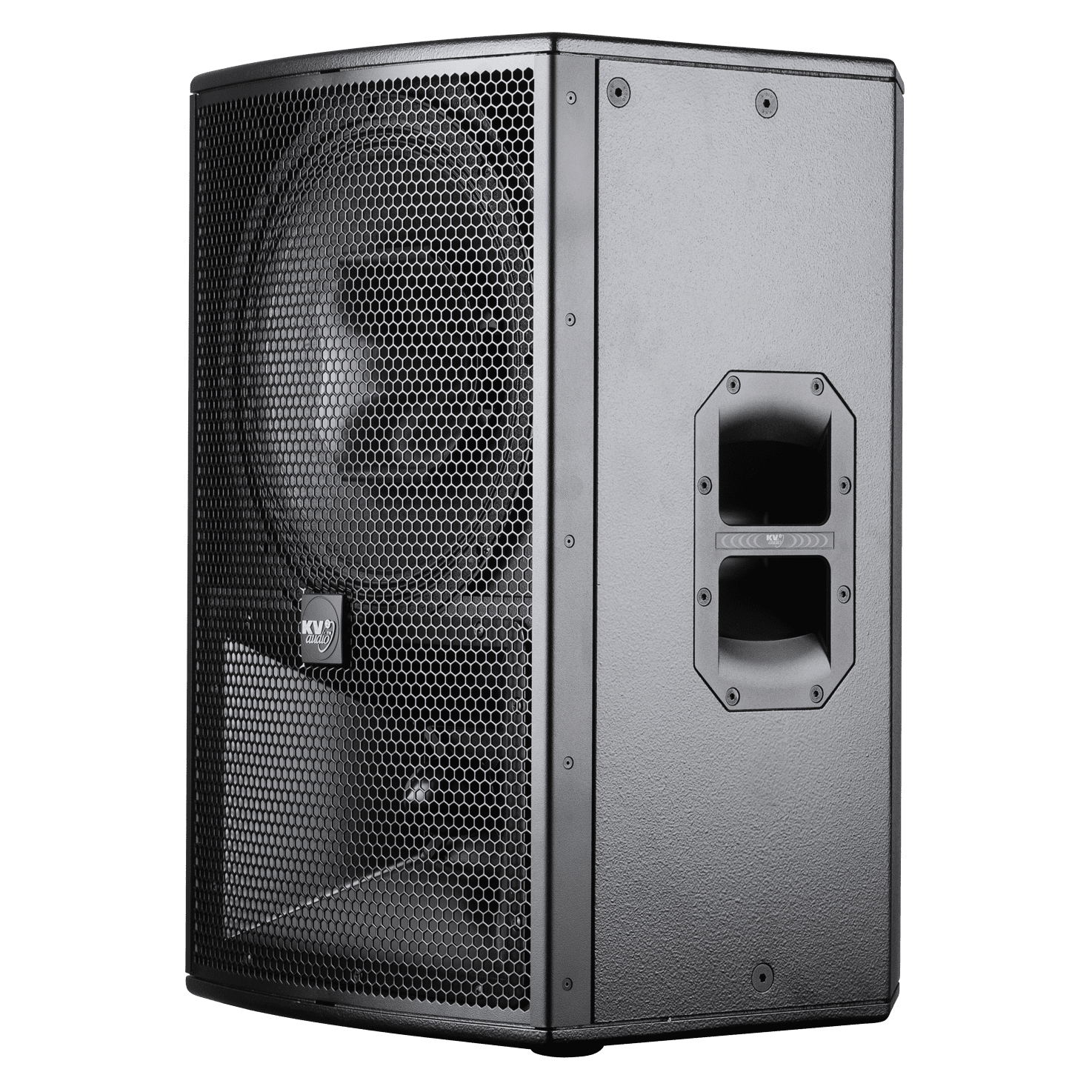

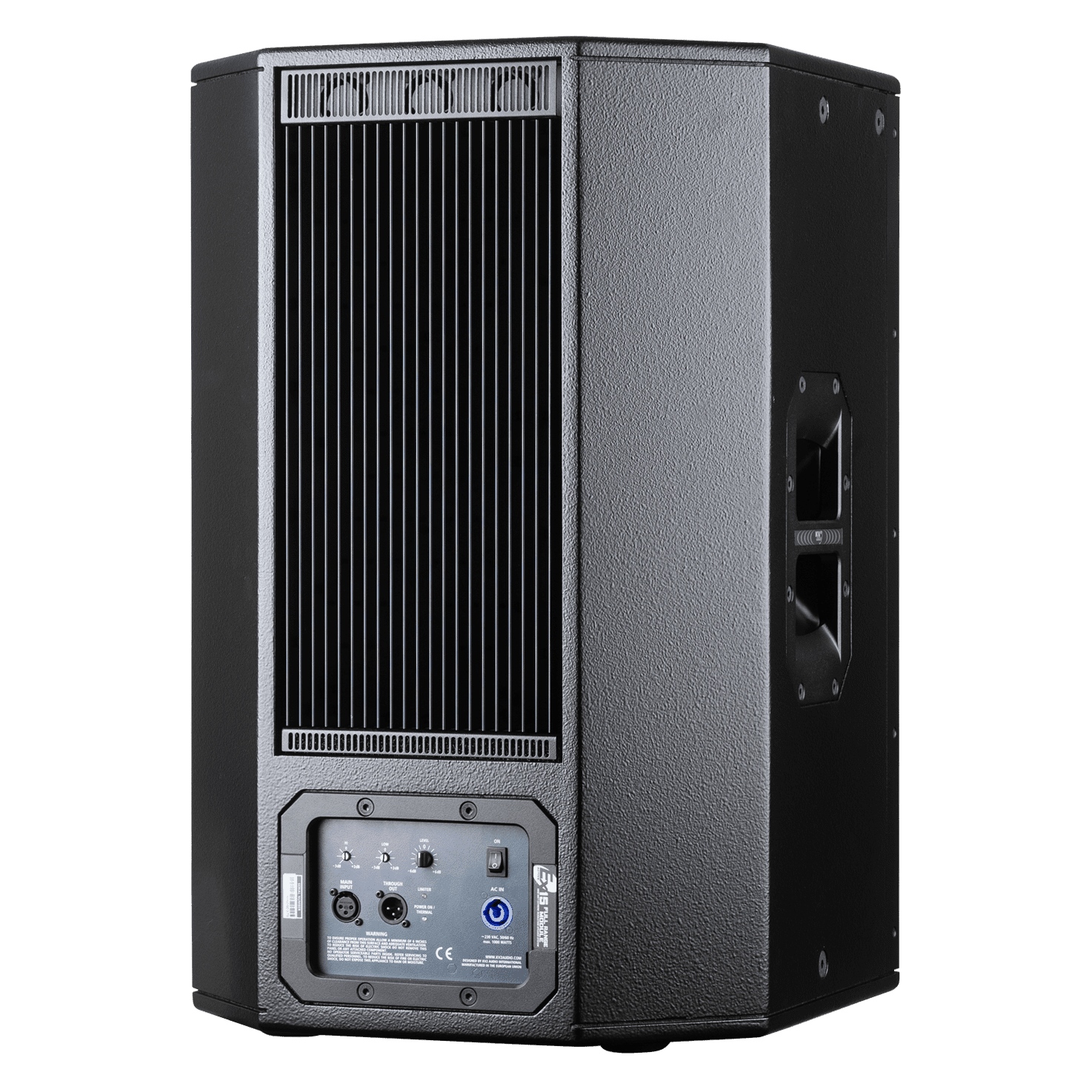

The New EX15 introduces a three way design to the successful EX loudspeaker range. Incorporating a unique coaxial 15″ transducer with a 1.75″ Nitride Titanium Compression Driver, while many coaxial speakers struggle in their attempt to cover the entire frequency range, the EX15’s coaxial driver is only required to deliver the low and high frequencies. This leaves the all important mid range to a dedicated horn loaded 6″ neodymium speaker, allowing the 15″ to deliver accurate and deep bass, an area in which it excels, rather than trying to also reproduce a compromised mid range above its natural frequency window for optimum speed and dynamic musical performance. The EX15’s unique approach, featuring 1000W of dedicated Tri-amplified electronics, provides an extremely natural, truly full range sound from a compact yet powerful package that out performs many speakers twice its size.

Product code

KVV 987 267 – EX15 (230V)
KVV 987 266 – EX15 (115V)



    Consultar precios

    Descripción

    The New EX15 introduces a three way design to the successful EX loudspeaker range. Incorporating a unique coaxial 15″ transducer with a 1.75″ Nitride Titanium Compression Driver, while many coaxial speakers struggle in their attempt to cover the entire frequency range, the EX15’s coaxial driver is only required to deliver the low and high frequencies. This leaves the all important mid range to a dedicated horn loaded 6″ neodymium speaker, allowing the 15″ to deliver accurate and deep bass, an area in which it excels, rather than trying to also reproduce a compromised mid range above its natural frequency window for optimum speed and dynamic musical performance. The EX15’s unique approach, featuring 1000W of dedicated Tri-amplified electronics, provides an extremely natural, truly full range sound from a compact yet powerful package that out performs many speakers twice its size.

    Features

    • Unique coaxial 15” transducer with a 1.75” Nitride Titanium Compression Driver on a wide dispersion horn covering low and high frequencies
    • 6” neodymium speaker mounted on a large 80 x 60 degree horn covers mid range
    • 1000W of dedicated Tri-amplified electronics
    • Compact Three way Full range solution
    • Extremely natural full range sound from a compact yet powerful package, that out performs many speakers twice its size


    Product code

    KVV 987 267 – EX15 (230V)
    KVV 987 266 – EX15 (115V)



    Accesories


    ES1.0, ES1.5, ESD15, EX15 Vertical bracket

    3D view

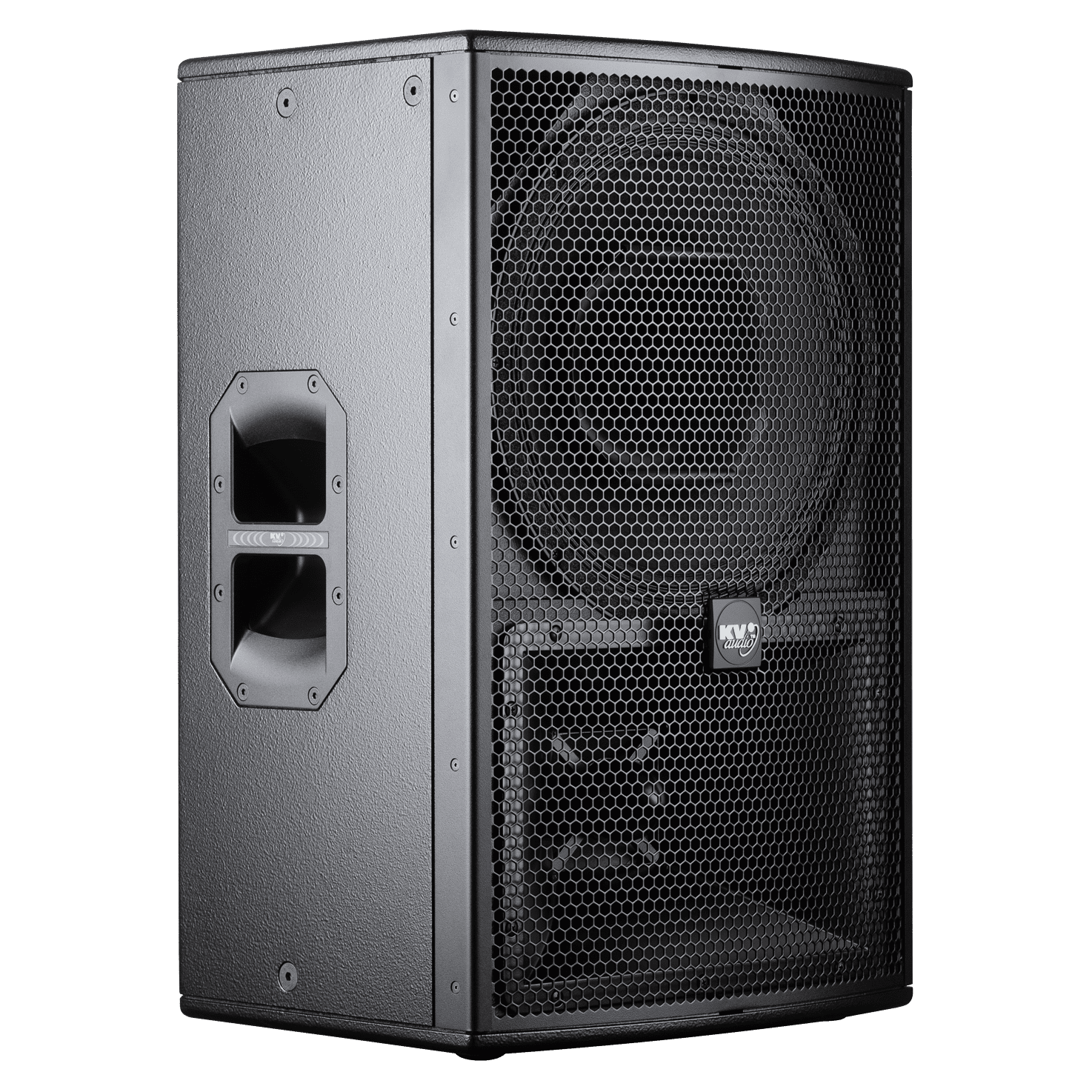

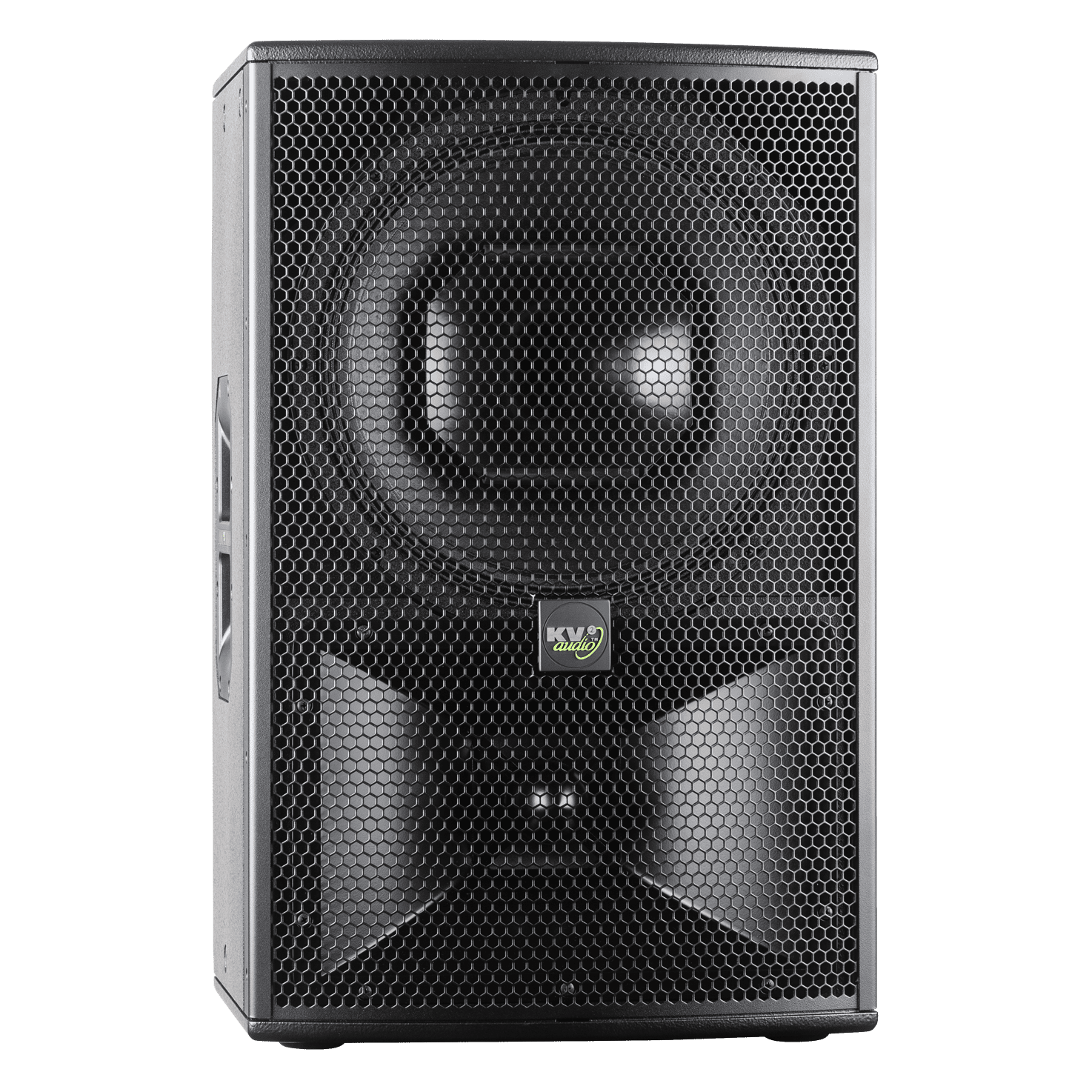

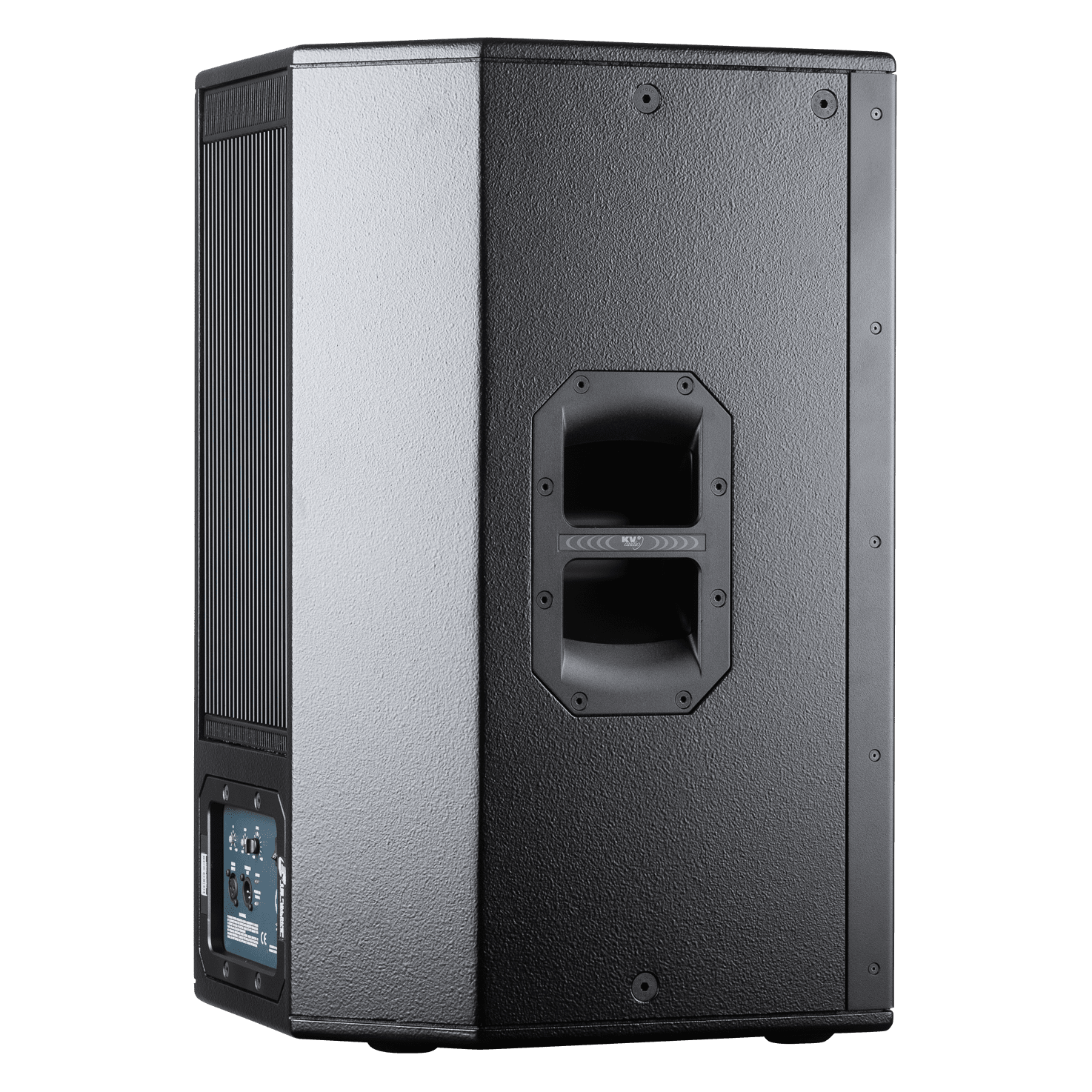

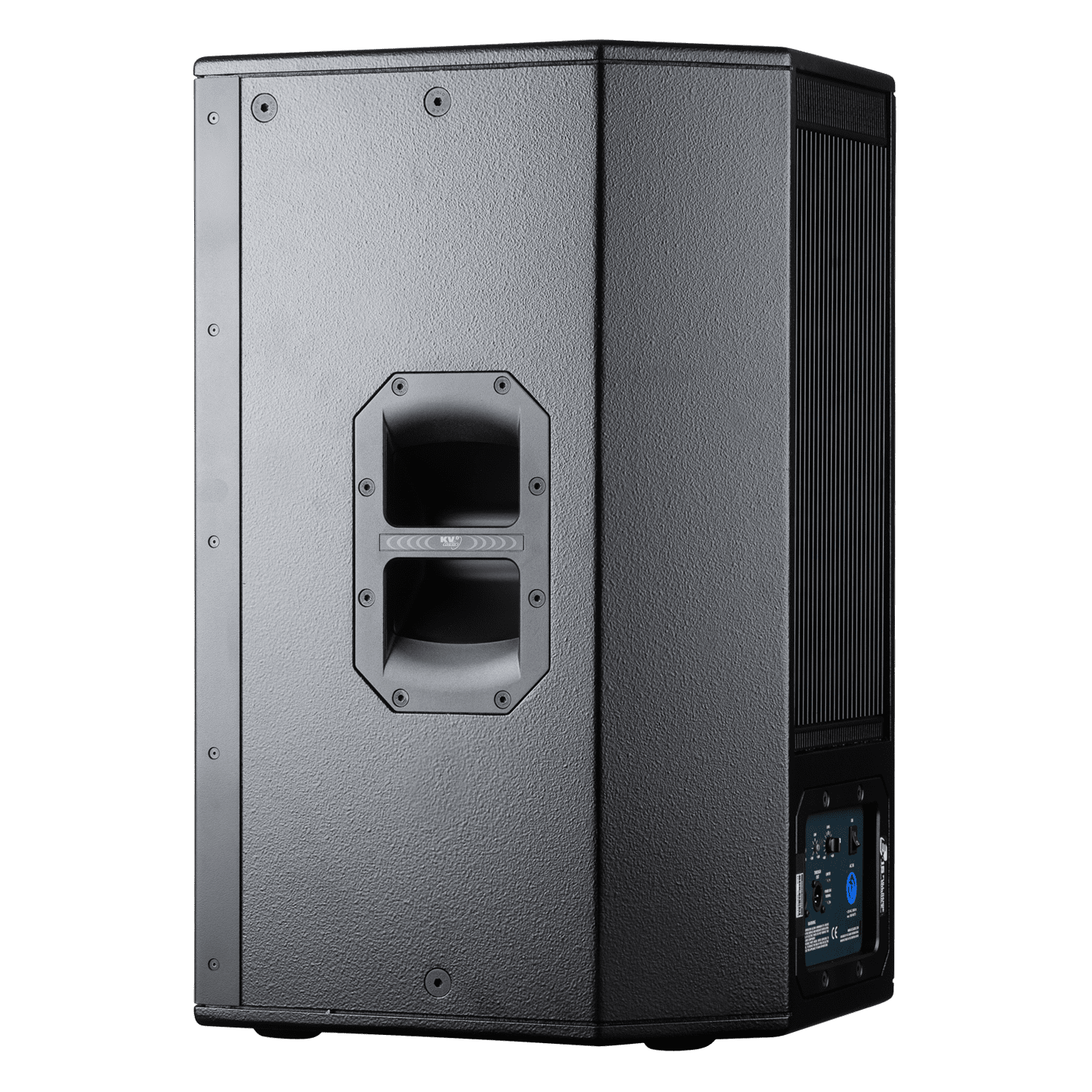

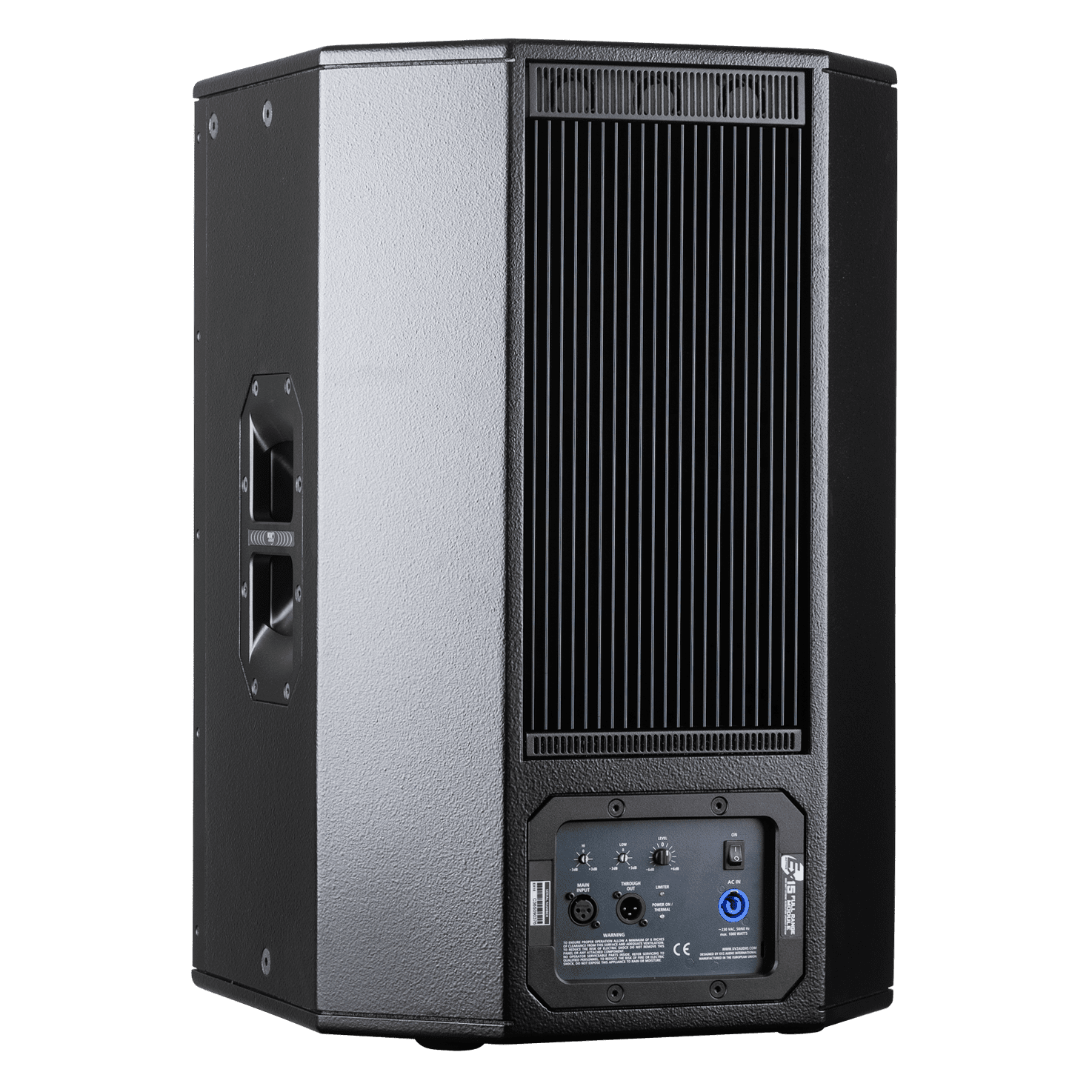

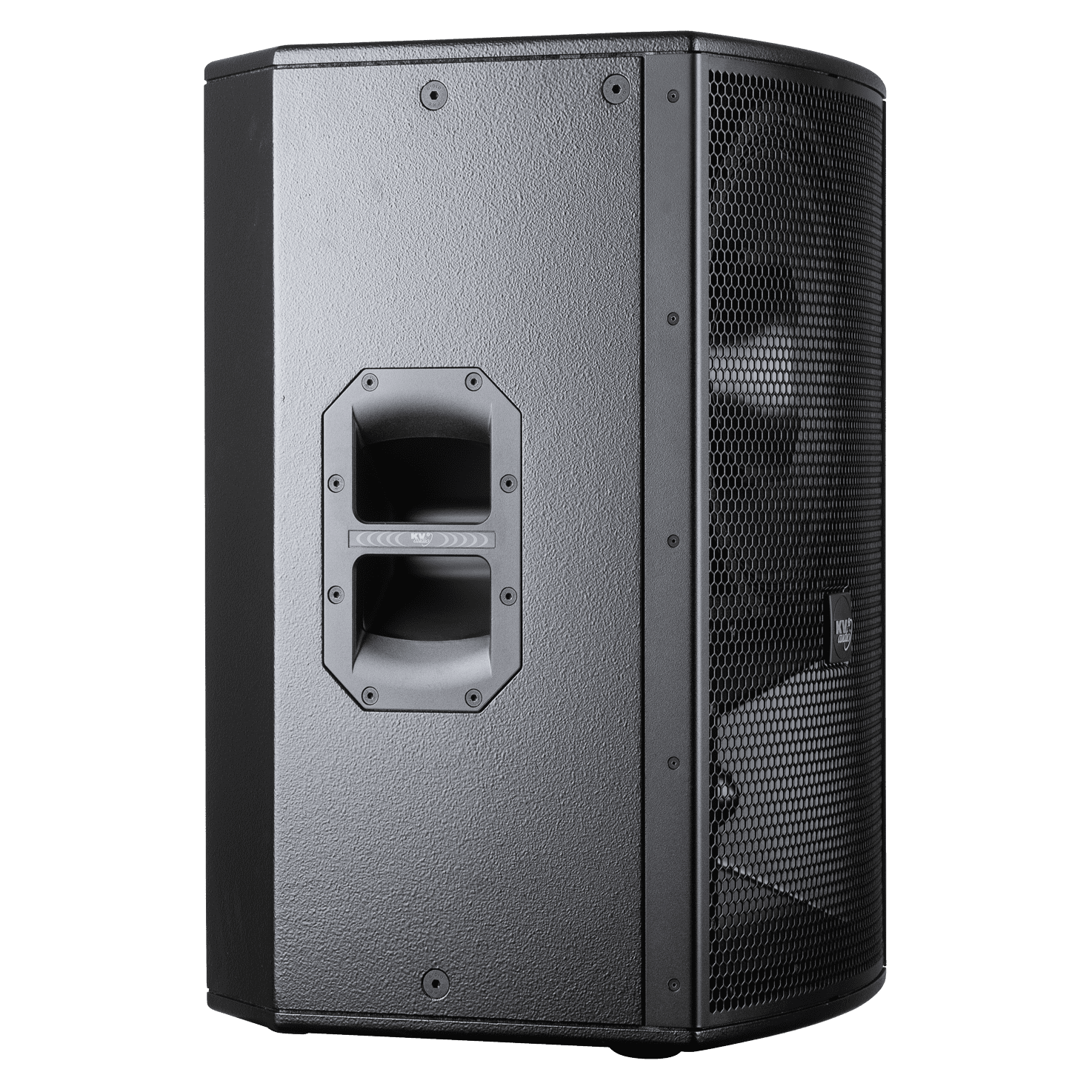

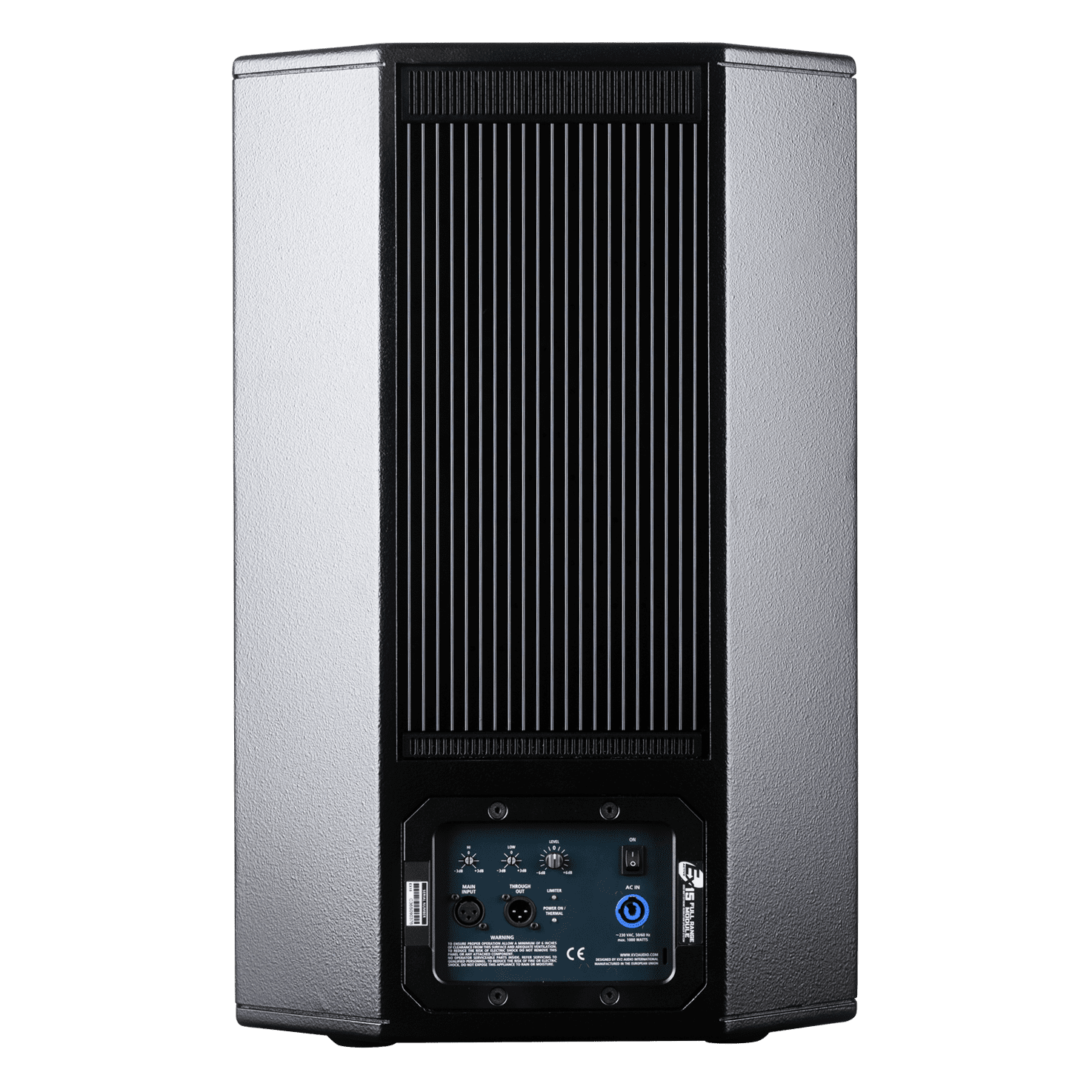

    Gallery

    Product code

    KVV 987 032



    Description

    Vertical bracket for ES1.0, ES1.5, ESD15, EX15 – including two connection bolts – black



    Downloads

    DWG

    ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

    ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG

    DWG

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG

    SKP

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SKP

    ES1.0, ES1.5, ESD15, EX15 Vertical Bracket SketchUp

    System Acoustic Performance

    Max SPL Long-term 129dB
    Max SPL Peak 135dB
    -3dB Response 44Hz – 18kHz
    -10dB Response 38Hz – 22kHz
    Crossover Point 500Hz, 2.7kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 80° x 60°
    Throat Exit Diameter / Diaphragm Size 1″/1.75″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium
    Protection RMS Limiter

    High Frequency Amplifier Specification

    Type Class AB Push-Pull
    Rated Continuous Power 50W
    Distortion <0.05%
    Operating Bandwidth 2.7kHz – 22kHz

    Mid Range Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 80° x 60°
    Woofer Size / Voice Coil Diameter 6” / 1.5”
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium
    Protection RMS Limiter

    Mid Frequency Amplifier Specification

    Type High efficiency, High Power Bandwidth
    Rated Continuous Power 100W
    Distortion <0,05%
    Operating Bandwidth 500Hz – 2.7kHz

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Woofer Size / Voice Coil Diameter 15” / 4”
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium
    Protection RMS Limiter

    Low Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 850W
    Distortion <0.05%
    Operating Bandwidth 38Hz – 500Hz

    Signal Input

    Input Sensitivity 1V RMS
    Input Impedance 20 kΩ

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
    Recommended Amperage 8A 115V | 4A 230V | 4A 250V

    Cabinet

    Cabinet Material Baltic birch
    Handles 3
    Pole Mount 35mm
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 700 mm (27.55”)
    Width 450 mm (17.71”)
    Depth 450 mm (17.71”)
    Weight 43 kg (94,8lbs)
