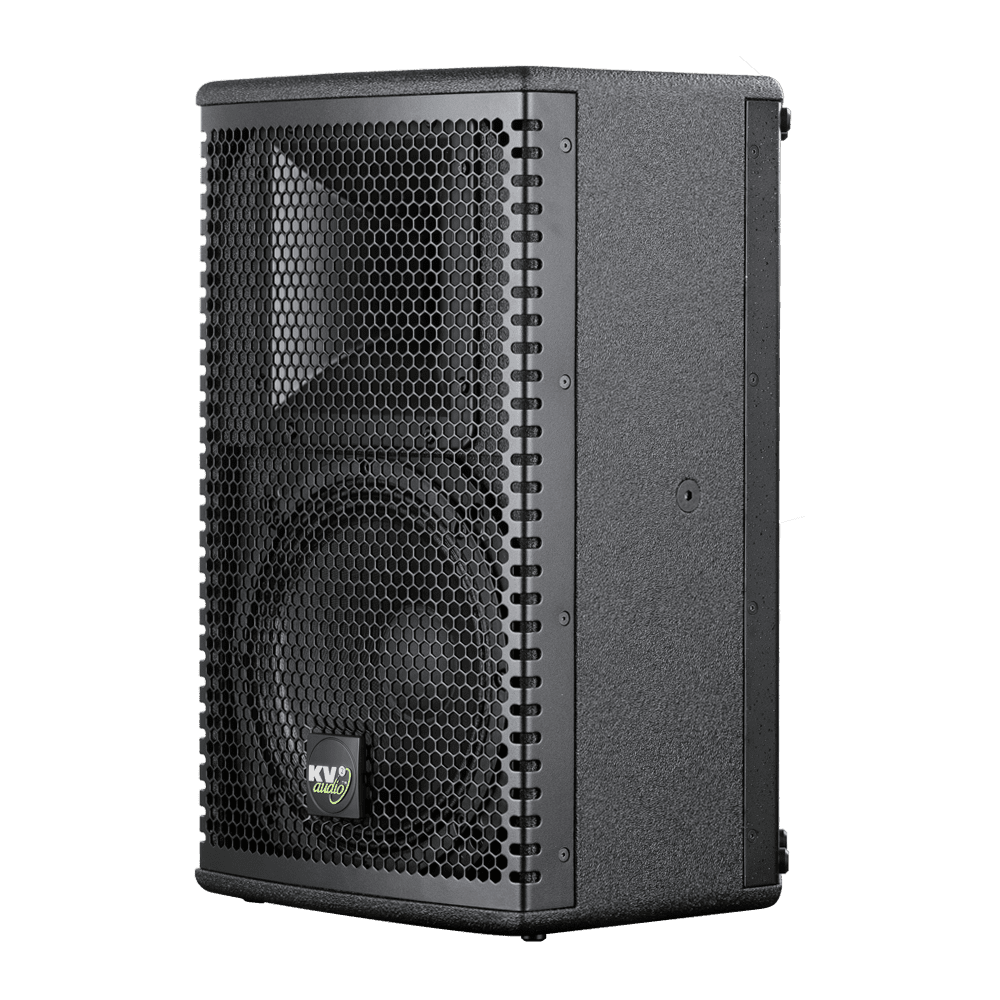

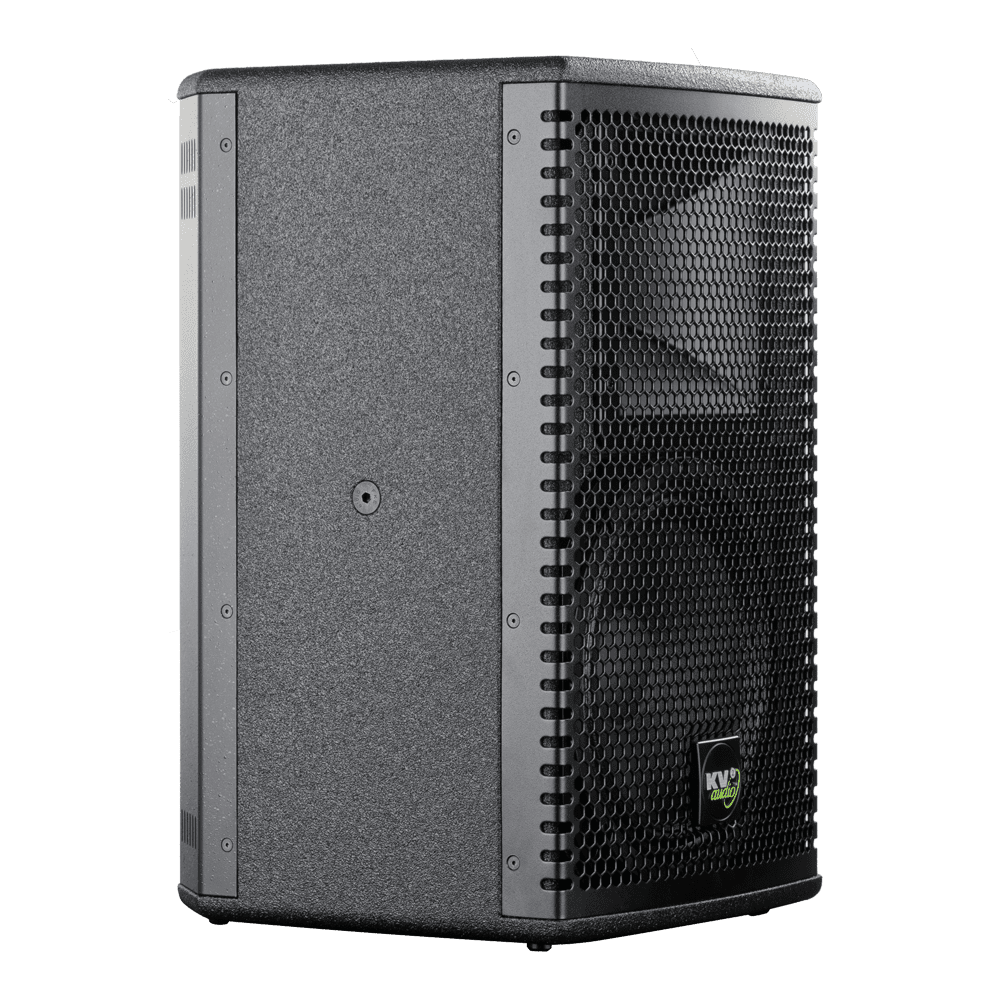

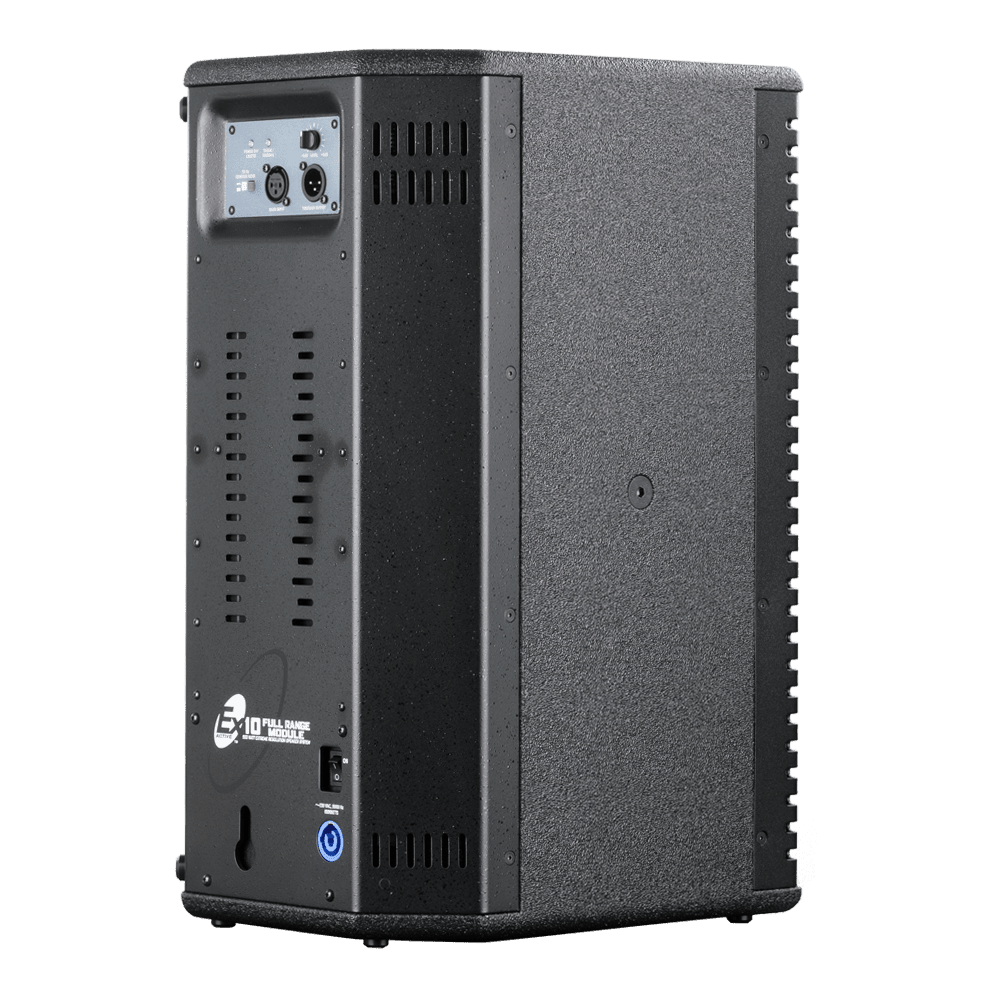

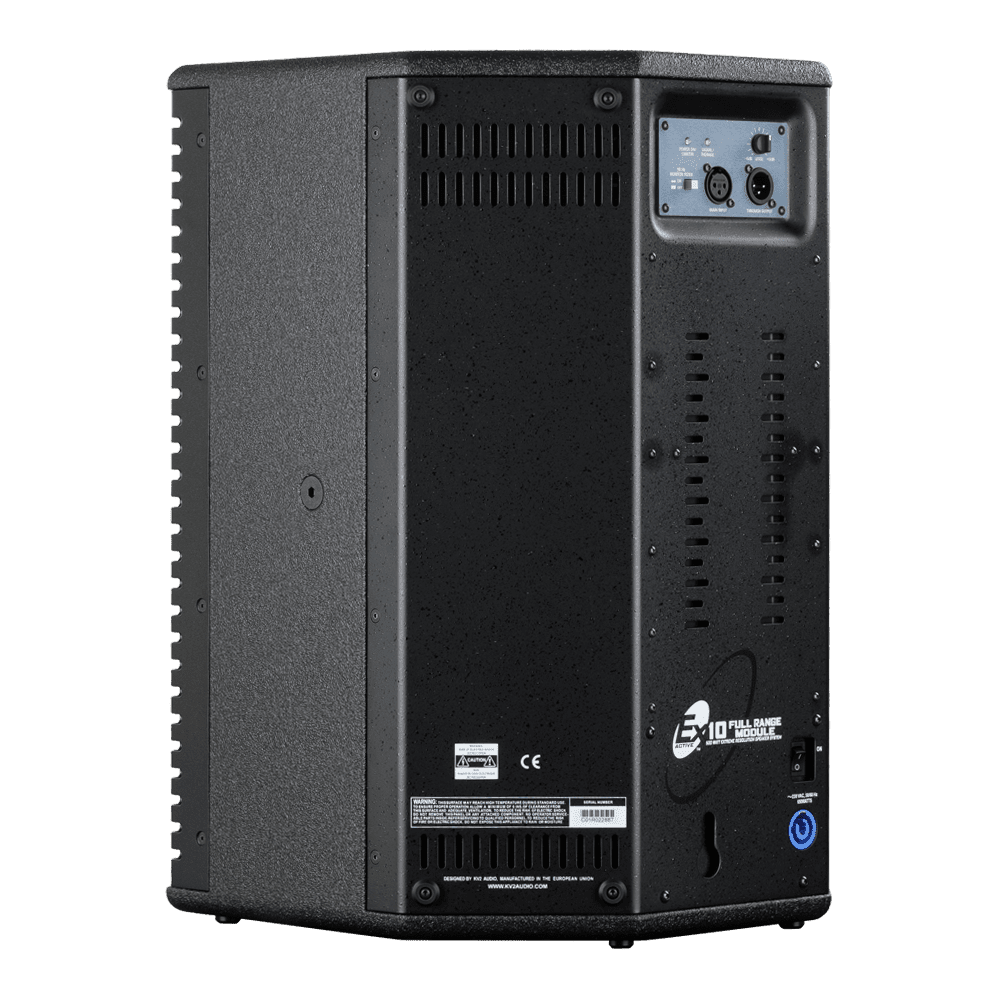

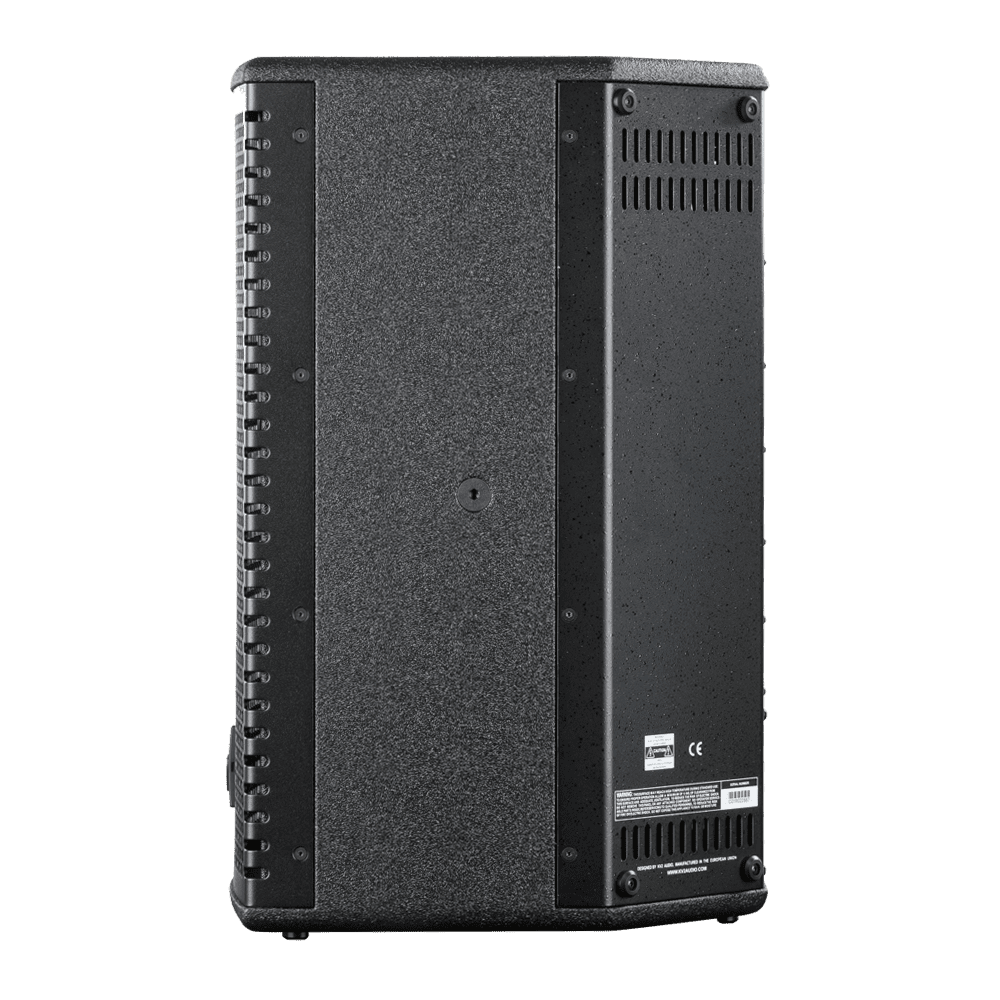

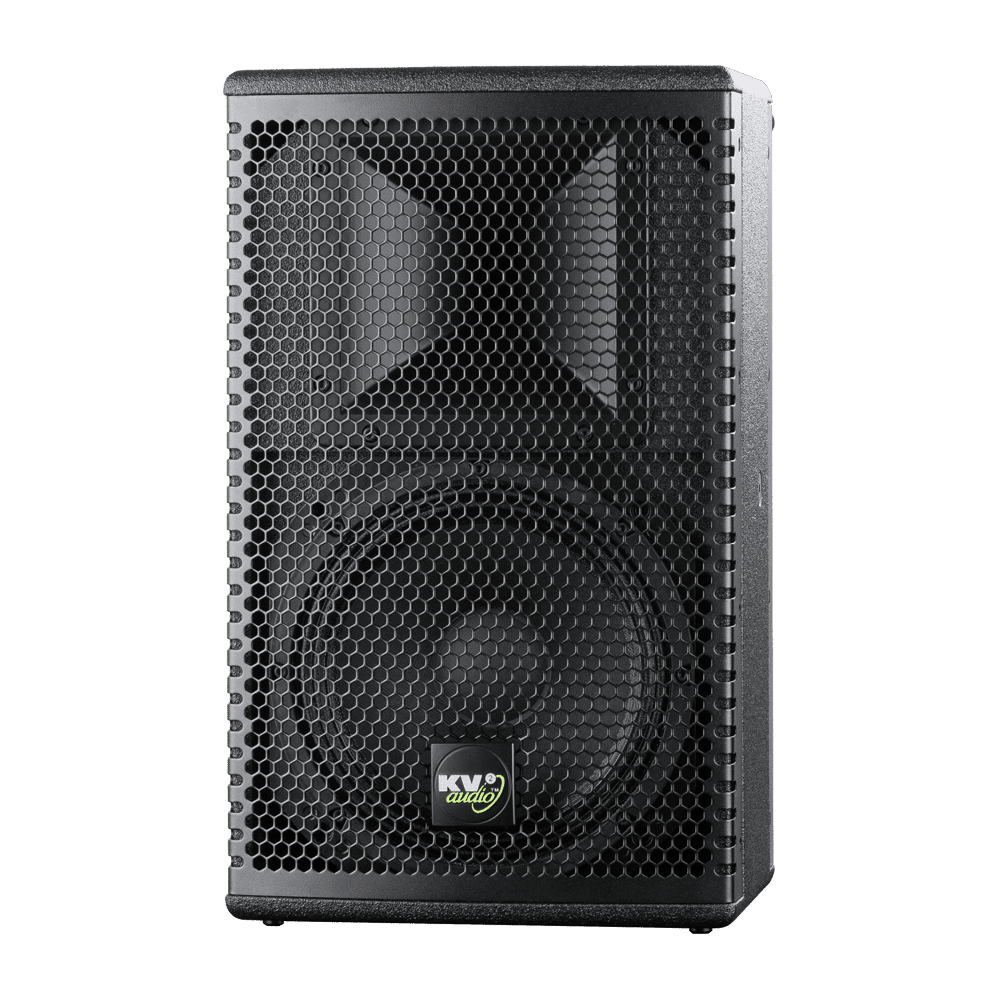

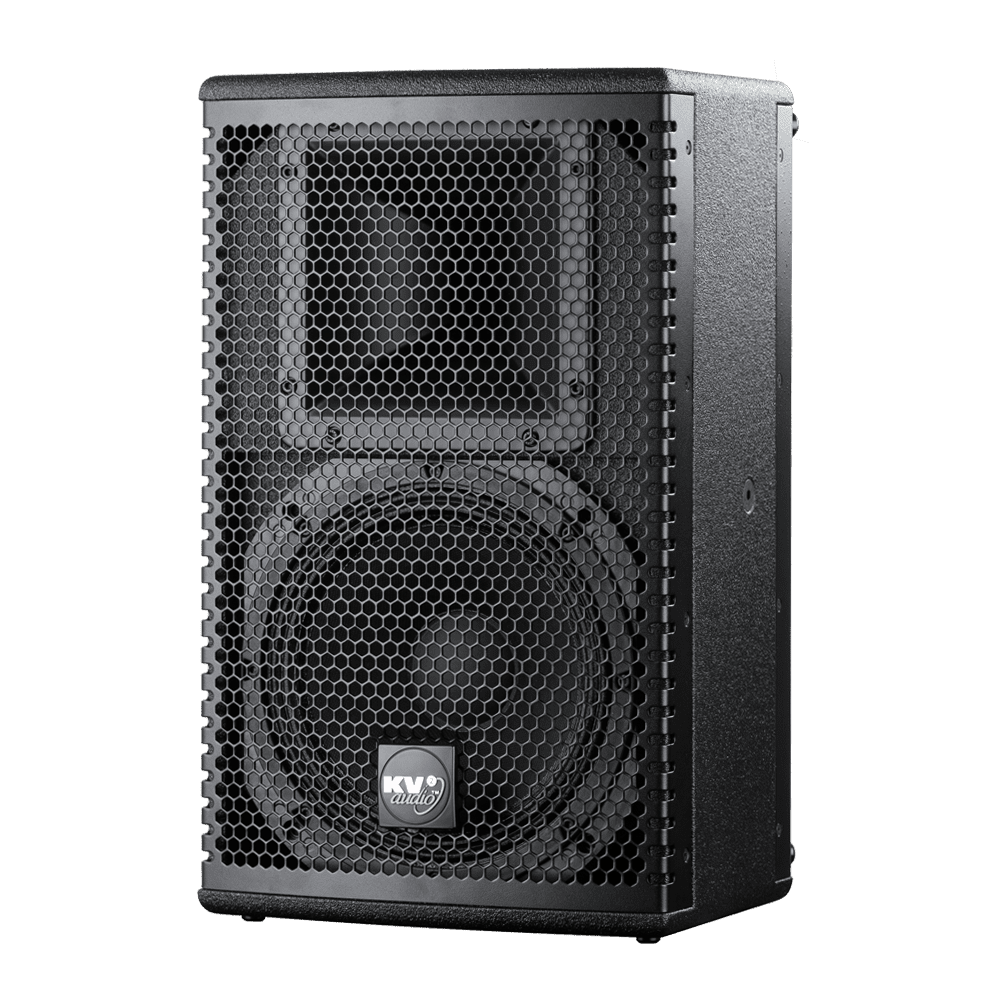

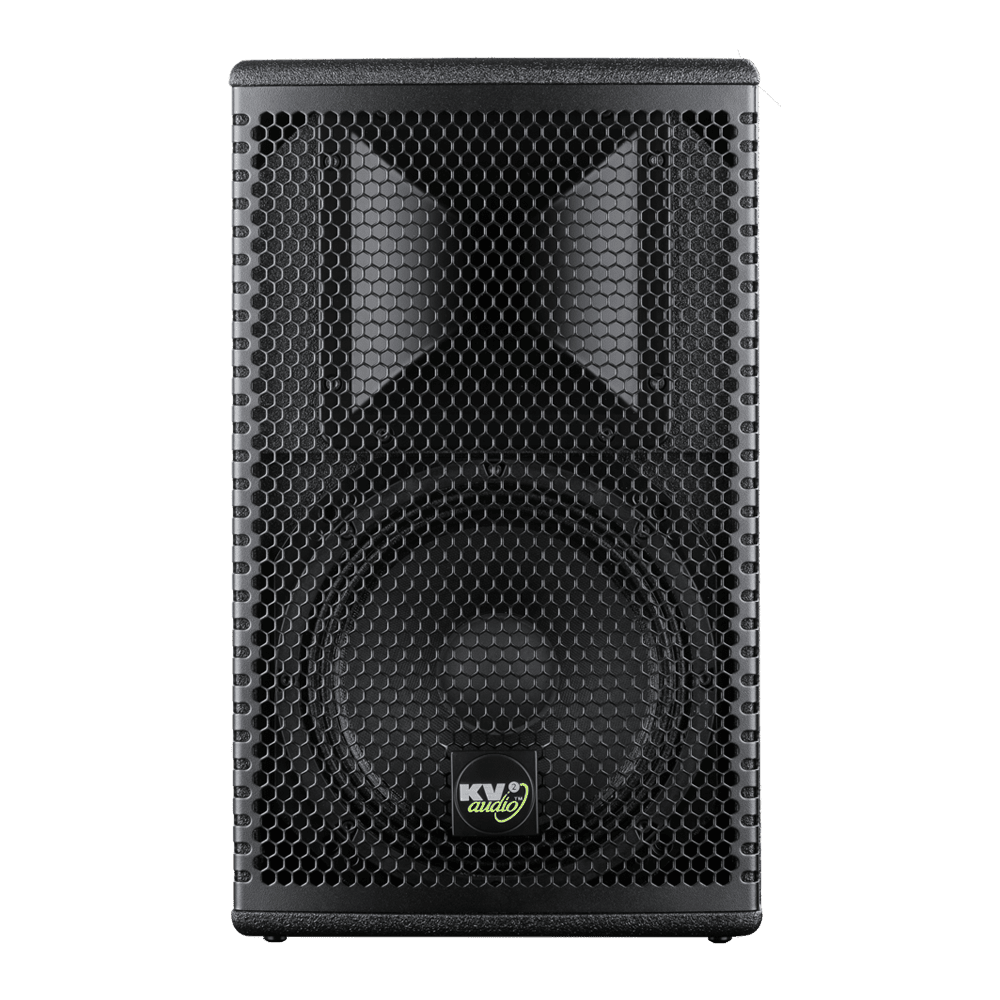

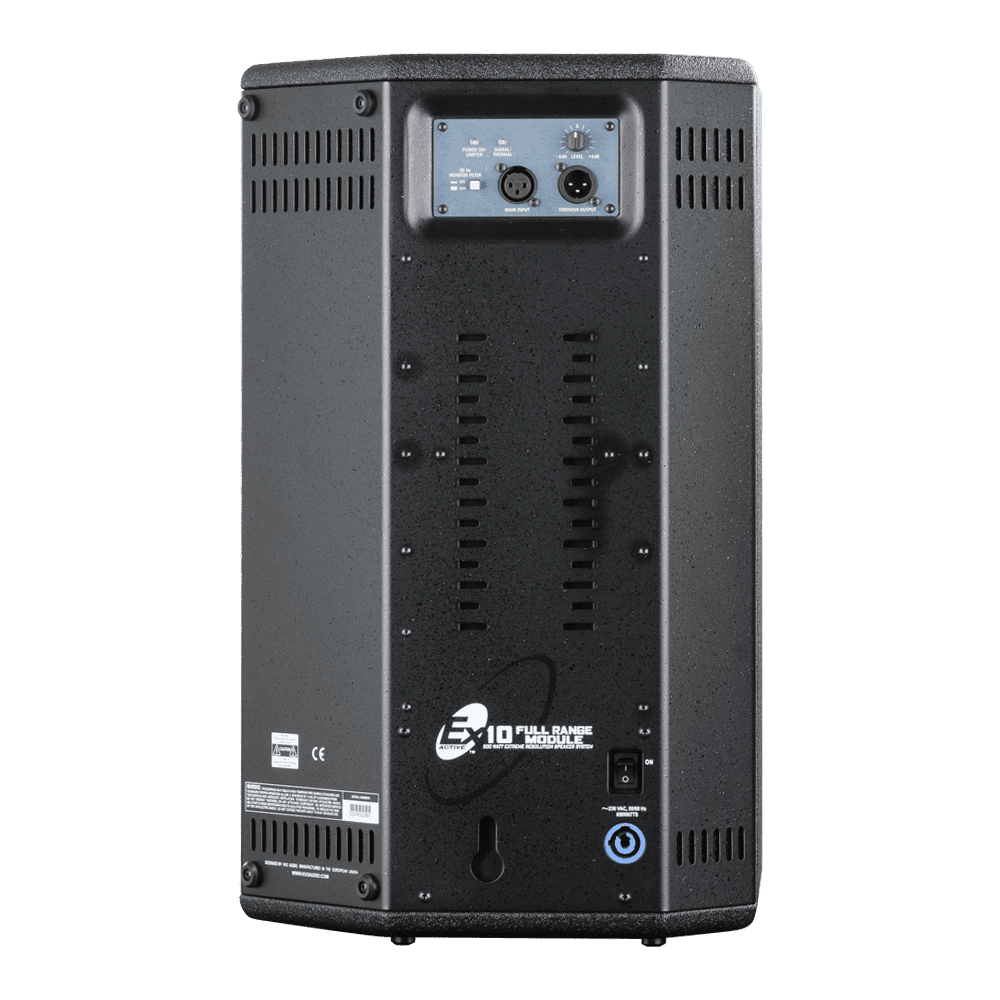

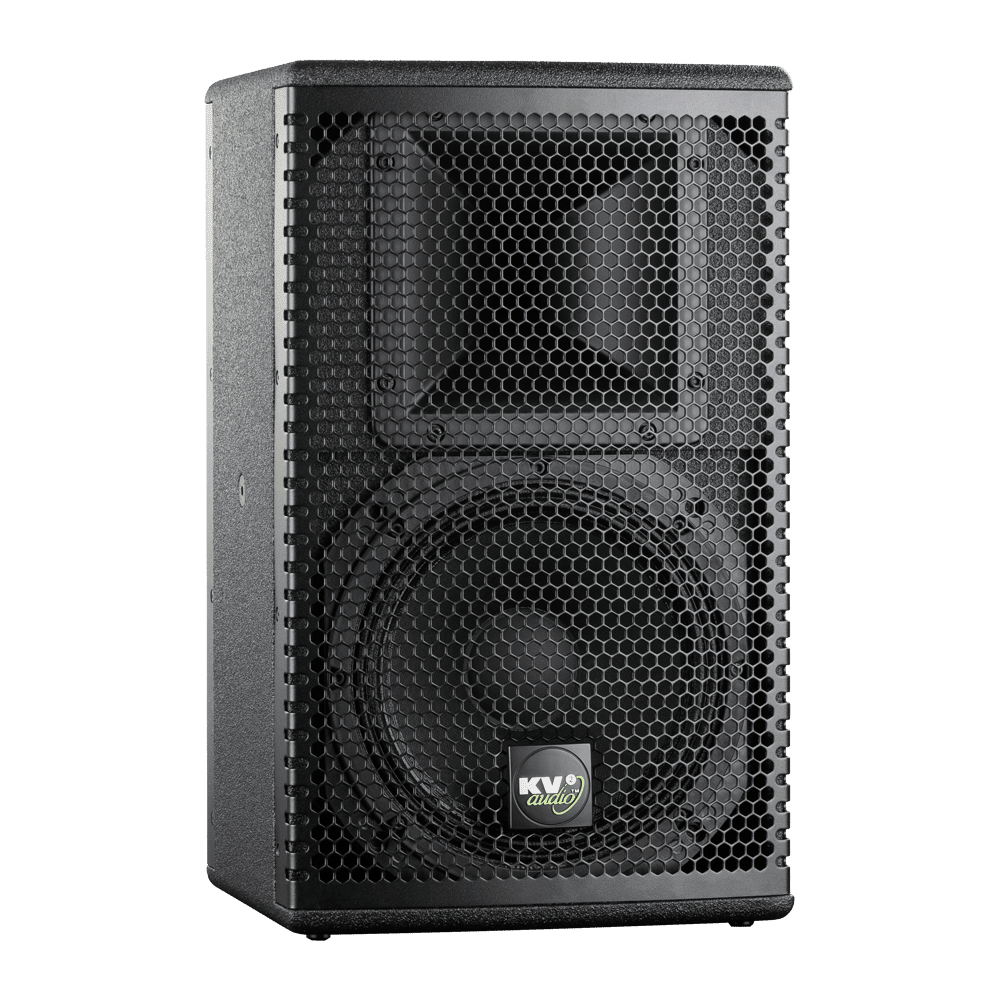

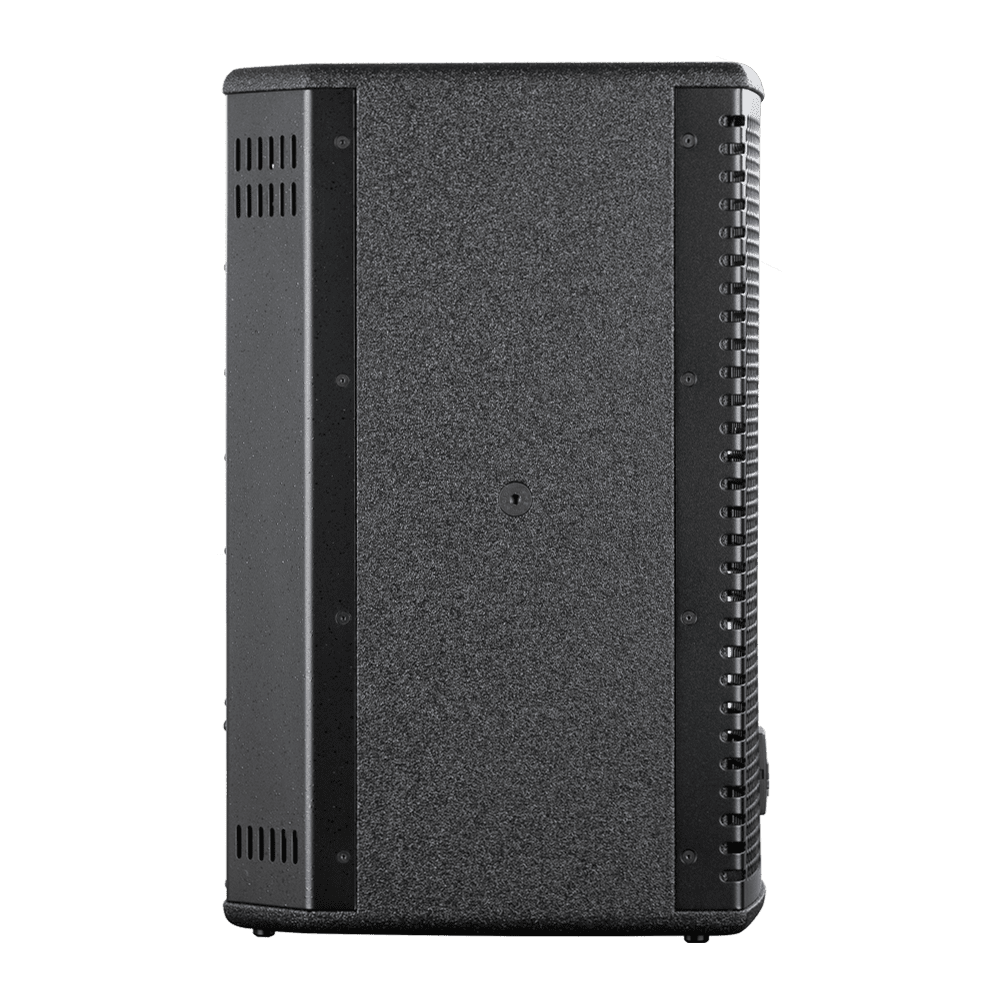

EX10 – 2-way Active speaker system
The EX10 is a very compact 2-way, high-output, full range active speaker system. Despite its 10″ woofer and remarkably small footprint it successfully takes on many larger 12″ models and is favored by audio visual and rental companies all over the world for its sheer quality and tremendous output. On-board electronics ensure fast, easy set up and complete control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX10’s amplifier module.
Applications
Specifically designed for high quality, high output multi-tasking, portable music playback and live performance in small applications
- Full range stand-alone solution or scalable to larger capabilities with subwoofers for large conference, meetings and small to medium performance venues
- Multi-purpose fixed installations
- Personal monitoring
- Infill for larger main KV2 Audio systems
Product code
- KVV 987 097 – EX10 250V
- KVV 987 011 – EX10 230V
- KVV 987 012 – EX10 115V
Descripción
The EX10 is a very compact 2-way, high-output, full range active speaker system. Despite its 10″ woofer and remarkably small footprint it successfully takes on many larger 12″ models and is favored by audio visual and rental companies all over the world for its sheer quality and tremendous output. On-board electronics ensure fast, easy set up and complete control with electronic crossovers, phase alignment, equalization and speaker protection integrated into the EX10’s amplifier module.
Features
- Professional, Baltic birch construction with wear resistant polymer coating
- 126dB sustained output, 129dB peak with very high dynamic range and low noise floor
- 500W of total power with complete on-board speaker management system
- 450W high efficiency, current enhancing, switching low frequency amplifier
- Very high quality 50W, low IM distortion, Class AB, high frequency amplifier with transformer balanced output
- Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor or under balcony applications with high pass filter to adjust equalization and phase response
- Wide dispersion, 100° H x 80° V rotatable horn
- 1.75″ (44 mm) Titanium diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnet structure
- 10″ woofer with revolutionary Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
- Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmniMountTM bracket point and four M6 bracket points
- Four additional M10 suspension points for flexible rigging and installation options
- Top hat for pole mounting applications
- LED indicators for signal present, limiter, thermal condition and power ON status
Applications
Specifically designed for high quality, high output multi-tasking, portable music playback and live performance in small applications
- Full range stand-alone solution or scalable to larger capabilities with subwoofers for large conference, meetings and small to medium performance venues
- Multi-purpose fixed installations
- Personal monitoring
- Infill for larger main KV2 Audio systems
Product code
- KVV 987 097 – EX10 250V
- KVV 987 011 – EX10 230V
- KVV 987 012 – EX10 115V
Accesories
ESD10 / EX10 Horizontal bracket
ESD10 / EX10 Vertical Bracket
EX10 Cover
EX10 Grill strong
EX10 Grille – fine
Speaker pole – universal
Top Hat AdapterESD10 / EX10 Horizontal bracket
Gallery
Product code
KVV 987 486
Description
Horizontal bracket for ESD10 / EX10
Downloads
ESD10 / EX10 Horizontal Bracket 3D DWG
ESD10 / EX10 Horizontal Bracket 3D DWG
ESD10 / EX10 Horizontal Bracket 2D DWG
ESD10 / EX10 Horizontal Bracket 2D DWG
ESD10 / EX10 Horizontal Bracket SKP
ESD10 / EX10 Horizontal Bracket SKP
ESD10 / EX10 Horizontal Bracket PDF
ESD10 / EX10 Horizontal Bracket PDF
ESD10 / EX10 Vertical Bracket
Gallery
Product code
KVV 987 485
Description
Vertical bracket for ESD10 / EX10
Downloads
ESD10 / EX10 Vertical Bracket 3D DWG
ESD10 / EX10 Vertical Bracket 3D DWG
ESD10 / EX10 Vertical Bracket 2D DWG
ESD10 / EX10 Vertical Bracket 2D DWG
ESD10 / EX10 Vertical Bracket SKP
ESD10 / EX10 Vertical Bracket SKP
ESD10 / EX10 Vertical Bracket PDF
ESD10 / EX10 Vertical Bracket PDF
EX10 Cover
Gallery
Product code
KVV 987 068
Description
– heavy duty – padded
EX10 Grill strong
Gallery
Product code
KVV 987 301
Description
– bend resistant – suitable when using EX10 as a monitor or touring
Downloads
EX10 Grill strong 3D DWG
EX10 Grill strong 3D DWG
EX10 Grill strong SKP
EX10 Grill strong SketchUp
EX10 Grille – fine
Gallery
Product code
KVV 987 330
Description
– elegant design – suitable for installations
Downloads
EX10 Grille – fine 3D DWG
EX10 Grille – fine 3D DWG
EX10 Grille – fine SKP
EX10 Grille – fine SketchUp
Speaker pole – universal
Gallery
Product code
KVV 987 130
Description
Heavy duty telescopic speakerpole
– 0,735 to 1,23 m – diameter 35 mm
– weight 2,2 kg – max. load 50 kg
– bottom terminal M20
– matte black
Downloads
Speaker pole – universal SKP
Speaker pole – universal SketchUp
Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26
Gallery
Product code
KVV 987 090
Description
– including bolts – black
Downloads
Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG
Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG
Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP
Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp
System Acoustic Performance
| Max SPL Long-term | 126dB |
| Max SPL Peak | 132dB |
| -3dB Response | 65Hz to 20kHz |
| -10dB Response | 55Hz to 28kHz |
| Crossover Point | 1.6kHz |
High Frequency Section
| Acoustic Design | Horn Loaded |
| Horn Coverage Horizontal / Vertical | 100° x 80° |
| Rotatable Horn | YES |
| Throat Exit Diameter / Diaphragm Size | 1″ / 1.75″ |
| Diaphragm Material | Titanium |
| Magnet Type | Neodymium |
High Frequency Amplifier Specification
| Type | Class AB Push-Pull |
| Rated Continuous Power | 50W |
| Distortion | <0.05% |
| Operating Bandwidth | 1.6kHz to 28kHz |
Low Frequency Section
| Acoustic Design | Front Loaded, Bass Reflex |
| Woofer Size / Voice Coil Diameter | 10″ / 2.5″ / Trans Coil |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium |
Low Frequency Amplifier Specification
| Type | High efficiency, Current-Enhancing, Switched-Rail Amplifier |
| Rated Continuous Power | 450W |
| Distortion | <0.05% |
| Operating Bandwidth | 55Hz to 1.6kHz |
Signal Input
| Input Sensitivity | 0.775V RMS |
| Input Impedance | 20 kΩ |
Power Requirements
| Power Connector | Neutrik PowerCon® |
| Operating Voltage Range | 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz |
| Recommended Amperage | 6A 115V | 3A 230V | 3A 250V |
Cabinet
| Cabinet Material | Baltic birch |
| Handles | 1 |
| Pole Mount | 3 5mm |
| Color | “Orange peeled” Matt Black or any RAL |
Physical Dimensions
| Height | 514 mm (20.23″) |
| Width | 310 mm (12.20″) |
| Depth | 326 mm (12.83″) |
| Weight | 20.5 kg (45.2lbs) |
Product code
- KVV 987 097 – EX10 250V
- KVV 987 011 – EX10 230V
- KVV 987 012 – EX10 115V
Disarray – The correct theory of arraying KV2 boxes
Disarray – The correct theory of arraying KV2 boxes
