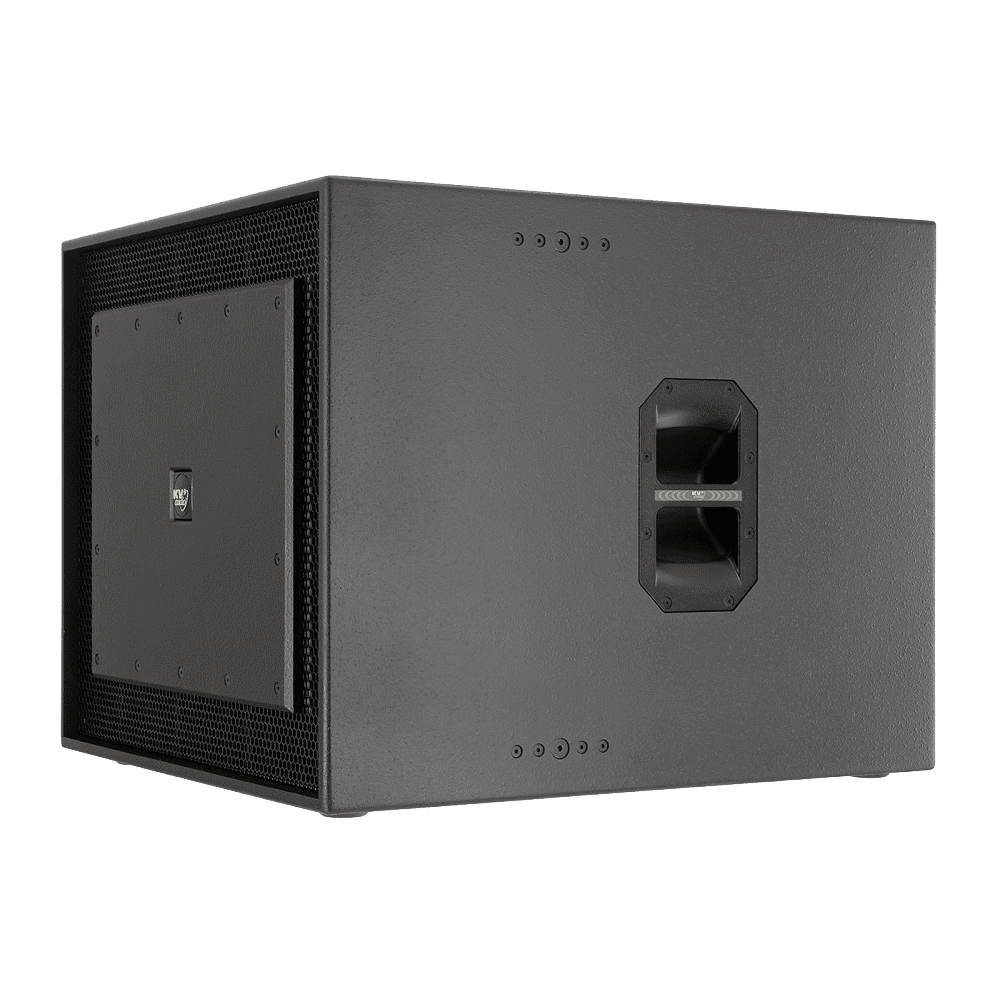

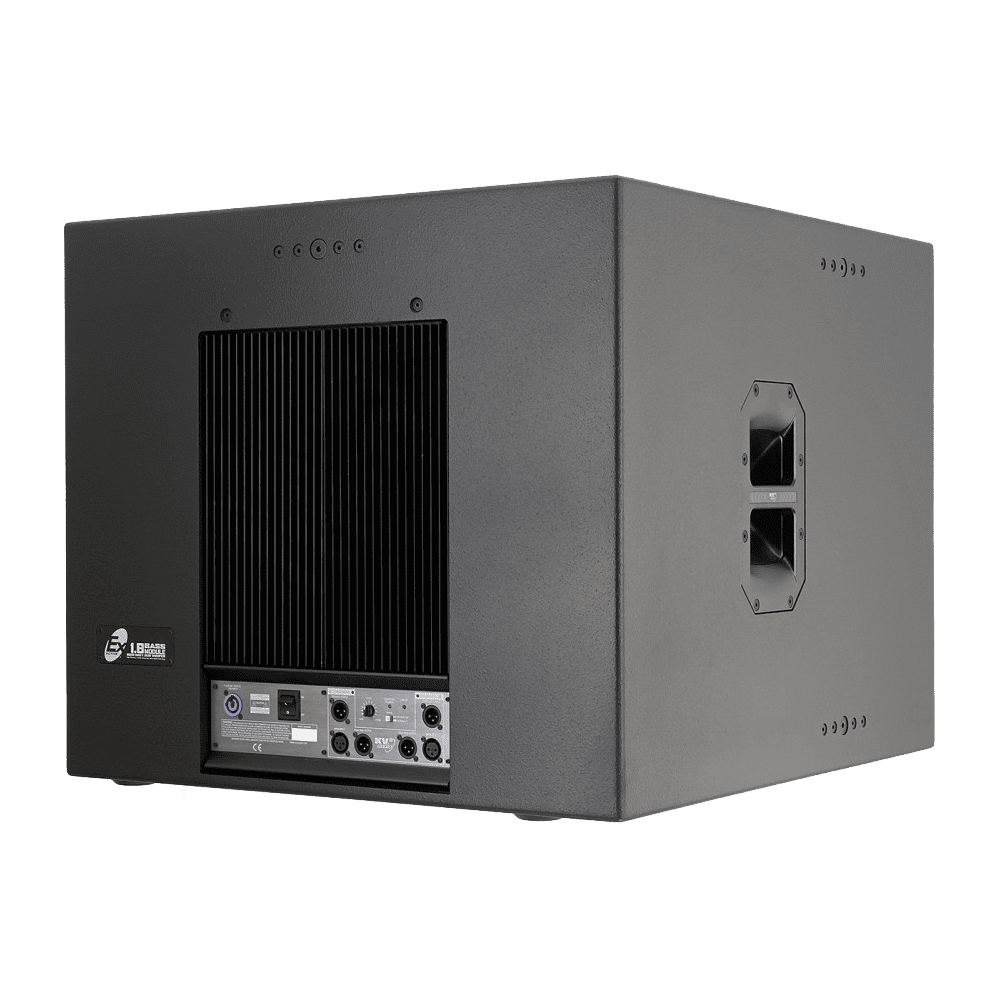

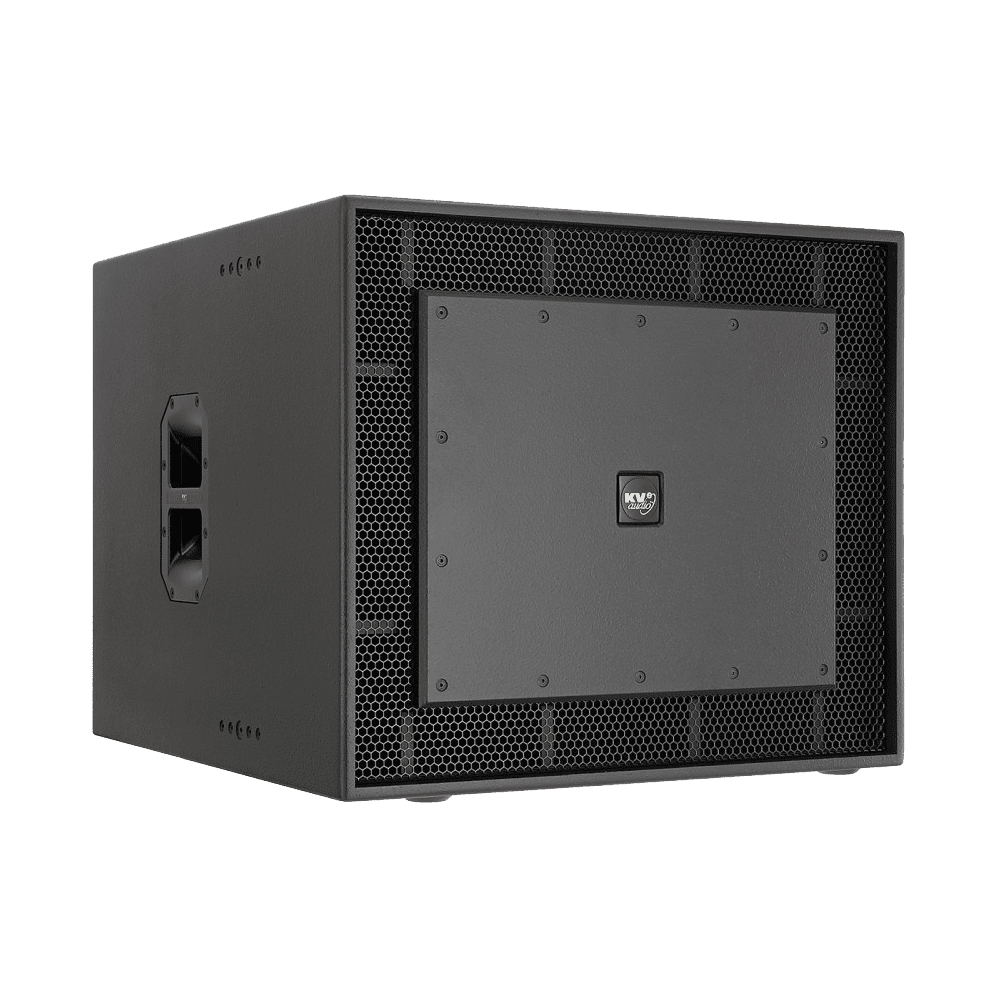

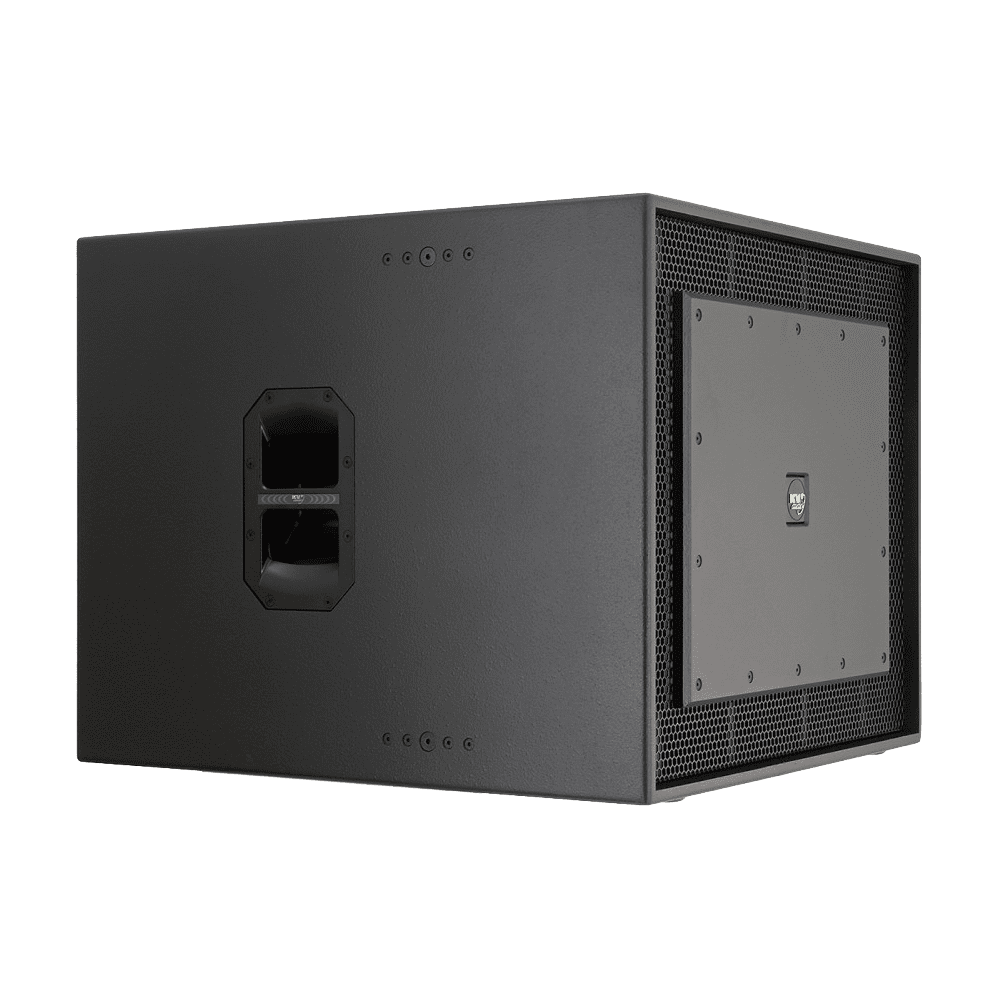

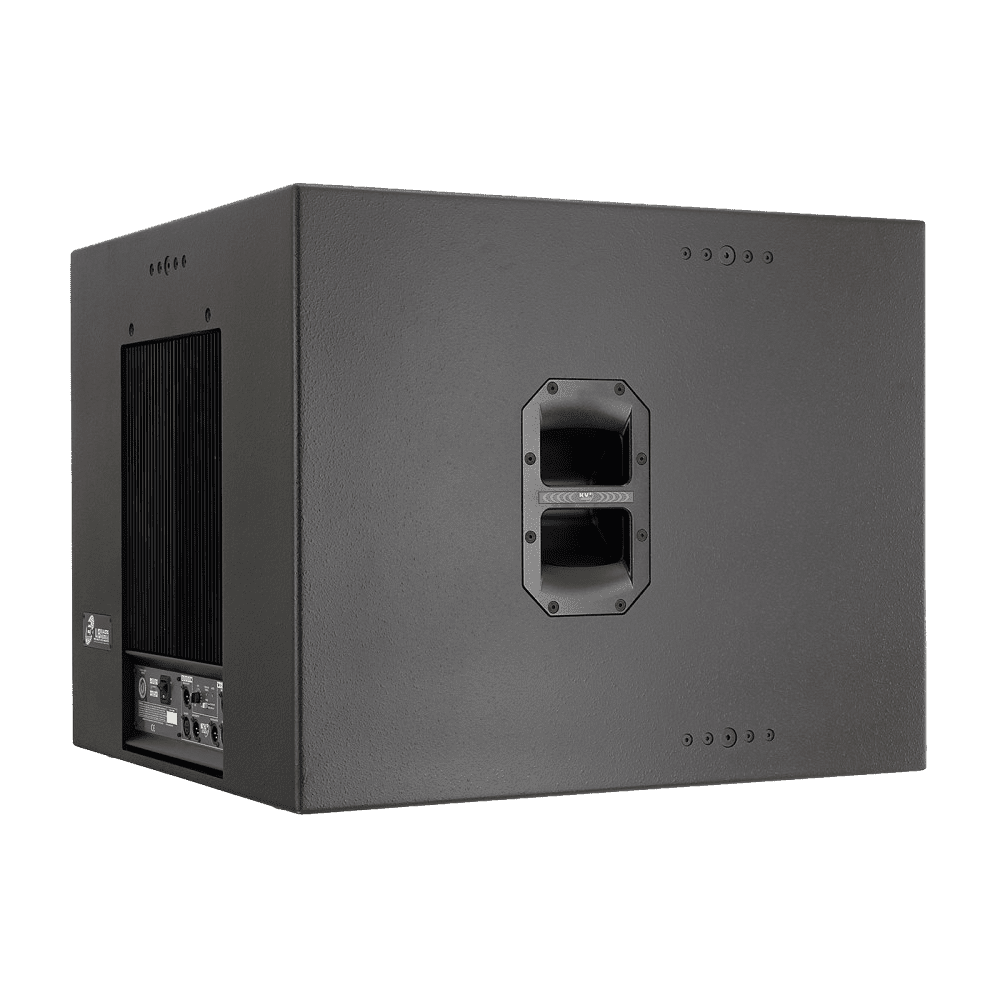

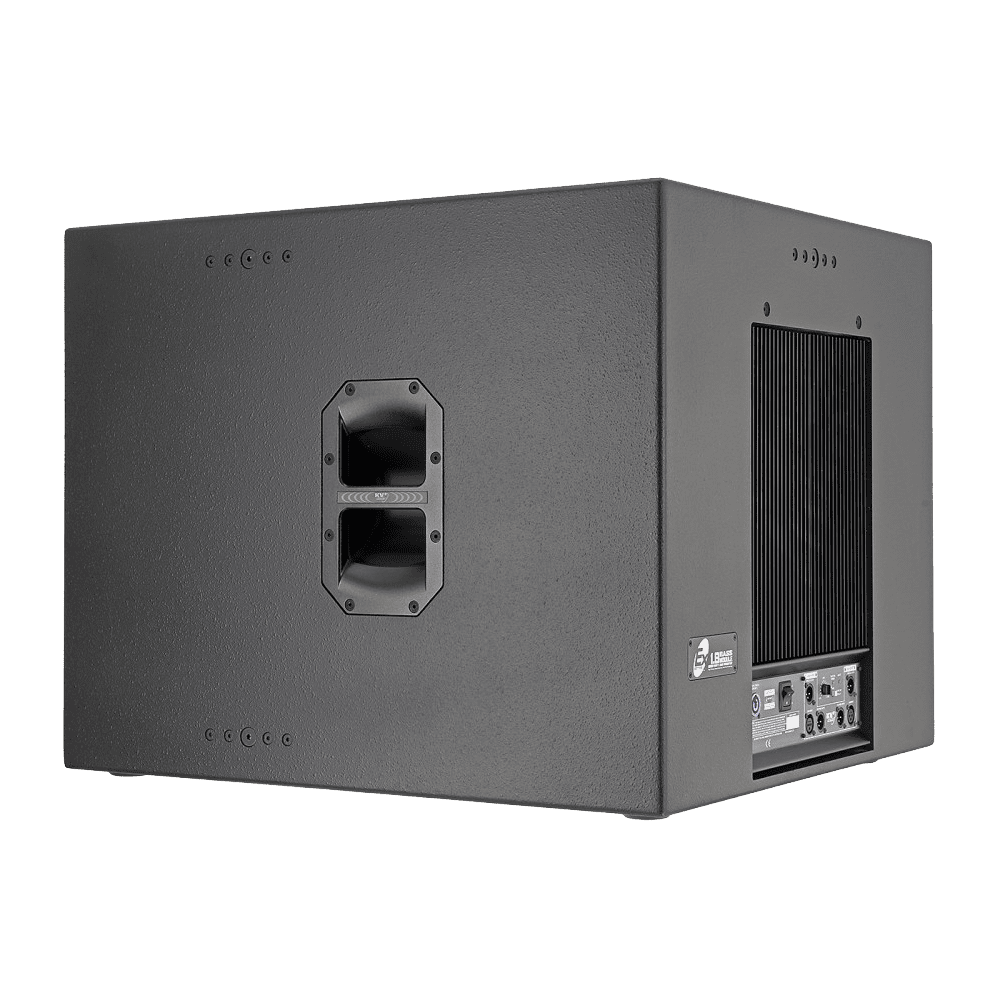

EX1.8 – Active subwoofer system

KV2AUDIO
SKU: EX1.8

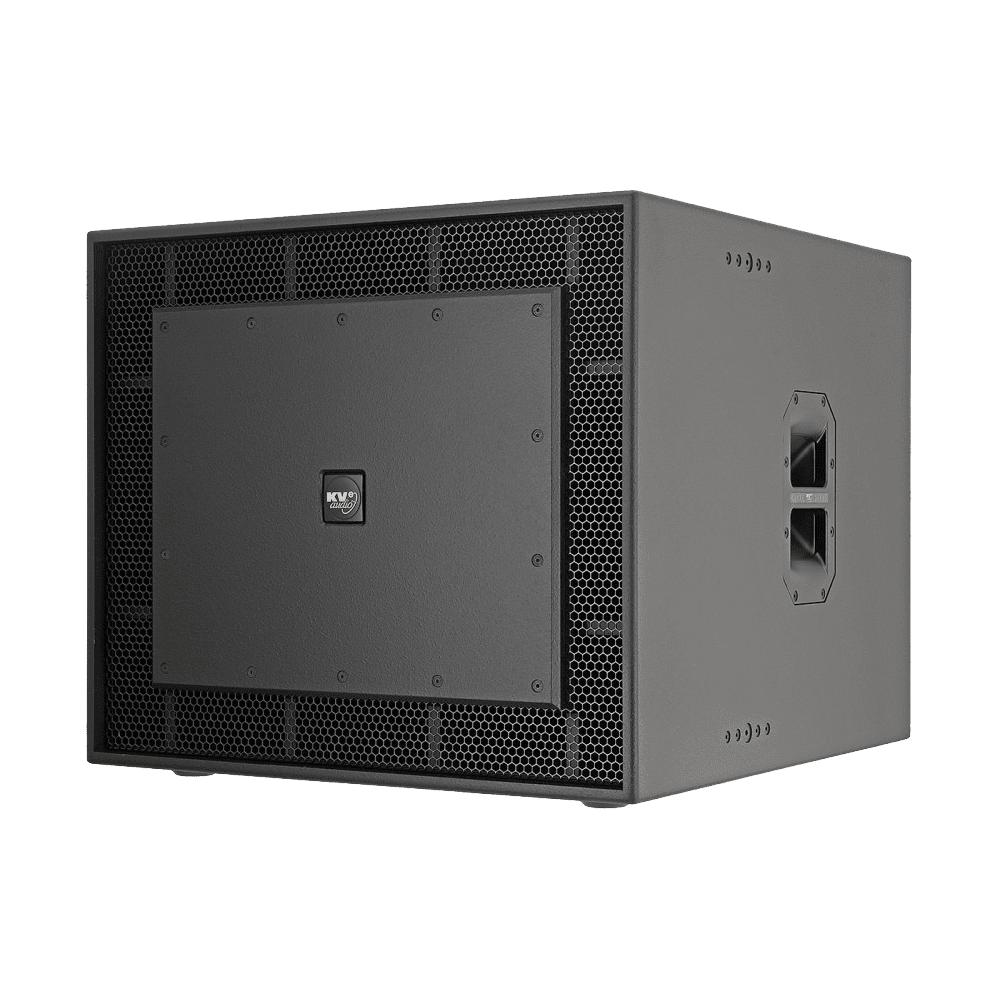

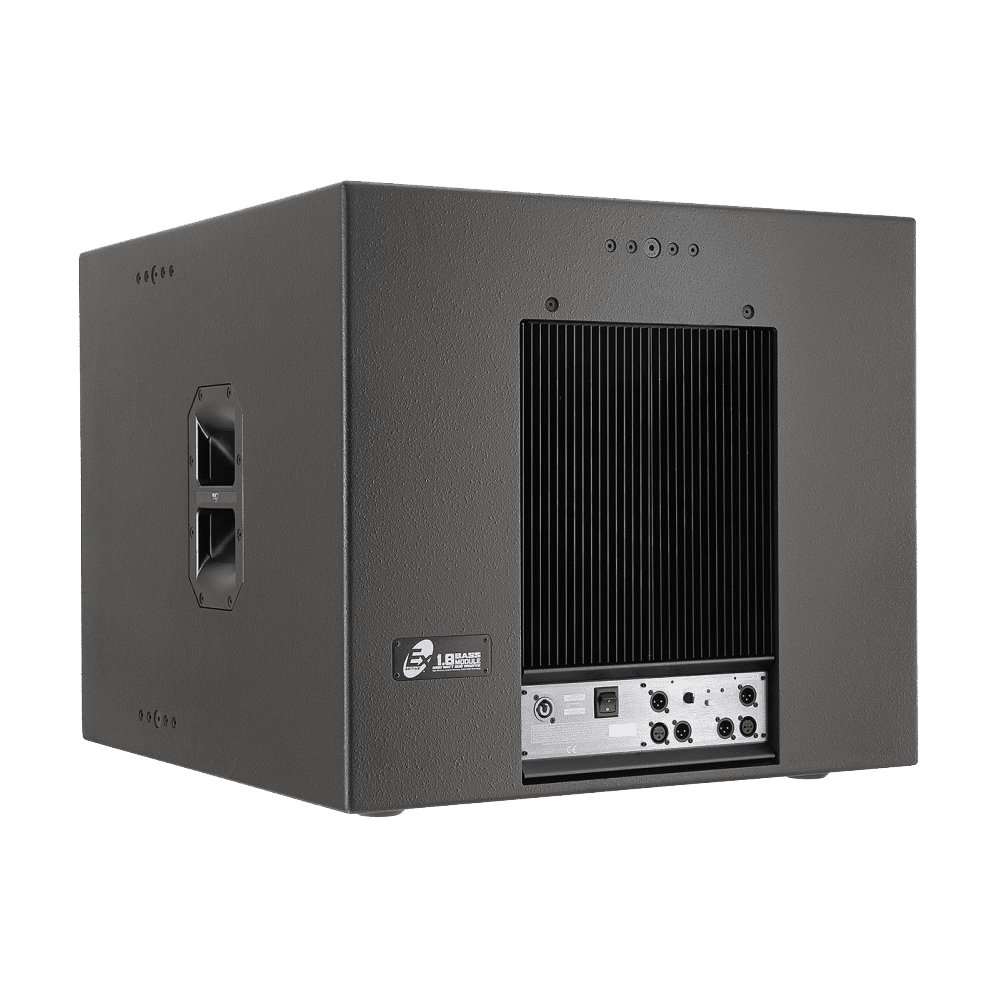

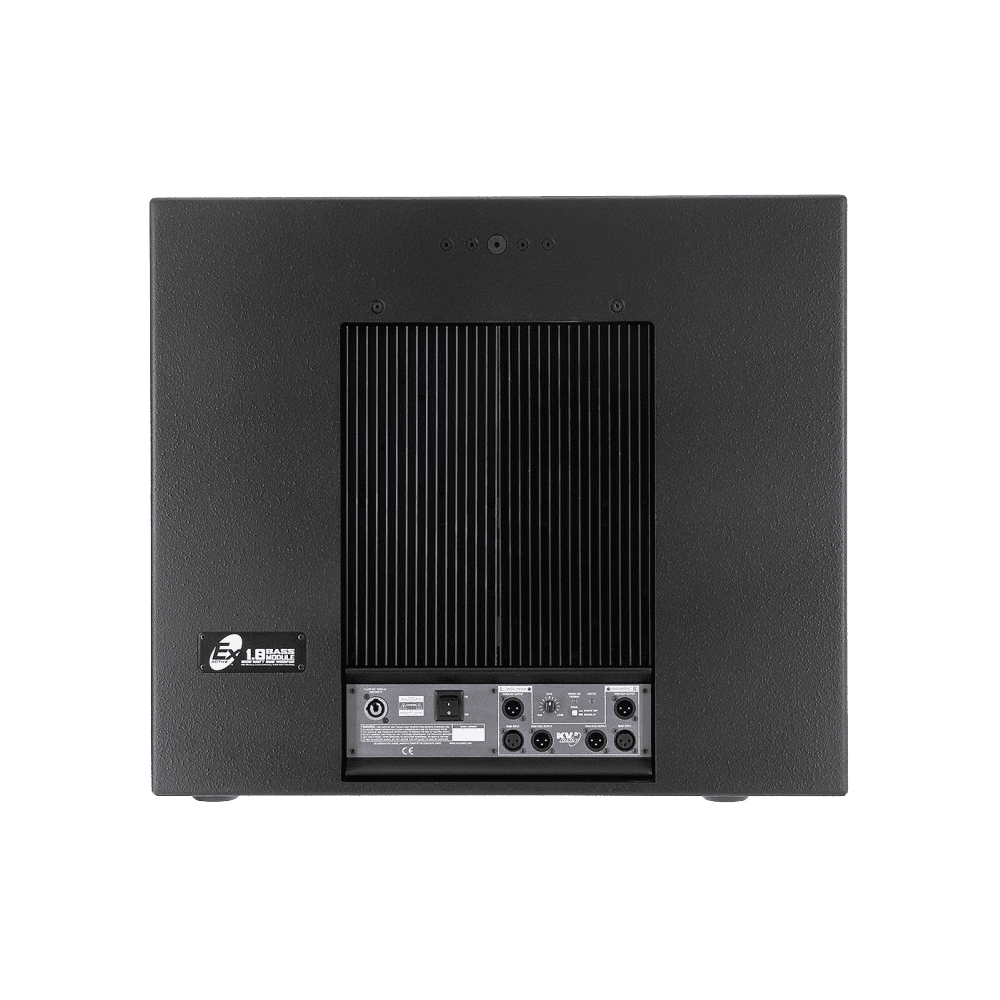

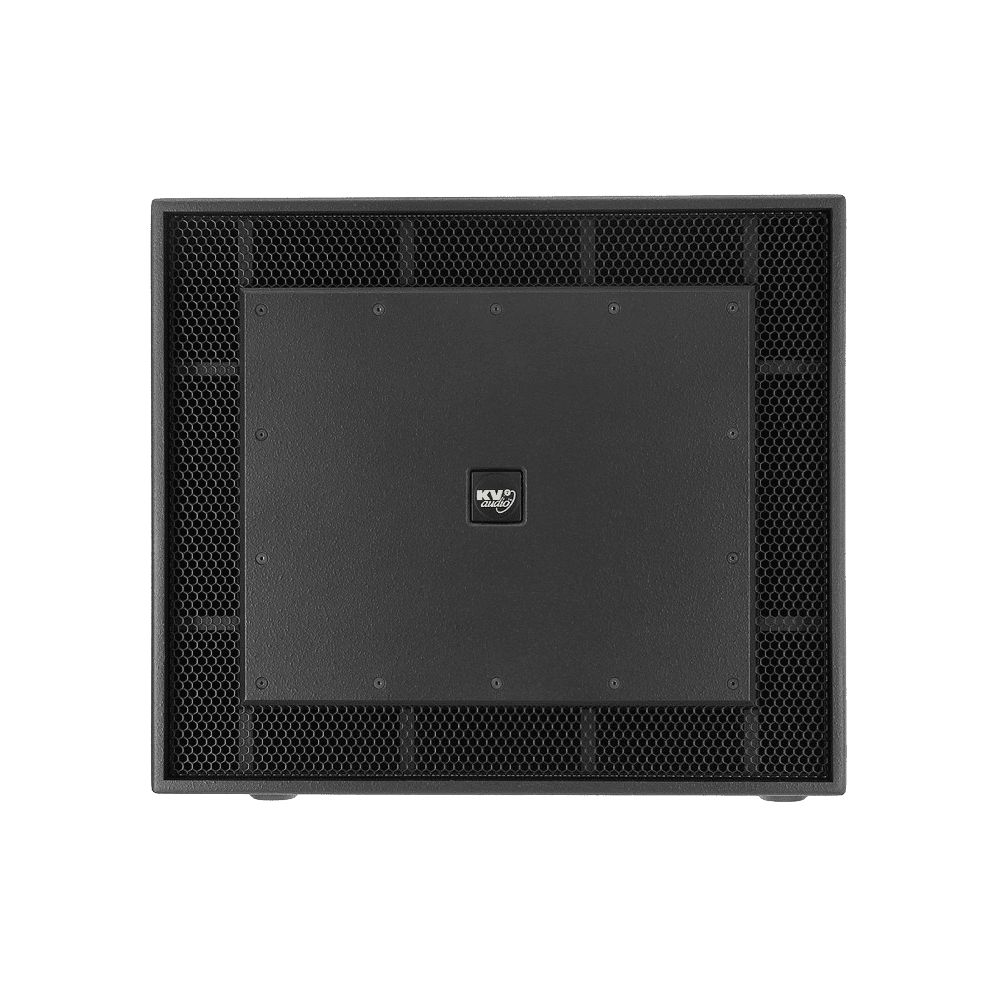

The EX1.8 is a high output single 18″ subwoofer housing a revolutionary VHD technology neodymium woofer. The EX1.8 features an impressive 1000 watts of power courtesy of KV2 Audio’s switching amplifier technology and provides a very firm foundation on which to build a powerful EX system, or as a standalone subwoofer for any existing system.

Applications

Specifically designed to accompany any of the EX range as a true full range option

  • High powered portable PA
  • Fixed installations
  • Scalable into larger systems

Product code

  • KVV 987 223 – EX1.8 250V
  • KVV 987 007 – EX1.8 230V
  • KVV 987 008 – EX1.8 115V


    Consultar precios

    Descripción

    The EX1.8 is a high output single 18″ subwoofer housing a revolutionary VHD technology neodymium woofer. The EX1.8 features an impressive 1000 watts of power courtesy of KV2 Audio’s switching amplifier technology and provides a very firm foundation on which to build a powerful EX system, or as a standalone subwoofer for any existing system.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 131dB sustained output, 134dB peak
    • 1000W high efficiency, current-enhancing, switching, low frequency amplifier
    • Complete on board subwoofer management including equalization, crossover filters, amplifier overdrive protection, output level and phase controls
    • Excellent reproduction of bass frequencies with high transient content at high output levels
    • Stereo or Mono inputs with through signal outputs and 120Hz High Pass outputs 18″ high output, low frequency woofer driver with 4″ (100 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structure

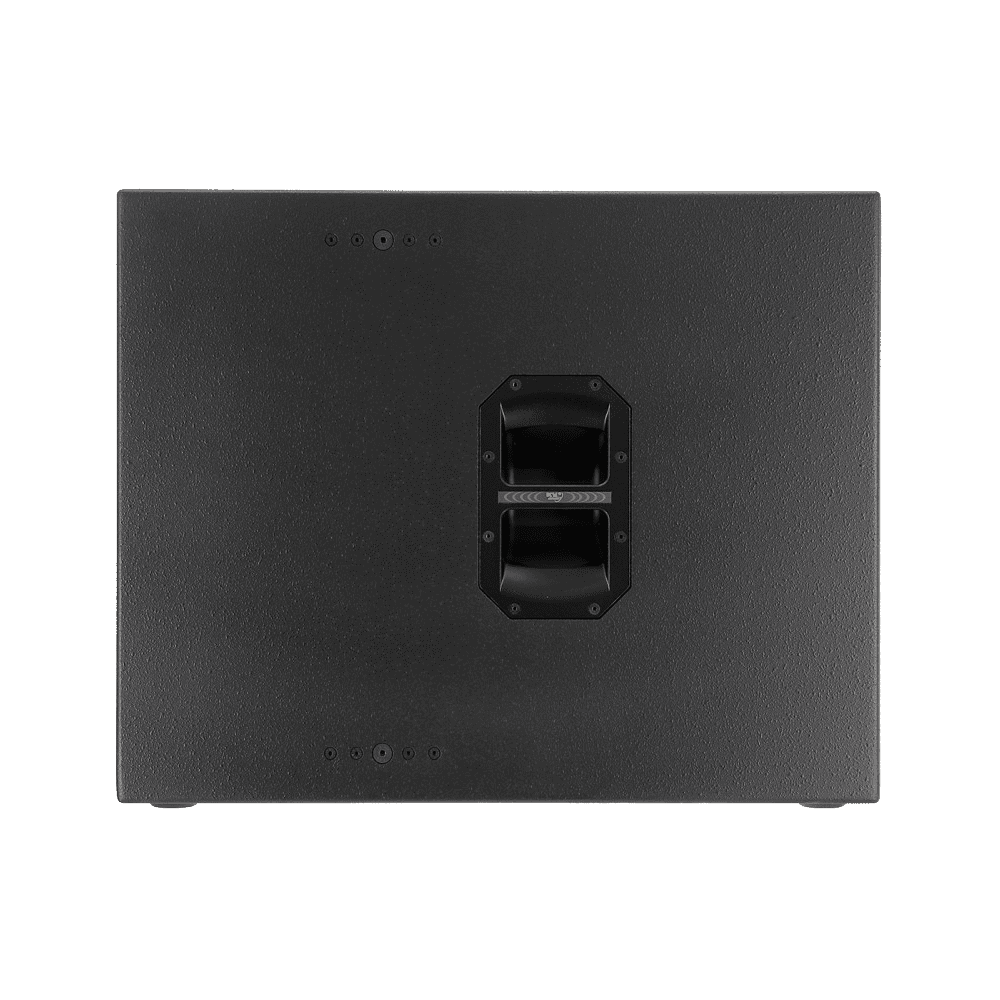

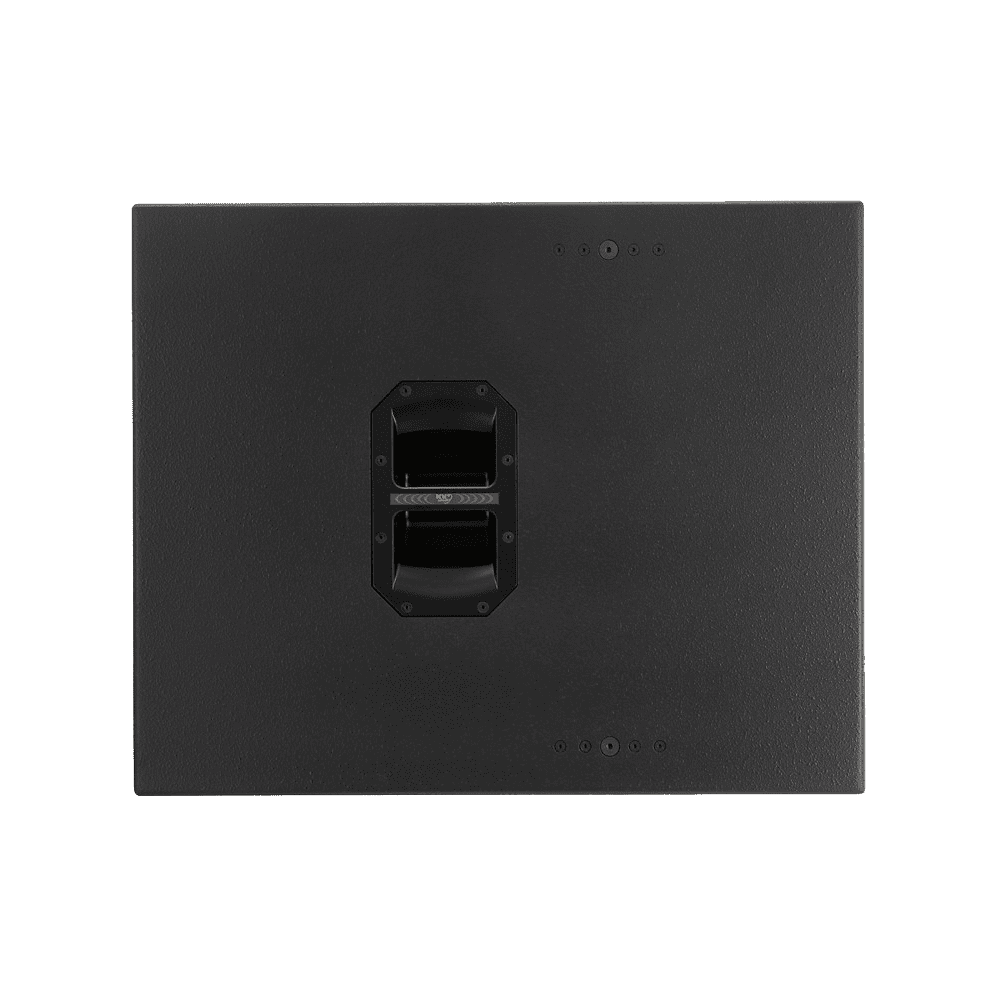

    • Two recessed side handles for simplified handling and carrying
    • Acetyl copolymer, high impact, low friction feet are located on two sides allowing lock-in and easy cabinet movement
    • Five internal corner braces with four M10 suspension points
    • M20 top hat for pole mounting applications
    • LED indicators for signal present, limiter, thermal condition and power ON status


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed to accompany any of the EX range as a true full range option

    • High powered portable PA
    • Fixed installations
    • Scalable into larger systems

    Product code

    • KVV 987 223 – EX1.8 250V
    • KVV 987 007 – EX1.8 230V
    • KVV 987 008 – EX1.8 115V


    Accesories


    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels

    Gallery

    Product code

    KVV 987 031



    Description

    – with bolts nuts kit – 4 pcs in pack, rotating, blue
    – 16x M8x 25mm Screw Countersunk Hexagon Socket Head
    – 16x Nut Hexagon with blue plastic insert M8



    Downloads

    DWG

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG

    SKP

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP

    ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp

    EX1.8 – Front mount magnetic cart

    Gallery

    Product code

    KVV 987 230



    Description

    – wheels not included



    Downloads

    DWG

    EX1.8 Cart 3D DWG

    EX1.8 Cart 3D DWG

    SKP

    EX1.8 Cart SKP

    EX1.8 Cart SketchUp

    EX1.8 Heavy duty cover

    Gallery

    Product code

    KVV 987 258



    Description

    – durable material



    EX1.8 Cover with cart

    Gallery

    Product code

    KVV 987 257



    Description

    – used with cart CRT – 0011 – heavy duty



    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    System Acoustic Performance

    Max SPL Long-term 131dB
    Max SPL Peak 137dB
    -3dB Response 30Hz to 125Hz
    -10dB Response 27Hz to 125Hz
    Crossover Point 125Hz

    Low Frequency Section

    Acoustic Design Asymmetrical Bandpass
    Woofer Size / Voice Coil Diameter 18″ / 4″ / Inside outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Low Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 1000W
    Distortion <0.05%

    Signal Input

    Input Channels 2
    Input Sensitivity 1.0V RMS
    Input Impedance 20 kΩ

    Signal Output

    Signal Output Channels Mid/High, Through

    Features

    Input Level Control -6 – +6dB
    Phase 0° / 180°
    RMS Limiter YES
    Indicators Power ON/Thermal, Limiter

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
    Recommended Amperage 10A 115V | 5A 230V | 5A 250V

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Pole Mount M20
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 612 mm (24.1″)
    Width 700 mm (27.56″)
    Depth 750 mm (29.52″)
    Weight 65 kg (143.3lbs)


    Product code

    • KVV 987 223 – EX1.8 250V
    • KVV 987 007 – EX1.8 230V
    • KVV 987 008 – EX1.8 115V
