EX1.5 – Active subwoofer system

KV2AUDIO
SKU: EX1.5

The EX1.5 is a compact active subwoofer system featuring a single 15” neodymium woofer and a 500-watt high efficiency power amplifier. Offering a peak SPL in excess of 130dB, the EX1.5 produces considerable output, yet in true KV2 style retains a small footprint. A great all round subwoofer that will compliment any speaker system with tight and dynamic bass. Designed to be both robust and easily transported, the EX1.5 sets the standard in active single 15” subwoofers.

Product code

KVV 987 264 – EX1.5 (230V)
KVV 987 265 – EX1.5 (115V)



    Consultar precios

    Descripción

    The EX1.5 is a compact active subwoofer system featuring a single 15” neodymium woofer and a 500-watt high efficiency power amplifier. Offering a peak SPL in excess of 130dB, the EX1.5 produces considerable output, yet in true KV2 style retains a small footprint. A great all round subwoofer that will compliment any speaker system with tight and dynamic bass. Designed to be both robust and easily transported, the EX1.5 sets the standard in active single 15” subwoofers.

    Features

    • Single 15” neodymium woofer
    • 500-watt high efficiency power amplifier
    • Peak SPL in excess of 130dB
    • Small and compact footprint
    • Designed to be both robust and easily transported


    Product code

    KVV 987 264 – EX1.5 (230V)
    KVV 987 265 – EX1.5 (115V)



    Accesories


    EX1.5 Padded Cover

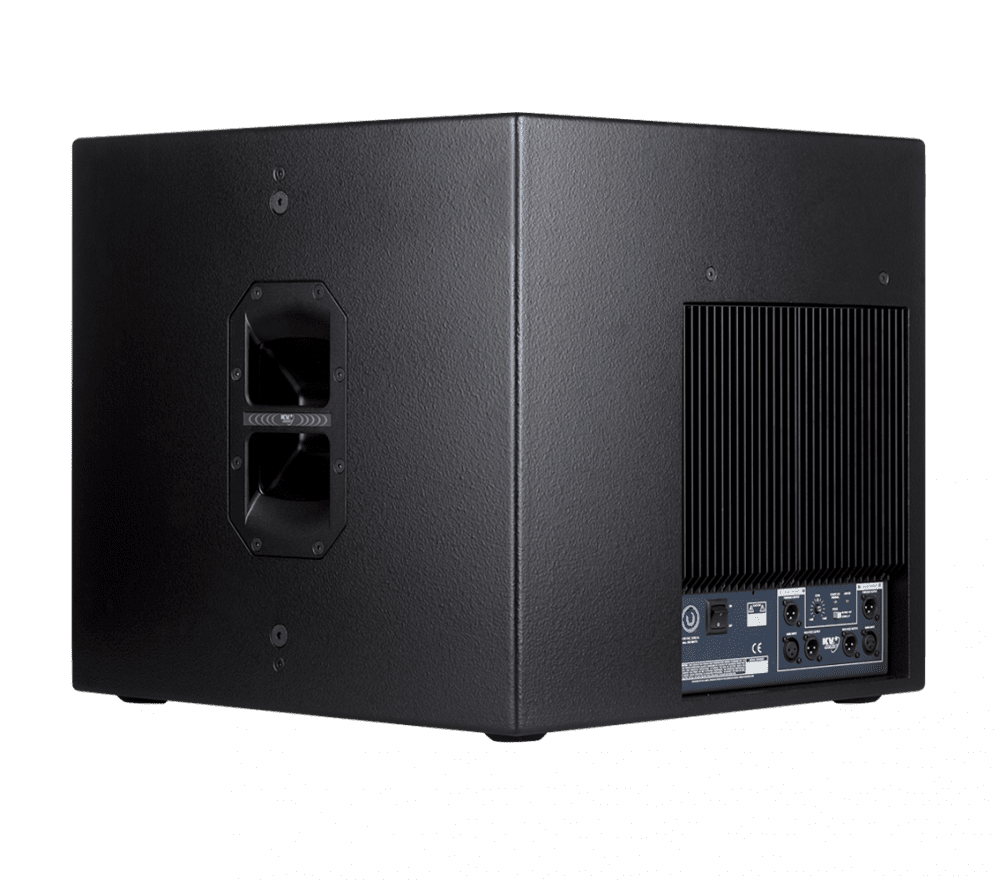

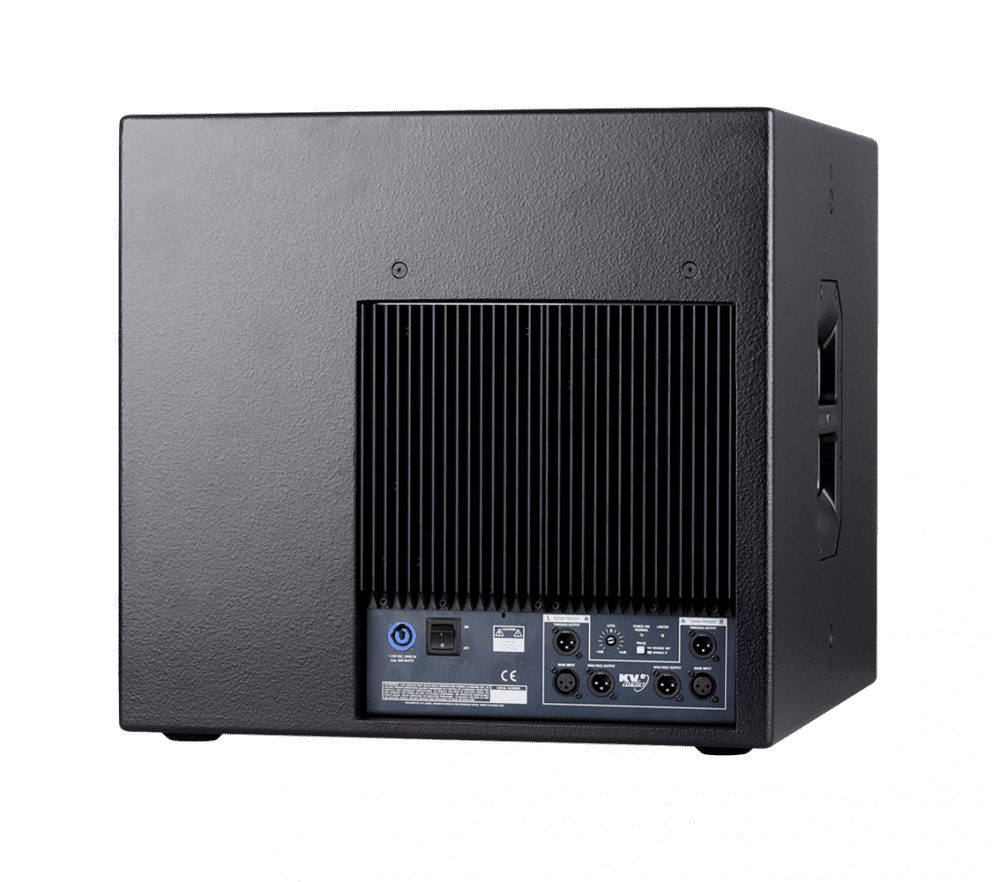

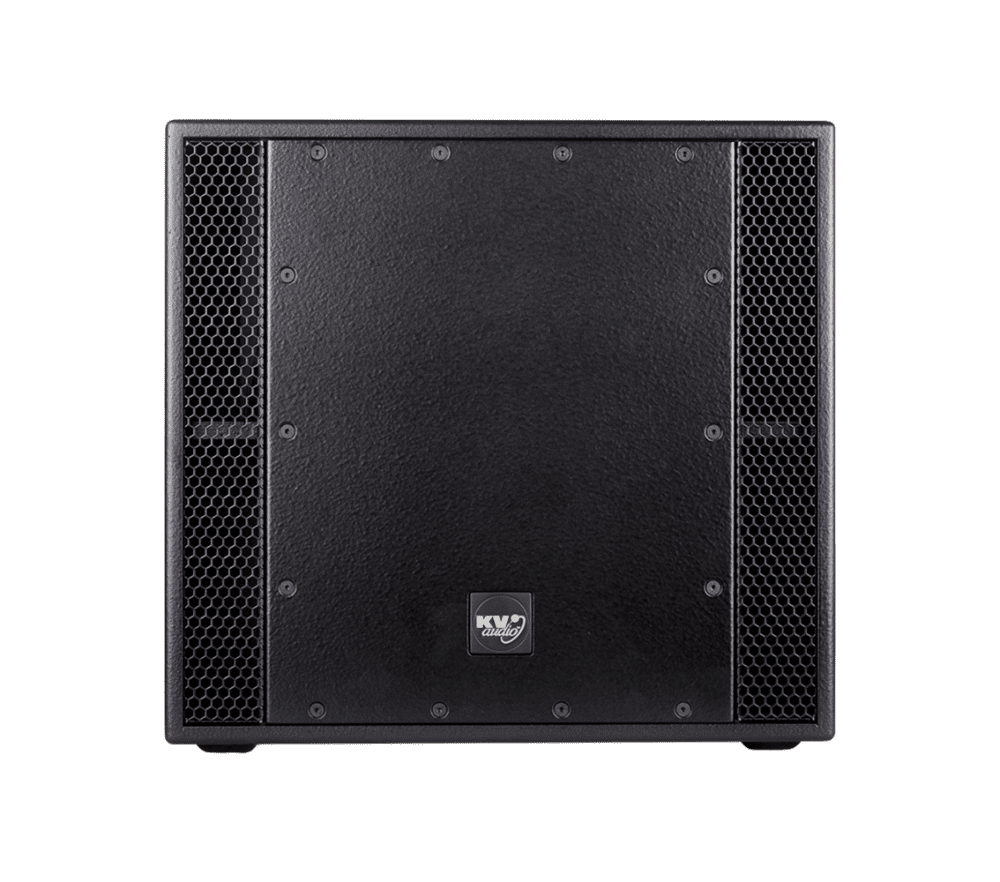

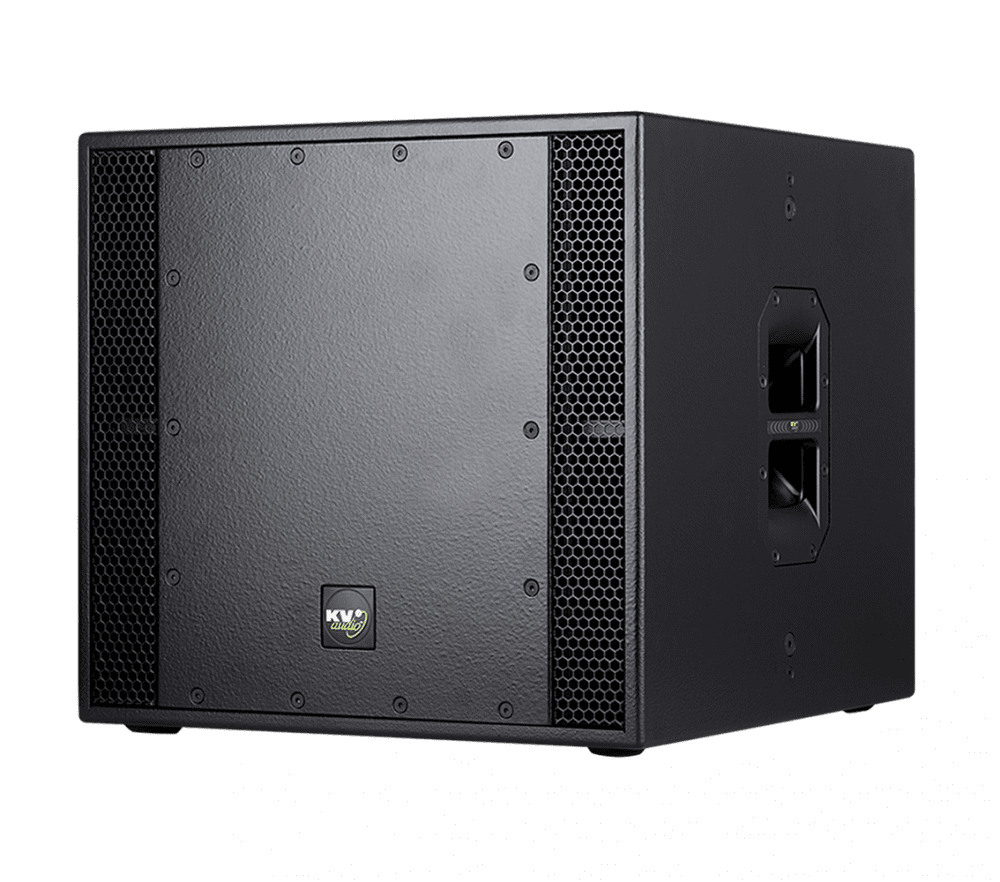

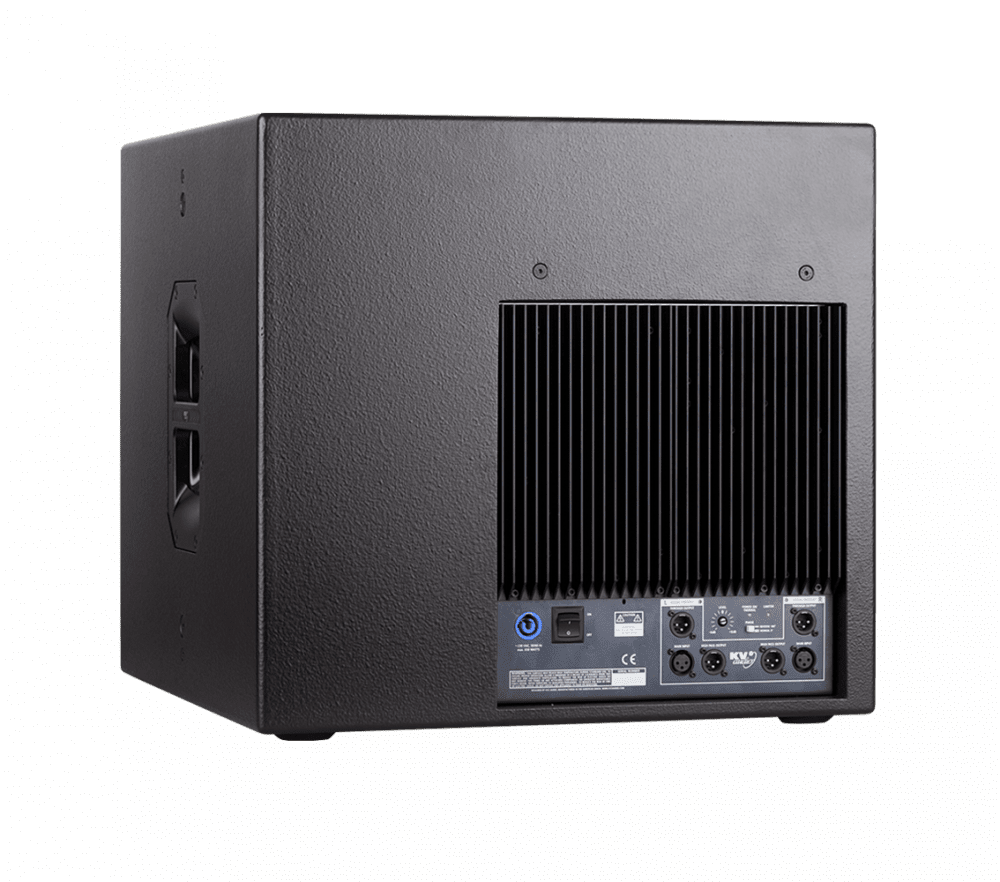

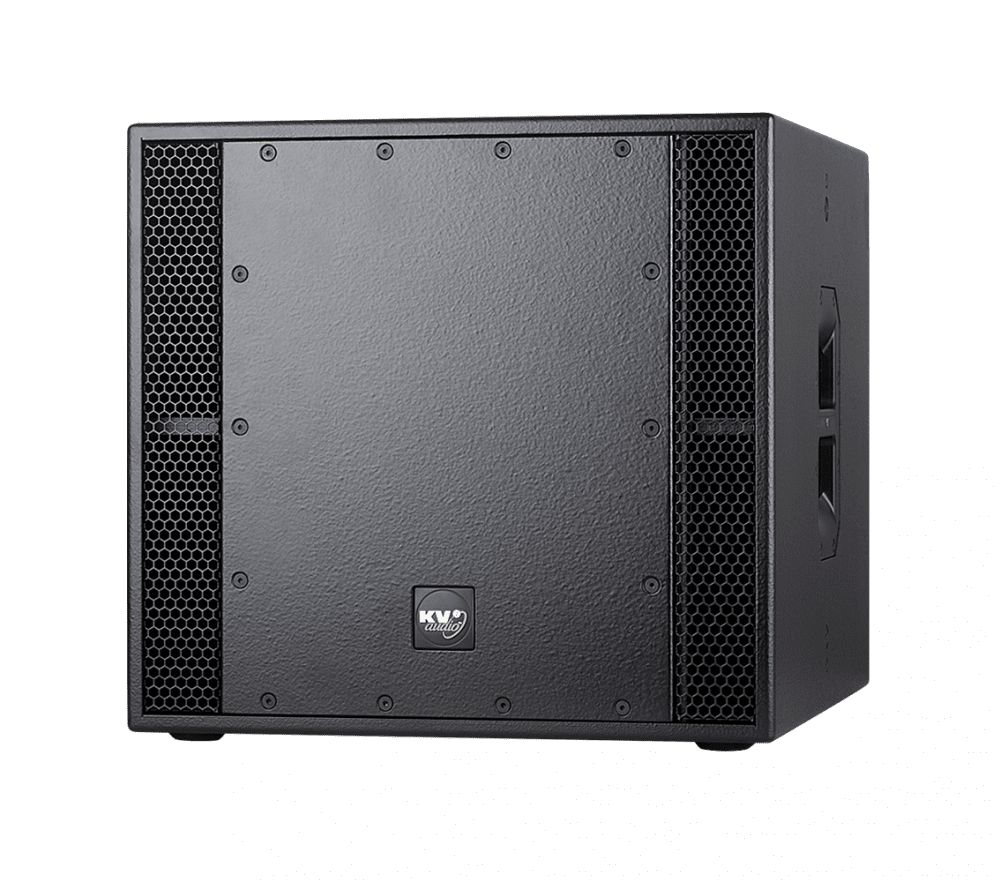

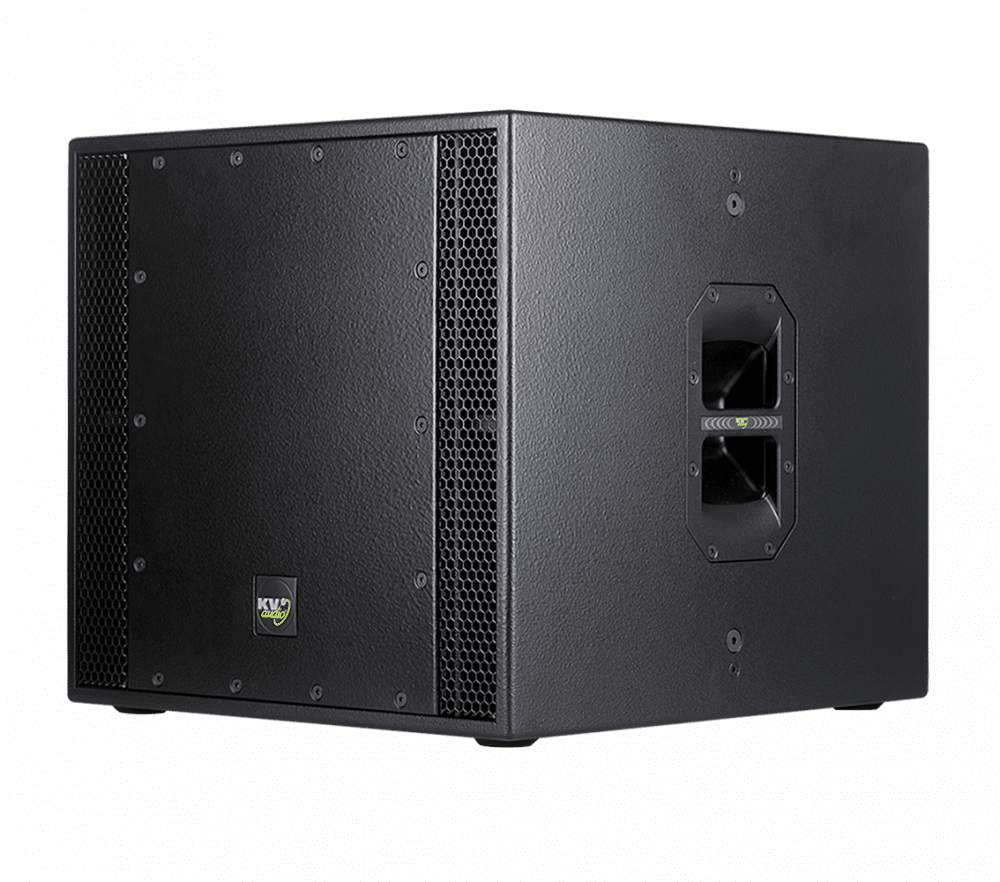

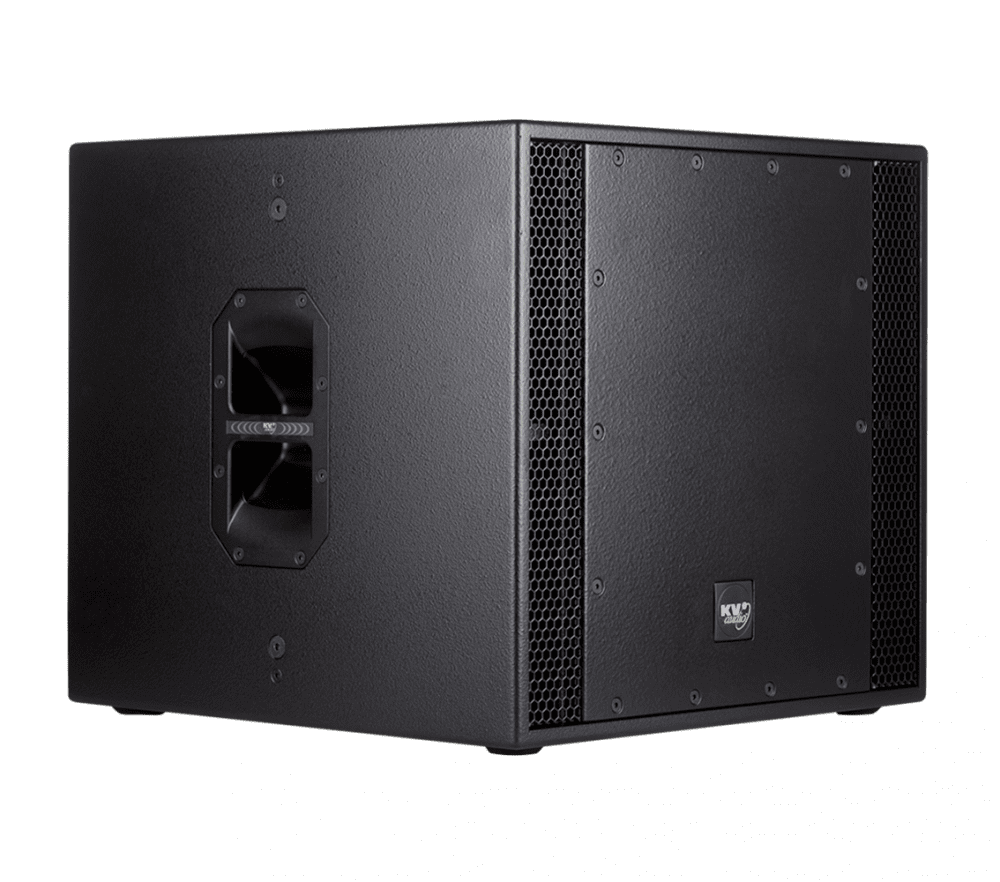

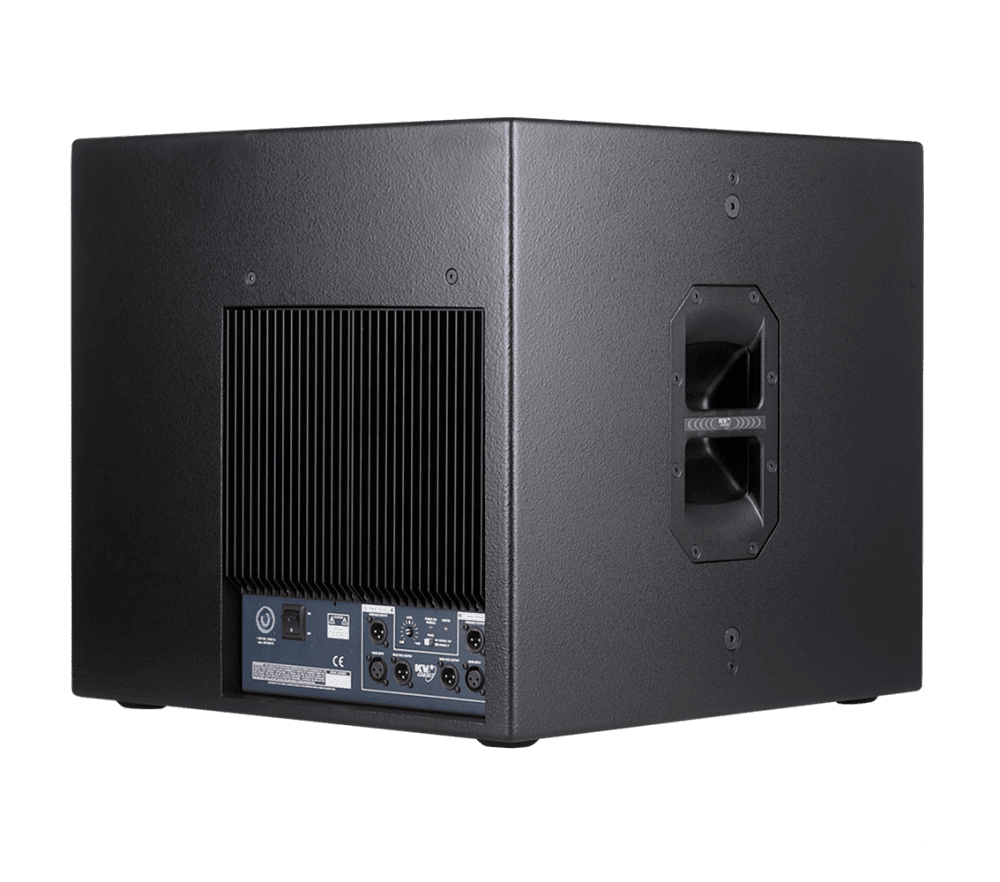

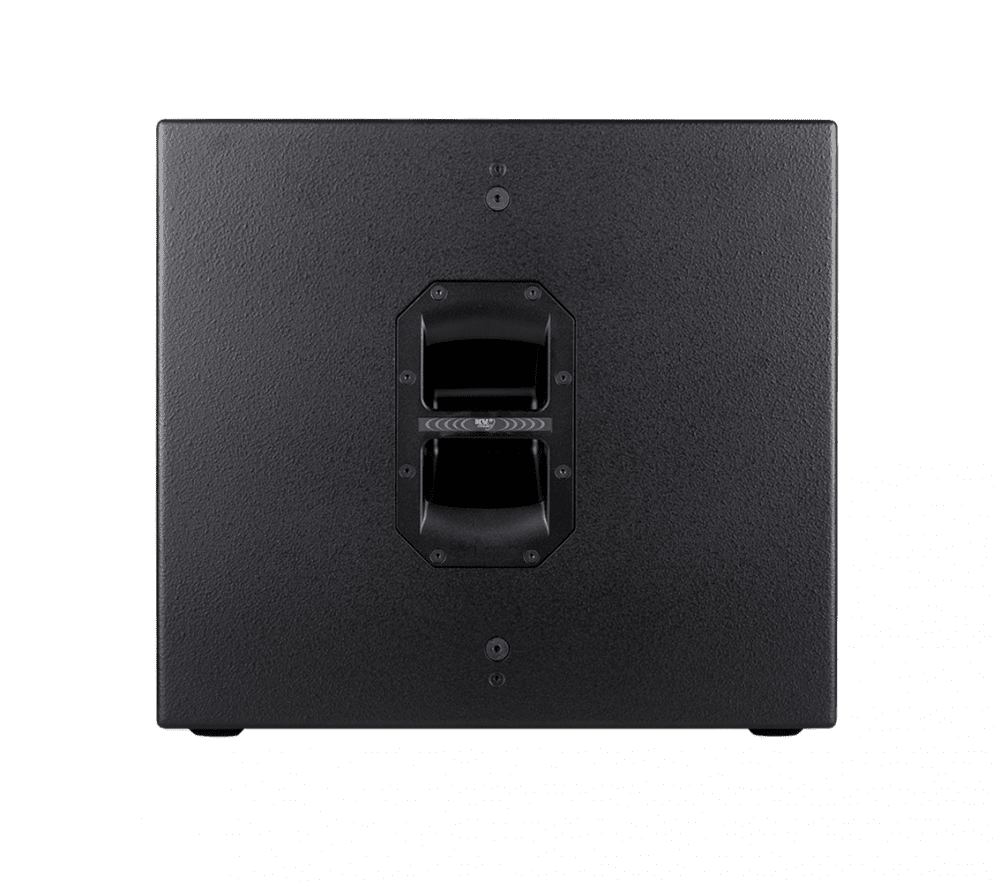

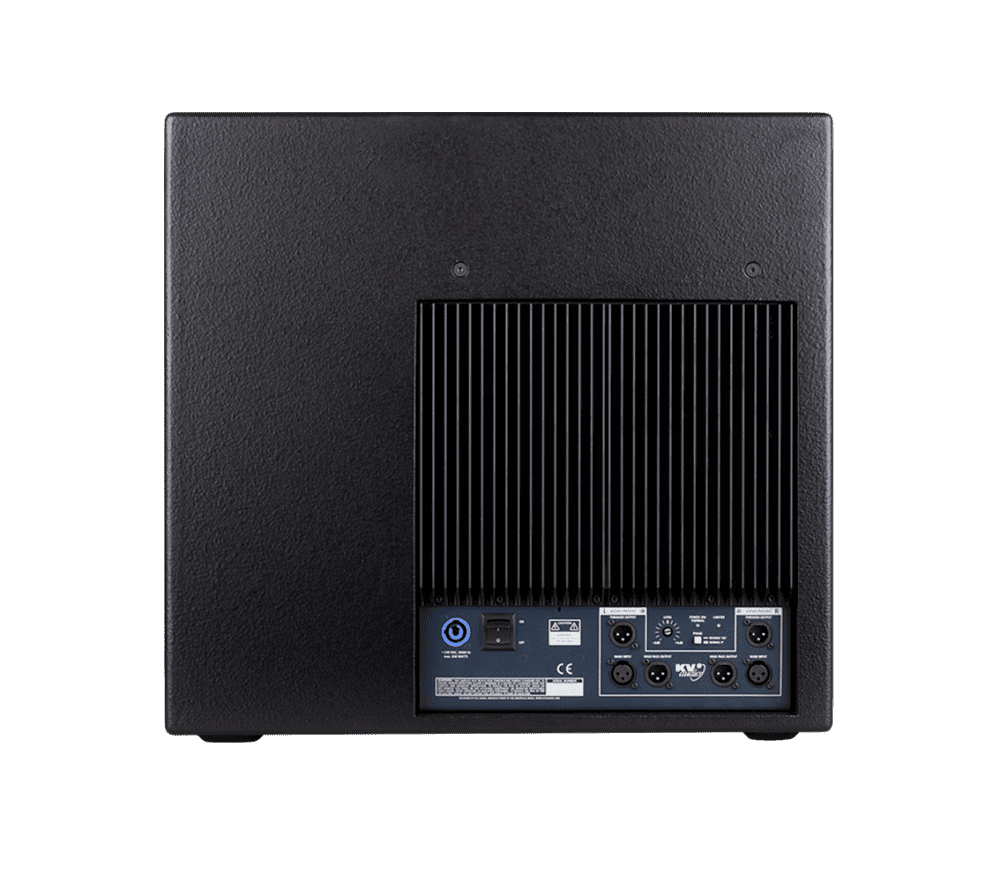

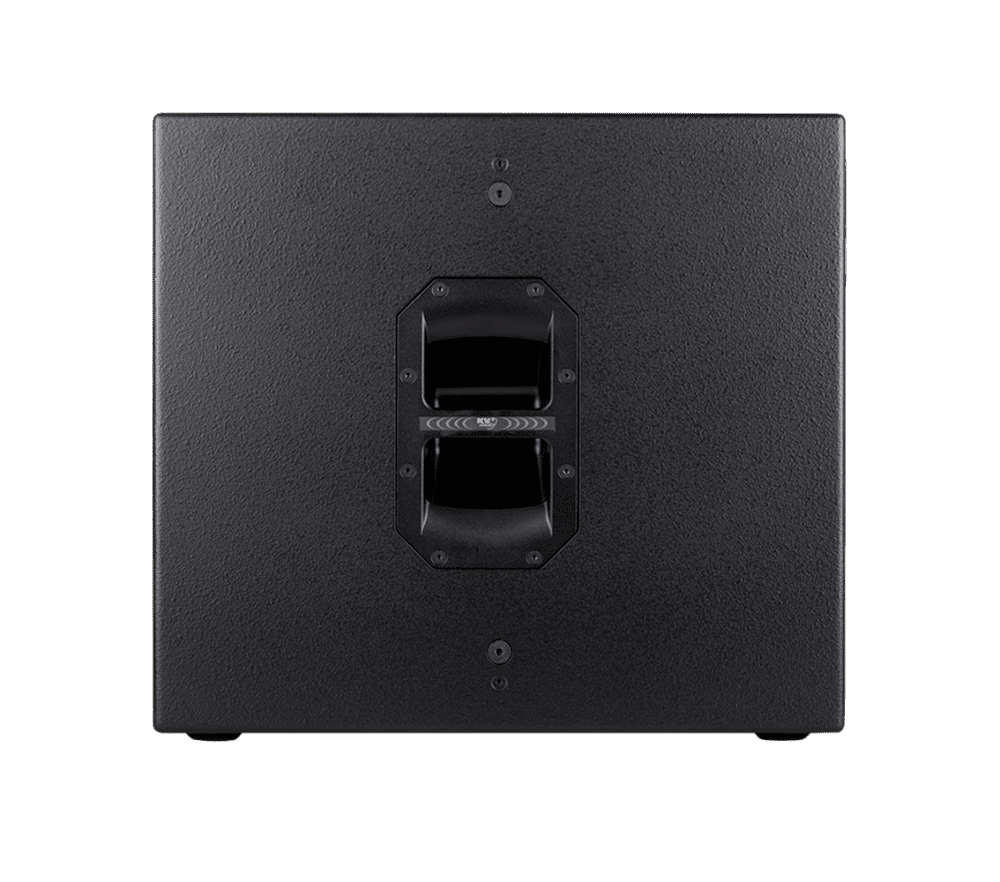

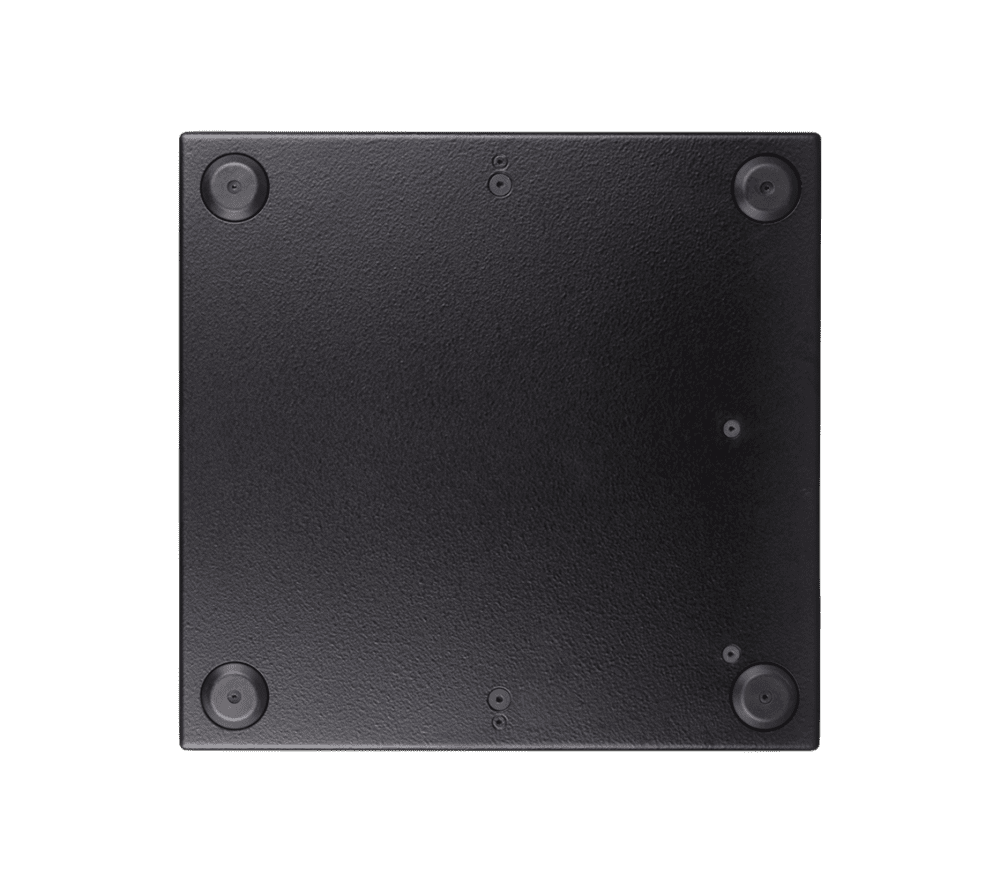

    Gallery

    Product code

    KVV 987 479



    Description

    Padded cover for EX1.5



    System Acoustic Performance

    Max SPL Long-term 127dB
    Max SPL Peak 133dB
    -3dB Response 38Hz – 120Hz
    -10dB Response 34Hz – 120Hz
    Crossover Point 120Hz

    Low Frequency Section

    Acoustic Design Twin Asymmetrical loading
    Woofer Size / Voice Coil Diameter 15″ / 3″ / Inside Outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium
    Protection RMS Limiter

    Low Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 500W
    Distortion <0.05%

    Signal Input

    Input Sensitivity 1.0V RMS
    Input Impedance 20 kΩ

    Cabinet

    Cabinet Material Baltic Birch
    Handles 2

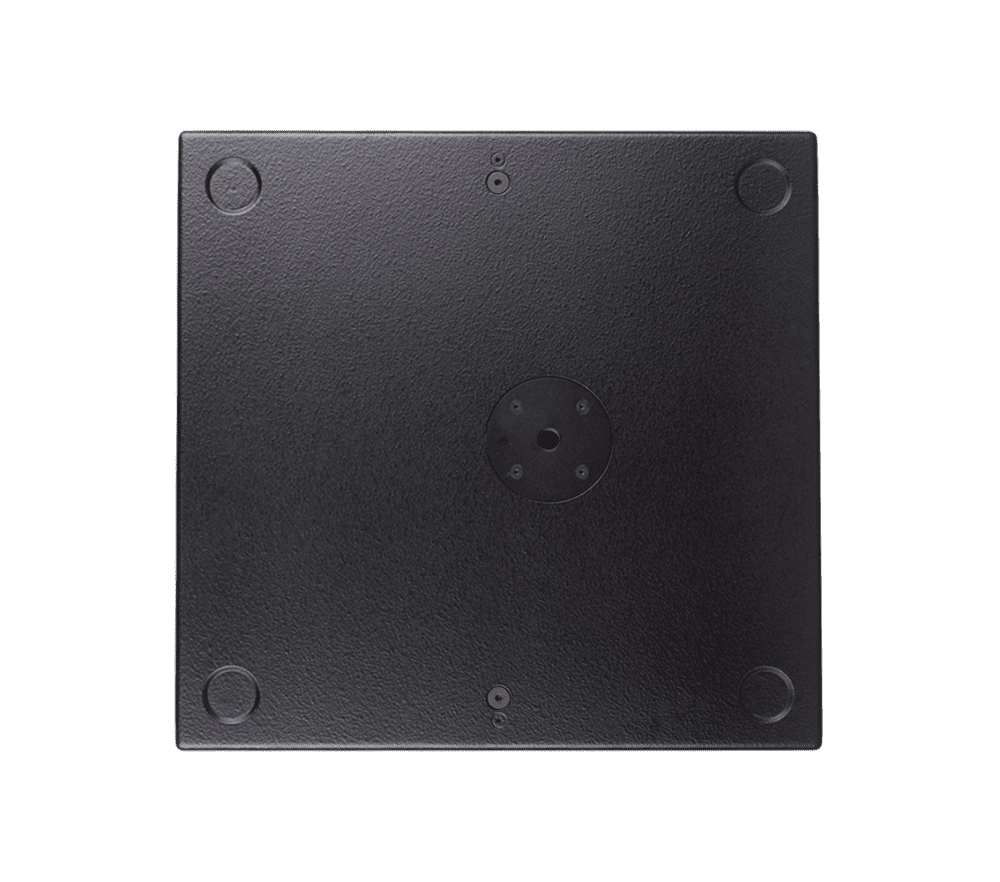

    Pole Mount M20
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 510 mm (20.08″)
    Width 550 mm (21.65″)
    Depth 570 mm (22.44″)
    Weight 40.6 kg (89.5lbs)


    Product code

    KVV 987 264 – EX1.5 (230V)
    KVV 987 265 – EX1.5 (115V)


    PDF

    EX Subwoofers User Guide

    EX Subwoofers User Guide – English



    PDF

    EX1.5 Download Product’s Data Sheet

    Download Product’s Data Sheet


    SKP

    EX1.5 230V SKP

    EX1.5 230V SketchUp



    DWG

    EX1.5 115V 3D DWG

    EX1.5 115V 3D DWG



    SKP

    EX1.5 115V SKP

    EX1.5 115V SketchUp



    SKP

    EX Series SketchUp

    EX Series SketchUp



    DWG

    EX1.5 2D DWG

    EX1.5 2D DWG



    DWG

    EX1.5 – 3D

    1:1 scale – clamping points – weight – dwg file



    PDF

    EX1.5 – 2D

    EX1.5 2D Drawings



    DWG

    EX1.5 230V 3D DWG

    EX1.5 230V 3D DWG



    GLL

    EX1.5 EASE Focus

    EX1.5 EASE Focus
