EX1.2MkII – Active subwoofer system

KV2AUDIO
SKU: EX1.2MkII

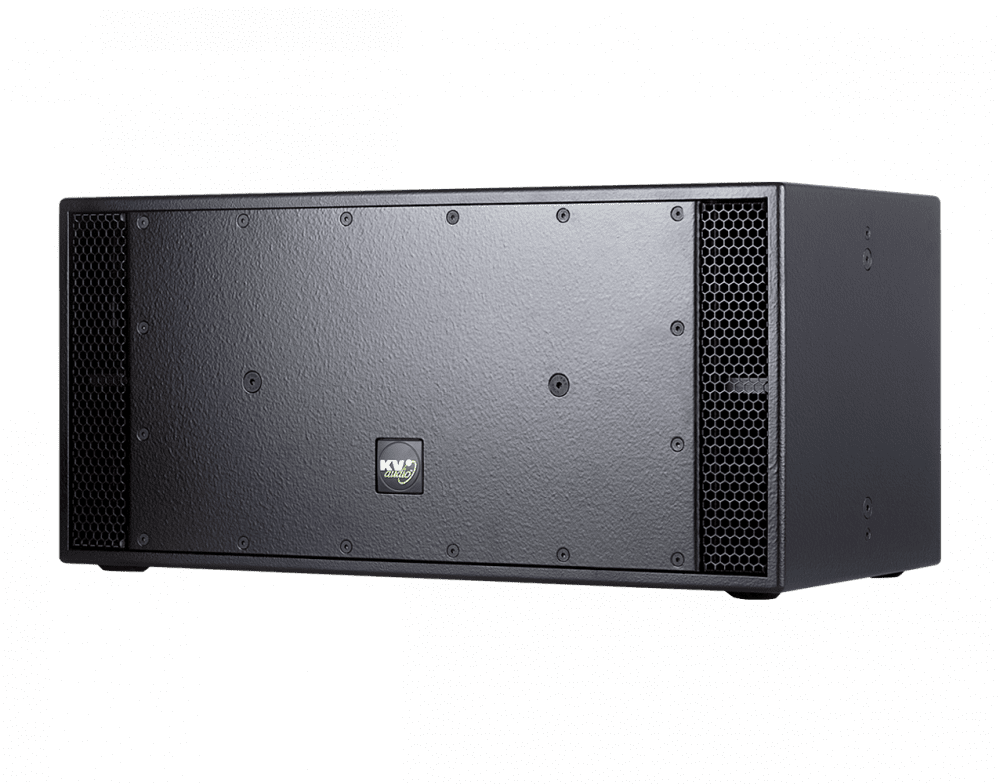

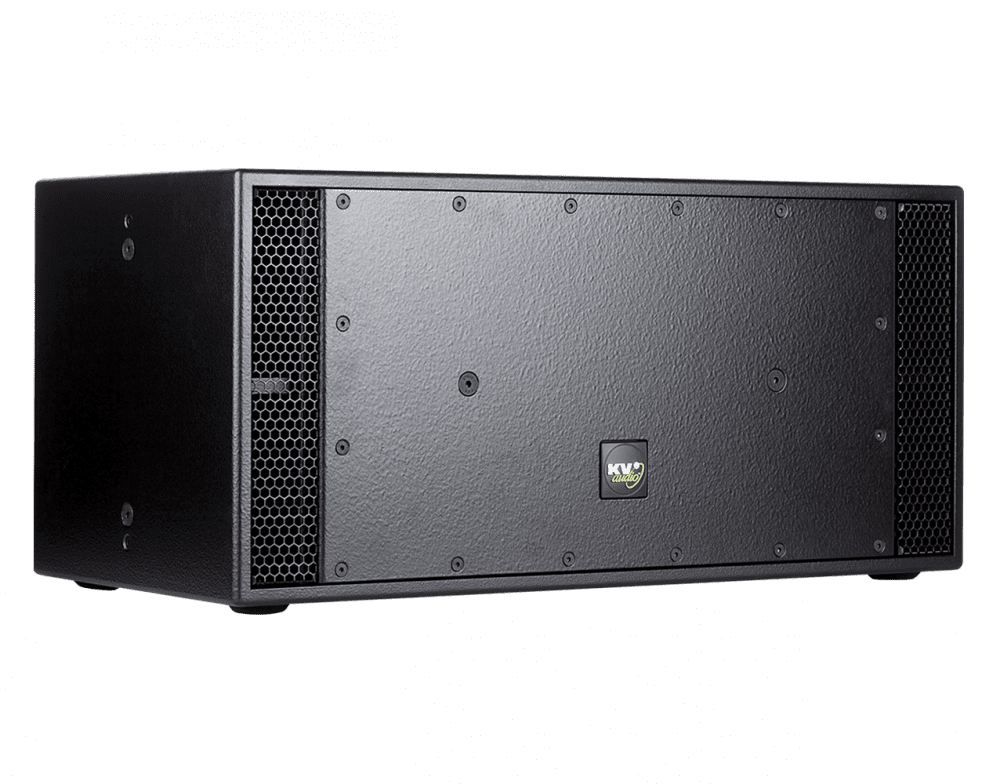

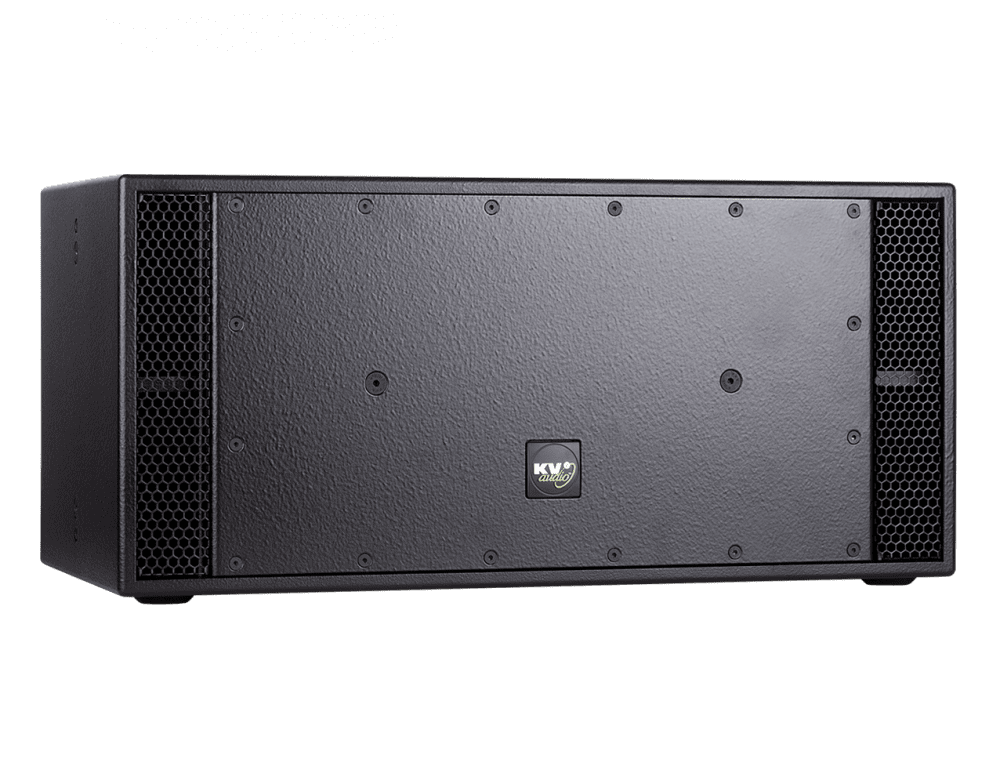

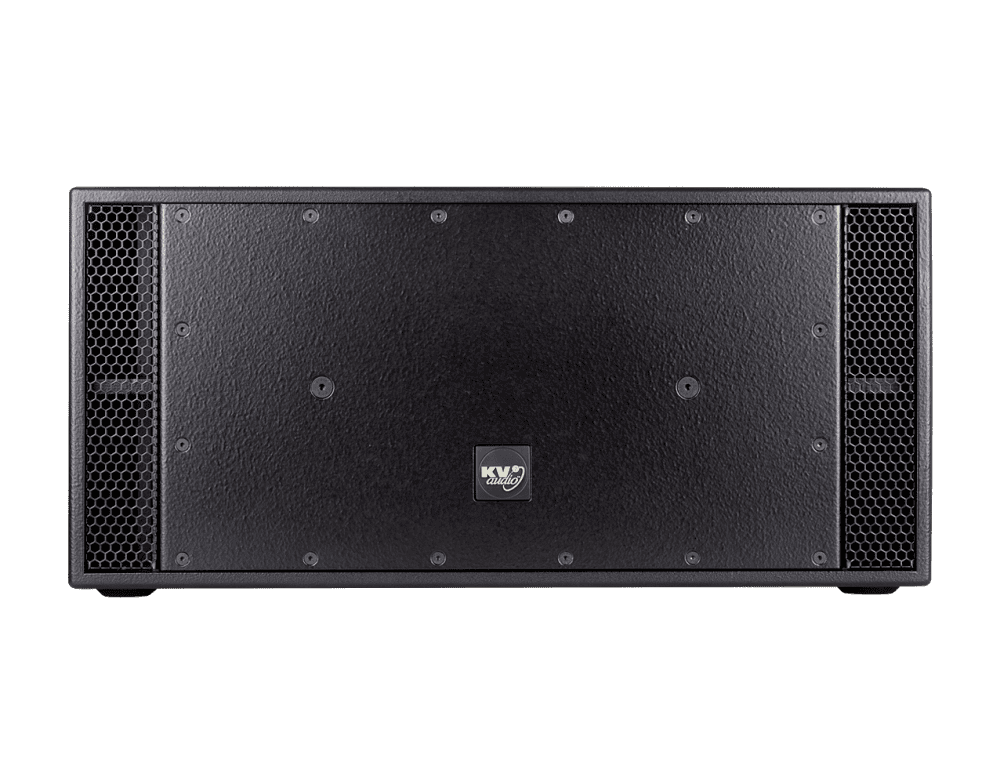

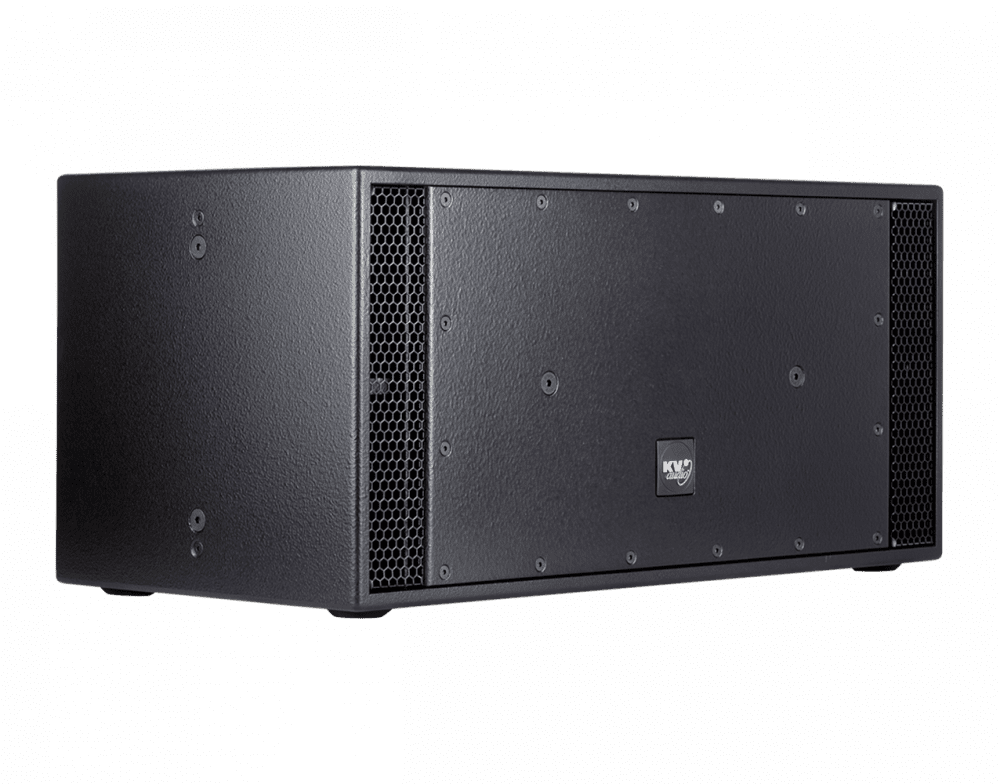

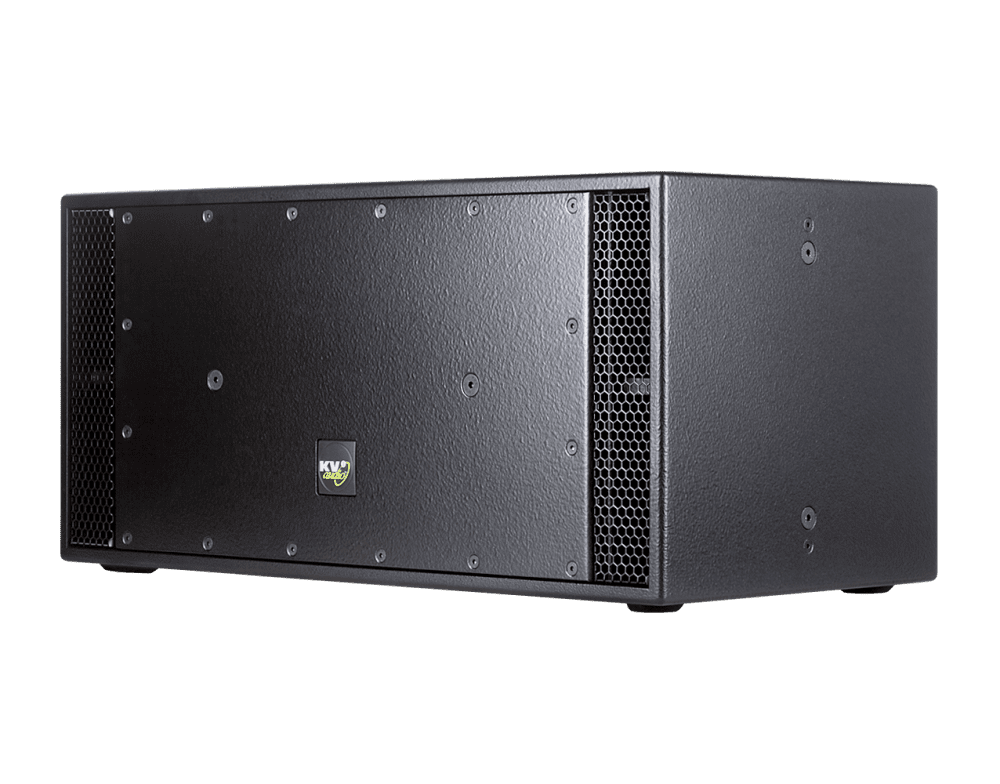

The EX1.2MkII is a small single 12” active subwoofer system. Employing passive cooling the EX1.2MkII boasts output that belies its compact, low profile cabinet size, as with all KV2 Audio products. The enclosure dimensions make it ideal for discreet installations, as it can be installed either horizontally or vertically under seating and in furniture surrounds. Featuring KV2 Audio’s switching amplifier technology,  the EX1.2MkII delivers tight, fast and controlled bass response at very high output levels from an impressively conservative cabinet footprint.

Applications

Specifically designed to accompany and compliment the EX6 as a true full range system

  • For fixed installation
  • Bars, restaurants and small entertainment projects
  • Small footprint and dimensions allow placement under seating and fixtures

Product code

KVV 987 359 – EX1.2MkII (115V)
KVV 987 360 – EX1.2MkII (230V)



    Consultar precios

    Descripción

    The EX1.2MkII is a small single 12” active subwoofer system. Employing passive cooling the EX1.2MkII boasts output that belies its compact, low profile cabinet size, as with all KV2 Audio products. The enclosure dimensions make it ideal for discreet installations, as it can be installed either horizontally or vertically under seating and in furniture surrounds. Featuring KV2 Audio’s switching amplifier technology,  the EX1.2MkII delivers tight, fast and controlled bass response at very high output levels from an impressively conservative cabinet footprint.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 124dB sustained output, 127dB peak
    • 500W high efficiency, current-enhancing, switching, low frequency amplifier

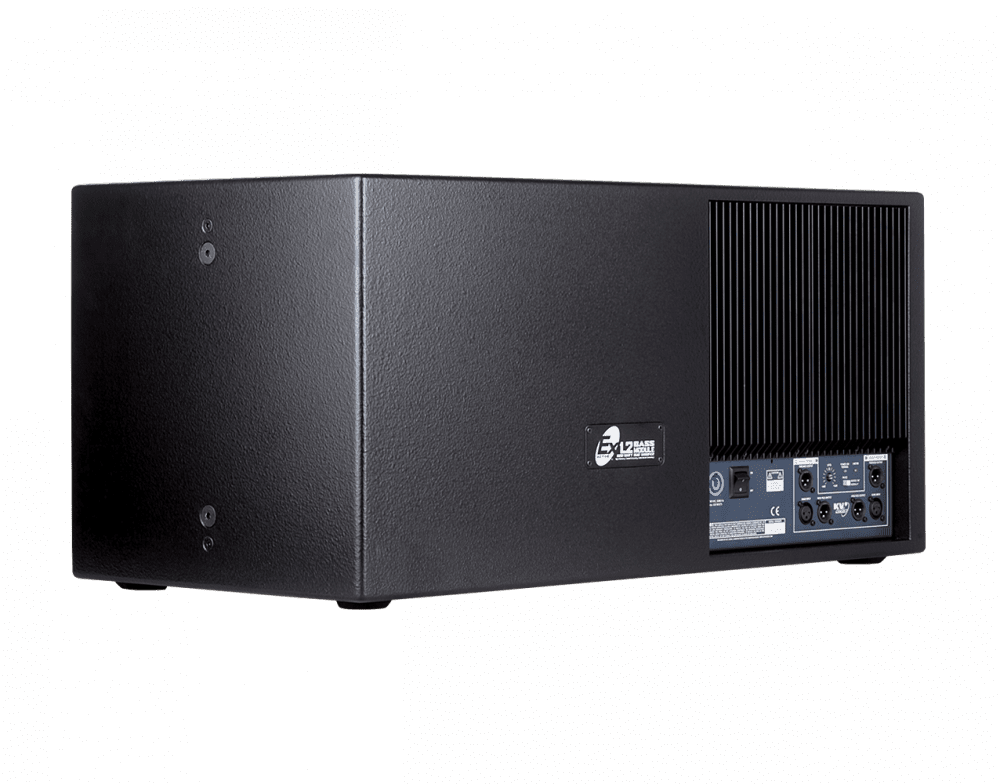

    • Passive cooling makes it ideal for descreet installations

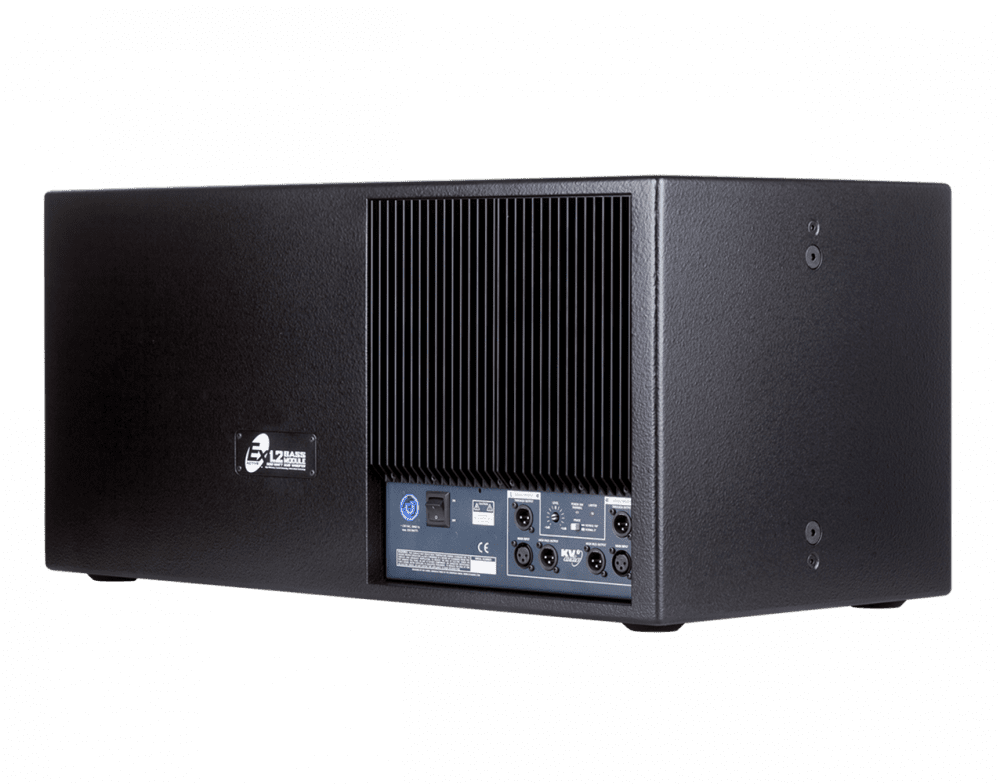

    • Complete on board subwoofer management including equalization, crossover filters, amplifier overdrive protection, output level and phase controls
    • Excellent reproduction of bass frequencies with high transient content at high output levels

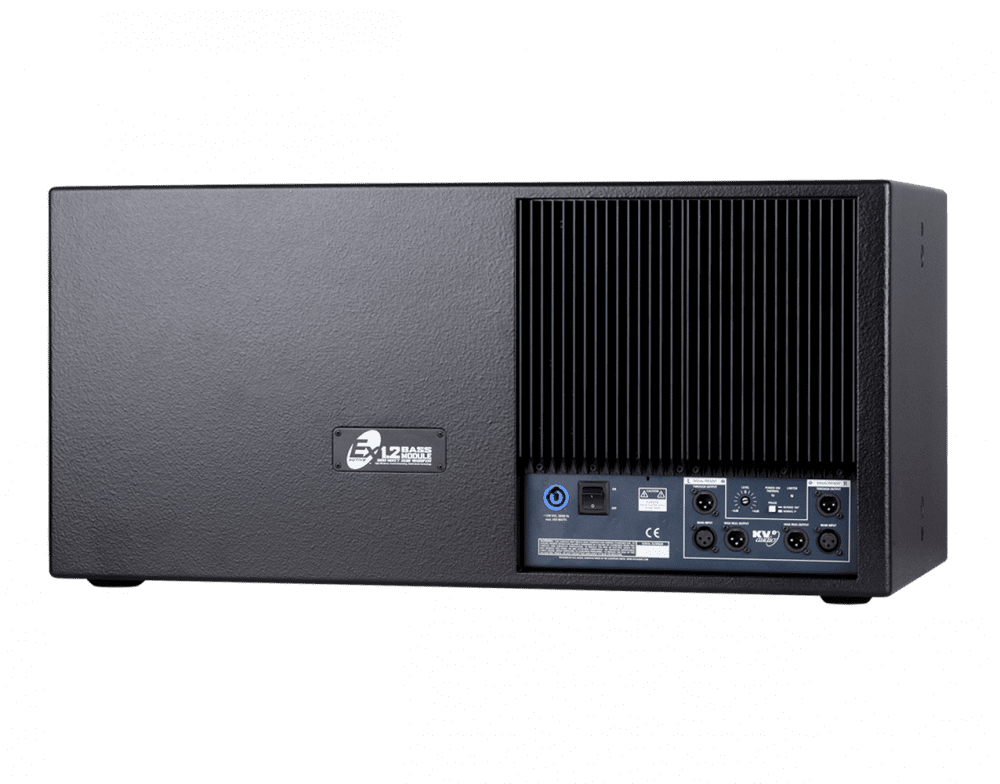

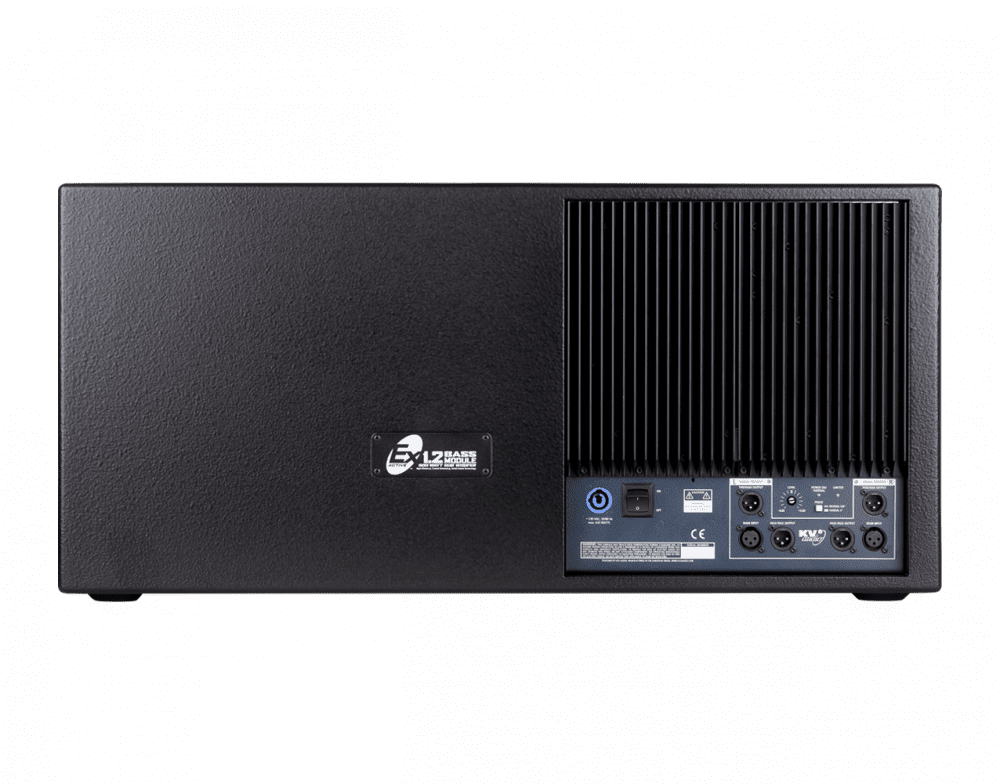

    • Stereo or Mono inputs with through signal outputs and 120Hz High Pass outputs
    • 12″ high output, low frequency driver with 3″ (75 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structure
    • Two recessed top handles for simplified handling and carrying
    • M20 top hat for pole mounting applications
    • LED indicators for signal present, limiter, thermal condition and power ON status


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed to accompany and compliment the EX6 as a true full range system

    • For fixed installation
    • Bars, restaurants and small entertainment projects
    • Small footprint and dimensions allow placement under seating and fixtures

    Product code

    KVV 987 359 – EX1.2MkII (115V)
    KVV 987 360 – EX1.2MkII (230V)



    Accesories


    EX1.2 Cover

    Gallery

    Product code

    KVV 987 256



    Description

    – Durable material



    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    System Acoustic Performance

    Max SPL Long-term 124dB
    Max SPL Peak 130dB
    -3dB Response 38Hz to 120Hz
    -10dB Response 32Hz to 120Hz
    Crossover Point 120Hz

    Low Frequency Section

    Acoustic Design Twin Asymmetrical loading
    Woofer Size / Voice Coil Diameter 12″ / 3″ / Inside outside
    Magnet Type Neodymium
    Diaphragm Material Epoxy Reinforced Cellulose

    Low Frequency Amplifier Specification

    Type High efficiency, Current-Enhancing, Switched-Rail Amplifier
    Rated Continuous Power 500W
    Distortion <0.05%

    Signal Input

    Input Sensitivity 1.0V RMS
    Input Impedance 20kΩ (balanced)

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage 115V / 230V
    Operating Voltage Range 100 to 120V@60Hz | 205 to 250V@50Hz
    Recommended Amperage 6A 115V | 3A 230V

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Pole Mount M20
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 370 mm (14.57″)
    Width 800 mm (31.49″)
    Depth 400 mm (15.75″)
    Weight 32 kg (70.5lbs)


    Product code

    KVV 987 359 – EX1.2MkII (115V)
    KVV 987 360 – EX1.2MkII (230V)
