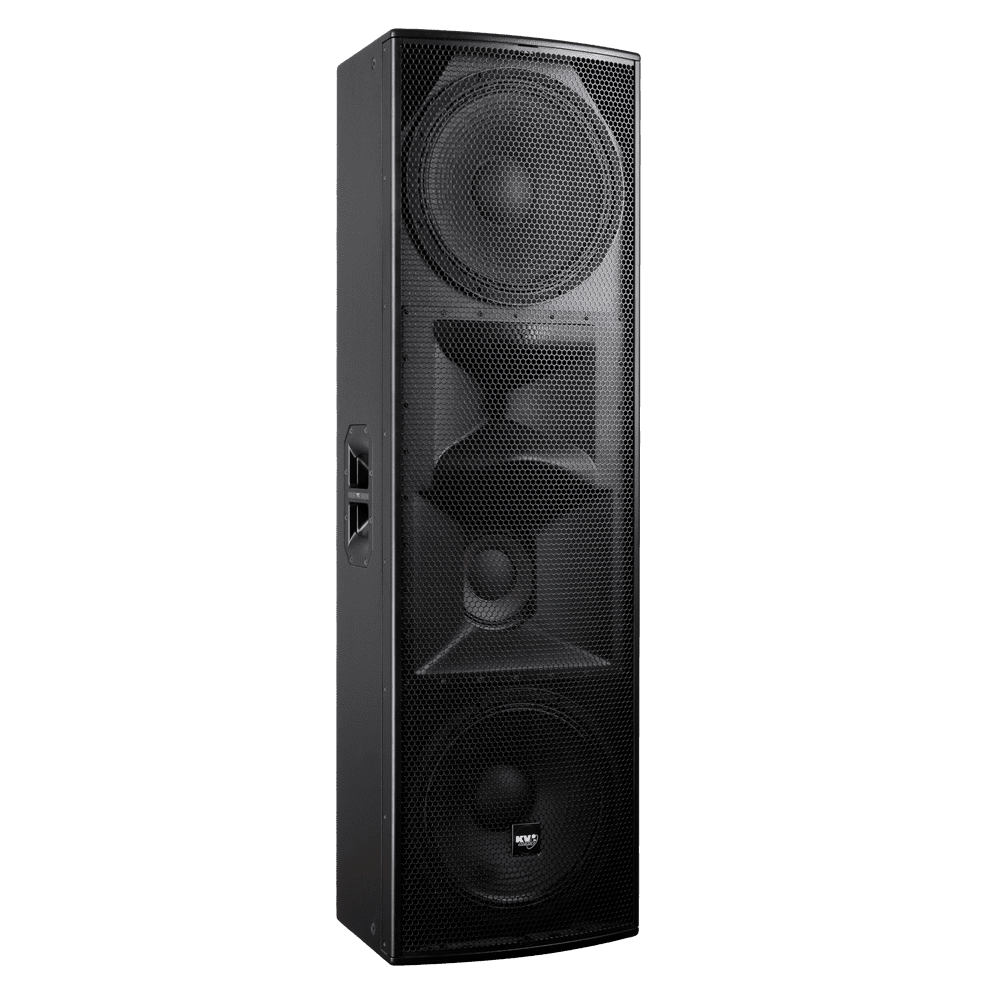

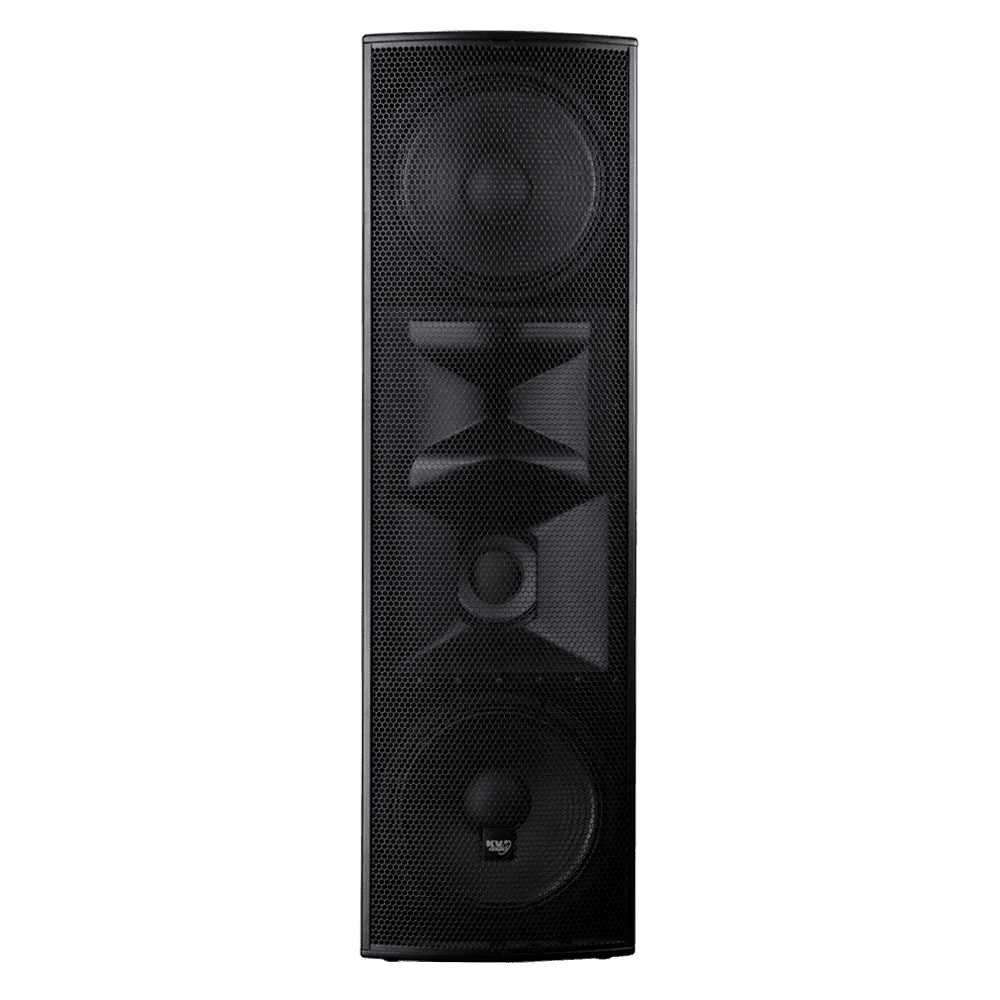

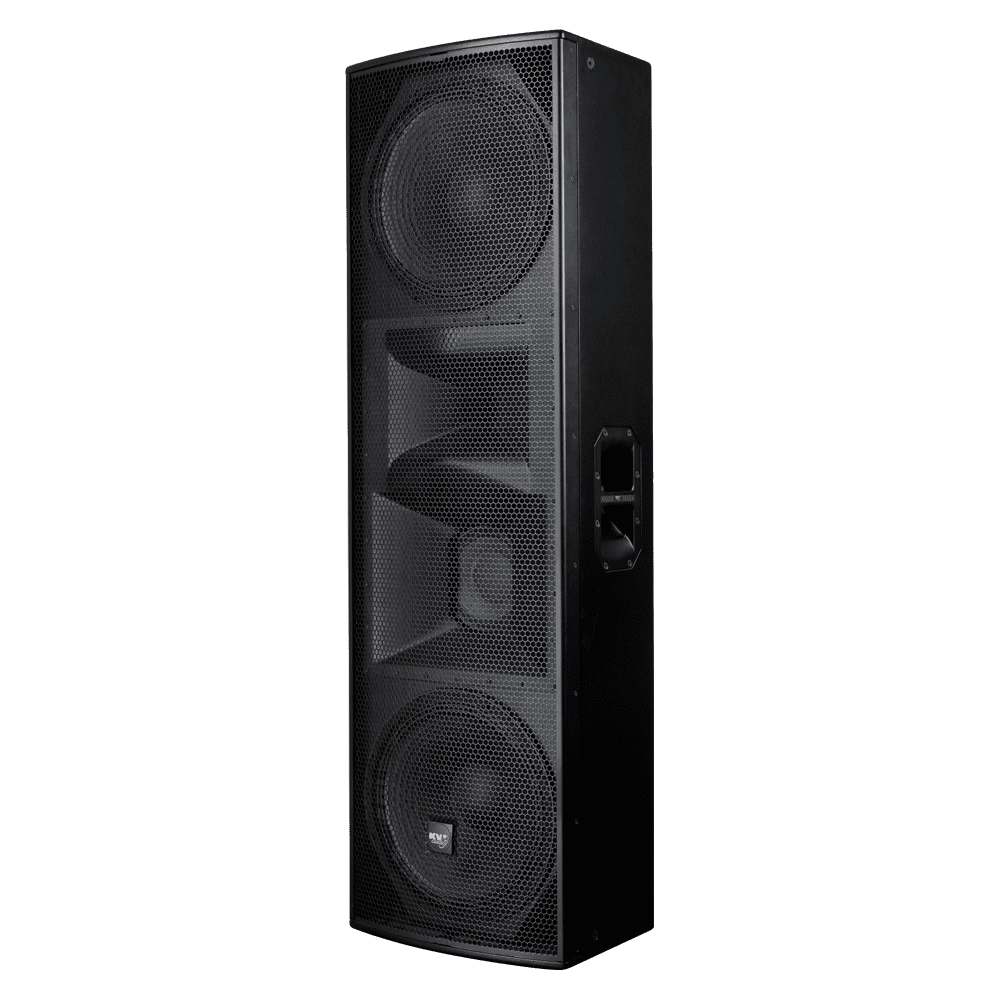

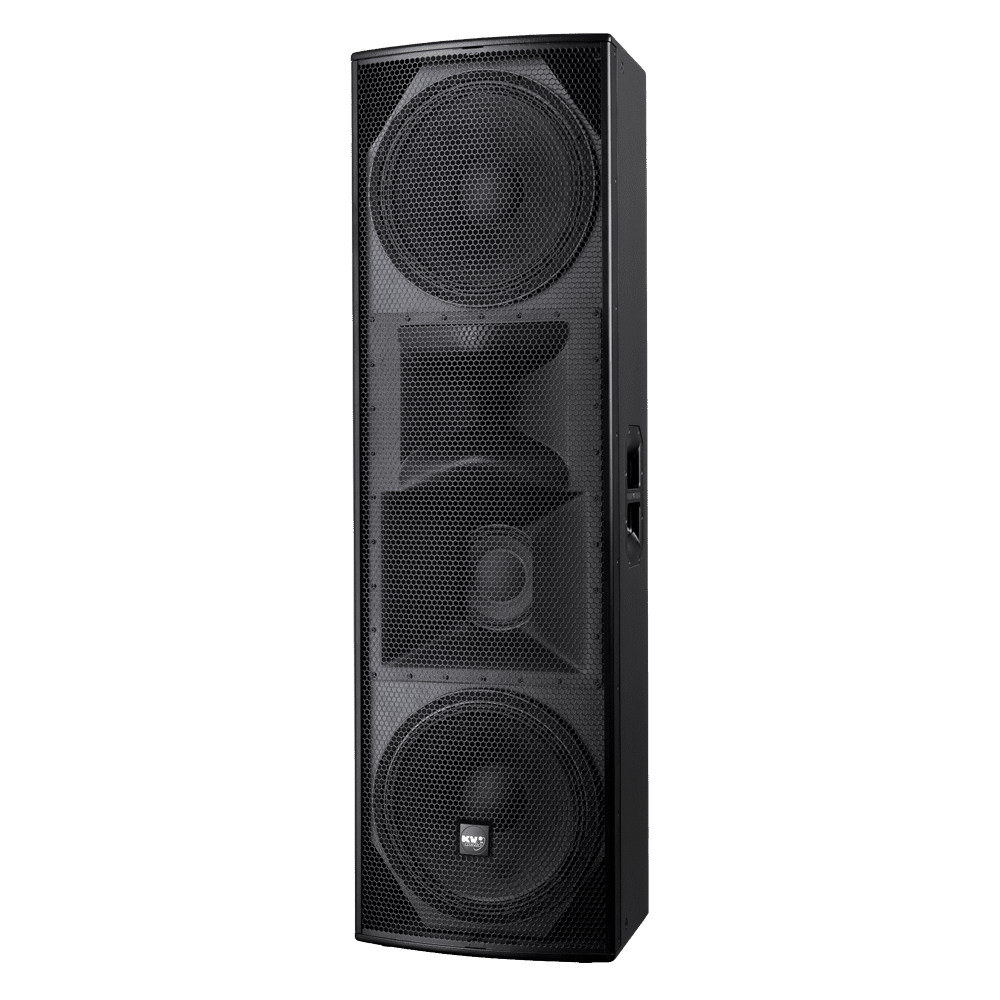

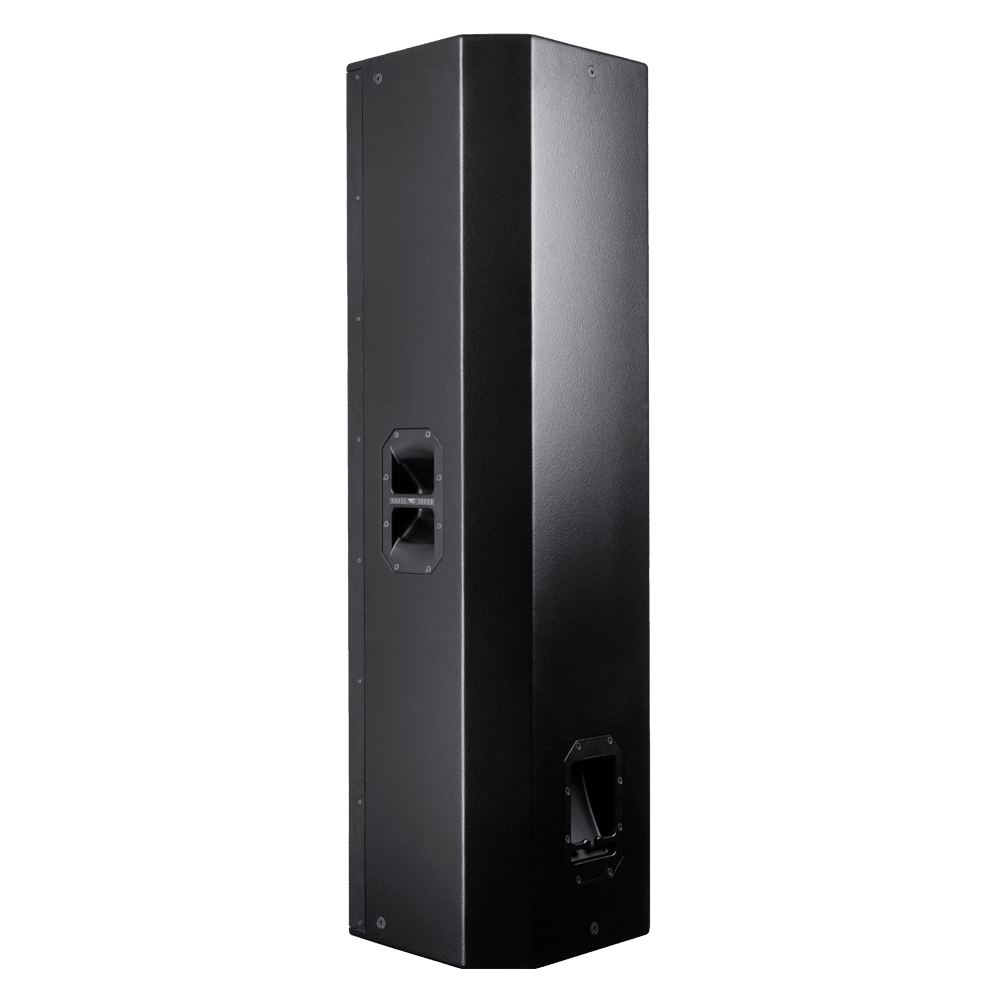

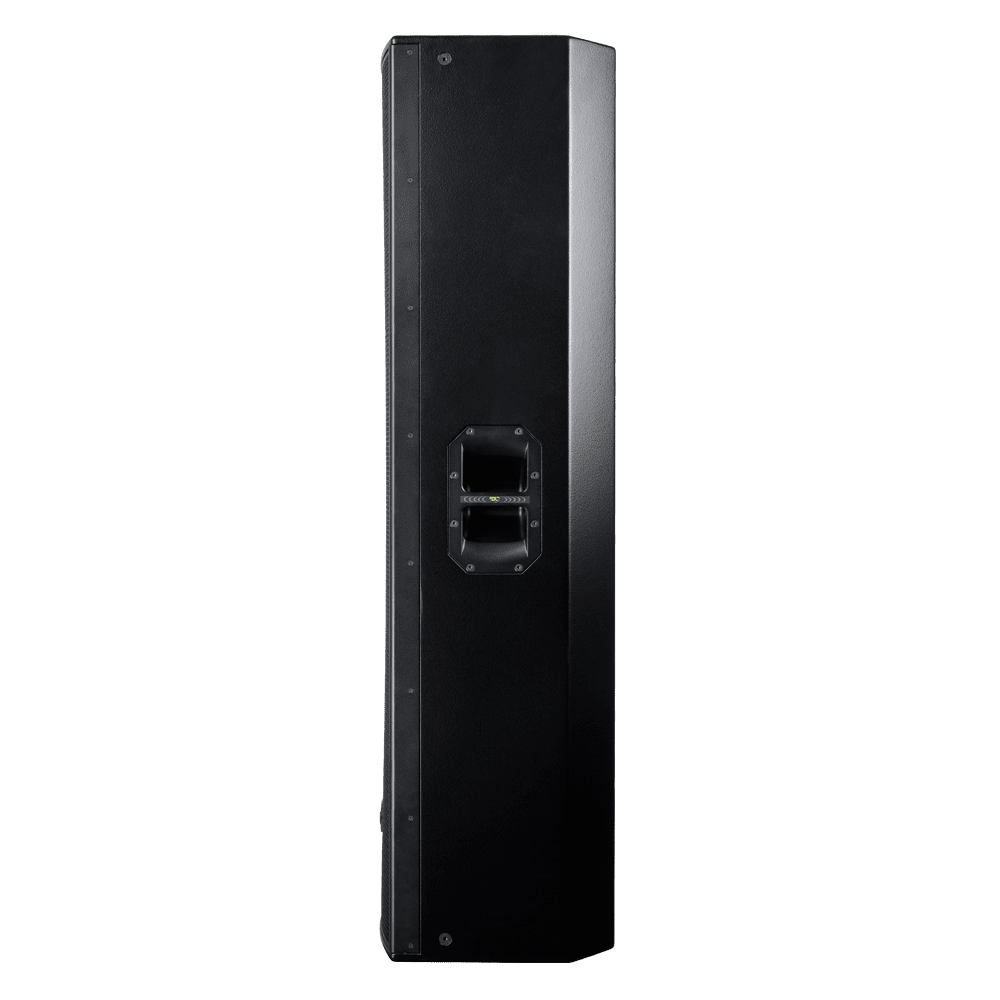

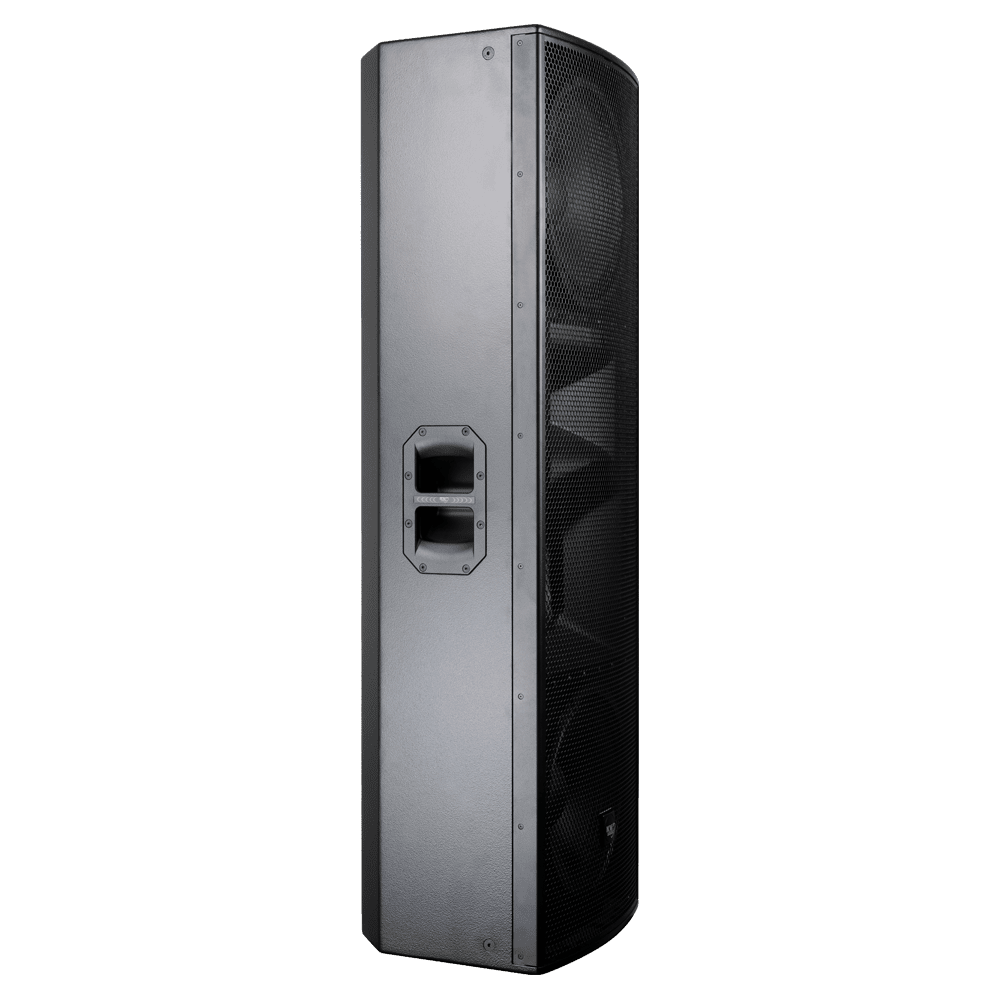

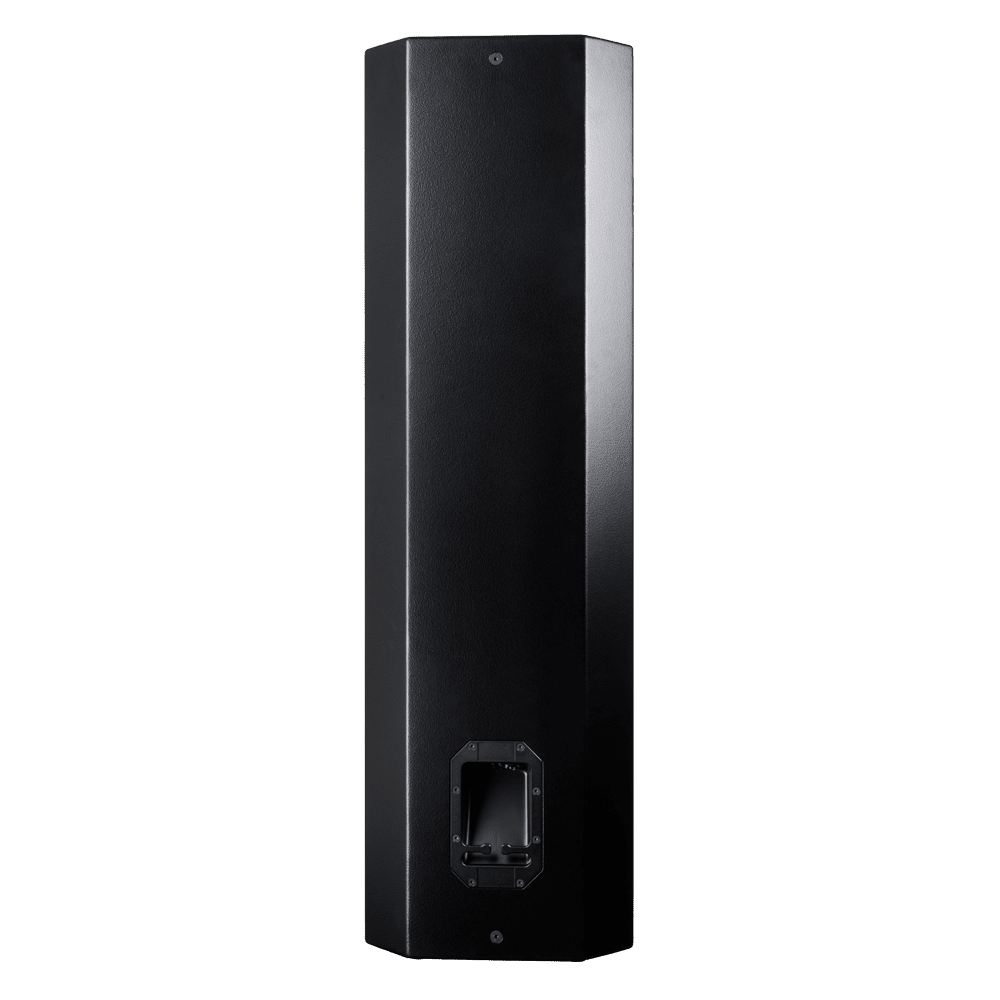

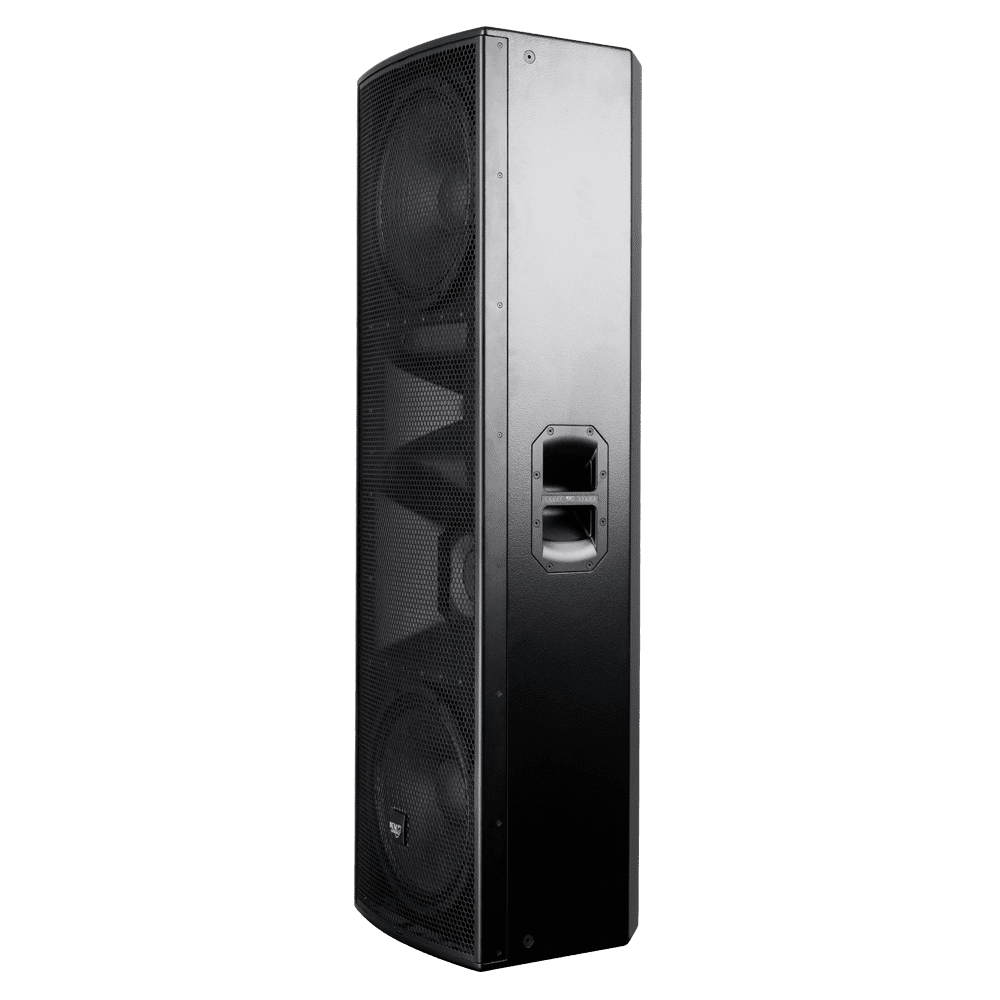

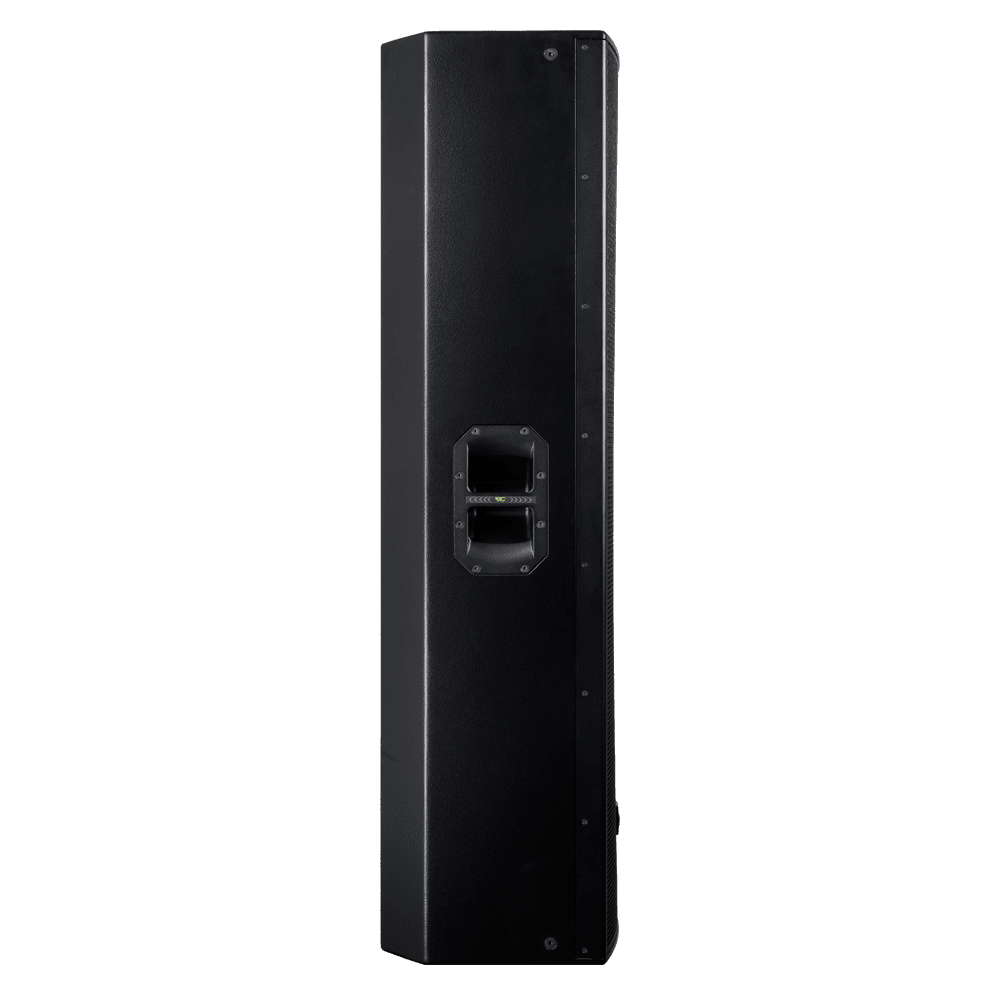

ESR215S – The Ultimate, Full Range, Large Scale System, Slim version

KV2AUDIO
SKU: ESR215S

The ESR215S is a slim version of large scale full-range 3-way loudspeaker system with a wide horizontal dispersion of 110 degrees. Designed for use with the ESR3000MkII tri-amplified stereo electronic control pack, the ESR215S loudspeaker system features two 15″ woofers, an 8″ mid-range driver and the same large scale NPVD 3″ compression driver found in KV2 Audio’s VHD mid-hi enclosures. With a wide and smooth frequency response the ESR215S is ideal for theatre or stadium applications. Like the ESR212, it incorporates multiple M10 fly points and various brackets and flyware are also available.

Applications

Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues

  • Fixed Installations
  • Music venues
  • Classical and opera concerts

Product code

KVV 987 424



    Consultar precios

    Descripción

    The ESR215S is a slim version of large scale full-range 3-way loudspeaker system with a wide horizontal dispersion of 110 degrees. Designed for use with the ESR3000MkII tri-amplified stereo electronic control pack, the ESR215S loudspeaker system features two 15″ woofers, an 8″ mid-range driver and the same large scale NPVD 3″ compression driver found in KV2 Audio’s VHD mid-hi enclosures. With a wide and smooth frequency response the ESR215S is ideal for theatre or stadium applications. Like the ESR212, it incorporates multiple M10 fly points and various brackets and flyware are also available.

    Features

    • High-output, full-range 3-way loudspeaker system
    • Slim version of renowed ESR215 box
    • 132dB sustained output
    • Wide dispersion at high frequencies, controlled at lowmids to reduce indoor reflections
    • Mid/High horn design provides optimized transducer loading and controlled dispersion
    • Patent-Pending 3″ diaphragm nitride-titanium compression driver with complex geometry phase plug and neodymium magnetic motor structure for higher output and lower distortion performance
    • Eight-inch midrange Transcoil driver with 3″ (76 mm) neodymium magnetic motor structure for increased control and output and decreased distortion and weight
    • Proprietary midrange heat dissipation system controls voice coil temperature, ensures high dynamics and extends transducer lifespans
    • Front-loaded, 15-inch mid-bass driver with 3.00″ (76 mm) voice coil assembly and ferrite magnetic motor structure
    • Professional, exterior-grade Baltic birch construction with wear-resistant polymer coating Proprietary corner and side handle designs for simplified handling and carrying
    • Acetal copolymer high impact, low friction feet allowing other cabinets lock-in and easy cabinet movement
    • Six internal corner and one back brace with M10 suspension points and side and top and bottom handles with M10 suspension points. A total of 17 suspension points are available for custom installation applications
    • Requires ESR3000MkII unit for control electronics and amplification


    YouTube thumbnailYouTube icon

    Applications

    Intentionally designed for use in Theatres and Cultural Centers to provide the highest audio quality from single Column enclosures for stage sides and prosceniums for medium to larger venues

    • Fixed Installations
    • Music venues
    • Classical and opera concerts

    Product code

    KVV 987 424



    Accesories


    ESR215 Vertical bracket

    Gallery

    Product code

    KVV 987 292



    Description

    – for ESR215 flying – 3 pcs M10x40mm included



    Downloads

    DWG

    ESR215 Vertical Bracket 3D DWG

    ESR215 Vertical Bracket 3D DWG

    SKP

    ESR215 Vertical Bracket SKP

    ESR215 Vertical Bracket SketchUp

    System Acoustic Performance

    Max SPL Long-term 132dB
    Max SPL Peak 138dB
    -3dB Response 37Hz to 22kHz
    -10dB Response 30Hz to 30kHz
    Crossover Point 400Hz, 2.5kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 110° x 40°
    Rotatable Horn NO
    High Frequency Amplifier Requirement 100W from ESR3000MkII Amplifier
    Throat Exit Diameter / Diaphragm Size 1.4″ / 3″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium

    Mid Range Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 110° x 40°
    Rotatable Horn NO
    Sensitivity 108dB
    Midrange Amplifier Requirement 200W from ESR3000MkII Amplifier
    Woofer Size / Voice Coil Diameter 8″ / 3″ / Trans Coil
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Sensitivity 102dB
    Low Frequency Amplifier Requirement 1000W from ESR3000MkII Amplifier
    Number of Drivers 2
    Woofer Size / Voice Coil Diameter 15″ / 3″ / Inside Outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Speaker Input

    Speaker Input Amphenol AP-6 male

    Cabinet

    Cabinet Material Baltic birch
    Handles 4
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 1509 mm (59.41″)
    Width 450 mm (17.72″)
    Depth 400 mm (15.75″)
    Weight 69 kg (152.12 lbs)


    Product code

    KVV 987 424


    PDF

    ESR215S Download Product’s Data Sheet

    Download Product’s Data Sheet


    DWG

    ESR215S 2D DWG

    ESR215S 2D DWG



    SKP

    ESR215S SketchUp

    ESR215S SketchUp



    DWG

    ESR215S 3D DWG

    ESR215S 3D DWG
