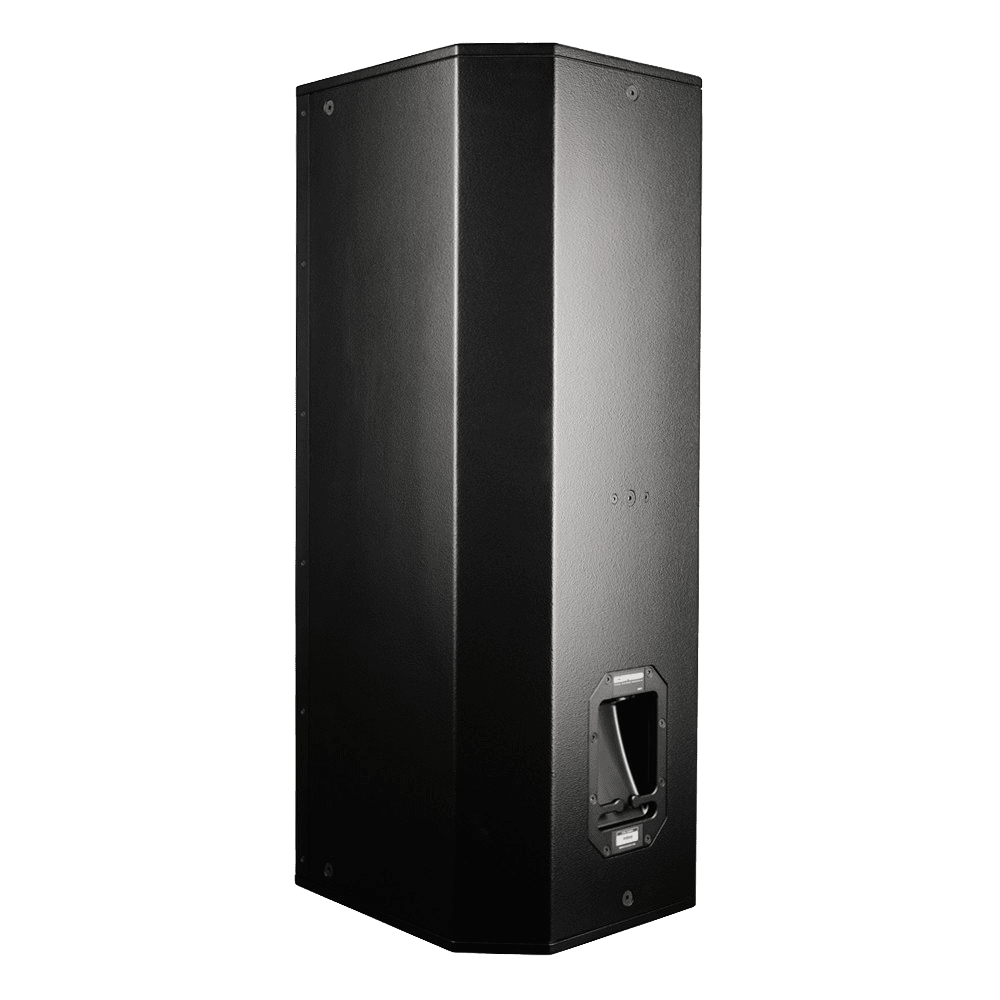

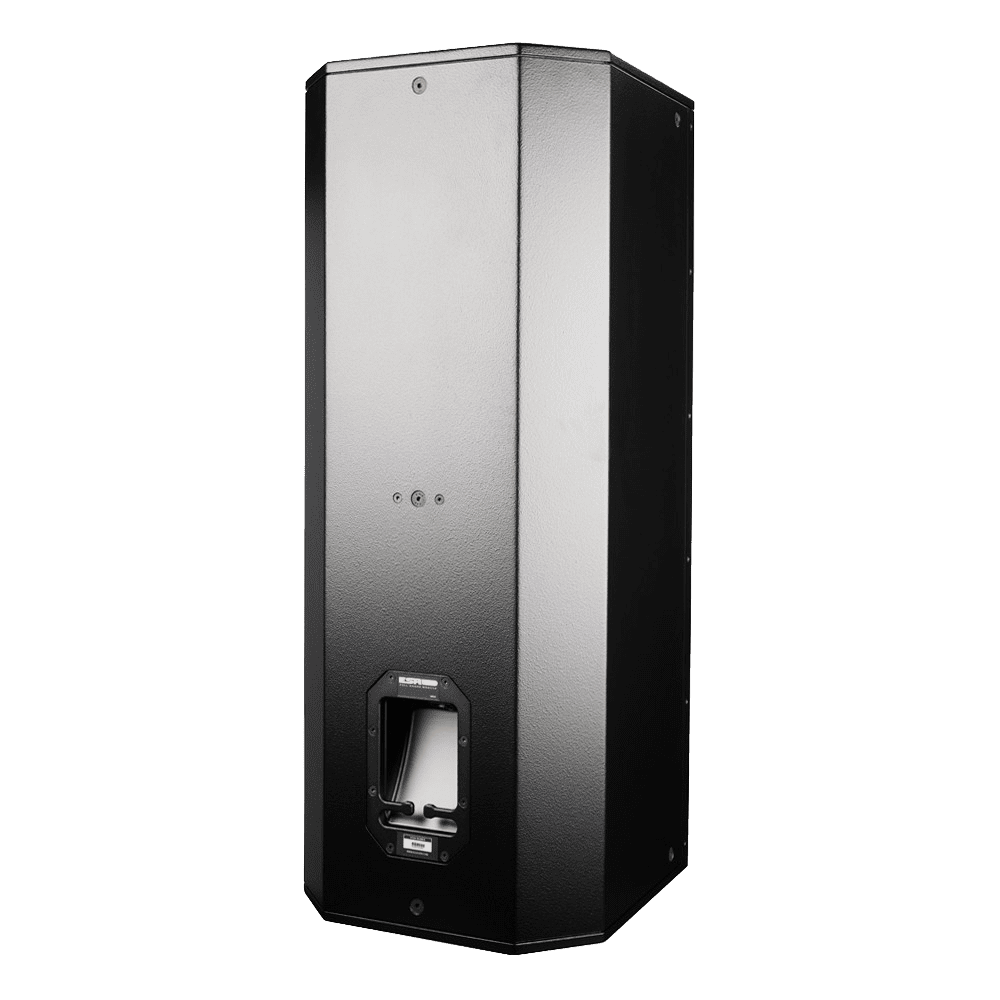

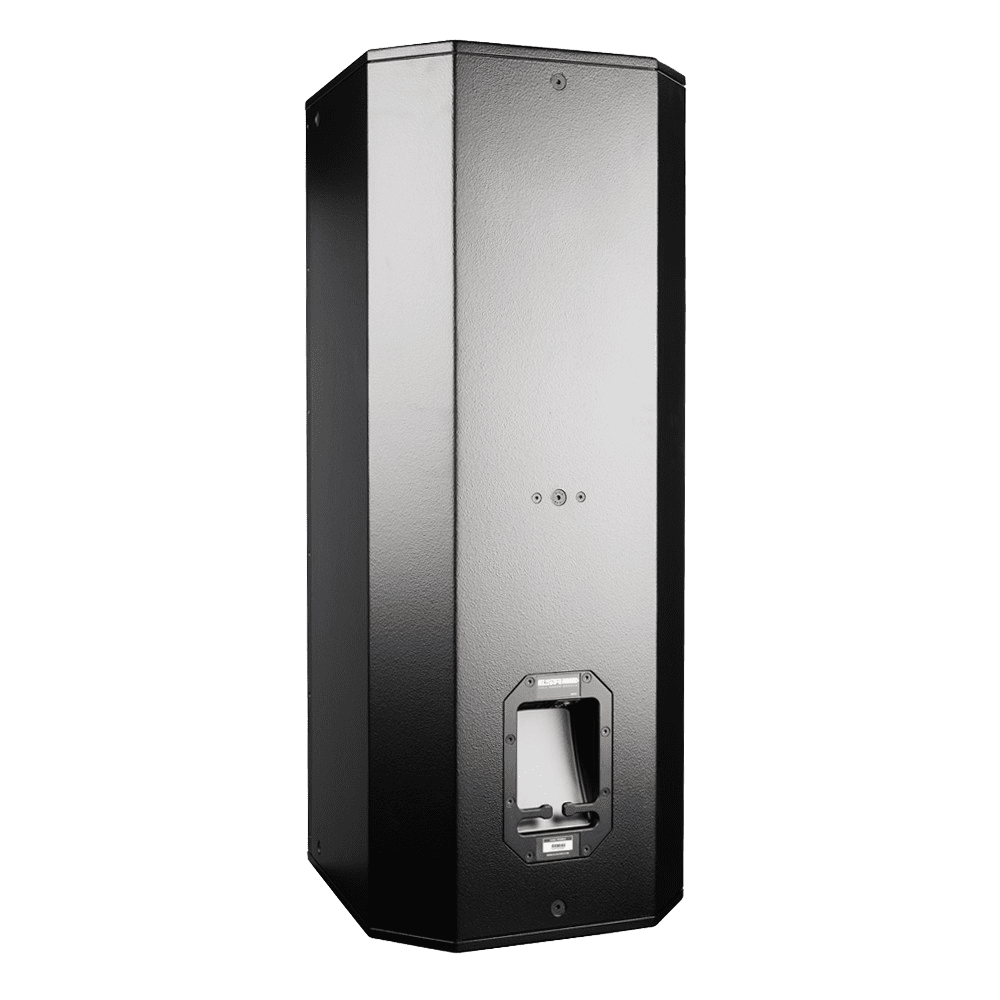

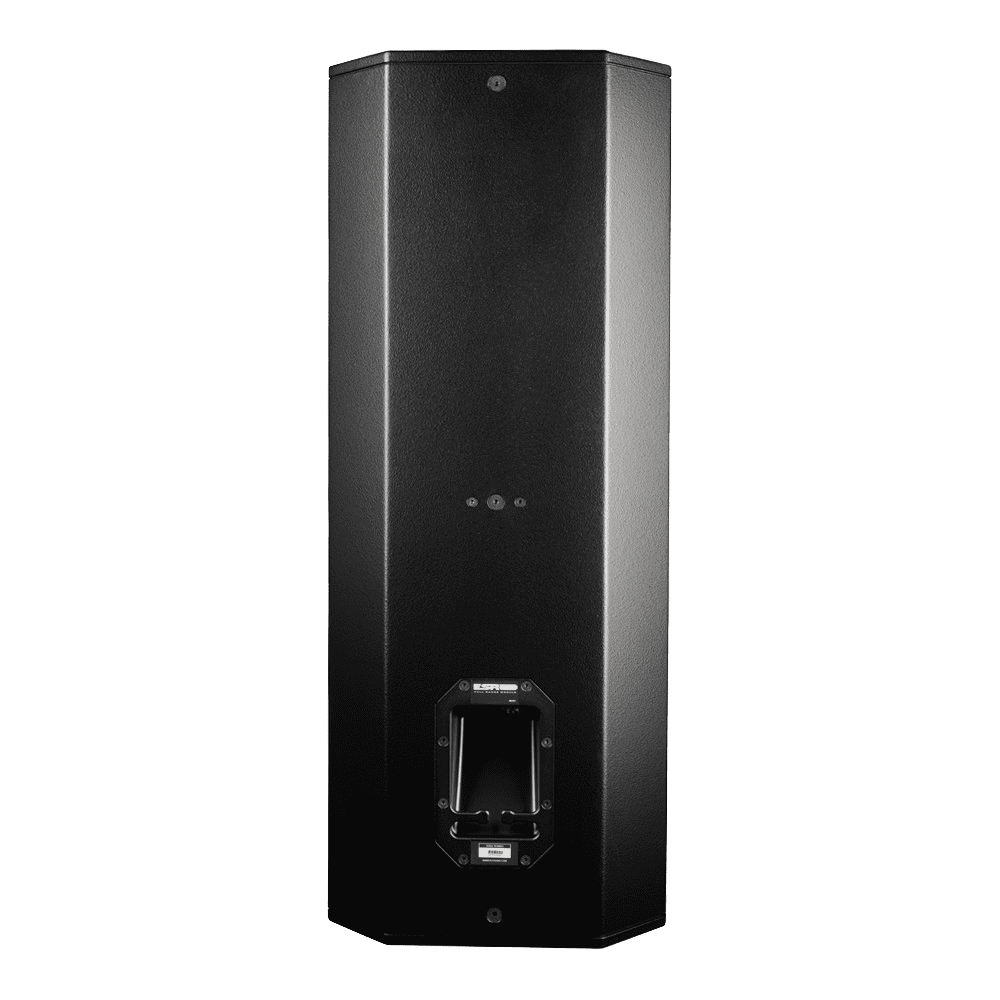

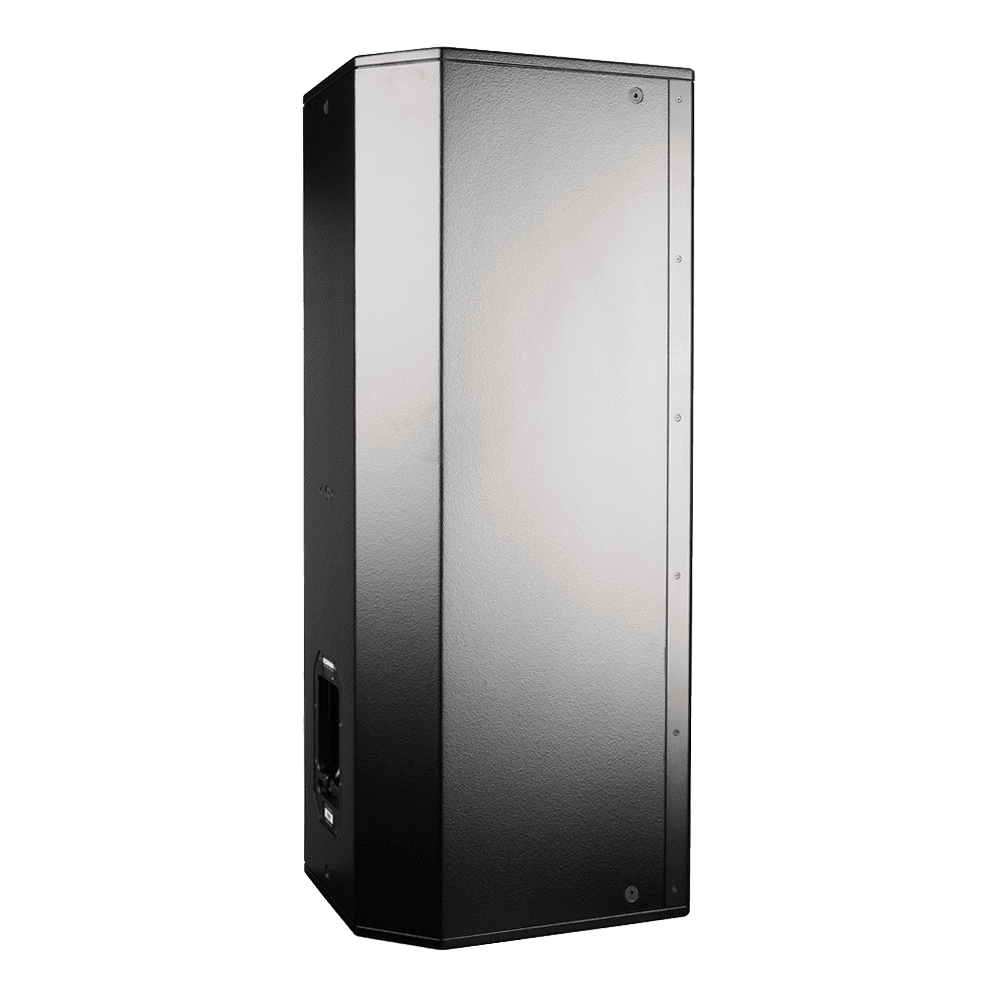

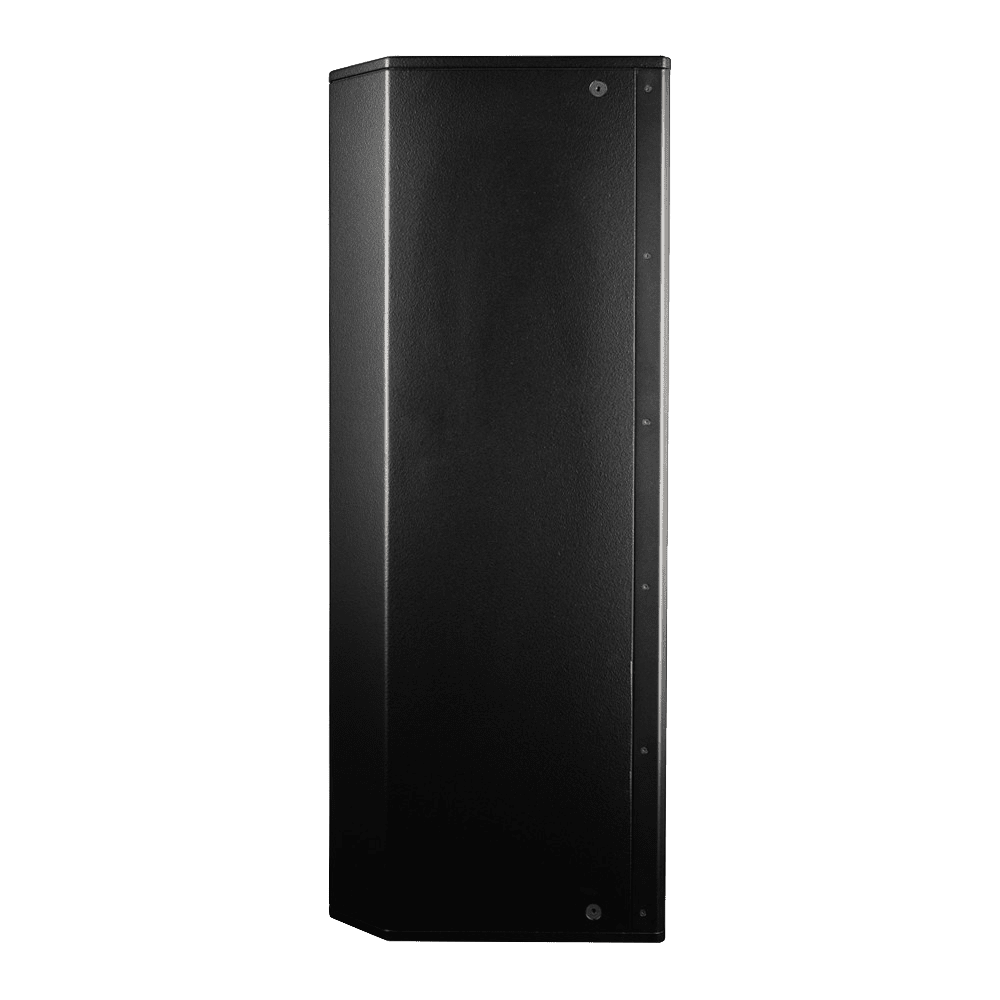

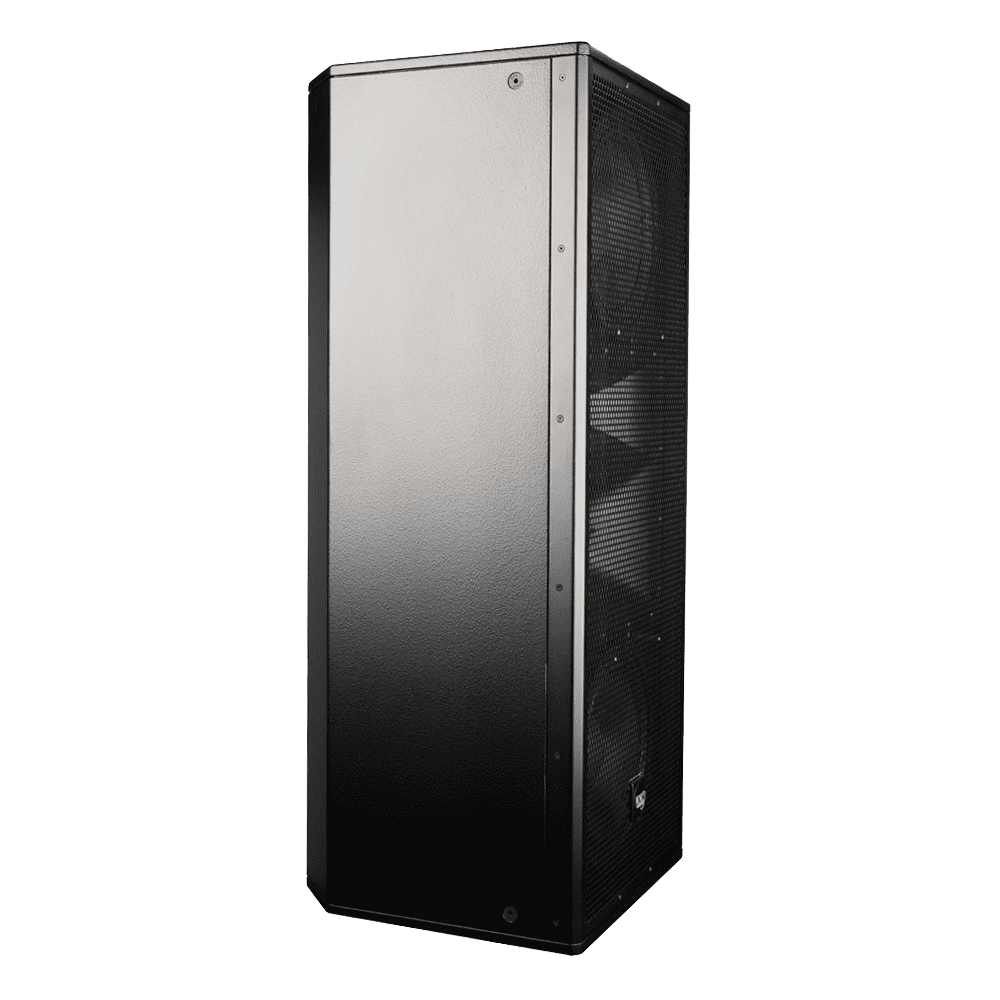

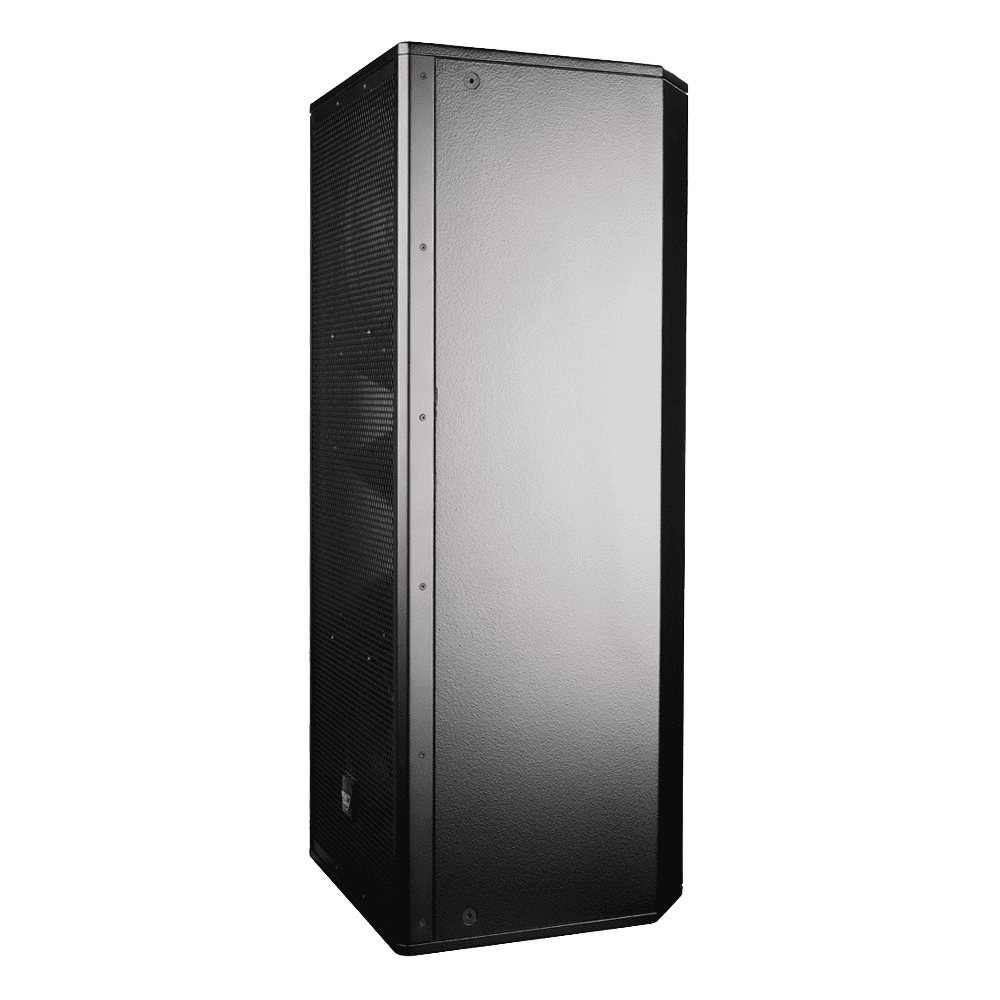

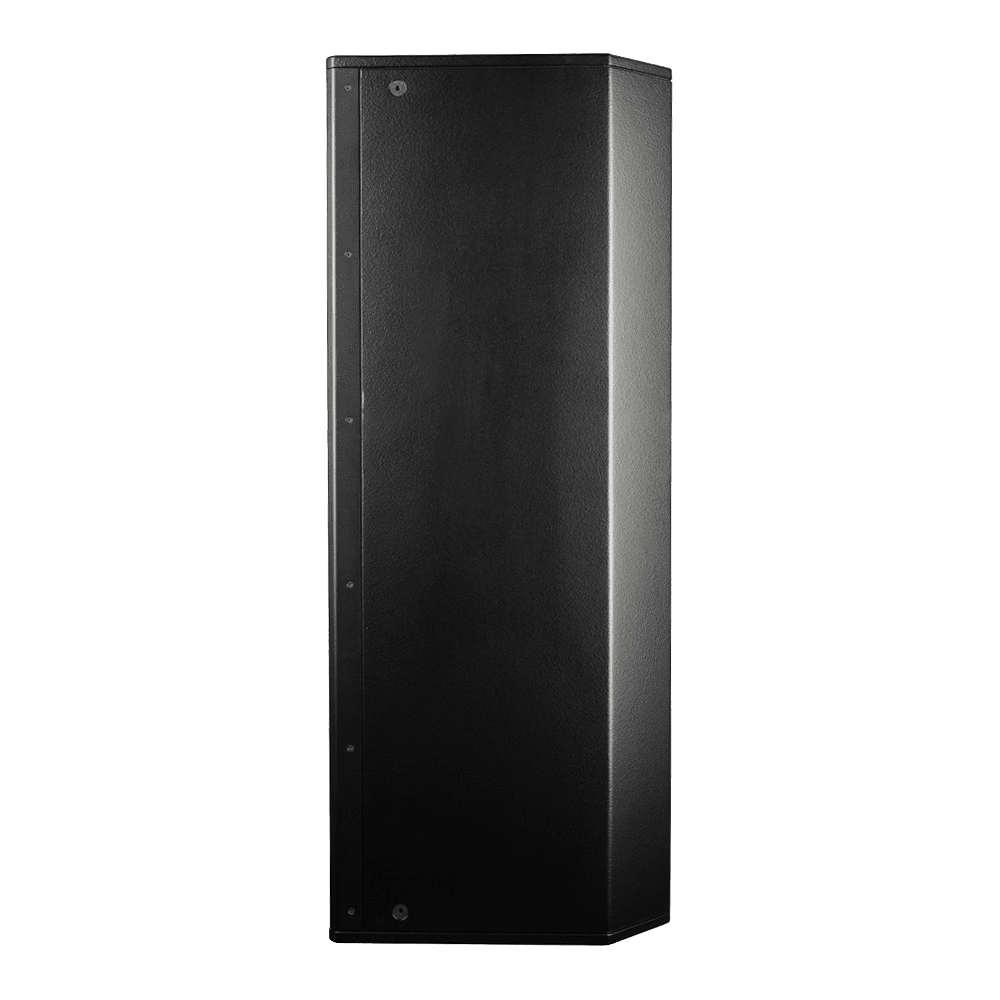

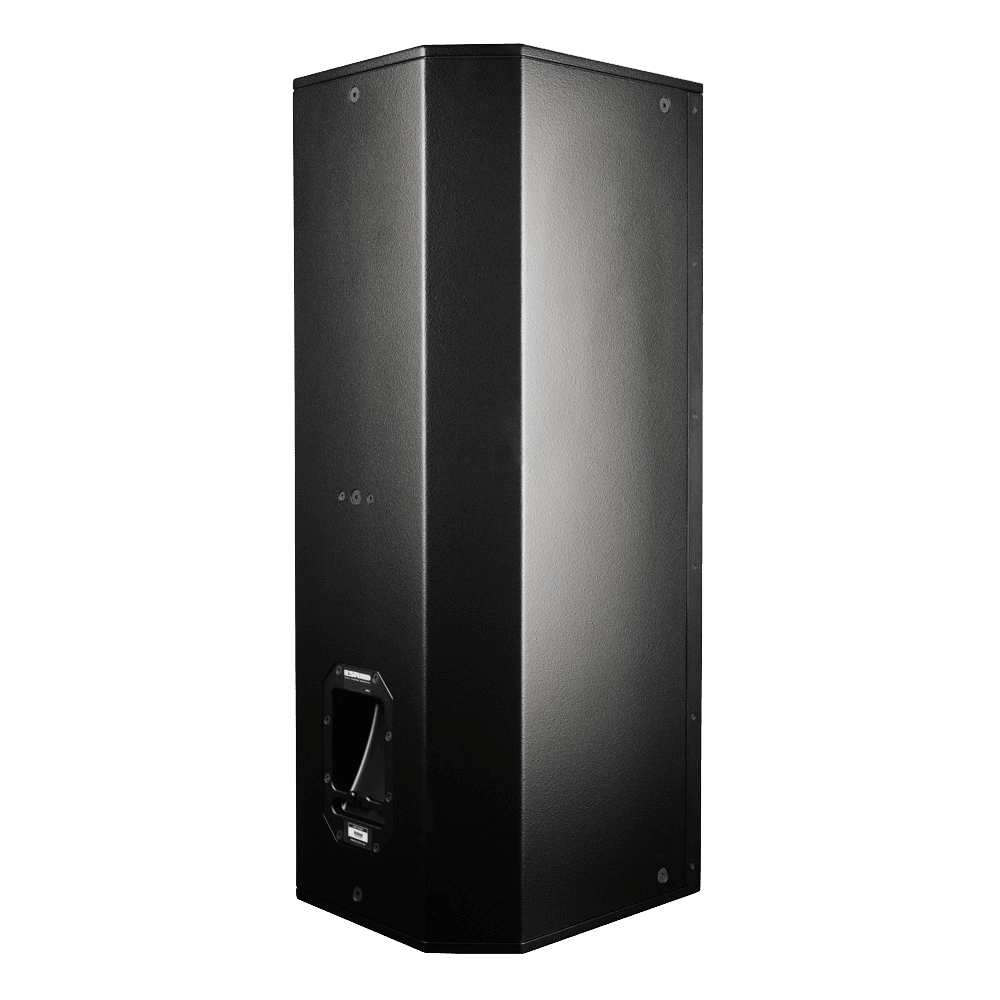

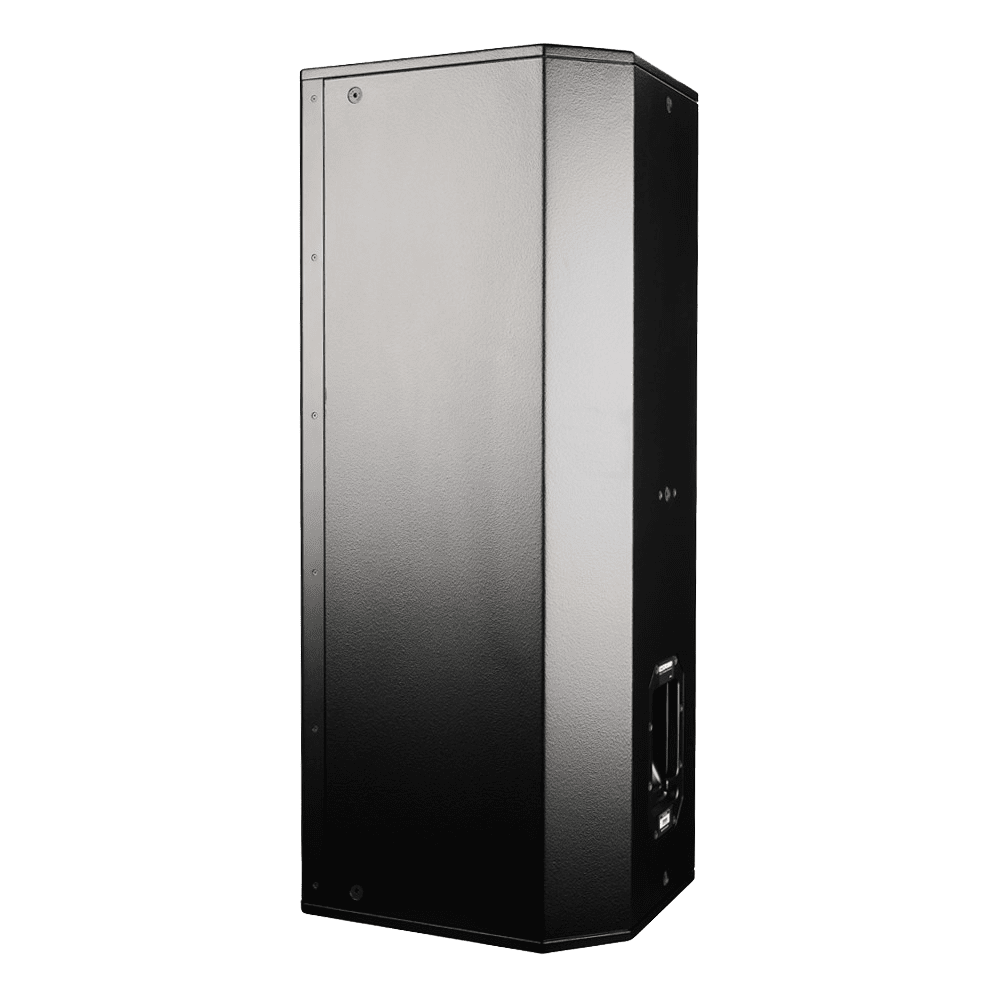

ESR212 – The Ultimate Full Range System

KV2AUDIO
SKU: ESR212

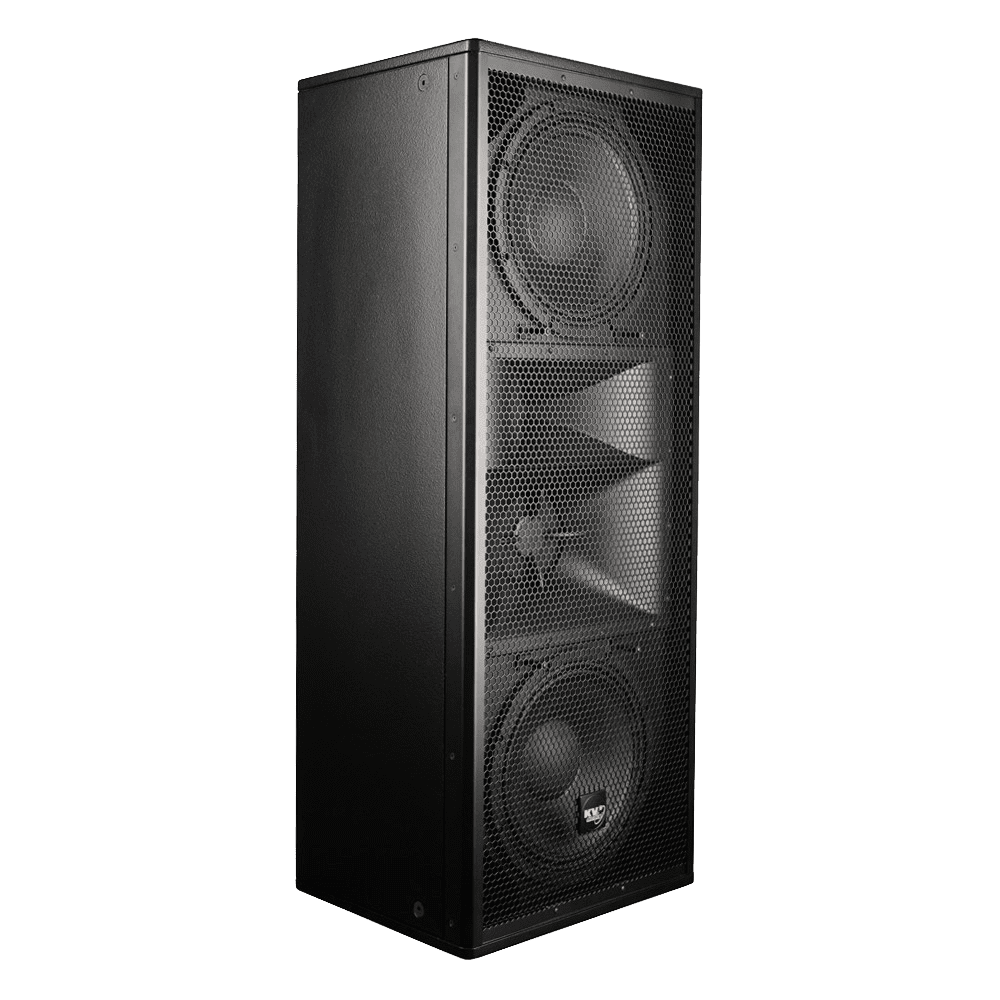

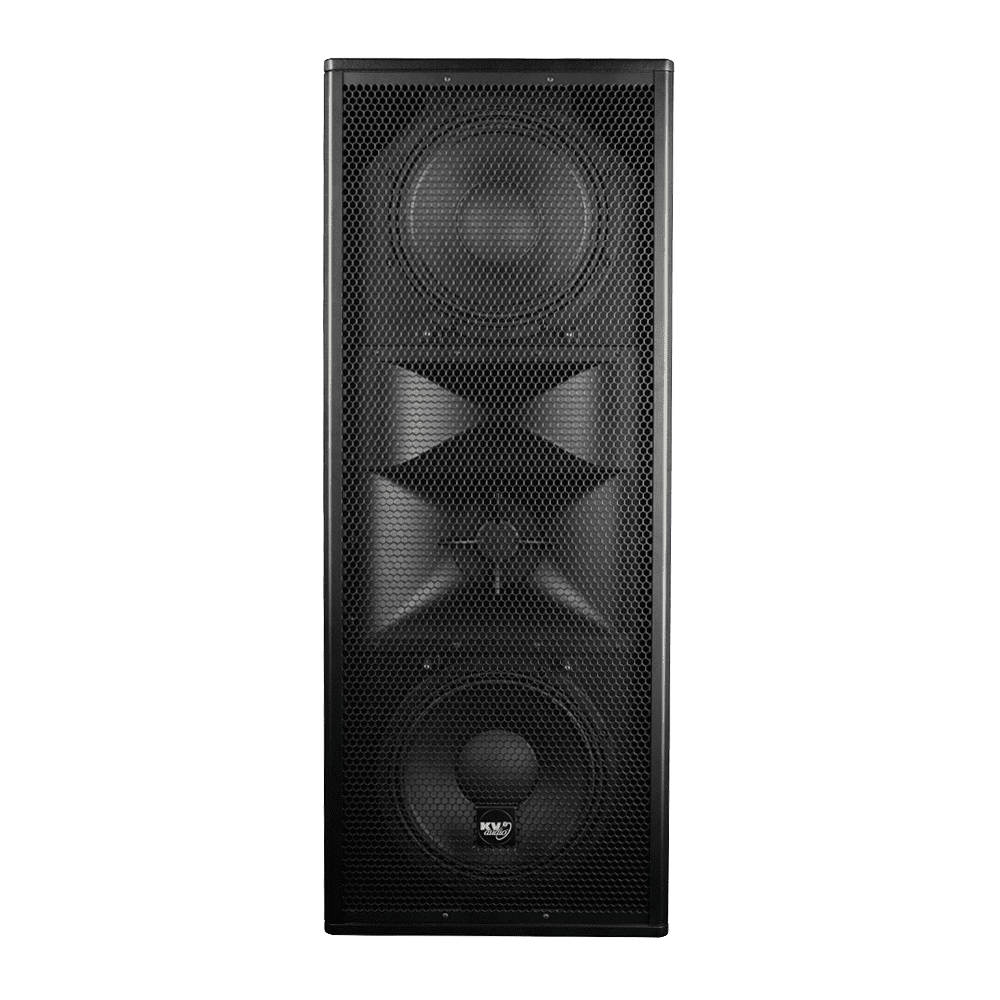

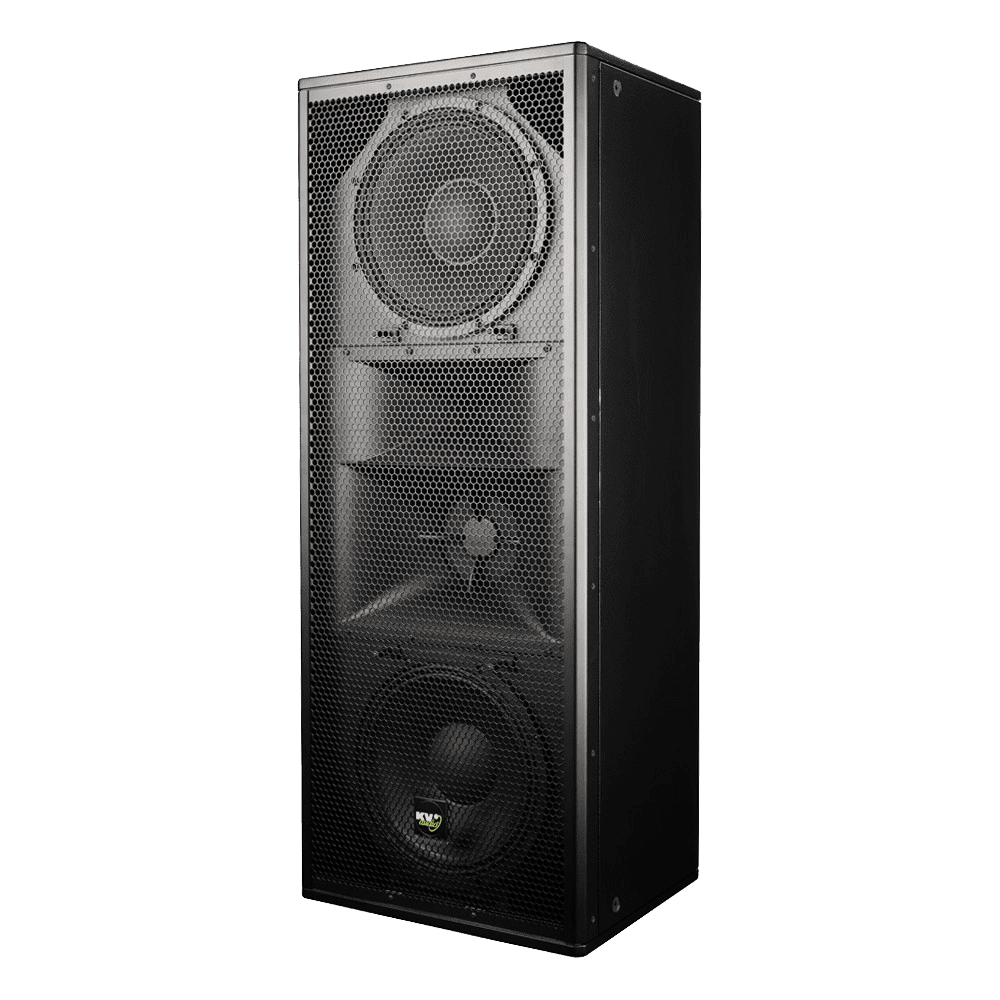

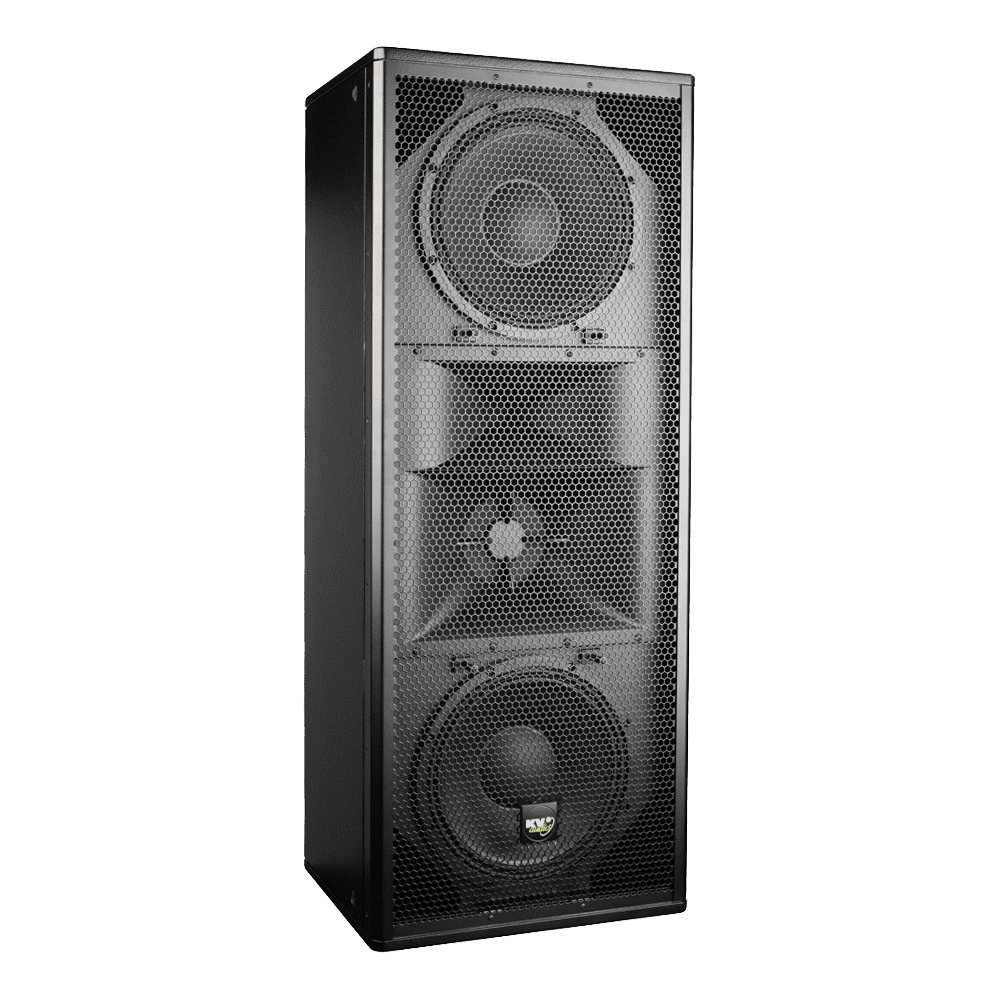

The ESR212 is a full-range 3-way loudspeaker system designed for use with the ESR2800 tri-amplified stereo electronic control pack. The ESR212 loudspeaker system features state of the art transducer design. Comprising of two 12″ woofers, a 6″ midrange driver and a 1″ compression driver, the ESR212 delivers full range high definition audio over large spaces. It has a dispersion of 90 degrees by 40 degrees and can be installed either vertically or horizontally. The ESR212 has multiple M10 fly points as well as custom designed flyware and brackets.

Applications

Specifically designed for theatres

  • Very high quality fixed installations
  • Live music and multimedia applications
  • Classical music amplification and reproduction
  • Audiophile, very high quality system
  • High quality studio monitoring

Product code

  • KVV 987 247 – ESR212 – The Ultimate Full Range System


    Consultar precios

    Descripción

    The ESR212 is a full-range 3-way loudspeaker system designed for use with the ESR2800 tri-amplified stereo electronic control pack. The ESR212 loudspeaker system features state of the art transducer design. Comprising of two 12″ woofers, a 6″ midrange driver and a 1″ compression driver, the ESR212 delivers full range high definition audio over large spaces. It has a dispersion of 90 degrees by 40 degrees and can be installed either vertically or horizontally. The ESR212 has multiple M10 fly points as well as custom designed flyware and brackets.

    Features

    • The ESR212 is a full-range 3-way loudspeaker system
    • Designed for use with its associated ESR2800 tri-amplified stereo electronic control pack
    • The ESR loudspeaker system features Super Analog components throughout and state of the art transducer designs
    • Comprising of two 12″ woofers, a 6″ midrange driver and a 1″ compression driver the ESR212 manages to transfer the atmosphere from a performer on stage to each and every audience member
    • The ESR family offers a true musical solution to the enjoyment of classical music, theatre or live performance on a grand scale


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed for theatres

    • Very high quality fixed installations
    • Live music and multimedia applications
    • Classical music amplification and reproduction
    • Audiophile, very high quality system
    • High quality studio monitoring

    Product code

    • KVV 987 247 – ESR212 – The Ultimate Full Range System


    Accesories


    ESR212 Horizontal bracket

    Gallery

    Product code

    KVV 987 322



    Description

    ESR212 Horizontal Bracket



    Downloads

    SKP

    ESR212 Horizontal Bracket 3D SKP

    ESR212 Horizontal Bracket 3D SKP
    DWG

    ESR212 Horizontal Bracket 3D DWG

    ESR212 Horizontal Bracket 3D DWG

    ESR212 Vertical bracket

    Gallery

    Product code

    KVV 987 291



    Description

    – for ESR212 flying – 3 pcs M10x35 included

    • 1st position +5 degrees
    • 2nd position 0
    • 3rd position -5 degrees
    • 4th position -10 degrees
    • 5th position -15 degrees


    System Acoustic Performance

    Max SPL Long-term 128dB
    Max SPL Peak 134dB
    -3dB Response 38Hz to 22kHz
    -10dB Response 33Hz to 28kHz
    Crossover Point 500Hz, 2.5kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 90° x 40°
    Rotatable Horn YES
    High Frequency Amplifier Requirement 100W from ESR2800 Amplifier
    Throat Exit Diameter / Diaphragm Size 1″ / 1.75″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium

    Mid Range Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 90° x 40°
    Rotatable Horn YES
    Sensitivity 106dB
    Midrange Amplifier Requirement 200W from ESR2800 Amplifier
    Woofer Size / Voice Coil Diameter 6″ / 1.75″
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Sensitivity 98dB
    Low Frequency Amplifier Requirement 1000W from ESR2800 Amplifier
    Number of Drivers 2
    Woofer Size / Voice Coil Diameter 12″ / 3″ / Inside Outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium

    Speaker Input

    Speaker Input Amphenol AP-6 Male

    Speaker Output

    Speaker Output

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Color Black / Optional luxury High gloss

    Physical Dimensions

    Height 1135 mm (44.69″)
    Width 447 mm (17.6″)
    Depth 444 mm (17.48″)
    Weight 45 kg (99.2lbs)


    Product code

    • KVV 987 247 – ESR212 – The Ultimate Full Range System

    PDF

    ESR Series User Guide

    ESR Series User Guide (ESR212 / ESR215MkII / ESR215S, ESR2800 / ESR3000MkII) – English



    PDF

    ESR2800 and ESR212 User Guide

    – User guide for ESR2800 – Rack mounted amlifier and ESR212 – Full range system – english



    PDF

    ESR212 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    ESR212 – 3D

    3D drawing, 1:1 scale – clamping points – weight – dwg file



    SKP

    ESR Series SketchUp

    ESR Series SketchUp



    SKP

    ESR212 Horizontal Bracket SKP

    ESR212 Horizontal Bracket SketchUp



    DWG

    ESR212 Horizontal Bracket 3D DWG

    ESR212 Horizontal Bracket 3D DWG



    SKP

    ESR212 SKP

    ESR212 SketchUp



    DWG

    ESR212 3D DWG

    ESR212 3D DWG



    SKP

    Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP

    Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp



    DWG

    Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG

    Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG



    DWG

    ESR212 Horizontal Bracket 3D DWG

    ESR212 Horizontal Bracket 3D DWG


    DWG

    ESR212 Vertical Bracket 2D DWG

    ESR212 Vertical Bracket 2D DWG



    DWG

    ESR212 Horizontal Bracket 2D DWG

    ESR212 Horizontal Bracket 2D DWG



    DWG

    ESR212 2D DWG

    ESR212 2D DWG



    PDF

    ESR212 – 2D

    ESR212 2D Drawings



    DWG

    ESR212 Horizontal Bracket 2D DWG

    ESR212 Horizontal Bracket 2D DWG



    DWG

    ESR212 Vertical Bracket 2D DWG

    ESR212 Vertical Bracket 2D DWG



    SKP

    ESR212 Horizontal Bracket 3D SKP

    ESR212 Horizontal Bracket 3D SKP


    GLL

    ESR212 – EASE data

    EASE data – .GLL – description





    GLL

    ESR212 EASE Focus

    ESR212 EASE Focus ver 4
