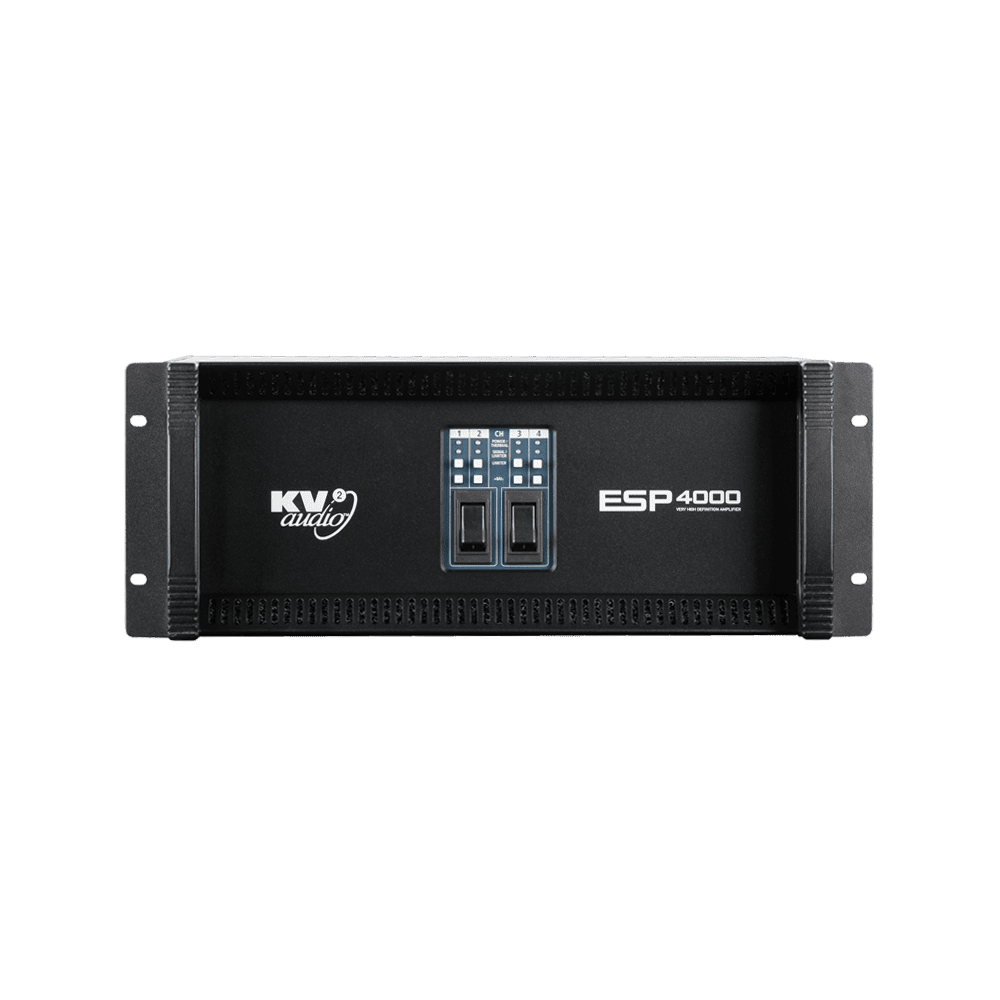

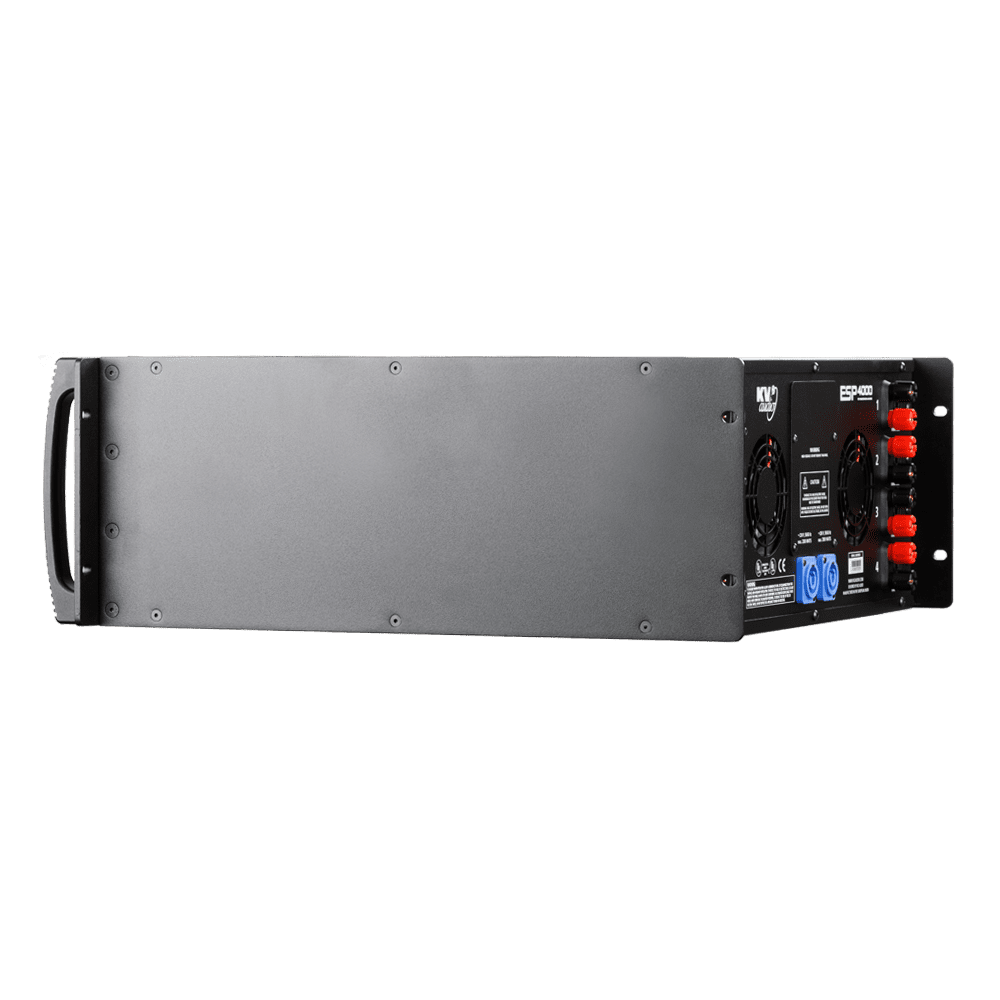

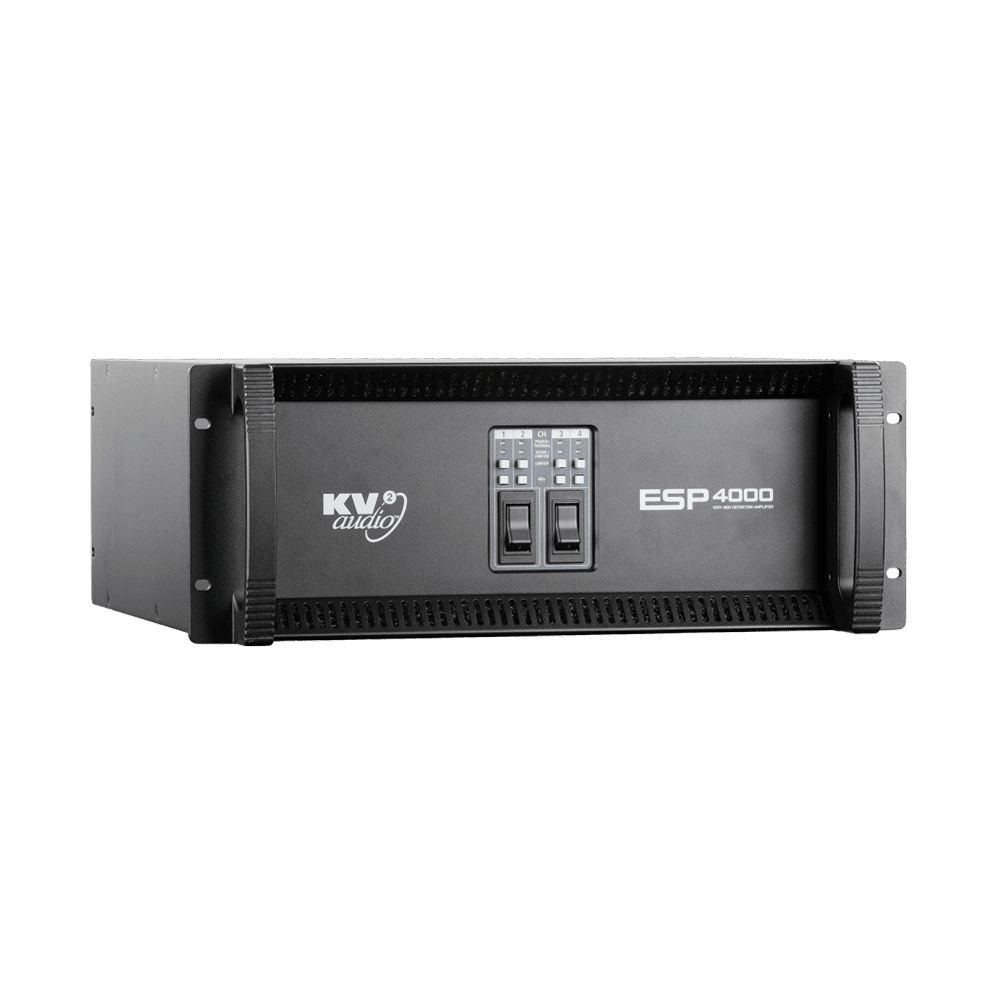

ESP4000 – Rack mounted, high definition amplifier

KV2AUDIO
SKU: ESP4000

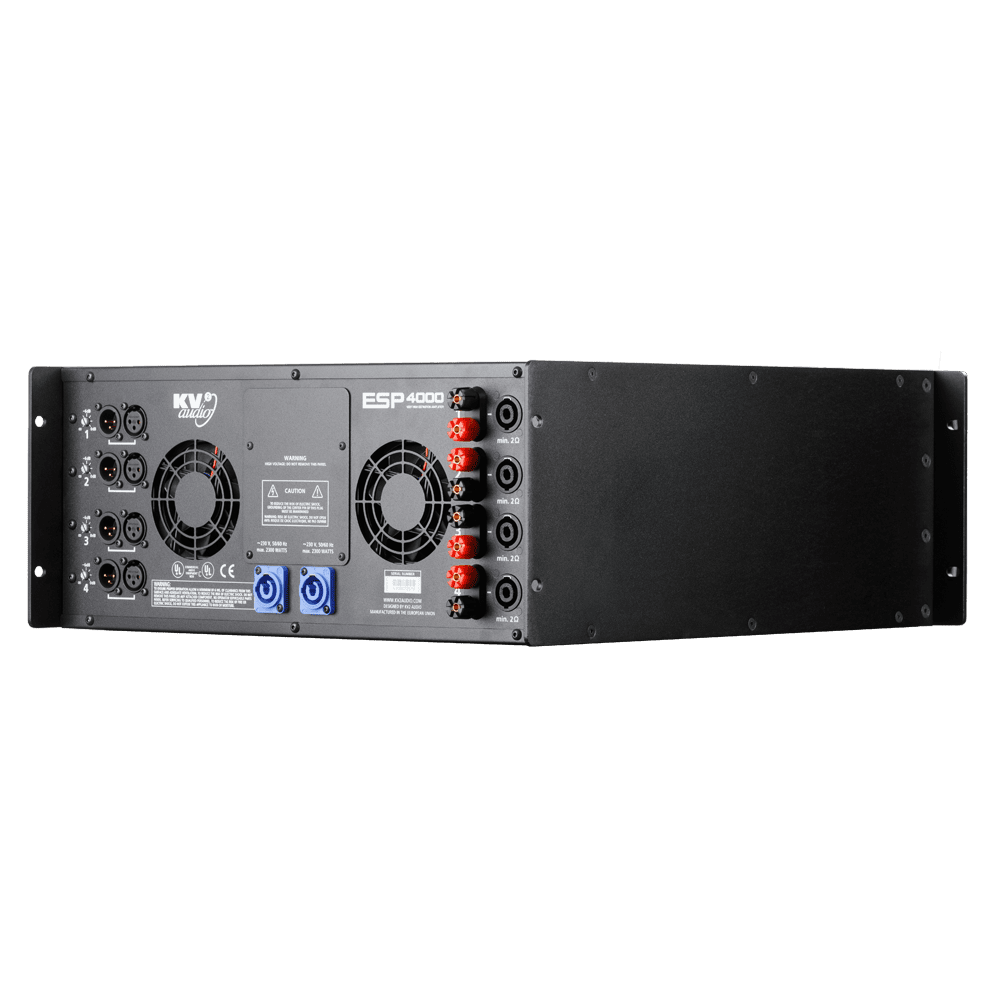

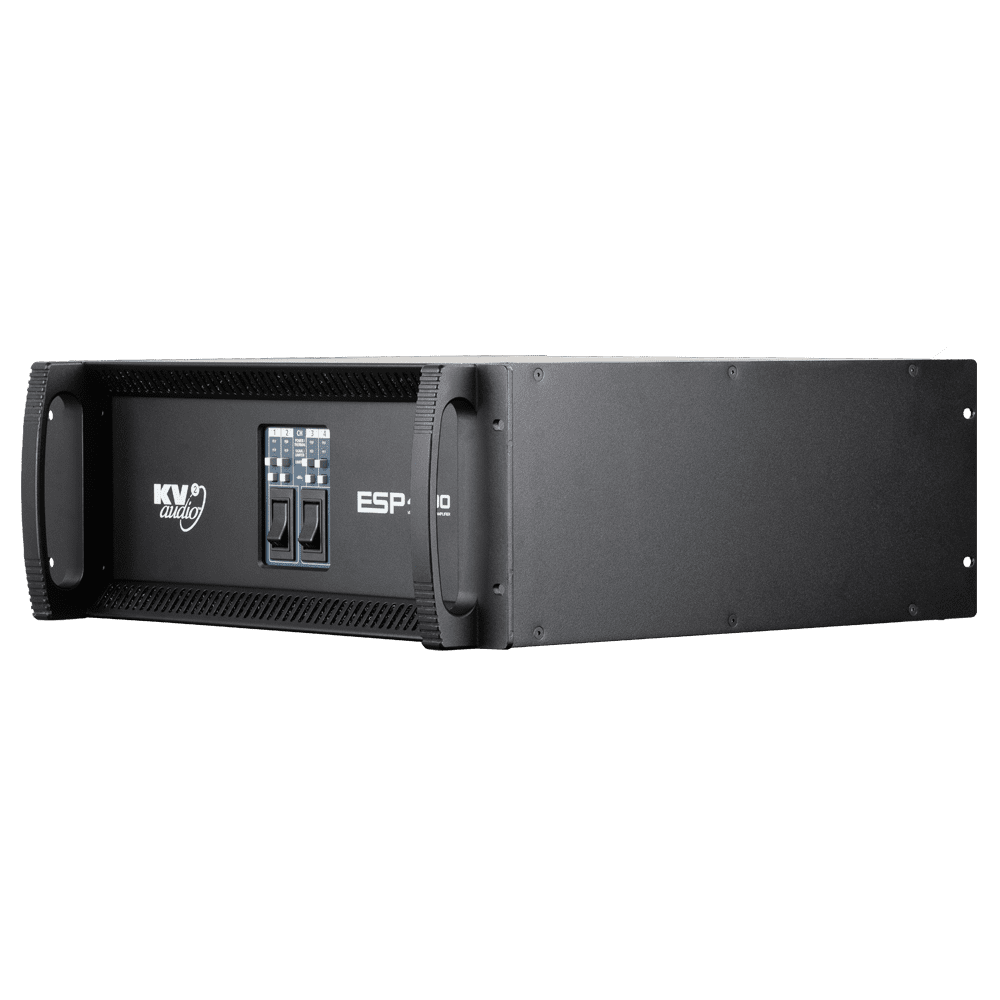

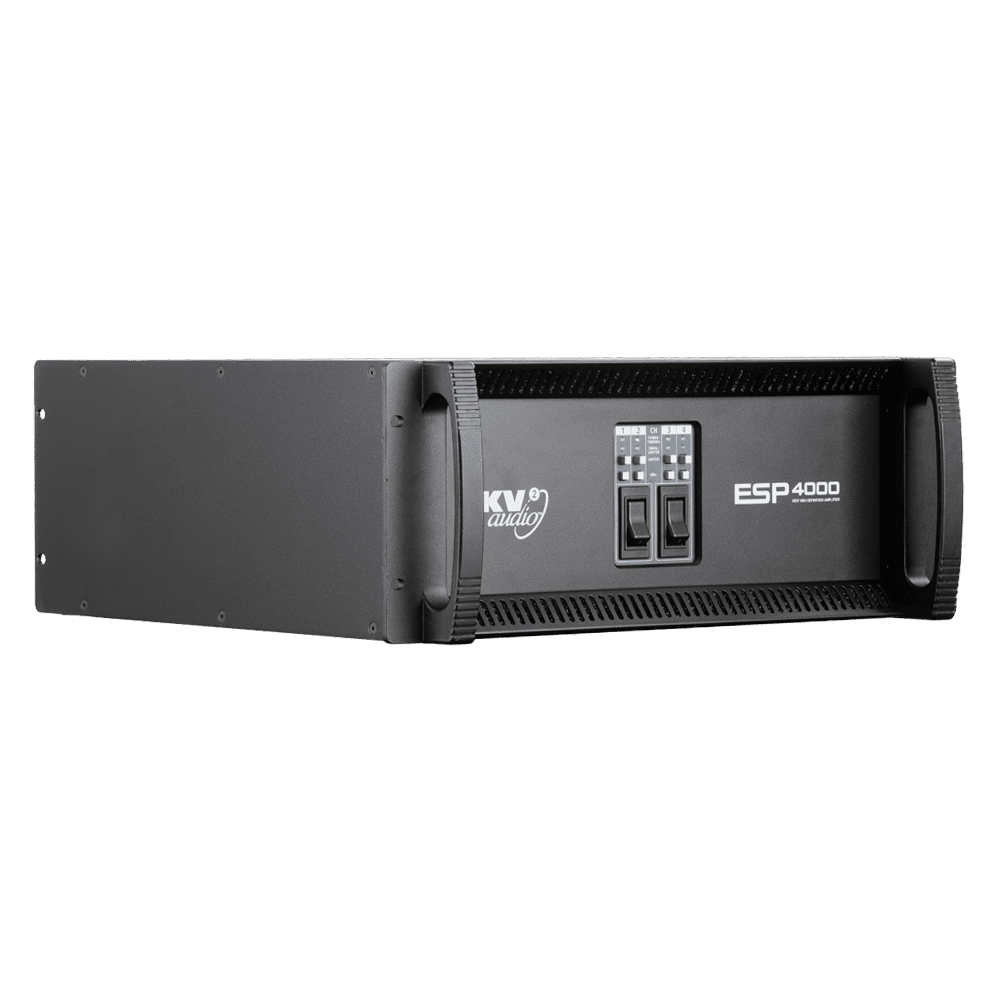

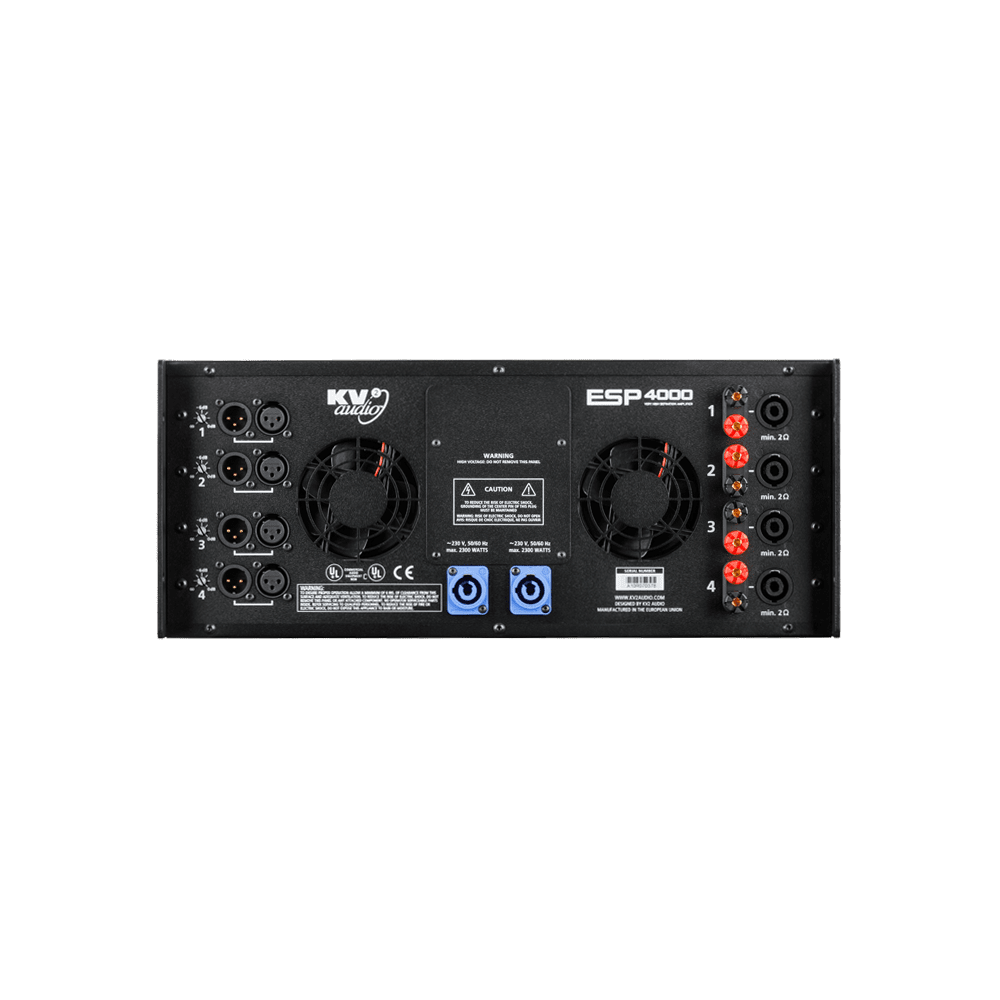

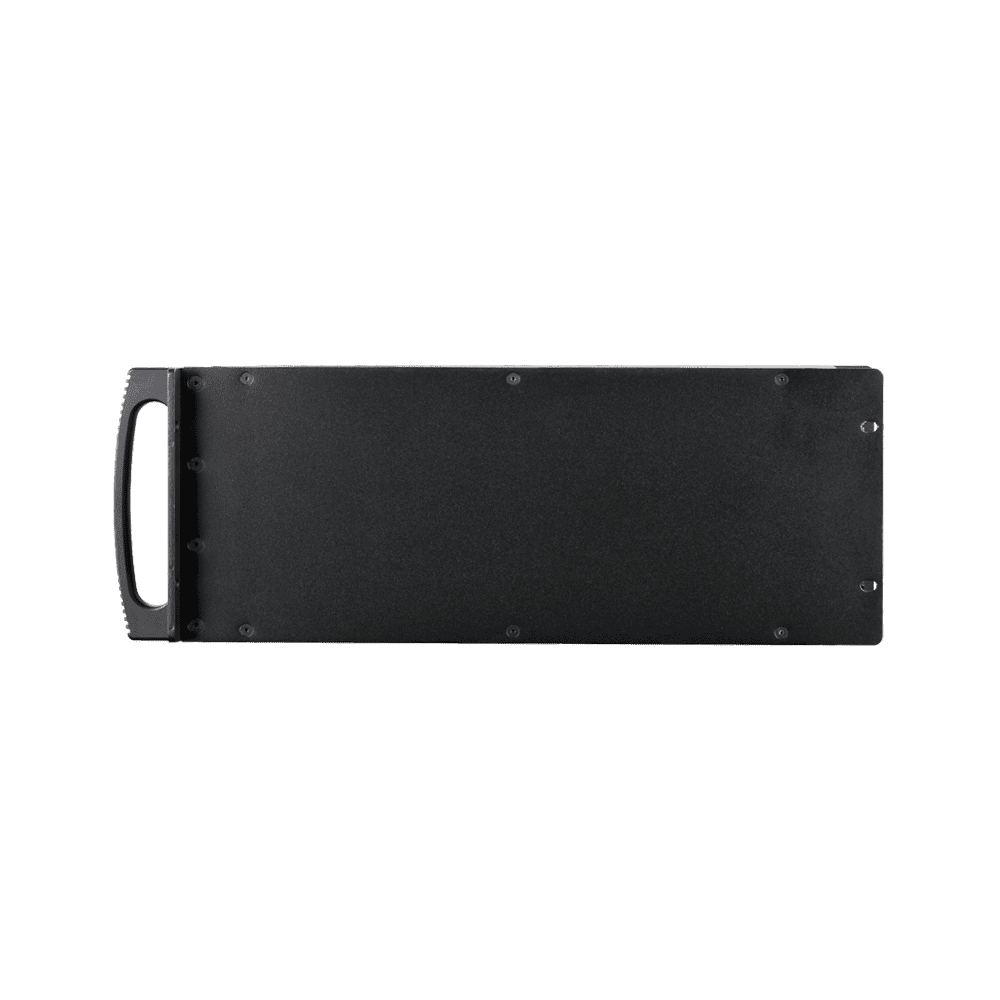

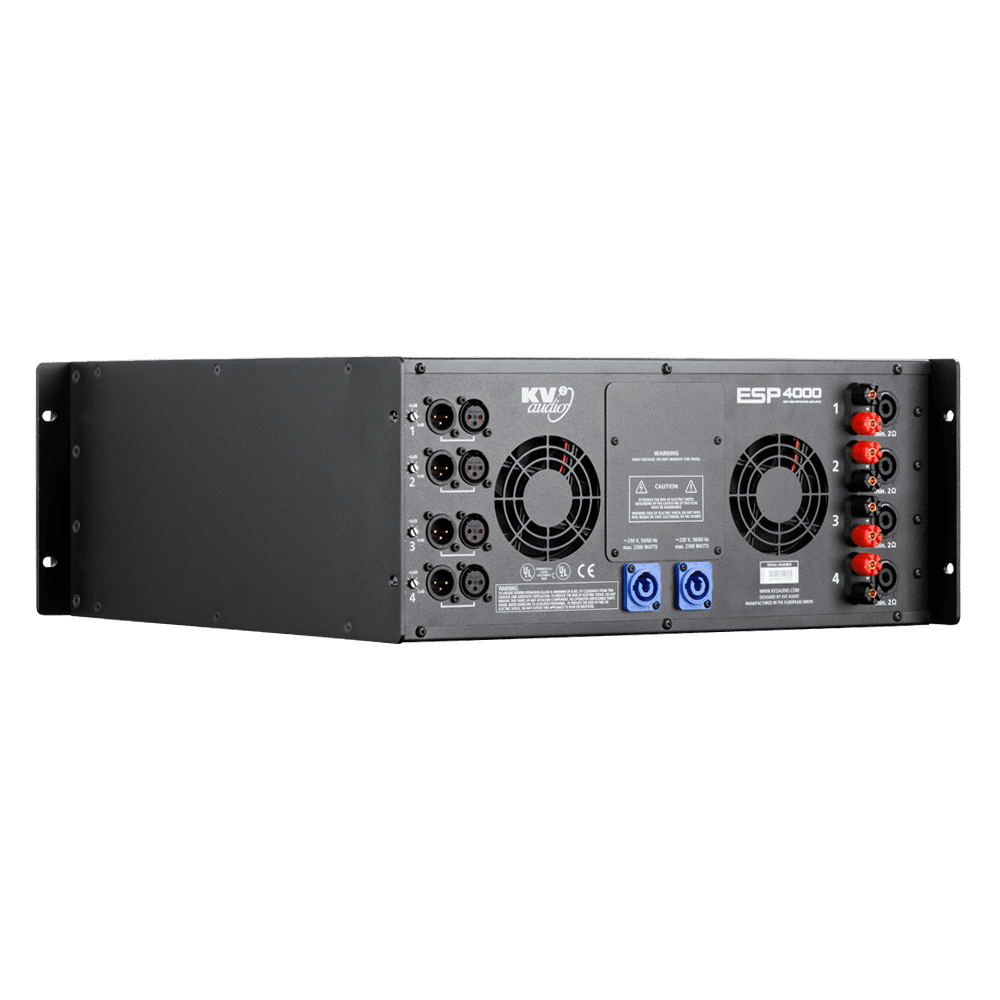

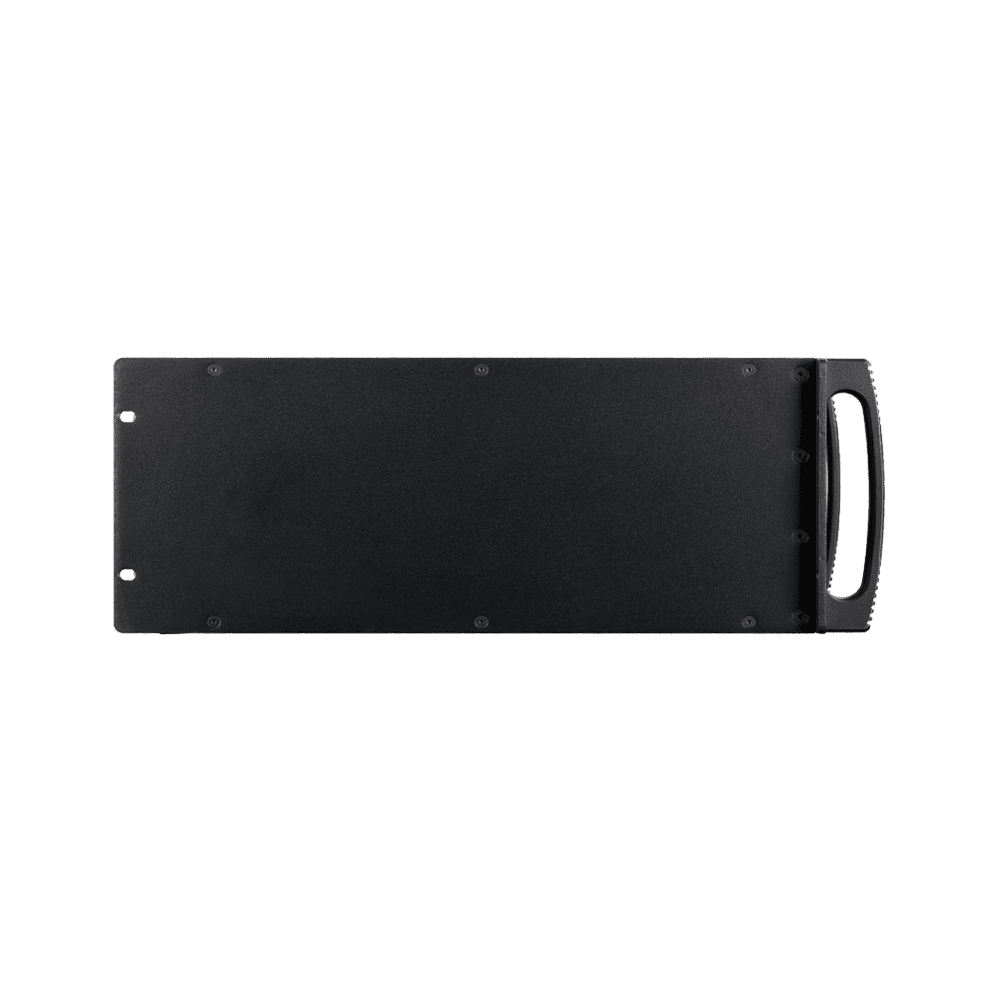

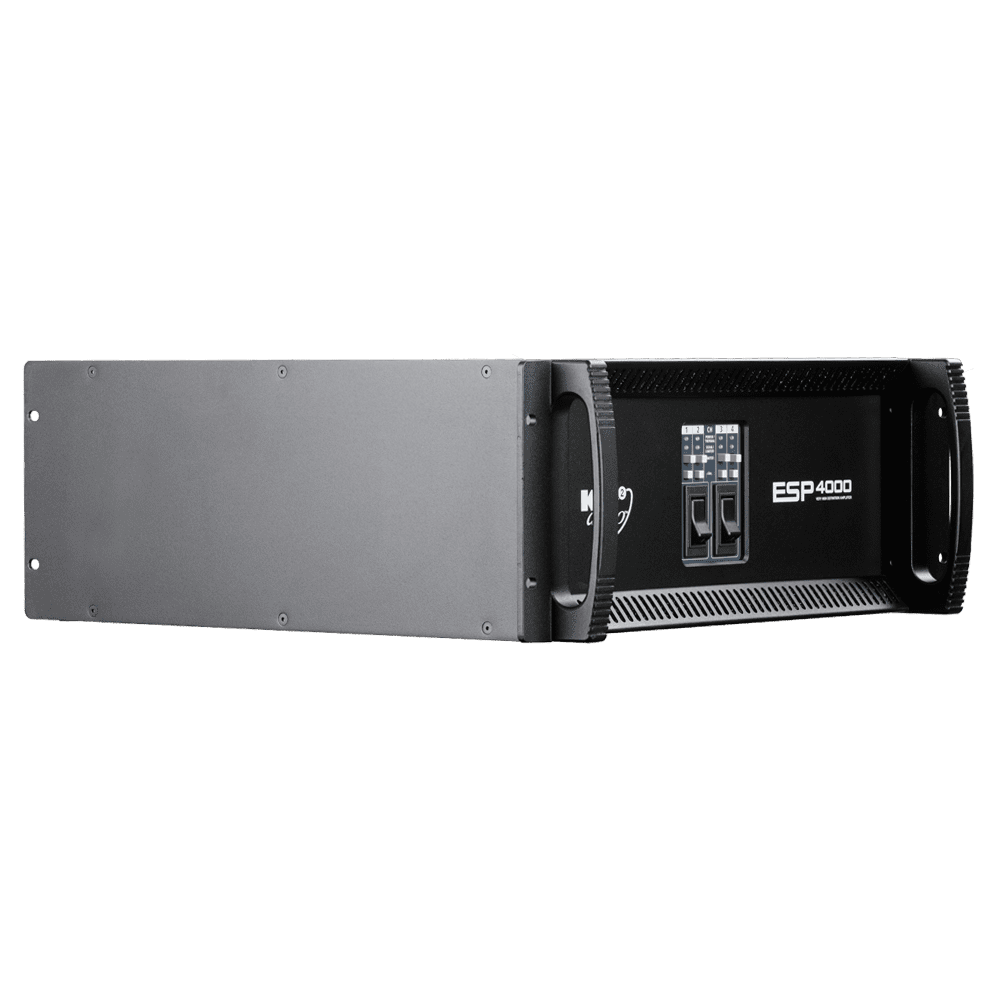

The ESP4000 is an ultra high definition 4 channel rack mountable power amplifier from KV2 Audio, specifically designed for optimised performance with ESD loudspeakers, as well as with other passive systems. For the ESP4000 all electronic circuit boards are first mounted on individual aluminium heat sinks, then on a secondary, internally sealed chassis, this leaves only the heatsink fins exposed. Two separate power supplies ensure increased reliability and continuous delivery of full power. Two shock mounted fans move air across the fins but never directly across the electronic components. This minimises maintenance cycles and improves the components lifespan and and reliability. The ESP4000 is housed in a professional 4U road rugged steel metal case with aluminium handles and evenly distributed weight.

Applications

Designed to drive the ESD and ESM range of passive loudspeaker units with superior sound quality

  • Portable PA
  • Fixed installations
  • Monitor Amplifier

Product code

  • KVV 987 215 – ESP4000 250V
  • KVV 987 208 – ESP4000 230V
  • KVV 987 214 – ESP4000 115V


    Consultar precios

    Descripción

    The ESP4000 is an ultra high definition 4 channel rack mountable power amplifier from KV2 Audio, specifically designed for optimised performance with ESD loudspeakers, as well as with other passive systems. For the ESP4000 all electronic circuit boards are first mounted on individual aluminium heat sinks, then on a secondary, internally sealed chassis, this leaves only the heatsink fins exposed. Two separate power supplies ensure increased reliability and continuous delivery of full power. Two shock mounted fans move air across the fins but never directly across the electronic components. This minimises maintenance cycles and improves the components lifespan and and reliability. The ESP4000 is housed in a professional 4U road rugged steel metal case with aluminium handles and evenly distributed weight.

    Features

    • Ultra high definition
    • 4 channel rack mountable power amplifier
    • Specifically designed for optimised performance with ESD loudspeakers, as well as with other passive systems
    • 4 x 1000W / 2Ω
    • Two separate power supplies ensure increased reliability and continuous delivery of full power
    • Two shock mounted fans move air across the fins but never directly across the electronic components. Minimises maintenance cycles and improves the components lifespan and reliability


    YouTube thumbnailYouTube icon

    Applications

    Designed to drive the ESD and ESM range of passive loudspeaker units with superior sound quality

    • Portable PA
    • Fixed installations
    • Monitor Amplifier

    Product code

    • KVV 987 215 – ESP4000 250V
    • KVV 987 208 – ESP4000 230V
    • KVV 987 214 – ESP4000 115V


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    EPAK2500R, ESP4000, VHD2000 Rack panel cover

    Gallery

    Product code

    KVV 987 189



    Description

    – prevents unwanted amplifier setup – 4U



    Downloads

    DWG

    EPAK2500R, ESP4000, VHD2000 Rack panel cover 3D DWG

    EPAK2500R, ESP4000, VHD2000 Rack panel cover 3D DWG

    SKP

    EPAK2500R, ESP4000, VHD2000 Rack panel cover SKP

    EPAK2500R, ESP4000, VHD2000 Rack panel cover SketchUp

    System Acoustic Performance

    -1dB Response 3Hz to 40kHz
    Channel Crosstalk >60dB
    Signal to Noise Ratio >115dB
    Total Harmonic Distortion <0.005% (1W) / <0.01% (clip -1dB)

    Output Channels

    Amplifier Type High efficiency, Emitter coupled
    Number of Channels 4
    Total Output Power 4000W
    Max. Output Voltage 78V (peak) per channel
    Max. Output Current 48A (peak) per channel
    Minimum load impedance per channel
    Out. Power 16Ω – 1 channel / 2 channels loaded 175W / 160W (RMS)
    Out. Power 8Ω – 1 channel / 2 channels loaded 340W / 300W (RMS)
    Out. Power 4Ω – 1 channel / 2 channels loaded 600W / 500W (RMS)
    Out. Power 2Ω – 1 channel / 2 channels loaded 1000W / 800W (RMS)
    Out. Power 16Ω – bridged 600W (RMS)
    Out. Power 8Ω – bridged 1000W (RMS)
    Out. Power 4Ω – bridged 1600W (RMS), 2000W short term

    Signal Input

    Input Channels XLR
    Input Sensitivity 2.0V
    Input Impedance 20kΩ (balanced)
    Signal Output XLR Through

    Speaker Output

    Speaker Output – / 4x Binding posts, Neutrik Speakon®

    Features

    Input Level Control -∞ to 0dB
    Loudness bass enhancement +6dB @ 60Hz
    RMS Limiter On / Off
    Indicators Power ON/Thermal, Signal/Limiter

    Power Requirements

    Power Connector 2x Neutrik PowerCon®
    Operating Voltage 115V / 230V / 250V
    Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
    Recommended Amperage 2x20A 115V | 2x10A 230V | 2x10A 250V
    Soft Start YES
    Protection Thermal breaker
    Cooling 2x temperature controlled fans

    Physical Dimensions

    Height 177 mm (6.96″), 4RU
    Width 481.4 mm (18.95″)
    Depth 455.3 mm (17.9″)
    Weight 37.5 kg (82.7lbs)


    Product code

    • KVV 987 215 – ESP4000 250V
    • KVV 987 208 – ESP4000 230V
    • KVV 987 214 – ESP4000 115V
