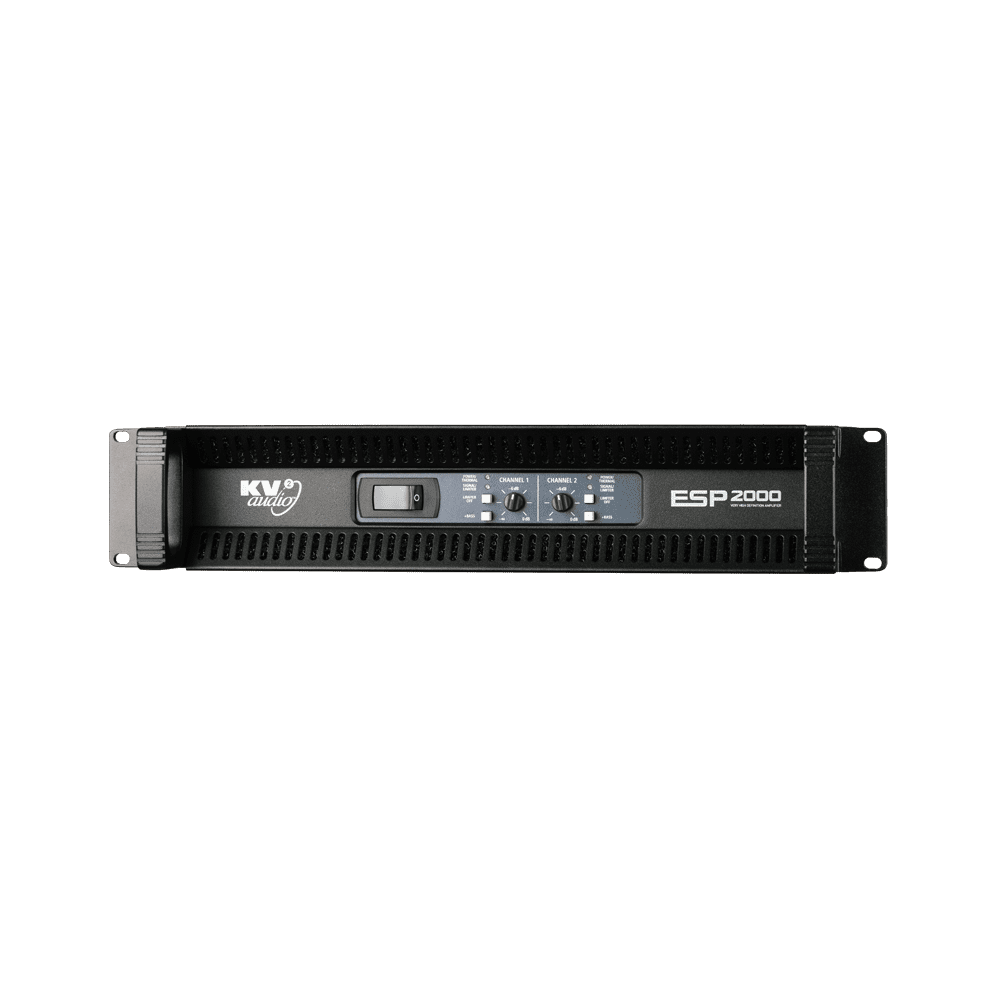

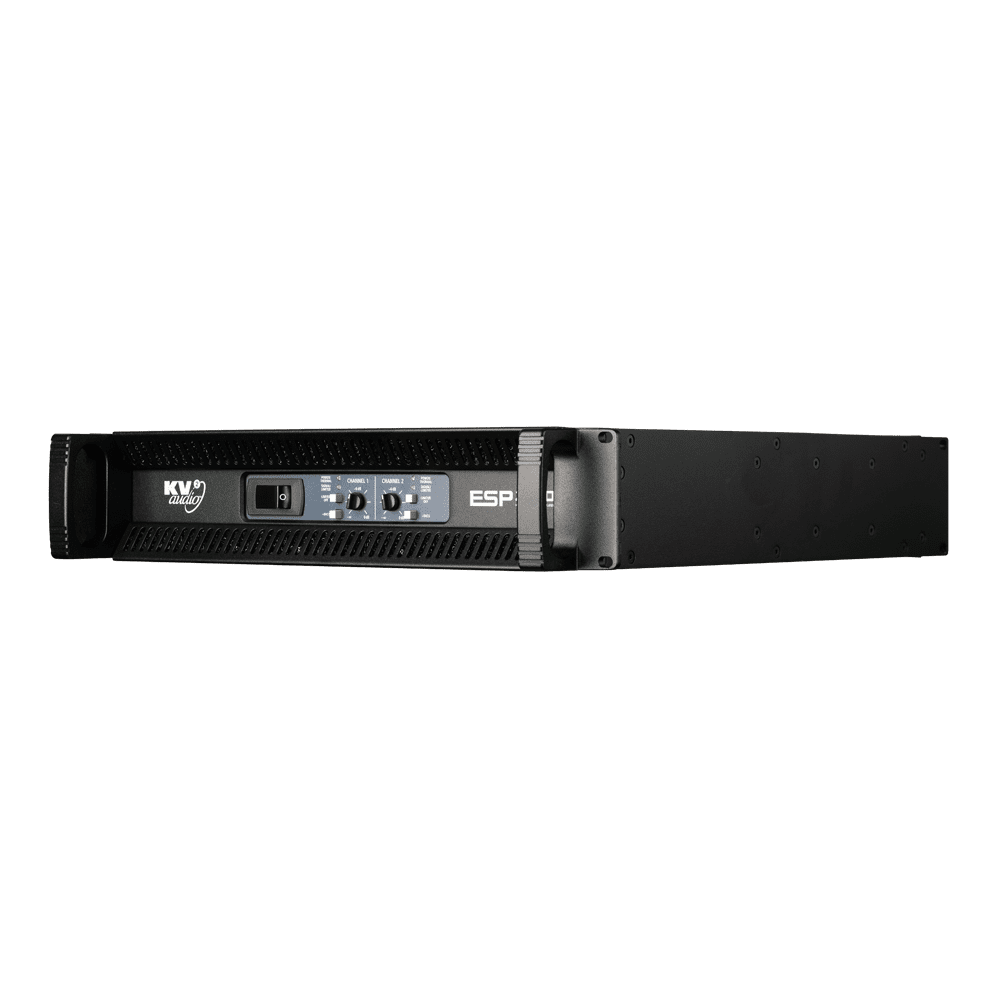

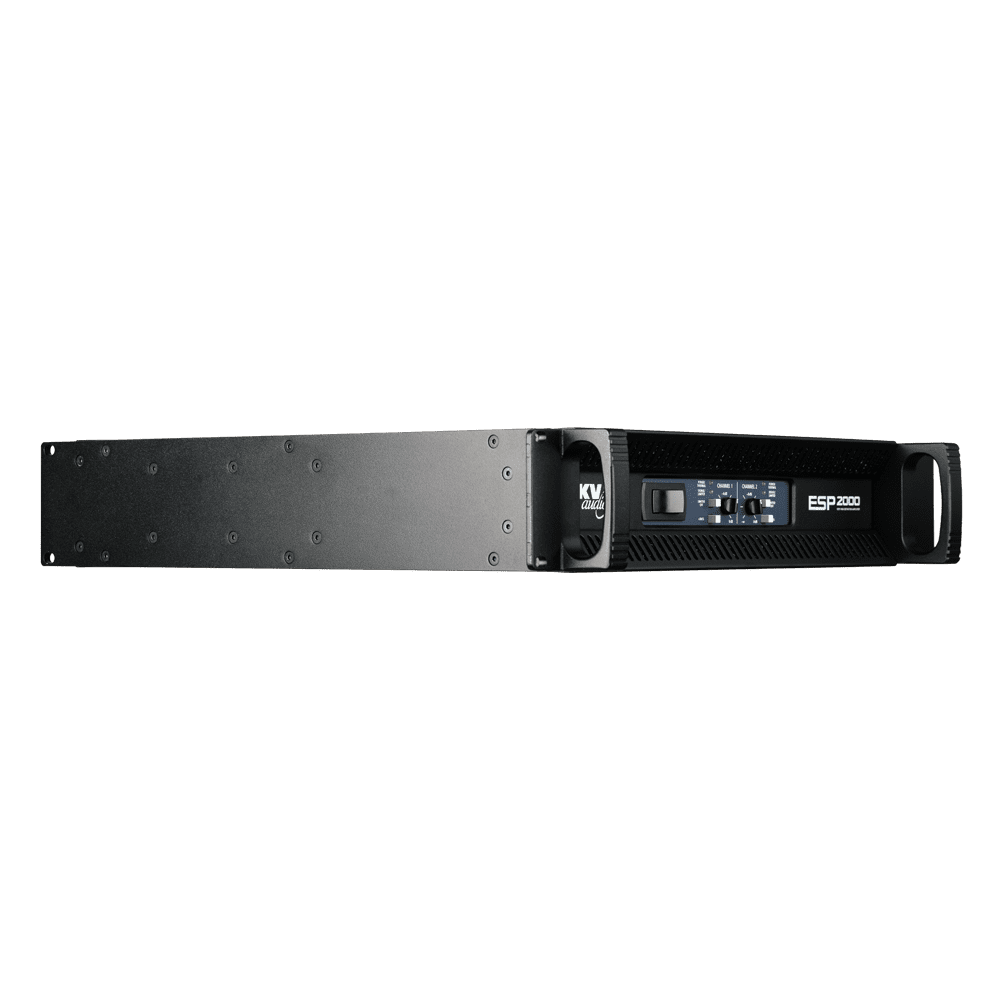

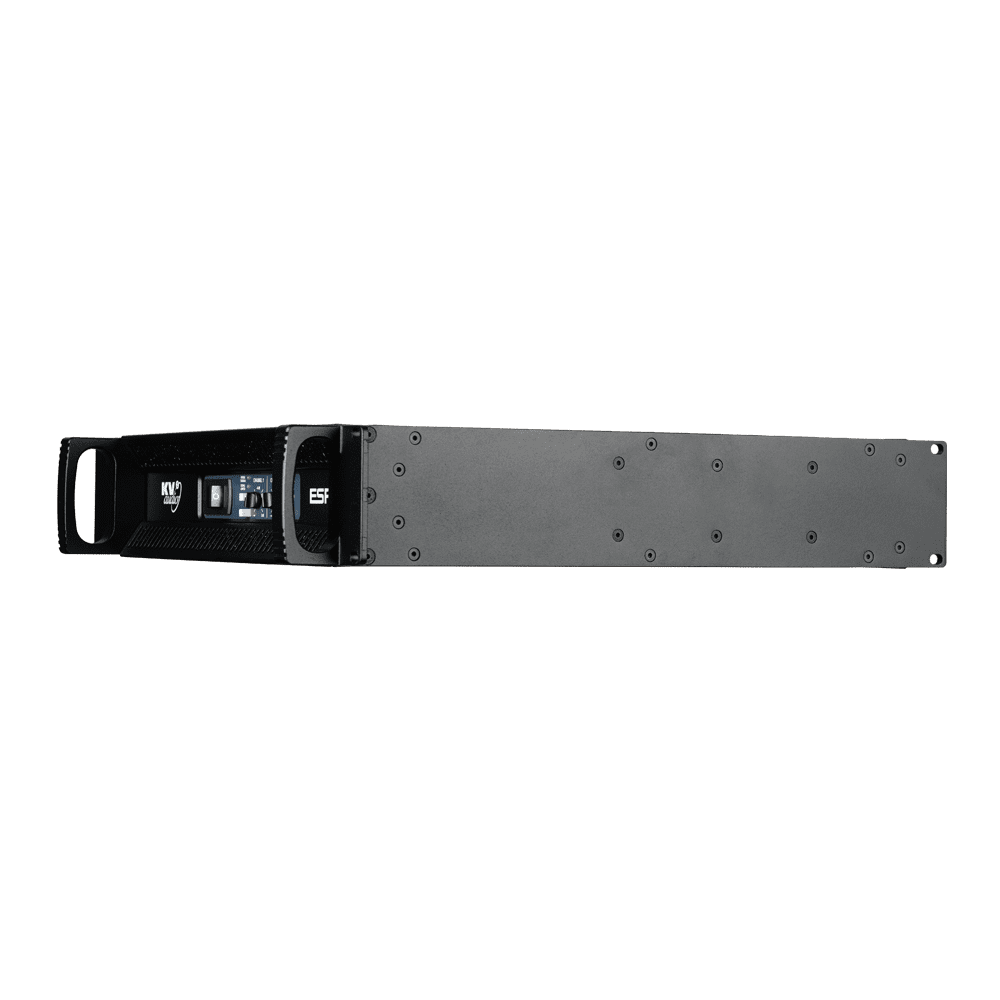

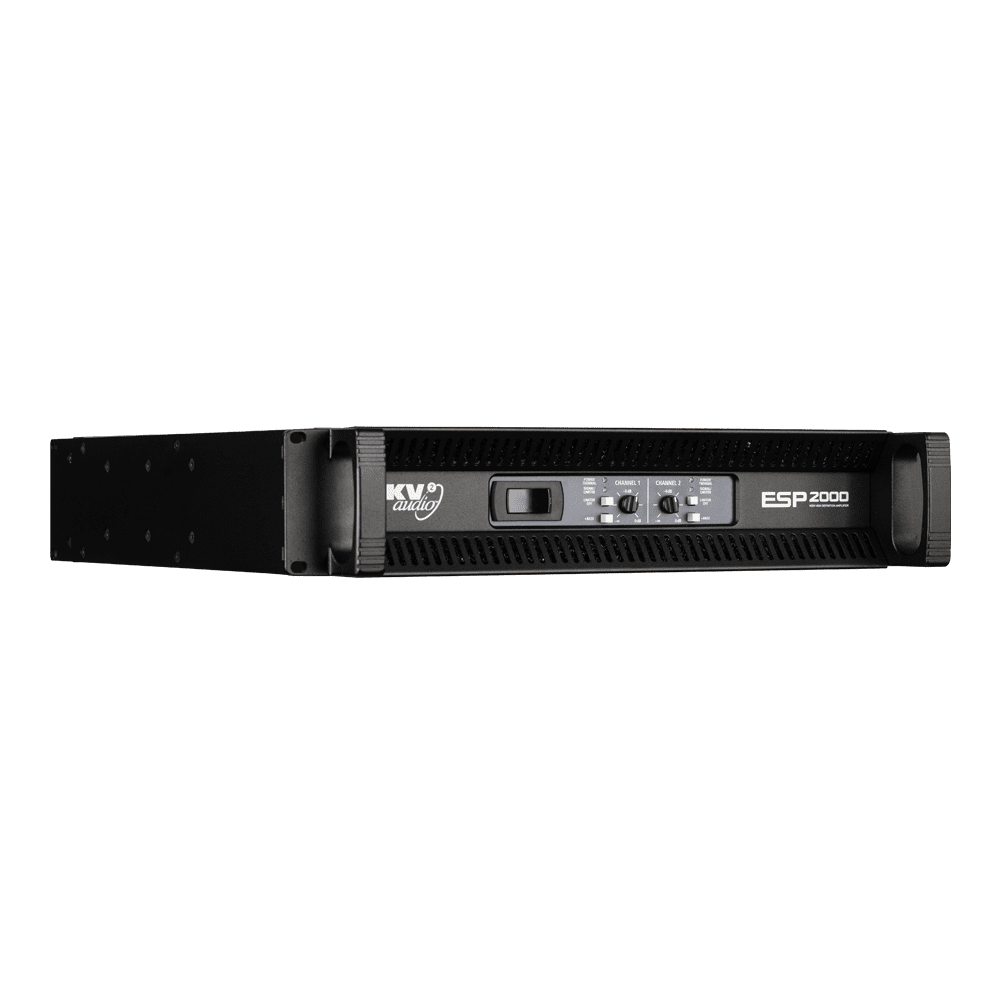

ESP2000 – Rack mounted, High definition amplifier

KV2AUDIO
SKU: ESP2000

The ESP2000 amplifier incorporates KV2’s SLA design principles, delivering very low distortion characteristics, even under extreme operation. Equally at home as a reference amplifier in a high-end recording studio or driving a large-scale live audio system, the ESP2000 is a sonically superb unit featuring Class H amplifier. The ESP2000 incorporates the same cooling system as other KV2 amplifiers where only the heat sinks are exposed protecting the internal electronics. Robust enough for the harshest touring or installation environments the ESP2000 will provide years of trouble-free performance, delivering absolutely pristine audio.

Applications

Designed to drive the ESD and ESM range of passive loudspeaker units with superior sound quality

  • Portable PA
  • Fixed installations

Product code

  • KVV 987 271 – ESP2000 250V
  • KVV 987 269 – ESP2000 230V
  • KVV 987 270 – ESP2000 115V


    Consultar precios

    Descripción

    The ESP2000 amplifier incorporates KV2’s SLA design principles, delivering very low distortion characteristics, even under extreme operation. Equally at home as a reference amplifier in a high-end recording studio or driving a large-scale live audio system, the ESP2000 is a sonically superb unit featuring Class H amplifier. The ESP2000 incorporates the same cooling system as other KV2 amplifiers where only the heat sinks are exposed protecting the internal electronics. Robust enough for the harshest touring or installation environments the ESP2000 will provide years of trouble-free performance, delivering absolutely pristine audio.

    Features

    • Very high definition
    • 2 channel rack mountable power amplifier
    • 2 x 1000W / 2Ω
    • Separate power supplies ensure increased reliability and continuous delivery of full power
    • Two shock mounted fans move air across the fins but never directly across the electronic components. Minimises maintenance cycles and improves the components lifespan and reliability


    YouTube thumbnailYouTube icon

    Applications

    Designed to drive the ESD and ESM range of passive loudspeaker units with superior sound quality

    • Portable PA
    • Fixed installations

    Product code

    • KVV 987 271 – ESP2000 250V
    • KVV 987 269 – ESP2000 230V
    • KVV 987 270 – ESP2000 115V


    Accesories


    EX28 Vertical Bracket

    Gallery

    Product code

    KVV 987 532



    Description

    Vertical bracket for EX28 Loudspeaker

    • 1 pc of allen key
    • 2 pcs of M10 x 30 mm
    • 2 pcs of „t-clip“, M10 x 30, black


    Downloads

    DWG

    EX28 Vertical Bracket 3D DWG

    EX28 Vertical Bracket 3D DWG
    DWG

    EX28 Vertical Bracket 2D DWG

    EX28 Vertical Bracket 2D DWG
    SKP

    EX28 Vertical Bracket 3D SKP

    EX28 Vertical Bracket 3D SKP – SketchUp
    PDF

    EX28 Vertical Bracket 2D PDF

    EX28 Vertical Bracket 2D PDF

    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    System Acoustic Performance

    -1dB Response 3Hz to 40kHz
    Channel Crosstalk >70dB
    Signal to Noise Ratio >115dB
    Total Harmonic Distortion <0.005% (1W) / <0.01% (clip -1dB)

    Output Channels

    Amplifier Type High Efficiency, Emitter coupled
    Number of Channels 2
    Total Output Power 2000W
    Max. Output Voltage 78V (peak) per channel
    Max. Output Current 48A (peak) per channel
    Minimum load impedance per channel
    Out. Power 16Ω – 1 channel / 2 channels loaded 175W / 160W (RMS)
    Out. Power 8Ω – 1 channel / 2 channels loaded 340W / 300W (RMS)
    Out. Power 4Ω – 1 channel / 2 channels loaded 600W / 500W (RMS)
    Out. Power 2Ω – 1 channel / 2 channels loaded 1000W / 800W (RMS)
    Out. Power 16Ω – bridged 600W (RMS)
    Out. Power 8Ω – bridged 1000W (RMS)
    Out. Power 4Ω – bridged 1500W (RMS), 2000W short term

    Signal Input

    Input Channels XLR
    Input Sensitivity 1.55V
    Input Impedance 20kΩ (balanced)

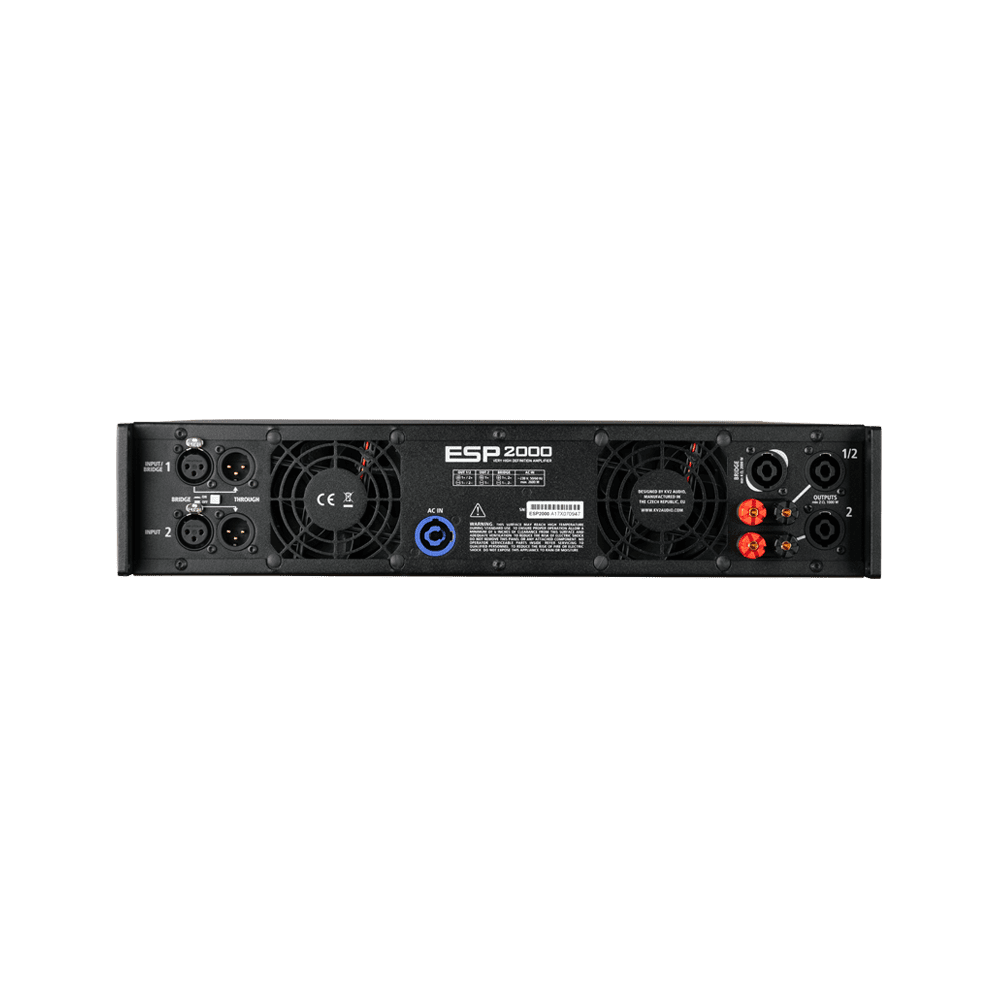

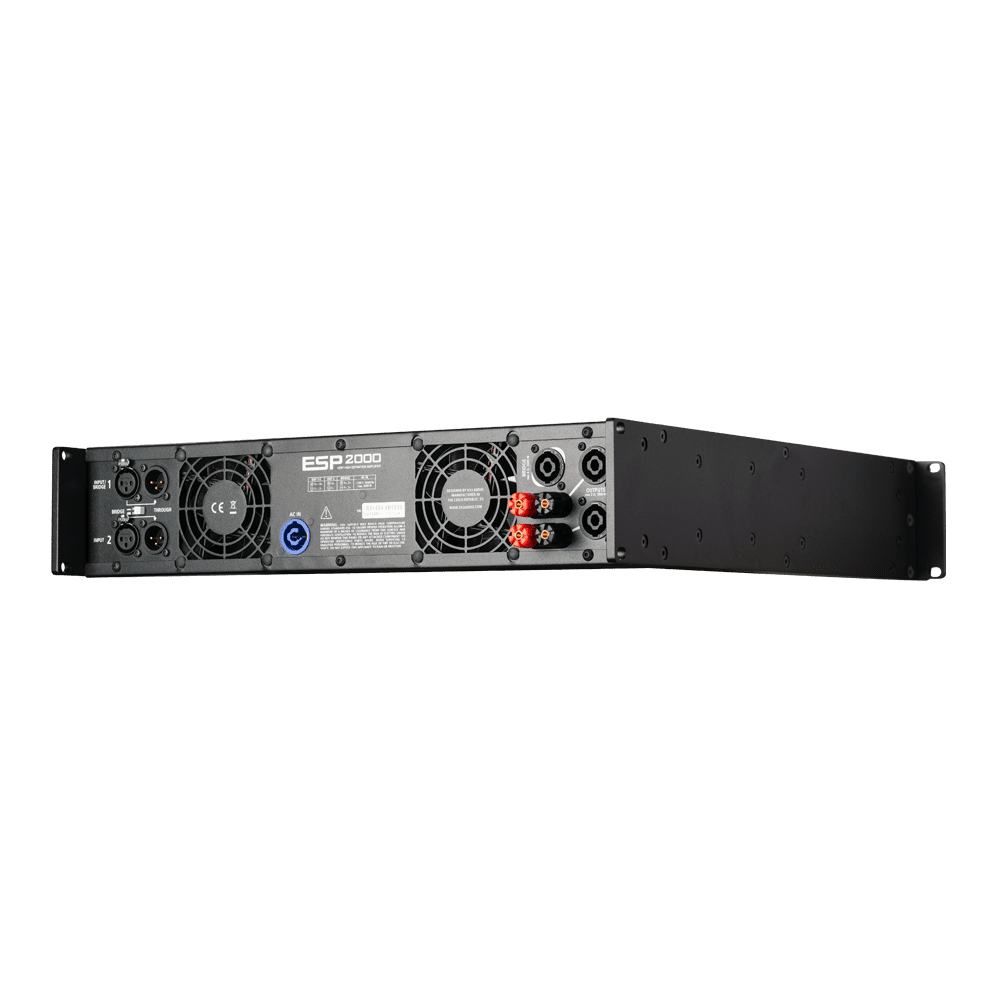

    Signal Output XLR Through

    Speaker Output

    Speaker Output Neutrik Speakon®, 2x Binding posts

    Features

    Input Level Control -∞ to 0dB
    Subwoofer Level Control +6dB @ 60Hz
    RMS Limiter On / Off
    Indicators Power ON/Thermal, Signal/Limiter

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage 115V / 230V / 250V
    Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
    Recommended Amperage 20A 115V | 10A 230V | 10A 250V
    Soft Start YES
    Protection Thermal breaker
    Cooling 2x temperature controlled fans

    Physical Dimensions

    Height 88 mm (3.5″), 2RU
    Width 482,6 mm (19.00″)
    Depth 496 mm (19.54″)
    Weight 18,8 kg (41,23 lbs)


    Product code

    • KVV 987 271 – ESP2000 250V
    • KVV 987 269 – ESP2000 230V
    • KVV 987 270 – ESP2000 115V

    PDF

    ESP2000 User Guide

    ESP2000 Amplifier User Guide – English



    PDF

    ES Series User Guide

    – User Guide for ES Series – English


    PDF

    ESP2000 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    ESP2000 230V 3D DWG

    ESP2000 230V 3D DWG



    SKP

    ESP2000 230V SKP

    ESP2000 230V SketchUp



    DWG

    ESP2000 115V 3D DWG

    ESP2000 115V 3D DWG



    SKP

    ESP2000 115V SKP

    ESP2000 115V SketchUp



    DWG

    ESP2000 250V 3D DWG

    ESP2000 250V 3D DWG



    SKP

    ESP2000 250V SKP

    ESP2000 250V SketchUp



    SKP

    ESP Series SketchUp

    ESP Series SketchUp (ESP1000, ESP2000, ESP4000)



    SKP

    ESP2000 – SketchUp

    ESP2000 – SketchUp



    DWG

    ESP2000 2D DWG

    ESP2000 2D DWG



    PDF

    ESP2000 – 2D

    ESP2000 2D Drawings



    DWG

    ESP2000 – 3D DWG

    3D drawing, 1:1 scale – clamping points – weight – dwg file
