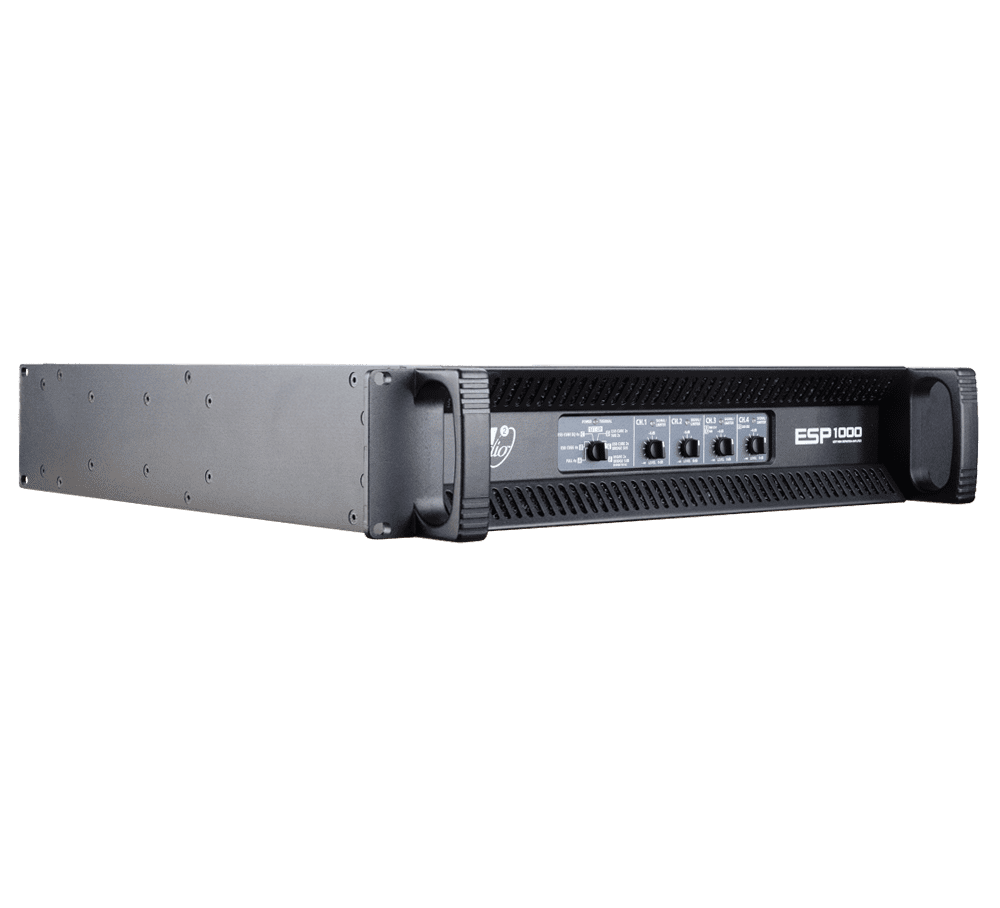

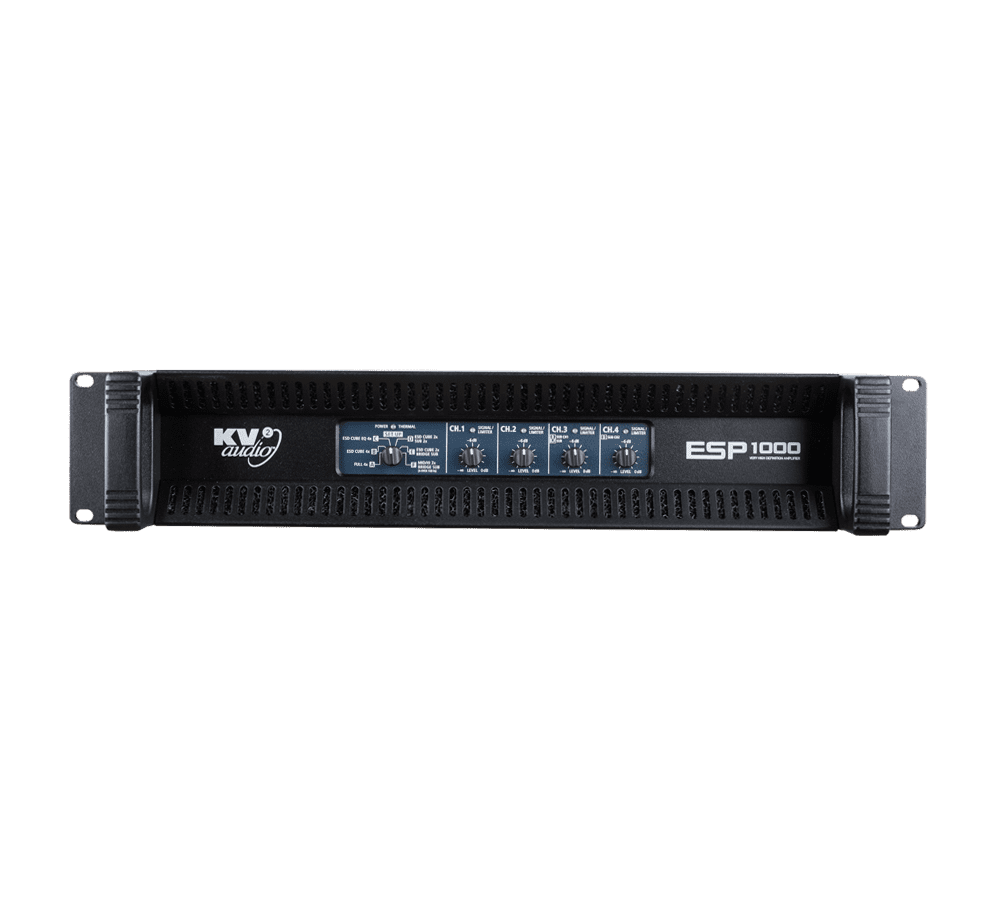

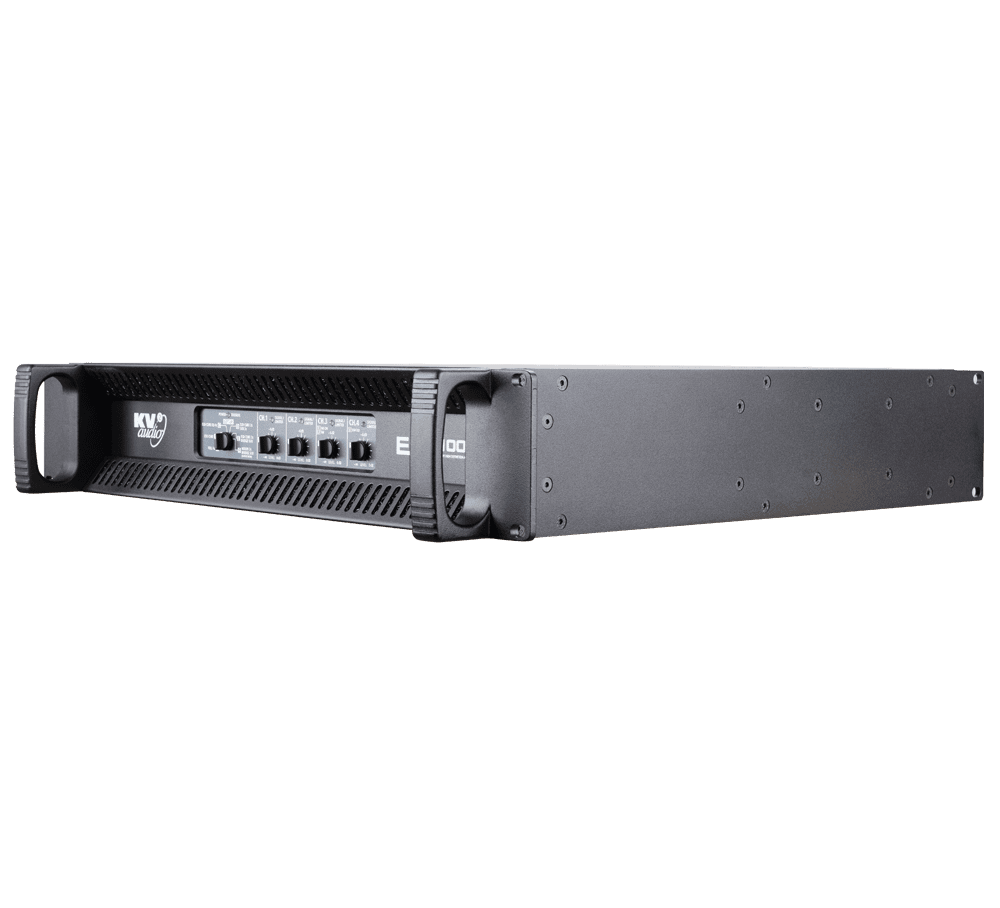

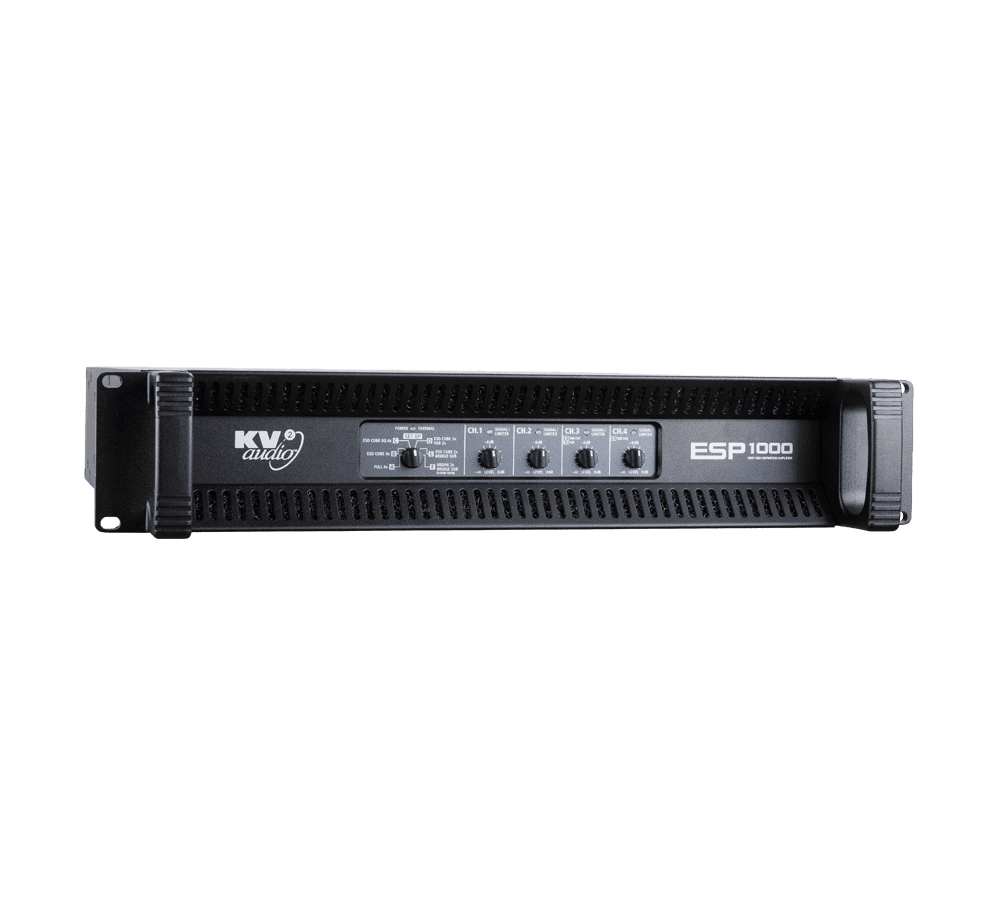

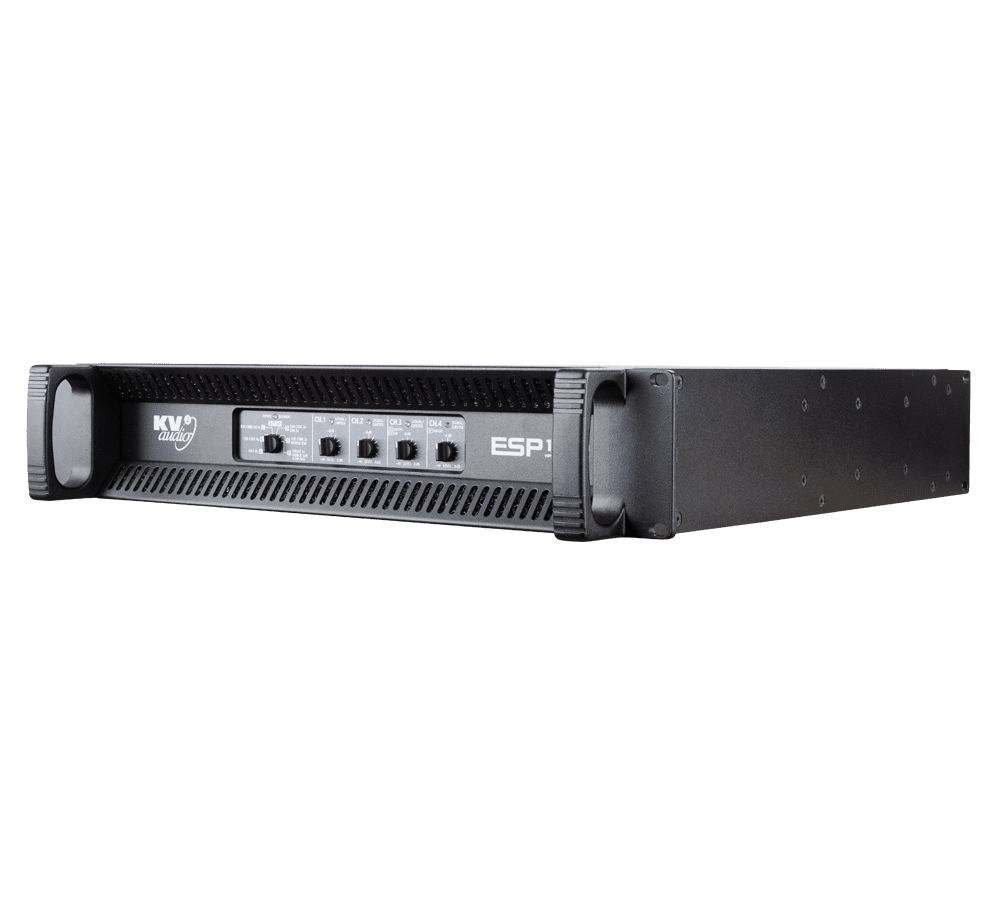

ESP1000 – Rack mounted, High Definition Amplifier

KV2AUDIO
SKU: ESP1000

The ESP1000 is a four channel rack mountable power amplifier specifically designed for optimised performance with KV2 Audio’s ESD Cube / ESD1.10 subwoofer system. The unit contains four separate 250 watt amplifiers, two independent power supplies (two channels running off each power supply), four signal paths, inputs and outputs as well as limiting and equalization for given passive loudspeaker / subwoofers. Six independent configurations are selectable and it can be used to power any ESD units and other ranges of passive loudspeakers.

Product code

KVV 987 394 – ESP1000 (250V)
KVV 987 393 – ESP1000 (230V)
KVV 987 392 – ESP1000 (115V)



    Consultar precios

    Descripción

    The ESP1000 is a four channel rack mountable power amplifier specifically designed for optimised performance with KV2 Audio’s ESD Cube / ESD1.10 subwoofer system. The unit contains four separate 250 watt amplifiers, two independent power supplies (two channels running off each power supply), four signal paths, inputs and outputs as well as limiting and equalization for given passive loudspeaker / subwoofers. Six independent configurations are selectable and it can be used to power any ESD units and other ranges of passive loudspeakers.

    Features

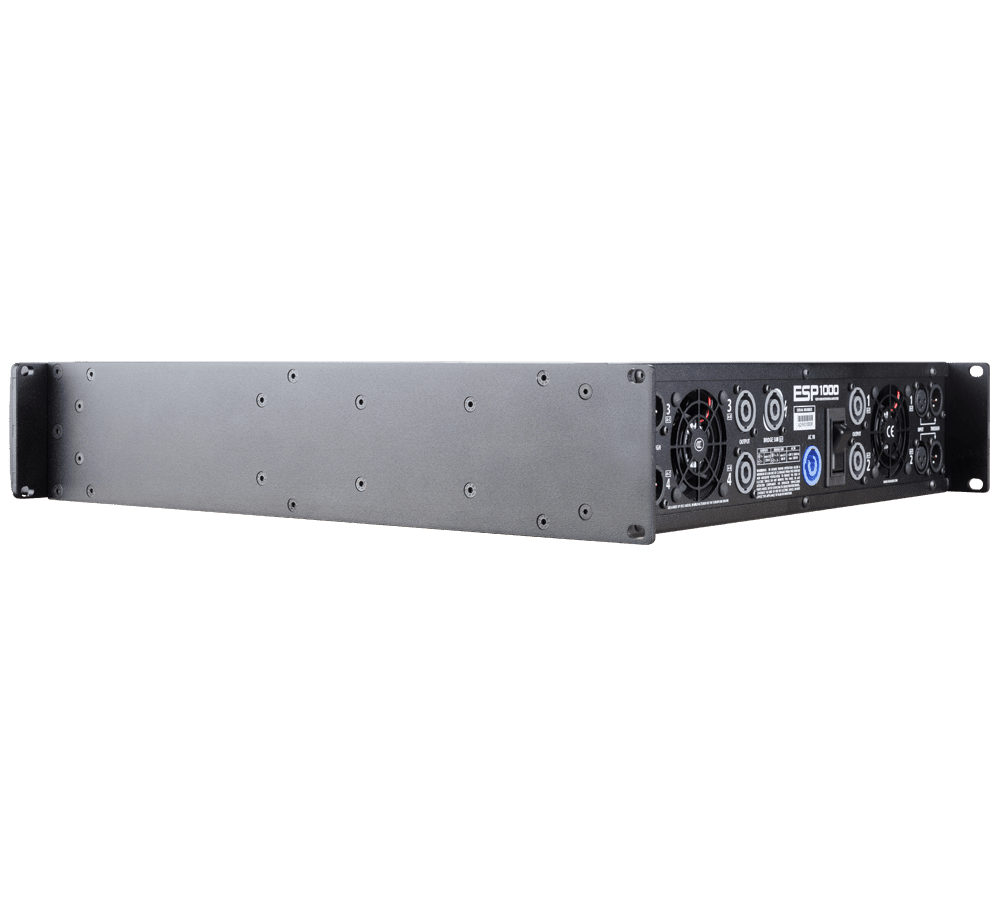

    The ESP1000 will mount in a standard 19″ rack system. Integral rear mounting rack ears are also provided for additional support. It is important that you do not rely on fixing and mounting the ESP1000 using just the front panel as the support. Use eight screws and washers to mount the amplifier to the equipment rack rails, (four for the fronts and four for the rear).



    Product code

    KVV 987 394 – ESP1000 (250V)
    KVV 987 393 – ESP1000 (230V)
    KVV 987 392 – ESP1000 (115V)



    System Acoustic Performance

    -1dB Response 3Hz to 50kHz / Flat Setup
    Channel Crosstalk >70dB
    Signal to Noise Ratio >115dB
    Total Harmonic Distortion <0.005% (1W) / <0.01% (clip -1dB)

    Output Channels

    Amplifier Type High Efficiency, Emitter coupled
    Number of Channels 4
    Total Output Power 1000W
    Minimum load impedance per channel
    Out. Power 8Ω – 1 channel / 2 channels loaded 150W / 140W (RMS)
    Out. Power 4Ω – 1 channel / 2 channels loaded 250W (RMS)
    Out. Power 16Ω – bridged 300W (RMS)
    Out. Power 8Ω – bridged 500W (RMS)

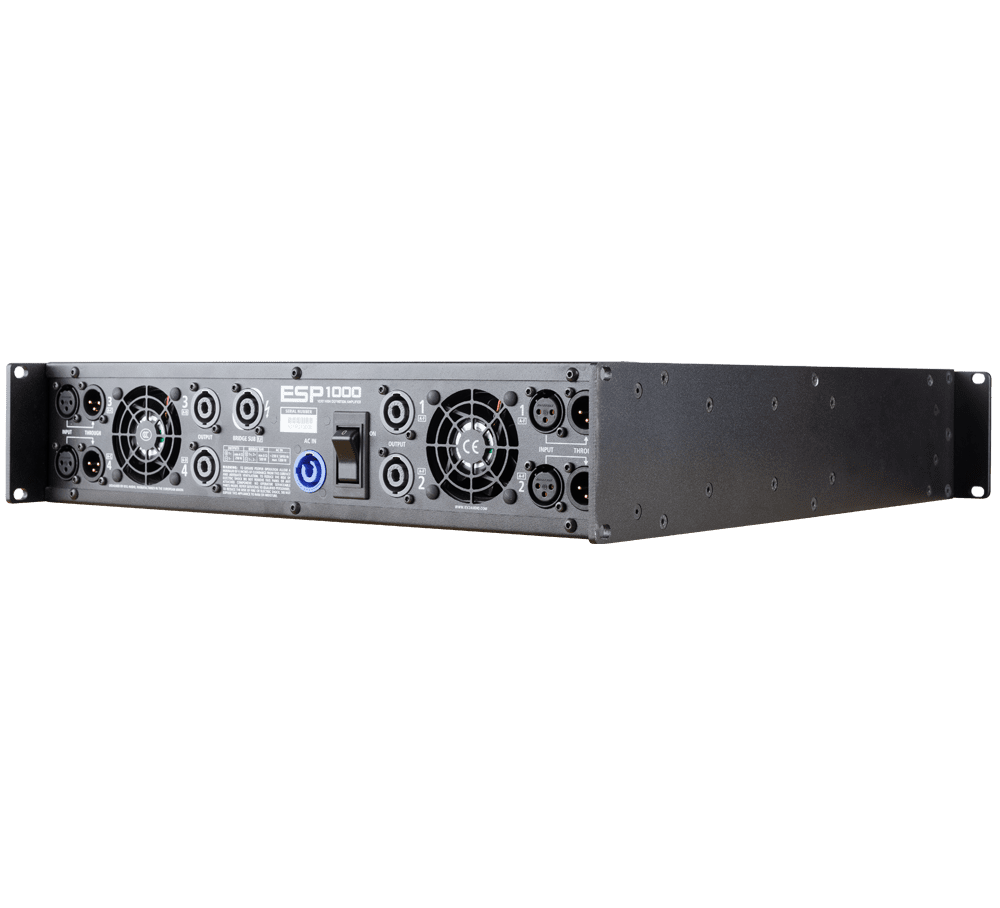

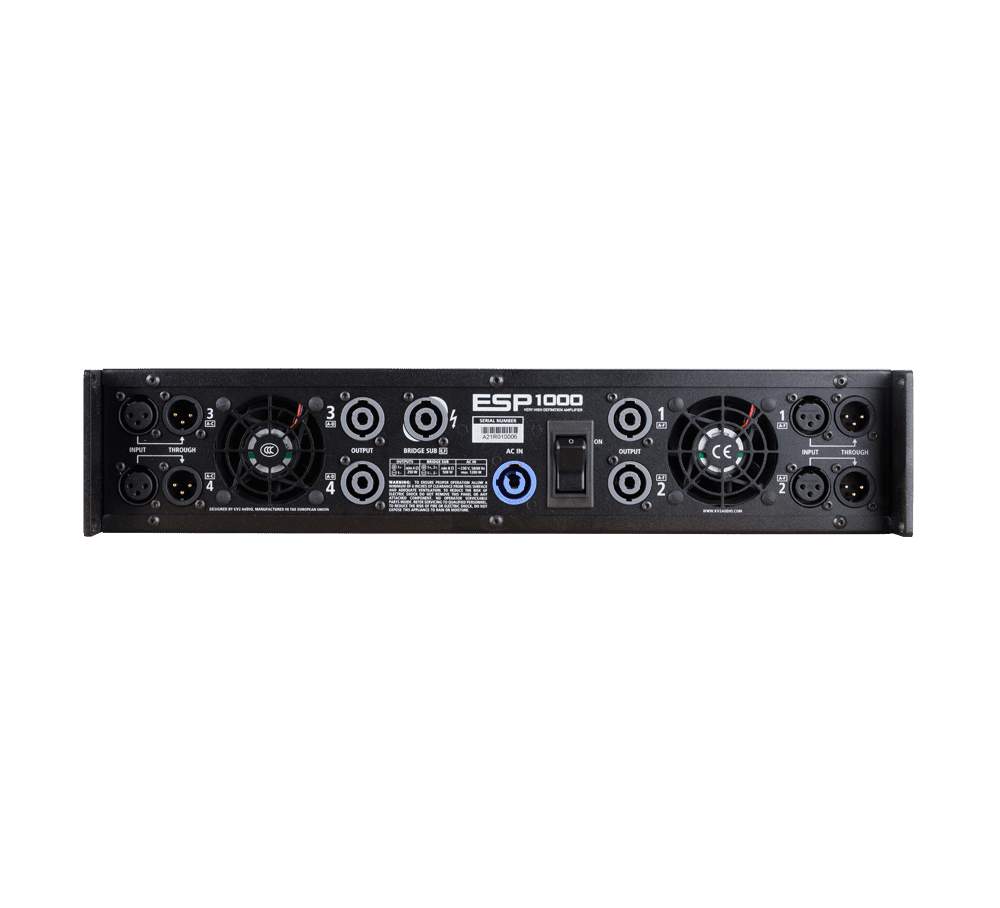

    Signal Input

    Input Channels XLR
    Input Sensitivity 1.55V
    Input Impedance 20kΩ (balanced)
    Signal Output XLR Through

    Speaker Output

    Speaker Output Neutrik Speakon®

    Features

    Input Level Control -∞ to 0dB
    Equalization Flat or according to the setup
    RMS Limiter YES
    Indicators Power ON/Thermal, RMS Limiter, Signal

    Power Requirements

    Power Connector Neutrik PowerCon®
    Operating Voltage 115V / 230V / 250V
    Operating Voltage Range 100 to 120V@60Hz | 205 to 240V@50Hz | 225 to 260V@50Hz
    Recommended Amperage 10A 115V | 5A 230V | 5A 250V
    Soft Start YES
    Protection Thermal breaker
    Cooling 2x temperature controlled fans

    Physical Dimensions

    Height 88 mm (3.5″), 2RU
    Width 483 mm (18.95″)
    Depth 496 mm (19.5″)
    Weight 17,8 kg (32,24 lbs)


    Product code

    KVV 987 394 – ESP1000 (250V)
    KVV 987 393 – ESP1000 (230V)
    KVV 987 392 – ESP1000 (115V)
