ESM26 – Ultimate Passive Monitor

KV2AUDIO
SKU: ESM26

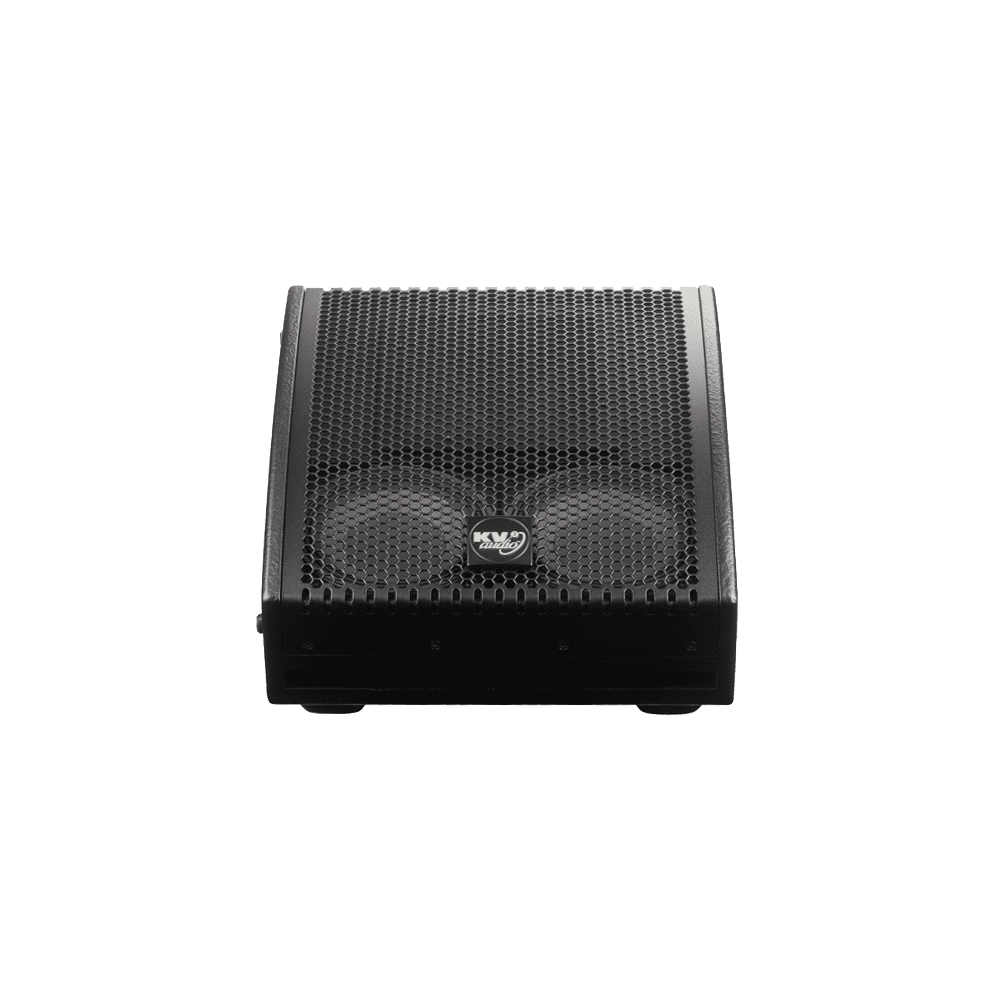

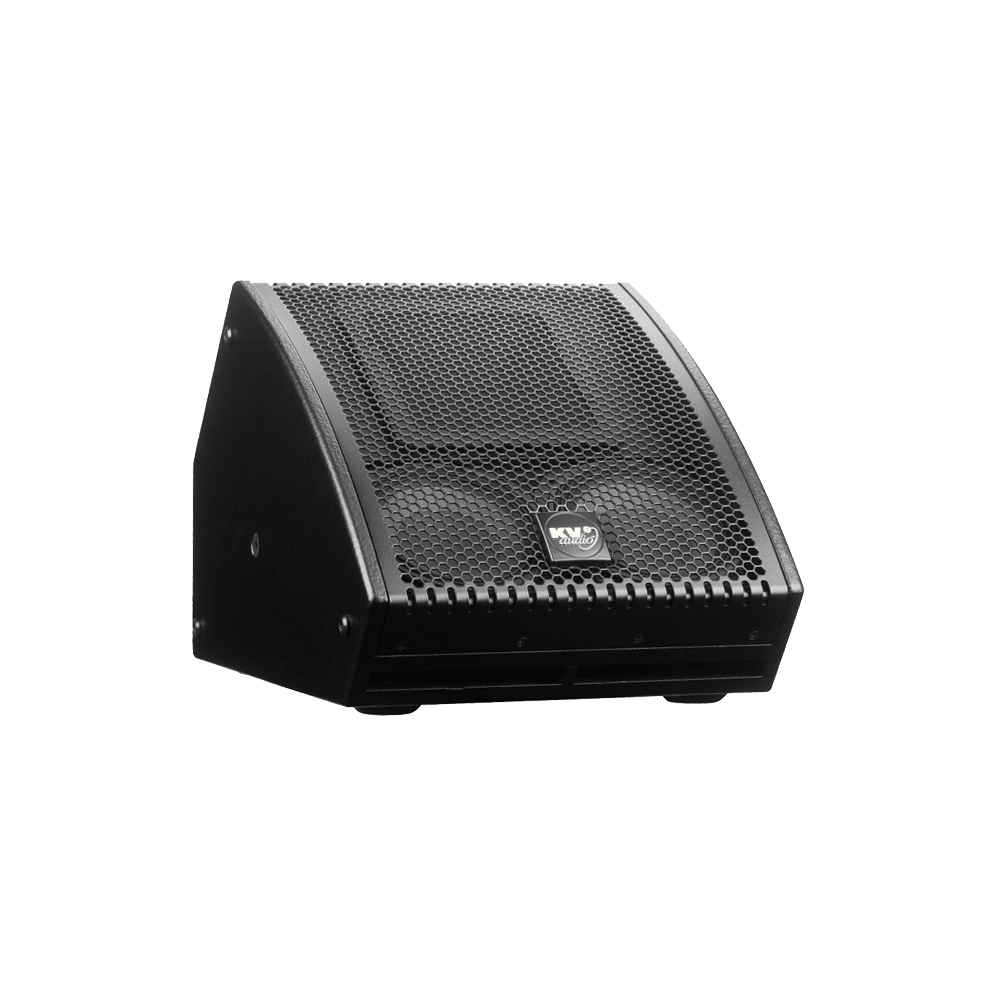

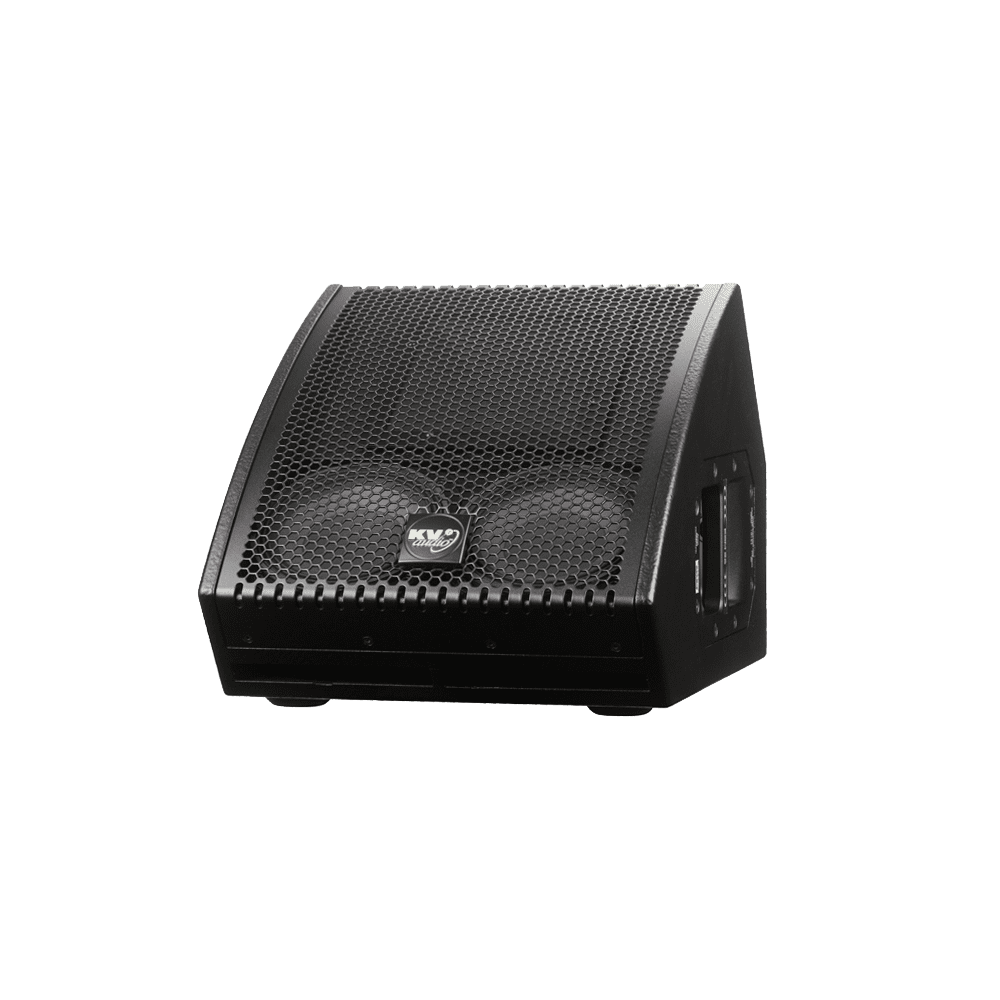

The ESM26 is a purpose built stage monitor with incredible clarity and presence, especially in the all important vocal range. Incorporating two high quality 6″ drivers and a 1.75″ compression driver on a 100 x 100 degree horn flare. The ESM26 utilises KV2’s revolutionary delay line technology for optimum output and feedback rejection. A full width bass port along the bottom of the cabinet couples with the floor to deliver bass response comparable to monitors twice its size. Under 400mm wide this small monitor takes up minimal room on stage and is ideal for visually critical applications like TV and theatre.

Applications

Specifically designed as an extremely compact-low profile passive-vocal floor monitor

  • Live performance
  • Concert venues
  • Portable PA
  • Fixed installations

Product code

  • KVV 987 263 – ESM26


    Consultar precios

    Descripción

    The ESM26 is a purpose built stage monitor with incredible clarity and presence, especially in the all important vocal range. Incorporating two high quality 6″ drivers and a 1.75″ compression driver on a 100 x 100 degree horn flare. The ESM26 utilises KV2’s revolutionary delay line technology for optimum output and feedback rejection. A full width bass port along the bottom of the cabinet couples with the floor to deliver bass response comparable to monitors twice its size. Under 400mm wide this small monitor takes up minimal room on stage and is ideal for visually critical applications like TV and theatre.

    Features

    • The ESM26 is a high quality professional stage monitor. Compact in size the ESM26 at just 374 mm wide and 340 mm high and weighing only 15 kgs delivers incredible clarity and high output that defies it’s small dimensions. With a sensitivity of 98dB@1 watt the ESM26 can deliver a peak output of 126dB while retaining pristine sound reproduction
    • The ESM26 incorporates KV2’s unique analog delay line technology as utilised in their popular new ESD range of speakers. This circuit, incorporated into the speakers crossover network provides the monitor with perfect time alignment and phase correction, without the need for external processors and bi amping. The savings this feature provides are substantial, halving amplifier costs and the need for expensive processors
    • With perfect phase control inbuilt, the ESM26’s rejection to feedback is superb, and absolutely minimal EQ, if any, is needed to create amazing results with this little powerhouse. The ESM26 incorporates two low inductance, long excursion high quality six inch drivers in a bass reflex cabinet with auto reset protection. A full width port along the bottom of the cabinet provides direct coupling with the floor for enhanced bass response. The new patent pending 1.75″ titanium diaphragm compression driver incorporates a complex geometry phase plug for higher output, exceptionally low distortion and extended frequency response. It is connected to a 100 x 100 degree horn for wide and deep dispersion, so the performer has a good coverage regardless of movement

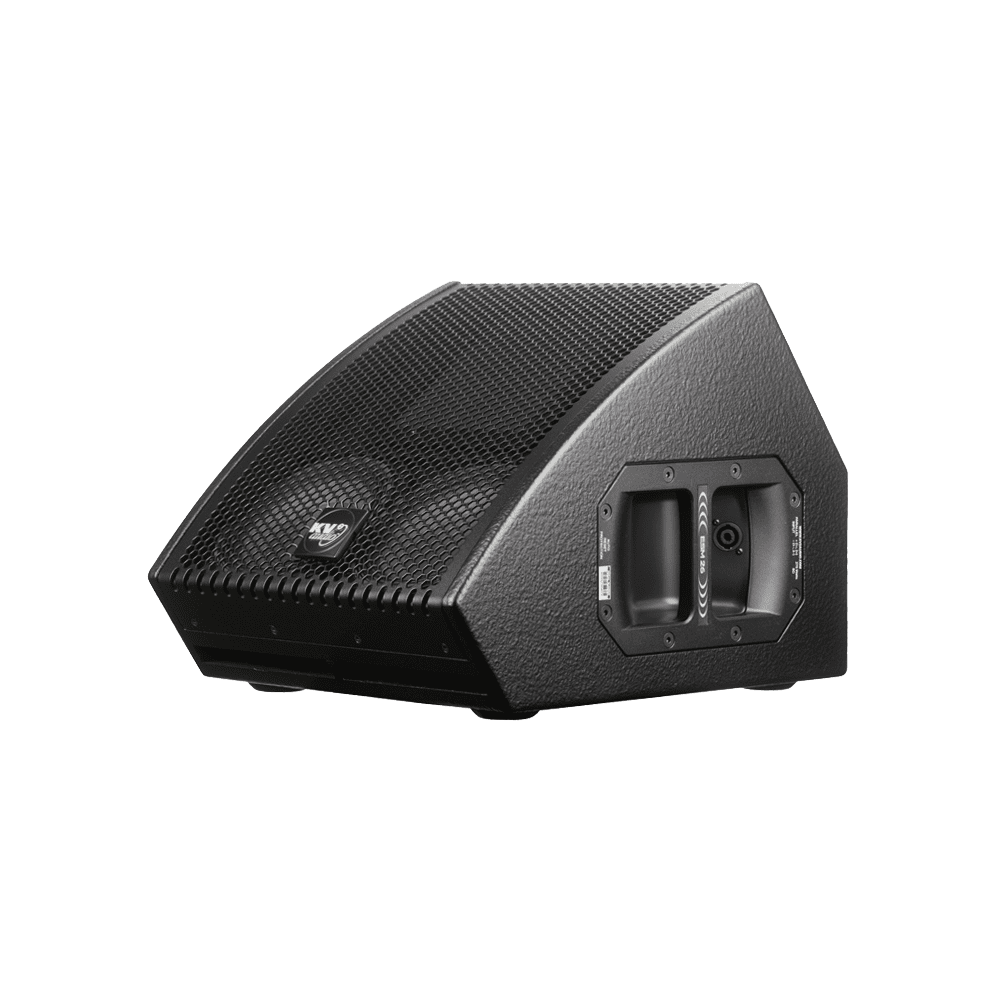

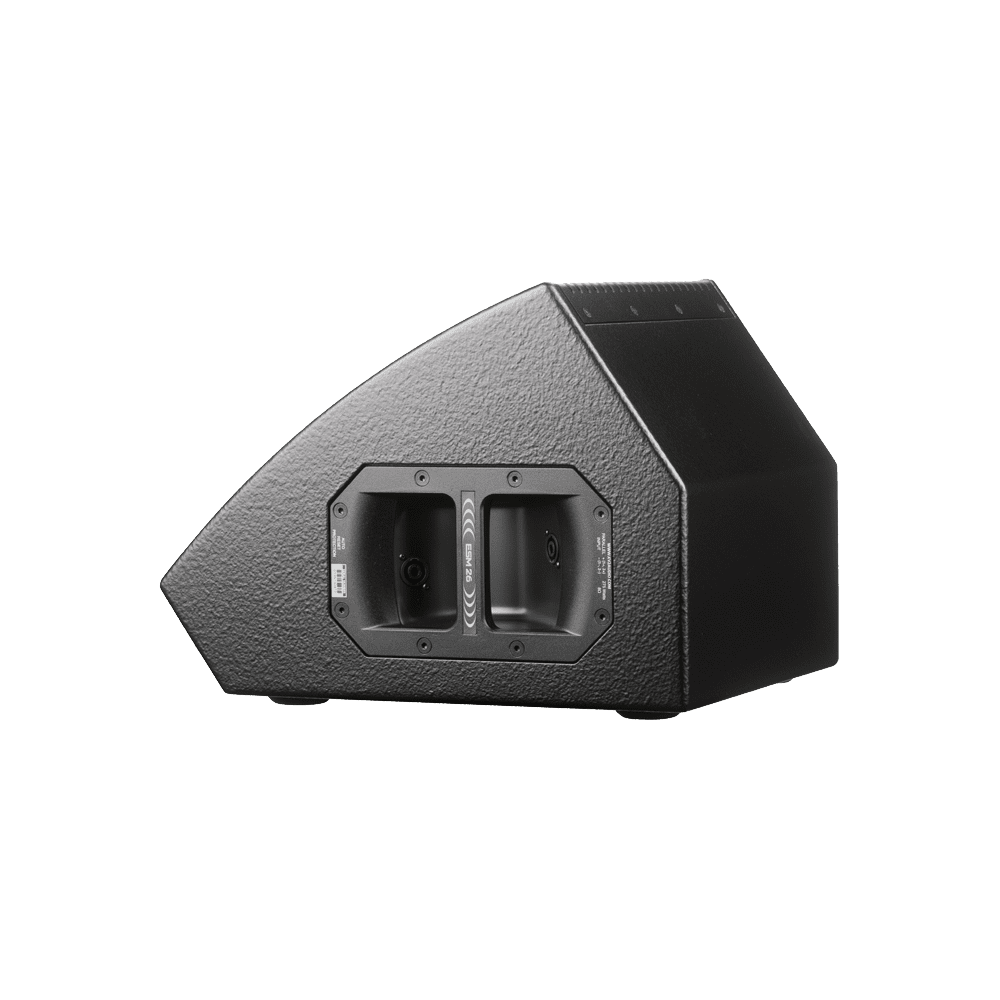

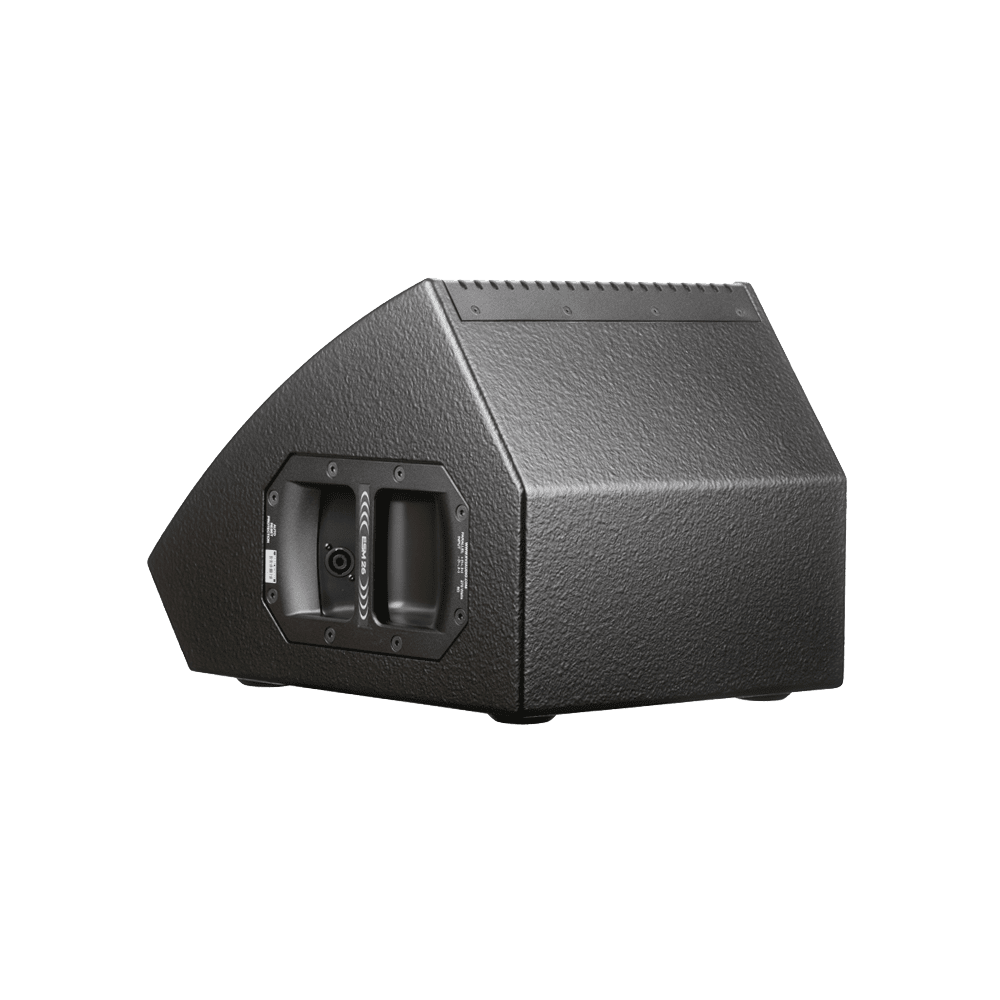

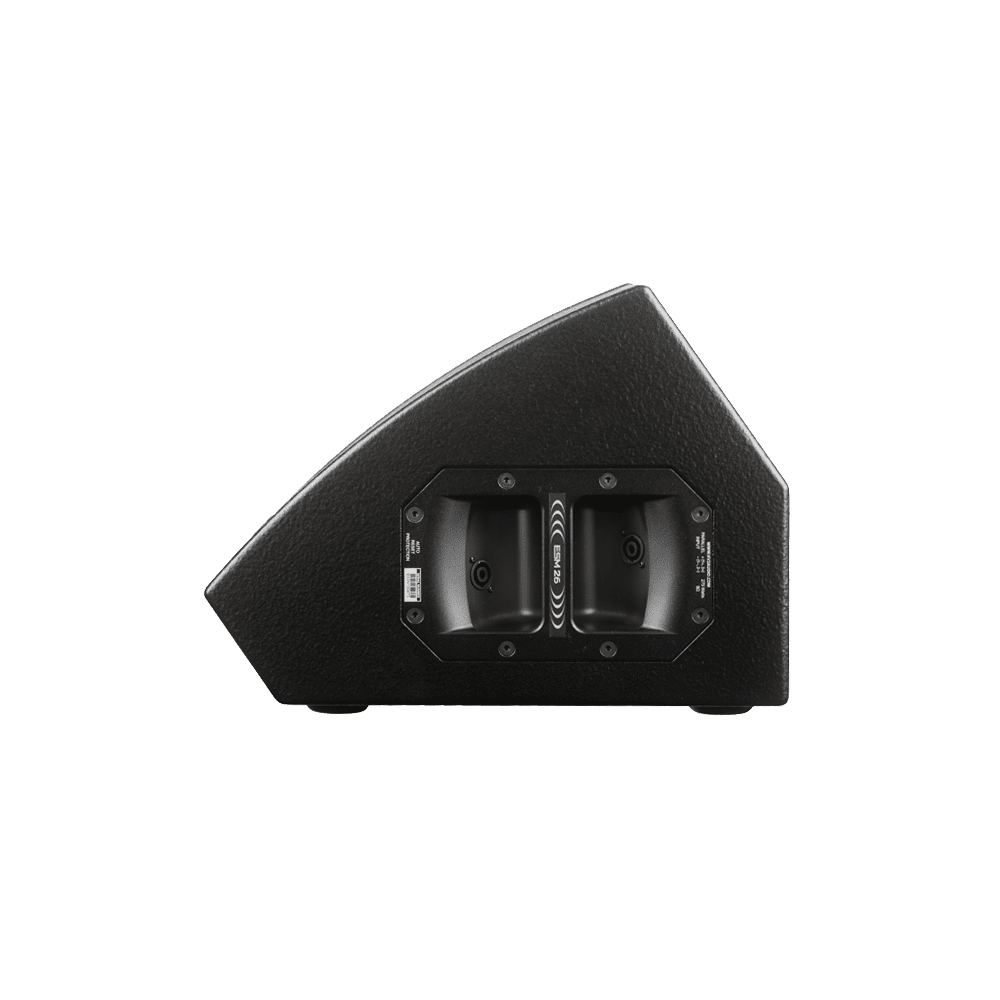

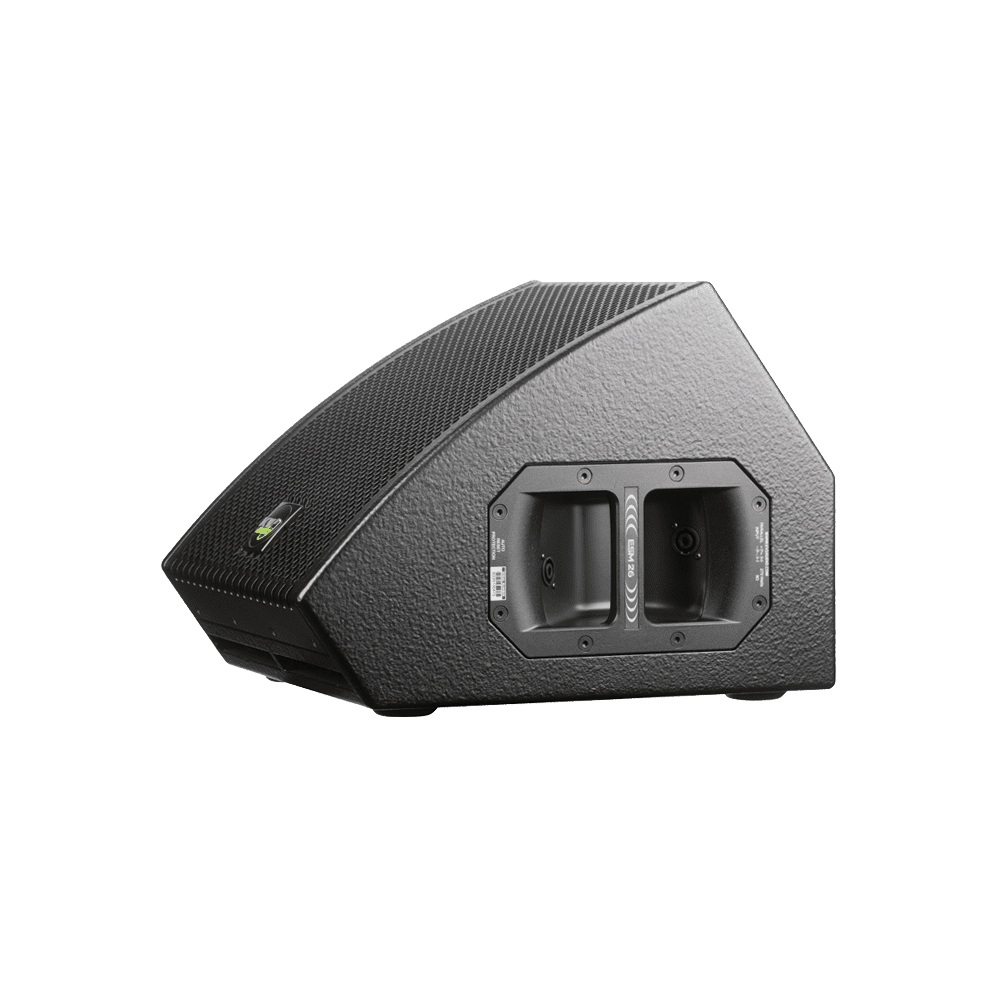

    • Unlike many of today’s stage monitor designs which use very shallow angles for aesthetic appeal, the ESM26 incorporates a steeper angle to ensure sound is directed at the performer and rear of stage, rather than up into the ceiling. Again this provides for much more practical longer throw applications in television studios or theatres while still retaining a total height of just over 300 mm. The ESM26’s connector panel is cleverly concealed into it’s side handle to ensure an attractive, unobtrusive appearance on stage
    • The simplicity and ease of use of the ESM26 is only complimented by it’s extraordinary performance. Through innovative engineering with real world applications in mind, KV2 has delivered a world class stage monitor at an affordable and accessible price. Ideal for all applications where high quality stage monitoring is required


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as an extremely compact-low profile passive-vocal floor monitor

    • Live performance
    • Concert venues
    • Portable PA
    • Fixed installations

    Product code

    • KVV 987 263 – ESM26


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    ESM26 Cover

    Gallery

    Product code

    KVV 987 281



    Description

    – heavy duty – padded



    System Acoustic Performance

    Max SPL Long-term 123dB
    Max SPL Peak 129dB
    -3dB Response 70Hz to 16kHz
    -10dB Response 54Hz to 28kHz (half space)
    Recommended Power 275W
    Sensitivity 98dB
    Impedance
    Crossover Point 2.5kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 100° x 100°
    Throat Exit Diameter / Diaphragm Size 1″ / 1.75″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Number of Drivers 2
    Woofer Size / Voice Coil Diameter 6″ / 1.75″
    Magnet Type Neodymium
    Diaphragm Material Epoxy Reinforced Cellulose

    Speaker Input

    Speaker Input 2x Neutrik Speakon®

    Features

    RMS Limiter autoreset

    Cabinet

    Cabinet Material Baltic birch
    Handles 1
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 337.3 mm /13.28″
    Width 370 mm /14.57″
    Depth 454.5 mm /17.89″
    Weight 15 kg (33.8 lbs)


    Product code

    • KVV 987 263 – ESM26

    PDF

    ESM Series User Guide

    ESM Series User Guide – ESM26, ESM12 and ESM312 – English



    PDF

    ESM26 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    ESM26 – 3D

    – 1:1 scale – clamping points – weight – dwg file



    DWG

    ESM26 3D DWG

    ESM26 3D DWG



    SKP

    ESM26 SKP

    ESM26 SketchUp



    DWG

    ESM26 2D DWG

    ESM26 2D DWG



    PDF

    ESM26 – 2D

    ESM26 2D Drawing



    SKP

    ESM Series SketchUp

    ESM Series SketchUp
