ESM12 – The Ultimate Passive Monitor

KV2AUDIO
SKU: ESM12

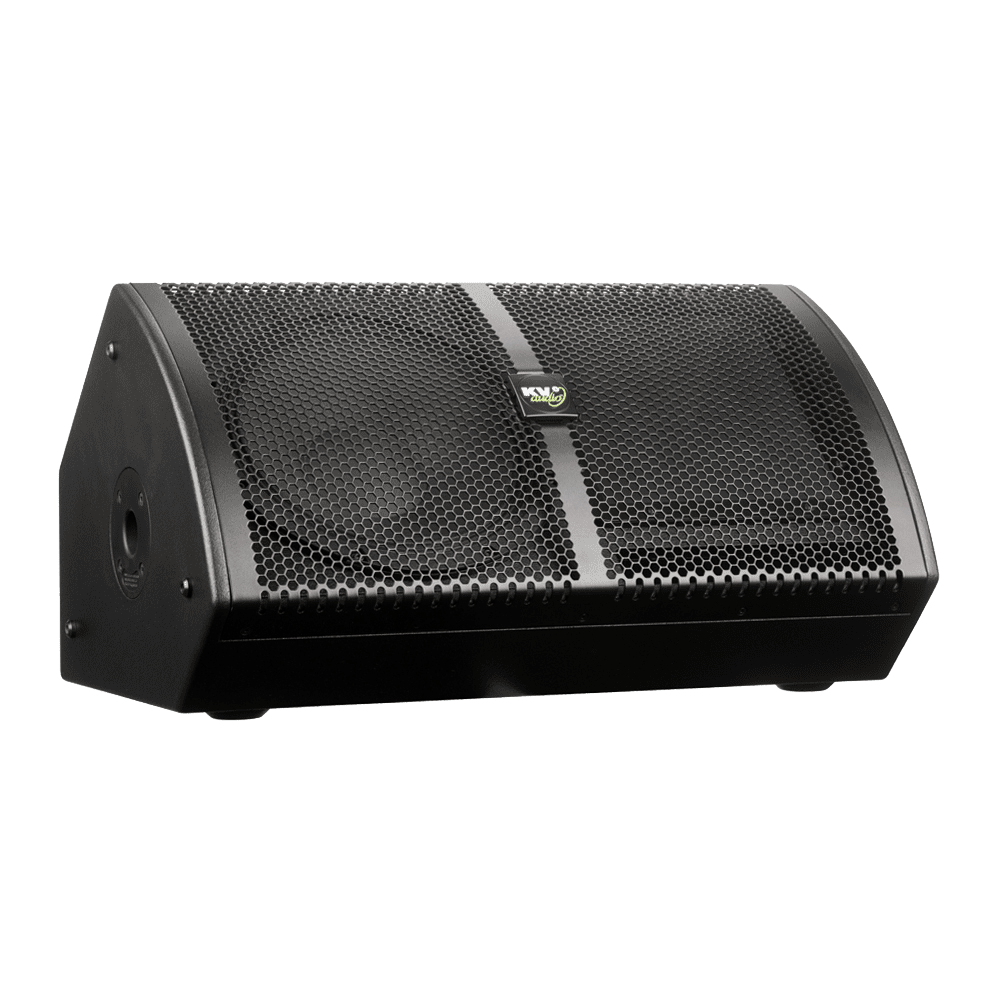

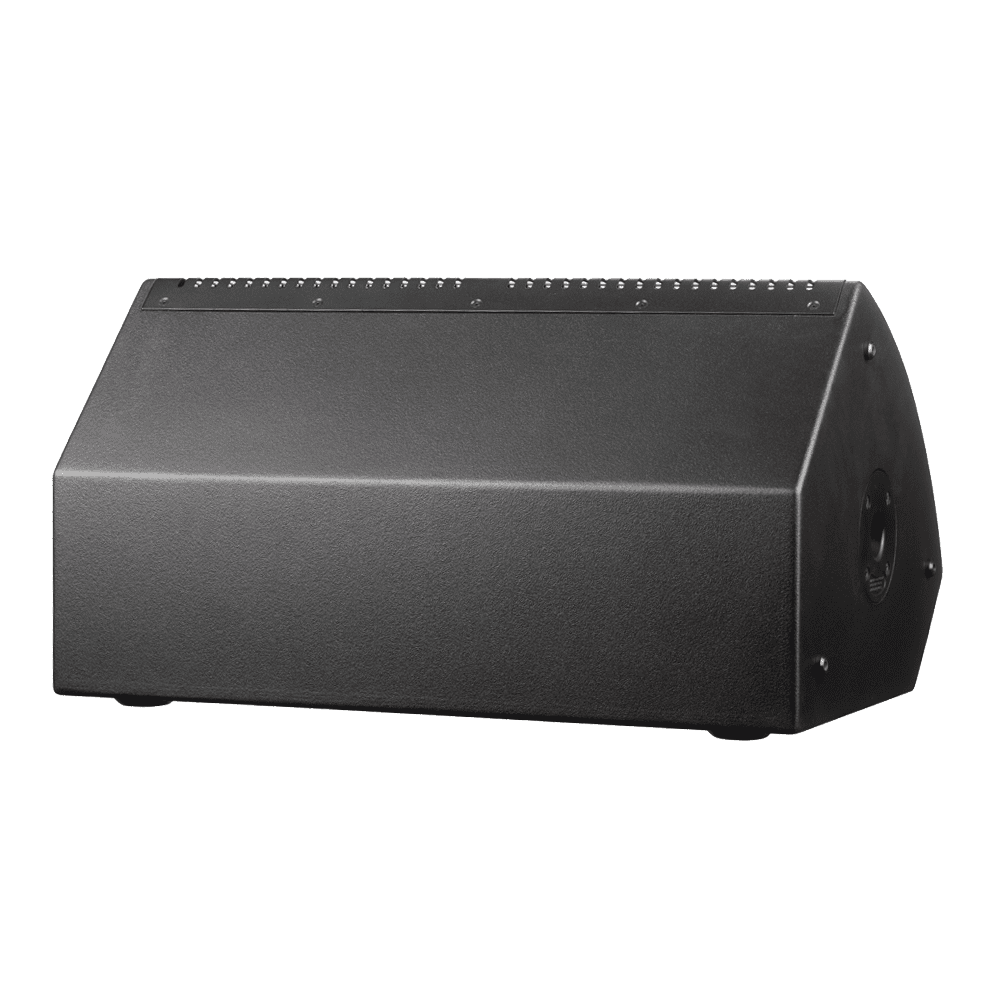

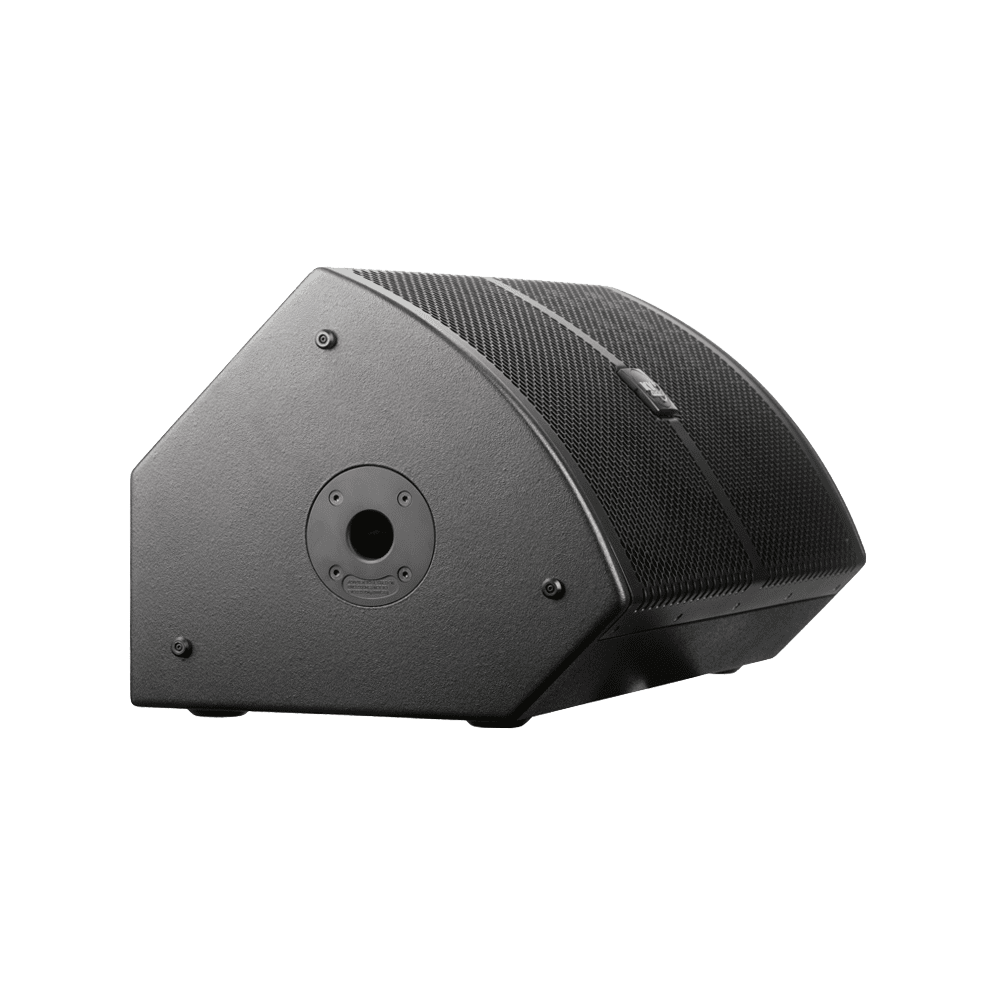

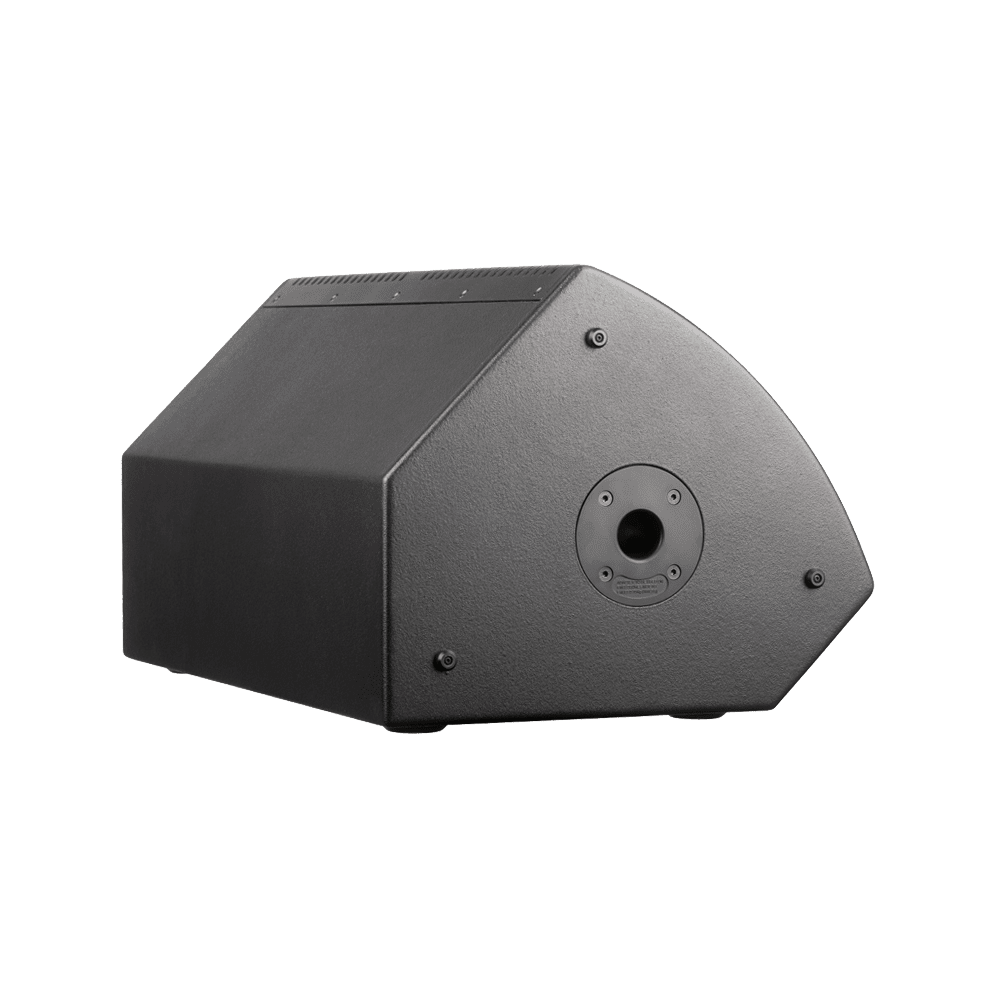

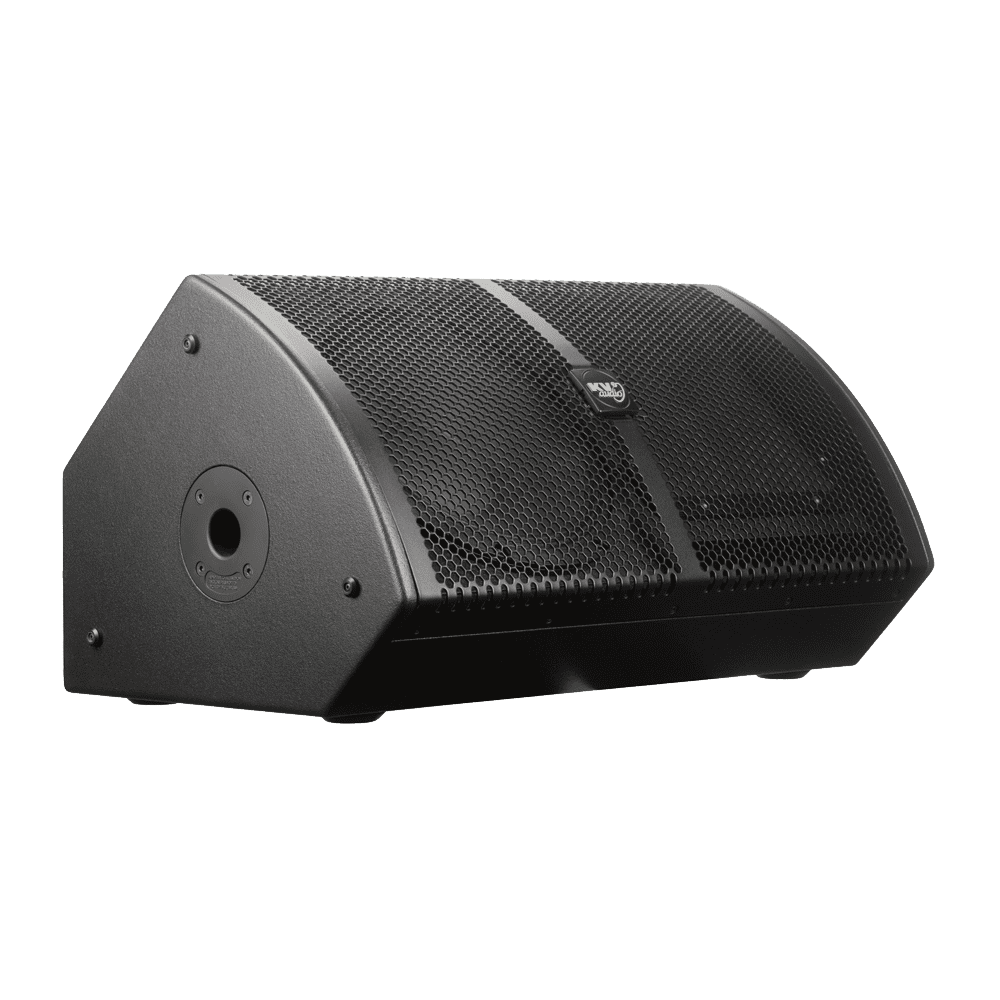

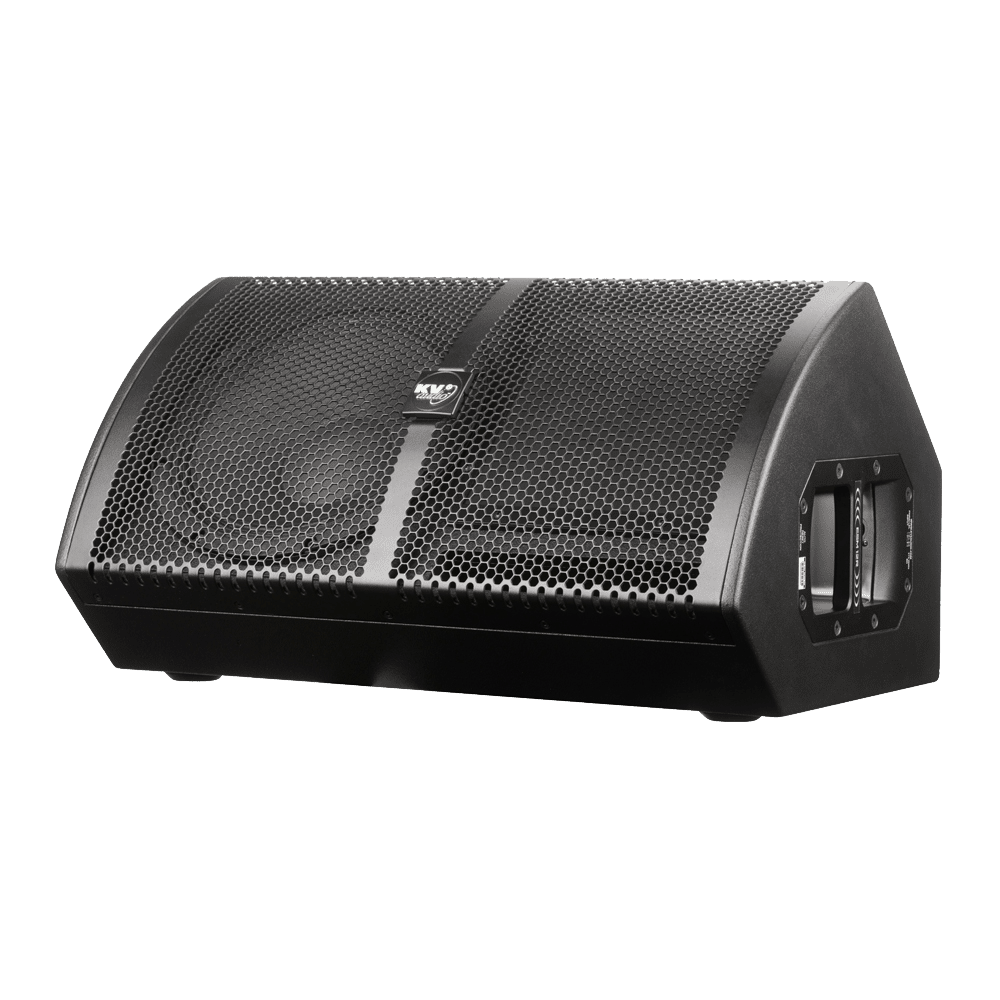

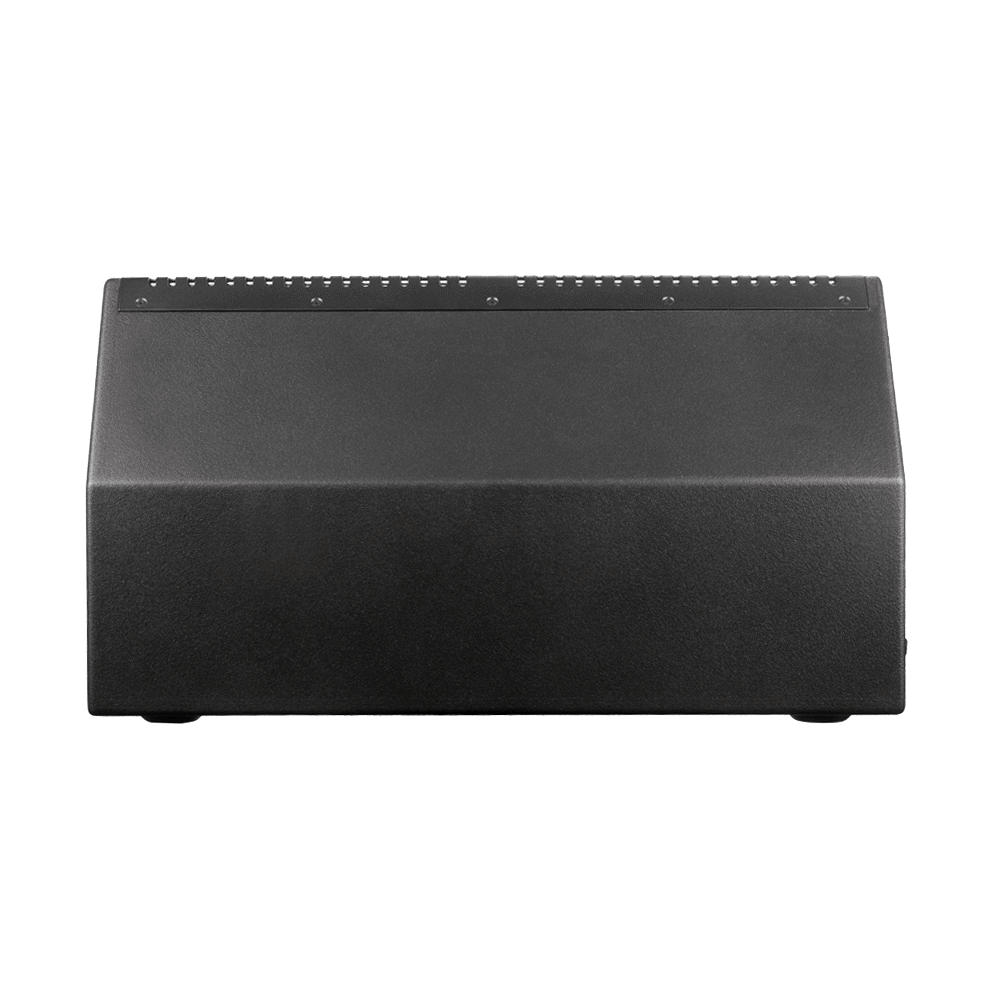

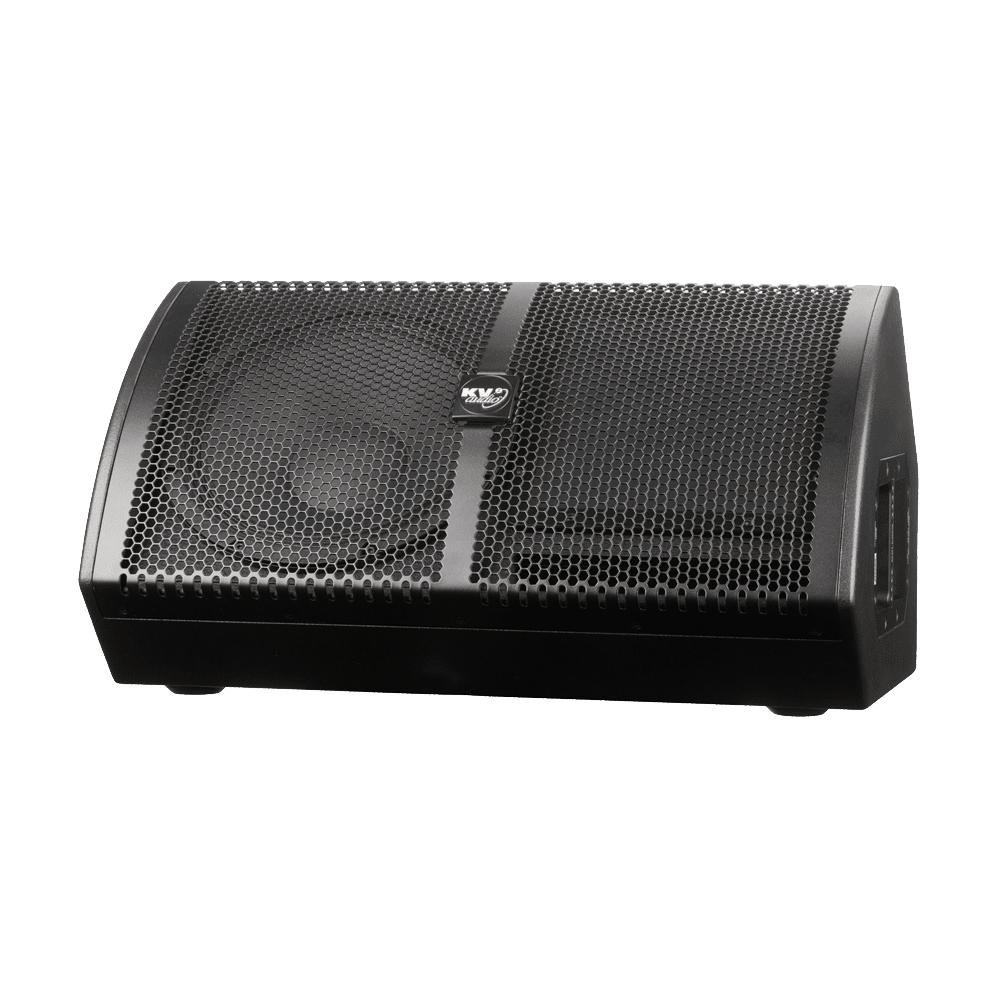

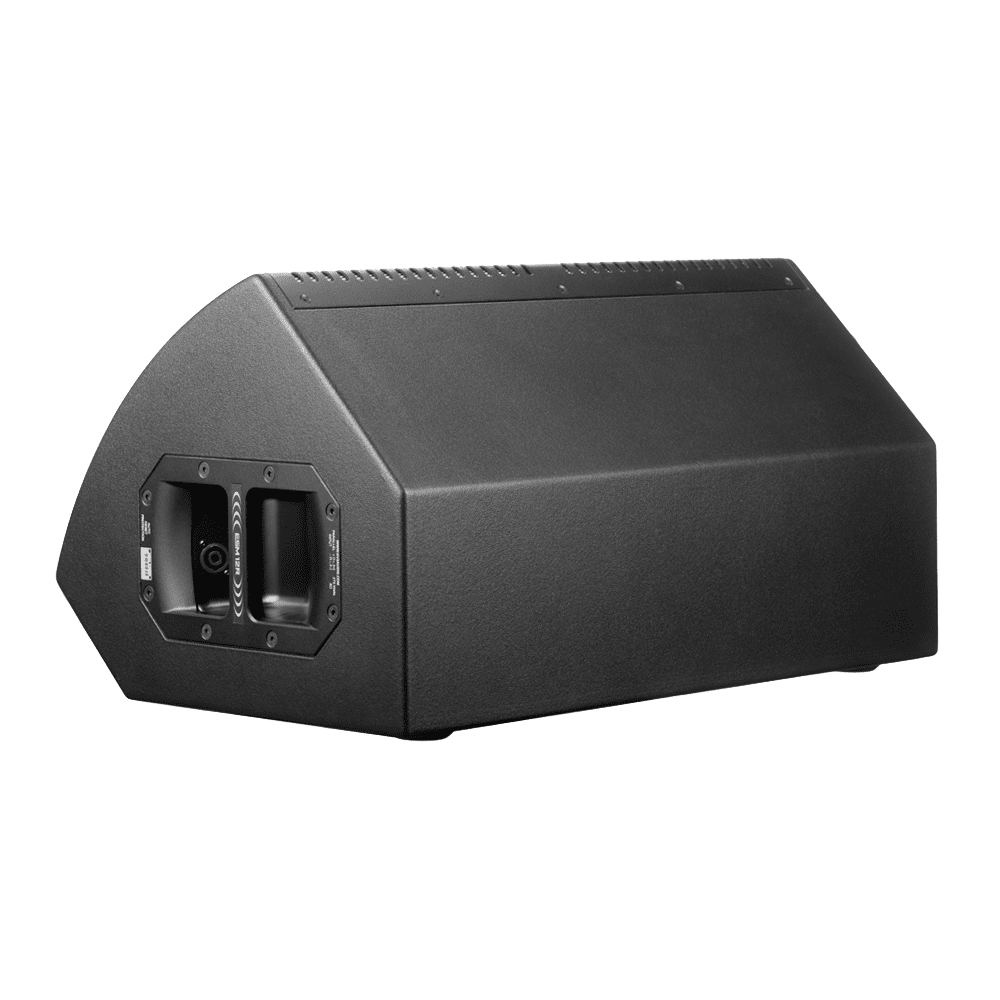

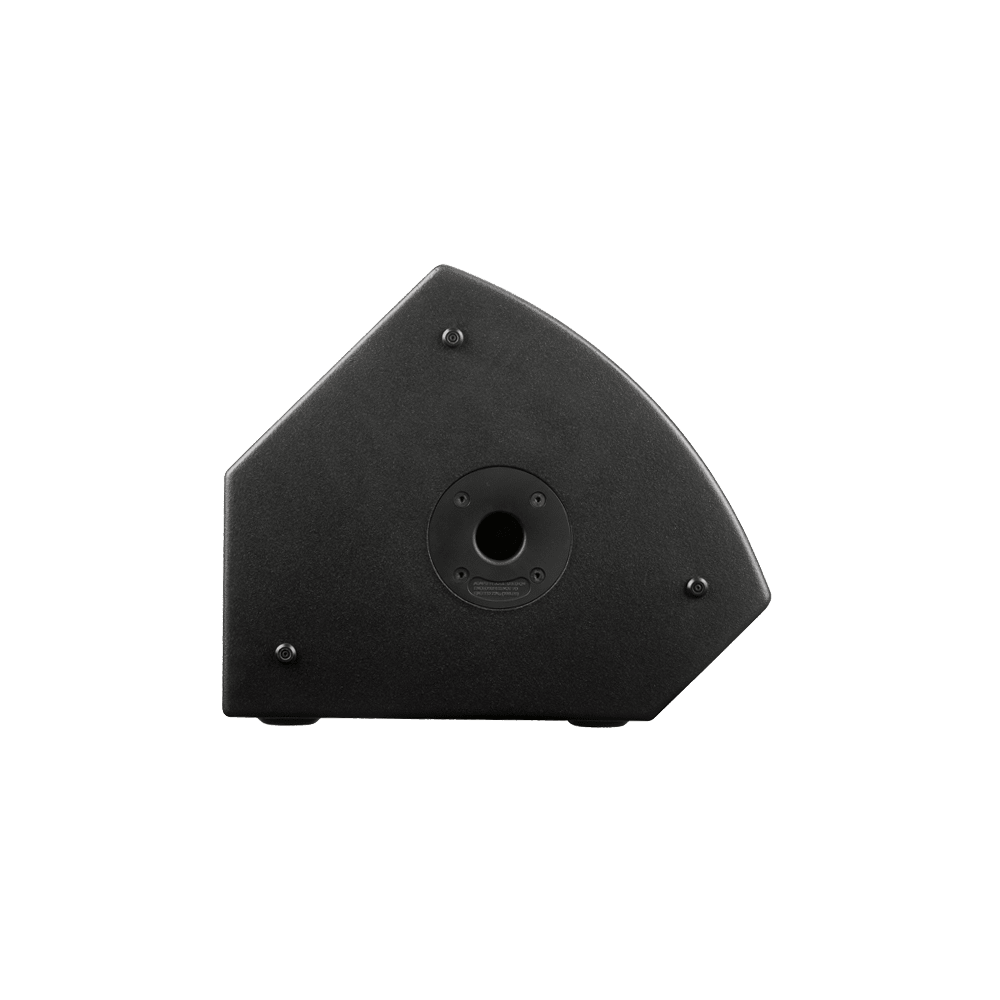

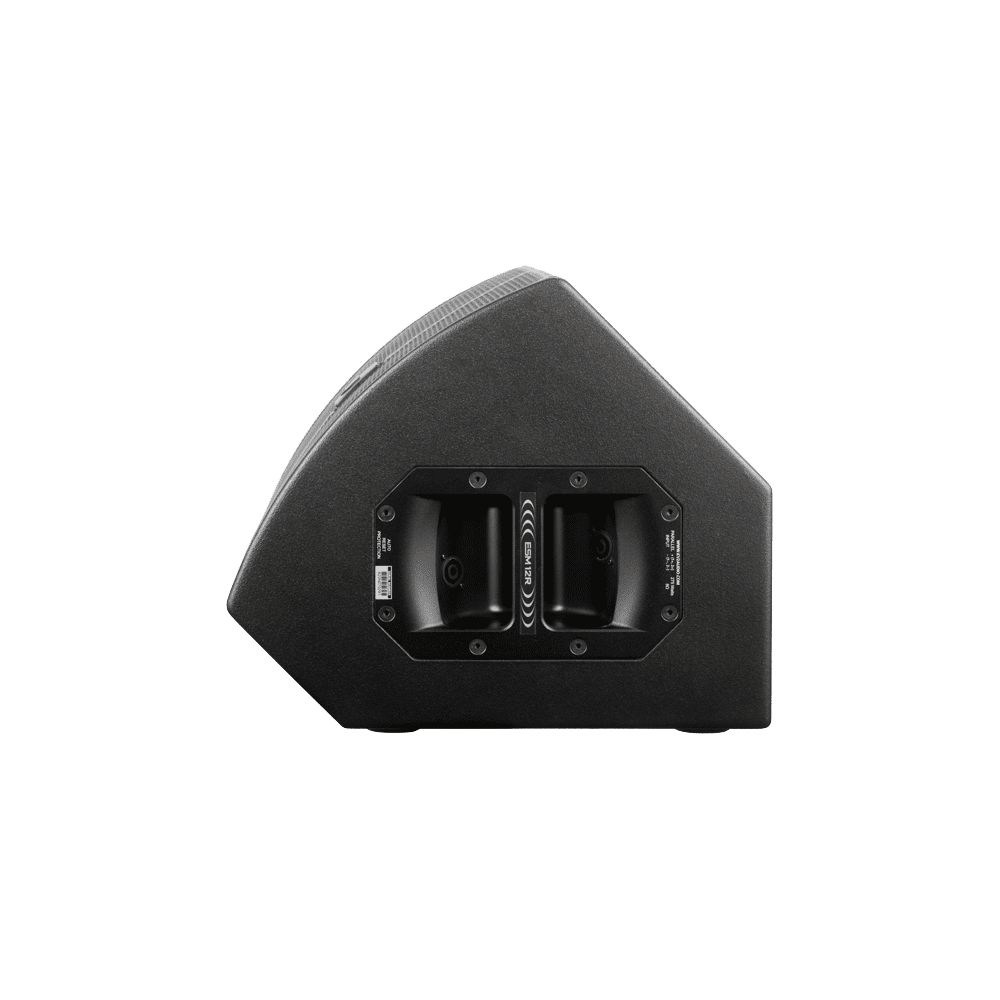

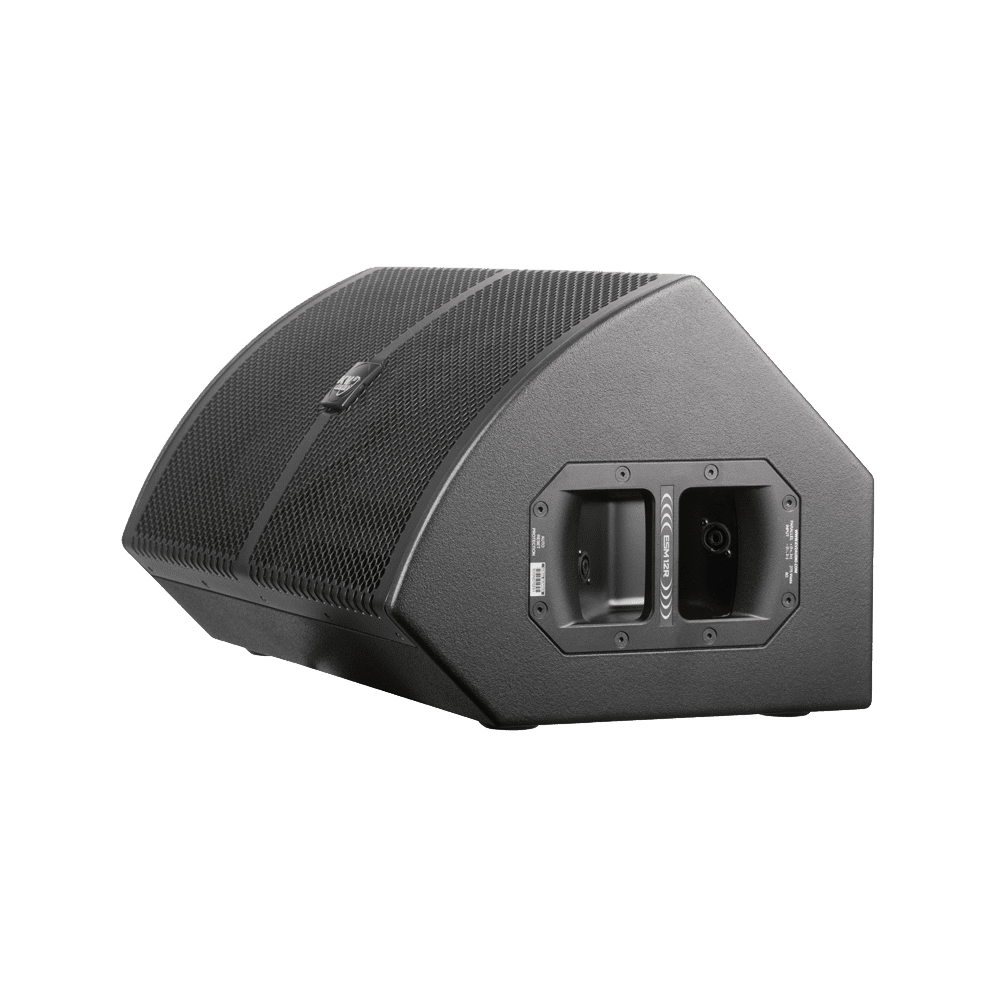

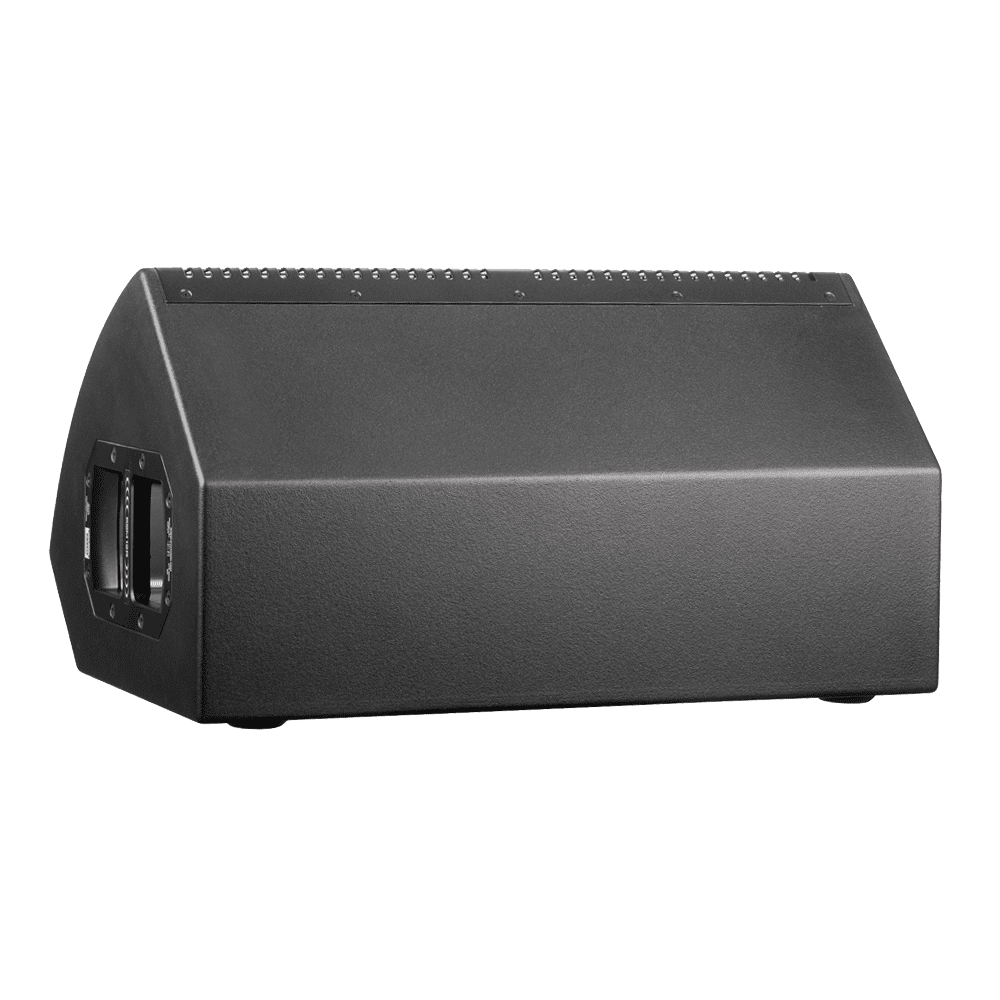

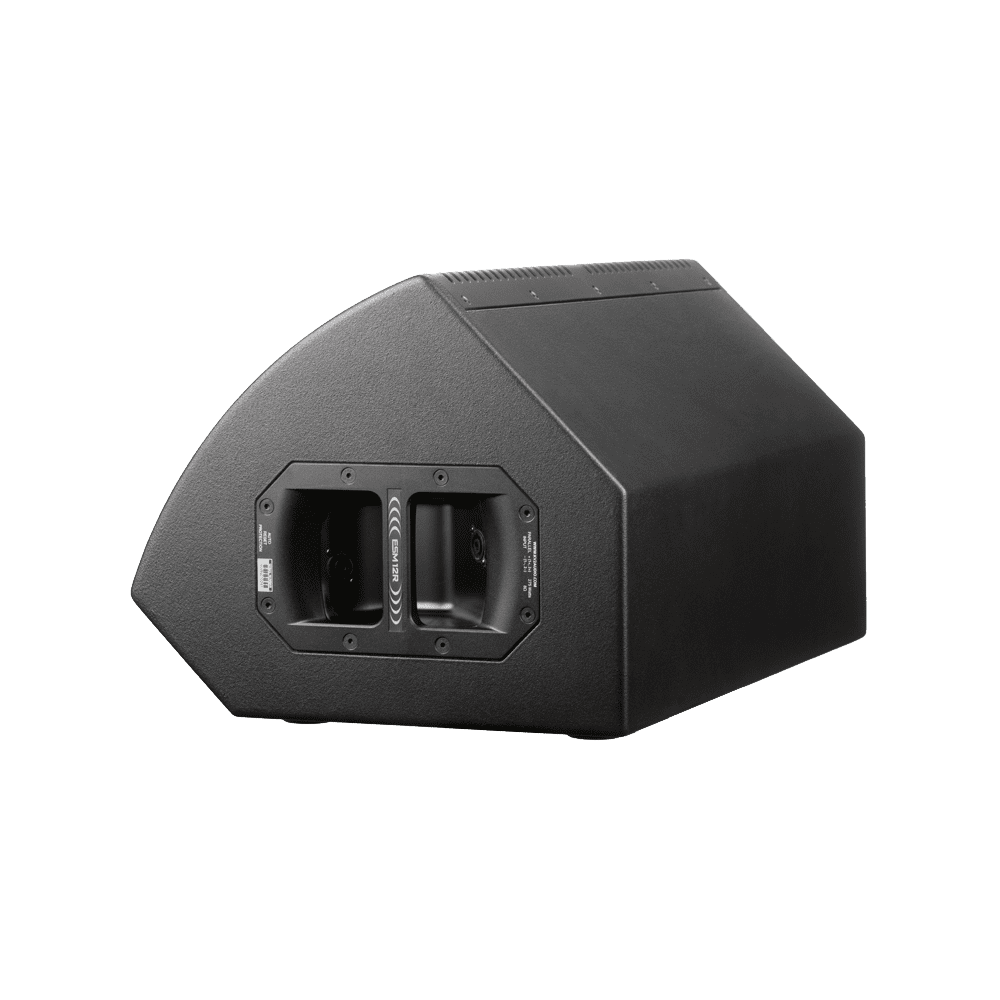

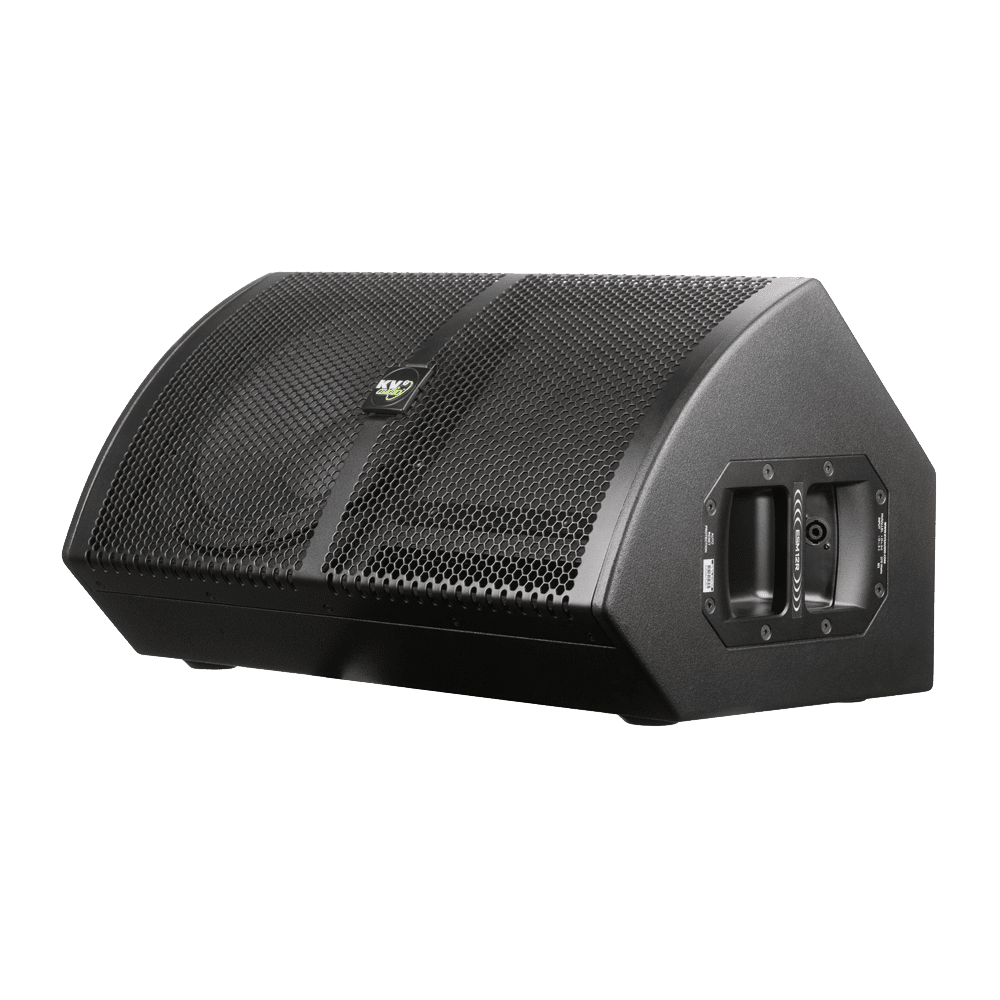

The ESM12 is a full-range low profile 2-way, passive monitoring solution with a 12″ trans-coil neo woofer and the same 3″ NVPD large format compression driver found in our flagship VHD products. The ESM12 also features our revolutionary passive delay line, which dramatically reduces feedback. Housed in a professional Baltic Birch cabinet, with a protective Polymer coating and heavy-duty grill, the ESM12 can be utilized for FOH applications with the inclusion of a pole mount. Truly one of the most impressive monitoring solutions on the market today, the ESM12 is available in left and right configurations.

Applications

Specifically designed as an extremely high output, full range-low profile passive vocal and music floor monitor

  • Live performance
  • Concert venues
  • Portable PA
  • Fixed installations

Product code

  • KVV 987 216 – ESM12L
  • KVV 987 218 – ESM12R


    Consultar precios

    Descripción

    The ESM12 is a full-range low profile 2-way, passive monitoring solution with a 12″ trans-coil neo woofer and the same 3″ NVPD large format compression driver found in our flagship VHD products. The ESM12 also features our revolutionary passive delay line, which dramatically reduces feedback. Housed in a professional Baltic Birch cabinet, with a protective Polymer coating and heavy-duty grill, the ESM12 can be utilized for FOH applications with the inclusion of a pole mount. Truly one of the most impressive monitoring solutions on the market today, the ESM12 is available in left and right configurations.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 127dB sustained output, 130dB peak with very high dynamic range
    • Compact, wedge shaped cabinet design specifically developed for use in stage monitor applications or low profile ceiling monitoring
    • Rotatable wide dispersion 40° H x 80° V horn
    • Revolutionary passive delay line
    • State of the art 3″ (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
    • 12″ woofer with Super Acoustic Active Impedance Control (AIC), voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
    • Specially designed acoustic fabric covering and protecting the compression driver against liquid spillage
    • “Top-hat” pole mount allows the ESD12M to be used as a conventional loudspeaker


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as an extremely high output, full range-low profile passive vocal and music floor monitor

    • Live performance
    • Concert venues
    • Portable PA
    • Fixed installations

    Product code

    • KVV 987 216 – ESM12L
    • KVV 987 218 – ESM12R


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    ESM12L Cover

    Gallery

    Product code

    KVV 987 262



    Description

    – heavy duty – padded



    ESM12R Cover

    Gallery

    Product code

    KVV 987 261



    Description

    – heavy duty – padded



    System Acoustic Performance

    Max SPL Long-term 127dB
    Max SPL Peak 133dB
    -3dB Response 55Hz to 22kHz
    -10dB Response 41Hz to 30kHz (half space)
    Recommended Power 500W
    Sensitivity 98dB
    Impedance
    Crossover Point 1.2kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 40° x 80°
    Rotatable Horn YES
    Throat Exit Diameter / Diaphragm Size 1.4″ / 3″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium
    Protection RMS Limiter

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Woofer Size / Voice Coil Diameter 12″ / 2.5″ / Trans Coil
    Magnet Type Neodymium
    Diaphragm Material Epoxy Reinforced Cellulose
    Protection Thermal breaker – autoreset

    Speaker Input

    Speaker Input 2x Neutrik Speakon®

    Cabinet

    Cabinet Material Baltic birch
    Handles 1
    Pole Mount 35 mm
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 362 mm (14.25″)
    Width 666 mm (26.22″)
    Depth 424,7 mm (16.72″)
    Weight 23 kg (50.7lbs)


    Product code

    • KVV 987 216 – ESM12L
    • KVV 987 218 – ESM12R

    PDF

    ESM Series User Guide

    ESM Series User Guide – ESM26, ESM12 and ESM312 – English



    PDF

    ESM12 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    ESM12 – 3D

    1:1 scale – clamping points – weight – dwg file



    DWG

    ESM12L 3D DWG

    ESM12L 3D DWG



    SKP

    ESM12L SKP

    ESM12L SketchUp



    DWG

    ESM12R 3D DWG

    ESM12R 3D DWG



    SKP

    ESM12R SKP

    ESM12R SketchUp



    DWG

    ESM12L 2D DWG

    ESM12L 2D DWG



    DWG

    ESM12R 2D DWG

    ESM12R 2D DWG



    PDF

    ESM12R – 2D

    ESM12R 2D Drawing



    PDF

    ESM12 Left – 2D

    ESM12 Left 2D Drawing



    PDF

    ESM12 Right – 2D

    ESM12 Right 2D Drawing



    SKP

    ESM Series SketchUp

    ESM Series SketchUp
