ESD312 – 3-Way Passive Speaker

KV2AUDIO
SKU: ESD312

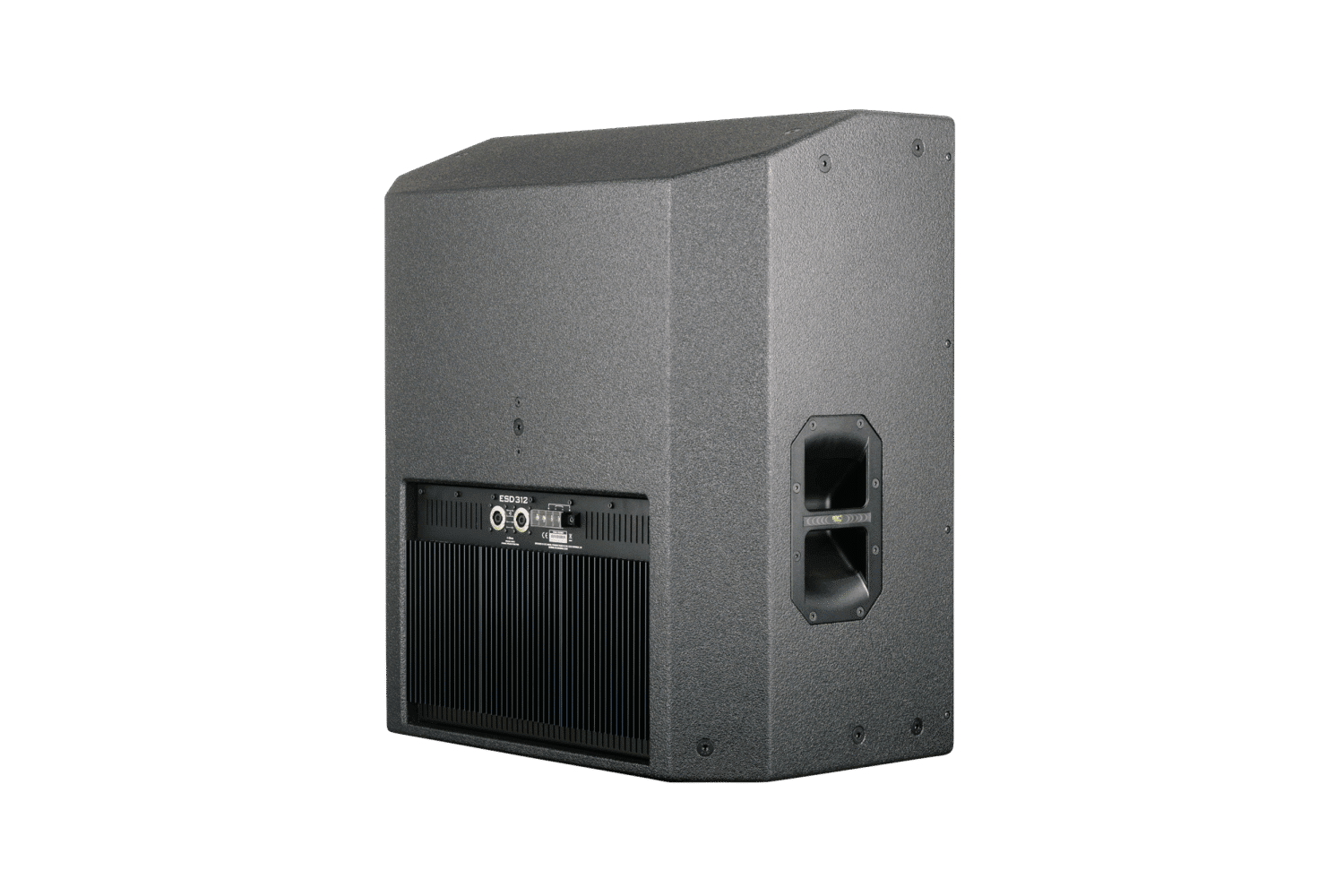

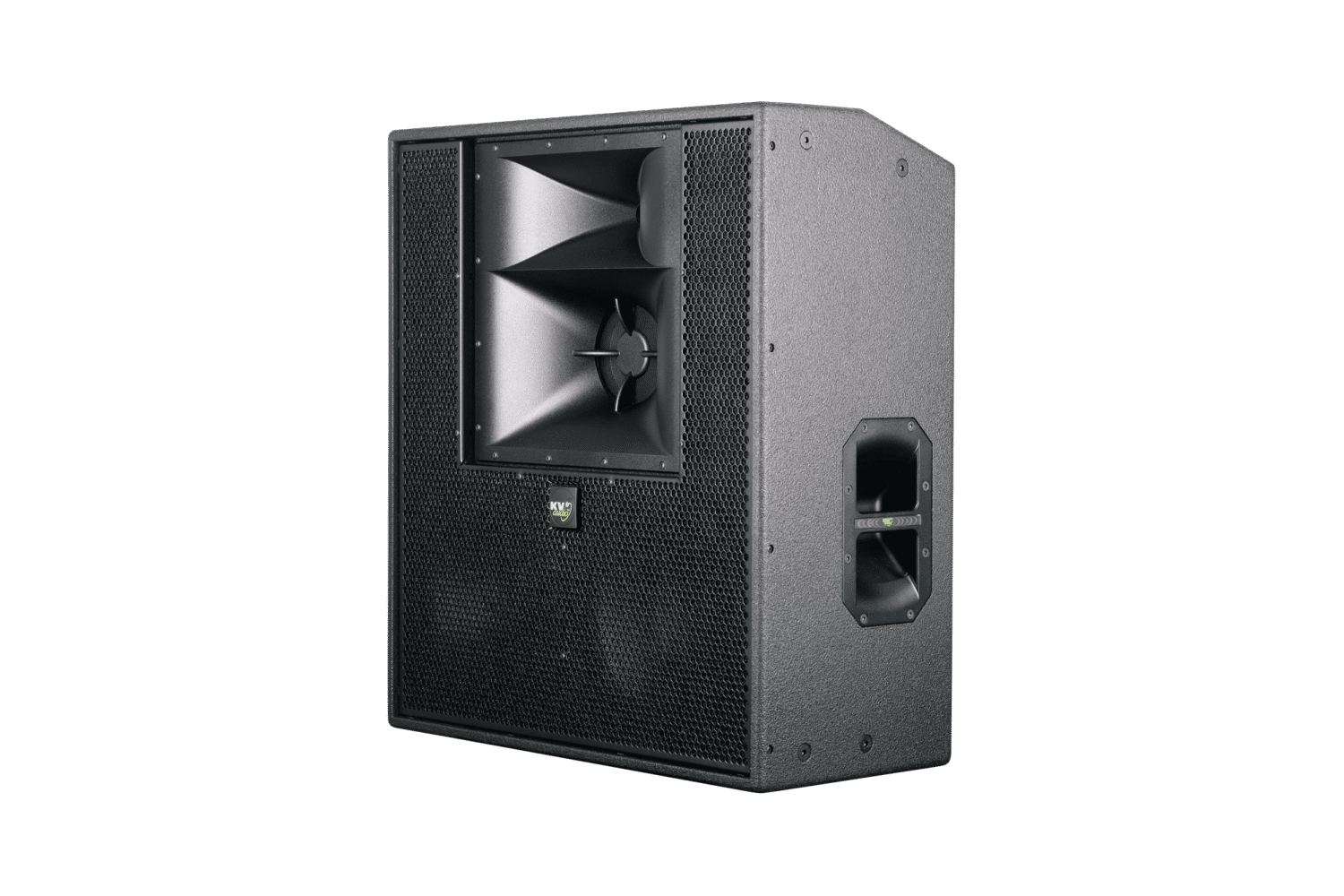

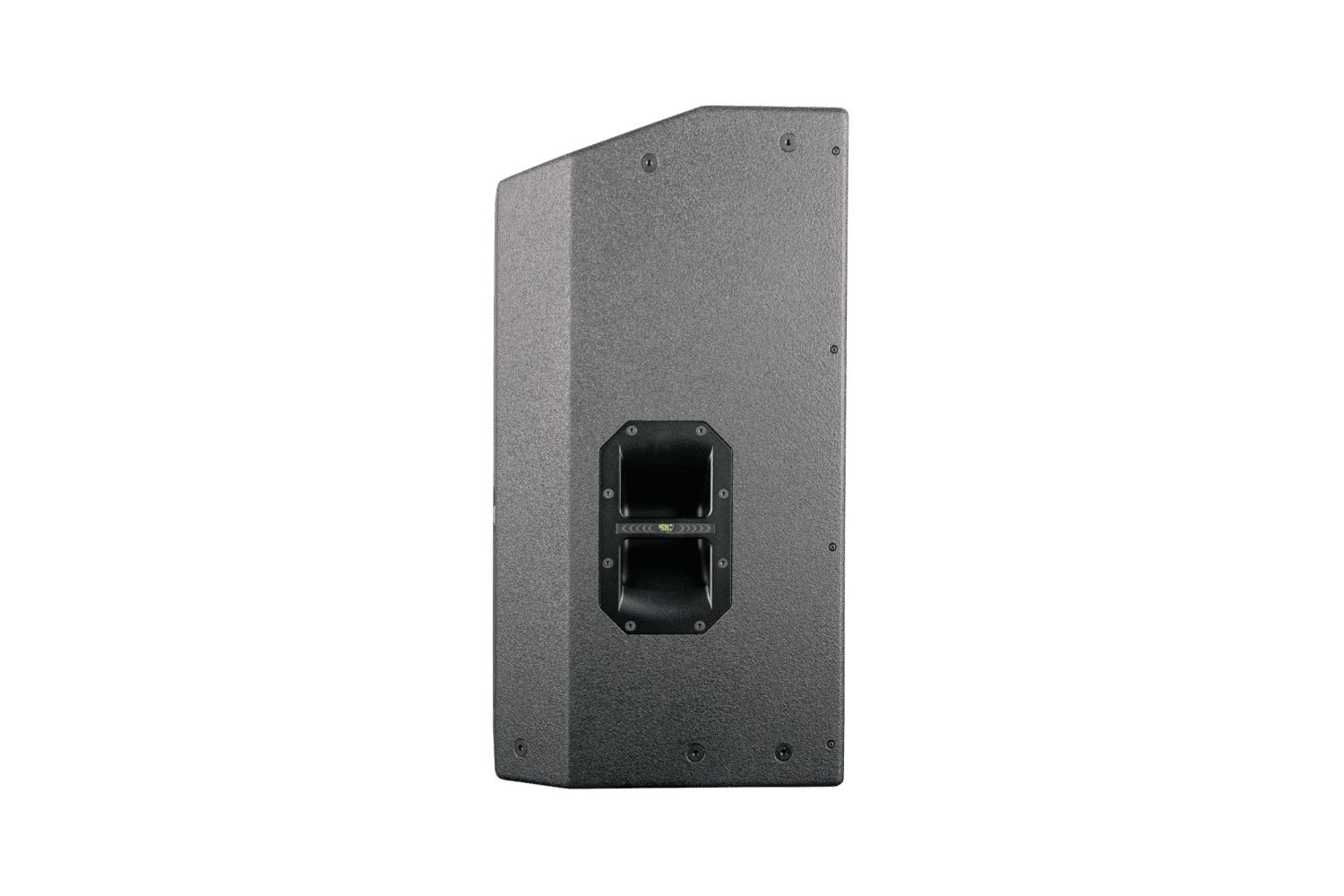

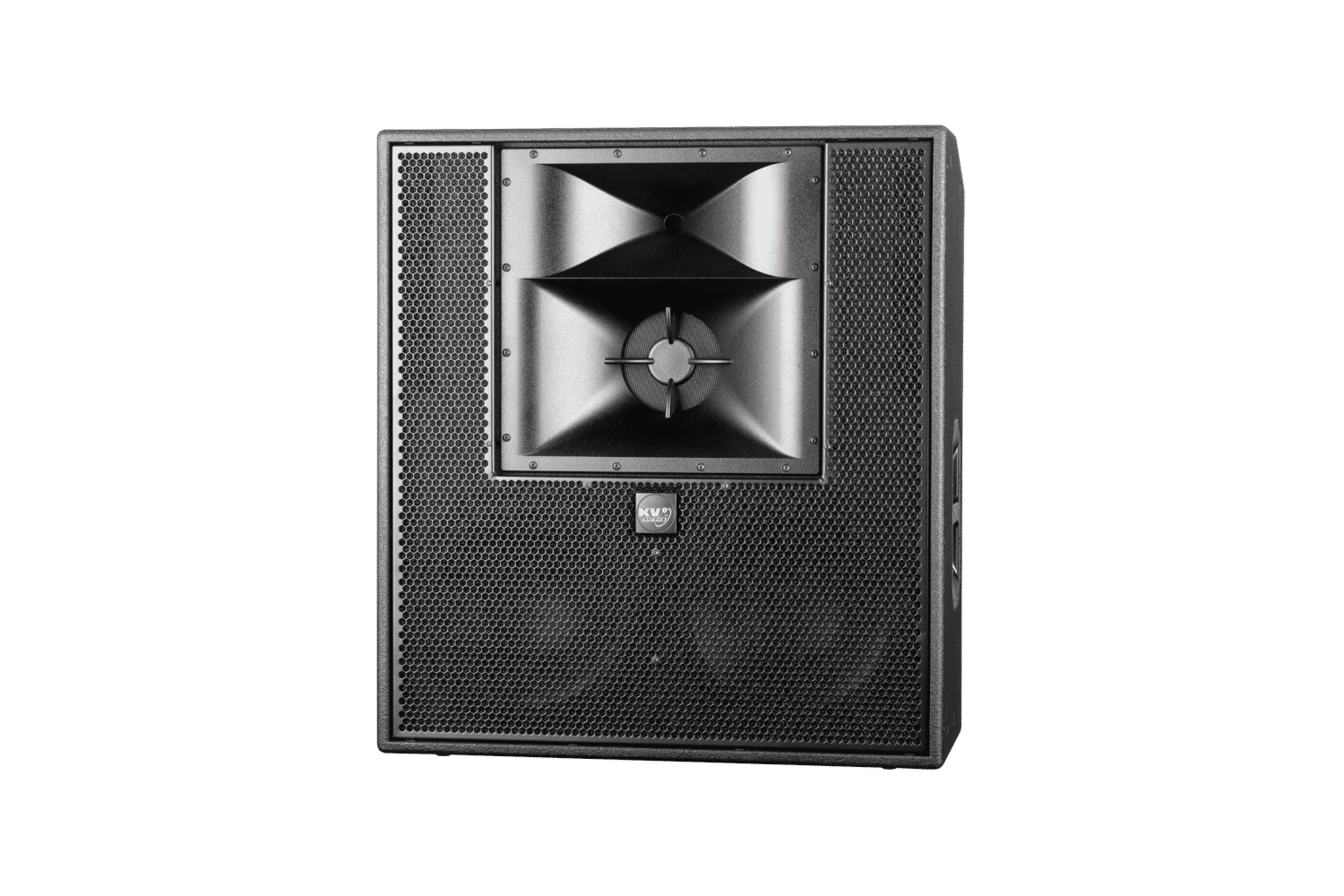

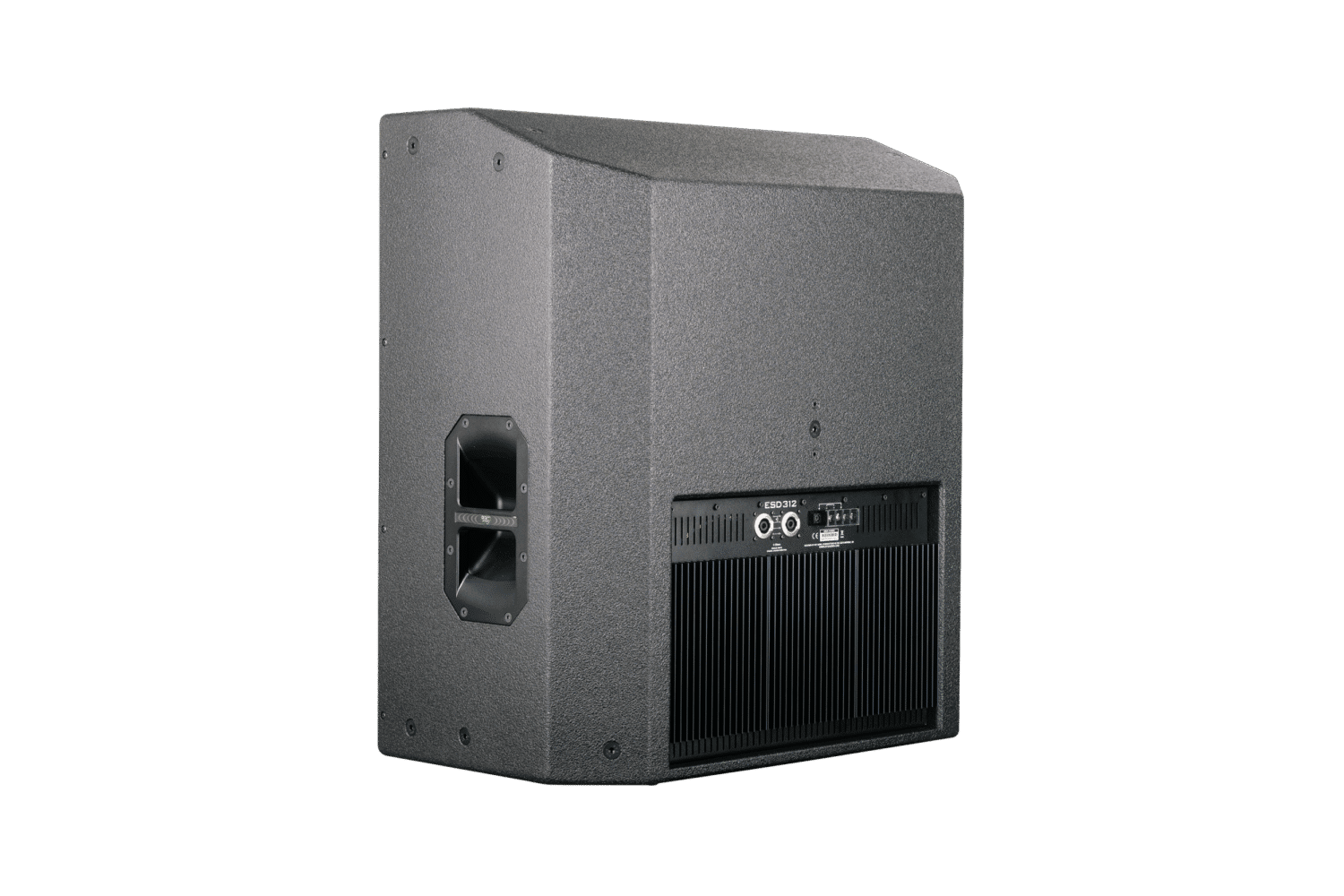

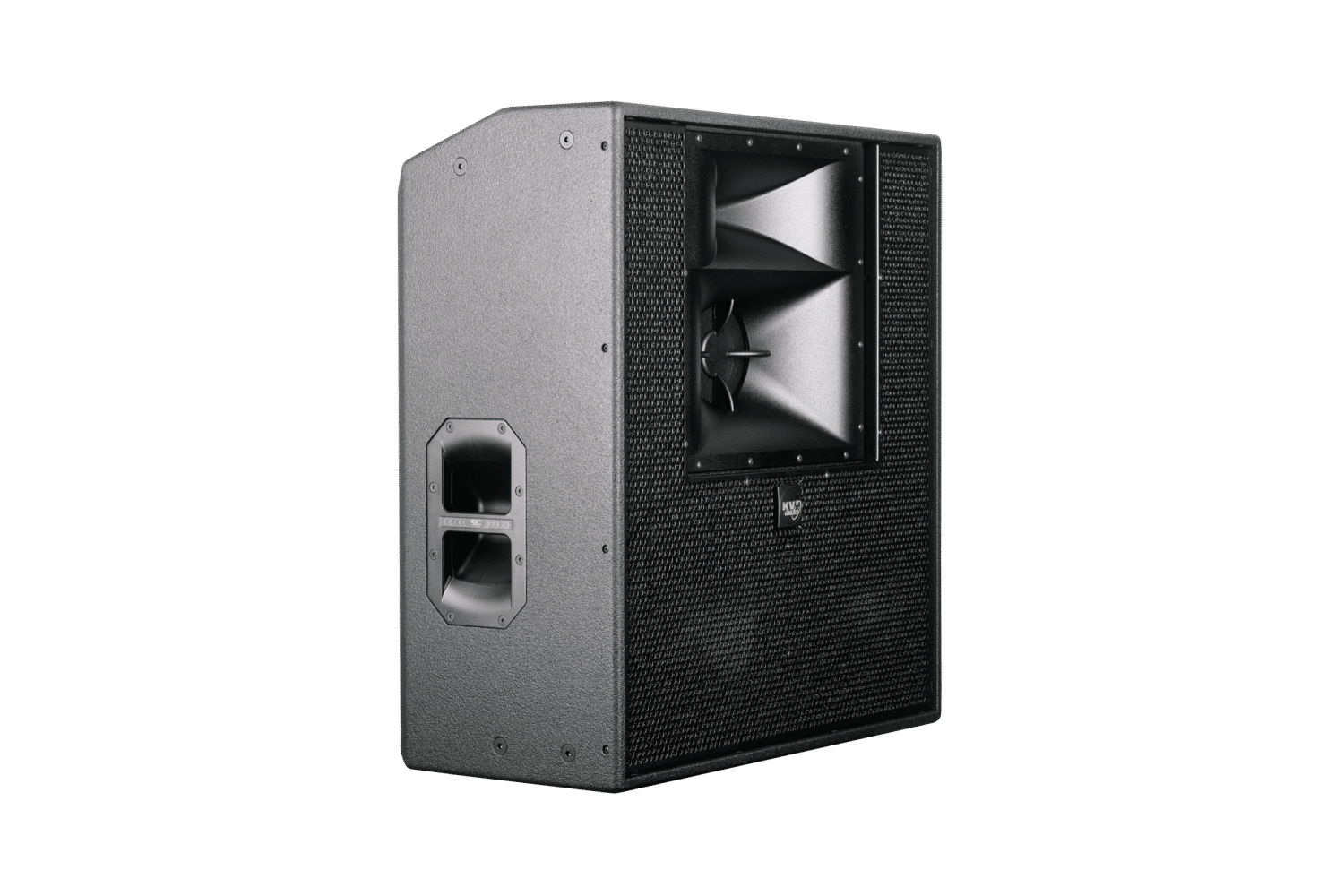

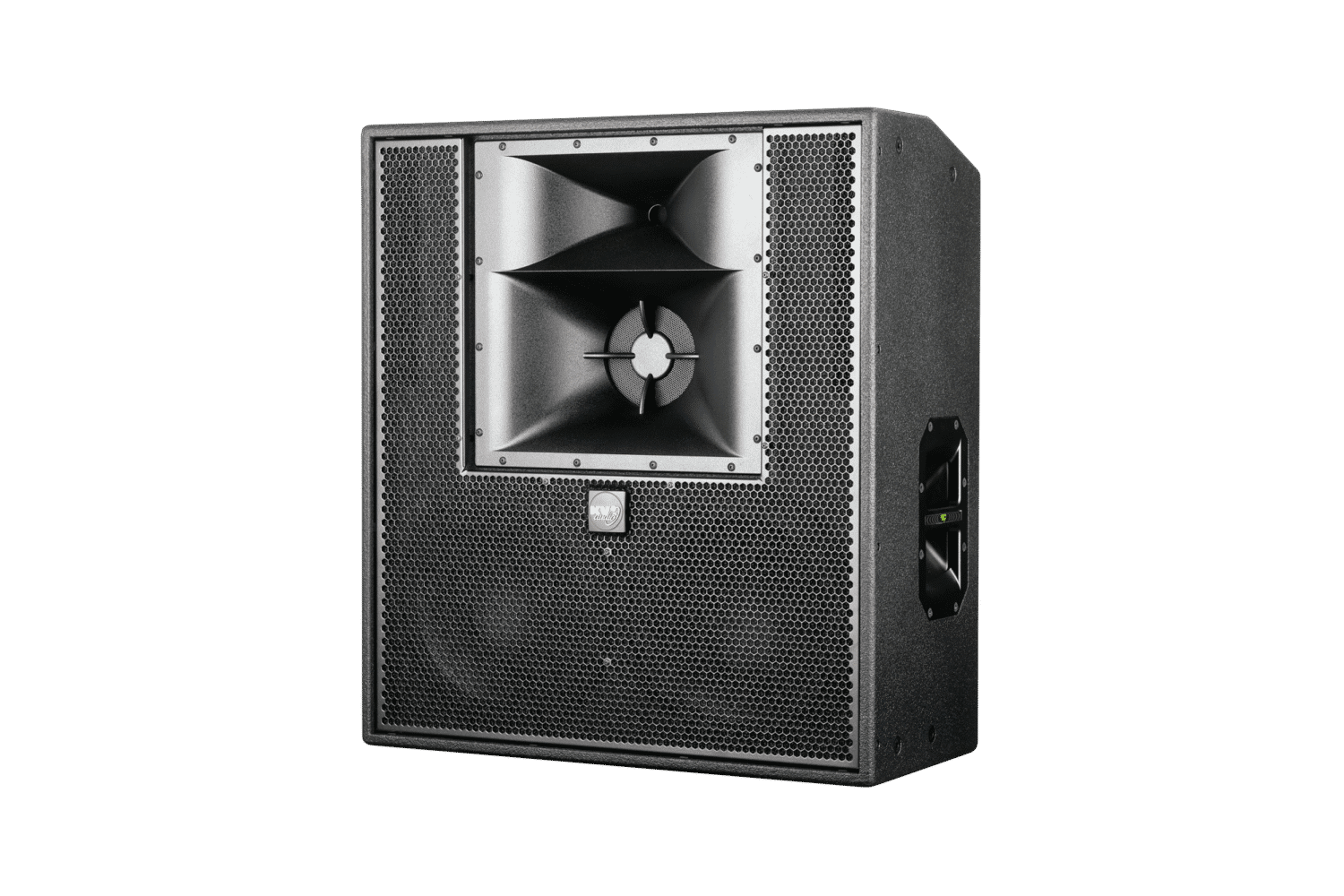

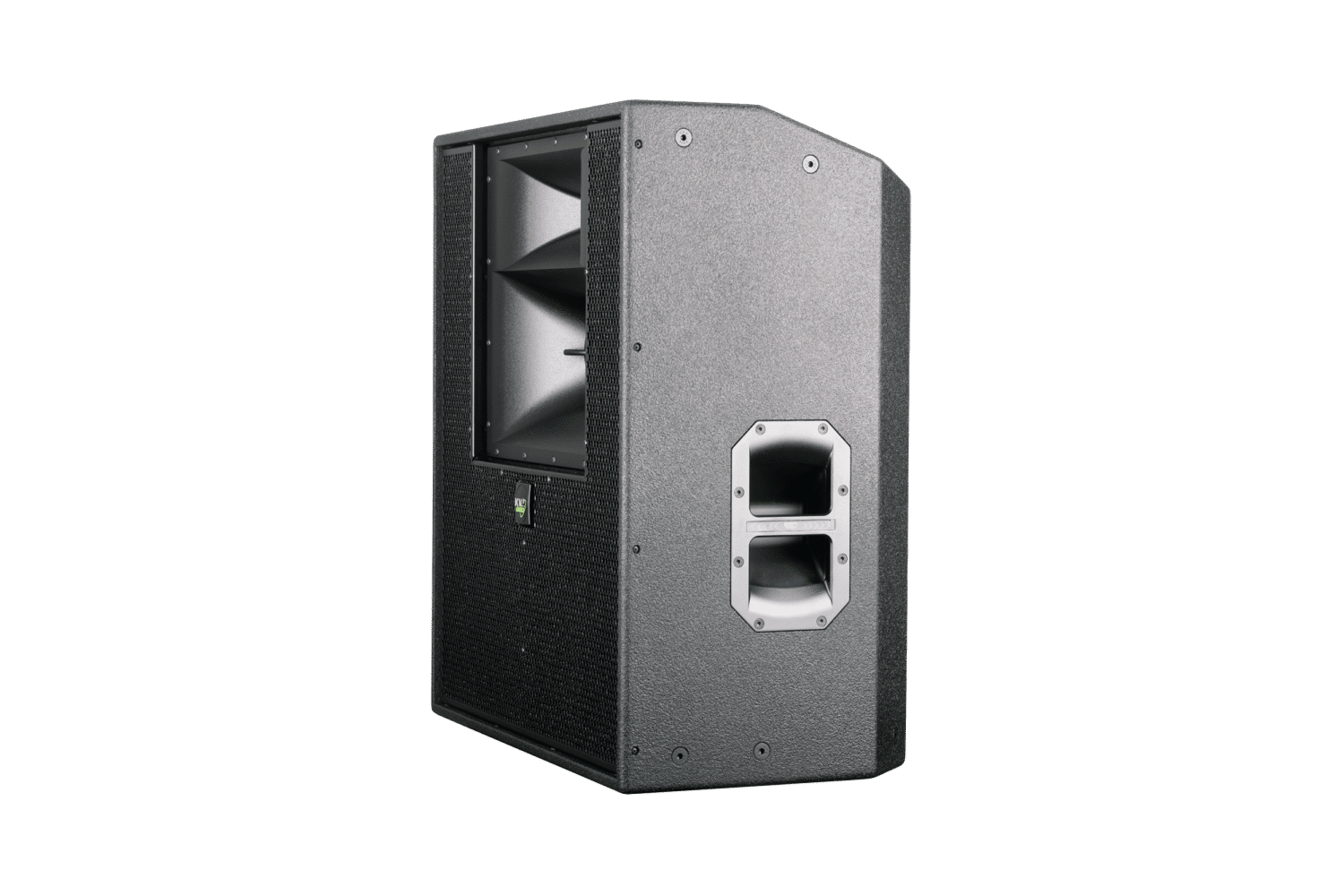

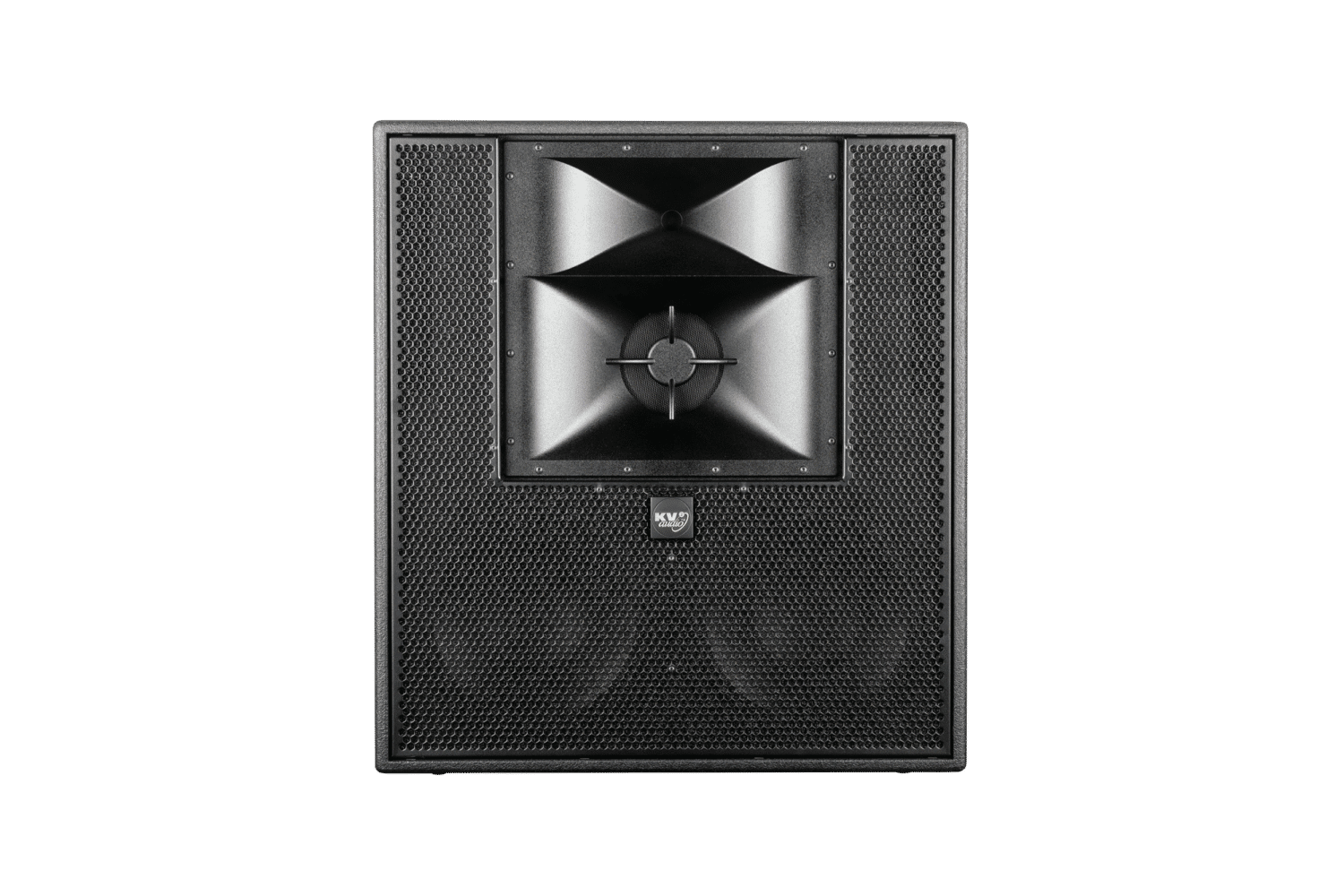

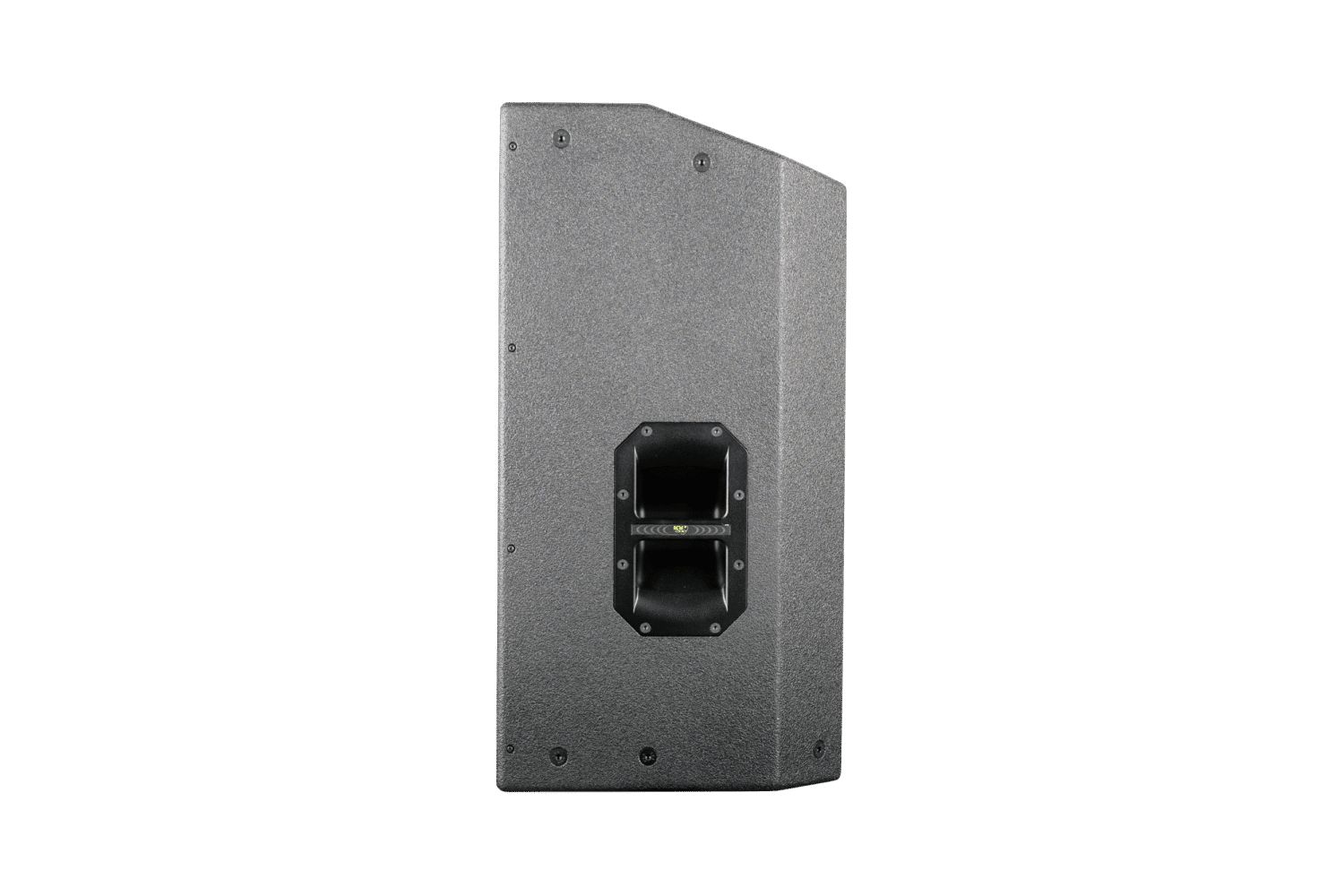

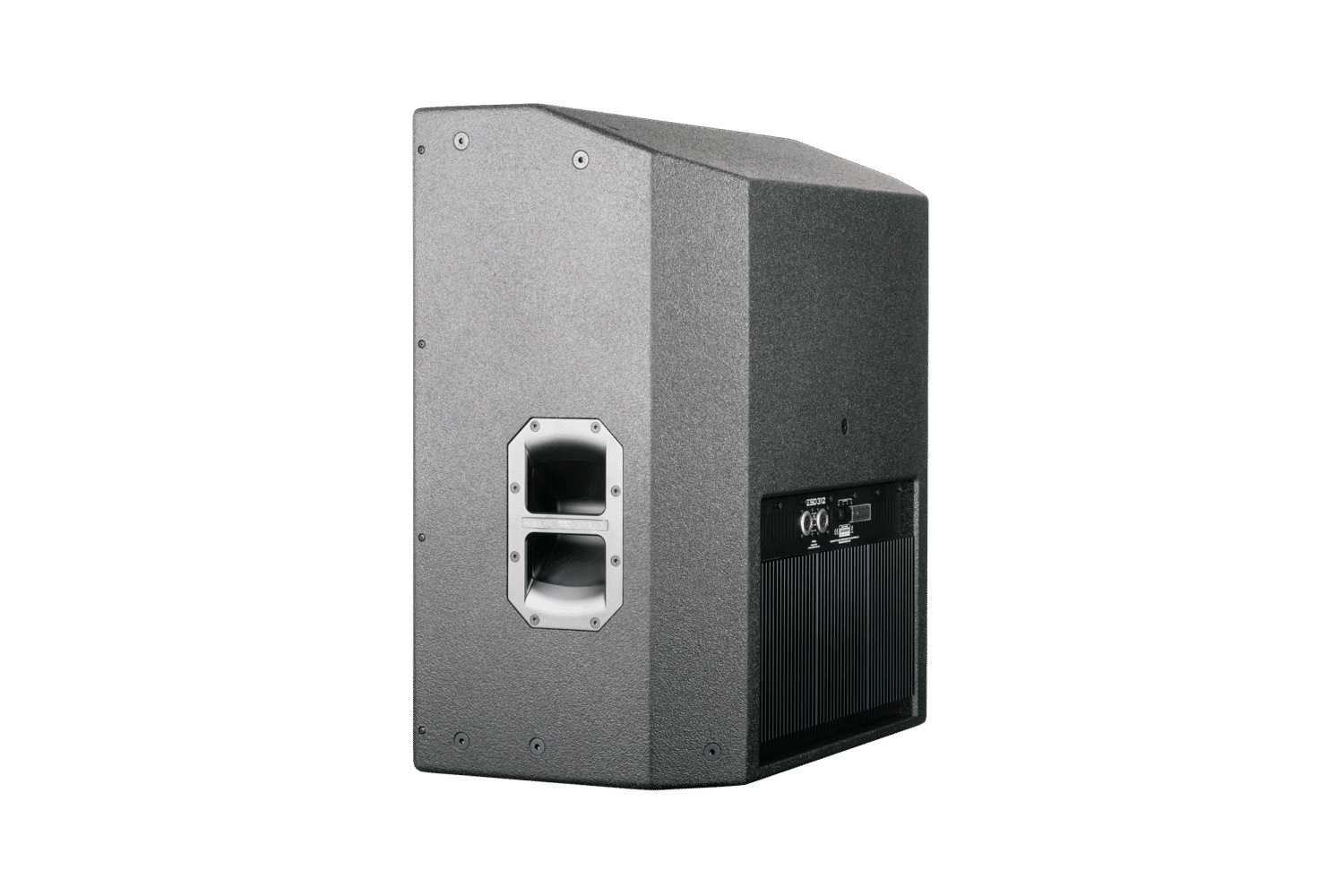

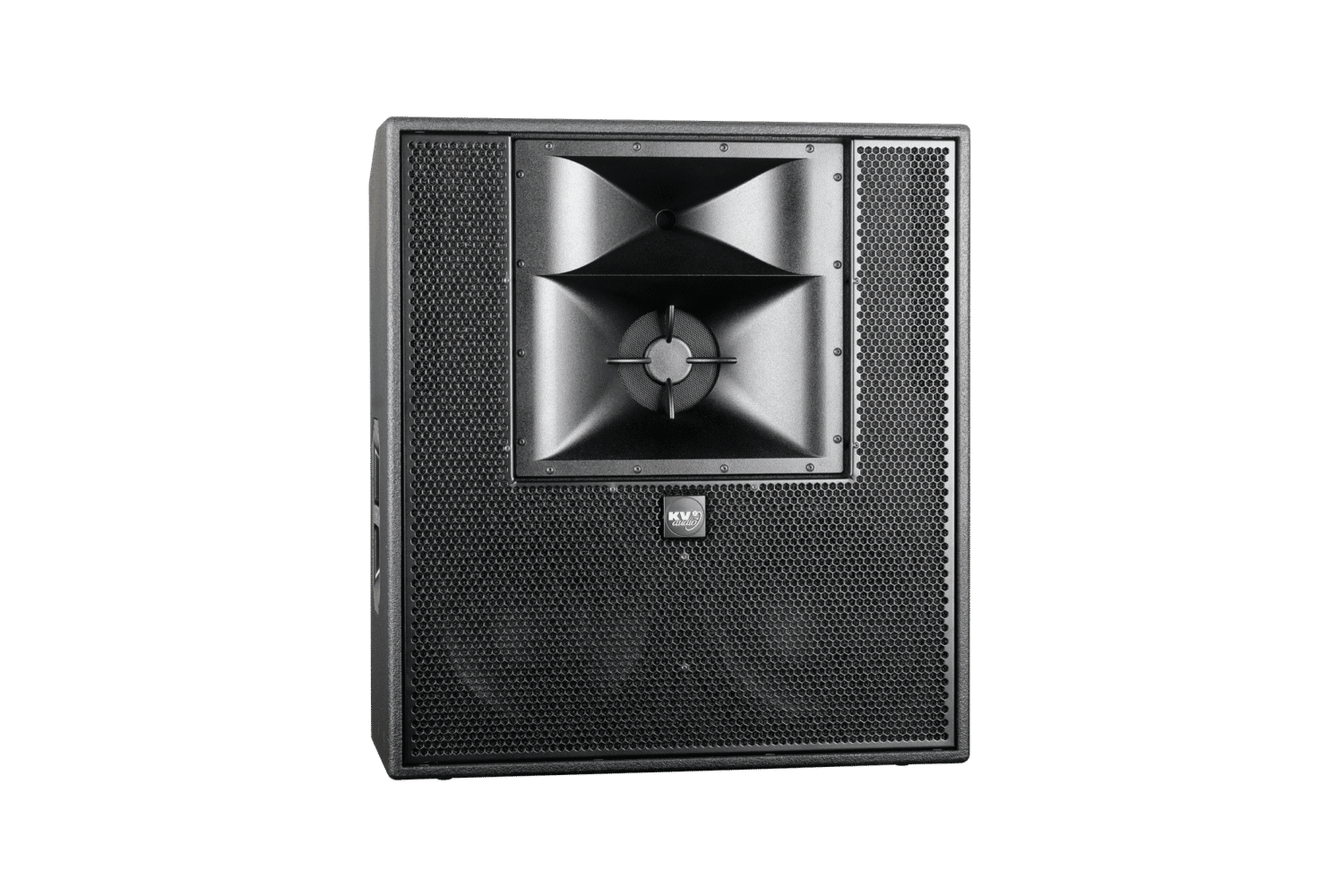

The ESD312 is a very high output full-range 3-way, passive solution with two bass reflex loaded 12“ woofers, a single horn loaded 6“ mid range and a 1“ compression driver. Housed in a professional robust Baltic Birch cabinet, with a protective polymer paint coating and heavy-duty grille, the ESD312 can be a dedicated close-field DJ Monitor system when used in conjunction with the VHD2.18J Subwoofer and monitor bracket. It can also be applied as a PA system, as an individual full range speaker or as a fill speaker to accompany larger format VHD systems. For added versatility in installation, the ESD312 is supported by dedicated accessories including a vertical bracket enabling a wide range of mounting and deployment options for hanging.

Product code

KVV 987 544



    Consultar precios

    Descripción

    The ESD312 is a very high output full-range 3-way, passive solution with two bass reflex loaded 12“ woofers, a single horn loaded 6“ mid range and a 1“ compression driver. Housed in a professional robust Baltic Birch cabinet, with a protective polymer paint coating and heavy-duty grille, the ESD312 can be a dedicated close-field DJ Monitor system when used in conjunction with the VHD2.18J Subwoofer and monitor bracket. It can also be applied as a PA system, as an individual full range speaker or as a fill speaker to accompany larger format VHD systems. For added versatility in installation, the ESD312 is supported by dedicated accessories including a vertical bracket enabling a wide range of mounting and deployment options for hanging.

    Features

    • Professional, Baltic Birch construction with wear resistant polymer paint coating
    • 133dB sustained output, 139dB peak
    • Very high dynamic range
    • Compact, slim design cabinet
    • Requires one single amplifier channel
    • Revolutionary passive delay line technology
    • 90° H x 40° V horn
    • State of the art 1” compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
    • 2×12” neodymium woofers providing low distortion and very high output
    • Gradual RMS speaker protection


    Product code

    KVV 987 544



    Accesories


    Vertical Bracket for ESD312

    Gallery

    Product code

    KVV 987 556



    Description

    Vertical Bracket for ESD312

    Includes:

    • 4x button head socket screw, M10x40, ISO 7380
    • 1x allen key


    Downloads

    PDF

    ESD312 Vertical Bracket 2D PDF

    ESD312 Vertical Bracket 2D PDF
    DWG

    ESD312 Vertical Bracket 3D DWG

    ESD312 Vertical Bracket 3D DWG
    SKP

    ESD312 Vertical Bracket 3D SKP

    ESD312 Vertical Bracket 3D SKP
    DWG

    ESD312 Vertical Bracket 2D DWG

    ESD312 Vertical Bracket 2D DWG

    ESD312 Monitor Bracket for VHD2.18J

    Gallery

    Product code

    KVV 987 559



    Description

    ESD312 Monitor Bracket for VHD2.18J

    Includes:

    • 2x M10x50 bolt assembly for quickpin
    • 1x allen key


    Downloads

    PDF

    ESD312 Monitor Bracket 2D PDF

    ESD312 Monitor Bracket 2D PDF
    SKP

    ESD312 Monitor Bracket 3D SKP

    ESD312 Monitor Bracket 3D SKP
    DWG

    ESD312 Monitor Bracket 3D DWG

    ESD312 Monitor Bracket 3D DWG
    DWG

    ESD312 Monitor Bracket 2D DWG

    ESD312 Monitor Bracket 2D DWG

    System Acoustic Performance

    Max SPL Long-term 133dB
    Max SPL Peak 139dB
    -3dB Response 57Hz to 20kHz
    -10dB Response 40Hz to 20kHz
    Recommended Power 1000W
    Sensitivity 100dB
    Impedance
    Crossover Point 400Hz; 2kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 90° x 40°
    Throat Exit Diameter / Diaphragm Size 1“ / 1,75“
    Diaphragm Material Titanium
    Magnet Type Neodymium
    Protection RMS limiter

    Mid Range Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 90° x 40°
    Woofer Size / Voice Coil Diameter 6“ / 1,75“
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium
    Protection RMS Limiter

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Woofer Size / Voice Coil Diameter 12“ / 3“
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium
    Protection RMS Limiter

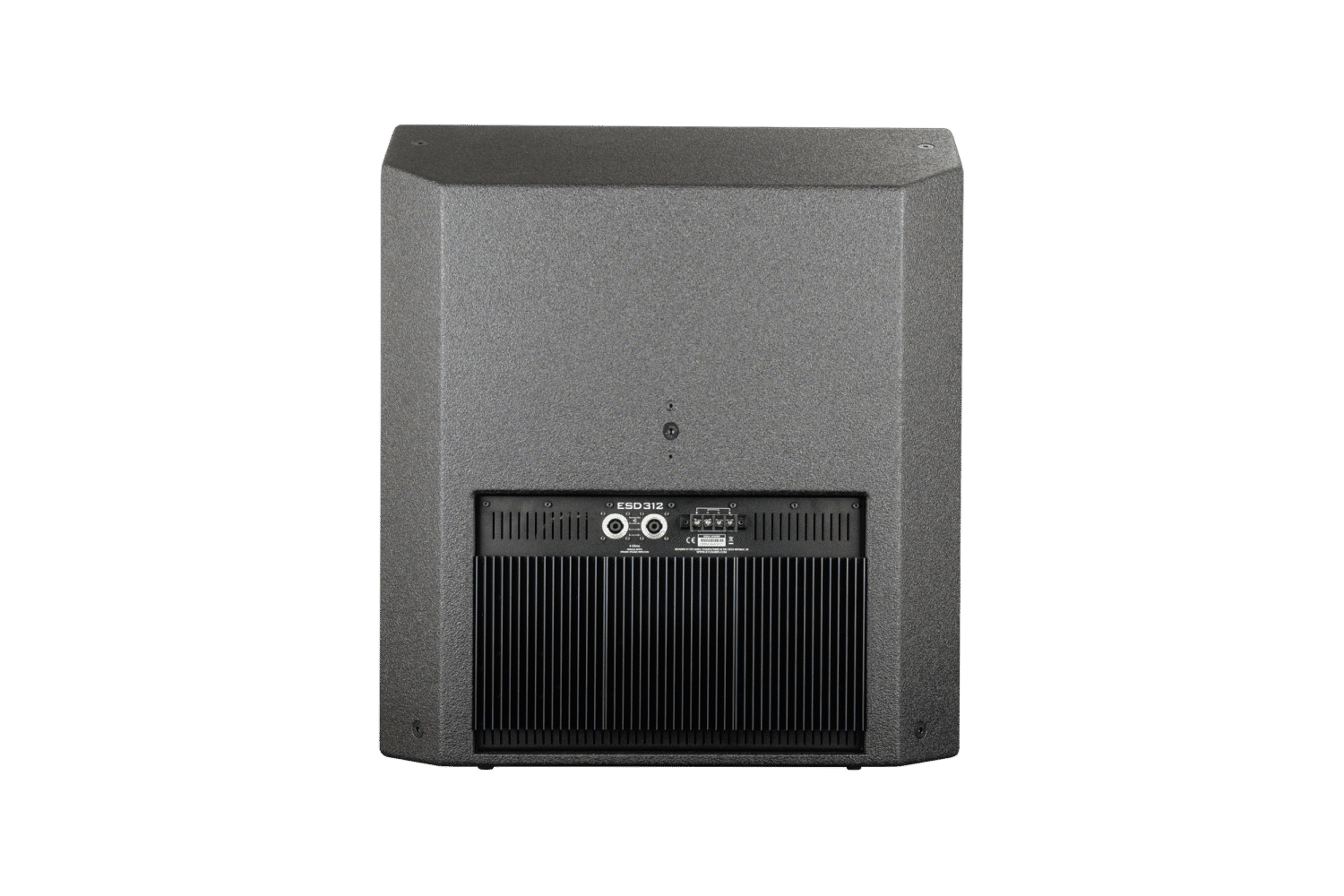

    Speaker Input

    Speaker Input 2x Neutrik Speakon®, 2x Terminal Block

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Color Black (wear resistant polymer coating)

    Physical Dimensions

    Height 779 mm / 30.67“
    Width 700 mm /27.56“
    Depth 394 mm / 15.51“
    Weight 44 kg (97 lbs)
