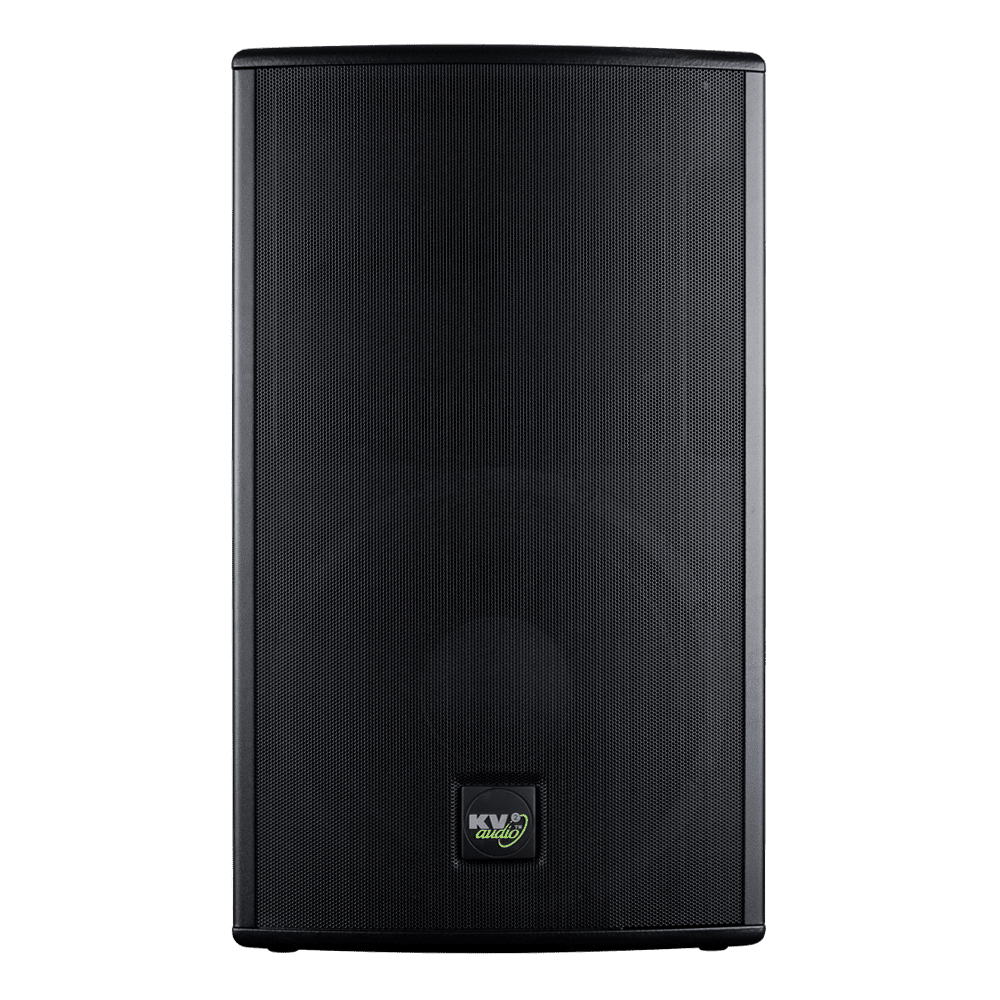

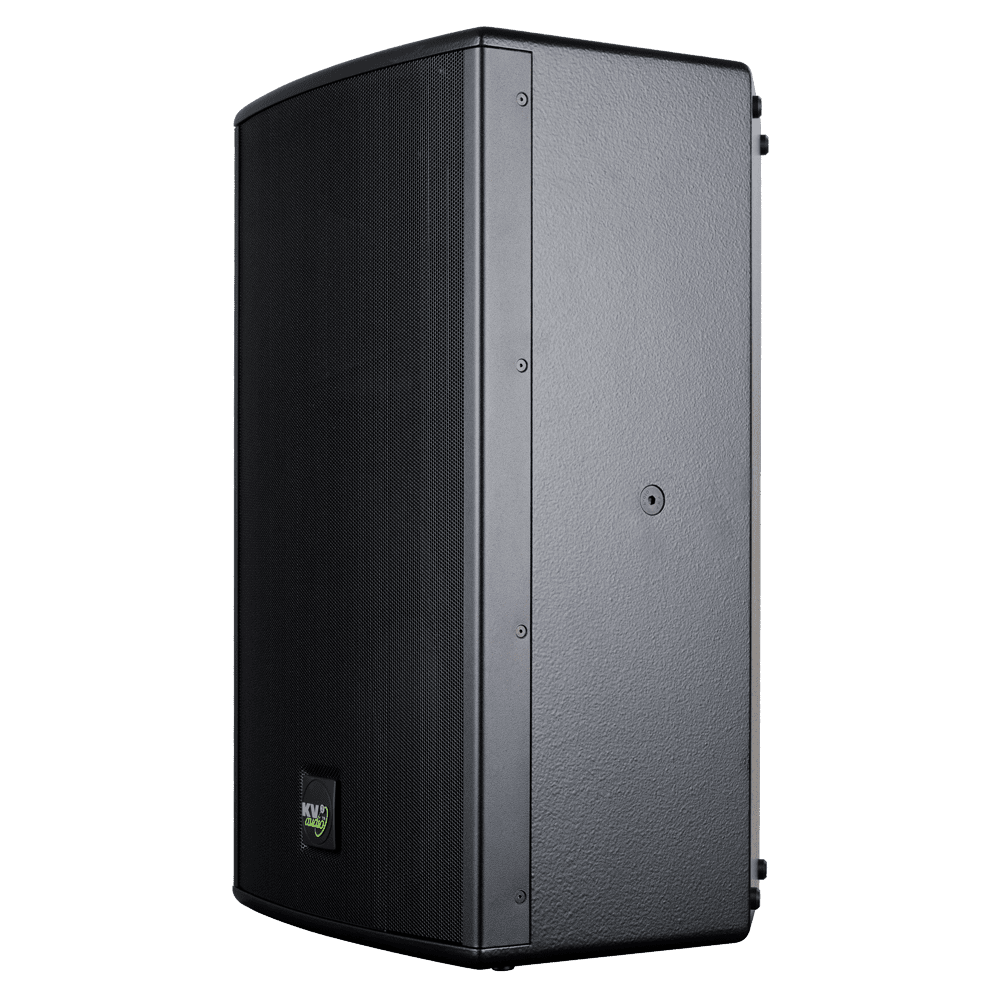

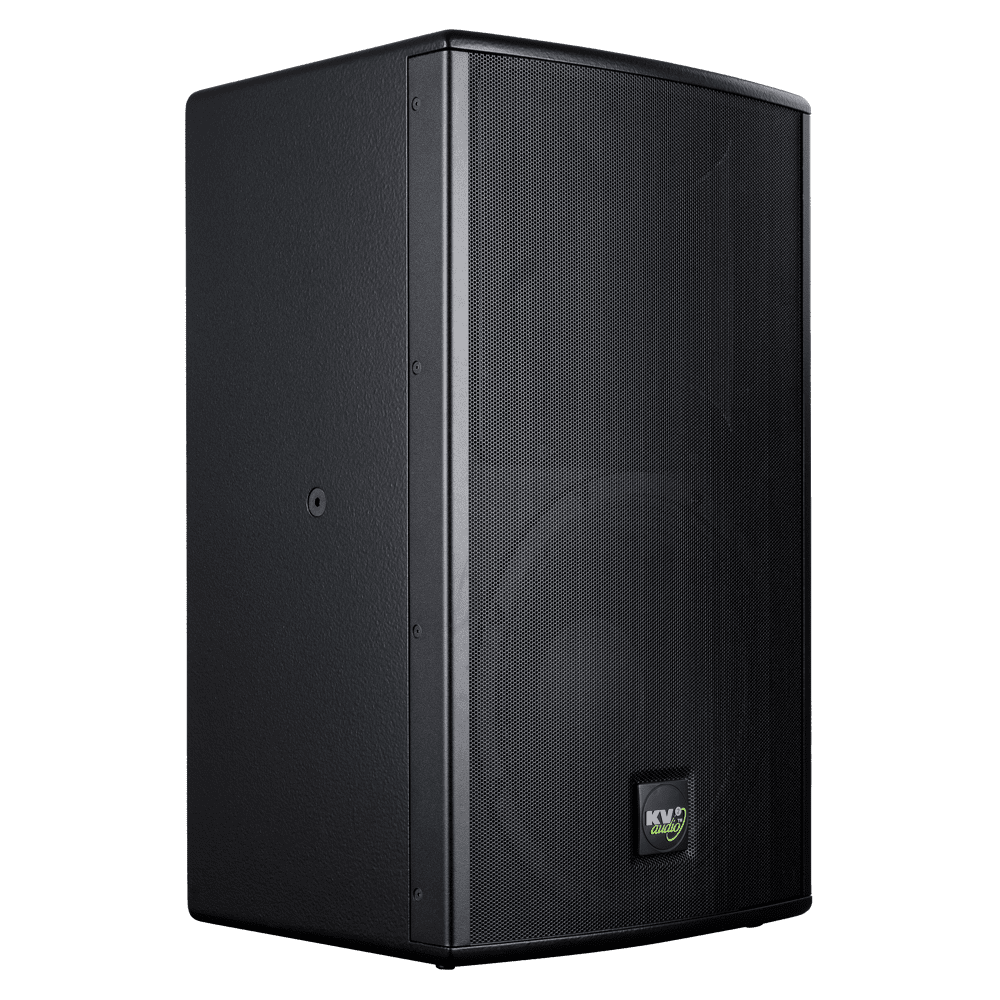

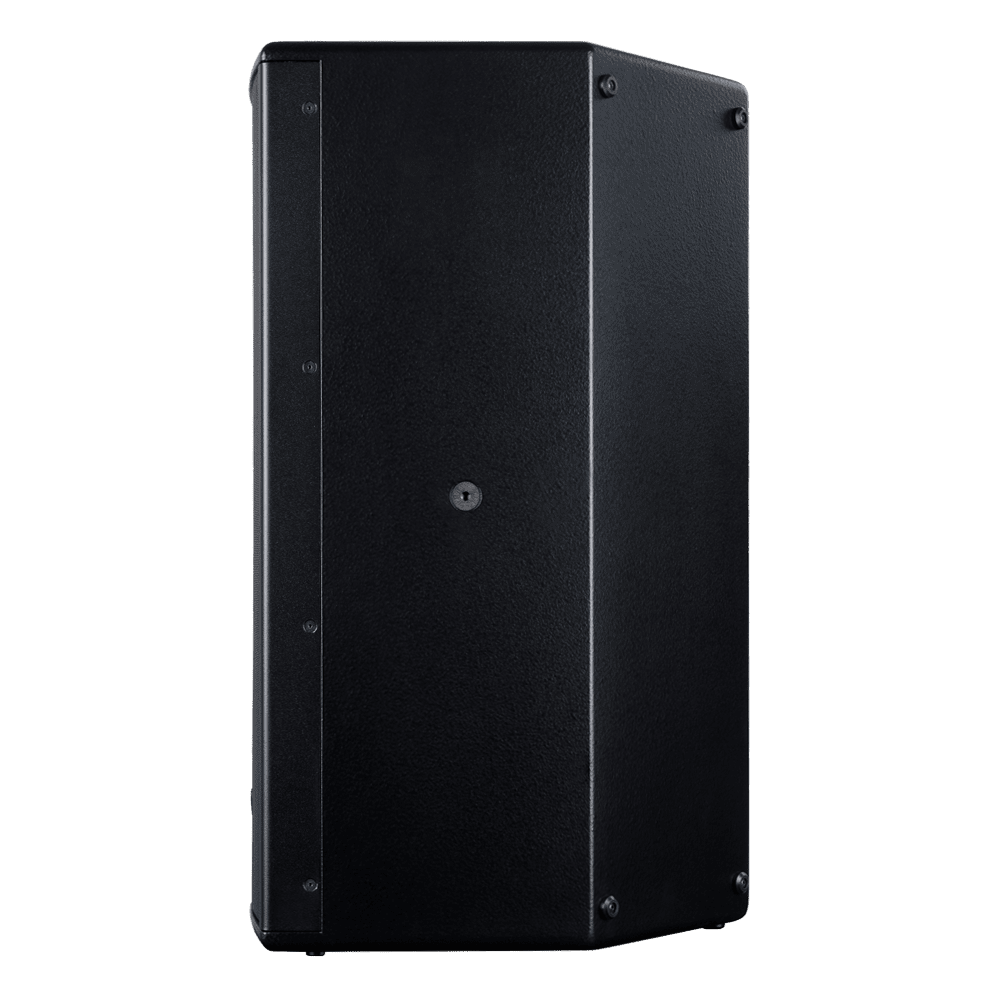

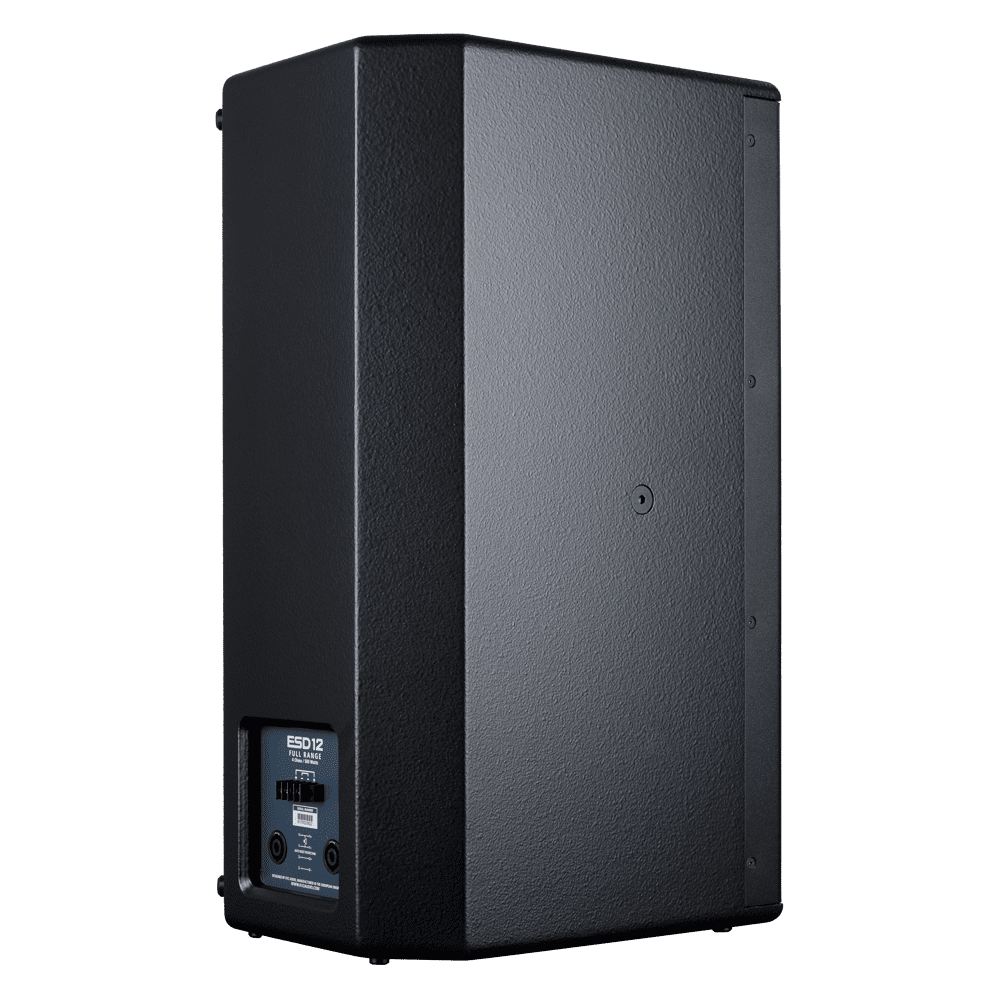

ESD12 – 2-way Passive speaker

KV2AUDIO
SKU: ESD12

The ESD12 is a high quality 2-way, passive full range loudspeaker that provides unmatched clarity and definition in a simple elegant package. The ESD12 utilizes a 12″ Trans Coil woofer and the same 3″ NVPD large format compression driver found in our flagship VHD products, which has one of the lowest distortion ratings on the planet.Combined with our unique delay line technology the ESD12 delivers a beautifully balanced, phase coherent and accurate compact, 2-way passive solution that is adaptable to a wide range of applications.

Applications

Designed as a passive loudspeaker for the highest quality vocal and full range live performance in medium areas

  • Suitable for medium to large conference, Theatre and small to medium scale concerts
  • Scalable from stand alone to full range large systems by adding subwoofers
  • Fixed installations
  • Houses of worship
  • Stage monitoring

Product code

  • KVV 987 199 – ESD12


    Consultar precios

    Descripción

    The ESD12 is a high quality 2-way, passive full range loudspeaker that provides unmatched clarity and definition in a simple elegant package. The ESD12 utilizes a 12″ Trans Coil woofer and the same 3″ NVPD large format compression driver found in our flagship VHD products, which has one of the lowest distortion ratings on the planet.Combined with our unique delay line technology the ESD12 delivers a beautifully balanced, phase coherent and accurate compact, 2-way passive solution that is adaptable to a wide range of applications.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 127dB sustained output, 130dB peak with very high dynamic range
    • Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor and under balcony applications

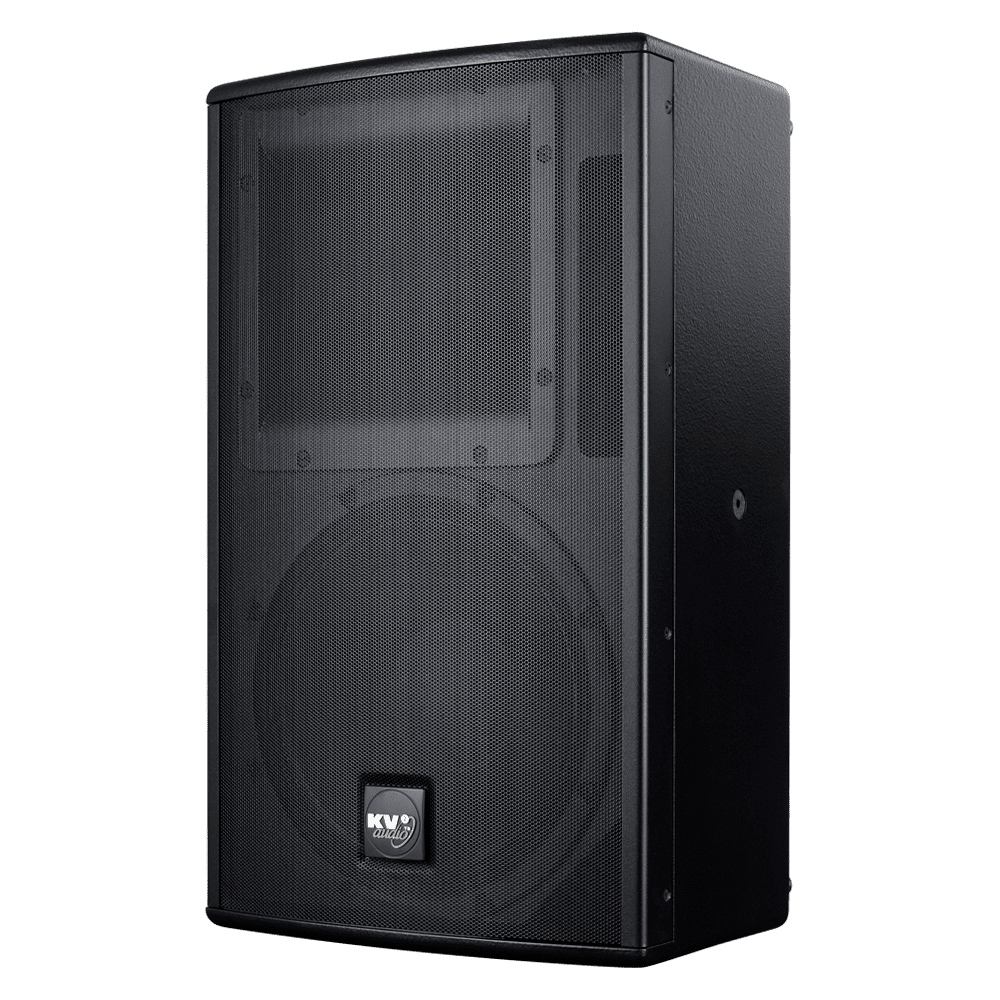

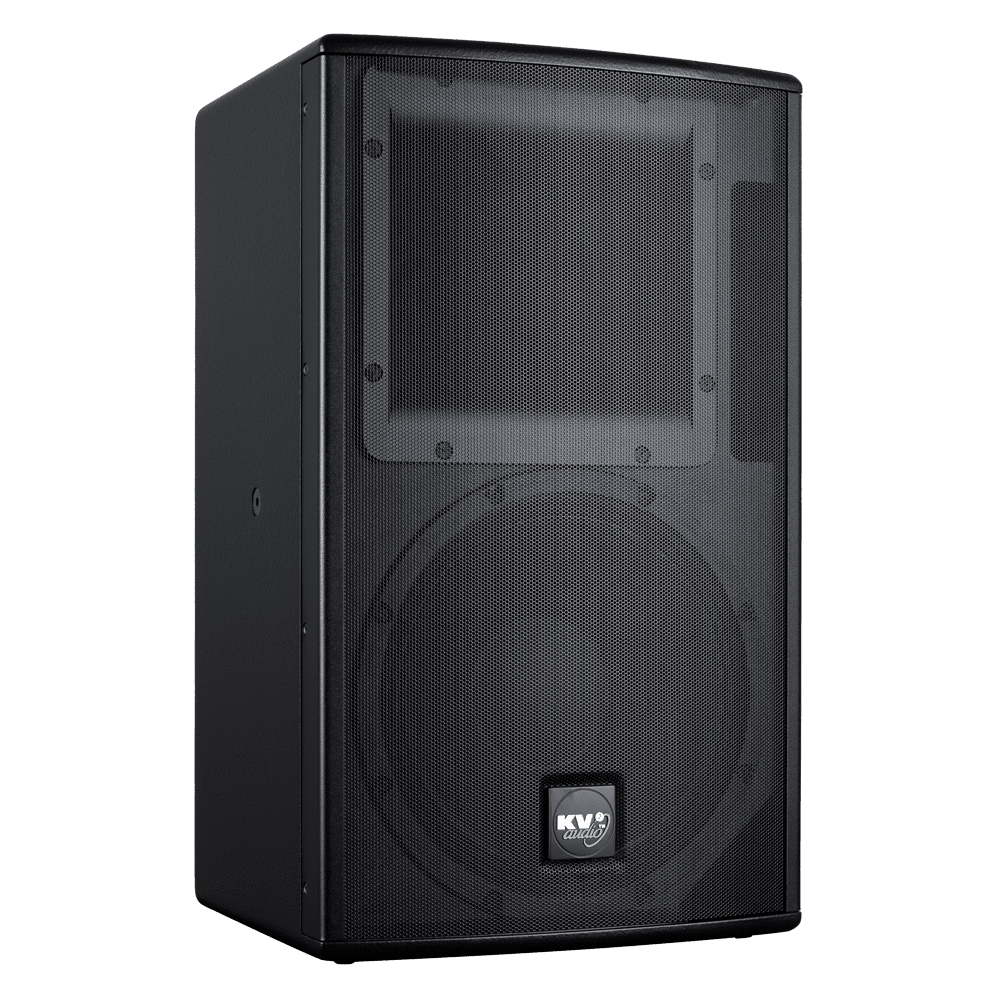

    • Rotatable wide dispersion 80° H x 40° V horn
    • Revolutionary passive delay line
    • State of the art 3″ (76 mm) Nitride Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, exceptionally low distortion and extended frequency response
    • 12″ woofer with Super Acoustic Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased frequency response linearity
    • Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points

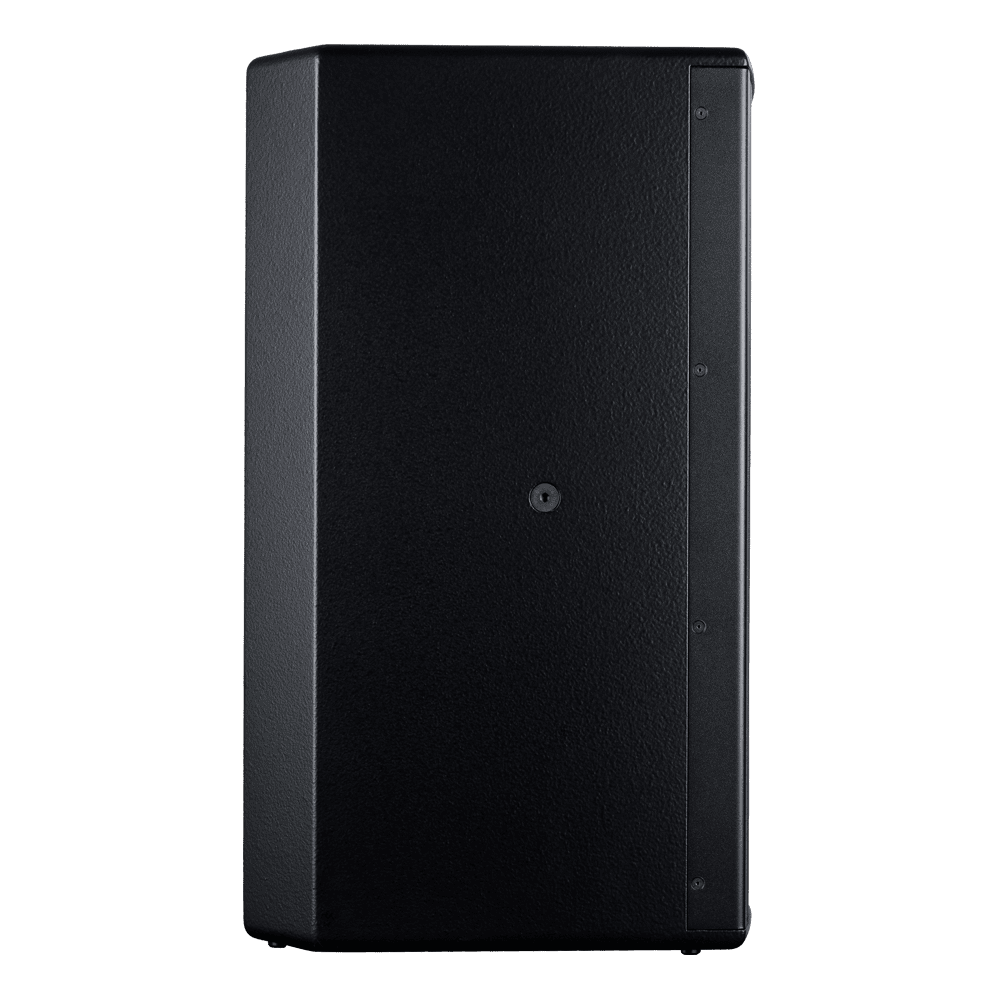

    • Additional side and bottom M10 points for flexible rigging and installation options
    • “Top-hat” for pole mounting applications


    YouTube thumbnailYouTube icon

    Applications

    Designed as a passive loudspeaker for the highest quality vocal and full range live performance in medium areas

    • Suitable for medium to large conference, Theatre and small to medium scale concerts
    • Scalable from stand alone to full range large systems by adding subwoofers
    • Fixed installations
    • Houses of worship
    • Stage monitoring

    Product code

    • KVV 987 199 – ESD12


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    ESD12 Horizontal bracket

    Gallery

    Product code

    KVV 987 487



    Description

    Horizontal bracket for ESD12
    – including two connection bolts – black



    Downloads

    DWG

    ESD12 Horizontal Bracket 3D DWG

    Horizontal Bracket for ESD12 3D DWG

    DWG

    ESD12 Horizontal Bracket 2D DWG

    Horizontal Bracket for ESD12 2D DWG

    SKP

    ESD12 Horizontal Bracket 3D SKP

    ESD12 Horizontal Bracket 3D SketchUp

    ESD12 / EX12 Vertical bracket

    Gallery

    Product code

    KVV 987 488



    Description

    Vertical bracket for EX12, ESD12
    – including two connection bolts – black



    Downloads

    DWG

    ESD12 / EX12 Vertical Bracket 3D DWG

    Vertical Bracket for ESD12, EX12 3D DWG

    SKP

    ESD12 / EX12 Vertical Bracket 3D SKP

    Vertical Bracket for ESD12 / EX12 3D SKP

    DWG

    ESD12 / EX12 Vertical Bracket 2D DWG

    Vertical Bracket for ESD12 / EX12 2D DWG

    ESD12 Cover

    Gallery

    Product code

    KVV 987 212



    Description

    – heavy duty – padded



    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26

    Gallery

    Product code

    KVV 987 090



    Description

    – including bolts – black



    Downloads

    DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

    SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp

    System Acoustic Performance

    Max SPL Long-term 127dB
    Max SPL Peak 133dB
    -3dB Response 55Hz to 22kHz
    -10dB Response 50Hz to 30kHz
    Recommended Power 500W
    Sensitivity 98dB
    Impedance
    Crossover Point 1.2kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 80° x 40°
    Rotatable Horn YES
    Throat Exit Diameter / Diaphragm Size 1.4″ / 3″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium
    Protection RMS Limiter

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Woofer Size / Voice Coil Diameter 12″ / 2.5″ / Trans Coil
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium
    Protection Thermal breaker – autoreset

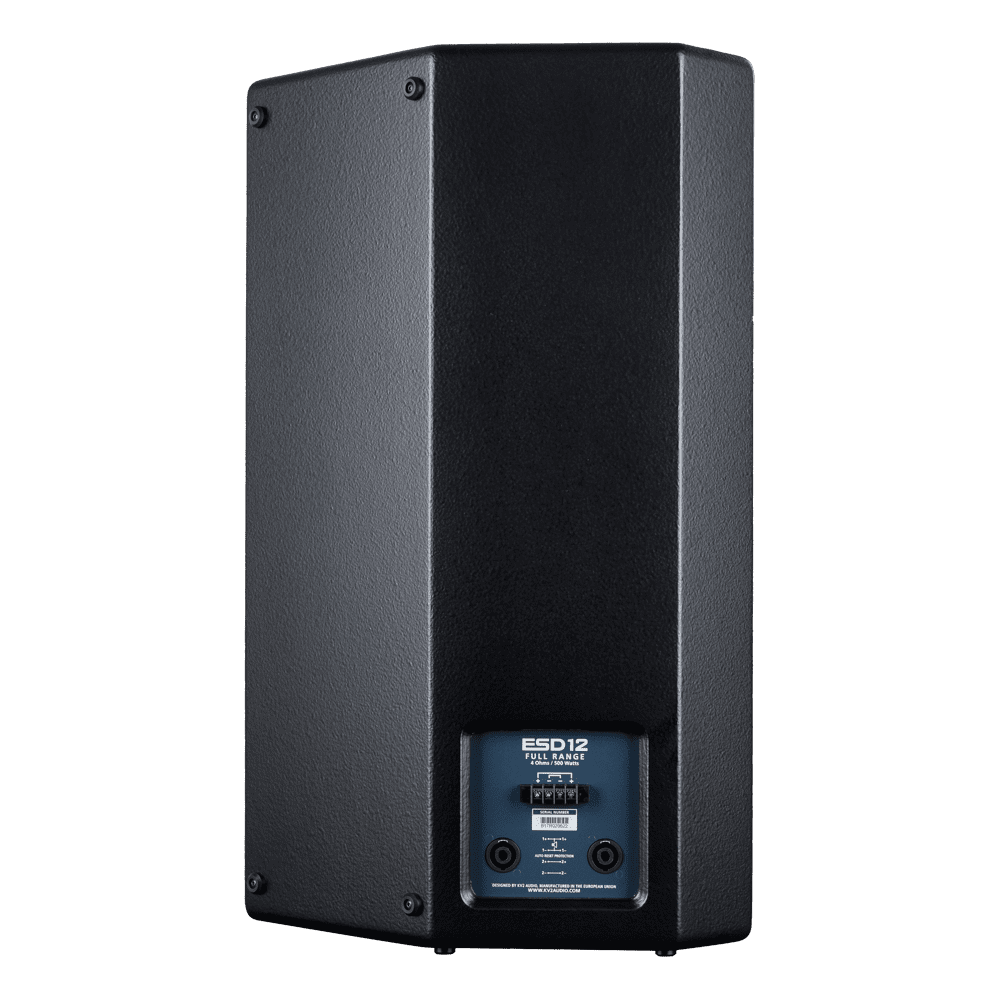

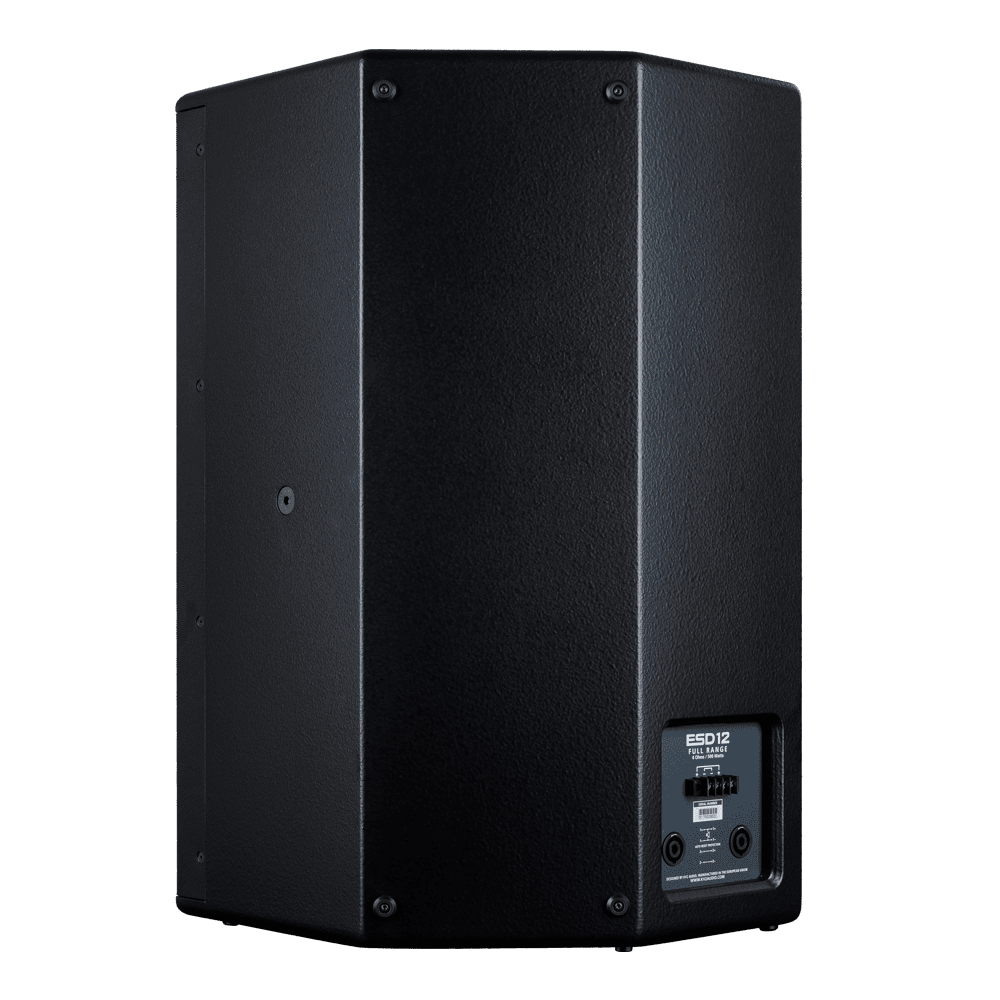

    Speaker Input

    Speaker Input 2x Neutrik Speakon®, Terminal Block

    Cabinet

    Cabinet Material Baltic birch
    Handles 1
    Pole Mount 35 mm
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 619 mm (24.37″)
    Width 368 mm (14.48″)
    Depth 368 mm (14.48″)
    Weight 23 kg (50.7lbs)


    Product code

    • KVV 987 199 – ESD12

    PDF

    ESD Series User Guide

    ESD Series User Guide – rev 18



    PDF

    ESD12 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    ESD12 – 3D

    1:1 scale – clamping points – weight – dwg file



    DWG

    ESD12 / EX12 Vertical Bracket 2D DWG

    Vertical Bracket for ESD12 / EX12 2D DWG


    DWG

    ESD12 / EX12 Vertical Bracket 3D DWG

    Vertical Bracket for ESD12, EX12 3D DWG



    SKP

    ESD12 / EX12 Vertical Bracket 3D SKP

    Vertical Bracket for ESD12 / EX12 3D SKP



    DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG



    SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp



    DWG

    ESD12 3D DWG

    ESD12 3D DWG



    SKP

    ESD12 SKP

    ESD12 SketchUp



    DWG

    ESD12 Horizontal Bracket 3D DWG

    Horizontal Bracket for ESD12 3D DWG



    DWG

    ESD12 Horizontal Bracket 2D DWG

    Horizontal Bracket for ESD12 2D DWG



    DWG

    ESD12 2D DWG

    ESD12 2D DWG



    SKP

    ESD Series SketchUp

    ESD Series SketchUp – all boxes and accessories



    PDF

    ESD12 – 2D

    ESD12 2D Drawings



    SKP

    ESD12 Horizontal Bracket 3D SKP

    ESD12 Horizontal Bracket 3D SketchUp


    GLL

    ESD12 – EASE data

    EASE data – .GLL – description
