ESD10 – 2-way Passive speaker

KV2AUDIO
SKU: ESD10

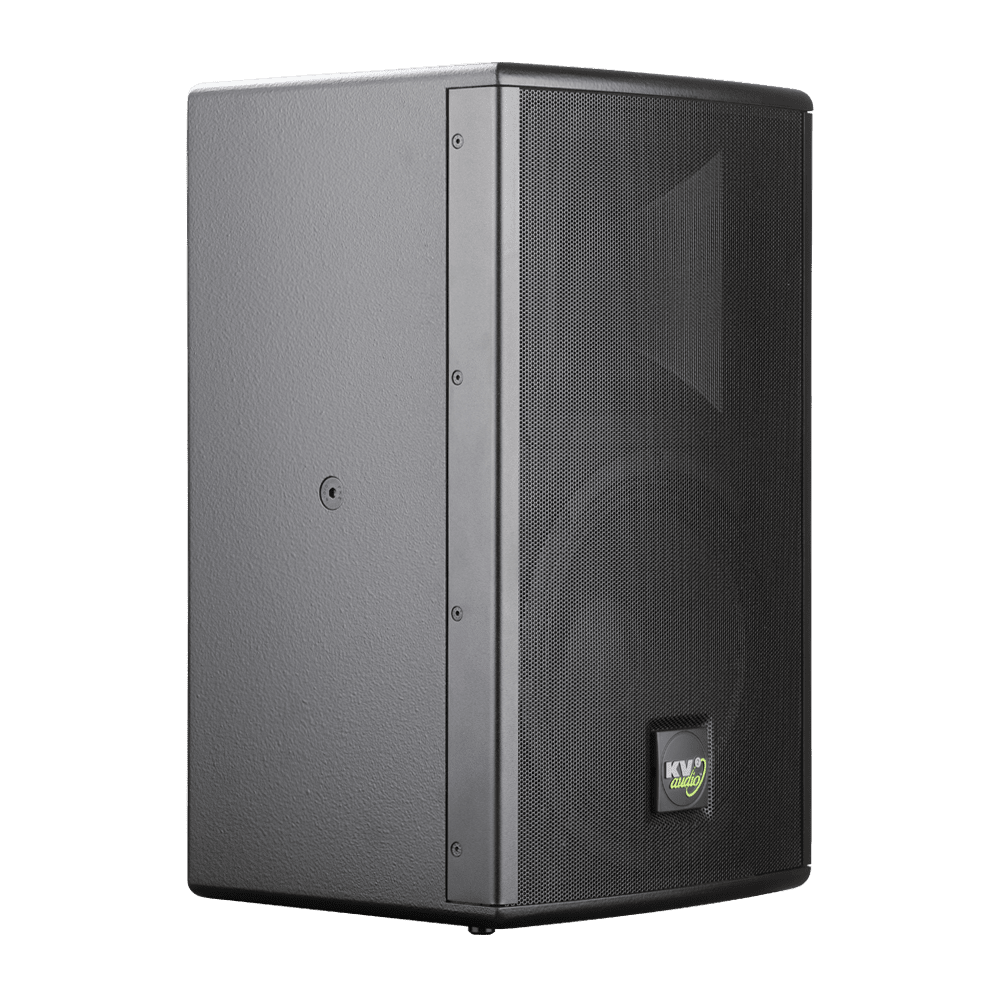

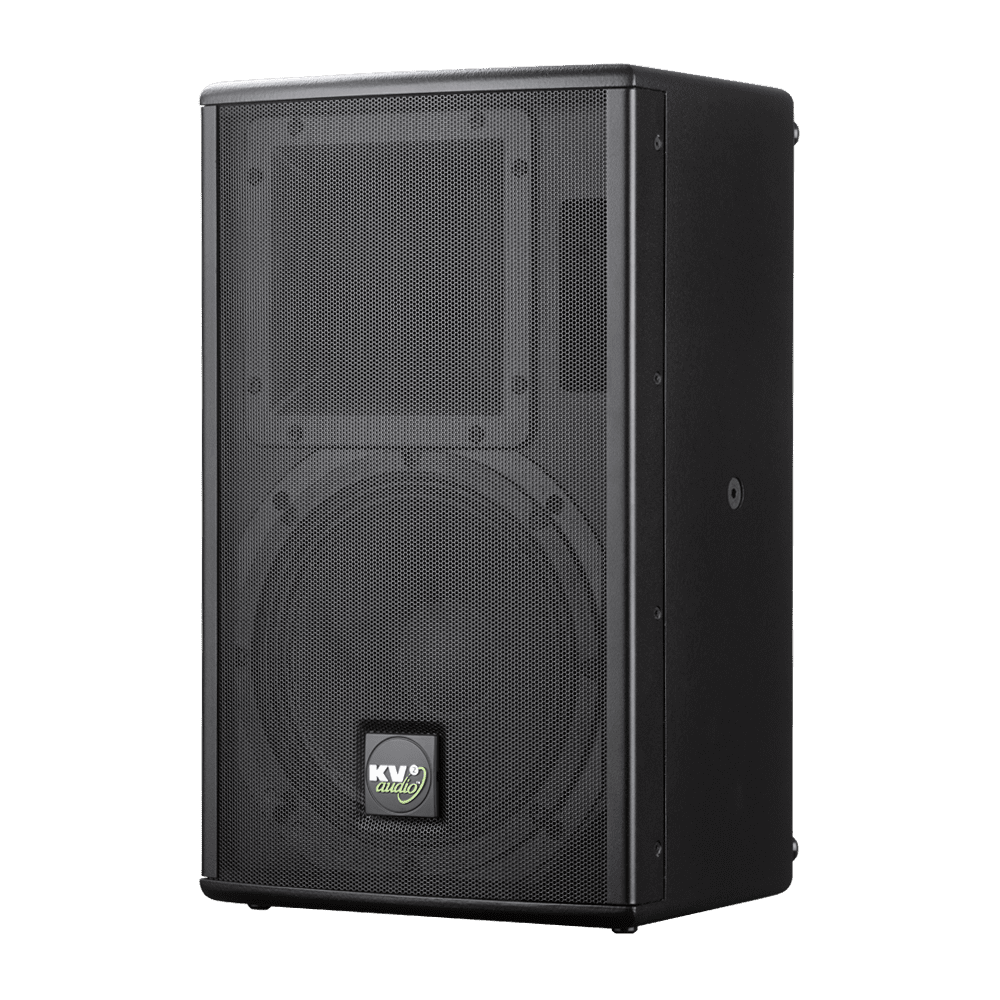

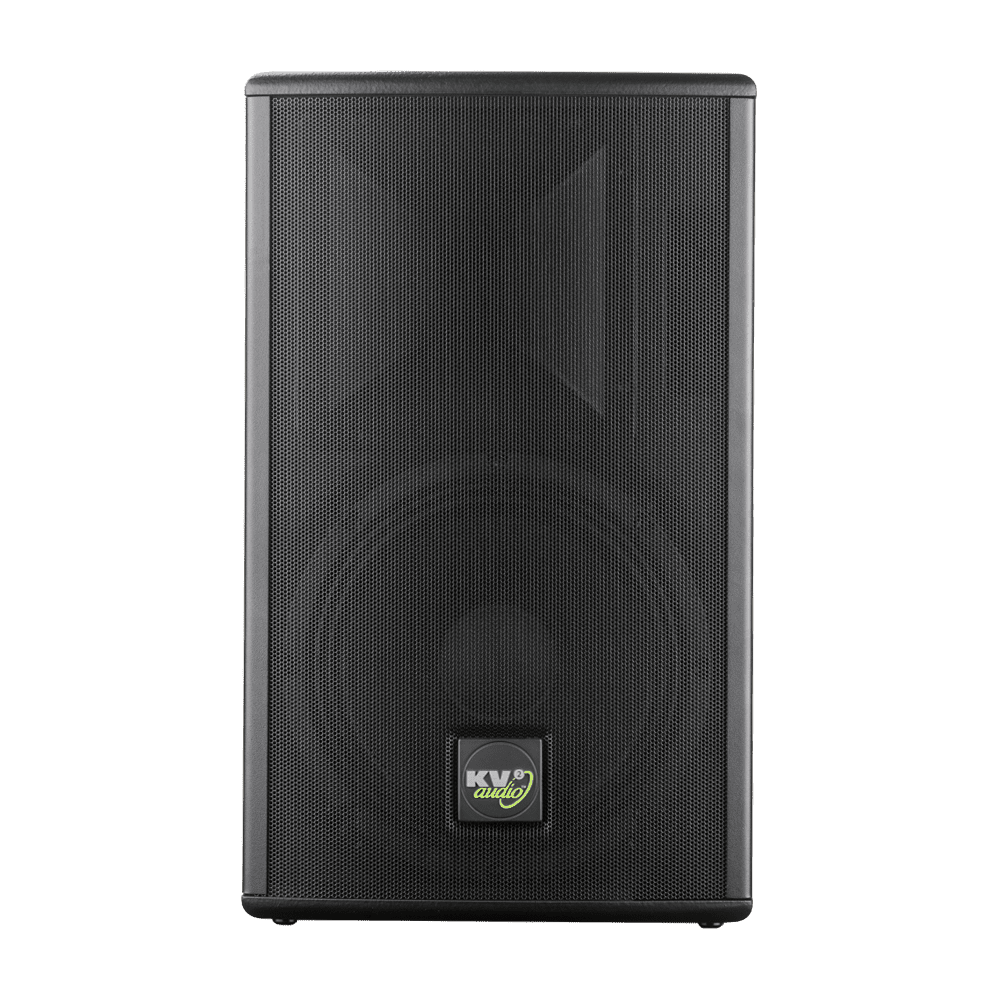

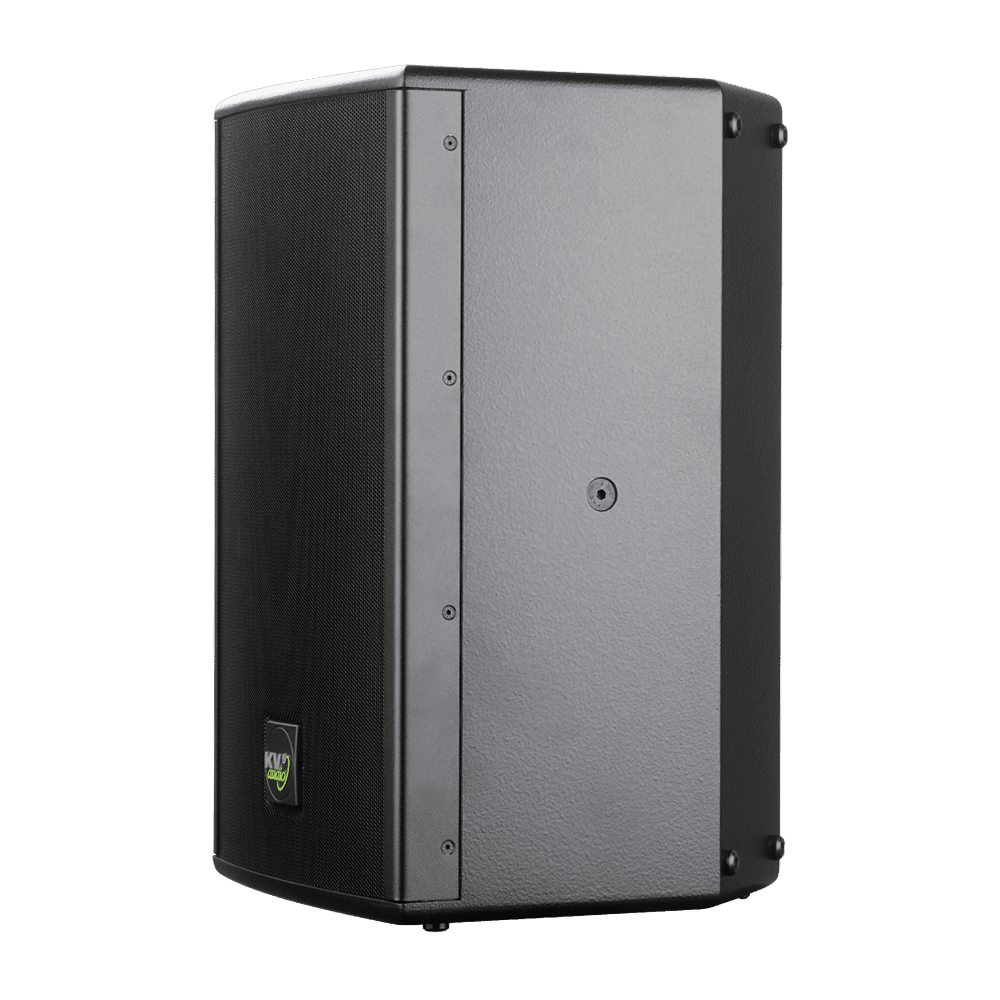

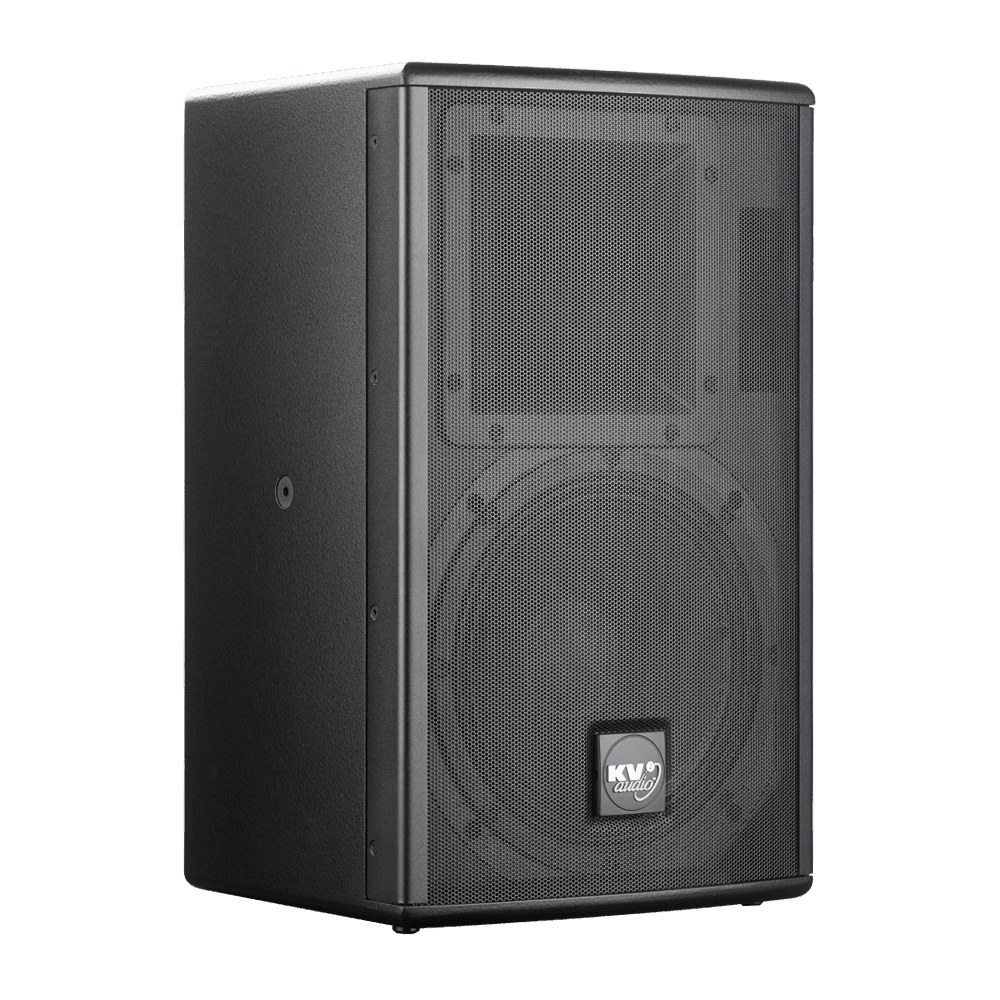

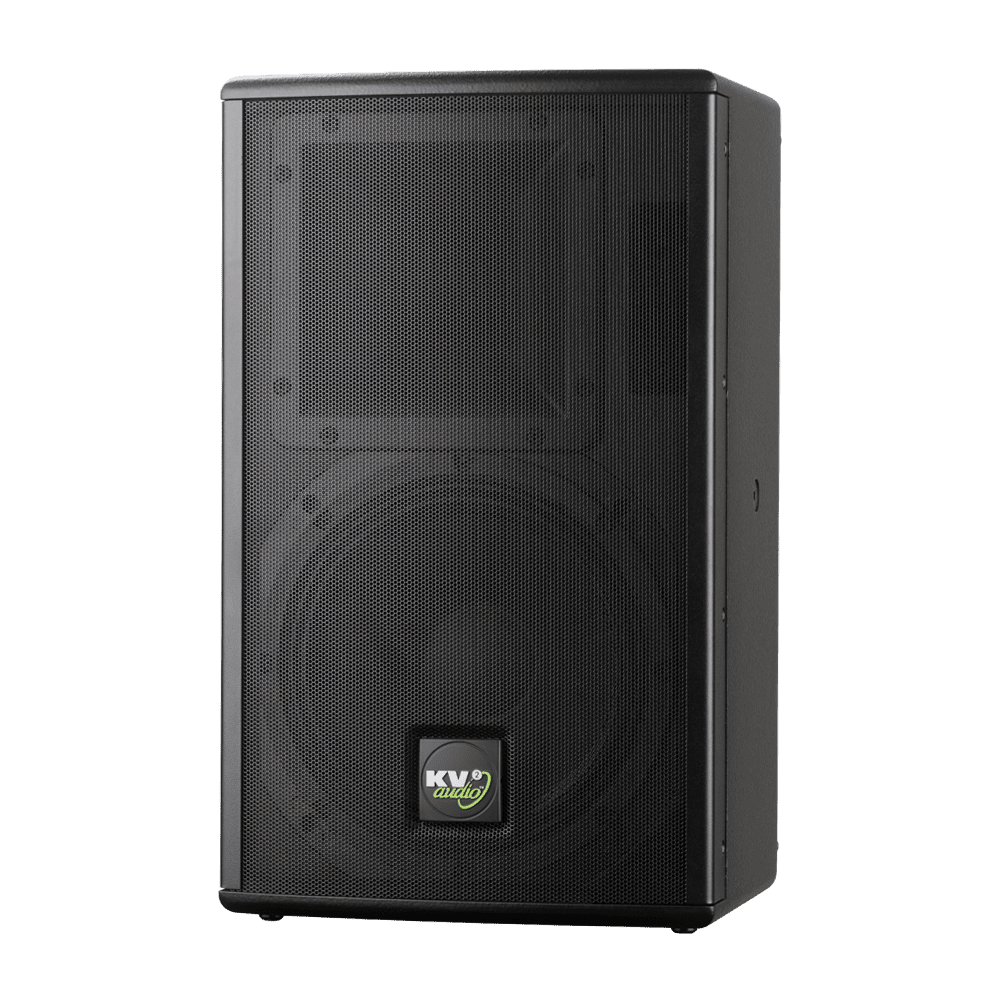

The ESD10 is a compact passive 2-way, high output, full-range loudspeaker incorporating a 10″ trans-coil woofer and a wide dispersion rotatable horn. The ESD10 provides a smooth hi fidelity response and delivers sound quality and level that is superior to many larger competing products. Ideal as a main system speaker or as an fill-in for larger systems. The ESD10 is an all round affordable passive solution that simply exudes quality.

Applications

Specifically designed as a passive loudspeaker for high quality, high output portable music playback and live performance in small areas

  • Full range stand-alone solution or scalable to larger systems with subwoofers
  • Large conference and small to medium performance venues
  • Multi-purpose fixed installations
  • Personal monitoring
  • In-fill for larger main KV2 Audio systems or third party systems

Product code

  • KVV 987 207 – ESD10


    Consultar precios

    Descripción

    The ESD10 is a compact passive 2-way, high output, full-range loudspeaker incorporating a 10″ trans-coil woofer and a wide dispersion rotatable horn. The ESD10 provides a smooth hi fidelity response and delivers sound quality and level that is superior to many larger competing products. Ideal as a main system speaker or as an fill-in for larger systems. The ESD10 is an all round affordable passive solution that simply exudes quality.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 125dB sustained output, 128dB peak with very high dynamic range
    • Compact, asymmetrical, trapezoidal cabinet design allows for use in stage monitor or under balcony applications
    • Rotatable wide dispersion 100° H x 80° V horn
    • Revolutionary new passive delay line
    • 1.75″ (44 mm) diaphragm compression driver with complex geometry phase plug for higher output, exceptionally low distortion, extended frequency response and neodymium magnetic motor structure
    • “10” woofer with Super Acoustic Active Impedance Control (AIC) voice coil technology and neodymium magnetic motor structure dramatically increases force, lowers distortion and provides increased linear frequency response
    • Proprietary top handle design for simplified handling and carrying, integrates one M10 suspension point, OmnimountTM bracket point and four M6 points

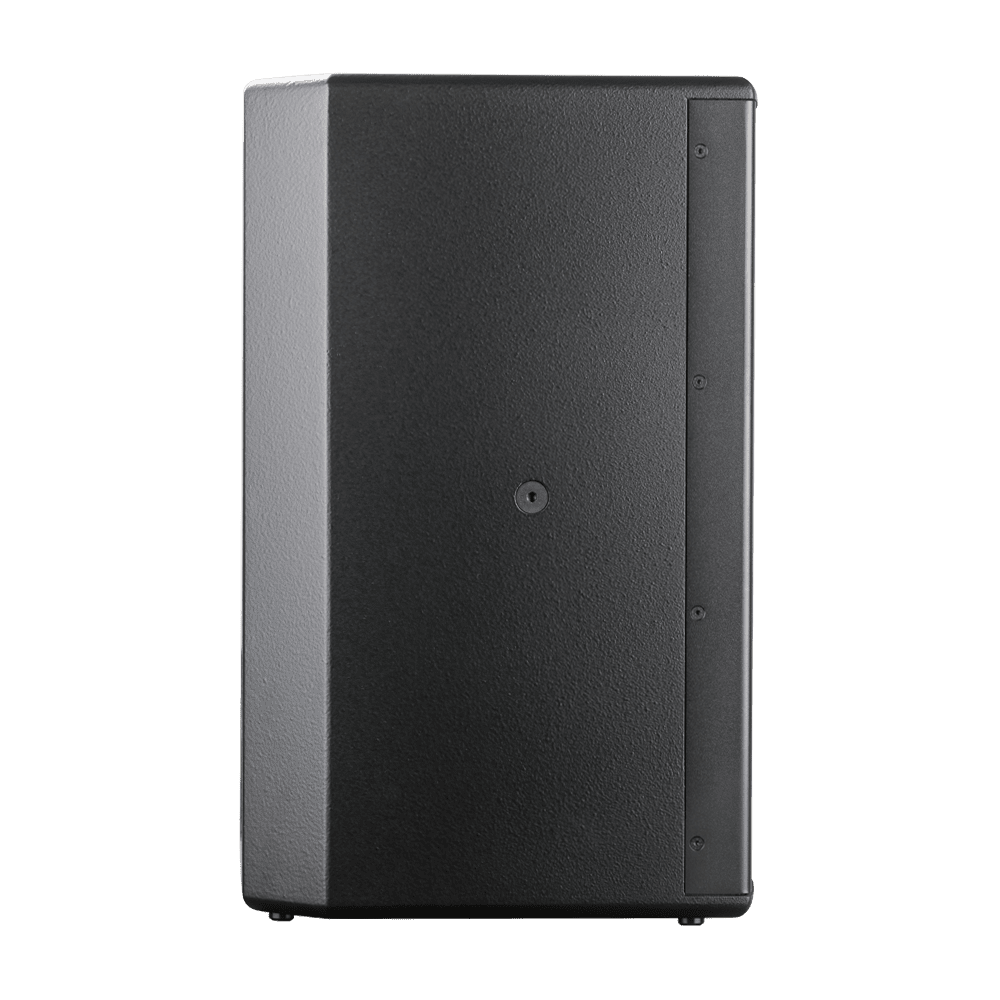

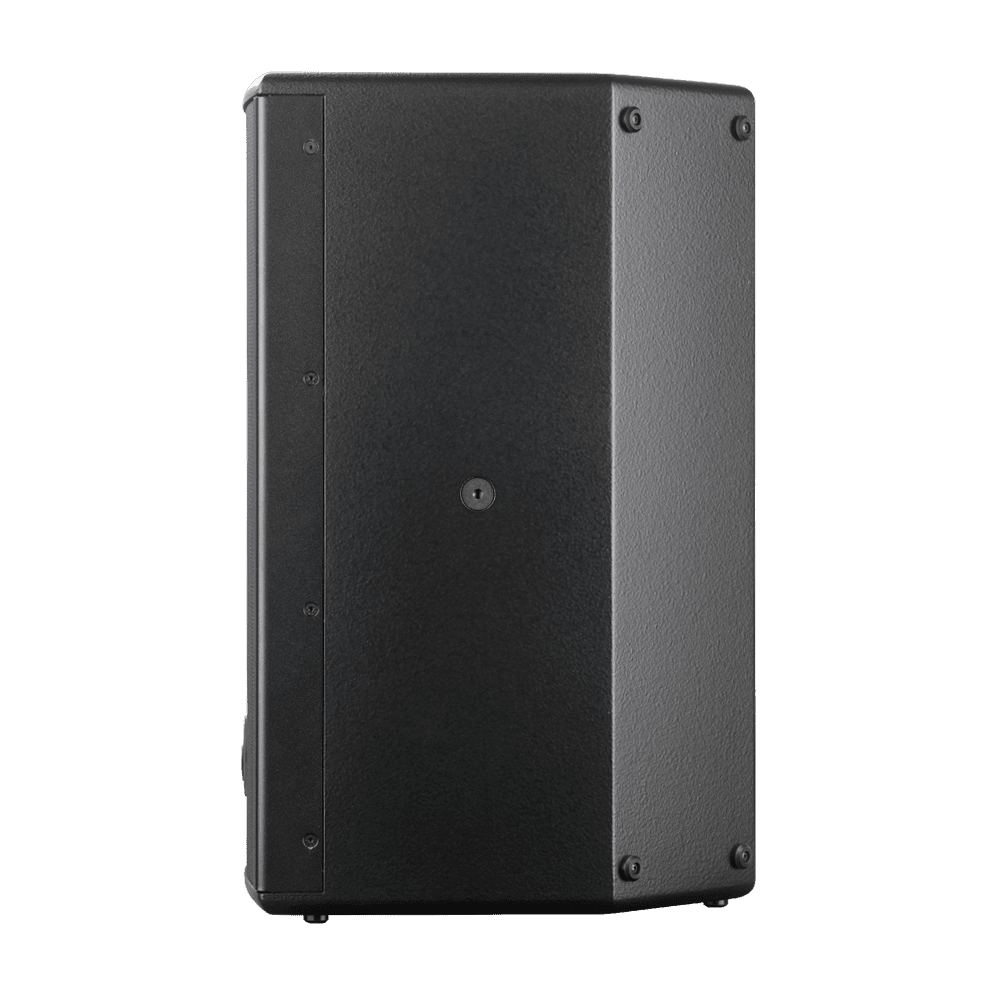

    • Additional side and bottom M10 points for flexible bracket, rigging and installation options
    • “Top-hat” pole mount fitted at the base of the cabinet


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as a passive loudspeaker for high quality, high output portable music playback and live performance in small areas

    • Full range stand-alone solution or scalable to larger systems with subwoofers
    • Large conference and small to medium performance venues
    • Multi-purpose fixed installations
    • Personal monitoring
    • In-fill for larger main KV2 Audio systems or third party systems

    Product code

    • KVV 987 207 – ESD10


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    ESD10 / EX10 Horizontal bracket

    Gallery

    Product code

    KVV 987 486



    Description

    Horizontal bracket for ESD10 / EX10



    Downloads

    DWG

    ESD10 / EX10 Horizontal Bracket 3D DWG

    ESD10 / EX10 Horizontal Bracket 3D DWG

    DWG

    ESD10 / EX10 Horizontal Bracket 2D DWG

    ESD10 / EX10 Horizontal Bracket 2D DWG

    SKP

    ESD10 / EX10 Horizontal Bracket SKP

    ESD10 / EX10 Horizontal Bracket SKP

    PDF

    ESD10 / EX10 Horizontal Bracket PDF

    ESD10 / EX10 Horizontal Bracket PDF

    ESD10 / EX10 Vertical Bracket

    Gallery

    Product code

    KVV 987 485



    Description

    Vertical bracket for ESD10 / EX10



    Downloads

    DWG

    ESD10 / EX10 Vertical Bracket 3D DWG

    ESD10 / EX10 Vertical Bracket 3D DWG

    DWG

    ESD10 / EX10 Vertical Bracket 2D DWG

    ESD10 / EX10 Vertical Bracket 2D DWG

    SKP

    ESD10 / EX10 Vertical Bracket SKP

    ESD10 / EX10 Vertical Bracket SKP

    PDF

    ESD10 / EX10 Vertical Bracket PDF

    ESD10 / EX10 Vertical Bracket PDF

    ESD10 Cover

    Gallery

    Product code

    KVV 987 211



    Description

    – heavy duty – padded



    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26

    Gallery

    Product code

    KVV 987 090



    Description

    – including bolts – black



    Downloads

    DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

    SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp

    System Acoustic Performance

    Max SPL Long-term 125dB
    Max SPL Peak 131dB
    -3dB Response 65Hz to 20kHz
    -10dB Response 56Hz to 28kHz
    Recommended Power 500W
    Sensitivity 96dB
    Impedance
    Crossover Point 1.8kHz

    High Frequency Section

    Acoustic Design Horn Loaded
    Horn Coverage Horizontal / Vertical 100° x 80°
    Rotatable Horn YES
    Throat Exit Diameter / Diaphragm Size 1″ / 1.75″
    Diaphragm Material Nitride Titanium
    Magnet Type Neodymium
    Protection RMS Limiter

    Low Frequency Section

    Acoustic Design Front Loaded, Bass Reflex
    Woofer Size / Voice Coil Diameter 10″ / 2.5″ / Trans Coil
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium
    Protection RMS Limiter

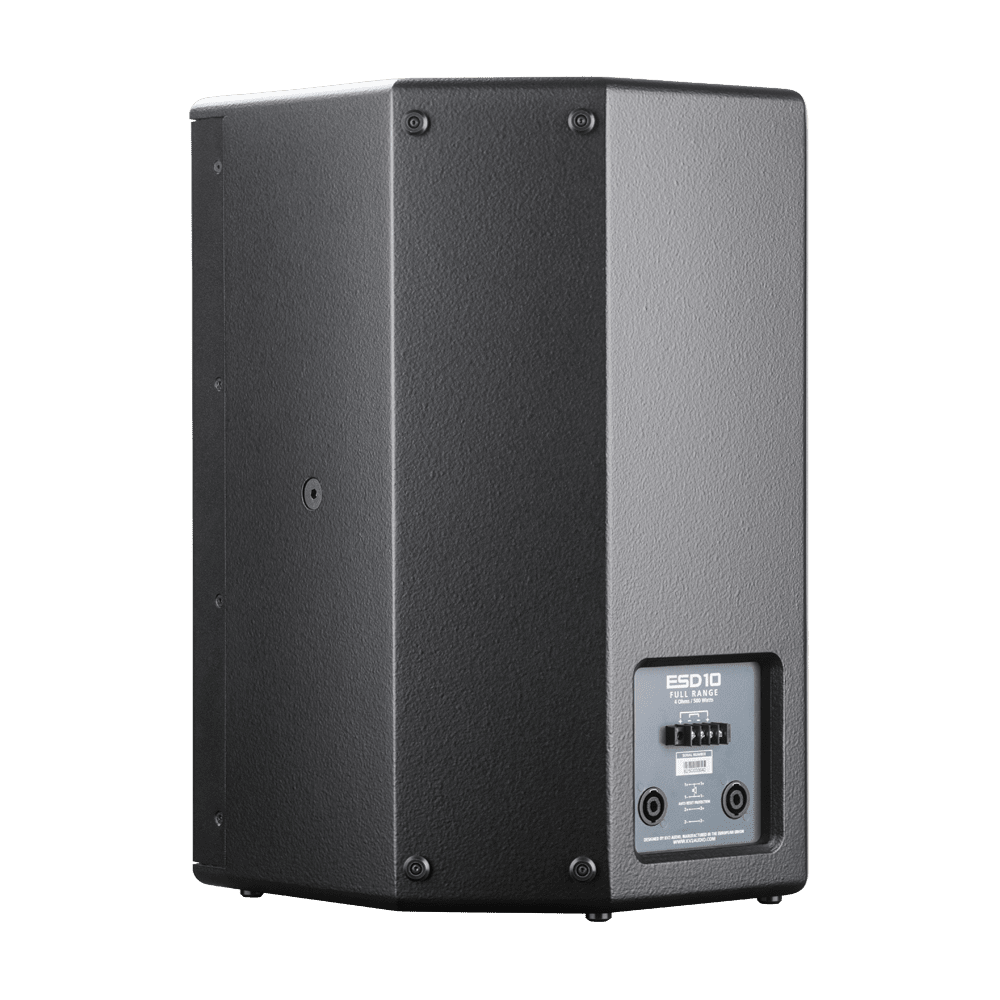

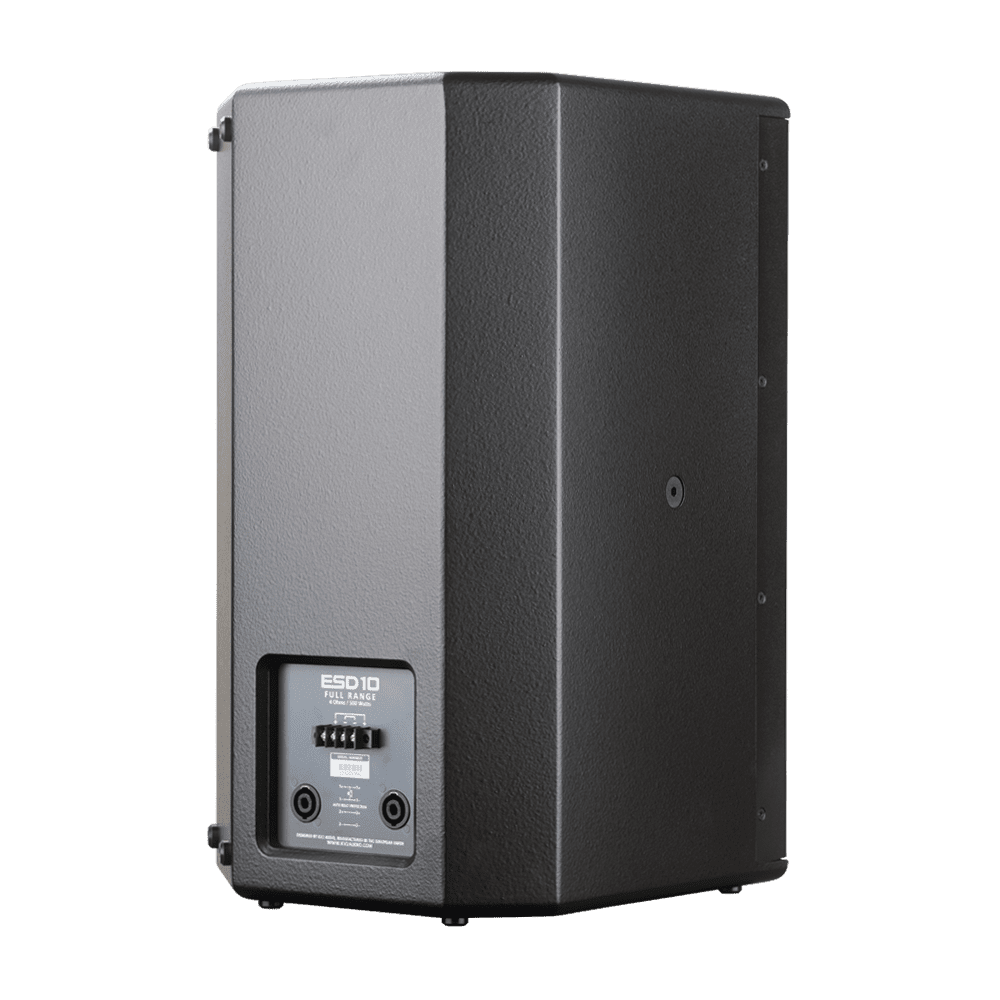

    Speaker Input

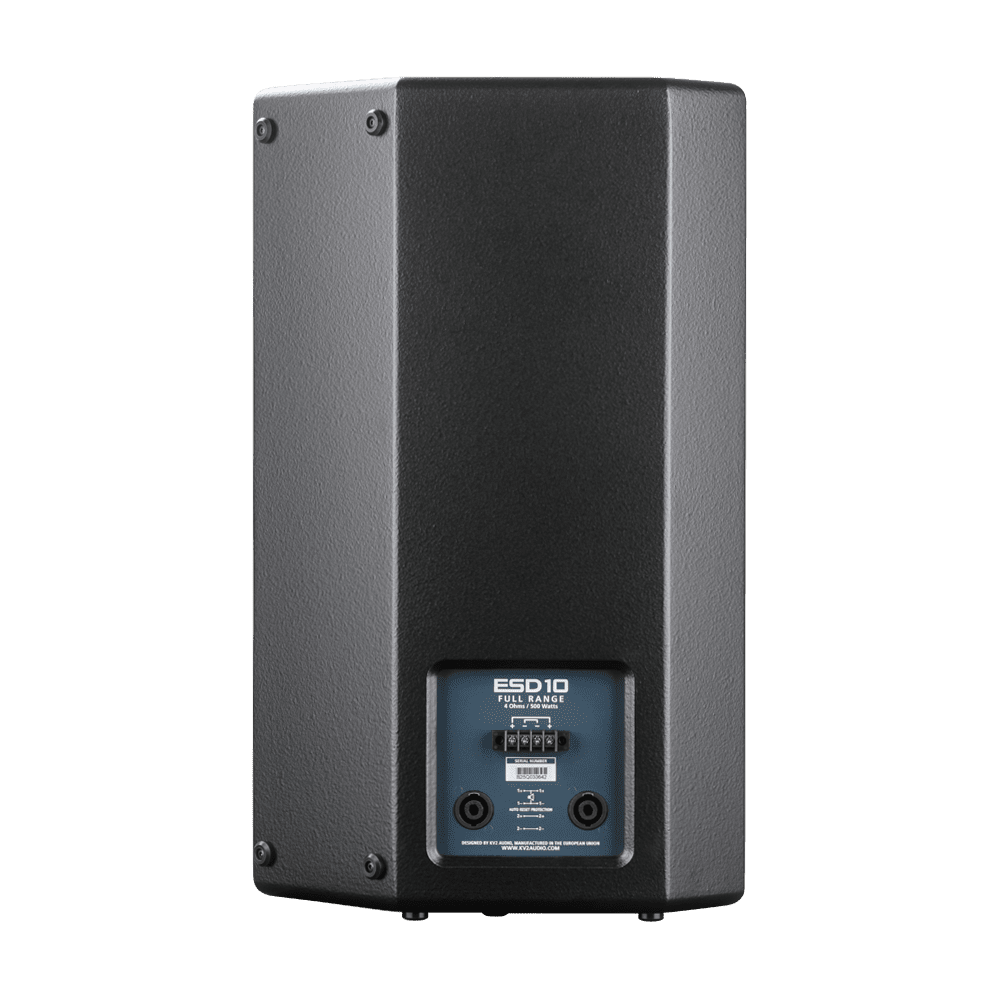

    Speaker Input 2x Neutrik Speakon®, Terminal Block

    Cabinet

    Cabinet Material Baltic birch
    Handles 1
    Pole Mount 35 mm
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 514 mm (20.32″)
    Width 310 mm (12.20″)
    Depth 324 mm (12.76″)
    Weight 16.5 kg (36.38lbs)


    Product code

    • KVV 987 207 – ESD10

    PDF

    ESD Series User Guide

    ESD Series User Guide – rev 18



    PDF

    ESD10 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    ESD10 – 3D

    1:1 scale – clamping points – weight – dwg file



    DWG

    ESD10, EX10 Horizontal Bracket 3D DWG

    ESD10, EX10 Horizontal Bracket 3D DWG



    SKP

    ESD10, EX10 Vertical Bracket SKP

    ESD10, EX10 Vertical Bracket SketchUp



    DWG

    ESD10, EX10 Vertical Bracket 3D DWG

    ESD10, EX10 Vertical Bracket 3D DWG



    PDF

    ESD10 / EX10 Horizontal Bracket PDF

    ESD10 / EX10 Horizontal Bracket PDF



    SKP

    ESD10 / EX10 Horizontal Bracket SKP

    ESD10 / EX10 Horizontal Bracket SKP



    DWG

    ESD10 / EX10 Horizontal Bracket 2D DWG

    ESD10 / EX10 Horizontal Bracket 2D DWG



    DWG

    ESD10 / EX10 Horizontal Bracket 3D DWG

    ESD10 / EX10 Horizontal Bracket 3D DWG



    PDF

    ESD10 / EX10 Vertical Bracket PDF

    ESD10 / EX10 Vertical Bracket PDF



    SKP

    ESD10 / EX10 Vertical Bracket SKP

    ESD10 / EX10 Vertical Bracket SKP



    DWG

    ESD10 / EX10 Vertical Bracket 2D DWG

    ESD10 / EX10 Vertical Bracket 2D DWG



    SKP

    ESD10, EX10 Horizontal Bracket SKP

    ESD10, EX10 Horizontal Bracket SketchUp



    DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 3D DWG



    PDF

    ESD10 – 2D

    ESD10 2D Drawings



    SKP

    ESD Series SketchUp

    ESD Series SketchUp – all boxes and accessories



    DWG

    ESD10 2D DWG

    ESD10 2D DWG



    SKP

    ESD10 SKP

    ESD10 SketchUp



    DWG

    ESD10 3D DWG

    ESD10 3D DWG



    SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SKP

    Top hat adapter for ESD10, ESD12, ESD36, ESD6, EX10, EX12, EX26 SketchUp



    DWG

    ESD10 / EX10 Vertical Bracket 3D DWG

    ESD10 / EX10 Vertical Bracket 3D DWG



    GLL

    ESD10 – EASE data

    EASE data – .GLL – description
