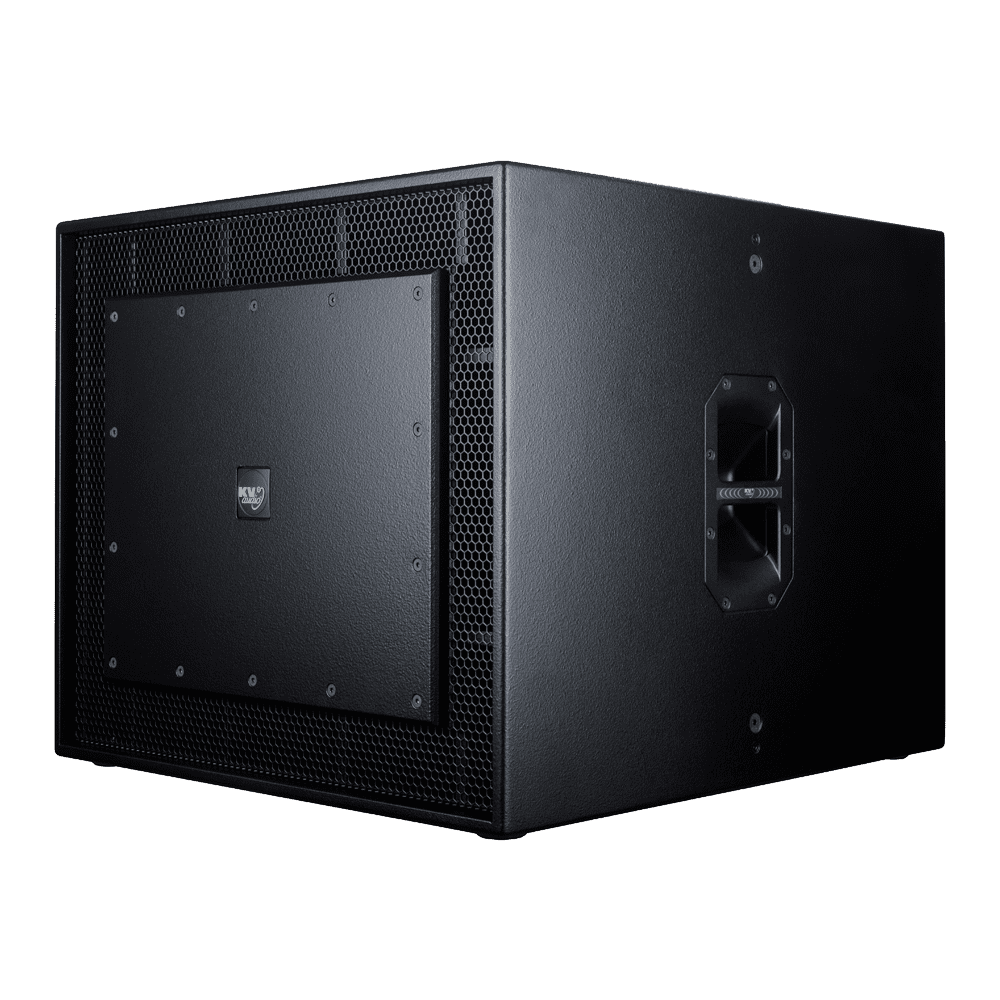

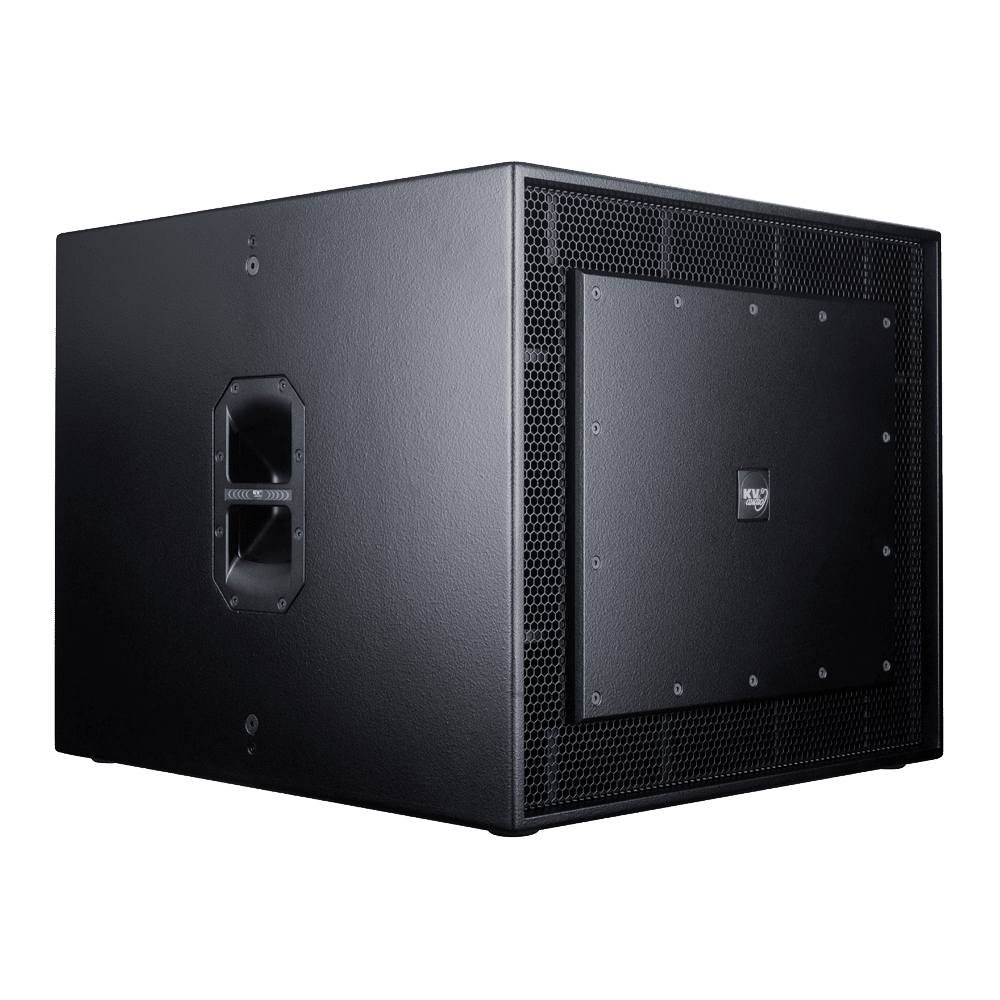

ESD1.18 – Passive subwoofer

KV2AUDIO
SKU: ESD1.18

The ESD1.18 is the passive version of the incredible active EX1.8. The ESD1.18 features neodymium woofer with power handling capabilities of 1000W which makes a firm foundation from which to build an incredibly powerful ESD system, or as a stand alone subwoofer to enhance any existing passive or active system.

Applications

Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance

  • Fixed installation
  • Portable PA
  • Bars-small entertainment projects
  • Scalable into larger systems

Product code

  • KVV 987 242 – ESD1.18


    Consultar precios

    Descripción

    The ESD1.18 is the passive version of the incredible active EX1.8. The ESD1.18 features neodymium woofer with power handling capabilities of 1000W which makes a firm foundation from which to build an incredibly powerful ESD system, or as a stand alone subwoofer to enhance any existing passive or active system.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 131dB sustained output, 134dB peak
    • Excellent reproduction of bass frequencies with high transient content at high output levels
    • 18″ high output, low frequency driver with 4″ (100 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structures

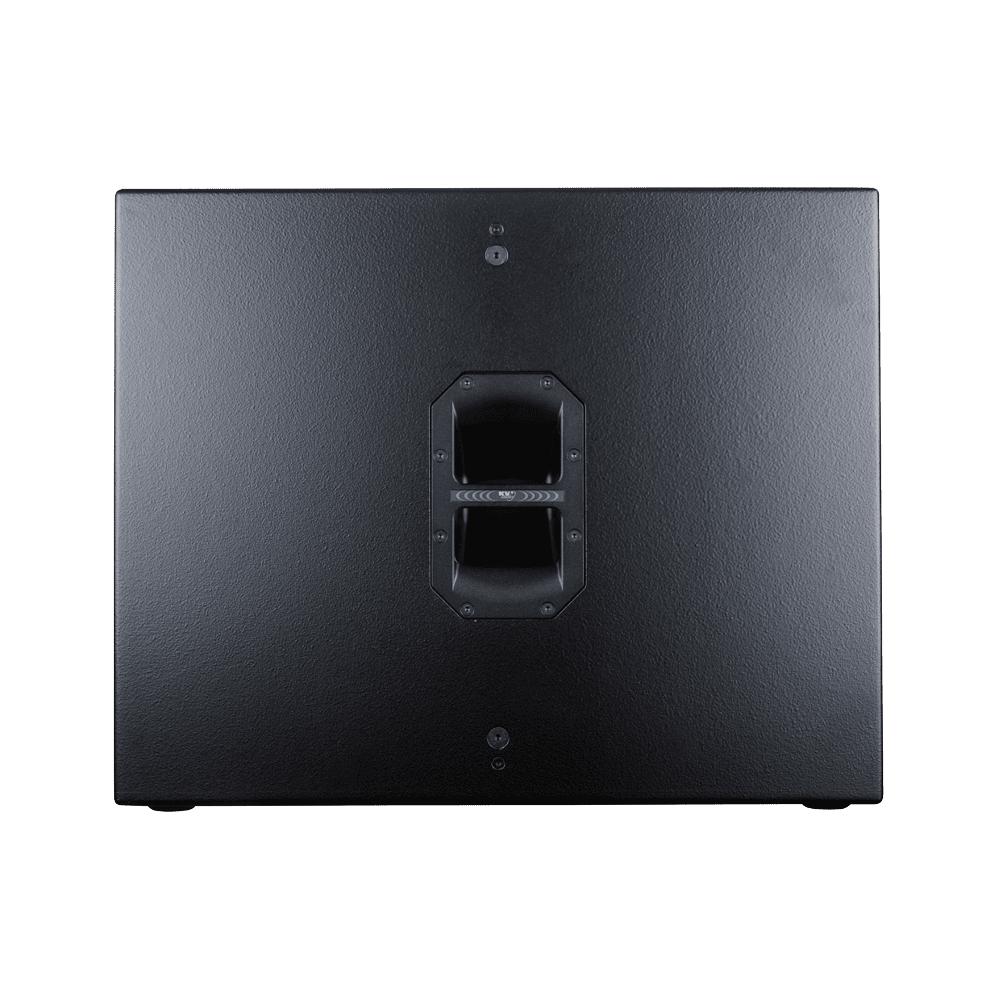

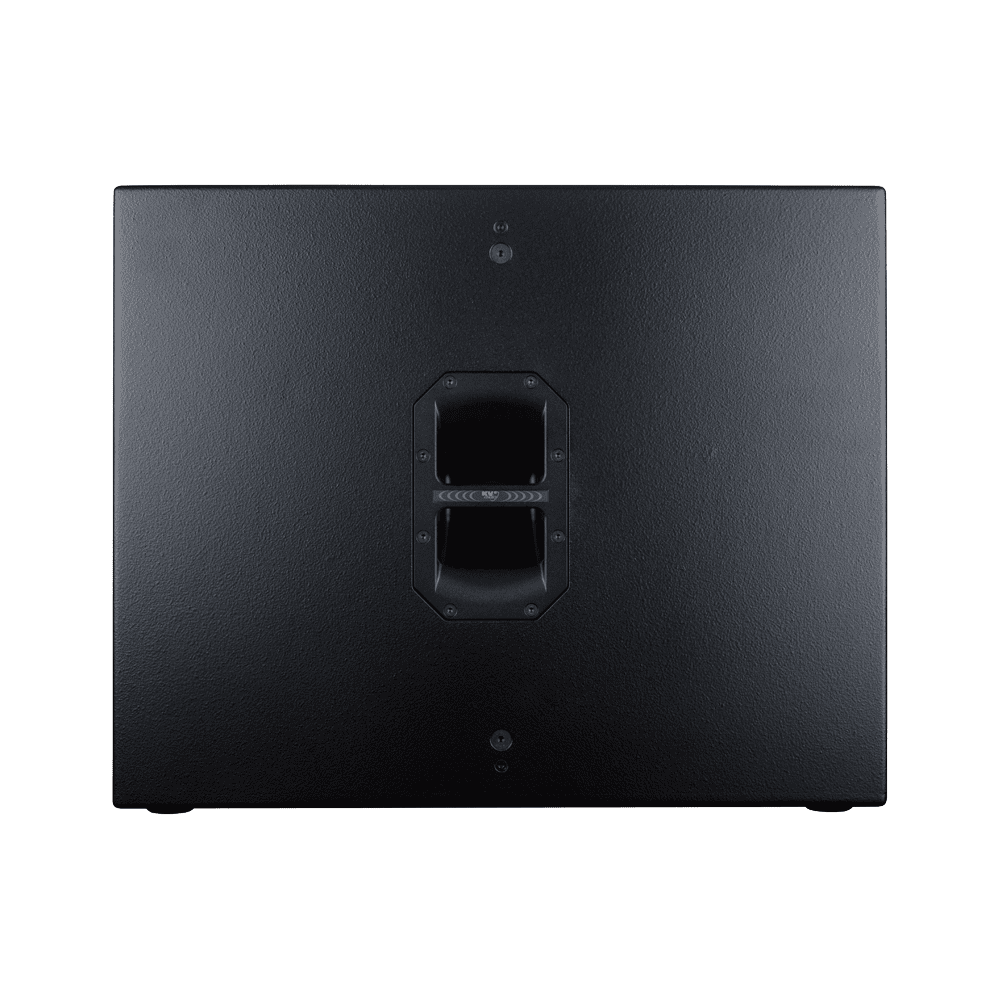

    • Two recessed side handles for simplified handling and carrying
    • Pole mount M20
    • Non-threaded 35 mm Pole mount adaptor available as accessory KVV987290
    • Thermal breaker protection with auto reset


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance

    • Fixed installation
    • Portable PA
    • Bars-small entertainment projects
    • Scalable into larger systems

    Product code

    • KVV 987 242 – ESD1.18


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    System Acoustic Performance

    Max SPL Long-term 131dB
    Max SPL Peak 137dB
    -3dB Response 30Hz to 150Hz
    -10dB Response 28Hz to 170Hz
    Recommended Power 1000W
    Sensitivity 100dB
    Impedance
    Crossover Point 70Hz to 150Hz

    Low Frequency Section

    Acoustic Design Twin Asymmetrical loading
    Number of Drivers 1
    Woofer Size / Voice Coil Diameter 18″ / 4″ / Inside outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Neodymium
    Protection Thermal breaker – autoreset

    Speaker Input

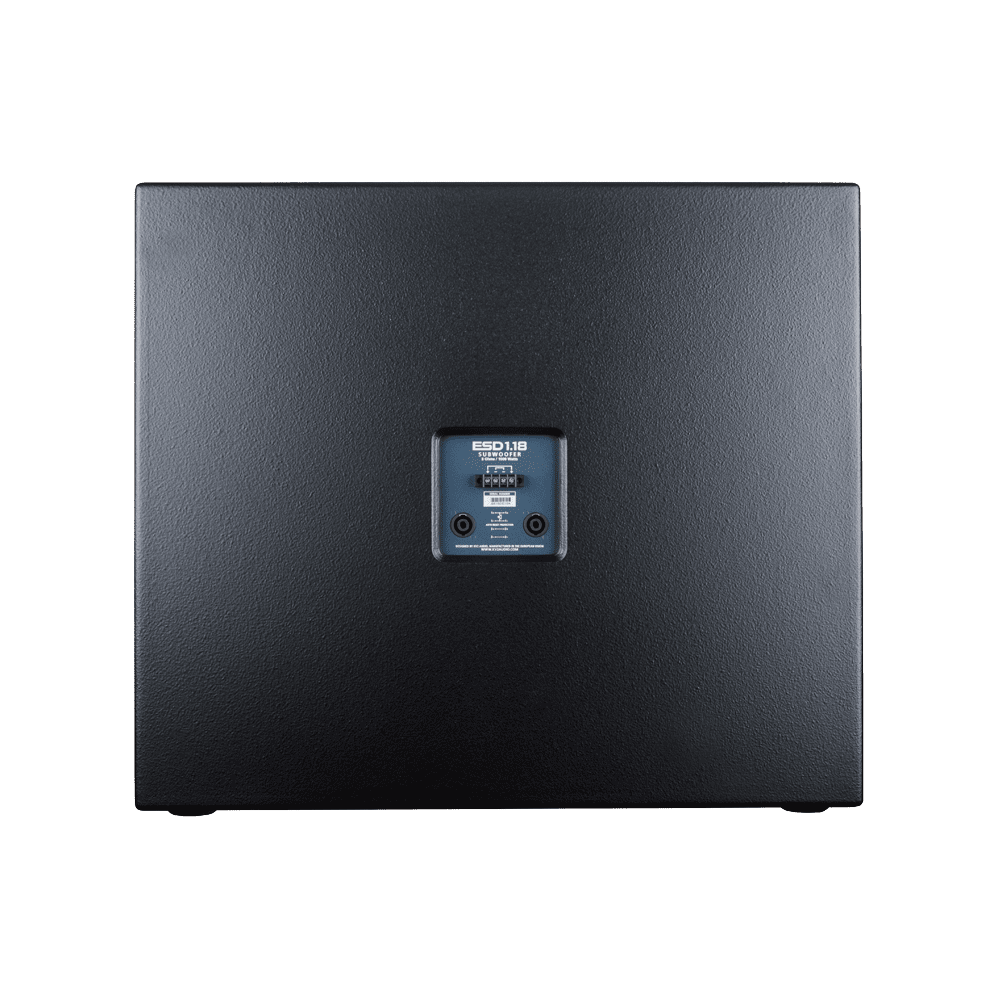

    Speaker Input 2x Neutrik Speakon®, Terminal Block

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Pole Mount M20
    Flyware 8x M10 suspension points
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 612 mm (24.1″)
    Width 700 mm (27.55″)
    Depth 750 mm (29.52″)
    Weight 52 kg (114.7lbs)


    Product code

    • KVV 987 242 – ESD1.18

    PDF

    ESD Subwoofers User Guide

    ESD Subwoofers User Manual



    PDF

    ESD1.18 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    ESD1.18 – 3D

    3D drawing, 1:1 scale – clamping points – weight – dwg file



    PDF

    ESD1.18 – 2D

    ESD1.18 2D Drawings



    SKP

    ESD Series SketchUp

    ESD Series SketchUp – all boxes and accessories



    DWG

    ESD1.18 2D DWG

    ESD1.18 2D DWG



    SKP

    ESD1.18 SKP

    ESD1.18 SketchUp



    DWG

    ESD1.18 3D DWG

    ESD1.18 3D DWG
