ESD1.15 – Passive subwoofer

KV2AUDIO
SKU: ESD1.15

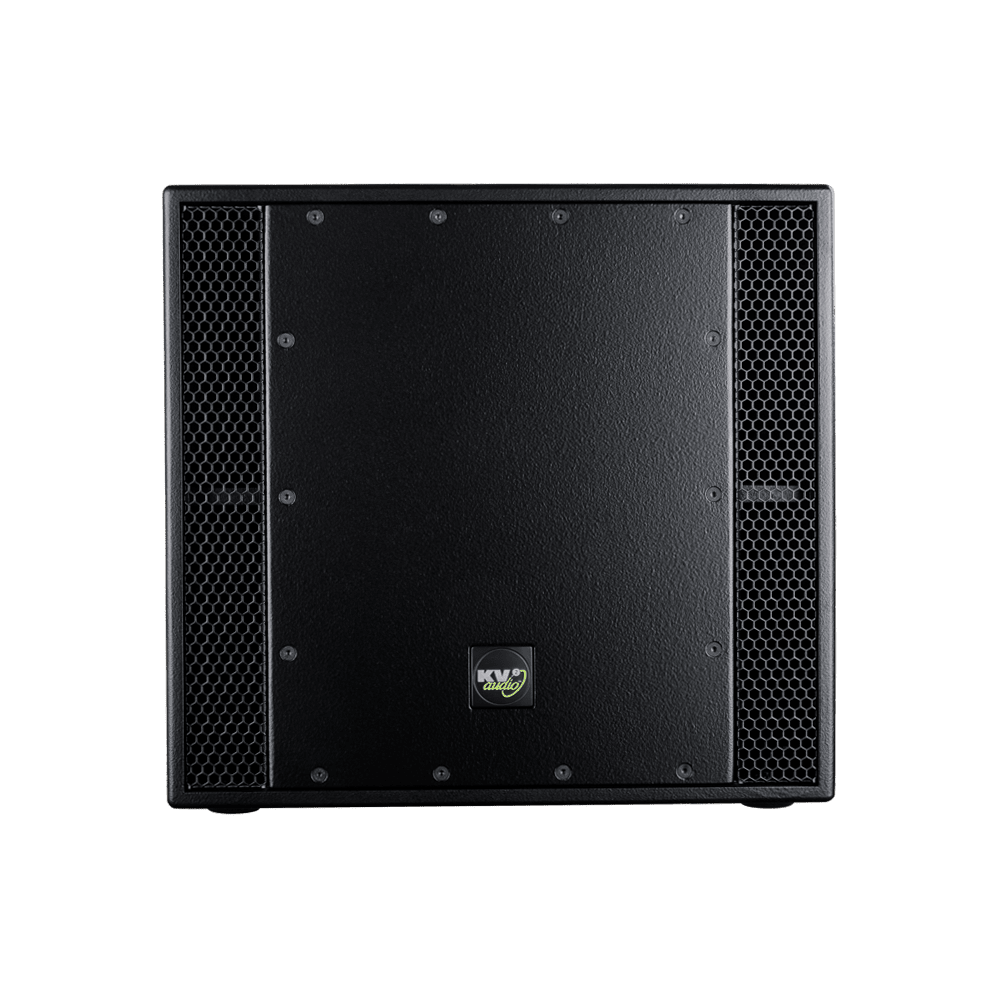

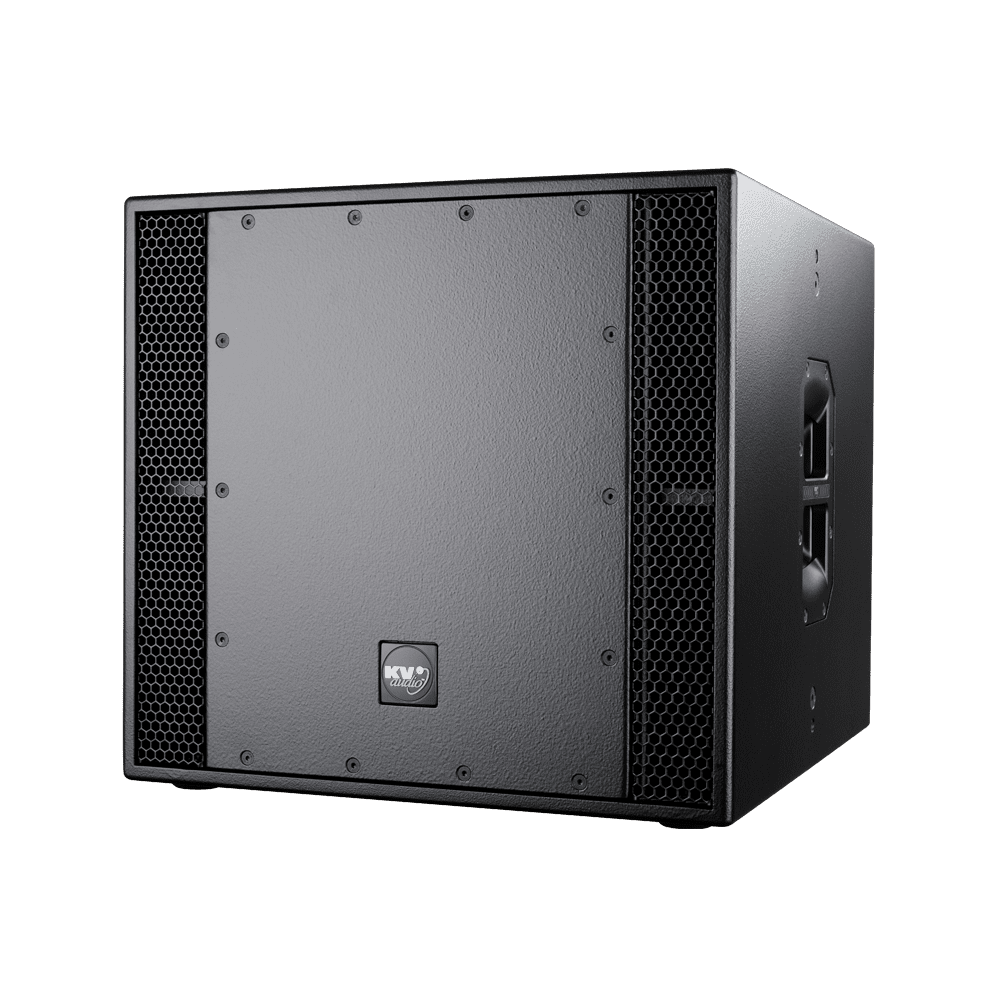

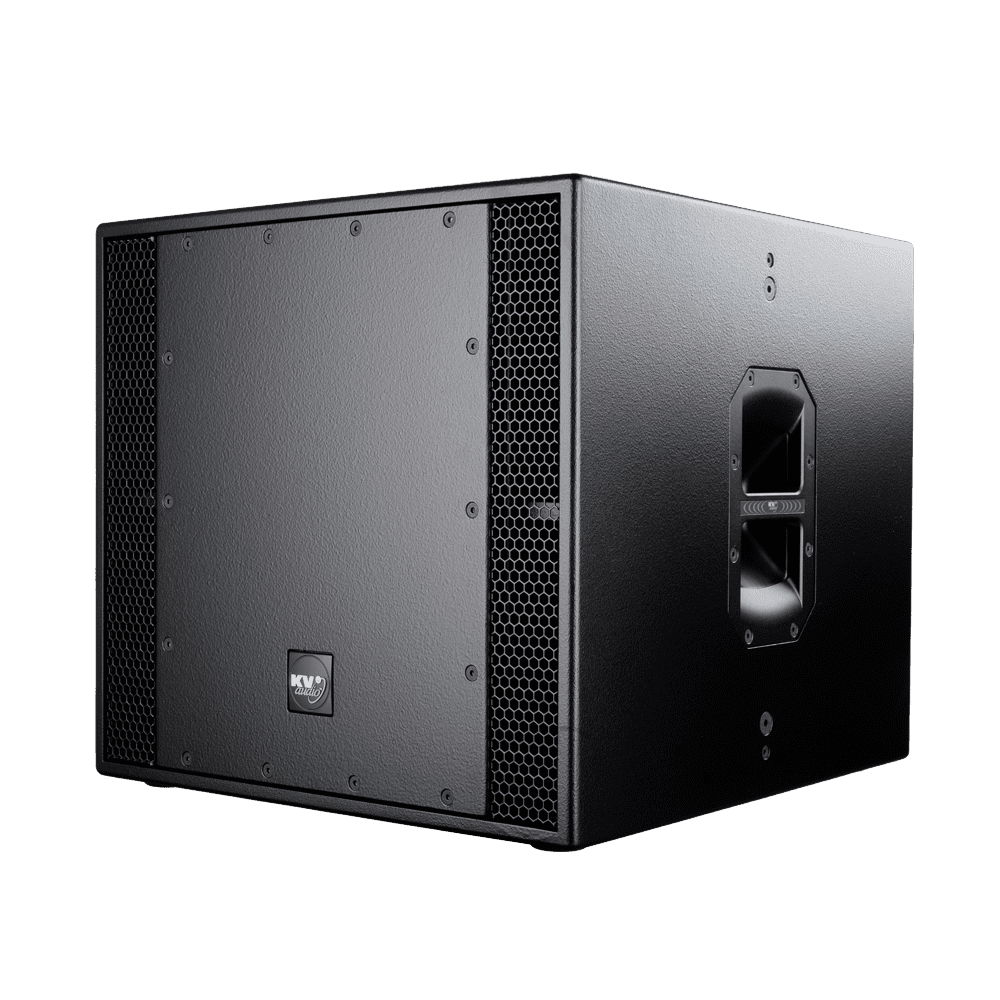

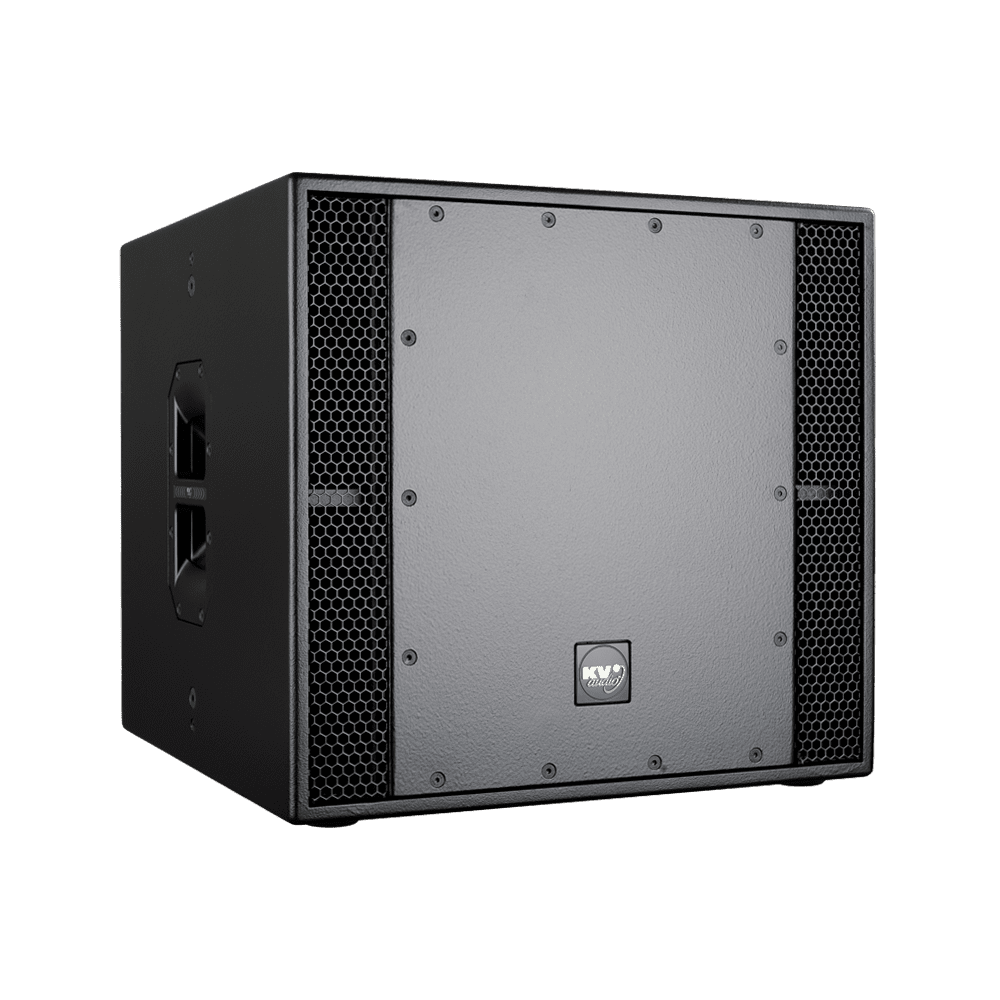

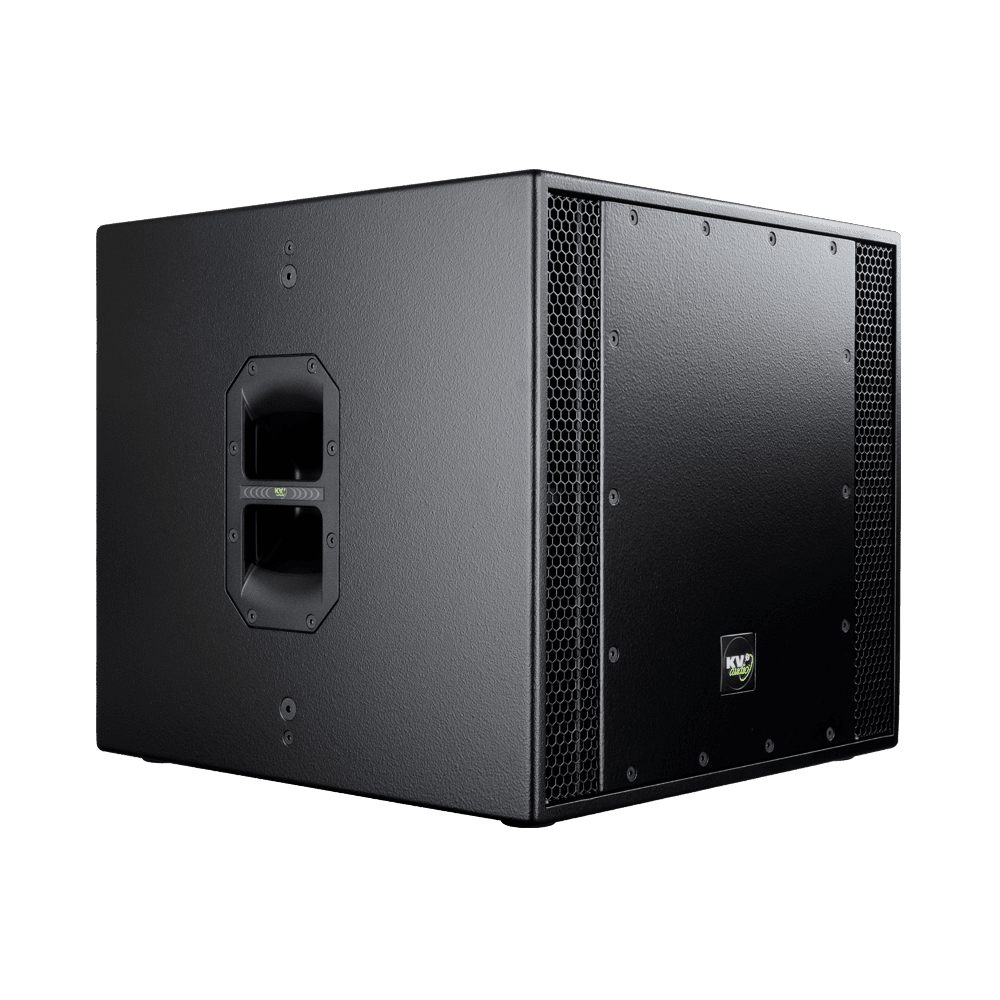

The ESD1.15 is a passive subwoofer system featuring a single 15″ ferrite woofer with a 600W power handling capability. Offering peak SPL of 130dB the ESD1.15 produces considerable output yet in true KV2 style retains a compact footprint. Multiple units of ESD1.15’s can be stacked together to create a powerful and scalable subwoofer system.

Applications

Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance

  • Fixed installation
  • Portable PA
  • Bars-small entertainment projects
  • Scalable into larger systems

Product code

  • KVV 987 241 – ESD1.15


    Consultar precios

    Descripción

    The ESD1.15 is a passive subwoofer system featuring a single 15″ ferrite woofer with a 600W power handling capability. Offering peak SPL of 130dB the ESD1.15 produces considerable output yet in true KV2 style retains a compact footprint. Multiple units of ESD1.15’s can be stacked together to create a powerful and scalable subwoofer system.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 127dB sustained output, 130dB peak
    • Excellent reproduction of bass frequencies with high transient content at high output levels
    • 15″ high output, low frequency driver with 3″ (75 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and ferrite magnetic structures

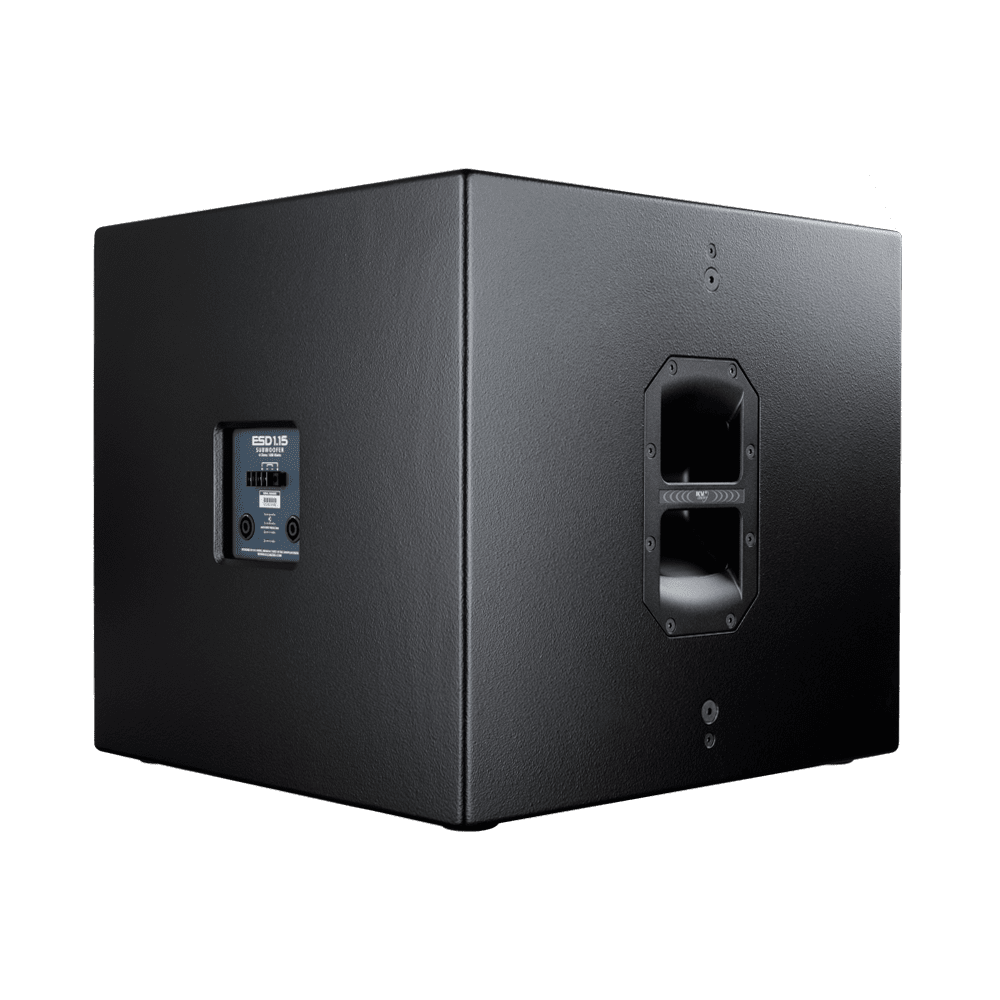

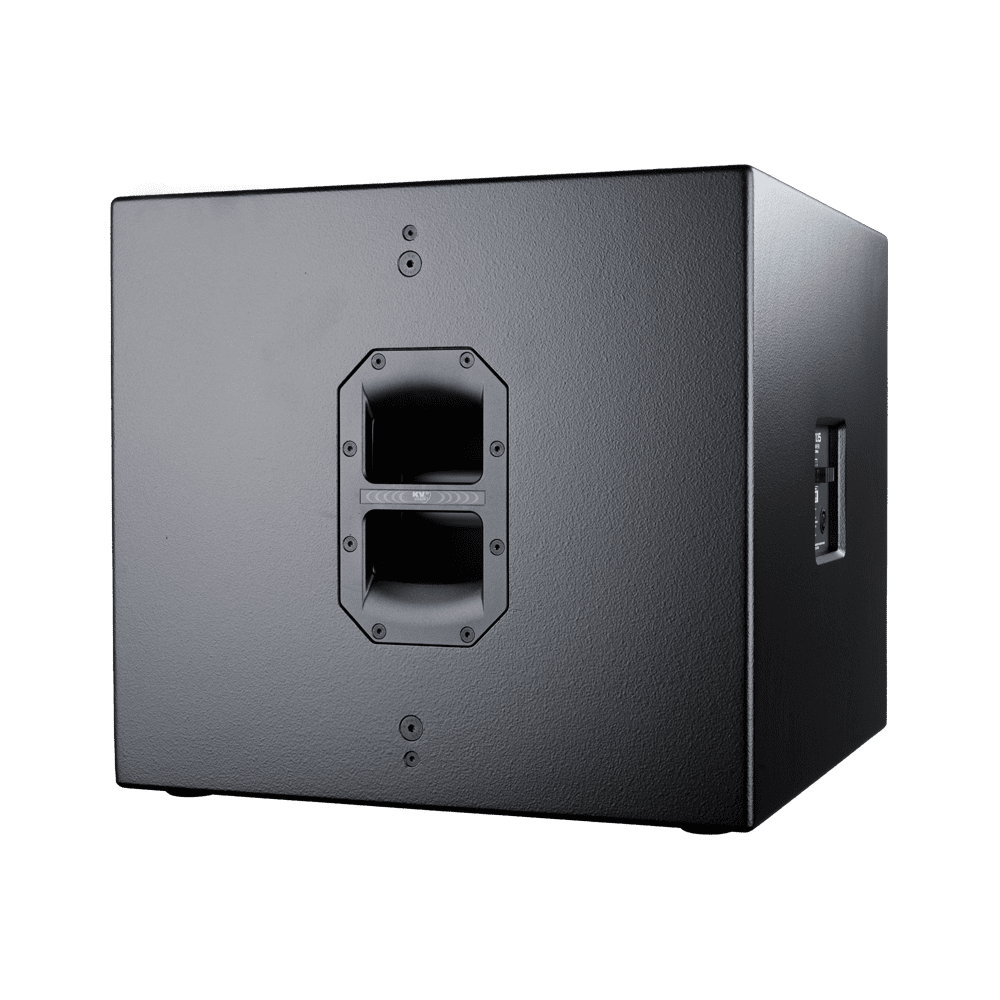

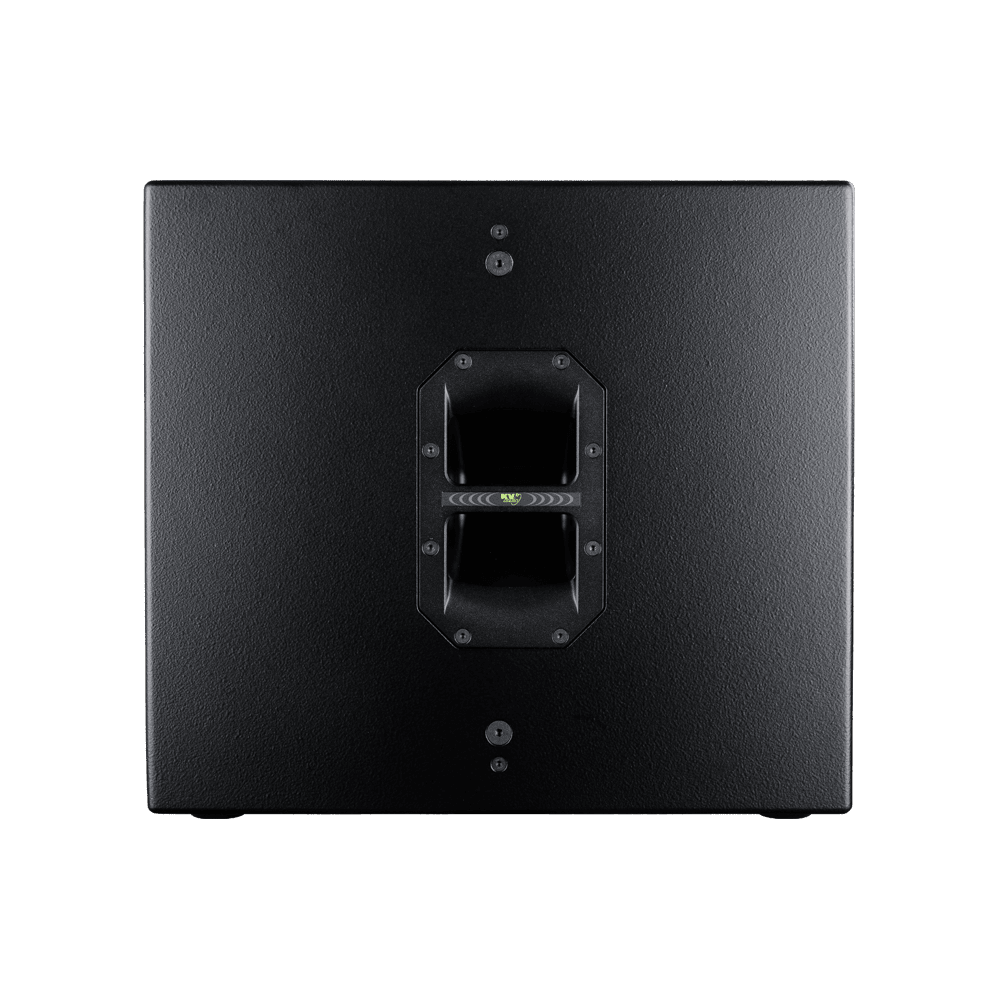

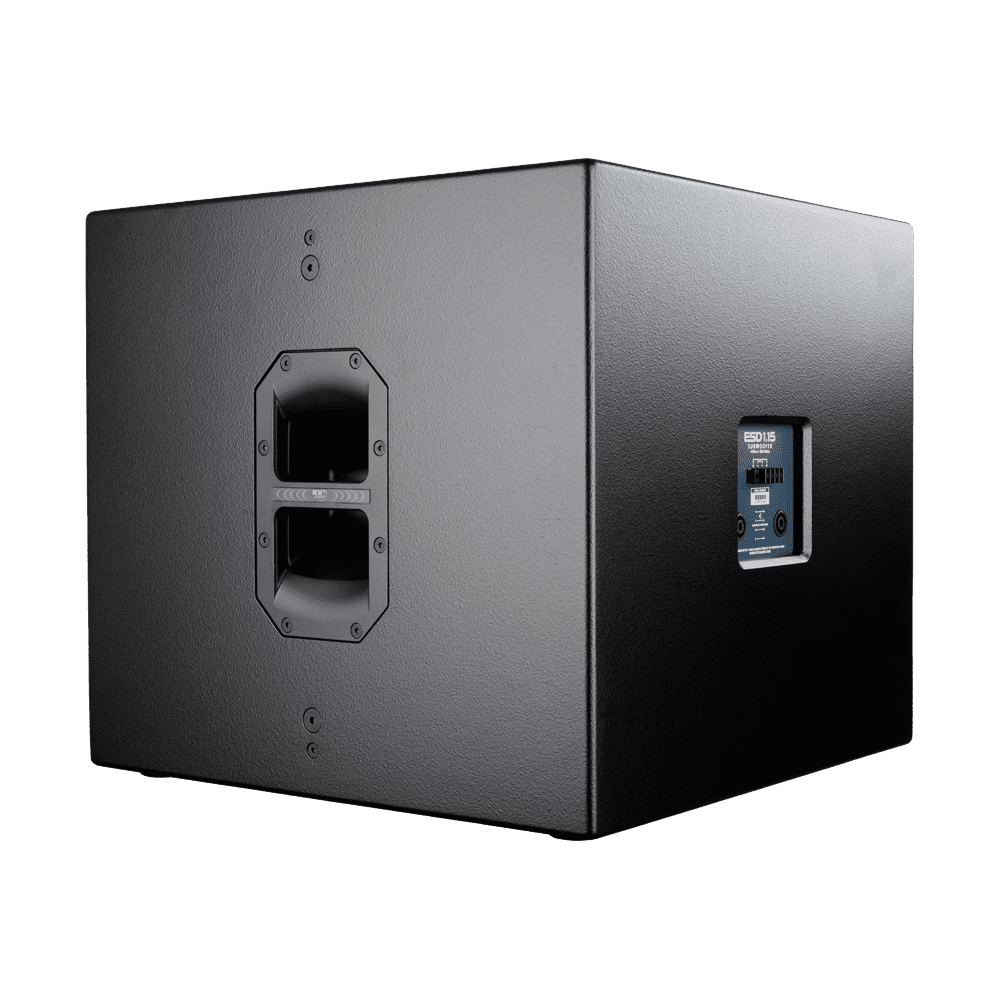

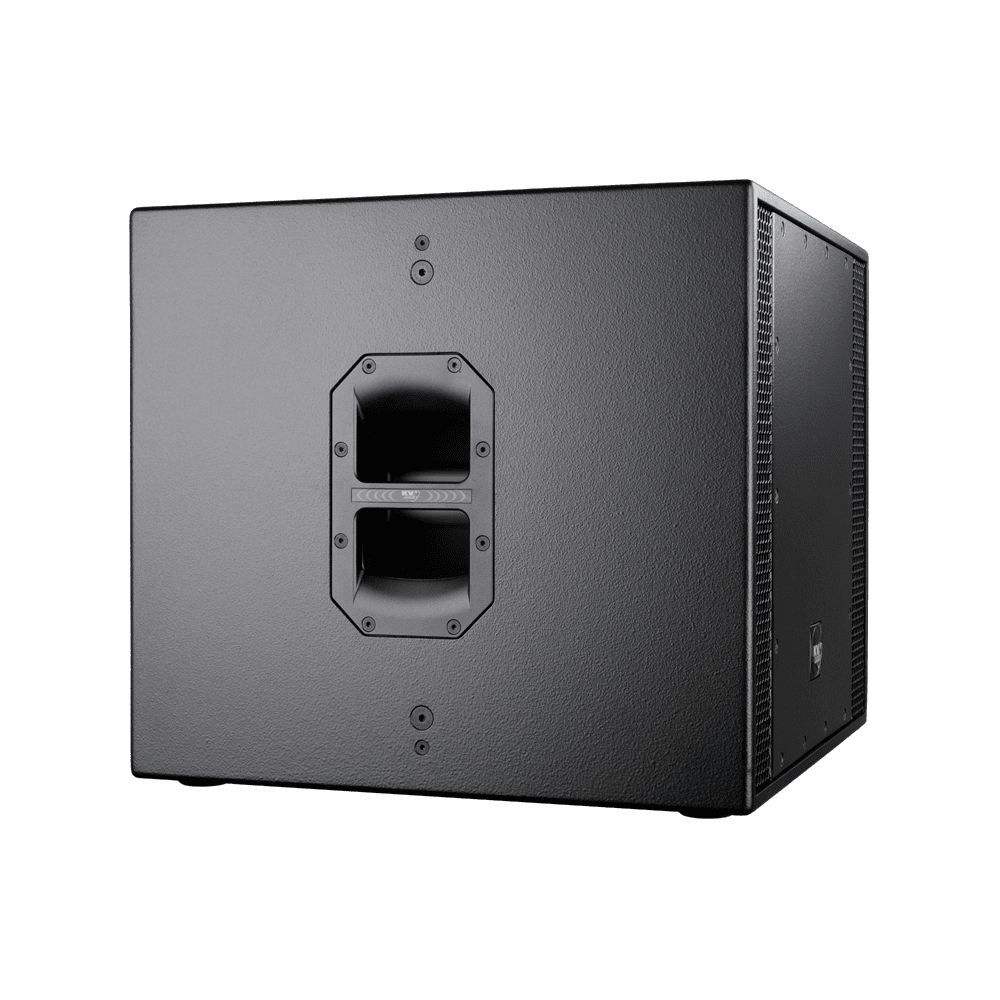

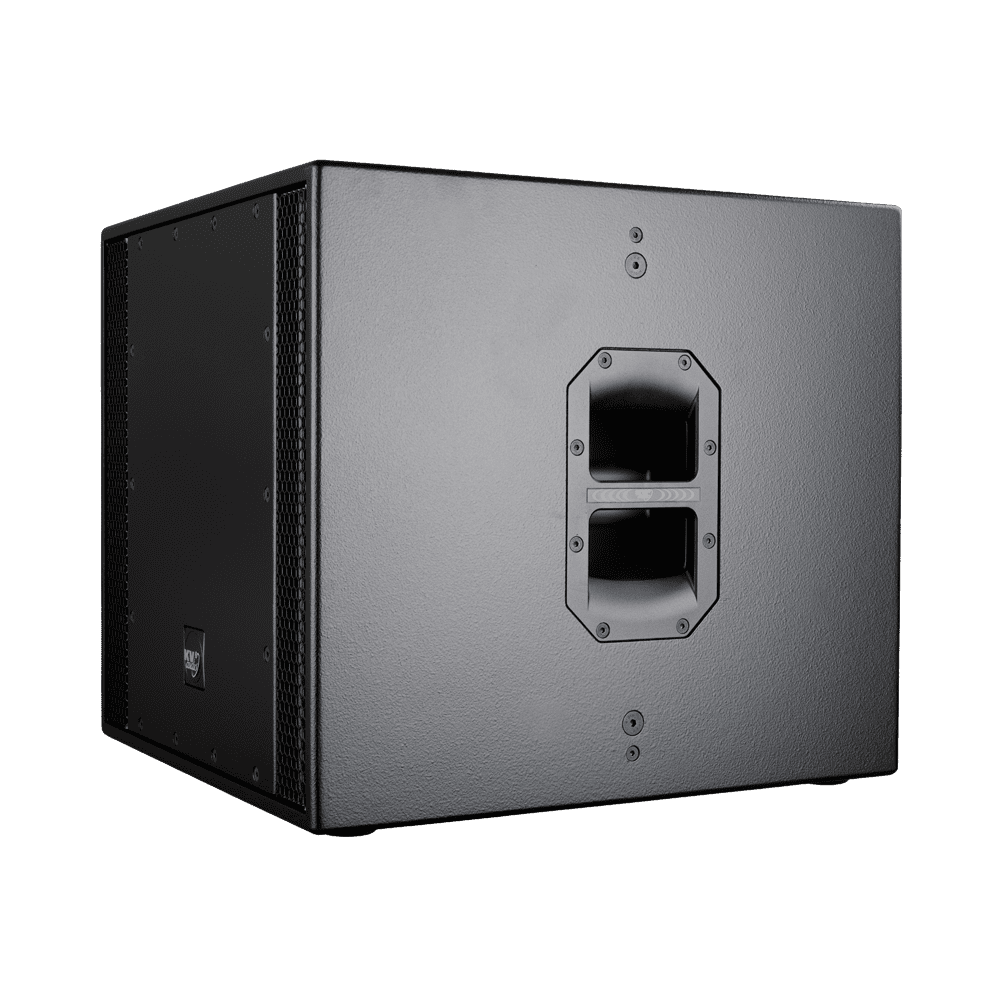

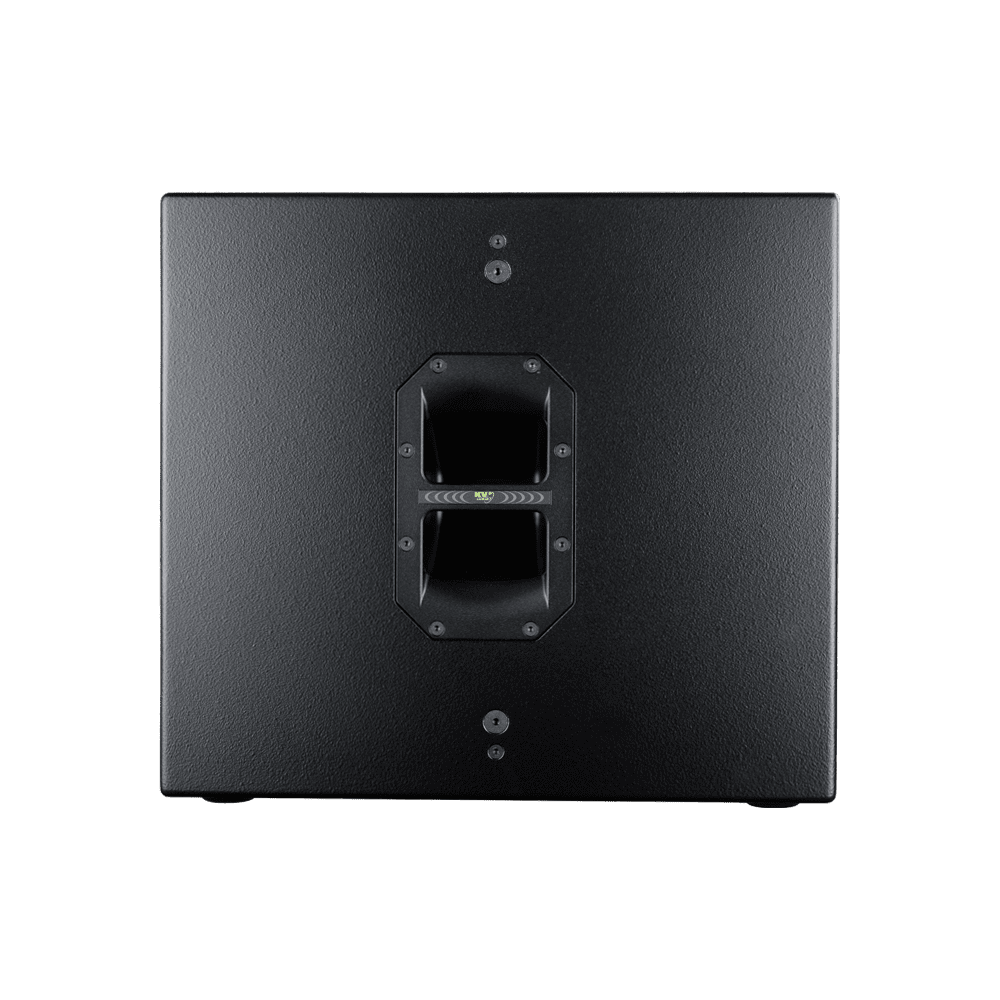

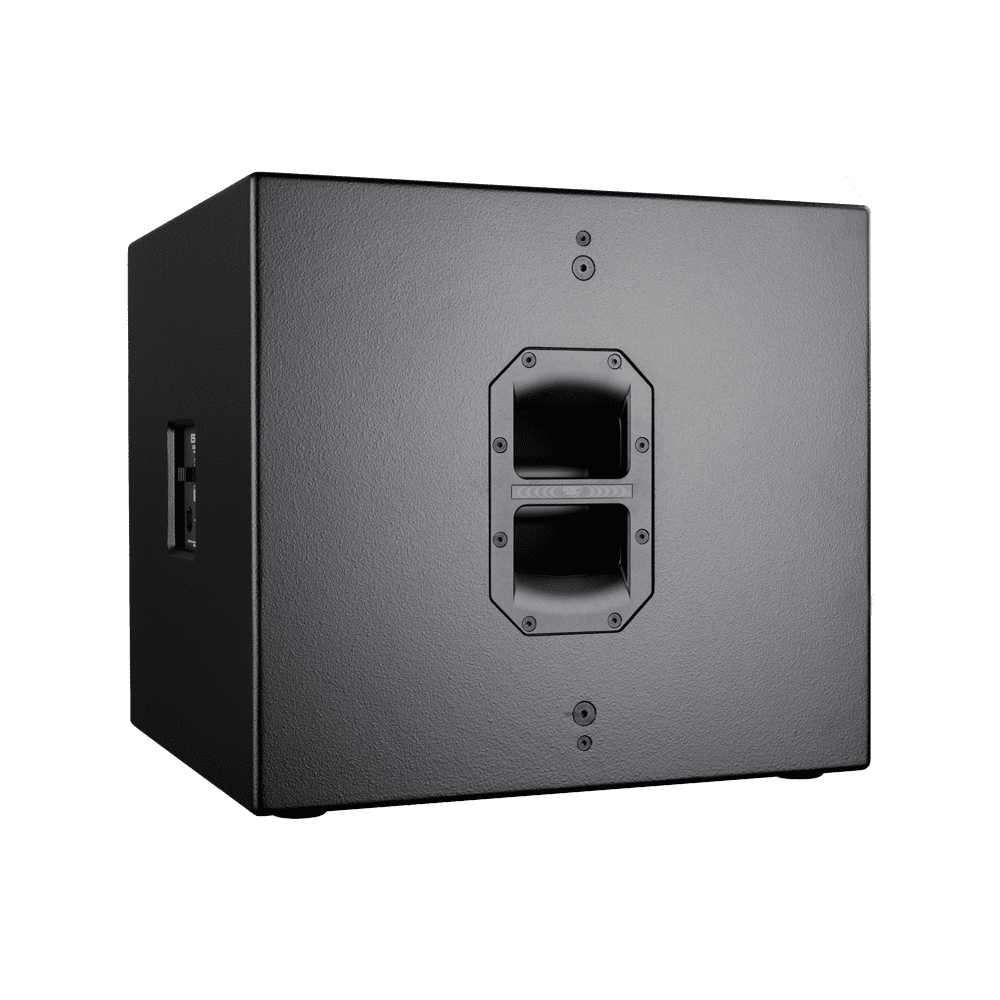

    • Two recessed side handles for simplified handling and carrying
    • Pole mount M20
    • Non-threaded 35 mm Pole mount adaptor available as accessory KVV987290
    • Thermal breaker protection with autoreset


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as a passive subwoofer to accompany any of the ESD range to create true full range system performance

    • Fixed installation
    • Portable PA
    • Bars-small entertainment projects
    • Scalable into larger systems

    Product code

    • KVV 987 241 – ESD1.15


    Accesories


    Speakon speaker cable 4.15

    Gallery

    Product code

    KVV 987 326



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 1,5m (5ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speakon speaker cable 4.40

    Gallery

    Product code

    KVV 987 327



    Description

    – 4 wire speaker cable – Speakon NL4 connectors – 4m (13ft) – for ESM, ESD speakers – for K-RIG Bass Module hook-up



    Speaker pole – universal

    Gallery

    Product code

    KVV 987 130



    Description

    Heavy duty telescopic speakerpole
    – 0,735 to 1,23 m – diameter 35 mm
    – weight 2,2 kg – max. load 50 kg
    – bottom terminal M20
    – matte black



    Downloads

    SKP

    Speaker pole – universal SKP

    Speaker pole – universal SketchUp

    System Acoustic Performance

    Max SPL Long-term 127dB
    Max SPL Peak 133dB
    -3dB Response 37Hz to 150Hz
    -10dB Response 34Hz to 170Hz
    Recommended Power 600W
    Sensitivity 99dB (half-space area)
    Impedance
    Crossover Point 80Hz to 150Hz

    Low Frequency Section

    Acoustic Design Twin Asymmetrical loading
    Number of Drivers 1
    Woofer Size / Voice Coil Diameter 15″ / 3″ / Inside Outside
    Diaphragm Material Epoxy Reinforced Cellulose
    Magnet Type Ferrite
    Protection Thermal breaker – autoreset

    Speaker Input

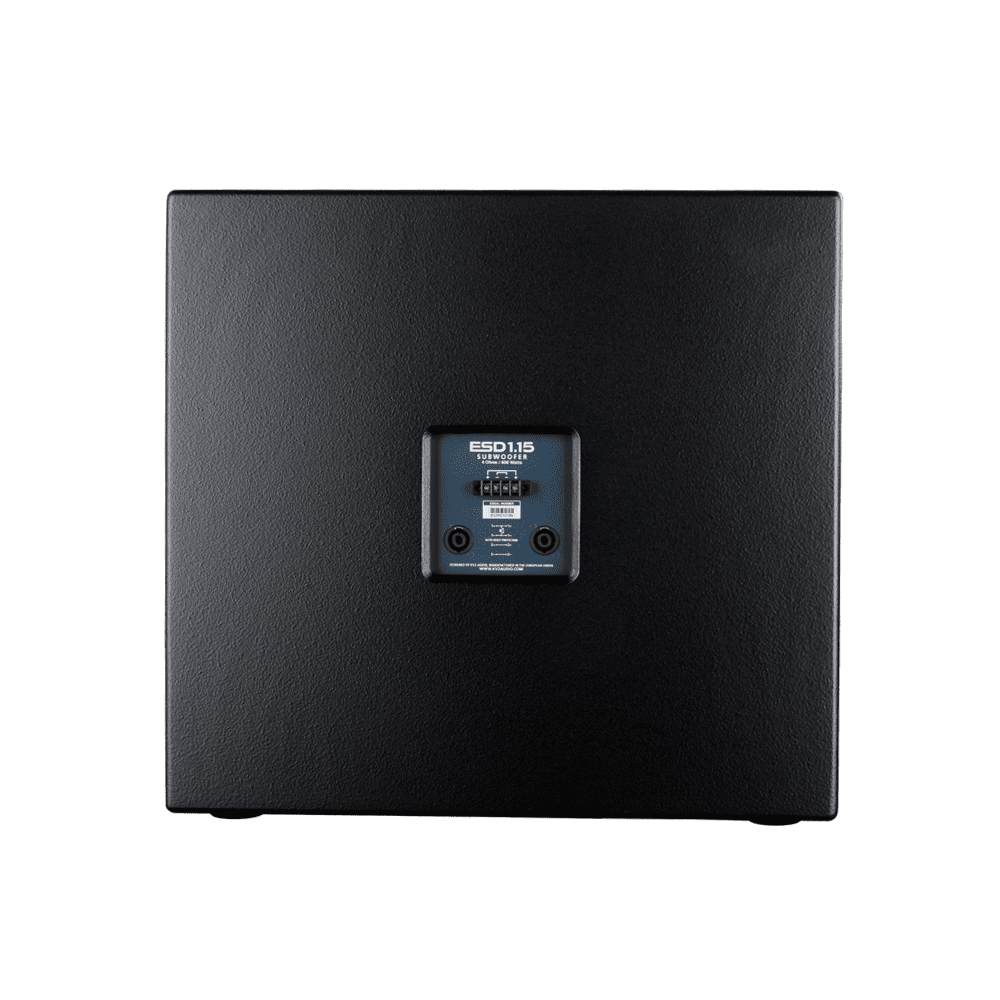

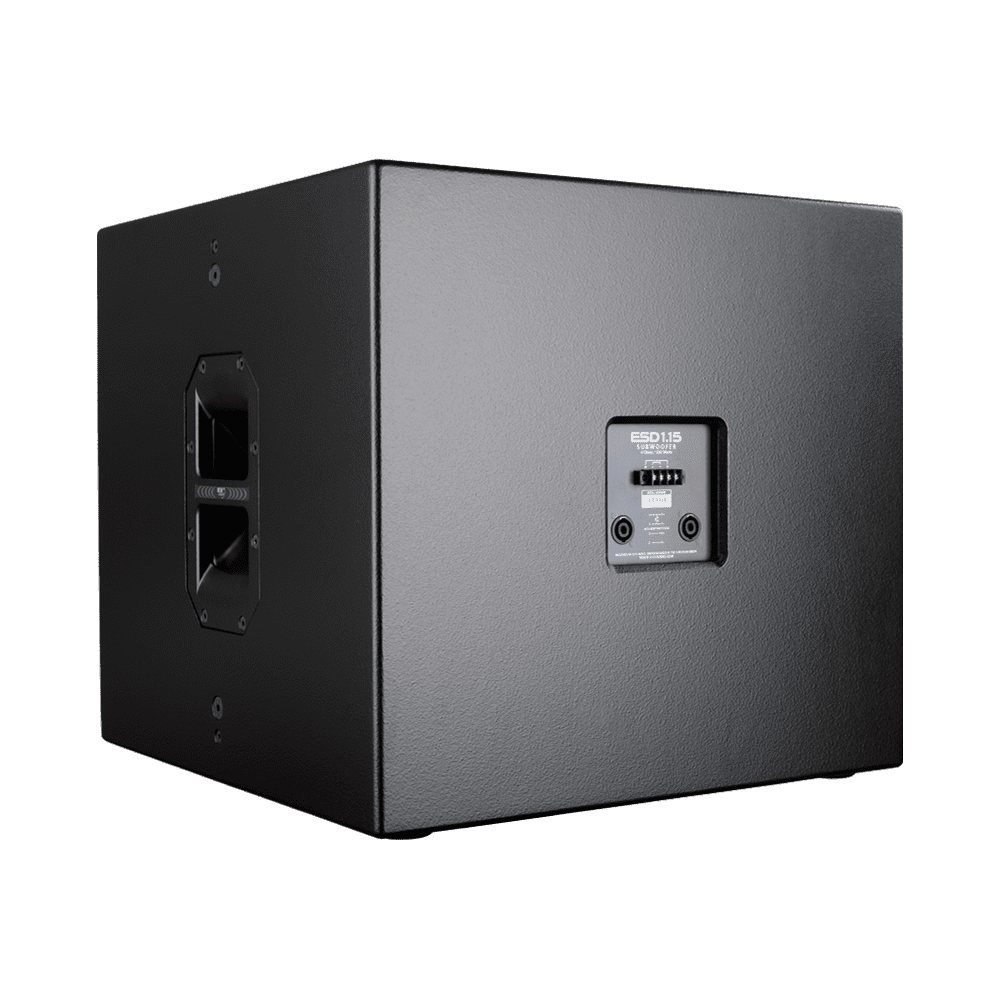

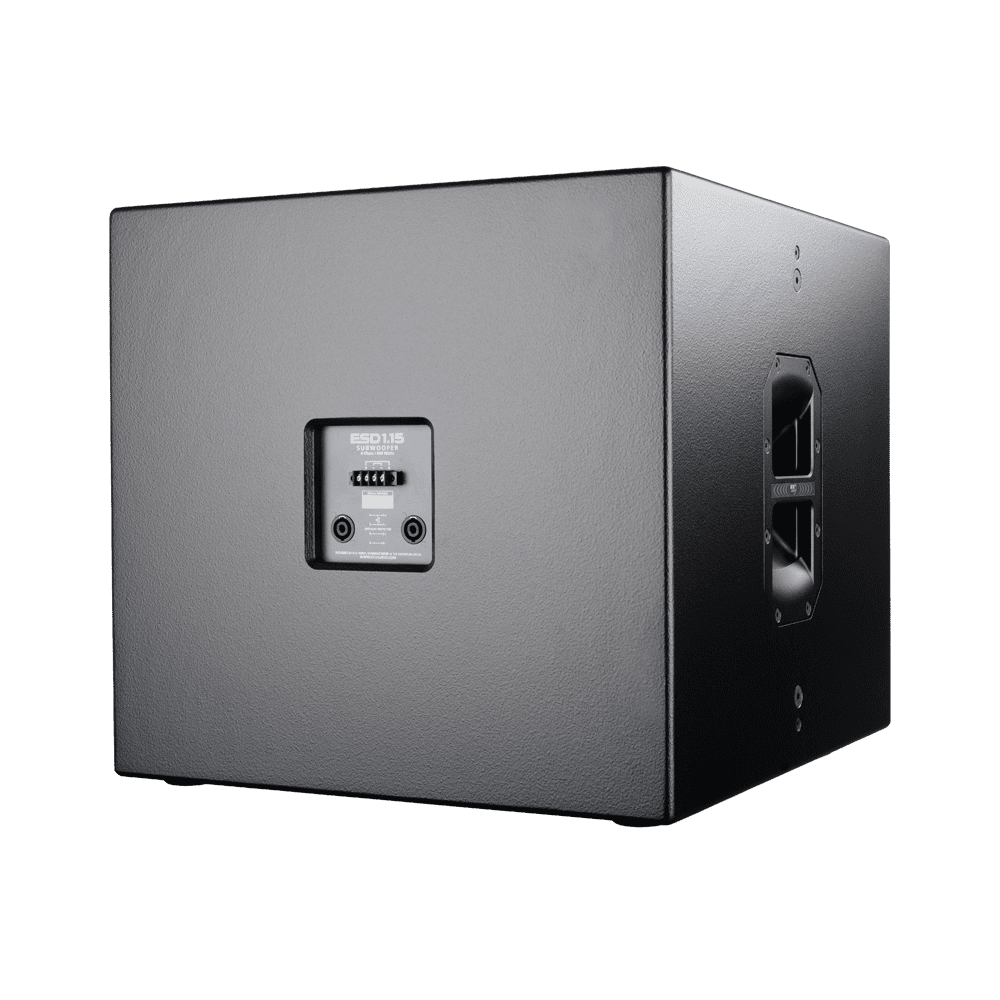

    Speaker Input 2x Neutrik Speakon®, Terminal Block

    Cabinet

    Cabinet Material Baltic birch
    Handles 2
    Pole Mount M20
    Flyware 8x M10 suspension points
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 510 mm (20.08″)
    Width 550 mm (21.65″)
    Depth 570 mm (22.44″)
    Weight 34.2 kg (75.4lbs)


    Product code

    • KVV 987 241 – ESD1.15

    PDF

    ESD Subwoofers User Guide

    ESD Subwoofers User Manual



    PDF

    ESD1.15 Technical Data Sheet

    Download Product’s Data Sheet


    DWG

    ESD1.15 – 3D

    1:1 scale – clamping points – weight – dwg file



    PDF

    ESD1.15 – 2D

    ESD1.15 2D Drawings



    SKP

    ESD Series SketchUp

    ESD Series SketchUp – all boxes and accessories



    DWG

    ESD1.15 2D DWG

    ESD1.15 2D DWG



    SKP

    ESD1.15 SKP

    ESD1.15 SketchUp



    DWG

    ESD1.15 3D DWG

    ESD1.15 3D DWG
