ESD1.10 – Passive subwoofer

KV2AUDIO
SKU: ESD1.10

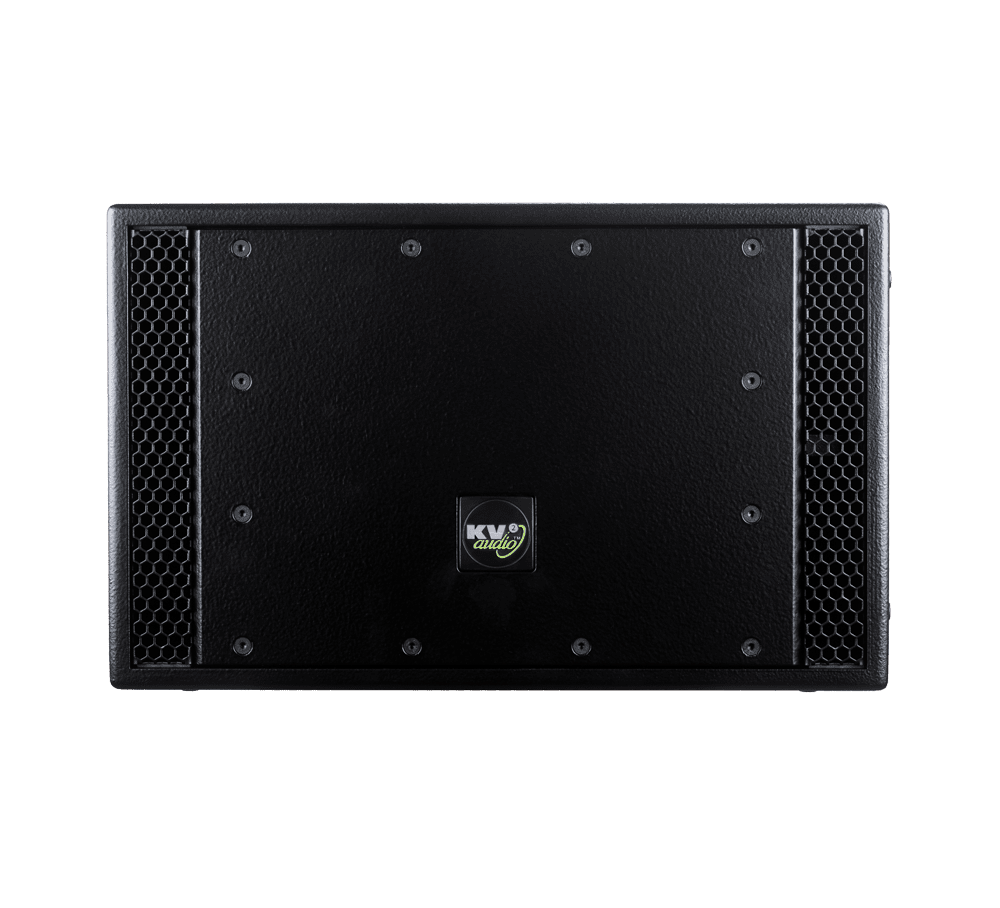

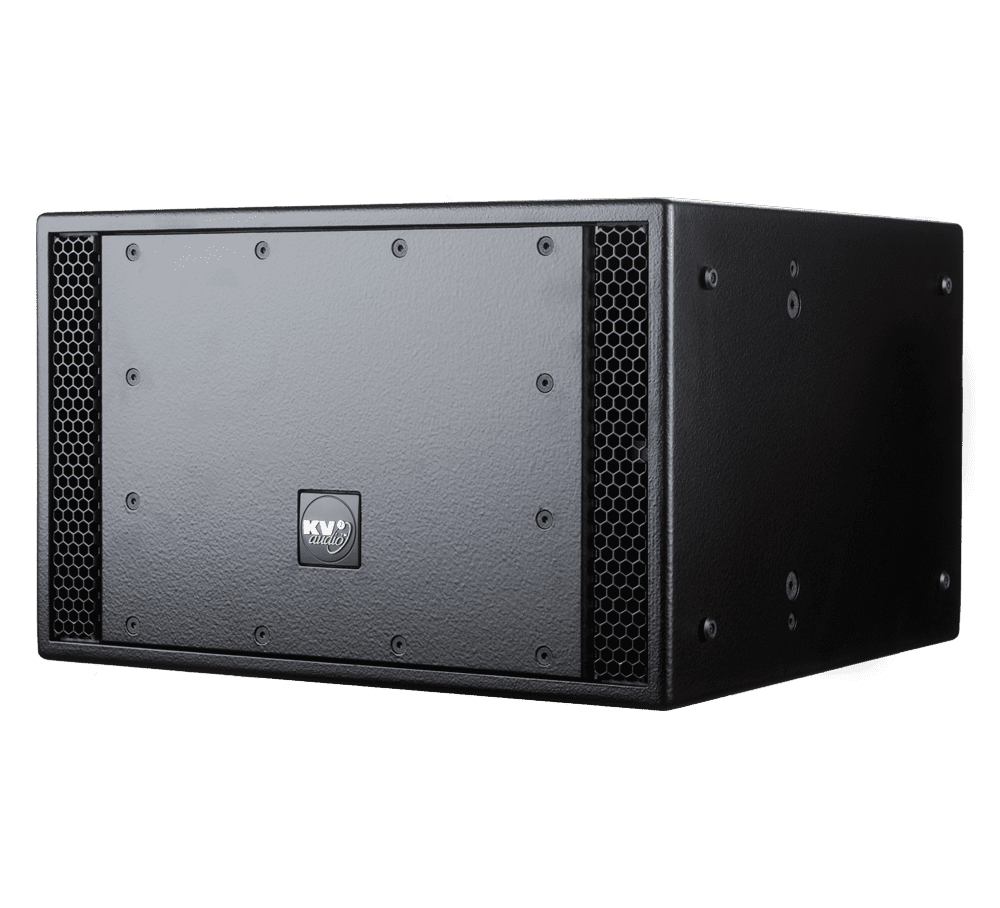

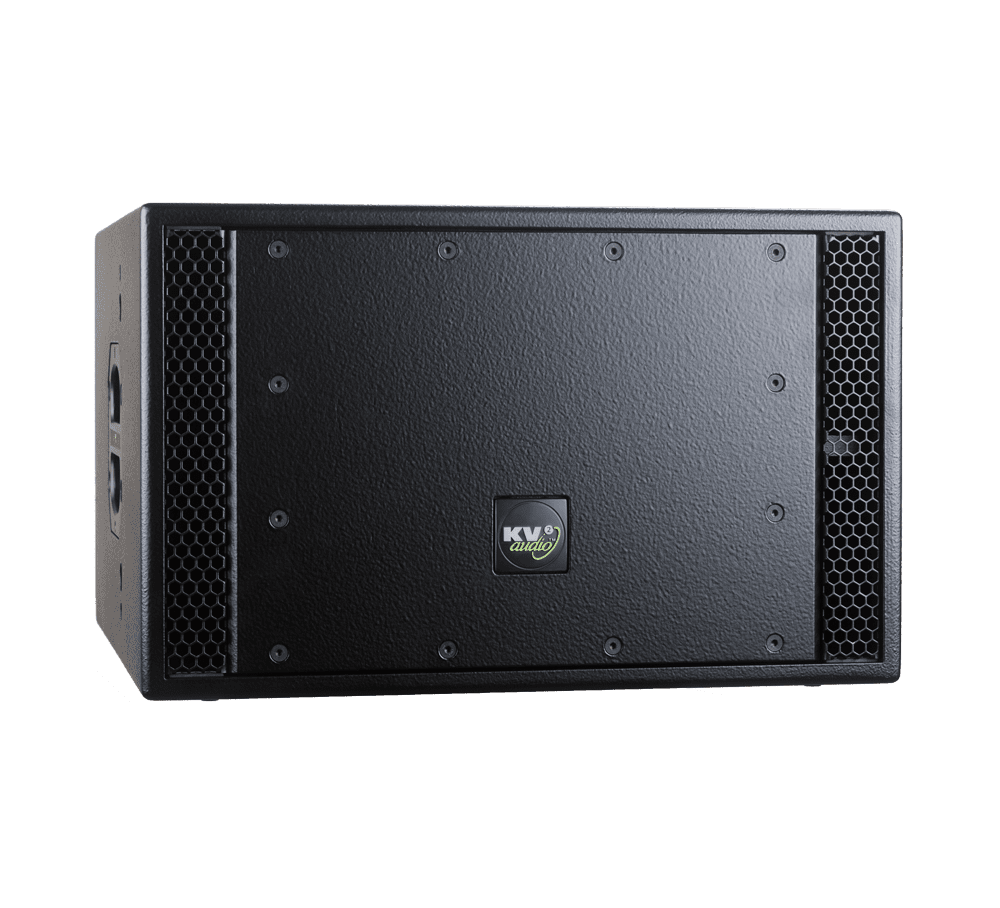

The ESD1.10 is a compact passive 10″ subwoofer featuring a high quality neodymium transducer. The smallest subwoofer within the KV2 range, it has been designed to compliment the ESD Cube Ultra compact Passive loudspeaker, creating a full range system solution when partnered with the Cube and ESP1000 amplifier. With power handling of 500 watts the ESD1.10 is capable of delivering tight, fast and controlled bass response, at high output levels from a very compact cabinet and is ideal for any discreet low frequency applications alongside other KV2 Audio products.

Product code

KVV 987 391 – ESD1.10



    Consultar precios

    Descripción

    The ESD1.10 is a compact passive 10″ subwoofer featuring a high quality neodymium transducer. The smallest subwoofer within the KV2 range, it has been designed to compliment the ESD Cube Ultra compact Passive loudspeaker, creating a full range system solution when partnered with the Cube and ESP1000 amplifier. With power handling of 500 watts the ESD1.10 is capable of delivering tight, fast and controlled bass response, at high output levels from a very compact cabinet and is ideal for any discreet low frequency applications alongside other KV2 Audio products.

    Features

    • Professional, Baltic birch construction with wear resistant polymer coating
    • 121dB sustained output, 124dB peak
    • Excellent reproduction of bass frequencies with high transient content at high output levels
    • 10″ high efficiency low frequency woofer with a 3″ (75 mm) inside/outside, epoxy baked, high temperature, voice coil assembly and neodymium magnetic structure


    Product code

    KVV 987 391 – ESD1.10



    System Acoustic Performance

    Max SPL Long-term 121dB
    Max SPL Peak 127dB
    -3dB Response 40Hz – 150Hz
    -10dB Response 37Hz to 170Hz (with ESP1000 equalization)
    Recommended Power 500W
    Sensitivity 94dB
    Impedance
    Crossover Point 80Hz to 150Hz

    Low Frequency Section

    Acoustic Design Twin Asymetrical Loading
    Number of Drivers 1
    Woofer Size / Voice Coil Diameter 10″ / 3″ / Inside outside
    Magnet Type Neodymium
    Diaphragm Material Epoxy Reinforced Cellulose
    Protection Thermal breaker – autoreset

    Speaker Input

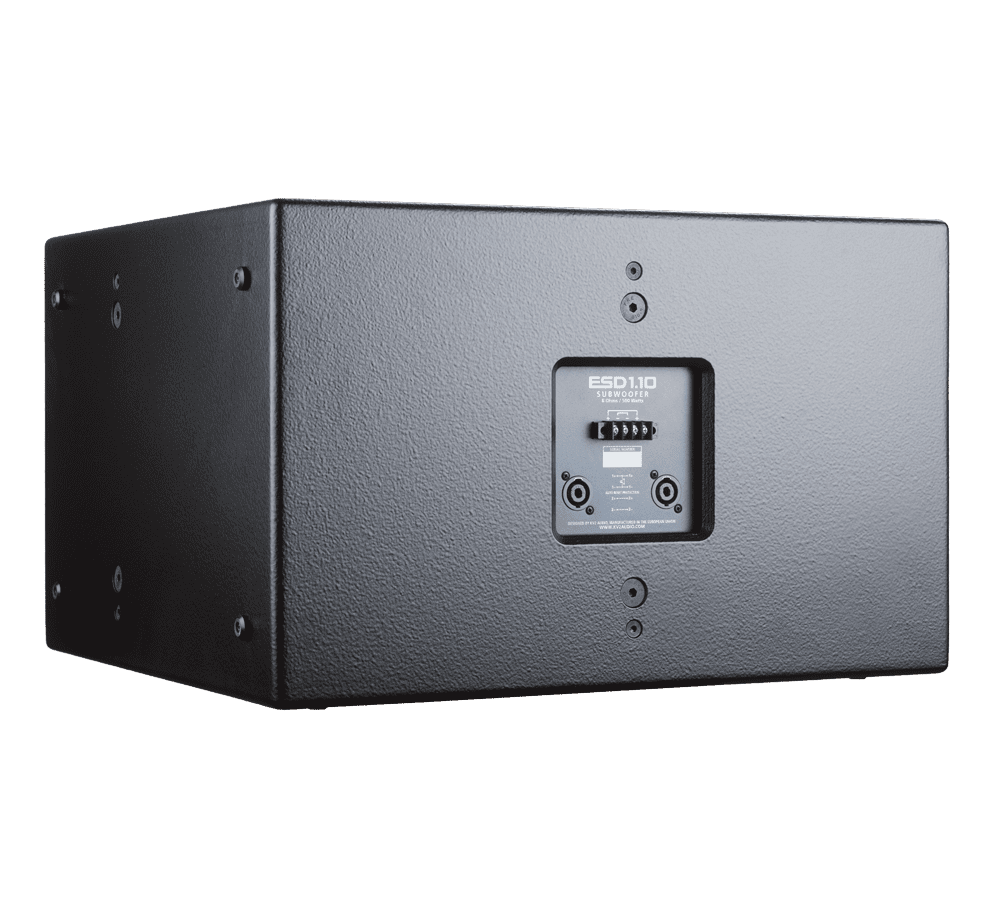

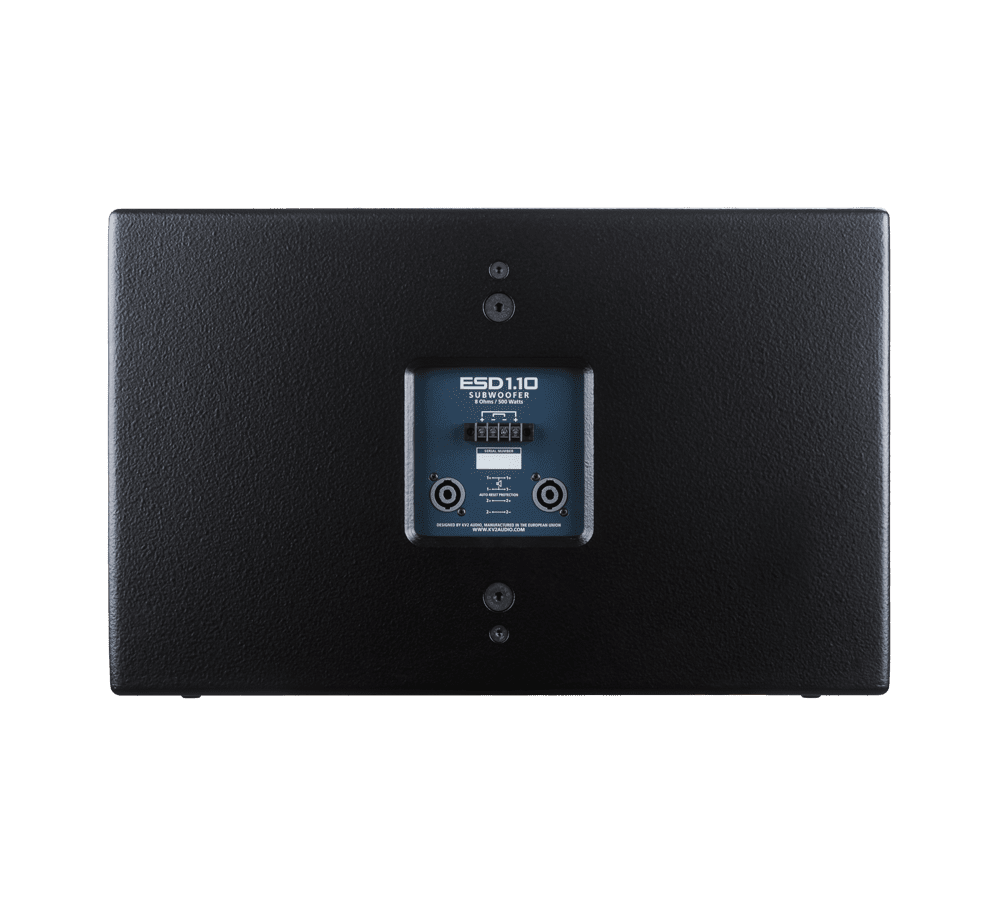

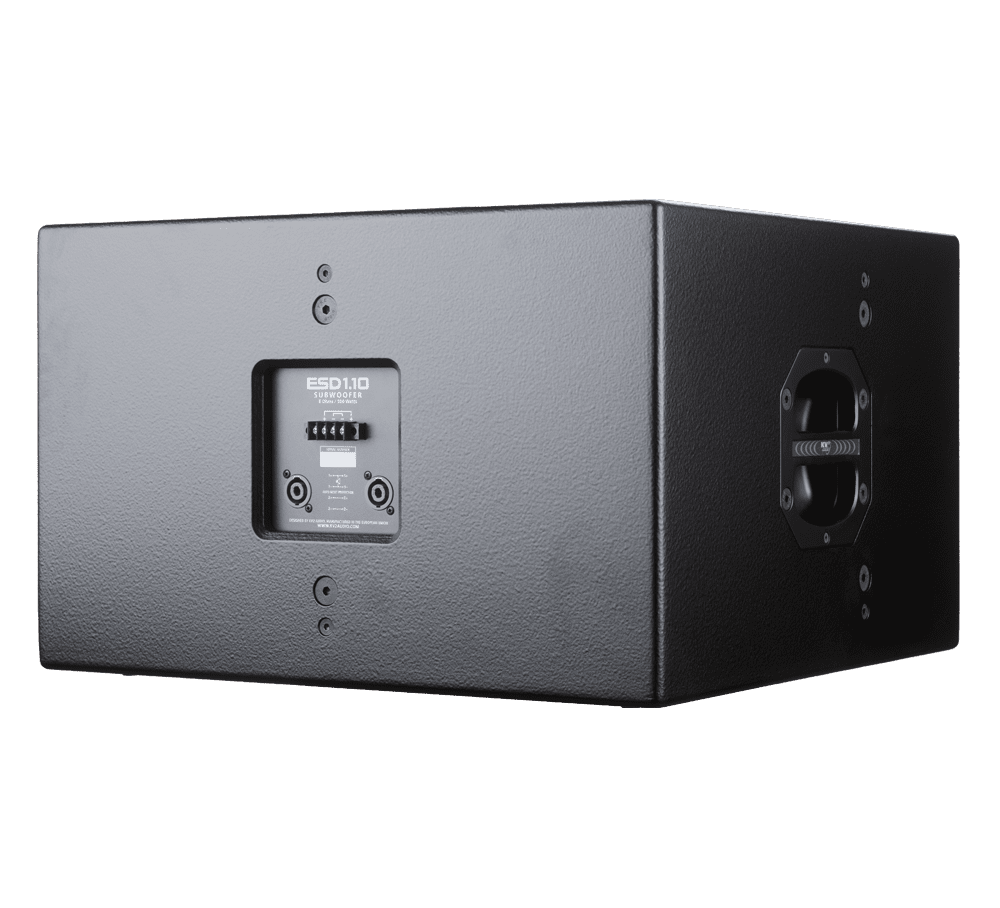

    Speaker Input 2x Neutrik Speakon®, Terminal Block

    Cabinet

    Cabinet Material Baltic birch

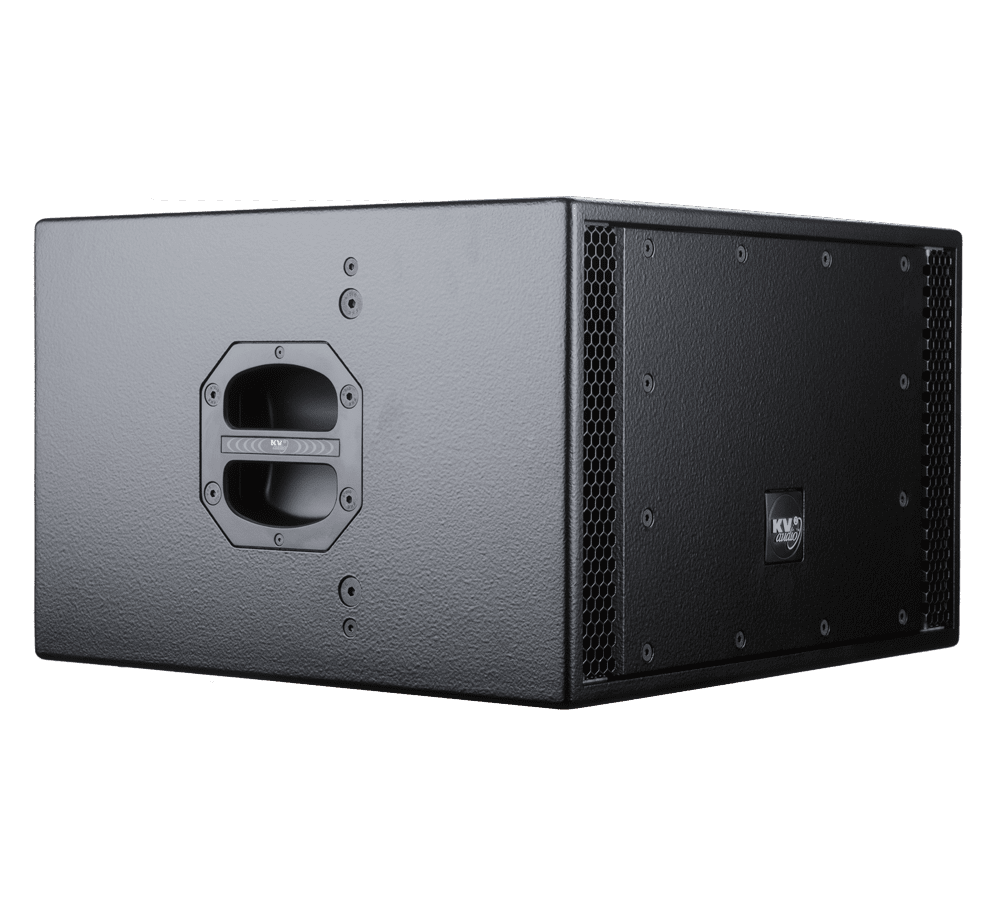

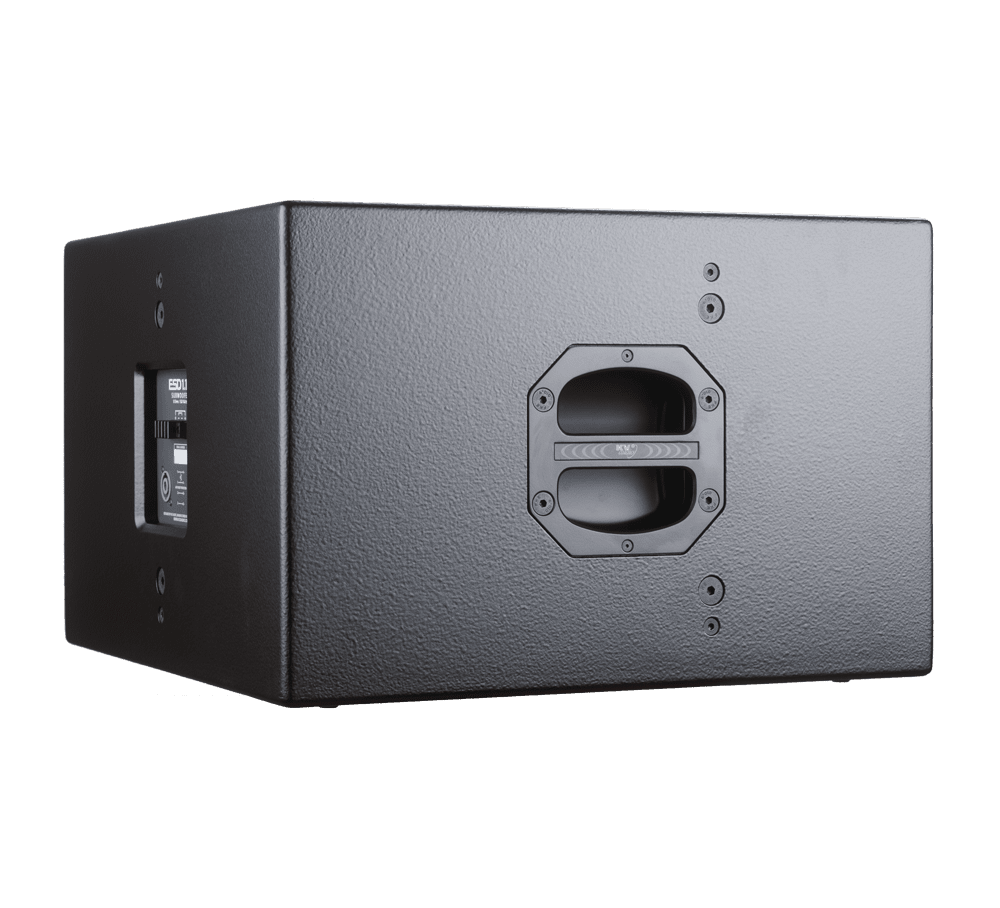

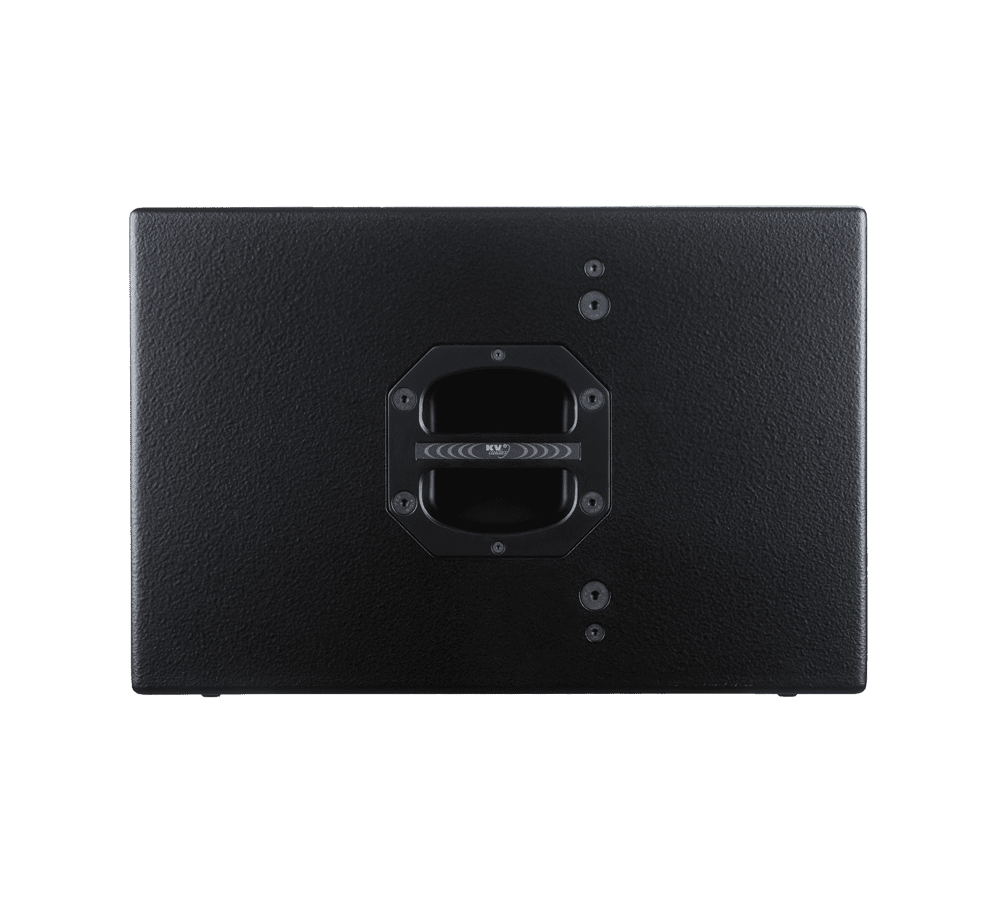

    Handles 1
    Pole Mount M20
    Color “Orange peeled” Matt Black or any RAL

    Physical Dimensions

    Height 335 mm (13.2″)
    Width 530 mm (20.9″)
    Depth 500 mm (19.7″)
    Weight 21,3 kg (46.96 lbs)


    Product code

    KVV 987 391 – ESD1.10
