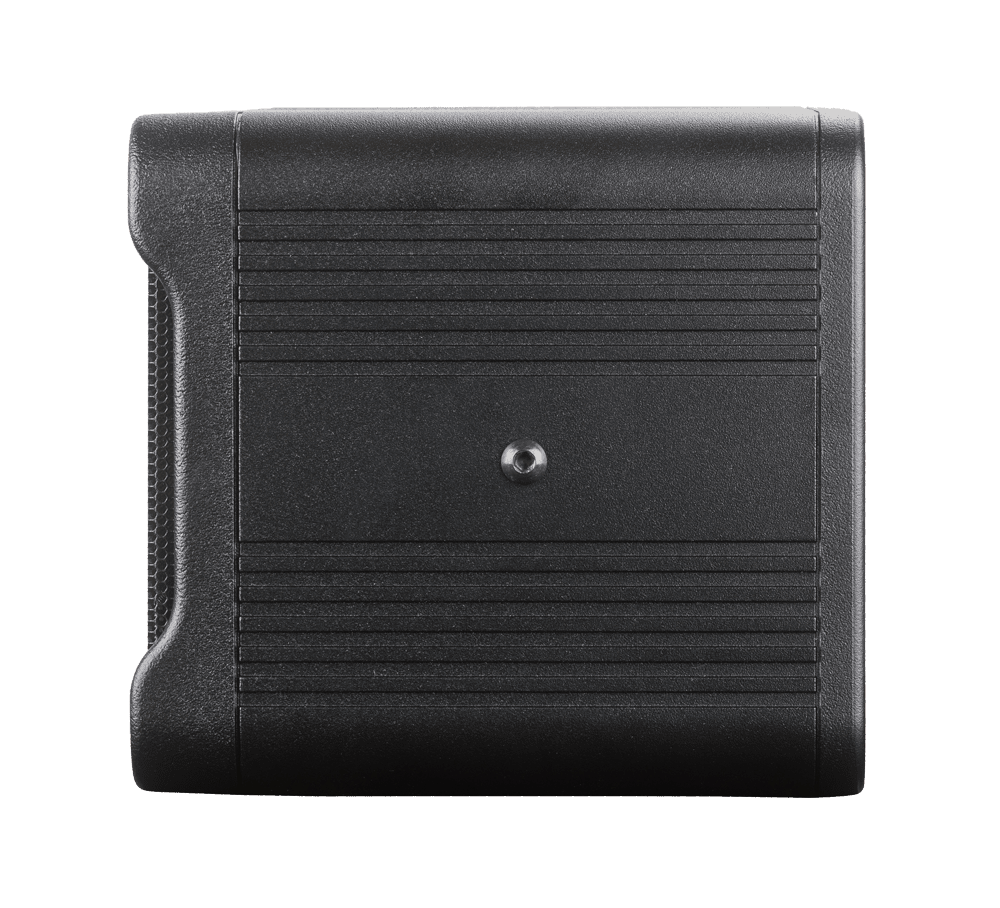

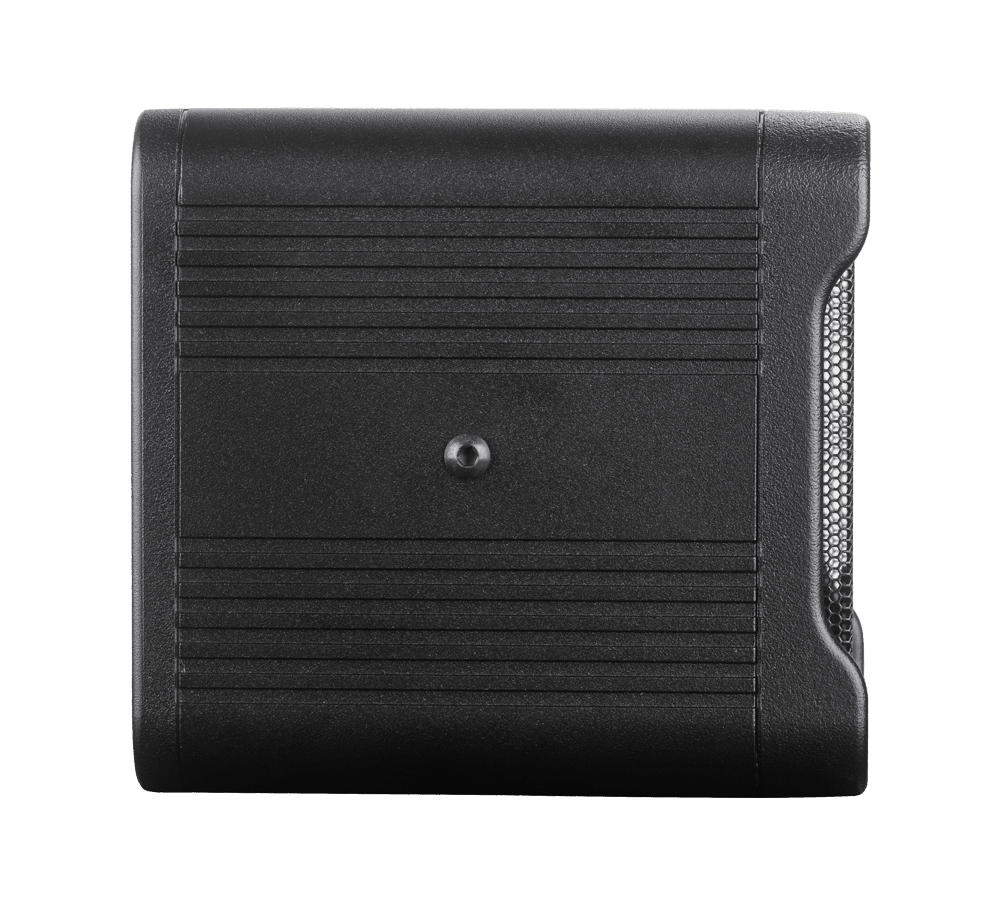

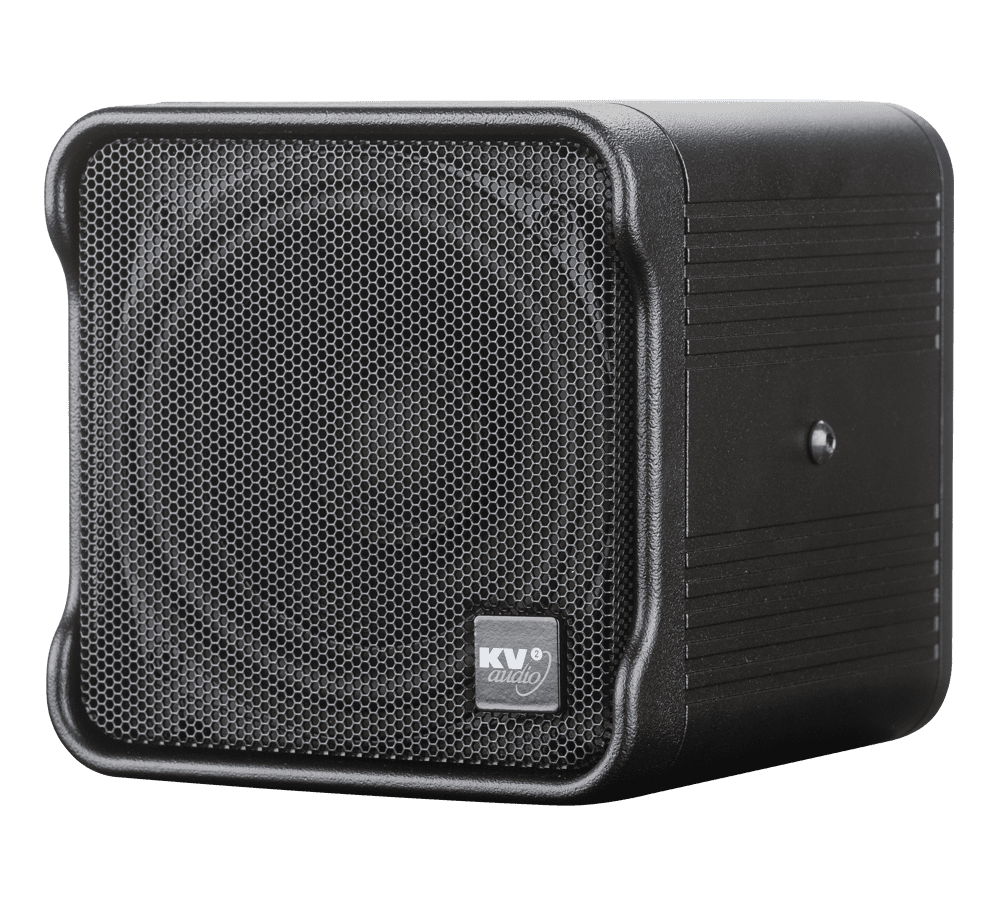

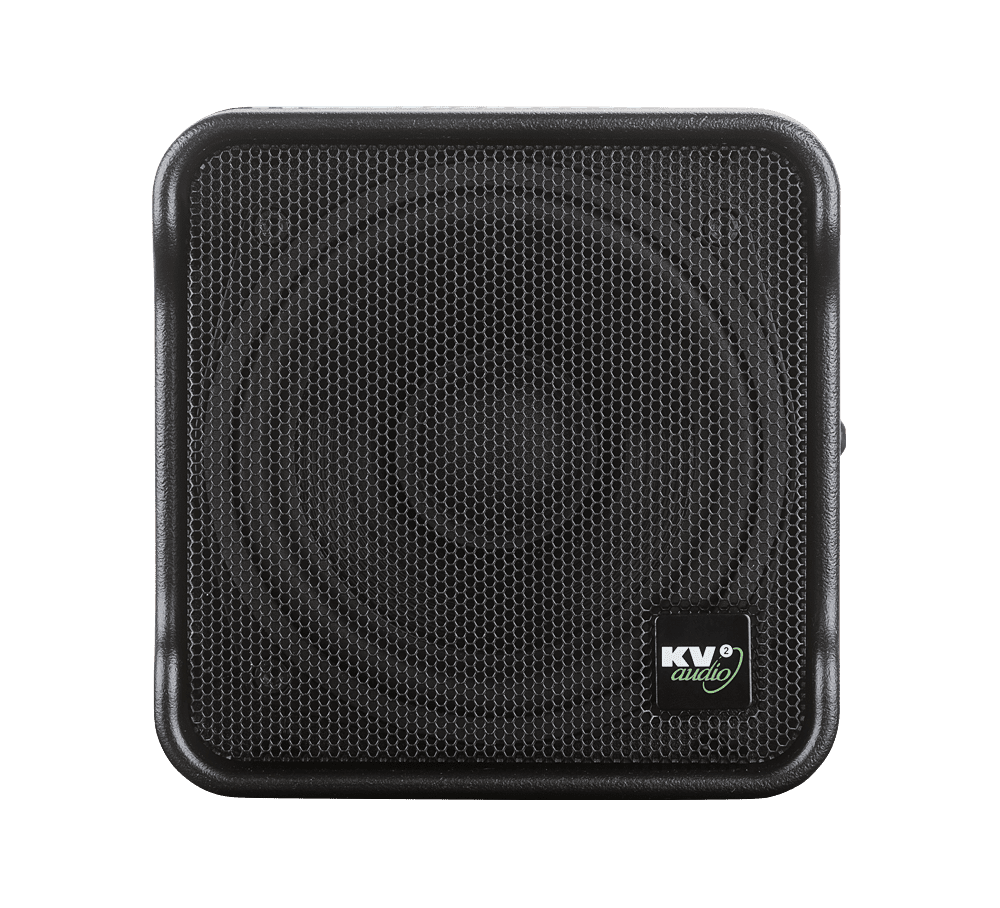

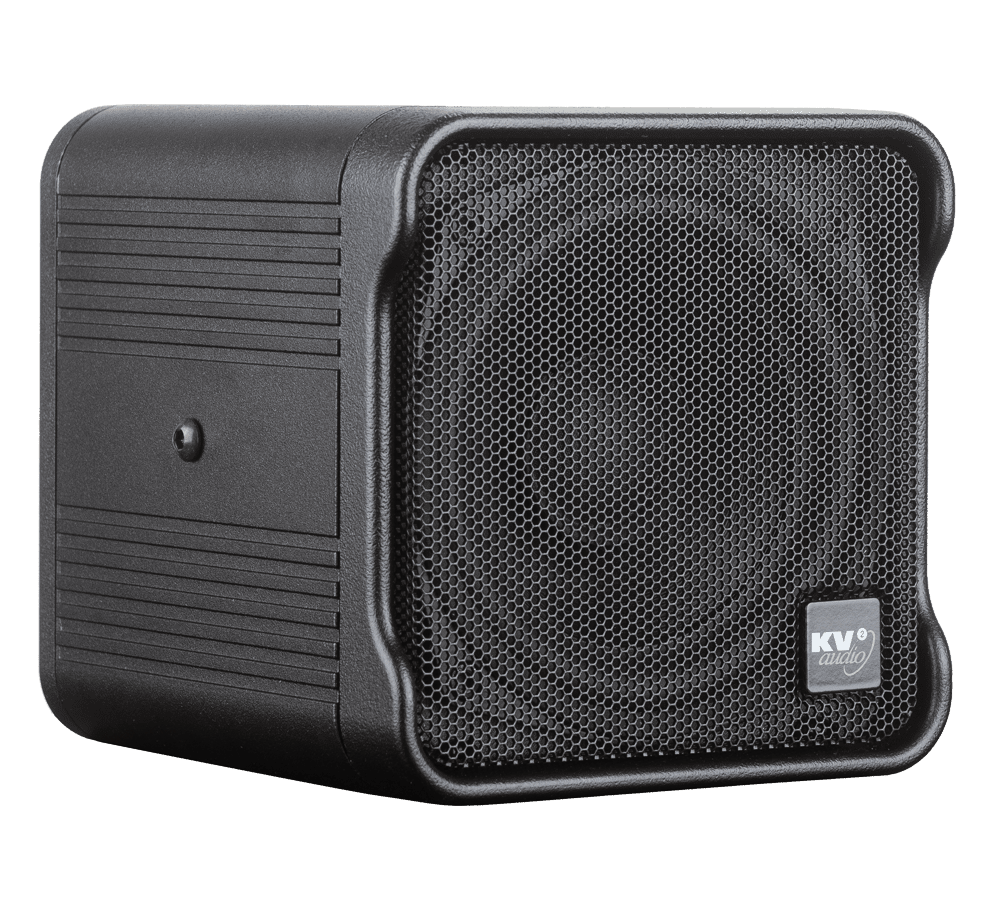

ESD Cube – Ultra Compact Passive speaker

KV2AUDIO
SKU: ESD

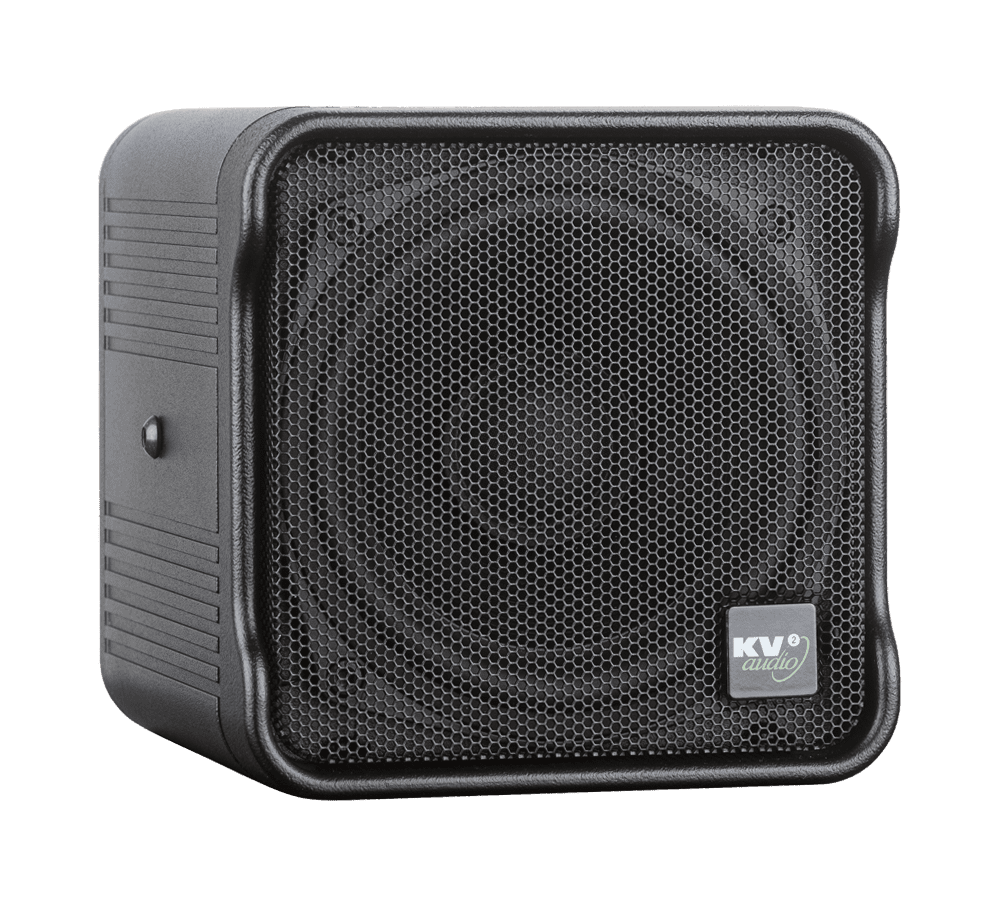

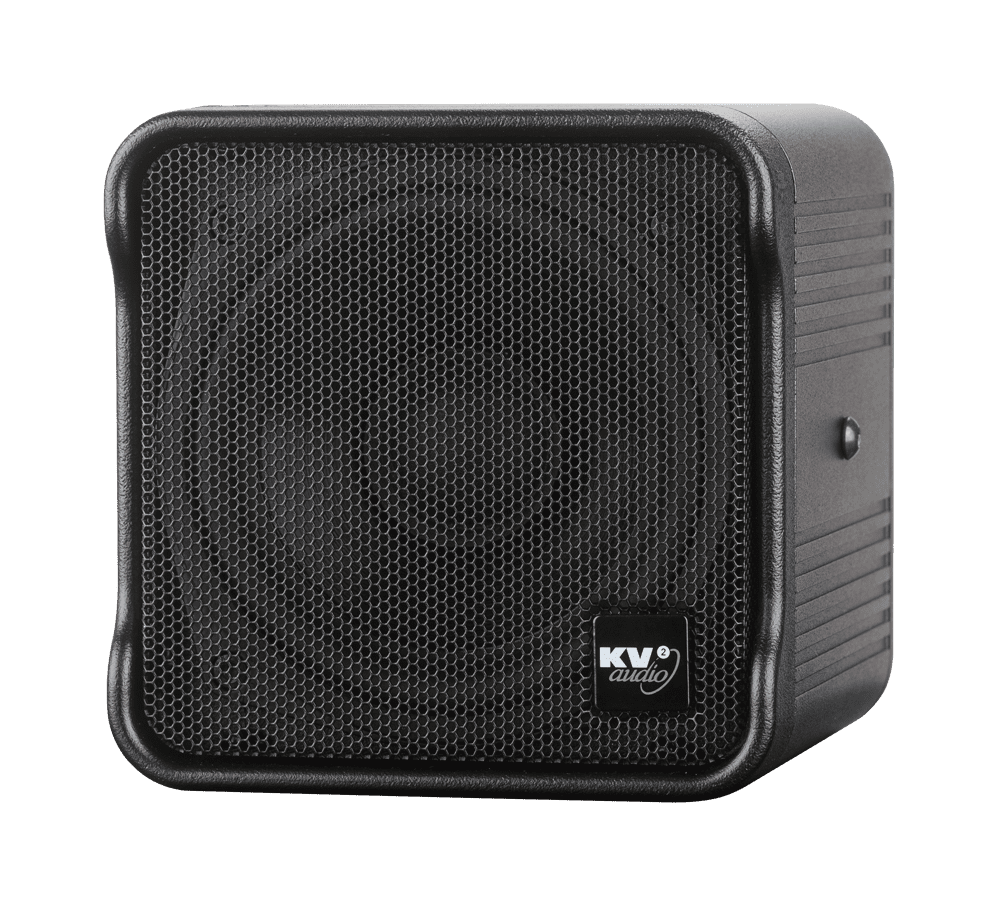

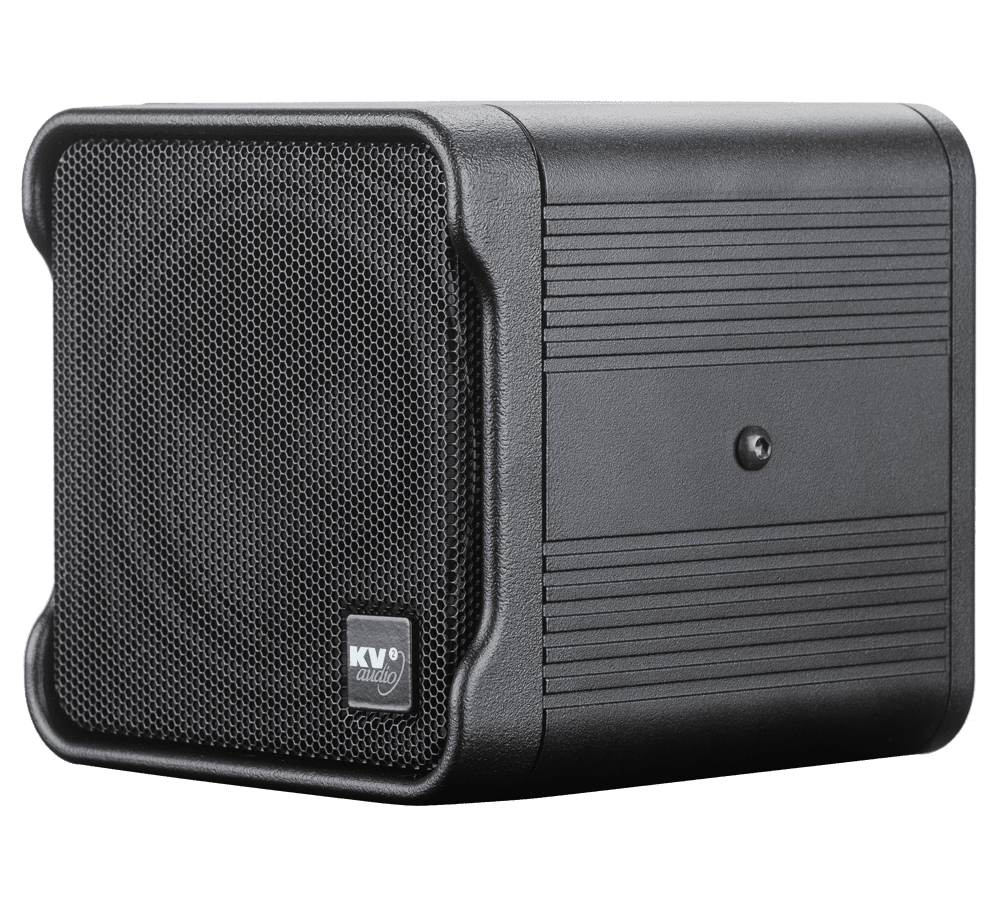

The ESD Cube is a very high quality ultra compact low profile 5” passive loudspeaker utilising a unique trans-coil design for superior vocal reproduction, extended high frequency response, increased dynamic range and the lowest distortion of any comparable speaker in its class. Housed in an aluminium enclosure its compact dimensions make it extremely discreet for peripheral reinforcement in theaters, bars, clubs, churches, museums or Tourist attractions. Along with our new ESP1000 amplifier a combination of up to 8 ESD Cube units, or 4 Cube units with either one or two ESD1.10 subwoofers can be run – learn more about the combinations. A simple proprietary flying bracket completes the system for a low profile look and easy installation and it’s included with the box.

Applications

Specifically designed as an ultra compact passive loudspeaker system for reproduction of high quality speech and recorded music.

  • Suitable for fixed installations and portable applications, as a full range speaker, or as a system with accompanying subwoofers
  • Excellent peripheral reinforcement for main KV2 systems
  • Fill-in speaker
  • Compact spot monitoring / playback
  • Ceiling or under balcony mounting

Product code

KVV 987 377 – ESD Cube



    Consultar precios

    Descripción

    The ESD Cube is a very high quality ultra compact low profile 5” passive loudspeaker utilising a unique trans-coil design for superior vocal reproduction, extended high frequency response, increased dynamic range and the lowest distortion of any comparable speaker in its class. Housed in an aluminium enclosure its compact dimensions make it extremely discreet for peripheral reinforcement in theaters, bars, clubs, churches, museums or Tourist attractions. Along with our new ESP1000 amplifier a combination of up to 8 ESD Cube units, or 4 Cube units with either one or two ESD1.10 subwoofers can be run – learn more about the combinations. A simple proprietary flying bracket completes the system for a low profile look and easy installation and it’s included with the box.

    Features

    • Tough, durable aluminium construction with wear resistant polymer coating
    • 116dB sustained output, 119dB peak with very high dynamic range
    • Ultra Compact enclosure design allows for use as ceiling mount, front fill, in-fill or under balcony applications
    • Wide dispersion 80° x 80° – 5″ woofer featuring Trans-coil AIC technology for superior vocal reproduction, high frequency extension and dramatically reduced distortion.
    • Neodymium motor structure and Lightweight voice coil technology dramatically increases force and lowers distortion further
    • Proprietary hanging design for simplified mounting


    YouTube thumbnailYouTube icon

    Applications

    Specifically designed as an ultra compact passive loudspeaker system for reproduction of high quality speech and recorded music.

    • Suitable for fixed installations and portable applications, as a full range speaker, or as a system with accompanying subwoofers
    • Excellent peripheral reinforcement for main KV2 systems
    • Fill-in speaker
    • Compact spot monitoring / playback
    • Ceiling or under balcony mounting

    Product code

    KVV 987 377 – ESD Cube



    Accesories


    ESD Cube Horizontal Bracket

    Gallery

    Product code

    KVV 987 408



    Description

    Horizontal bracket for ESD Cube (comes with the product)



    System Acoustic Performance

    Max SPL Long-term 110dB
    Max SPL Peak 116dB
    -3dB Response 90Hz to 18kHz (with ESP1000 equalization)
    Recommended Power 100W
    Sensitivity 90dB
    Impedance
    Crossover Point no – full range

    Full Range Transducer

    Acoustic Design Closed box, Front Loaded
    Magnet Type Neodymium
    Protection Thermal breaker – autoreset
    Number of drivers 1
    Woofer Size 5″ AIC Trans-coil
    Diaphragm Material Epoxy Reinforced Cellulose

    Signal Output

    Output channels 1

    Speaker Input

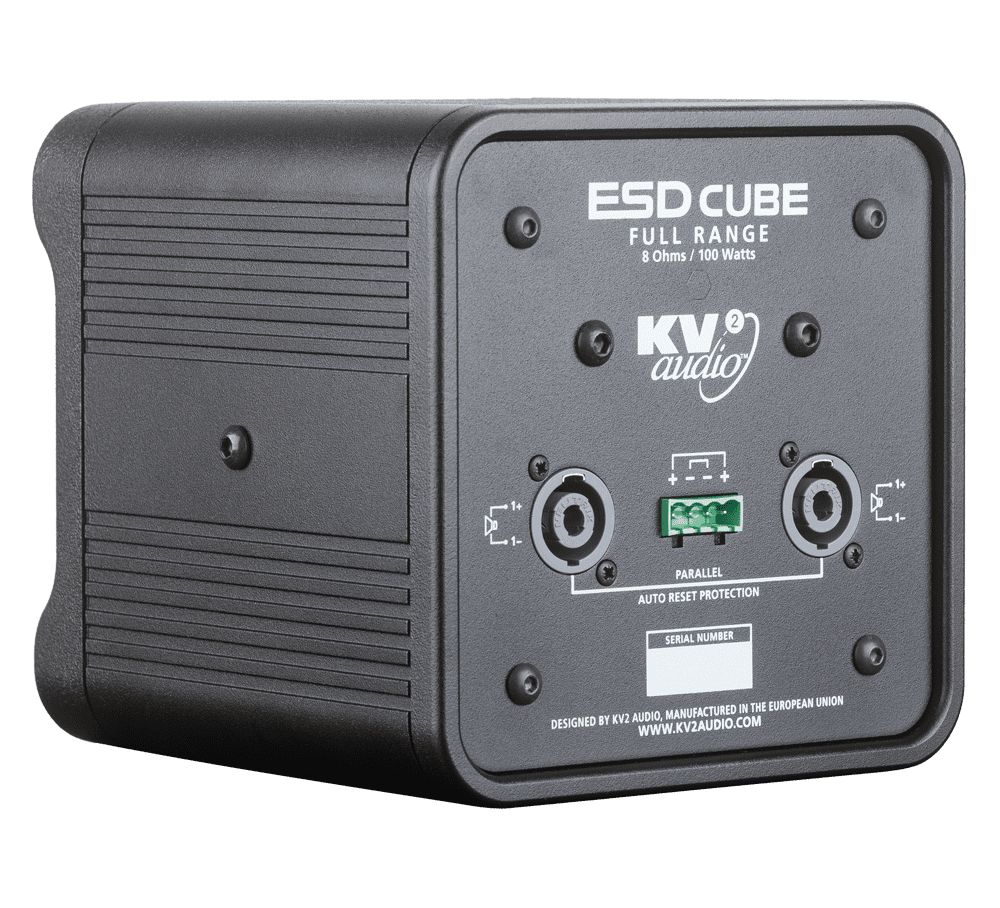

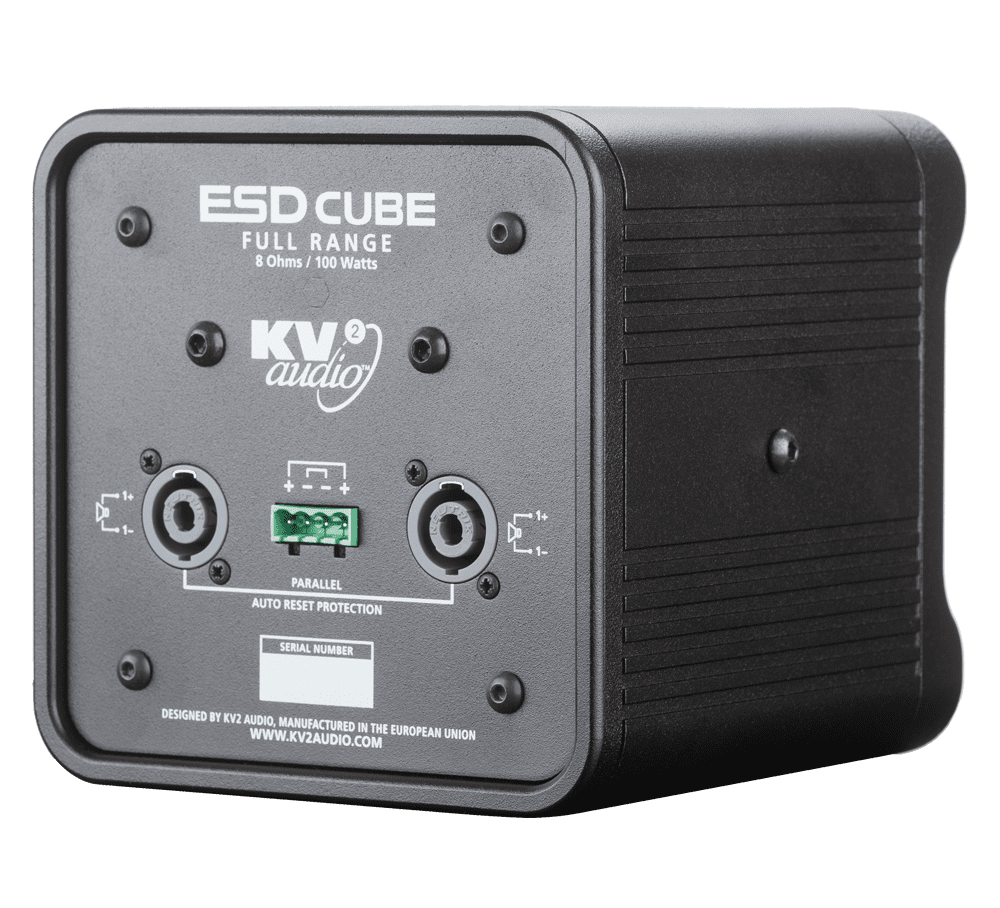

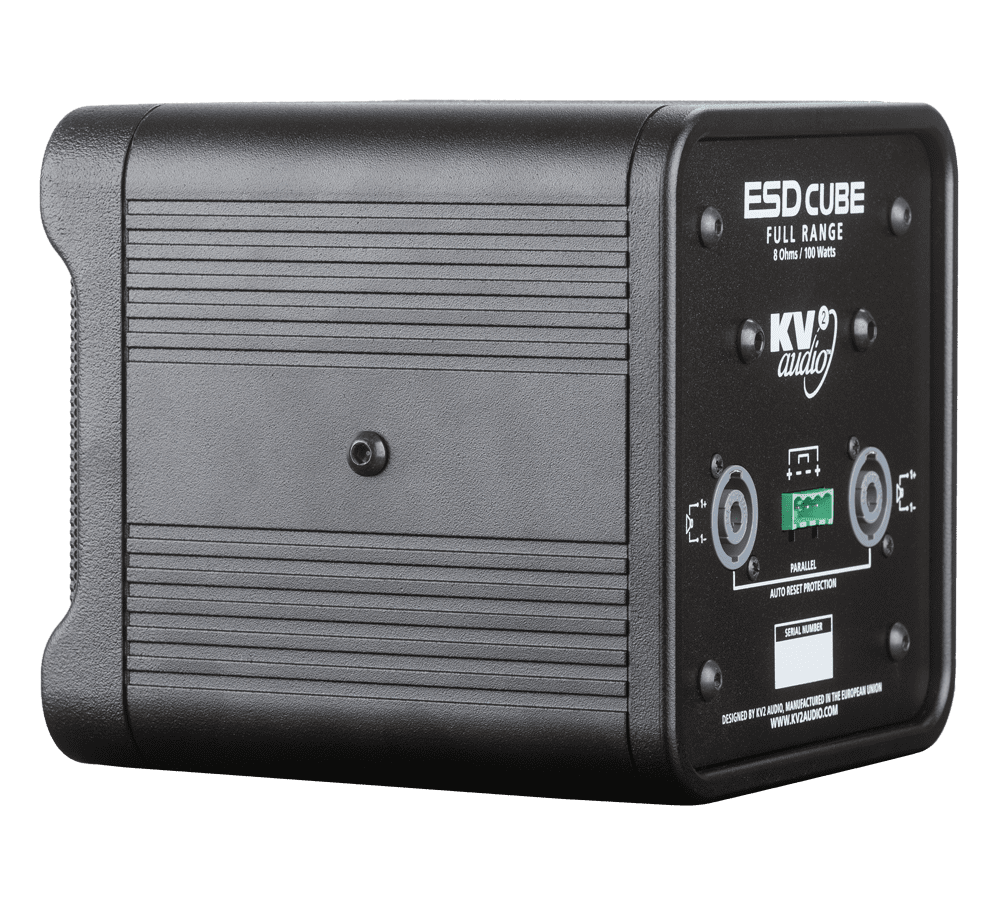

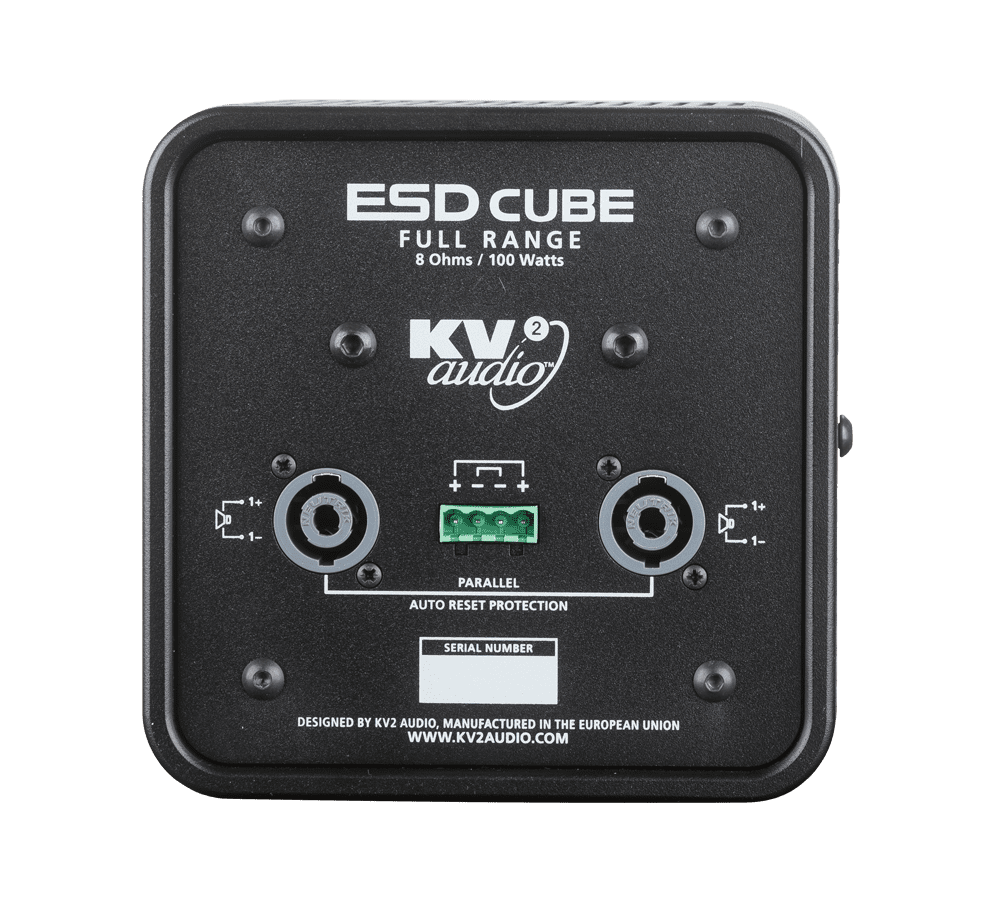

    Speaker Input 2x Neutrik Speakon®, Terminal Block

    Cabinet

    Cabinet Material Extruded Aluminium
    Color Matt Black or any RAL

    Physical Dimensions

    Height 154 mm (6″)
    Width 154 mm (6″)
    Depth 163 mm (6.4″)
    Weight 3 kg (6,6 lbs)


    Product code

    KVV 987 377 – ESD Cube
