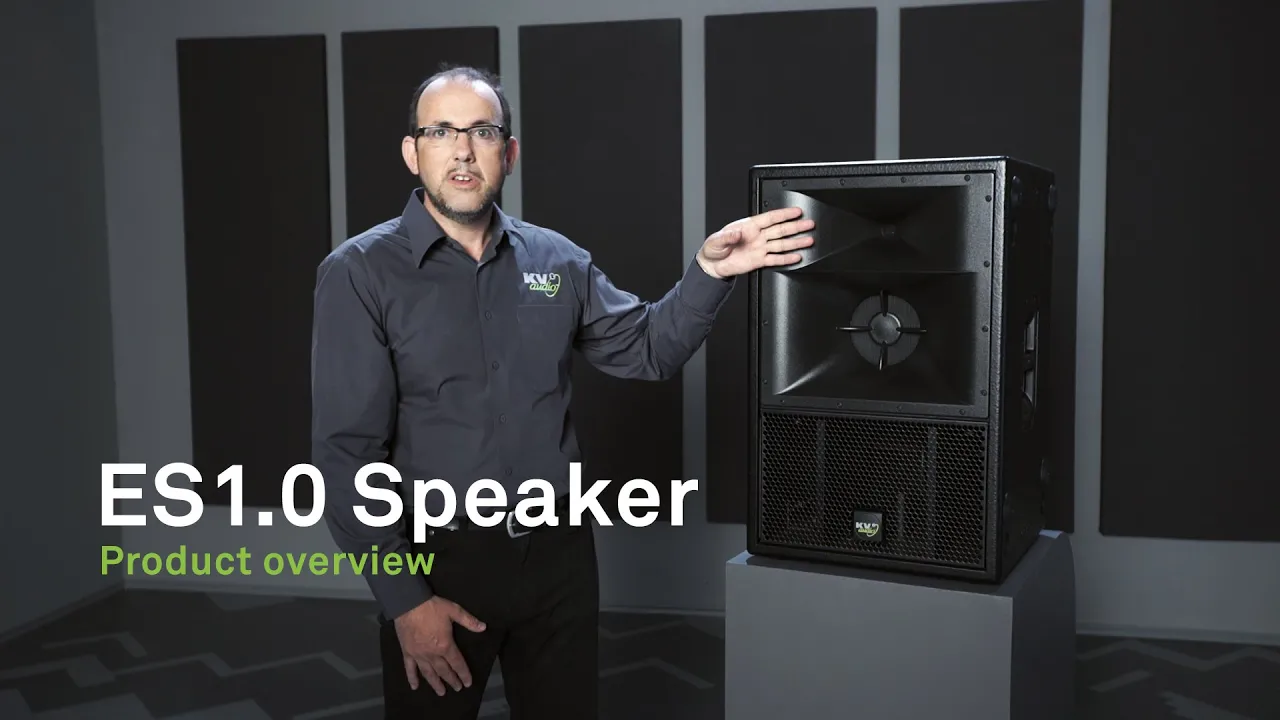

ES1.0 – The Core of Your ES System
The ES1.0 is a 3-way, very high output, active-driven, mid-high / mid-bass module designed as part of a complete ES system, driven by the EPAK2500/R control and amplification unit. The ES1.0 is compact, lightweight and can be combined with a variety of ES series subwoofers. As a single system it offers one of the highest quality portable sound reinforcement solutions on the market today. When coupled with another ES1.0 (running two horizontally per side) it becomes an even more powerful tool, providing peak SPL of 139dB and a throw of up to 40 metres for applications of up to 3000 people.
Applications
Specifically designed as an extreme high output, compact mid-high enclosure as part of ES systems
- For live performance and music playback
- Small to large live concerts
- Small to medium nightclubs
- Houses of worship
- Portable PA
- Scalable into larger multi-tasking projects and systems
Product code
- KVV 987 002 – ES1.0
También te recomendamos…
Descripción
The ES1.0 is a 3-way, very high output, active-driven, mid-high / mid-bass module designed as part of a complete ES system, driven by the EPAK2500/R control and amplification unit. The ES1.0 is compact, lightweight and can be combined with a variety of ES series subwoofers. As a single system it offers one of the highest quality portable sound reinforcement solutions on the market today. When coupled with another ES1.0 (running two horizontally per side) it becomes an even more powerful tool, providing peak SPL of 139dB and a throw of up to 40 metres for applications of up to 3000 people.
Features
- Professional Baltic birch construction with wear resistant polymer coating
- 131dB sustained output, 134dB peak
- Controlled wide dispersion 90° x 40°, rotatable mid-high horn for mounting in vertical or horizontal orientation
- 1.75″ (44 mm) Titanium diaphragm compression driver with complex geometry phase plug and neodymium magnetic structure for higher output, incredibly low distortion and extended frequency response
- 6″ mid-range driver with a 1.75″ (44 mm) voice coil and neodymium magnet for increased control and output with reduced distortion and weight
- Horn loaded, 12″ mid-bass driver with a 3″ (76 mm) inside/outside, epoxy baked, high temperature voice coil assembly and neodymium magnetic structure
- Three way active requirement – 900W from the EPAK2500/R providing 600W for the 12″ low mid, 200W for the 6″ midrange and 100W for the high frequency driver
- Proprietary side handle design for simlified handling and carrying
- High impact low friction feet, asymmetrically located on three sides allowing vertical or horizontal system set up, lock-in and easy cabinet movement
- Four internal corner braces tied to eight M10 suspension points. A total of 24 suspension points are available for custom installation applications
- Top hat for pole mounting applications
- Weather proofing option and special paint finishes available on request
Applications
Specifically designed as an extreme high output, compact mid-high enclosure as part of ES systems
- For live performance and music playback
- Small to large live concerts
- Small to medium nightclubs
- Houses of worship
- Portable PA
- Scalable into larger multi-tasking projects and systems
Product code
- KVV 987 002 – ES1.0
ES Double – A
ES Double – B
ES Double – C
ES Double – D
ES Single – A1
ES Single – A2
ES Single – A3
ES Single – B1
ES Single – B2
ES Single – C
ES Single – D
ES Single – EES Double – A
Description
Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 2 | Cable MH60 | Mid/Hi speaker cable MH60 |
| 2 | Cable LF40 | Cable LF40 |
| 1 | Cable LF15 | Cable LF15 |
Images
Front view
WiringES Double – B
Description
Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | ES System flybar and bracket | ES System flybar and bracket |
| 2 | Cable MH120 | Cable MH120 |
| 0 | Cable LF15 | Cable LF15 |
| 2 | Cable LF40 | Cable LF40 |
| 2 | Cable LF15 | Cable LF15 |
Images
Front view
WiringES Double – C
Description
Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | ES System flybar and bracket | ES System flybar and bracket |
| 2 | Cable MH120 | Cable MH120 |
| 2 | Cable LF40 | Cable LF40 |
Images
Front view
WiringES Double – D
Description
Up to 2000 people. Number of bass boxes depends on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | ES System flybar and bracket | ES System flybar and bracket |
| 2 | Cable MH120 | Cable MH120 |
| 2 | Cable LF40 | Cable LF40 |
| 2 | Cable LF15 | Cable LF15 |
Images
Front view
WiringES Single – A1
Description
Up to 1000 people. Number of bass boxes and SUB LEVEL setup depend on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | Cable LF40 | Cable LF40 |
| 1 | Cable MH60 | Mid/Hi speaker cable MH60 |
Images
Front view
WiringES Single – A2
Description
Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | Cable MH60 | Mid/Hi speaker cable MH60 |
| 1 | Cable LF40 | Cable LF40 |
| 1 | Cable LF15 | Cable LF15 |
Images
Front view
WiringES Single – A3
Description
Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | Cable MH60 | Mid/Hi speaker cable MH60 |
| 1 | Cable LF40 | Cable LF40 |
| 2 | Cable LF15 | Cable LF15 |
Images
Front view
WiringES Single – B1
Description
Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | Cable MH60 | Mid/Hi speaker cable MH60 |
| 1 | Cable LF40 | Cable LF40 |
| 2 | Cable LF15 | Cable LF15 |
Images
Front view
WiringES Single – B2
Description
Up to 1000 people. Number of bass boxes depends on music style. One side of stereo single system.
Note: Selection of ES amplifier model style is optional (either EPAK2500 or EPAK2500R).
Products
Accessories
| Count | Accessory | Title |
|---|---|---|
| 1 | Cable MH60 | Mid/Hi speaker cable MH60 |
| 1 | Cable LF40 | Cable LF40 |
| 1 | Cable LF15 | Cable LF15 |
Images
Front view
Alternative
Additional arms for Bracket- Amphenol AP6 connector
- Amphenol AP6 connector
- Cable Kit
- Cable MH120
- Cable MH15
- Cable MH180
- Cable MH60
- Cart Wheels
- ES Downfill bracket
- ES System flybar and bracket
- ES1.0 Cover
- ES1.0 Full grille
- ES1.0, ES1.5 Cart
- ES1.0, ES1.5, ESD15 Horizontal bracket
- ES1.0, ES1.5, ESD15, EX15 Vertical bracket
- Short joining bracket for ES System
- Speaker pole – universal
Additional arms for Bracket
Amphenol AP6 connector
Amphenol AP6 connector
Cable Kit
Cable MH120
Cable MH15
Cable MH180
Cable MH60
Cart Wheels
ES Downfill bracket
ES System flybar and bracket
ES1.0 Cover
ES1.0 Full grille
ES1.0, ES1.5 Cart
ES1.0, ES1.5, ESD15 Horizontal bracket
ES1.0, ES1.5, ESD15, EX15 Vertical bracket
Short joining bracket for ES System
Speaker pole – universalES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms
Gallery
Product code
KVV 987 192
Description
– 2 pcs ARMS OF FB-0002
– 8 pcs M10 screws
– 8 pcs Quick-lock-pins 6mm included
Downloads
ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG
ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG
ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP
ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp
EPAK2500, EPAK2500R, ES1.0, ESR2800, ESR3000MkII, SL3000, SL412 Amphenol AP6 connector
Gallery
Product code
KVV 987 050
Description
– female – cable mount
EPAK2500, EPAK2500R, ES1.0, ESR2800, ESR3000MkII, SL3000, SL412 Amphenol AP6 connector
Gallery
Product code
KVV 987 051
Description
– male – cable mount
Cable Kit
Gallery
Product code
KVV 987 047
Description
– consist of four high-quality Amphenol AP cable assemblies designed for use with ES Series – 2 pcs LF15 – 1pc LF40 – 1pc MH60
Cable MH120
Gallery
Product code
KVV 987 126
Description
– 6 wire speaker cable – AP6 connectors – 12m (40ft) length – for Mid/Hi Module hook-up
Cable MH15
Gallery
Product code
KVV 987 147
Description
– 6 wire speaker cable – AP6 connectors – 1,5m (5ft) length – for Mid/Hi Module connection – for VHD1.0 Mid/Hi Module daisy-chaining
Cable MH180
Gallery
Product code
KVV 987 127
Description
– 6 wire speaker cable – AP6 connectors – 18m (60ft) length – for Mid/Hi Module hook-up
Mid/Hi speaker cable MH60
Gallery
Product code
KVV 987 125
Description
– 6 wire speaker cable – AP6 connectors – 6m (20ft) – for Mid/Hi Module hook-up
ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels
Gallery
Product code
KVV 987 031
Description
– with bolts nuts kit – 4 pcs in pack, rotating, blue
– 16x M8x 25mm Screw Countersunk Hexagon Socket Head
– 16x Nut Hexagon with blue plastic insert M8
Downloads
ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG
ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels 3D DWG
ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SKP
ES1.0, ES1.5, EX1.8, EX2.2 Cart wheels SketchUp
ES Downfill bracket
Gallery
Product code
KVV 987 311
Description
– 4 pcs Quick-lock-pins 6mm included
– 4 pcs M10 hex screws included
– 1pc allen key
– 6mm included
Downloads
ES Downfill bracket 3D DWG
ES Downfill bracket 3D DWG
ES Downfill bracket SKP
ES Downfill bracket SketchUp
ES System flybar and bracket
Gallery
Product code
KVV 987 191
Description
– 8 pcs M10 screws – 8 pcs Quick-lock-pins 6mm included – 4 pcs Quick-lock-pins 1/2inch included
Downloads
ES System flybar and bracket 3D DWG
ES System flybar and bracket 3D DWG
ES System flybar and bracket SKP
ES System flybar and bracket SketchUp
ES System flybar and bracket 2D DWG
ES1.0 Heavy duty cover
Gallery
Product code
KVV 987 119
Description
– Durable material
ES1.0 Full grille
Gallery
Product code
KVV 987 131
Description
Optional full grille for ES1.0
Downloads
ES1.0 Full grille 3D DWG
ES1.0 Full grille 3D DWG
ES1.0 Full grille SKP
ES1.0 Full grille SketchUp
ES1.0, ES1.5 Cart
Gallery
Product code
KVV 987 030
Description
– for 2pcs ES1.0 or ES 1.5 – wheels not included
– 16x M8x 25mm Screw Countersunk Hexagon Socket Head
– 16x Nut Hexagon with blue plastic insert M8
Downloads
ES1.0, ES1.5 Cart 3D DWG
ES1.0, ES1.5 Cart 3D DWG
ES1.0, ES1.5 Cart SKP
ES1.0, ES1.5 Cart SketchUp
ES1.0, ES1.5, ESD15 Horizontal bracket
Gallery
Product code
KVV 987 035
Description
Horizontal bracket for ES1.0, ES1.5, ESD15 (or eventually for EX15 when positioned vertically) – including top hat cover adaptor plate and two connection bolts – black
Downloads
ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG
ES1.0, ES1.5, ESD15 Horizontal Bracket 3D DWG
ES1.0, ES1.5, ESD15 Horizontal Bracket SKP
ES1.0, ES1.5, ESD15 Horizontal Bracket SketchUp
ES1.0, ES1.5, ESD15, EX15 Vertical bracket
3D view
Gallery
Product code
KVV 987 032
Description
Vertical bracket for ES1.0, ES1.5, ESD15, EX15 – including two connection bolts – black
Downloads
ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG
ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG
ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG
ES1.0, ES1.5, ESD15, EX15 Vertical Bracket 3D DWG
System Acoustic Performance
| Max SPL Long-term | 131dB |
| Max SPL Peak | 137dB |
| -3dB Response | 130Hz to 20kHz |
| -10dB Response | 85Hz to 28kHz |
| Impedance | Low 16Ω Mid 8Ω High 8Ω |
| Crossover Point | 130Hz, 500Hz, 2.5kHz |
High Frequency Section
| Horn Coverage Horizontal / Vertical | 90° x 40° rotatable |
| High Frequency Amplifier Requirement | 100W from EPAK 2500/R |
| Throat Exit Diameter / Diaphragm Size | 1″ / 1.75″ |
| Diaphragm Material | Titanium |
| Magnet Type | Neodymium |
Mid Range Section
| Acoustic Design | Horn Loaded |
| Horn Coverage Horizontal / Vertical | 90° x 40° rotatable |
| Midrange Amplifier Requirement | 200W from EPAK 2500/R |
| Woofer Size / Voice Coil Diameter | 6″ / 1.75″ |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium |
Mid Bass Section
| Acoustic Design | Horn Loaded |
| Mid-bass Amplifier Requirement | 600W from EPAK 2500/R |
| Woofer Size / Voice Coil Diameter | 12″ / 3″ / Inside Outside |
| Diaphragm Material | Epoxy Reinforced Cellulose |
| Magnet Type | Neodymium |
Speaker Input
| Speaker Input | AP6 |
Cabinet
| Cabinet Material | Baltic birch |
| Handles | 2 |
| Pole Mount | 35 mm |
| Color | “Orange peeled” Matt Black or any RAL |
Physical Dimensions
| Height | 700 mm (27.55″) |
| Width | 450 mm (17.71″) |
| Depth | 450 mm (17.71″) |
| Weight | 34 kg (74.8lbs) |
Product code
- KVV 987 002 – ES1.0
Disarray – The correct theory of arraying KV2 boxes
Disarray – The correct theory of arraying KV2 boxes
ES Cabinets Configurations User Guide
– ES Series – Basic single and double configurations user guide
Long bracket for joining ES1.0 and ES1.8 or ES2.5 3D DWG
Long bracket for joining ES1.0 and ES1.8 or ES2.5 3D DWG
Long bracket for joining ES1.0 and ES1.8 or ES2.5 SKP
Long bracket for joining ES1.0 and ES1.8 or ES2.5 SketchUp
Long bracket for joining two ES1.0 or ES1.5 3D DWG
Long bracket for joining two ES1.0 or ES1.5 3D DWG
Long bracket for joining two ES1.0 or ES1.5 SKP
Long bracket for joining two ES1.0 or ES1.5 SketchUp
ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG
ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms 3D DWG
ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SKP
ES1.0, ES1.5, ES1.8, ES2.5, ES2.6 Bracket additional arms SketchUp
ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG
ESD15 / ES1.0 / ES1.5 / EX15 Vertical Bracket 2D DWG
Long bracket for joining two ES1.0 or ES1.5 PDF drawing
Long bracket for joining two ES1.0 or ES1.5 PDF drawing
Long bracket for joining ES1.0 and ES1.8 or ES2.5 PDF drawing
Long bracket for joining ES1.0 and ES1.8 or ES2.5 PDF drawing
Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG
Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 3D DWG
Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SKP
Set of M10 x 50 closed end bolts for 6mm quick lock pin for ES1.0, ES1.5, ESR212, ESR215MkII, SL2.15, SL412 SketchUp
Long bracket for joining two ES1.0 or ES1.5 – 3D DWG
Long bracket for joining two ES1.0 or ES1.5 – 3D DWG
Long bracket for joining ES1.0 and ES1.8 or ES2.5 – 3D DWG
Long bracket for joining ES1.0 and ES1.8 or ES2.5 – 3D DWG
Long bracket for joining two ES1.0 or ES1.5 – SketchUp
Long bracket for joining two ES1.0 or ES1.5 – SketchUp
