CS6

KV2AUDIO
SKU: CS6

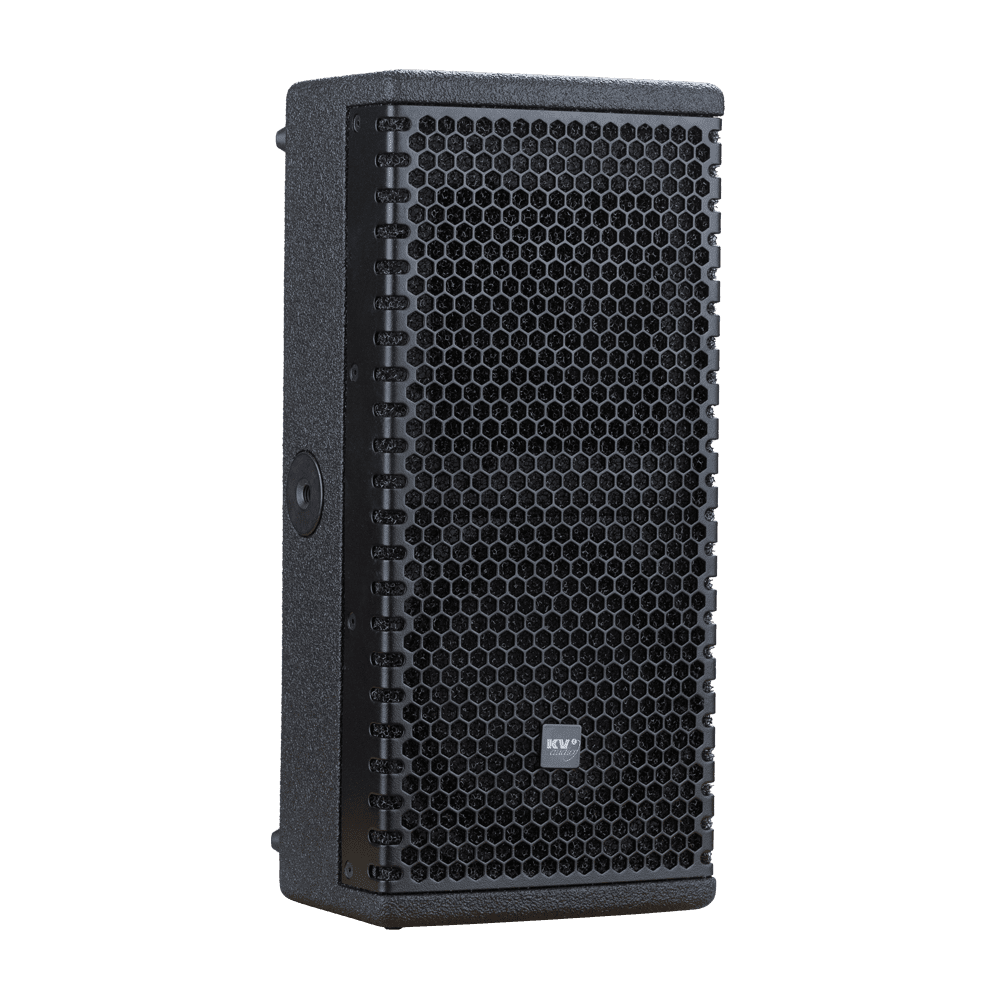

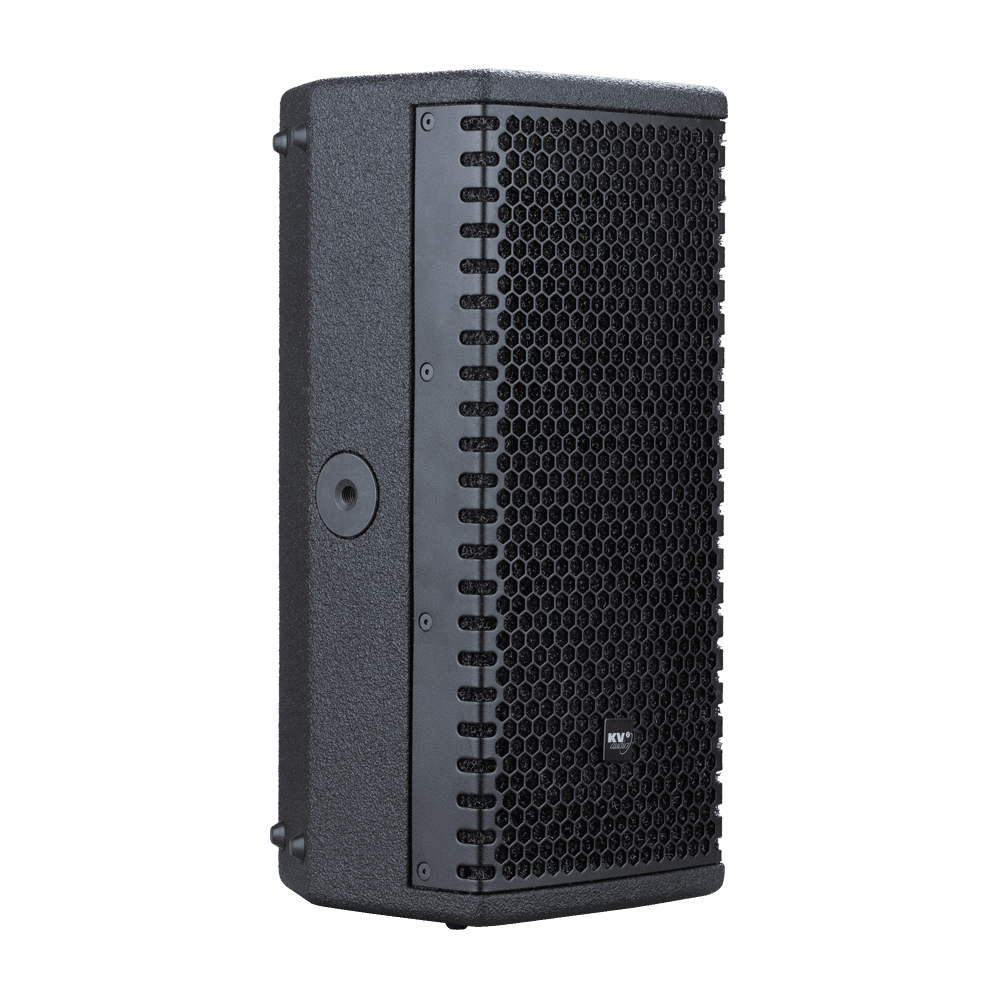

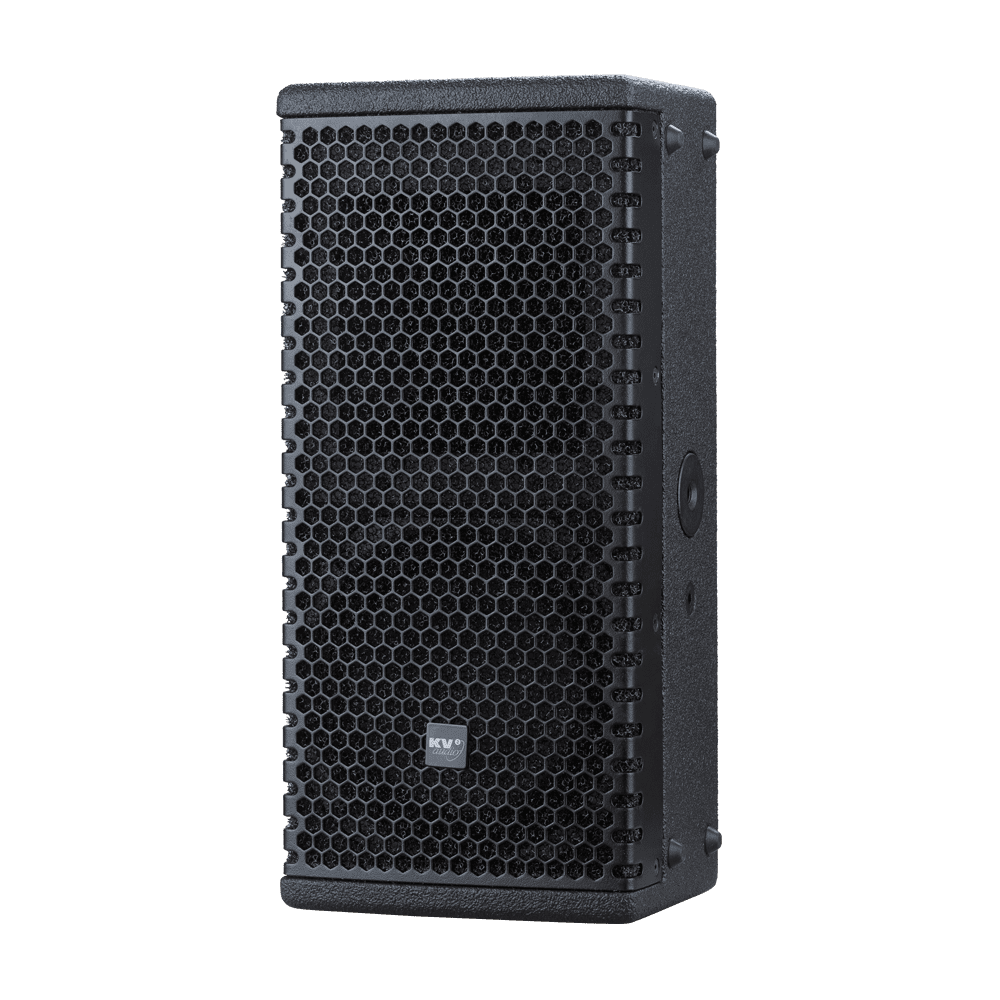

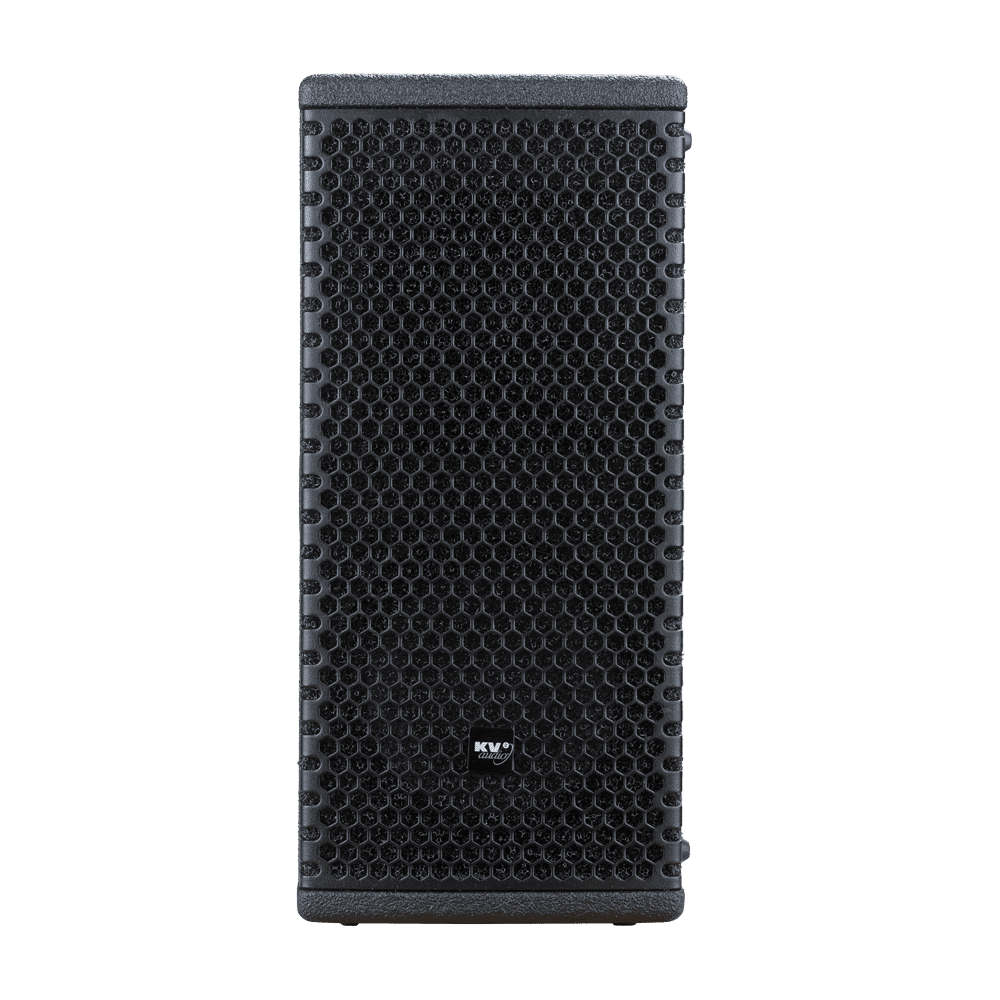

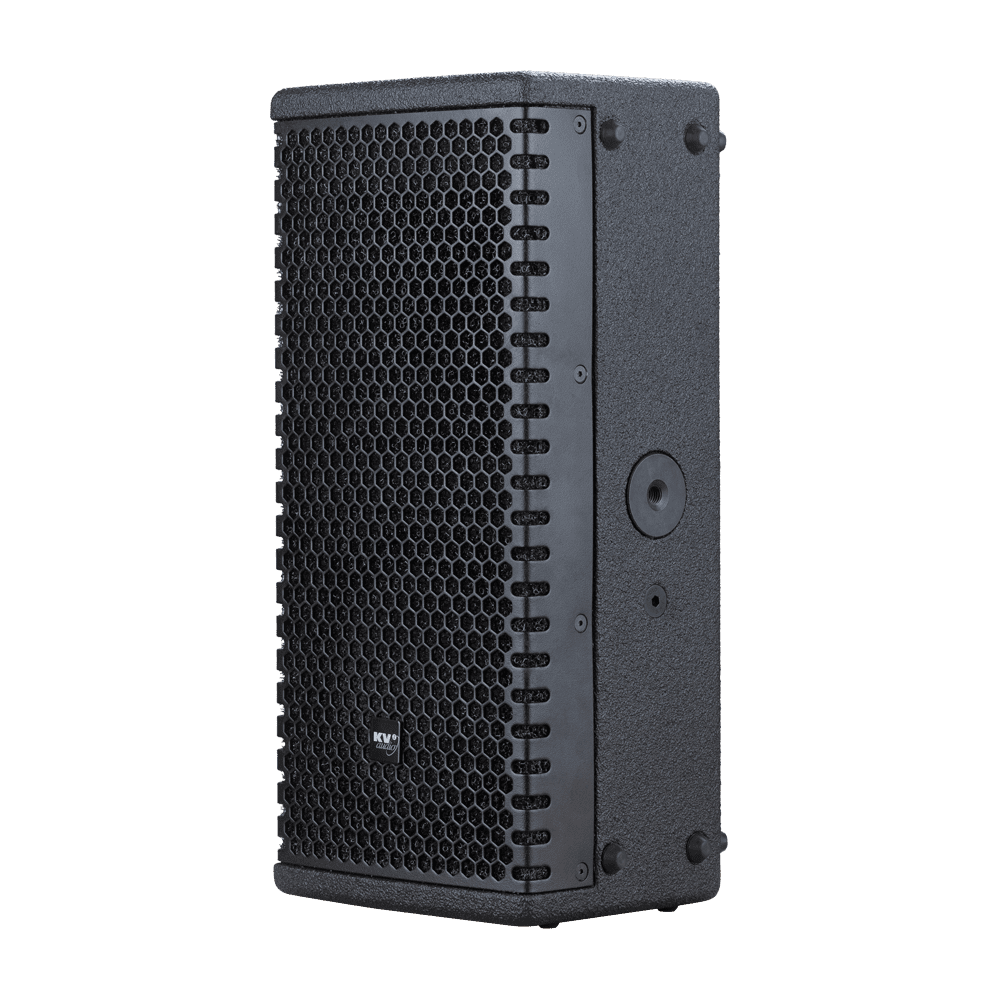

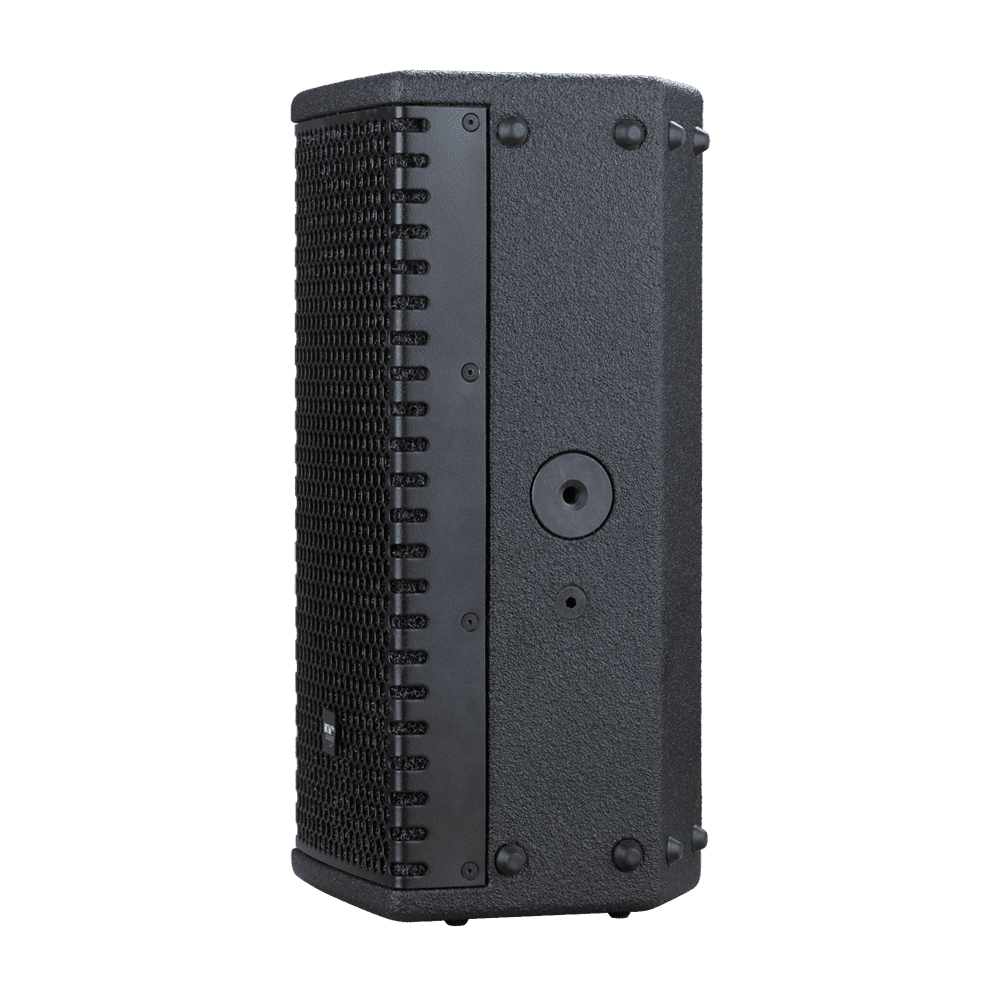

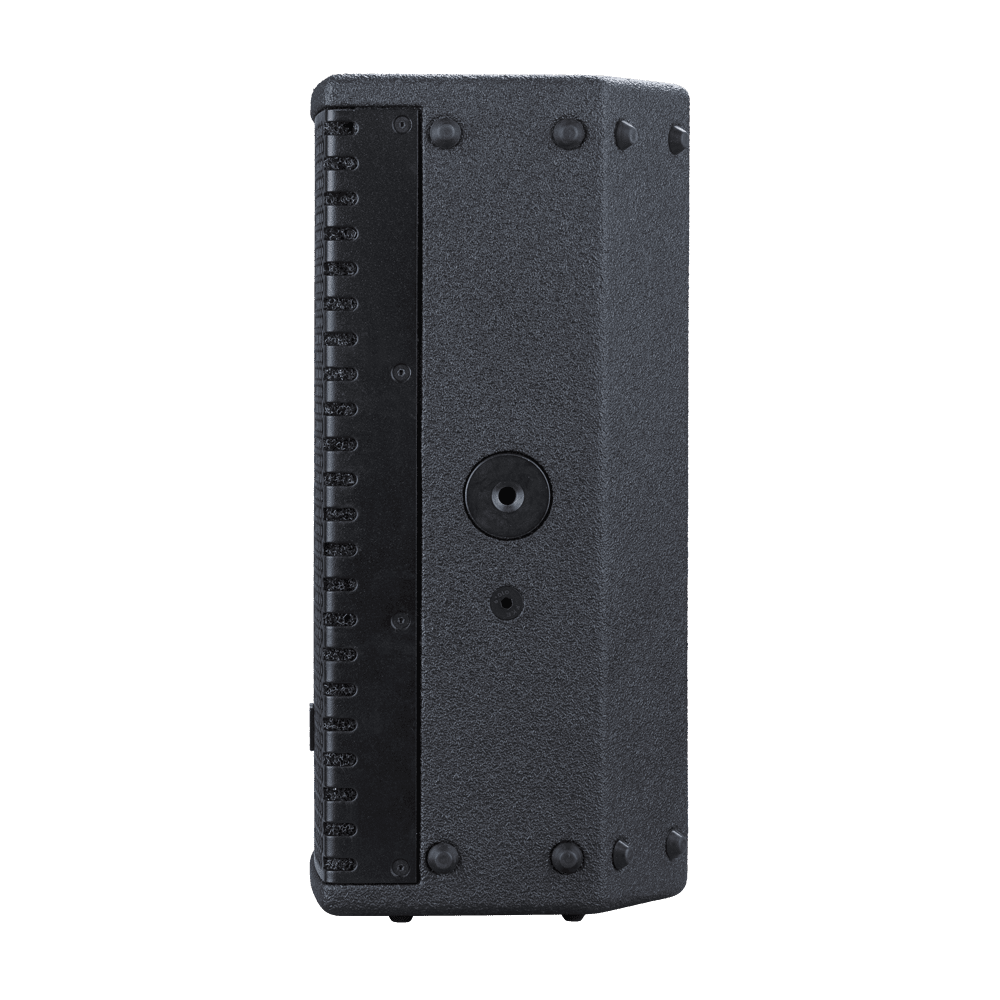

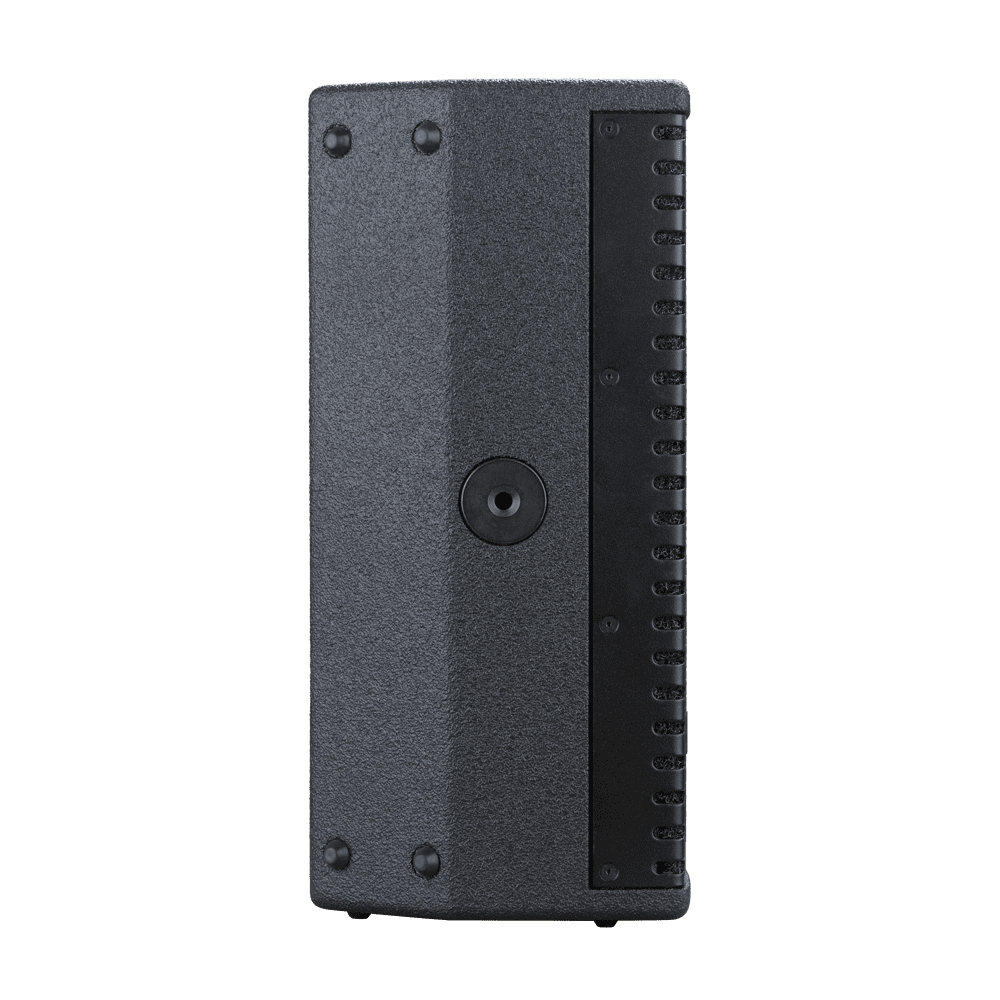

The CS6 is a compact high quality 2-way passive speaker designed to present exceptional speech clarity from a conservative low profile Baltic Birch enclosure. Finished in KV2’s rugged touring paint finish the CS6 can be quickly and easily stand mounted or suspended using the extensive range of CS attachments and brackets. The angled cabinet design allows for deployment as a micro monitor, whilst equally at home in fixed installations where discreet solutions are required.

Applications

Purpose designed as a discreet portable passive loudspeaker for speech for Rental and Production companies

  • Corporate presentations and functions
  • Full range performance with addition of subwoofers
  • Infills
  • Close monitoring
  • Fixed installations

Product code

KVV 987 434



    Consultar precios

    Descripción

    The CS6 is a compact high quality 2-way passive speaker designed to present exceptional speech clarity from a conservative low profile Baltic Birch enclosure. Finished in KV2’s rugged touring paint finish the CS6 can be quickly and easily stand mounted or suspended using the extensive range of CS attachments and brackets. The angled cabinet design allows for deployment as a micro monitor, whilst equally at home in fixed installations where discreet solutions are required.

    Features

    • Professional Baltic birch construction with unique angles for flexible use
    • Extremely hard-wearing textured plastic paint
    • Compact enclosure allows discreet placement and application
    • Wide dispersion 90 H x 90 V Horn
    • KV2 Audio SLA technology passive crossover inc. thermal breaker protection
    • 1”/ 1.3”Titanium diaphragm compression driver
    • 6” Neodymium low mid woofer
    • Fixing points for comprehensive attachments


    YouTube thumbnailYouTube icon

    Applications

    Purpose designed as a discreet portable passive loudspeaker for speech for Rental and Production companies

    • Corporate presentations and functions
    • Full range performance with addition of subwoofers
    • Infills
    • Close monitoring
    • Fixed installations

    Product code

    KVV 987 434



    Accesories


    2 Channel Adapter Cable

    Gallery

    Product code

    KVV 987 450



    Description

    – 2 channel adapter cable



    Angle-set attachment

    Gallery

    Product code

    KVV 987 451



    Description

    – angle-set attachment
    – quick pin



    CS6 Horizontal Bracket

    Gallery

    Product code

    KVV 987 435



    Description

    – black
    – including two connection bolts and bracket



    CS6 Vertical Bracket

    Gallery

    Product code

    KVV 987 436



    Description

    – black
    – including two connection bolts and bracket



    System Acoustic Performance

    Max SPL Long-term 118dB
    Max SPL Peak 124dB
    -3dB Response 145 Hz – 20 kHz (voice bandwidth)
    -10dB Response 90 Hz – 28 kHz (voice bandwidth)
    Recommended Power 175 W
    Sensitivity 93 dB
    Impedance 8 Ω
    Crossover Point 4,2 kHz

    High Frequency Section

    Acoustic Design Horn loaded
    Horn Coverage Horizontal / Vertical 90° x 90°
    Rotatable Horn Symmetric
    Throat Exit Diameter / Diaphragm Size 1“/1,3“
    Diaphragm Material Titanium
    Magnet Type Ferrite
    Protection Thermal breaker – autoreset

    Low Frequency Section

    Acoustic Design Closed box
    Number of Drivers 1
    Woofer Size / Voice Coil Diameter 6″ / 1.75″
    Magnet Type Neodymium
    Diaphragm Material Epoxy reinforced cellulose
    Protection Thermal breaker – autoreset

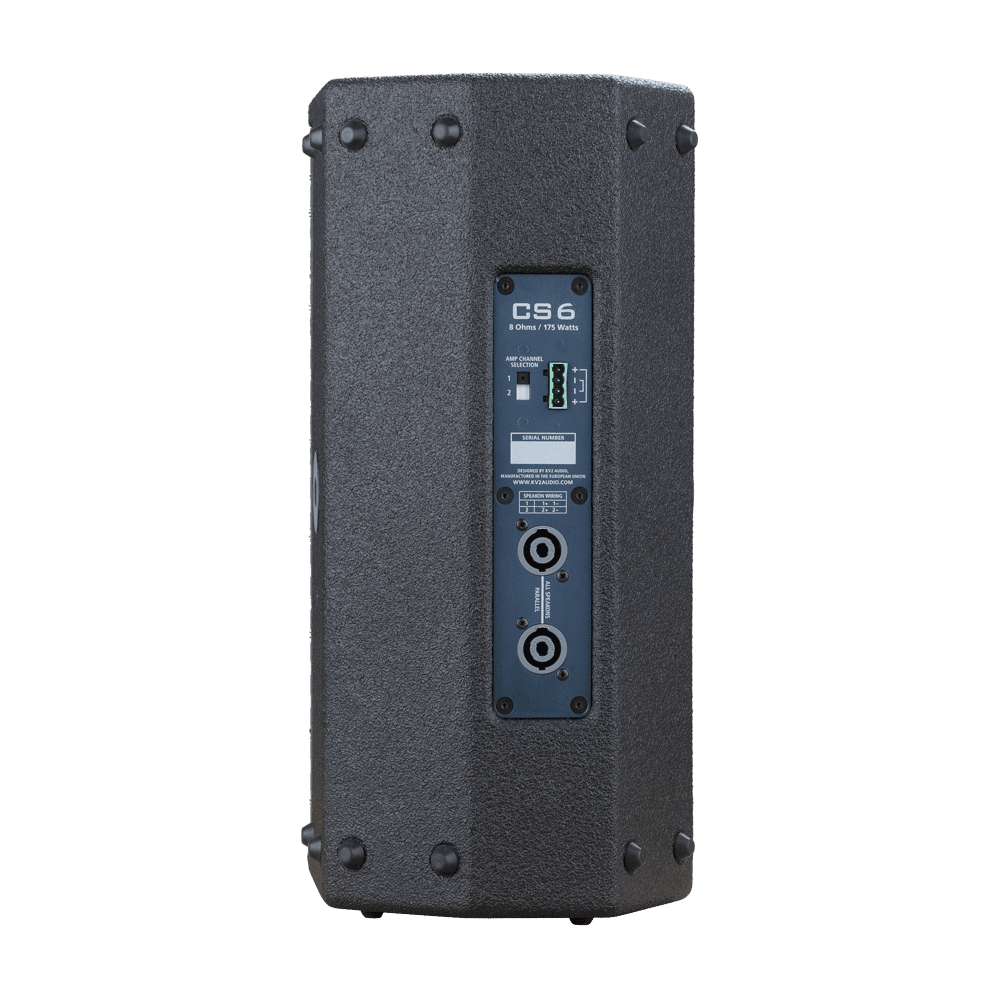

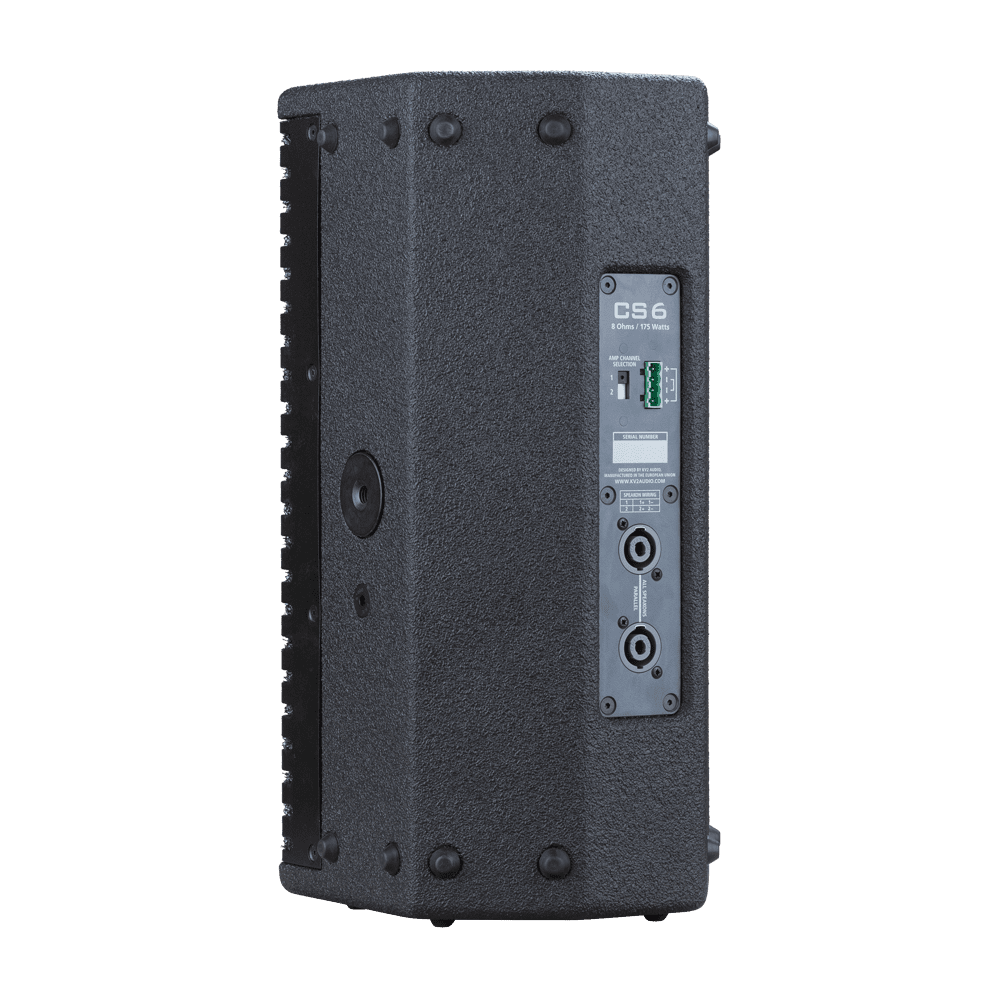

    Speaker Input

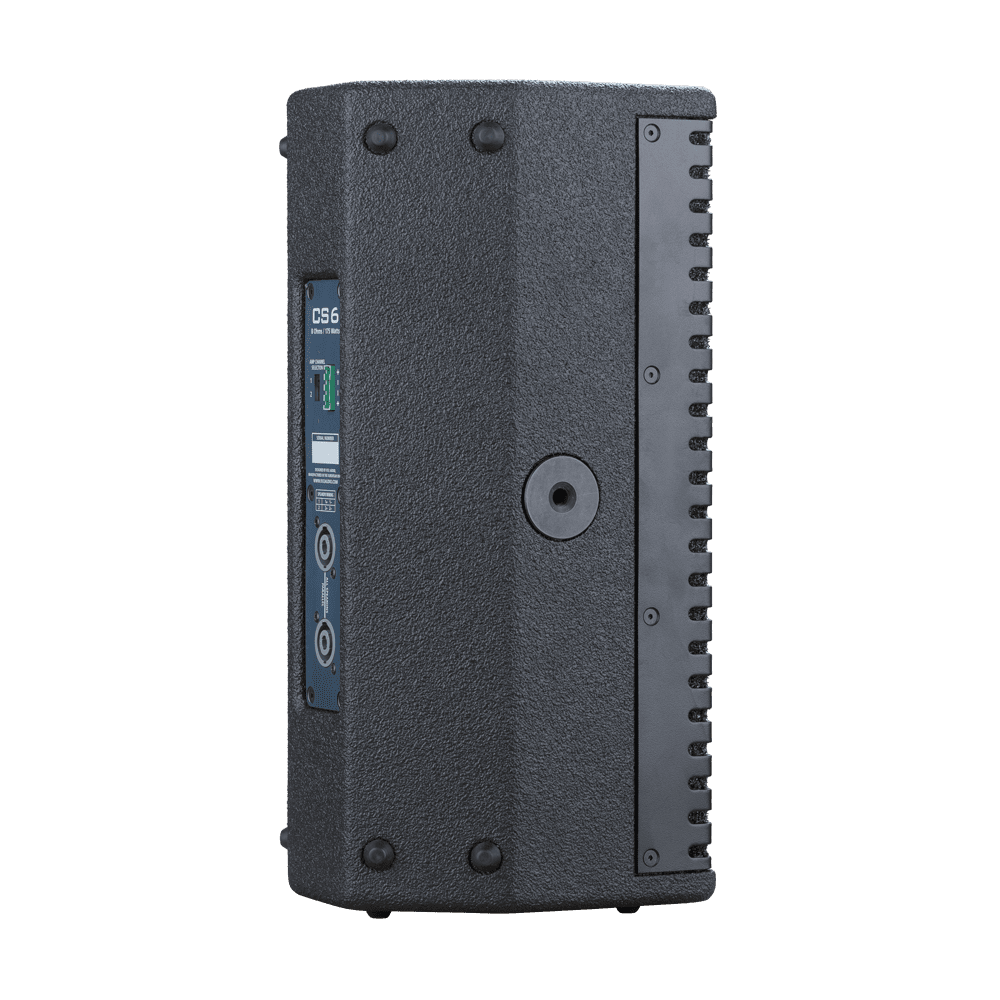

    Speaker Input 4x Neutrik Speakon, Terminal block

    Cabinet

    Cabinet Material Baltic birch
    Color Black (wear resistant polymer coating)

    Physical Dimensions

    Height 400 mm (15.75″)
    Width 185 mm (7.28″)
    Depth 182 mm (7.17″)
    Weight 8,3 kg (18.30 lbs)


    Product code

    KVV 987 434
