COMPEX – Dynamic Harmonics Control

KV2AUDIO
SKU: COMPEX

The Compex is a Stereo Analog Dynamic Control unit designed to optimise performance of poor quality recordings for playback at high volume levels. It features an optical audio compressor and very high quality harmonics expander and true remote bypass feature.

Applications

Designed as a tool to optimise recordings for playback at high volume levels

  • Fixed Installations
  • Disco clubs
  • Use with any KV2 Audio system

Product code

  • KVV 987 289 – COMPEX 230V
  • KVV 987 288 – COMPEX 115V


    Consultar precios

    Descripción

    The Compex is a Stereo Analog Dynamic Control unit designed to optimise performance of poor quality recordings for playback at high volume levels. It features an optical audio compressor and very high quality harmonics expander and true remote bypass feature.

    Features

    • 1U 19″ rack Analog Dynamic processor
    • High quality opto-compressor with level dependent filter
    • Compressor reduction bargraph level meter
    • High quality harmonics expander
    • Harmonics bargraph level meters
    • Output bargraph level meters
    • True remote bypass feature
    • XLR balanced inputs and outputs with Line Drivers


    YouTube thumbnailYouTube icon

    Applications

    Designed as a tool to optimise recordings for playback at high volume levels

    • Fixed Installations
    • Disco clubs
    • Use with any KV2 Audio system

    Product code

    • KVV 987 289 – COMPEX 230V
    • KVV 987 288 – COMPEX 115V


    System Acoustic Performance

    -3dB Response 20Hz to 100kHz
    Dynamic Range >130dB
    Channel Crosstalk 90dB
    Signal to Noise Ratio 110dB
    Total Harmonic Distortion 0,001%

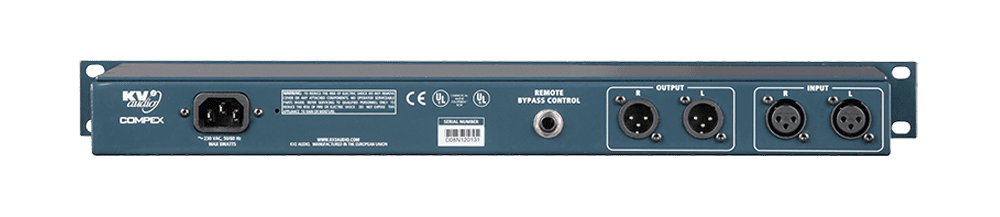

    Signal Input

    Input Channels 2
    Input Impedance 20kΩ (balanced)
    Line input XLR

    Signal Output

    Signal Output Channels 2
    Output Impedance 50Ω
    Through Signal Output XLR

    Features

    Input Level Control -10 / +10dB
    System setup Bypass (remote controlled)
    Harmonics Drive, 0 to 10
    Equalization Level dependent
    Indicators 2x 2 Level LED bar graphs

    Compressor

    Threshold ∞ to -20dB
    Ratio 1:3
    Indicactors 1x LED bar graphs

    Harmonics

    Range 0 to 10

    Power Requirements

    Power Connector IEC 320
    Operating Voltage 115V / 230V
    Operating Voltage Range 90 to 130V@60Hz | 180 to 260V@50Hz

    Physical Dimensions

    Height 44 mm (1.7″)
    Width 482.6 mm (19.0″)
    Depth 198 mm (7.8″)
    Weight 2.7 kg (5.96lbs)


    Product code

    • KVV 987 289 – COMPEX 230V
    • KVV 987 288 – COMPEX 115V

    PDF

    COMPEX User Guide

    – COMPEX User Guide – English



    PDF

    COMPEX Technical Data Sheet

    Download Product’s Data Sheet


    PDF

    COMPEX – 2D

    COMPEX 2D Drawings



    DWG

    COMPEX – 3D

    1:1 scale – clamping points – weight – dwg file
