SKU: PANEL 3612-new

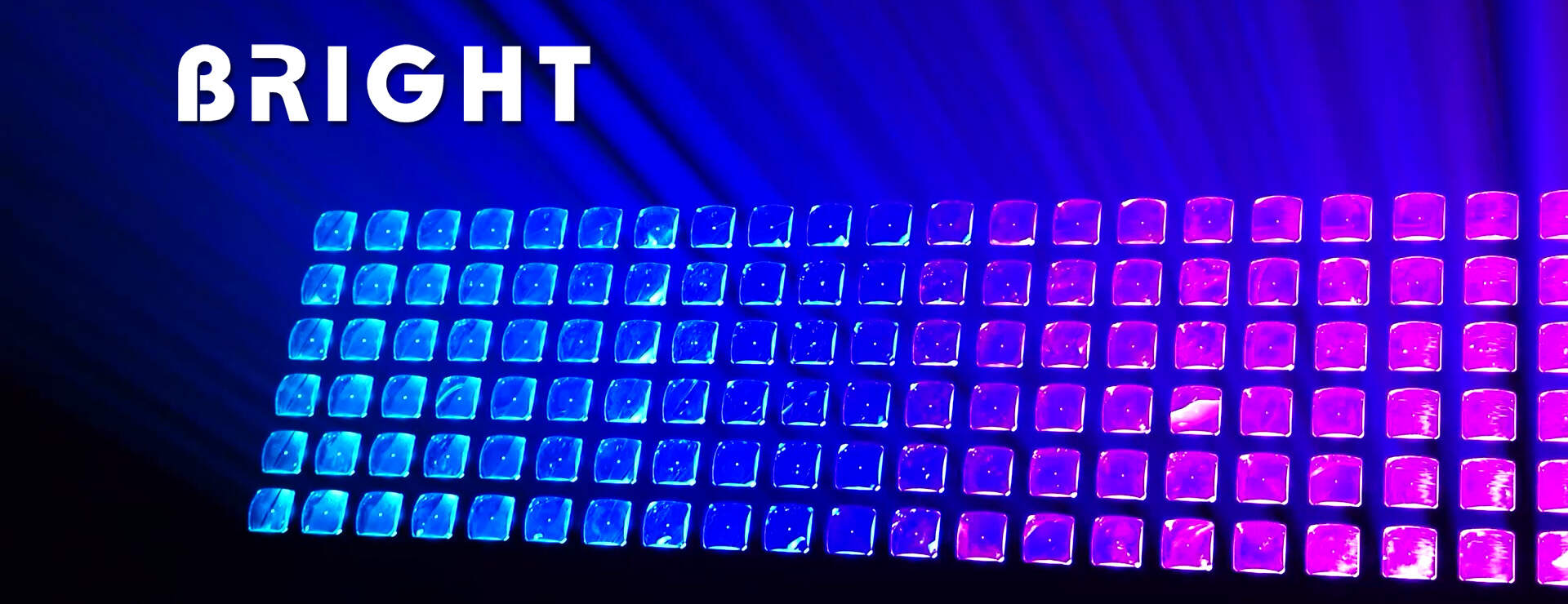

BRIGHT is an LED full-color panel with powerful pixel controlled beam, at a standard size 500x500mm. It features new improved LEDs, unique square large-size lens that helps to deliver boosted output. A narrow beam angle at 2°, emits high intensity beam. It goes beyond traditional LED panel design.

36pcs x 12W full color RGBW, offers strong output color effects, plus individual LED control, adding an element for lighting designer. Colorful lighting effect and various strobe speed creates incredible background effects. BRIGHT is easy to link, allowing to build an amazing effect wall that bring much creativity to the users.

Thanks to the sealed housing design, it is able to prevent dust and liquid from entering the interior of the light, and this could extend the light life time and save maintenance cost. Additionally, the design of the omega clamps and panel ports are convenient for multi-angle hanging.



BRIGHT is ideal for bars, dance halls, clubs and other entertainment venues.

    Consultar precios

    Descripción

    Performance

    Light Source

    36X12W RGBW LED

    Total Lumen Output of Fixture

    1,200 lumens

    Beam Angle

    Weight

    12.6 kg (27.7 lbs)



    Technical & Specification

    Model

    • Model Name: BRIGHT
    • Model Code: PANEL 3612

    Light Source

    • Light Source: 36X12W RGBW LED
    • Total Lumen Output of Fixture: 1,200 lumens

    Optical System

    • Beam Angle : 2°

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 6
    • Control Channels: 4/11/17/44/144/147
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • LED can be controlled individually
    • Compact size and light weight

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 155W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 500 mm (19.6″)
      • Depth: 104 mm (4.1″)
      • Height: 500 mm (19.6″)
      • Weight: 12.6 kg (27.7 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 575 mm (22.6″)
      • Depth : 250 mm (9.8″)
      • Height : 595 mm (23.4″)
      • Weight :
        G.W.: 15 kg (33.0 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 56°C
    • Protection Rating: IP20

    Installation

    • Horizontally or vertically mounting are available
    • 1 or 2 clamps for 50 millimeter truss can be installed on each connection plate
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • 1 x connection plate
    • 1 or 2 clamps for 50 millimeter truss can be installed on each connection plate

    Optional Accessories (With Order Code)

    • Clamp : C-100A (2060001635)
    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable
    • Connection Plate: 50146500401100



    Dimensions

    Photometrics











    Beam Angle
