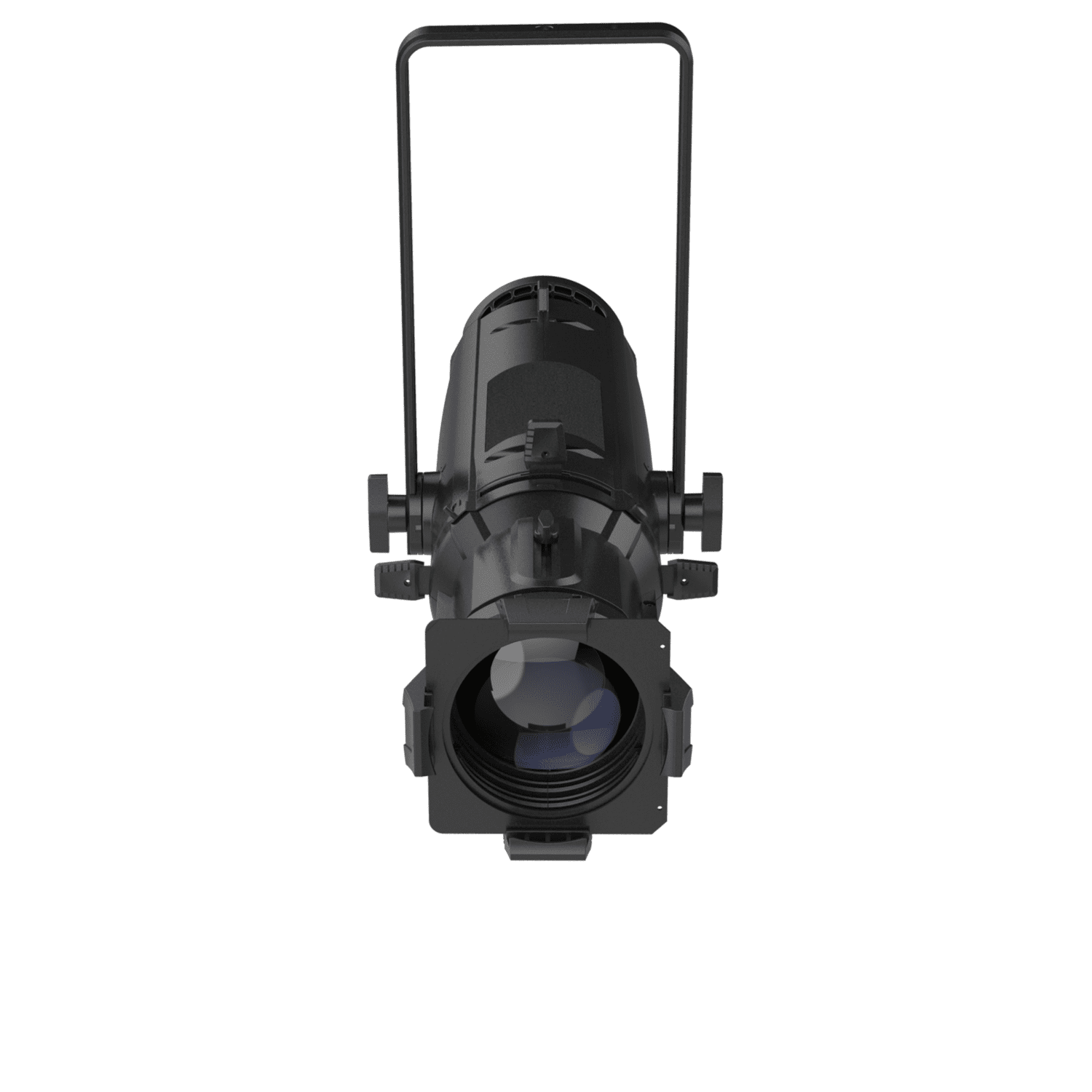

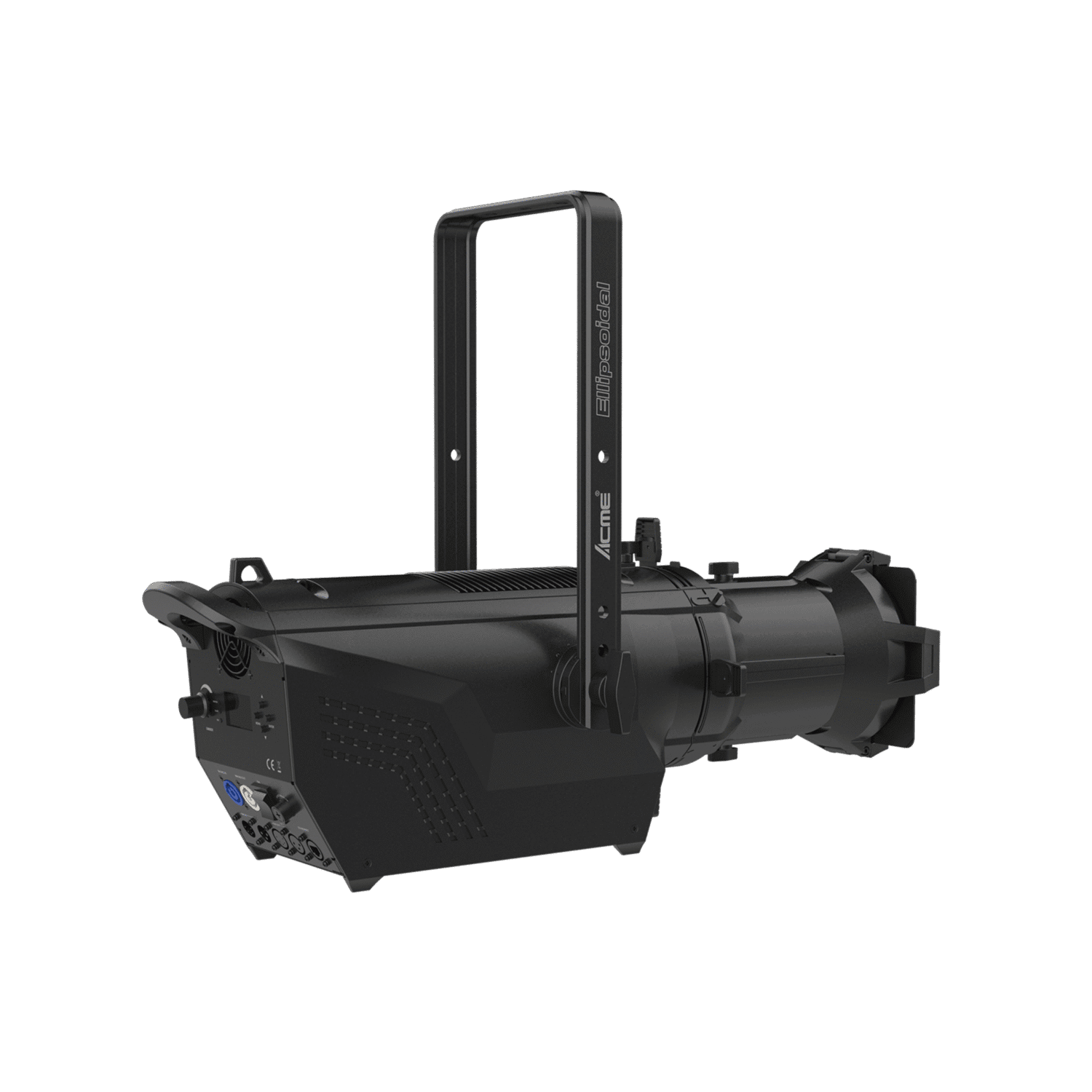

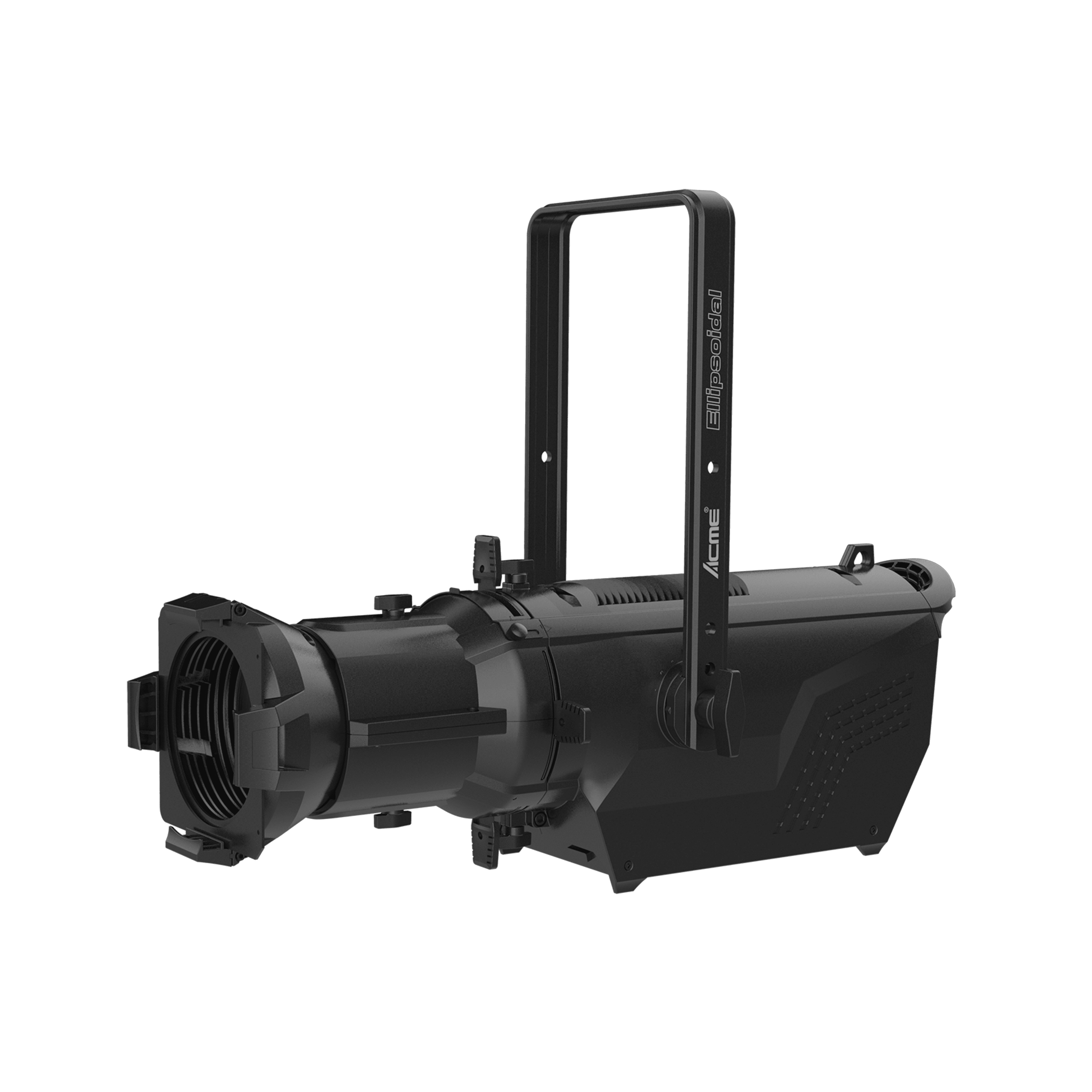

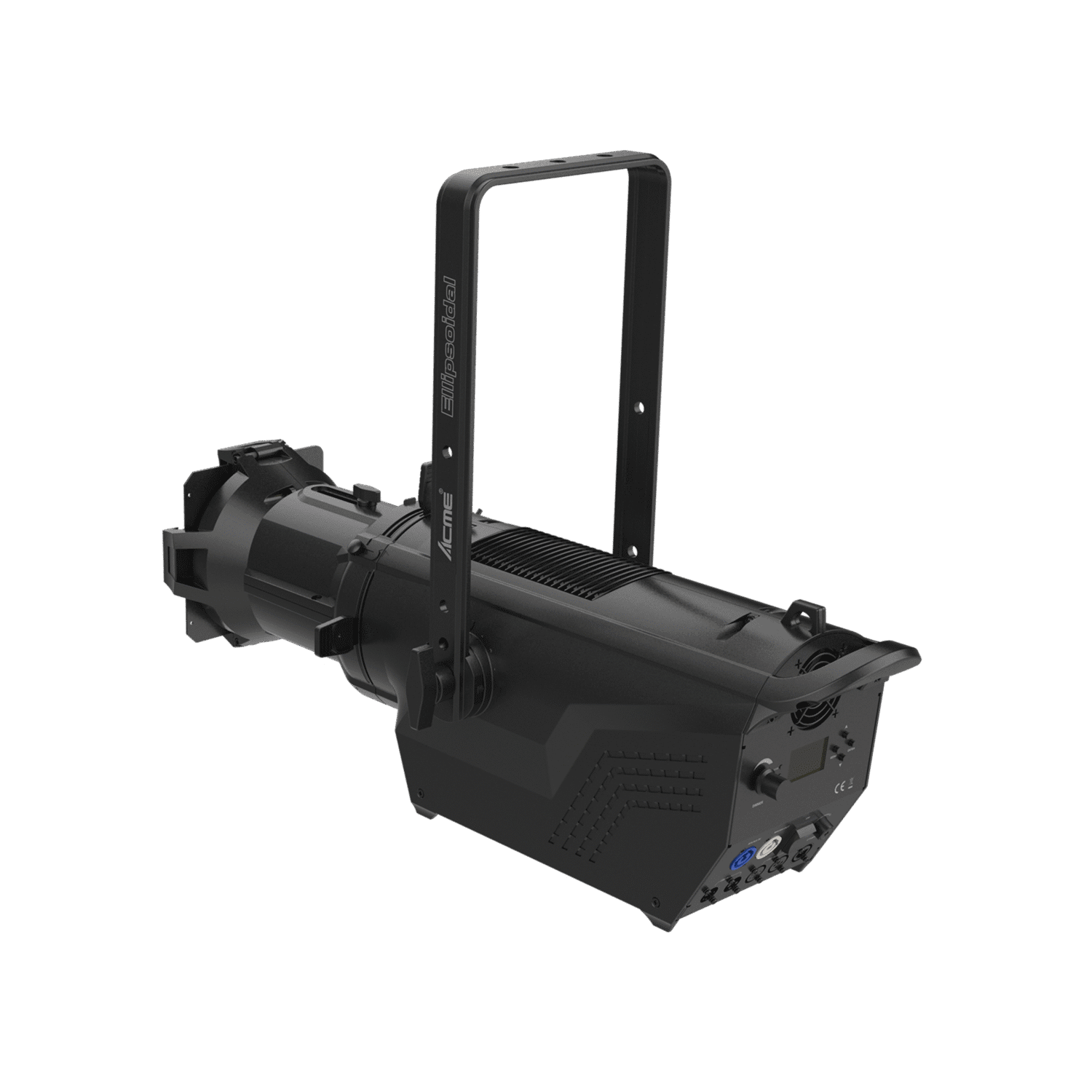

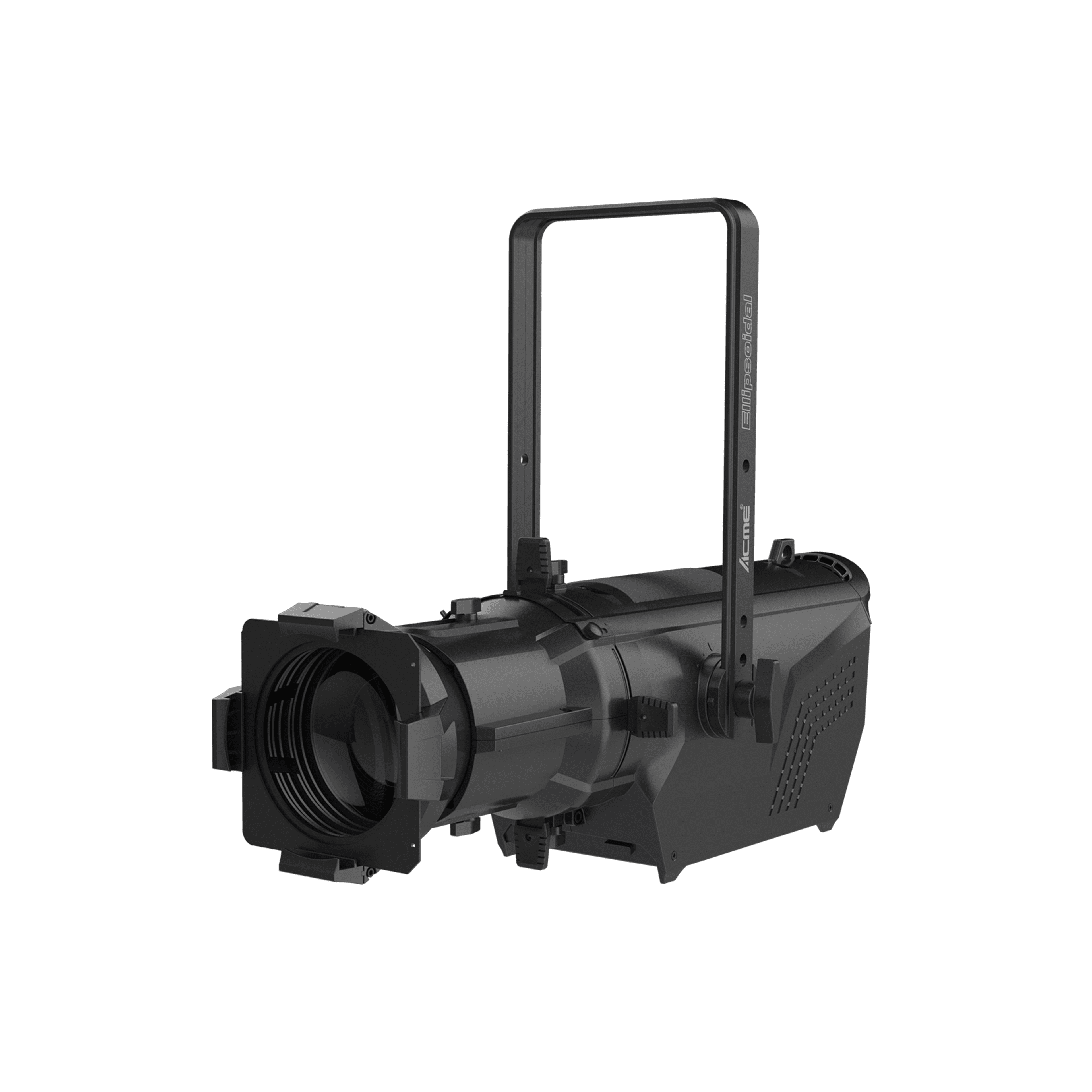

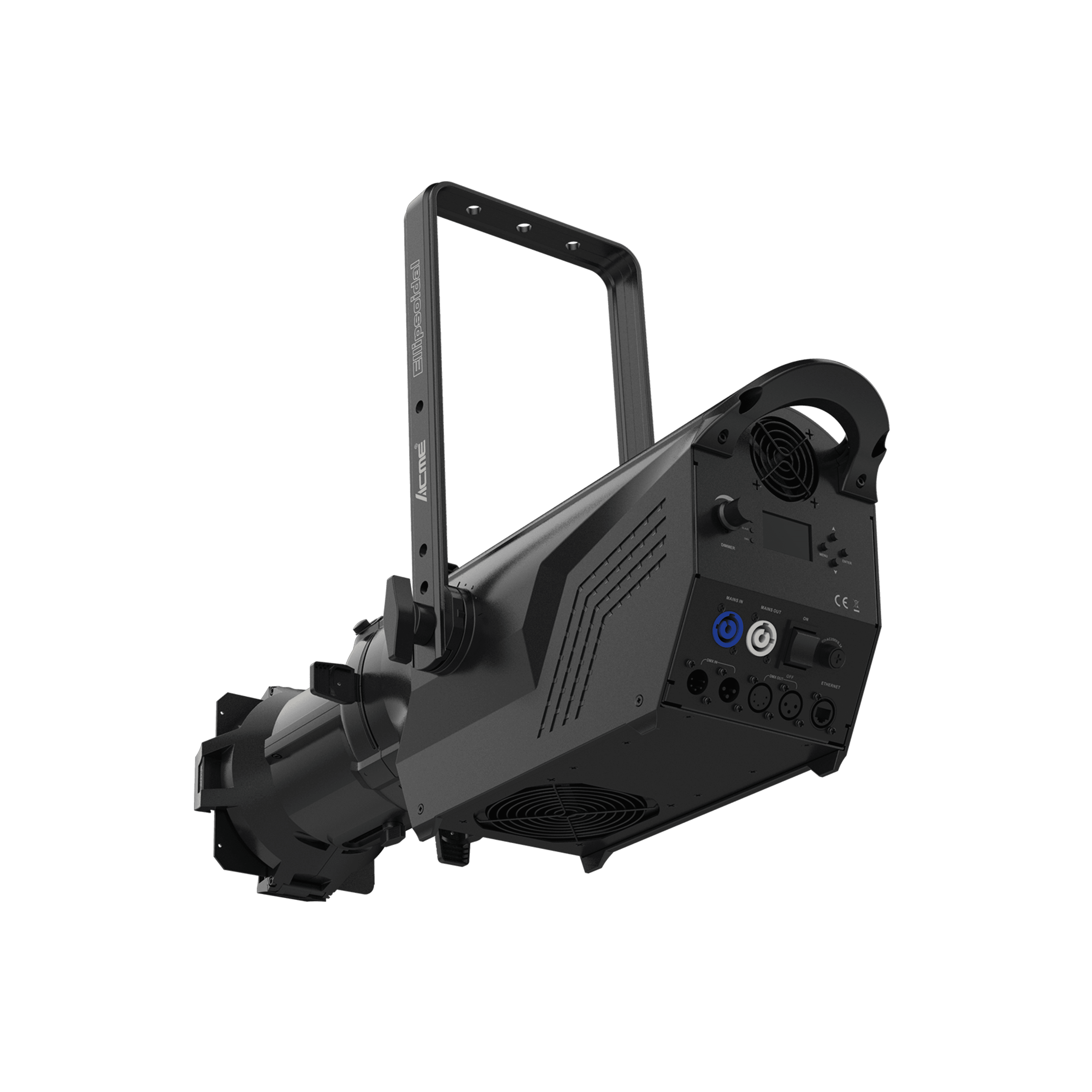

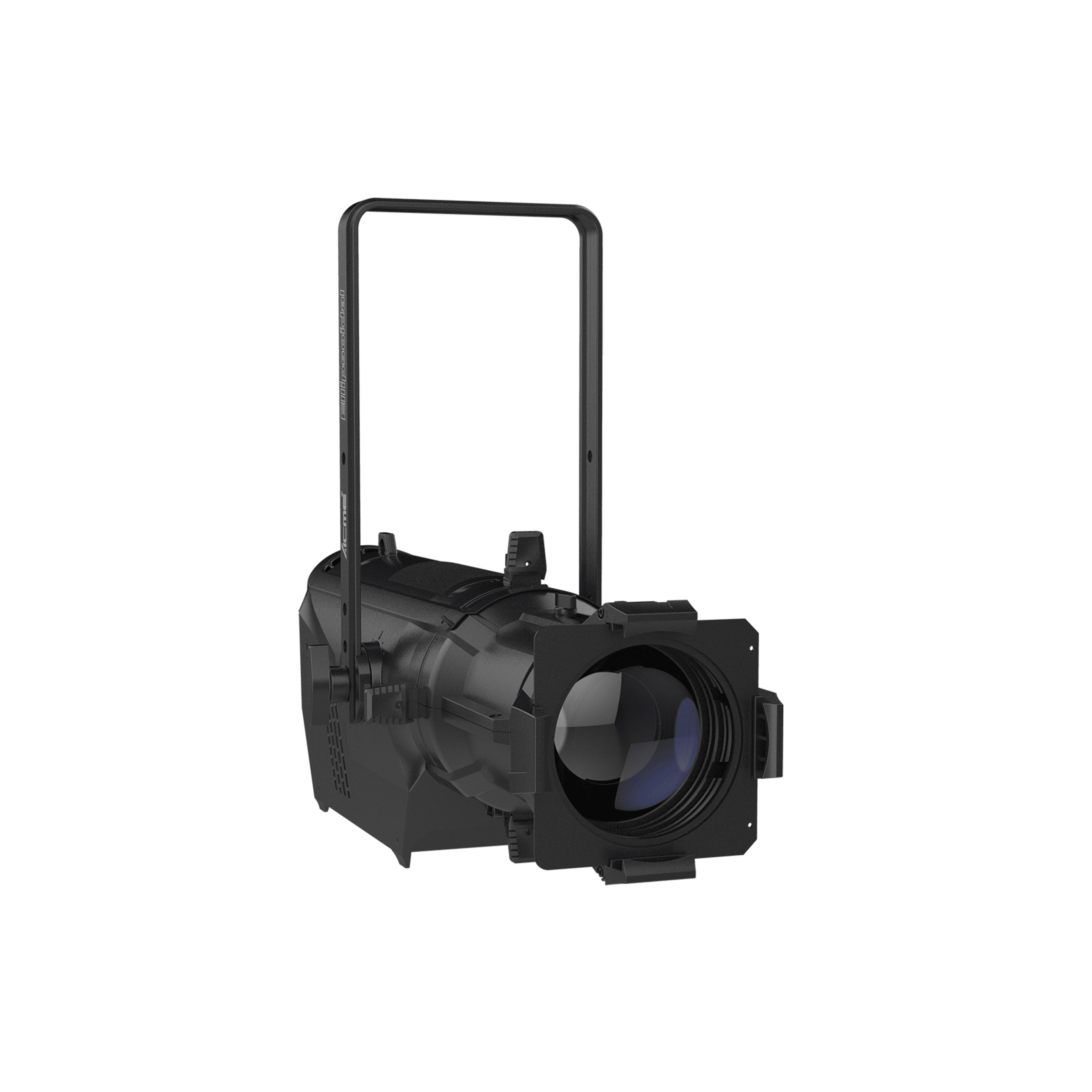

ELLIPSOIDAL 300 CW

The ELLIPSOIDAL 300 Series delivers uniform beams, perfect for theatre and broadcasting. It features standard beam shaping shutters & a gobo slot, multiple lens options, and two framing modules for precision control across various beam angles. With smooth dimming 0-100%, outstanding strobe and gradient effects, the fixture ensures creative versatility. Its low noise operation (<25dB @1m) and advanced thermal design for a long LED lifespan, make it a reliable and quiet lighting solution.

    Consultar precios

    Descripción

    Performance

    Light Source

    1 x 280W Cool White LED

    LED Life Expectancy

    20,000 hours

    Color Rendering

    CRI≥85, CQS≥88, TLCI≥90

    Weight

    10 kg (22.1 lbs)



    Technical & Specification

    Model

    • Model Name: ELLIPSOIDAL 300 CW
    • Model Code: E-300 CW

    Light Source

    • Light Source: 1 x 280W Cool White LED
    • Color Temperature Output of Fixture: 5,600±200K

    Optical System

    • Color Rendering: CRI≥85, CQS≥88, TLCI≥90

    Control

    • Display: LCD display
    • Operational Modes: DMX Control,Manual Control
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 2
    • Control Channels: 1/2
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Excellent smooth light output
    • Standard beam shaping shutters & a gobo slot
    • Lens Options:5°/11°/14°/19°/26°/36°/50°/70°
    • Framing module 1: for beam angle 5°/11°/14°/19°/26°
    • Framing module 2: for beam angle 36°/ 50°/70°

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 335W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 276 mm (10.9″)
      • Depth: 712 mm (28″)
      • Height: 524 mm (20.6″)
      • Weight: 10 kg (22.1 lbs)

    Work Environment

    • Protection Rating: IP20

    Approvals

    • CE compliant

    Optional Accessories (With Order Code)

    • Signal Cable: 3-pin or 5-pin signal cable



    Dimensions
