TV LIGHT PANEL 1000 VW

TV LIGHT PANEL 1000 series features outstanding floodlight and soft light, can be widely applied to photographic studio, TV station, conference room, shopping mall; Battery backup for user operation without connecting to the mains.

    Consultar precios

    Descripción

    Performance

    Light Source

    240pcs CW LED+240pcs WW LED

    LED Life Expectancy

    20,000 hours

    Variable CTO

    3,200K±150K~5,600K±250K

    Color Rendering

    CRI:≥94, CQS:≥94, TLCI:≥95

    Beam Angle

    113°

    Field Angle

    156°

    Weight

    8.0 kg (17.6 lbs)



    Technical & Specification

    Model

    • Model Name: TV LIGHT PANEL 1000 VW
    • Model Code: LP-F1000 VW

    Light Source

    • Light Source : 240pcs CW LED + 240pcs WW LED
    • Color Temperature Output of Fixture: 3,200±150K~5,600±250K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 113°
    • Field Angle : 156°
    • Color Rendering: CRI:≥94, CQS:≥94, TLCI:≥95

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM,Art-Net
    • DMX Protocol Modes: 6
    • Control Channels: 2/3A/3B/4/5/6
    • Firmware Upgrade: Upgrade via DMX link
    • 2-knobs

    Other Effects

    • Flicker-free management

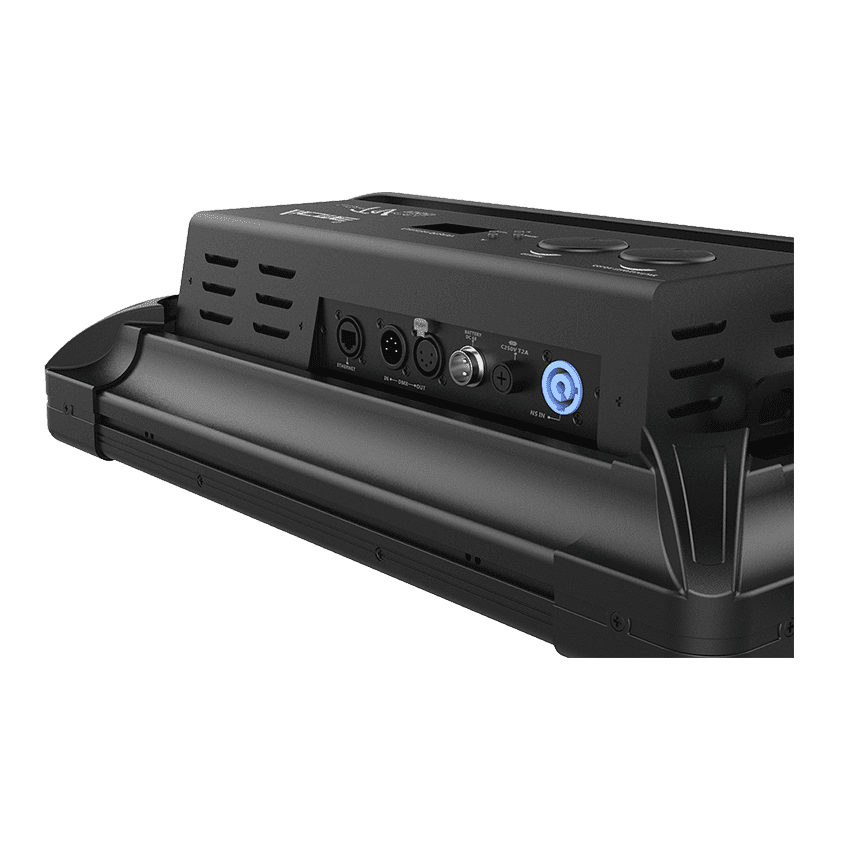

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 100W
    • Power In/Out: Power connector in
    • Data In/Out: 3-pin or 5-pin XLR,RJ45 connector
    • 48V input from external battery
    • Power supply with electronic auto-ranging

    Physical Information

    • Fixture Dimensions:
      • Width: 151 mm (5.9″)
      • Depth: 661 mm (26.0″)
      • Height: 301 mm (11.8″)
      • Weight: 8.0 kg (17.6 lbs)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • The feet support with 3 locking points
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • Barn door

    Optional Accessories (With Order Code)

    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable
    • Honeycomb Grid: 20mm thick (63580911), 10mm thick (63580910)



    Dimensions
