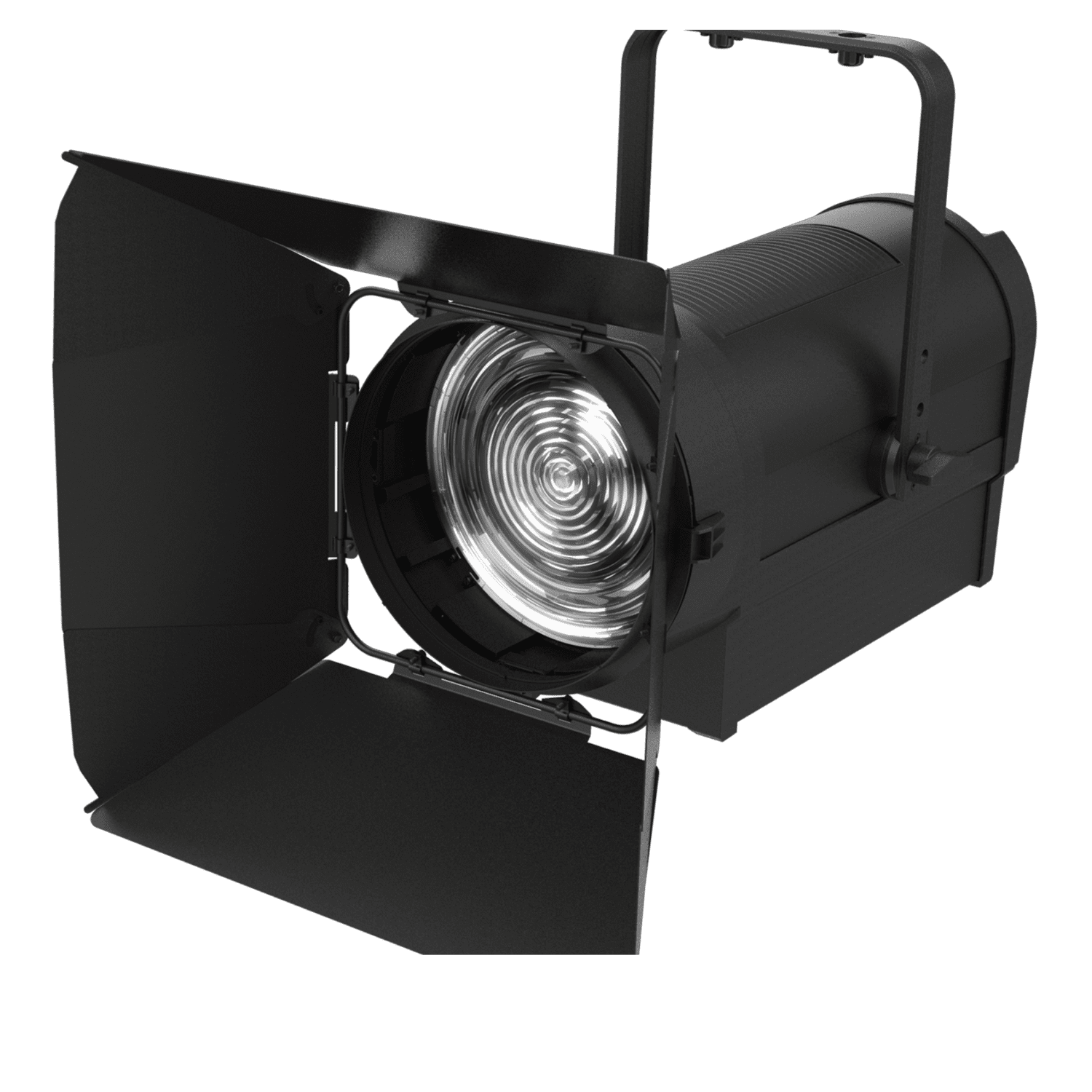

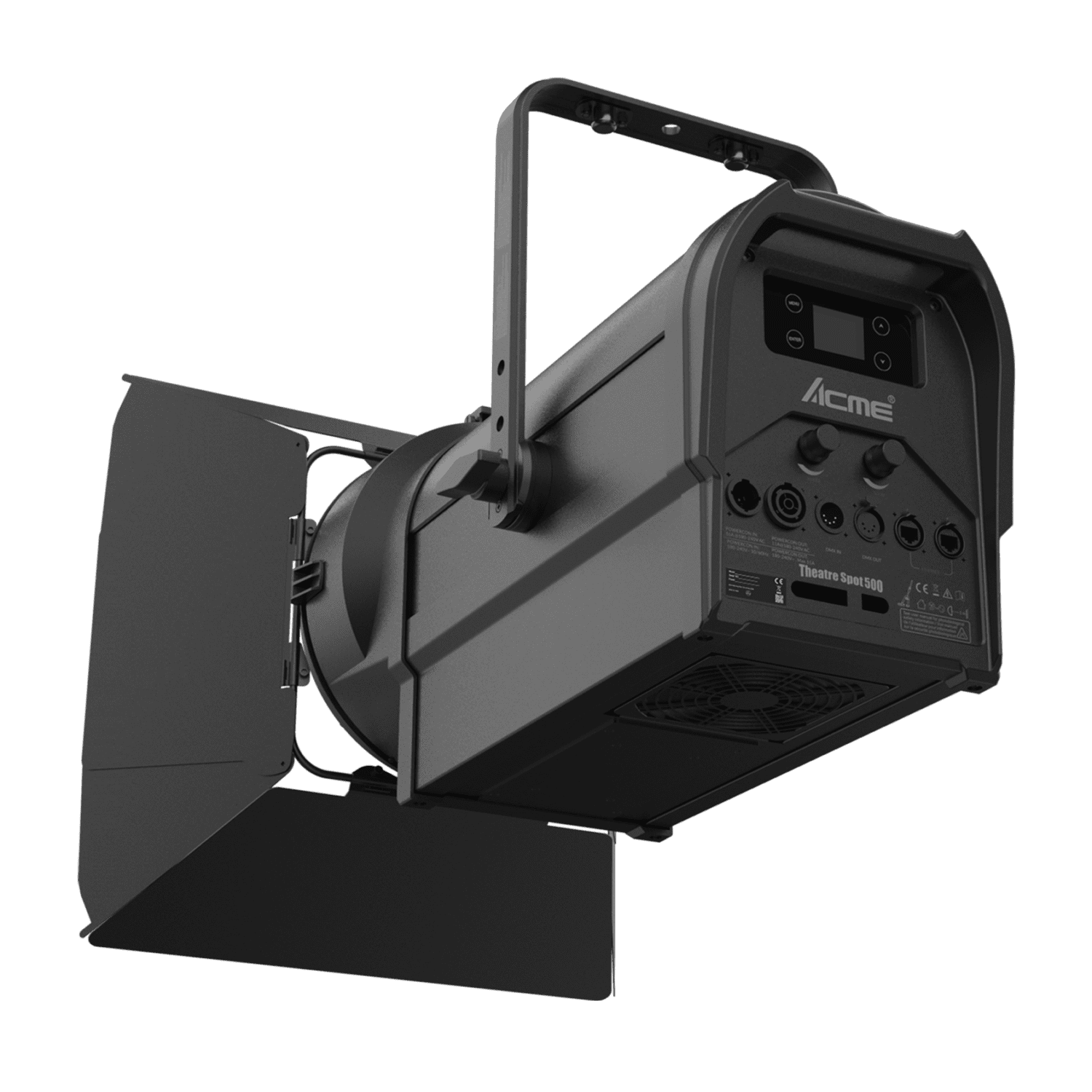

THEATRE SPOT 500 CW, a new high-CRI spot light with light weight and low noise,boasts a powerful 450-Watt CW LED engine calibrated at 5,600K that delivers a 34,000 lumens output with a 250 mm frontal lens.

The fixture features a high-effciency optical system delivering a 5.5:1 zoom ratio with a zoom range of 14° to 74°. With a built-in fan, the heat dissipation in silent operation is significantly improved. Its patented hanger design prevents changes in the illumination angle from unexpected movements.



Equipped with flicker-free operation, a rotatable barndoor, and low noise design , the THEATRE SPOT 500 CW is suitable for various applications such as exhibitions, theaters, broadcasts, and film shooting, ensuring perfect illumination.

    Consultar precios

    Descripción

    Performance

    Light Source

    450W CW LED engine

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    34,000 lumens

    Color Rendering

    HCRI: Ra > 96

    Zoom Range

    14° – 74°

    Diameter of Frontal Lens

    250 mm

    Weight

    13.2 kg (29.2 lbs)



    Model

    • Model Name: THEATRE SPOT 500 CW
    • Model Code: TS 500 CW

    Light Source

    • Light Source: 450W CW LED engine
    • Total Lumen Output of Fixture: 34,000 lumens
    • Color Temperature Output of Fixture: 5,600K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 14°-74°
    • Zoom Ratio : 5.3 : 1
    • HCRI Mode: Ra>96
    • Diameter of Frontal Lens: 250 mm

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Operational Modes: DMX Control,Manual Control
    • Protocols: DMX512,RDM,Art-Net,sACN
    • DMX Protocol Modes: 2
    • Control Channels: 4/6
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized zoom
    • Manually adjust frost, focus, zoom and iris
    • Low noise under 33.9dB@1m
    • Flicker free management under 4K/8K camera
    • Including rotatable barndoor
    • With color correction system to ensure consistent color output

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 460W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR,RJ45 connector

    Physical Information

    • Fixture Dimensions:
      • Width: 320 mm (12.6″)
      • Depth: 569 mm (22.4″)
      • Height: 462 mm (18.2″)
      • Weight: 13.2 kg (29.2 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 720 mm (28.3″)
      • Depth : 420 mm (16.5″)
      • Height : 540 mm (21.3″)
      • Weight :
        G.W.: 18.5 kg (40.8 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 55°C
    • Protection Rating: IP20

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • 1 omega bracket
    • Two locking points and one locking hole on the hanger
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • 1 omega barket(3002000238)
    • Barndoor

    Optional Accessories (With Order Code)

    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-05 (2060001603-A)
    • Signal Cable: 3-pin or 5-pin signal cable,RJ45



    Photometrics













    Descargas


    THEATRE SPOT 500 CW Descargas Enlace
