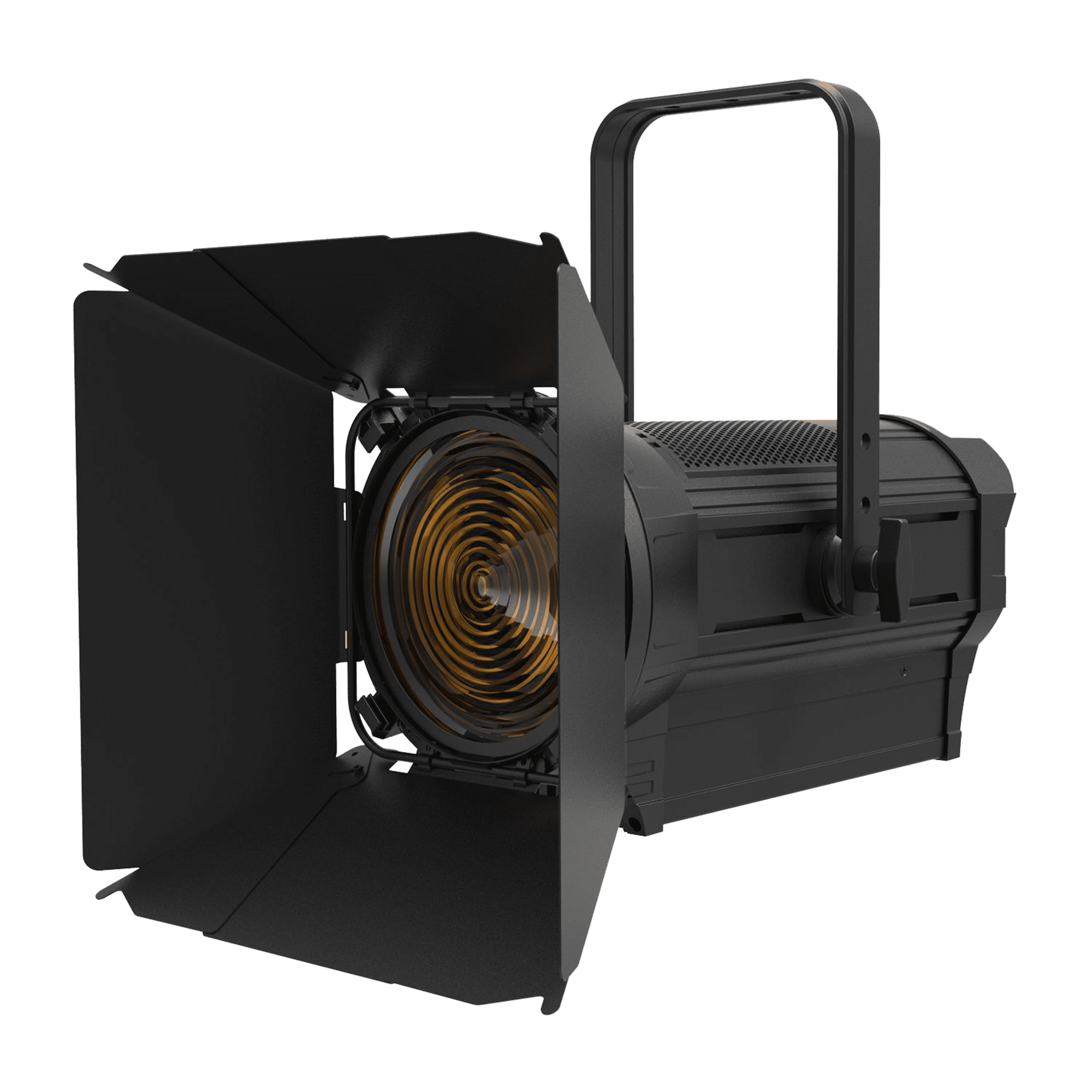

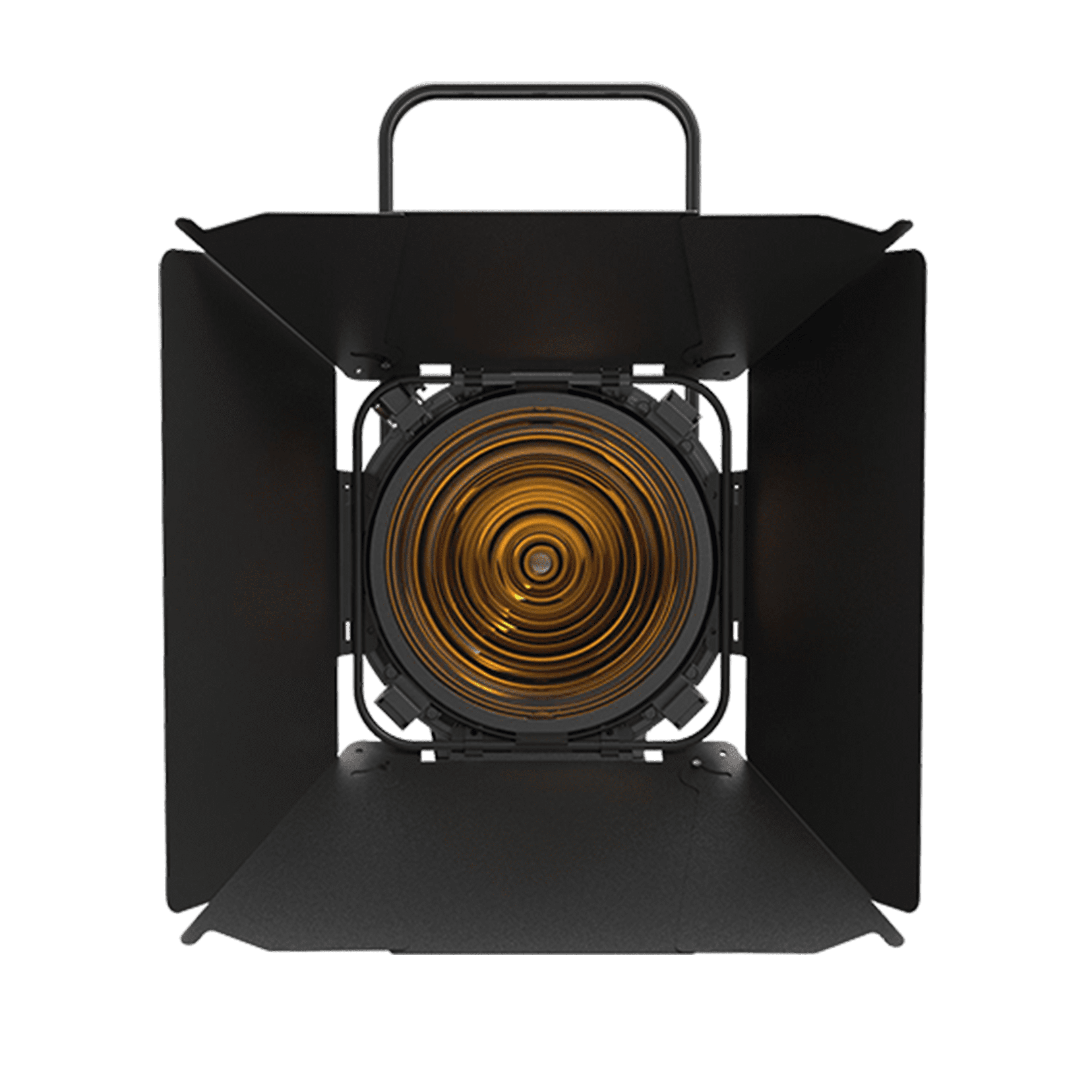

THEATRE SPOT 300 WW

The ACME THEATRE SPOT 300 WW is a powerful single-source LED luminaire featuring a 300W Warm White LED engine with a color temperature of 3,200K ± 200K. This fixture emits clear warm light with a CRI of 95 or higher, ensuring accurate color reproduction.

It offers a wide beam angle ranging from 15° to 53°, thanks to its high-efficiency zoom optical system with a 1:3.5 ratio. The design includes a special thermal convection loop combined with a top-brand cooling fan, allowing for better heat management and silent operation.

Equipped with a patented clamp structure, the Theatre Spot easily accommodates various installation setups, preventing any unexpected movement that could cause the light to go out of focus. Additionally, it ensures smooth fading performance with four variable dimming curves and two optional dimming speeds.

The fixture includes a flicker-free operation, rotating barn door, and rotating bracket, making it a versatile choice for numerous applications, including major shows, exhibitions, evening performances, dramas, and film shoots.

    Consultar precios

    Descripción

    Performance

    Light Source

    1 x 300W WW LED

    LED Life Expectancy

    20,000 hours

    Variable CTO

    3200±200K

    Color Rendering

    CRI≥95

    Zoom Range

    15° – 53°

    Weight

    10 kg (22.0 lbs)



    Technical & Specification

    Model

    • Model Name: THEATRE SPOT 300 WW
    • Model Code: TS-300 WW

    Light Source

    • Light Source: 1 x 300W WW LED
    • Color Temperature Output of Fixture: 3,200±200KK
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Zoom Range: 15°-53°
    • Zoom Ratio : 1 : 3.5
    • Color Rendering: CRI≥95, CQS≥94, TLCI≥97

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,Art-Net
    • DMX Protocol Modes: 2
    • Control Channels: 2,3
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Motorized focus system
    • Manually adjust dimmer
    • Flicker-free management
    • 4 dimming curves, 2 optional dimming speed
    • Low noise under 35dB within 1m
    • Rotating cover, rotating bracket with limiting function

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 400W
    • Power In/Out: Power connector in/out
    • Data In/Out: 3-pin or 5-pin XLR,RJ45 connector
    • Power supply with electronic auto-ranging

    Physical Information

    • Fixture Dimensions:
      • Width: 278 mm (10.9″)
      • Depth: 473 mm (18.6″)
      • Height: 264 mm (10.3″)
      • Weight: 10 kg (22.0 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,080 mm (42.5″)
      • Depth : 790 mm (31.1″)
      • Height : 815 mm (32.1″)
      • Weight :
        • Standard: G.W.: 134 kg (295.4 lbs) (Six-pack loader case)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP20

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • The feet support with 3 locking points
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • Barn door

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : Six-pack loader case (63581540)
    • Clamp : C-150B (2060001625-C)
    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable
    • Honeycomb Grid: 63580925
