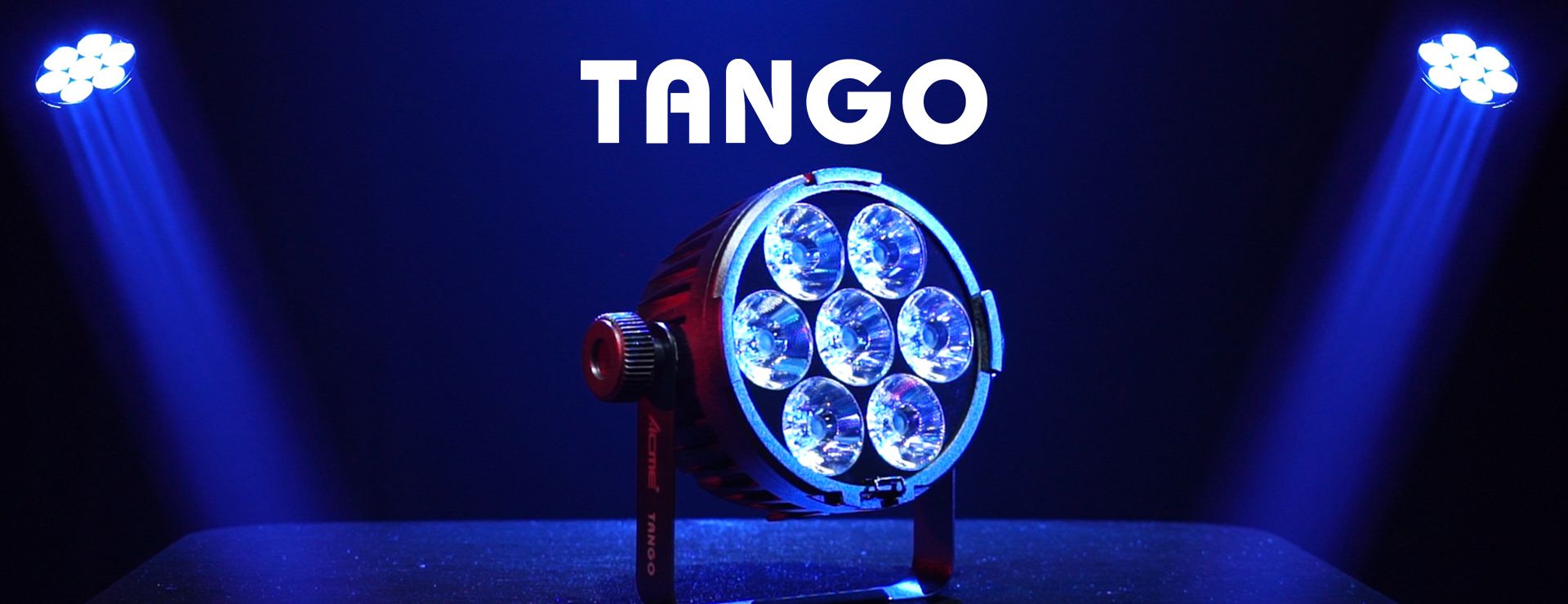

ACME TANGO. Equip with 7pcs 15W RGBW LED, the 2128lumens total output, tool-free buckle design, within a 2kg weighted light, Tango is the next choice to light up the bar, club, and other entertainment places. Especially when hanging many units onto the truss frame, it can highlight the contour of the entire stage, and also creates a large-scale and outstanding washing effect. Smooth color mixing, variable strobe speed, fixed sharp beam, and an optional color frame, all benefits are at hand for you to control. Let your stage be in TANGO.

    Consultar precios

    Descripción

    Performance

    Light Source

    7 x 15W RGBW LED

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    2,128 lumens

    Zoom Range

    6°

    Weight

    1.6 kg (3.6 lbs)



    Technical & Specification

    Model

    • Model Name: TANGO
    • Model Code: PAR 7

    Light Source

    • Light Source: 7 x 15W RGBW LED
    • Total Lumen Output of Fixture: 2,128 lumens
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 6°
    • Field Angle : 11°

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 4
    • Control Channels: 4/5/8/10
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Excellent RGBW color mixing
    • Compact and robust body

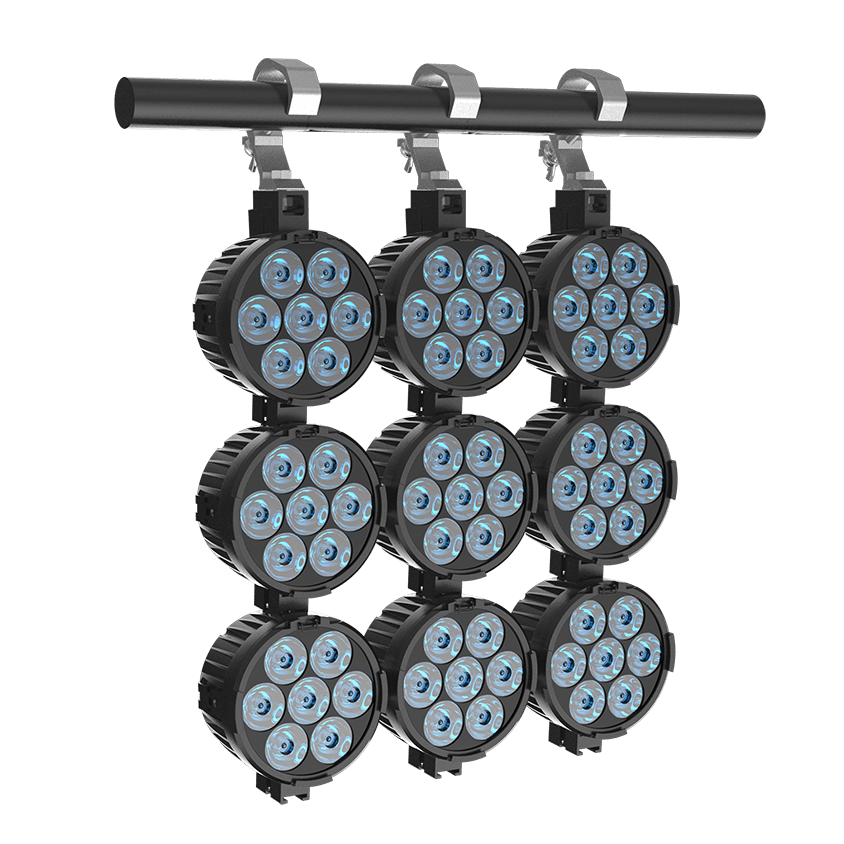

    • Multiple units can be split-jointed with tool-free junction buckle design
    • Optional color filter frame

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 55W
    • Power In/Out: Power connector in
    • Data In/Out: 3-pin or 5-pin XLR

    Physical Information

    • Fixture Dimensions:
      • Width: 197 mm (7.8″)
      • Depth: 206 mm (8.1″)
      • Height: 104 mm (4.1″)
      • Weight: 1.6 kg (3.6 lbs)

    Packing Information

    • Carton Dimensions:
      • Width : 540 mm (21.3″)
      • Depth : 540 mm (21.3″)
      • Height : 350 mm (13.8″)
      • Weight :
        G.W.: 18.7 kg (41.2 lbs) (Eight-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: 0°C
    • Maximum Surface Temperature: 75°C
    • Protection Rating: IP20

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • The feet support with locking points
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable

    Optional Accessories (With Order Code)

    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin or 5-pin signal cable
    • Color Frame: 4014790090
    • Junction Buckle: 63582318
    • Clamp: A011(2060001627)



    Dimensions

    Photometrics
