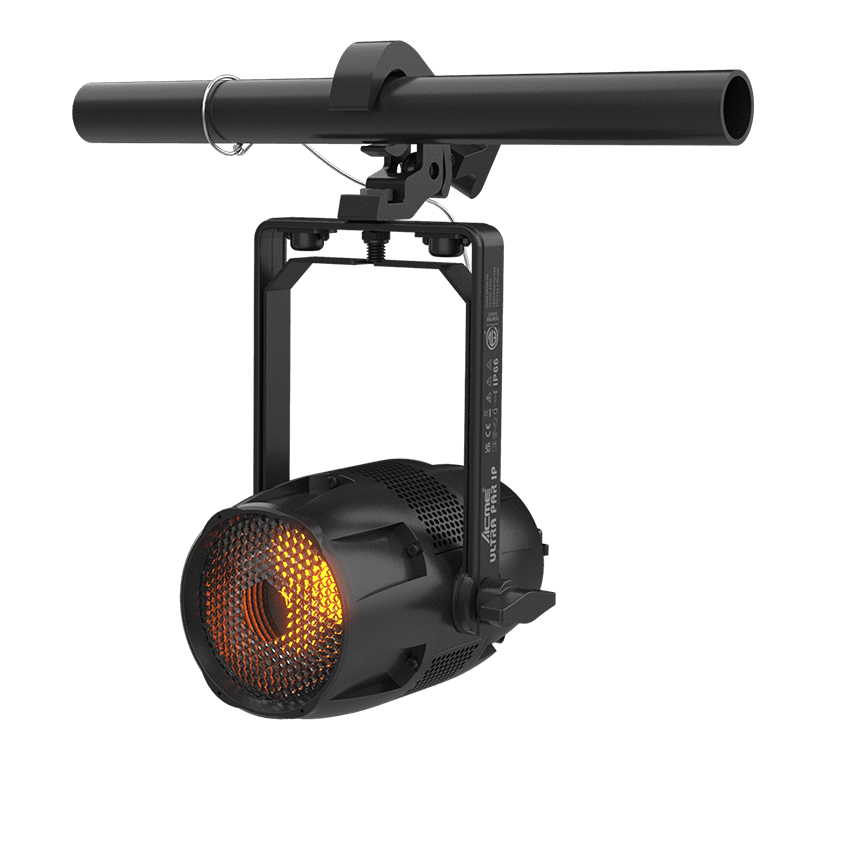

ULTRA PAR IP

ACME ULTRA PAR IP redefine el brillo en la iluminación escénica. Con una fuente de luz LED RGBA+WW de 260 vatios, este dispositivo ofrece una impresionante potencia de 7600 lúmenes, superando las luces tradicionales para público.

Diseñado con un ángulo de haz de 50° y un ángulo de campo de 84°, el ULTRA PAR IP garantiza una amplia cobertura, mejorada por su cabezal ajustable para un posicionamiento preciso. Ofrece 4 curvas de atenuación suaves, un efecto de luz de tungsteno y un efecto estroboscópico con velocidad variable para todas sus necesidades de producción de iluminación.

Compacto, portátil y con múltiples opciones de instalación, ULTRA PAR IP está diseñado para una fácil integración. Con su excepcional disipación de calor y certificación IP66, es apto para uso en interiores y exteriores, como centros de conferencias, salas de exposiciones, conciertos de gran y mediana escala, producciones de televisión y más.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    260W RGBA+WW LED

    LED Life Expectancy

    20,000 hours

    Total Lumen Output of Fixture

    7,600 lumens

    Variable CTO

    2,500K-8,000K

    Beam Angle

    50°

    Field Angle

    84°

    Weight

    3.5 kg (7.7 lbs)



    Technical & Specification

    Model

    • Model Name: ULTRA PAR IP
    • Model Code: BL 100 IP

    Light Source

    • Light Source: 260W RGBA+WW LED
    • Total Lumen Output of Fixture: 7,600 lumens
    • Color Temperature Output of Fixture: 2,600K-2,750K
    • Life Expectancy: 20,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 50°
    • Field Angle : 84°

    Control

    • 4 touch button control panel
    • Display: LCD display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 8
    • Control Channels: 1/2/4/4/6/7/9/11
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Tungsten emulation during dimming
    • Outstanding color mixing
    • Multiple head rotation angles with easy positioning

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 120W
    • Power In/Out: Waterproof power connector in/out
    • Data In/Out: 3-pin or 5-pin waterproof XLR
    • Maximum Quantity of Connections:
      • 230V, 50Hz: 24 units
      • 120V, 60Hz: 13 units
    • Power supply with electronic auto-ranging

    Physical Information

    • Fixture Dimensions:
      • Width: 234 mm (9.2″)
      • Depth: 251 mm (9.9″)
      • Height: 307 mm (12.1″)
      • Weight: 3.5 kg (7.7 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 1,220 mm (48.0″)
      • Depth : 610 mm (24.0″)
      • Height : 595 mm (23.4″)
      • Weight :
        • Standard: G.W.: 92.5 kg (203.9 lbs) (Ten-pack loader case)
        • North American Standard: G.W.: 98.8 kg (217.8 lbs) (Ten-pack loader case)
    • Carton Dimensions:
      • Width : 410 mm (16.1″)
      • Depth : 220 mm (8.7″)
      • Height : 325 mm (12.8″)
      • Weight :
        G.W.: 4.8 kg (10.6 lbs) (One-pack loader carton)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP66

    Approvals

    • CE compliant
    • UKCA compliant
    • cETLus compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • 1 clamp for 50 mm truss
    • 1 omega bracket
    • Double mounting bracket
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable
    • 1 omega bracket (3002003002)

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard :



    Dimensions
