STAGE PAR 400 ZOOM IP

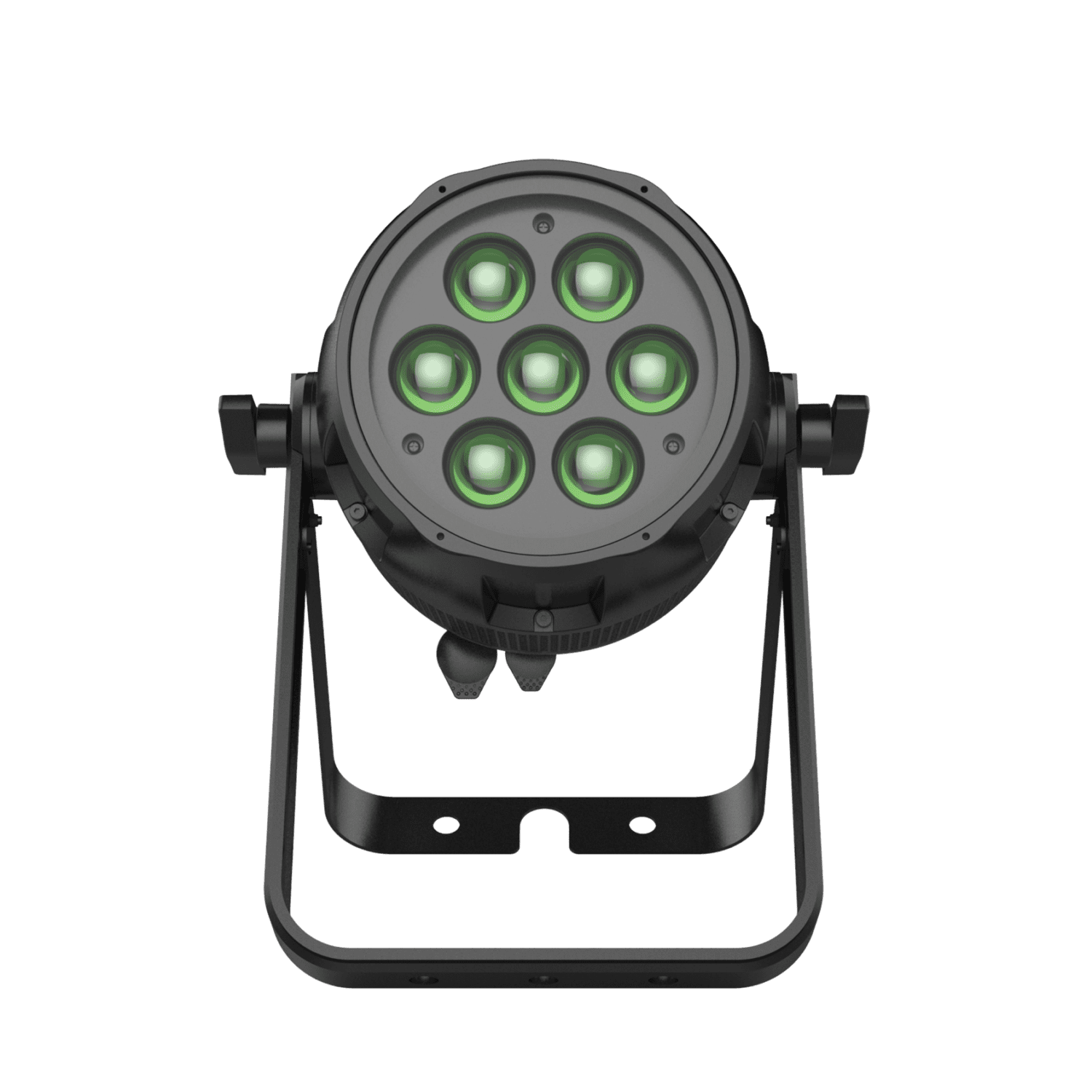

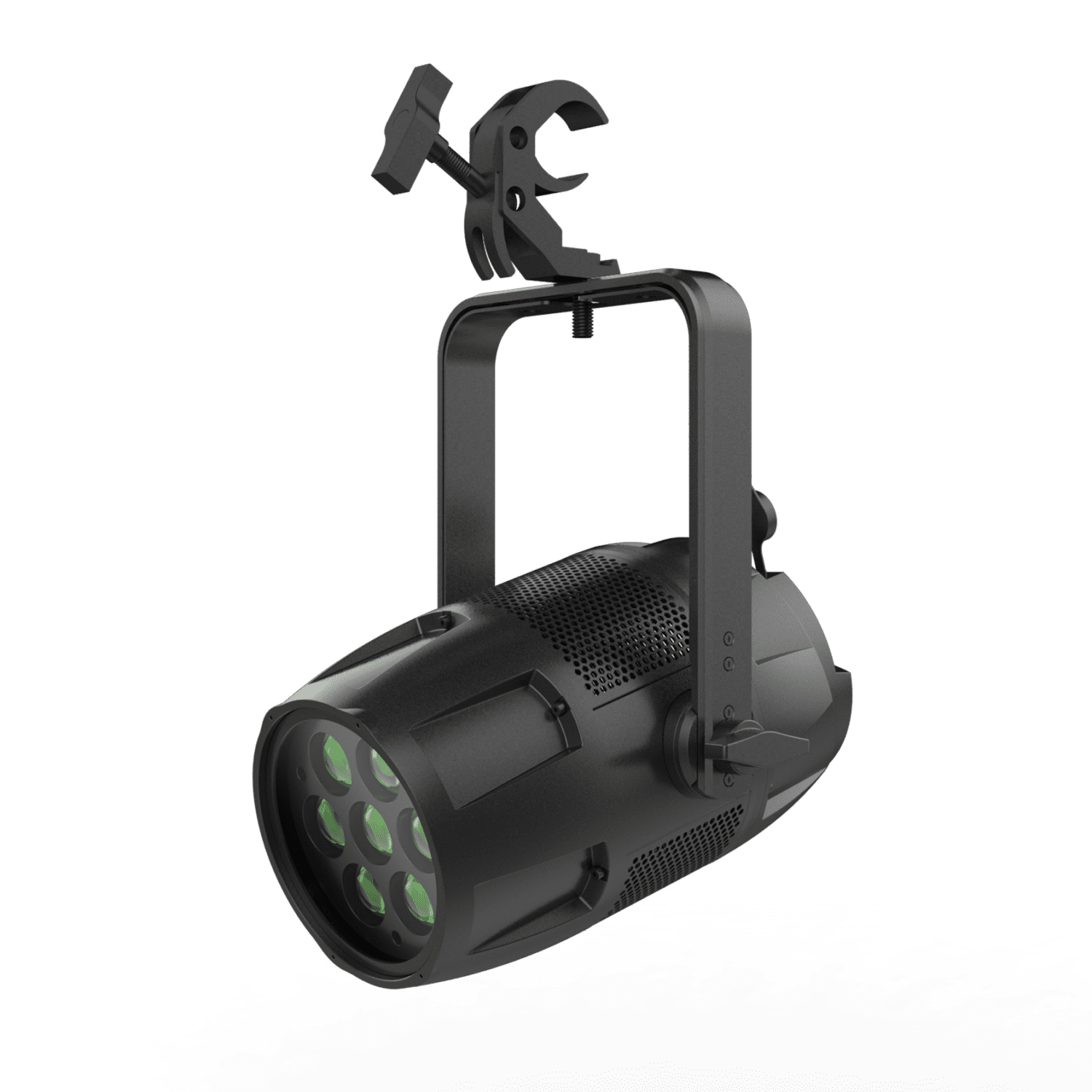

ACME STAGE PAR 400 ZOOM IP, un parLED para exteriores con clasificación IP66 que cuenta con LED Osram RGBW 4 en 1 de 7 x 30 W, zoom motorizado con relación 1:6 de 6° a 40° con mezcla de colores suave y efectos macro preestablecidos variables, y un sistema de calibración de color único que también contribuye a la mejor mezcla de colores y al mejor rendimiento en cuanto a consistencia del color.

Ofrece ajuste CCT de 3200 a 10 000 K, efectos de curva de atenuación opcionales, frecuencia de actualización LED ajustable y brillo gamma para un funcionamiento sin parpadeos en aplicaciones de televisión y cine, y también es compatible con RDM. Equipado con conexiones DMX In&Out de 5 pines y powerCON TRUE1 power In/Out, menú con pantalla OLED, doble yugo de montaje integrado y una carcasa IP compacta y duradera de fundición a presión, este dispositivo, con un peso de solo 8,5 kg, es una innovación en iluminación IP fácil de usar que ahorra significativamente costes y tiempo en cualquier trabajo de transporte y en aplicaciones exteriores limitadas. Sin duda, es un dispositivo en auge.

    Consultar precios

    También te recomendamos…

    Descripción

    Performance

    Light Source

    7 x 30W RGBW LED

    LED Life Expectancy

    30,000 hours

    Total Lumen Output of Fixture

    3,250 lumens

    Beam Angle

    6°-38°

    Field Angle

    11°-59°

    Weight

    8.5 kg (18.7 lbs)



    Technical & Specification

    Model

    • Model Name: STAGE PAR 400 ZOOM IP
    • Model Code: MP-400Z IP

    Light Source

    • Light Source: 7x30W RGBW LED
    • Total Lumen Output of Fixture: 3,250 lumens
    • Life Expectancy: 30,000 hours*
      *Source manufacturer specification

    Optical System

    • Beam Angle : 6°- 38°
    • Field Angle : 11°- 59°

    Control

    • 4 touch button control panel
    • Display: OLED display
    • Protocols: DMX512,RDM
    • DMX Protocol Modes: 3
    • Control Channels: 5/7/9
    • Firmware Upgrade: Upgrade via DMX link

    Other Effects

    • Outstanding strobe effect with variable speed
    • Smooth dimming 0-100% (4 user selectable dimming curves)
    • Excellent RGBW color mixing
    • Adopt high-efficiency heat pipe cooling module to quickly discharge heat, greatly reduce light decay and ensure the service life of LED
    • The model is novel and small, net weight only 8.5Kg, which greatly saves the transportation cost
    • With color correction function, can make the color compensation, so that different lighting can present the same color effect
    • Advanced RDM function
    • Built-in programs for selection
    • Can change the DMX address code, reset the lighting, transform the voice control mode by console
    • Flicker free management
    • Dust-proof and oil-proof design

    Electrical and Connectors

    • Input Voltage Range: 100-240Vac; 50/60Hz
    • Power Consumption: 250W
    • Data In/Out: 3-pin or 5-pin waterproof XLR
    • Maximum Quantity of Connections:
      • 230V, 50Hz: 12 units
      • 120V, 60Hz: 6 units

    Physical Information

    • Fixture Dimensions:
      • Width: 318 mm (12.5″)
      • Depth: 295 mm (11.6″)
      • Height: 316 mm (12.4″)
      • Weight: 8.5 kg (18.7 lbs)

    Packing Information

    • Flight Case Dimensions:
      • Width : 885 mm (34.8″)
      • Depth : 600 mm (23.6″)
      • Height : 835 mm (32.9″)
      • Weight :
        • Standard: G.W.: 97.5 kg (215.0 lbs) (Six-pack loader case)

    Work Environment

    • Maximum Ambient Temperature: 40°C
    • Minimum Operating Temperature: -10°C
    • Maximum Surface Temperature: 65°C
    • Protection Rating: IP66

    Approvals

    • CE compliant

    Installation

    • Horizontal or vertical mounting
    • Universal working position
    • The feet support with 3 locking points
    • Safety cable attachment point

    Included Items

    • Digital user manual
    • Power cable

    Optional Accessories (With Order Code)

    • Flight Case:
      • Standard : Six-pack loader case (63583819)
    • Clamp : C-250B (2060001632-B)
    • Safety Cable: SW-02 (2060000200)
    • Signal Cable: 3-pin waterproof single cable (3017013468) or 5-pin waterproof single cable (3017013473)



    Dimensions

    Photometrics



    Video











    Descargas


    STAGE PAR 400 ZOOM IP Descargas Enlace
